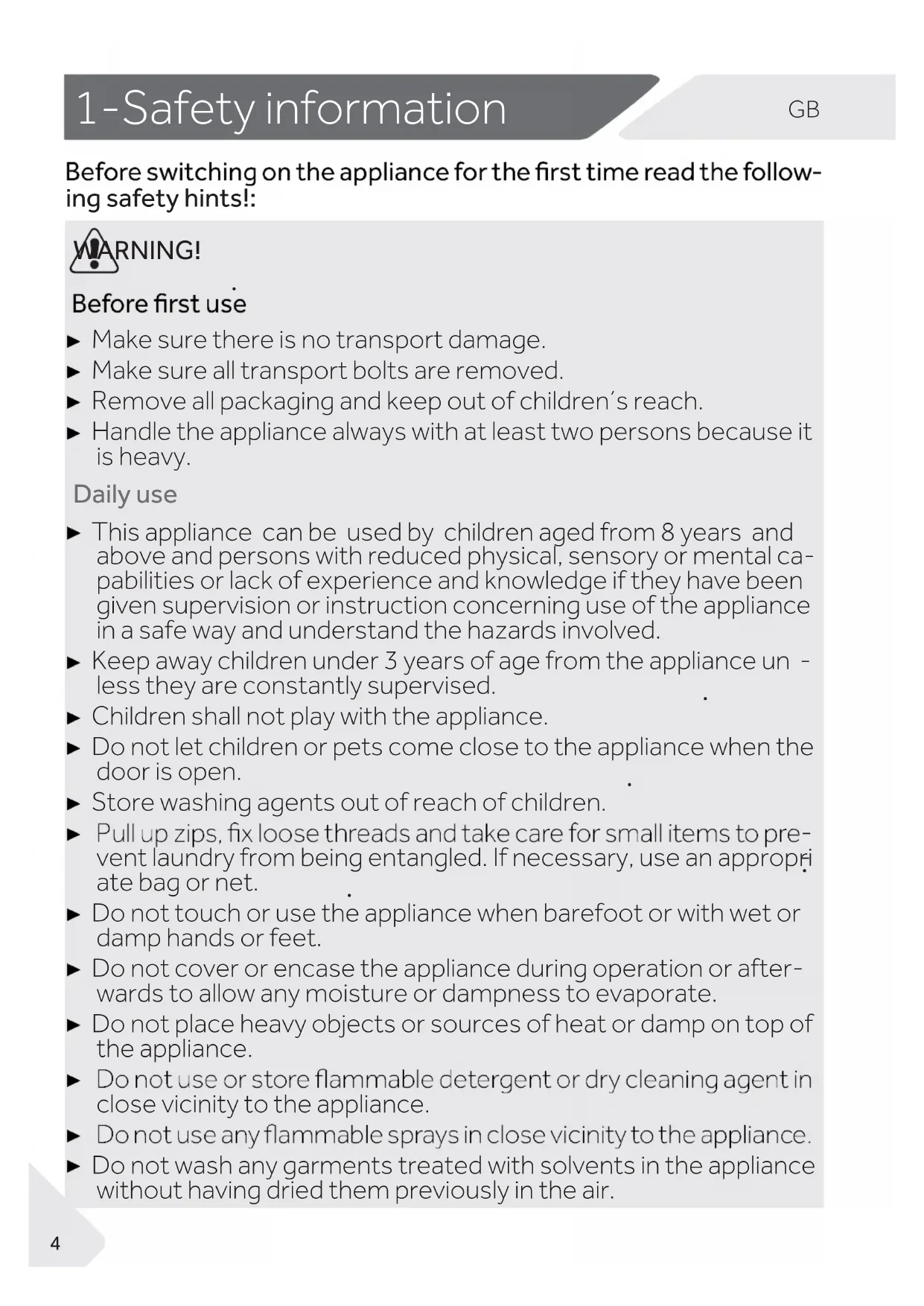

Warning – Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put

the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product

to your local recycling facility or contact your municipal Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING!

of it. Remove the door catch to prevent children and pets to get closed in the appliance. ●GB Content

Make sure there is no transport damage. Make sure all transport bolts are removed. Remove all packaging and keep out of children´s reach. Handle the appliance always with at least two persons because it is heavy. Daily use This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep away children under 3 years of age from the appliance un

less they are constantly supervised. Children shall not play with the appliance. Do not let children or pets come close to the appliance when the

door is open. Store washing agents out of reach of children.

vent laundry from being entangled. If necessary, use an appropri

ate bag or net. Do not touch or use the appliance when barefoot or with wet or damp hands or feet. Do not cover or encase the appliance during operation or after- wards to allow any moisture or dampness to evaporate. Do not place heavy objects or sources of heat or damp on top of the appliance. close vicinity to the appliance. Do not wash any garments treated with solvents in the appliance without having dried them previously in the air.GB 1-Safety information

WARNING! Daily use gas Do not hot wash foam rubber or sponge-like materials.

Do not open detergent drawer during any wash cycle. Do not touch the door during the washing process, it gets hot. Do not open the door if the water level is visibly over the porthole. device and will open shortly after the washing procedure is ended. undertaking any routine maintenance and disconnect the appli- ance from the electrical supply to save electricity and for safety. Hold the plug, not the cable, when unplugging the appliance. Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before un

dertaking any routine maintenance. Keep the lower part of the porthole clean and open door and de- tergent drawer if appliance is not in use to prevent odours. ● Do not use water spray or steam to clean the appliance.

Replace a damaged supply cord only by the manufacturer, its ser- Do not try to repair the appliance by yourself. In case of repair please contact our customer service. Installation The appliance should be placed in a well-ventilated place. Ensure a location which allows opening the door fully. Never install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.1-Safety information

Intended use This appliance is intended for washing machine-washable laun

dry only. Anytime follow the instructions given on the label of each garment label. It is designed exclusively for domestic use inside the house. It is not intended for commercial or industrial use. use may cause hazards and loss of of all warranty and liability claims. WARNING! Installation Install or use the appliance only where the temperature is above 5 °C. Do not place the appliance directly on a carpet, or close to a wall or furniture. Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electri- cian. Do not use multi-plug adapters and extension cables. Make sure only the delivered electric cable and hose set are used. Make sure not to damage the electric cable and the plug. If dam- aged have it replaced by an electrician. accessible after installation. The appliance must be earthed. Only for UK:

pliance is installed, the plug should be accessible. no leakage.GB 2-Product description

2.1 Picture of appliance

Check the accessories and literature in accordance with this list (Fig.:2-3): Inlet hose- assembly

5 Blanking plugs Drain hose bracket User manual Warranty-card Note:

1 Detergent /Softener drawer 2 Worktop 3 Programme selector 4 Panel 1 Transportation bolts (T1-T4) 2 Back cover 3 Back cover screws (S1-S6) 4 Power cord 5 Water inlet vave 6 Drain hose 2-1 2-2 5 Rating plate 6 Recessed grip 7 Sevice ap 8 Adjustable feet

Type of inlet hose depends on model.

ress this button (Fig. 3-2) gently to switch on, the dis- play is shining, the indicator of the “Start/Pause” button is ashing. Press it again for about 2 seconds to switch

ter a while machine will shut down automatically. 3-2

turning the knob (Fig. 3-3) one of 16 programmes can

be selected, related LED will light up, its default

ttings will be displayed.

The display (Fig. 3-4) shows following information: Washing time End time delay Error codes and service information 3-4 5 Function buttons 6 “Delay” button 7 “Start/Pause“ button Note : Acoustic signal In following cases an acoustic signal sounds: when pressing a button when turning the programme selector at the end of programme in case of failures The acoustic signal can be deselected if necessary ; see DAILY USE.

selected programme before programme starts. The related indicators are displayed.

gramme, all options are disabled. If a button has multiple options, the desired option can be selected by pressing the button sequentially. To delete the setting or to cancel the setting process, press the function button until the desired LED lights Start/Pause

(Fig. 3-7) to change the washing temperature of the programme. If no value is illumi- nated the water will not heated. In conjunction with the “Intense” button, the child lock

3.5.2-Function button “Speed”

Press this button (Fig. 3-8) to change or deselect the spin of the programme. If no value is illuminated the laundry will not spun. Note: Factory settings there is no special requirement default settings are recommended.

3.4 Detergent drawer

Open the drawer, three compartments can be seen (Fig. 3-5): Compartment 1 : Water inlet only, no detergent Compartment 2 : Detergent for programme Compartment : Softener, Conditioning agent etc. The recommendation on the type of detergents is suitable for the various washing temperatures, please refer to the manual of detergent. 3-5

3.5.3-Function button “Steam“

3-7 3-8Temp.Speed Press this button (Fig. 3-9) to activate the steam function.When this function is activated the default temperature is the maximum temperature of the programme selected.This function can be activated only with the following programmes: Hygienic, Baby clothes, Mix, Synthetics, Cotton.When the function is activated the led above the button will light up. Pushing again this button the function can be deactivated and the led above the button the programme cannot be changed. Temp.Speed SteamDelayExtra rinse ( )3-Control panel

Press this button (Fig. 3-10) to rinse the laundry more intense with fresh water. This is recommended for people with sensitive skin.

By pressing the button several times one to three ad

ditional cycles can be selected. They appear in the dis

3.5.5 Function “Speed up“

his function saves time and energy. Preferable if laun- dry is slightly soiled. Press simultaneously button “Extra rinse“ and ”Delay” (Fig. 3-11) for about 3 seconds

o activate the “Speed up” function;

played. This function is not available in all programmes (see PROGRAMMES).

“ button Press this button (Fig. 3-13) gently to start or inter

rupt the currently displayed programme. During pro

gramme setting and during programme run the LED above the button is shining, or if interrupted blinking.

Press this button (Fig. 3-12) to start the programme with a delay. End time delay could be increased in steps : means end of programme cycle will be in 6 hours and 30 minutes. Press “Start/Pause” button to activate the time delay. It is not applicable to programme SPIN. Note: Liquid detergent If using liquid detergent, it is not recommended to activate the end time delay.

conds simultaneously to block all panel elements against activation. For unlocking please press again the two buttons. The display shows

(Fig. 3-15) if a button will be pressed, when the child lock is activated. The change is not running. 3-15 Extra rinse 3-10 Delay Extra rinse Speed up 3-11 Delay 3-12 Start/Pause 3-13 3-14 Temp Speed SteamSteam 3-9 If “Temp.” button is pushed the “Steam” function will be deactivated.You can activate “Steam” function only bef- ore to start any programme. You cannot activate “Steam”

function while the appliance is already executing a programme.GB 4-Programmes

Relating to dry laundry. Choose 90 °C wash temperature only for special hygienic requirements. *: water will not heated (no value is iluminated). Reduce detergent amount because programme duration is short. Max. load Temperature Preset spin speed in rpm Function in kg in °CProgrammeseletable

Cotton 1000Synthetics 4.5 * to 60 30

Lightly soiled mixed-laundry of cotton and synthetics

/ Cotton 1400 Fast wash 4.5 * to 40 40

Lightly soiled laun-dry made of cot-ton or synthetics1000 / /Quick 15”

Laundry marked with symbol for handwash / /Bedding 2.25

Detergent compartment for: Water inlet only, no deter- gent

Detergent Softener or care product Yes,

Machine-washa-ble fabric made of wool or with wool cont

/ Co ton/Synthetics 1000 Baby clothes

Programme Temper- ature in °C Max. load in kg Energy in kWh Water in L Washing time in h:min Spin drying perfor- mance in %

• Standard programme for the Energy Labelling according to 2010/30 EU: Cotton+ 60°C / 40°C with max. spin speed setting. The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled cycle temperature. Note: Aut

o Weight The appliance is equipped with a loading recognition. At low loading, energy, water and washing time will be reduced automatically in some programs. 0,57 41 4:28 54

6.3 Preparing laundry

Sort out clothes according to fabric (cotton, syn- thetics, wool or silk) and to how dirty they are (Fig. 6-3). Pay attention to the care labelling of wash- ing labels. Separate white clothes from coloured ones. they fade or run. Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).

a wash bag to care for this delicate laundry (hand

or dry cleaning would be better).

Close zippers, velco fastener and hooks, make sure the buttons are sewn on tightly. hem, delicate underwear (Dessous) and small

items such as socks, belts, bras, etc. in a wash bag. bedspreads etc. Turn jeans and printed, decorated or color-inten- sive textiles inside out; possibly wash separately. 6-3

Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION.

6.2 Water connection

Before connecting check the cleanliness and clar- ity of the water inlet. Tun on the tap (Fig.6-2). Note: Tightness Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap. CAUTION!

Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance. 6-1 6-26-Daily use

Care chart Washing Washable up to 95°C normal process

Washable up to 60°C normal process Washable up to 60°C mild process Washable up to 40°C normal process Washable up to 40°C mild process Washable up to 40°C very mild process Washable up to 30°C normal process Washable up to 30°C mild process Washable up to 30°C very mild process Wash by hand max. 40°C Do not wash Bleaching Any bleaching allowed Only oxygen/ non -chlorine Do not bleach Drying Tumble drying possible normal temperature Tumble drying possible lower temperature Do not tumble dryr Line drying Flat drying Ironing Iron at a maximum temperature up to 200 °C Iron at a medial tem- perature up to 150°C Iron at a low temper- ature up to 110 °C; without steam (steam ironing may cause irre- versible damage)

Do not iron Dry cleaning in tetra

chloroethene Dry cleaning in hy- drocarbons Do not dry clean Professional wet clean

Do not professional wet clean

6.4 Loading the appliance

Put in the laundry piece by piece thumb for maximum load: Keep six inches between load and drum top. Close the door carefully. Make sure that no pieces of laundry are pinched. ●GB 6-Daily use

6.5 Selecting detergent

Use only machine wash approved detergent.

rgents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products. Choose the best detergent Programme Kind of detergent Universal Colour Delicate Special Softener Cotton L/P L/P o Synthetics L/P L/P L o Mix L/P L/P o Sportwear L o Jeans L/P L/P L o Hygienic L/P L/P L o Fast wash L L o Quick 15” L L o Daily Wash L/P L/P L o Baby clothes L/P L/P o Delicate L

tergent P = powder detergent O = optional = no If using liquid detergent, it is not recommended to activate the time delay. We recomment by using: Laundry powder: 20°C to 90°C* (best use:: 40-60°C) Color detergent: 20°C to 60°C (best use: 30-60°C) Wool/delicate detergent: 20°C to 30°C (= best use:)

• Choose 90 °C wash temperature only for special hygienic requirements. Wool L o L/P L/P o Cotton+6-Daily use

6.6 Adding detergent

1. Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 6-3) 3. Push back the drawer gently. Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener. Please follow the instruction on the detergent package. Concentrated liquid detergent should be diluted before adding into compartment 2. The best use of liquid detergent is by using a dosing ball, which is given with the laun-dry into the washing machine. Do not use liquid detergent if „end time delay“ is selected. Carefully choose the programme settings according to the care symbols on all laun-dry labels and according to the programme table.

6.8 Select a programme

o get the best washing results, select a programme

fault settings are displayed.

6.9 Add individual selections

elect required options and settings (Fig. 6-5); refer to CONTROL PANEL.Temp.Speed SteamDelay Start/Pause Extra rinseSpeed up 6-6 6-3

6-4 6-5 Note: Odour removalamount of detergent in washing agent compartment (2) or special machine cleaner to remove possibly corruptive residues.GB 6-Daily use

1. At programme cycle end

3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.

6. Open the door to prevent formation of moisture and odours. Let it open while not used.

The acoustic signal can be deselected if necessary:

1. Switch on the appliance.

3. Press the “Delay “button and “Extra rinse” button at the same time for about 3 sec-

onds. “ ” will be displayed and the buzzer will be deactivated. For activating the buzzer press these two buttons at the same time again. “ ” will be displayed. To interrupt a running programme press gently “Start/Pause“. The LED above the button To cancel a running programme and all its individual settings

4. Select a new programme and start it.

Note: Door lock For safety reasons the door is locked partially during the washing cycle. It is only pos- sible to open the door at the end of the programme or after the programme was can- celled correctly (see description above). In case of high water level, high water temperature and during spinning it is not pos- sible to open the door; is displayed The switched on appliance will go into standby-mode if it will not be activated within 2 This saves energy. To interrupt the standby mode push “Start/Pause“ button. Press “Start/Pause“ button (Fig. 6-7) to start. The LED up continuously Appliance operates according to present settings. Changes are only possible by cancelling the programme.

6.11 Interrupt - cancel wash programme

To achieve best use of energy, water, detergent and time you should use the recom

Do not overload (hand width clearance above laundry). For slightly soiled laundry select the Quick Wash programme. Apply exact dosages of each washing agent. Choose the lowest adequate washing temperature - modern detergents are ef- Raise default settings only due to heavy staining. Select max. spinning speed if a domestic dryer is used.GB 8-Care and cleaning

8.1 Cleaning the detergent drawer

Take always car e there are no detergent residues. Clean the drawer regularly (Fig. 8-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer.3. Flush the drawer with water until it is clean and insert the drawer back in the appliance.

8.2 Cleaning the machine

Unplug the machine during cleaning and mainte-nance. Use a soft cloth with soap liquid to clean the ma-chine case (Fig. 8-2) and rubber components. Do not use organic chemicals or corrosive sol-vents. Note:

Hygiene For regular maintenance we recommend to run programme HYGIENIC with no load in order to remove possible corruptive residues quarterly. Add a small amount of deter-gent in washing agent compartment (2) - or use a special machine cleaner To prevent blockage of water supply by solid substanc- supply. Unscrew the water inlet hose at the back (Fig. 8-3) of the appliance as well as on the tap.

8.4 Cleaning the drum

Remove accidentally washed metal parts such as pins, coins, etc. from the drum (Fig. 8-5) because they cause rust stains and damage. Use a non-chloride cleaner for removing rust stains. Observe the warning hints of the cleaning agent manufacturer. Do not use any hard objects or steel wool for clean-ing. 8-38-4 8-5 8-1

8-28-Care and cleaning

Pull the drainhose out and hold its end above the container (Fig. 8-10).

5. Take the sealing plug out of the drainhose (Fig.

6. After complete drainage close drainhose (Fig.

8-11). and push it back into the machine.

If the appliance is left idle for a longer period:

and odours. Let door open while not used. Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leakage. WARNING! cooled down. Note: Hygiene After long periods of disuse we recommended to run programme HYGIENIC with no load and small amount of detergent in washing agent compartment (2) or special ma- chine cleaner to remove possibly corruptive residues. for instanvce if the appliance: doesn´t drain the water. doesn´t spin. cause unusual noise while running. 8-8 8-98-10 8-118-12 8-138-6 8-7GB 8-Care and cleaning

ain hose installation.

OMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. improper repairs can cause considerable consequential damages.. A damaged power cable should only be replaced by the manufacturer, its service

9.1 Information codes

Following codes are displayed only for information referring to the washing cycle. No measures must be performed. Code Message

The remaining wash cycle time will be 1 hour and 25 minutes

The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 min- utes //1/2/3 additional rinses are choosen (see FUNCTION BUTTONS „Extra rinse“).

Function child lock is activated Door is closed because of high water level, high water temperature or spinning cy- cle.

The buzzer is deactivated The buzzer is activated Function “Speed up” is activated.Water level not reached.

Program Cause Solution Temperature sensor - error.. Contact the After sales service.. Heating error Contact the After sales service..

Abnormal communication error Contact the After sales service..

Unbalanced load - error.. .murd eht ni daol yrdnual ecnalab dna kcehC Reduce the load.Problem Cause SolutionWashing machine fails to operate. Programme is not yet started. Check programme and start it. Door is not properly closed. Close the door properly. Machine has not been switched on. Switch the machine on. Power failure. Check power supply. Child lock is activa ted. Deactivate child lock.Washing machine water. No water. Check water tap. Inlet hose is kinked. Check inlet hose. W ater pressure is less than 0.03 MPa. Check water pressure.

oor is not properly closed. Close the door properly. Water supply failure. Ensure the water supply.Machine is draining Height of drain hose is below 80 cm. Make sure that drain hose is properly installed. Drain hose end could reach into water. Make sure the drain hose is not in water. Drainage failure. Drain hose is blocked. Unblock drain hose. Drain hose end is higher than 100 cm above oor level. Make sure that drain hose is properly installed.Strong vibration while spinning. Not all transportation bolts have been removed. Remove all transportation bolts Appliance has no solid position. Ensure solid ground and a levelled position. Machine load is not correct. Check load weight and balance.Operation stops before completing wash cycle. Water or electric failure. Check power and water supply.Operation stops f

a period of time. Appliance displays error code. Consider display codes. Problem due to load pattern. Reduce or adjust load. Programme performs soaking cycle. Cancel programme and restart.

9.3 Troubleshooting without display code

Water level sensor-error Contact the After sales service..9-Troubleshooting

ance, disconnect the power supply and contact the customer service.

9.4 In case of power failure

The current programme and its setting will be saved. When power supply is restored operation will be re-sumed. In case of power failure during programme run door opening is mechanically blocked. If the laundry is to

be removed, the water level must not be visible in the Lower the water level according to step 1 to 6 of ● door is unlocked by a gentle click.

9-1 Note: Foam formationIf too much foam is inspected during spin cycle, motor stops and drain pump will be ac-tivated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends without spinning. Causedrum and/or deter-gent drawer.Detergent is not a appropriate. Check detergent recommen-dations.Excessive use of detergent. Reduce amount of detergent.Automatic adjust-ment of washing time.Washing programme duration will be adjusted.This is normal and doesn‘t af-fect functionality.Spinning fails. Check machine load and laun- dry and run a spinning pro- gramme again. ing result.Degree of pollution does not agree with selected programme. Select an other programme. Detergent quantitiy was not suf- Choose the detergent accord- ing to the degree of pollution and according to manufacturer Maximum load has been exceeded. Reduce loading.Laundry was unevenly distributed in the drum.Loose the laundry.Washing powder residues are on the laundry.Insoluble particles of detergent can remain as white spots on the laun- dry. Perform extra rinse.Try to brush the points from the dry laundry.Choose an other detergent.Laundry has grey patches.Caused by fats such as oils, creams or ointments.Pretreat the laundry with a spe-cial cleaner.GB 10-Installation

Take the appliance out of the packaging. Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port- hole. This normal phenomenon results from water tests in the factory. The transportation bolts are designed for clamping anti-vibration components inside the appliance during transportation to prevent inner damage.

1. Remove the back cover (Fig. 10-1).

2. Remove all 4 bolts on the rear side and take out

plastic spacers (A) from inner side of the machine (Fig. 10-2).

3. Replace back cover by inserting it in the two gaps

its convexity is facing out (Fig. 10-3).

4. Fill left holes with blanking plugs

10-1 10-3 10-4 Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environmen- tally friendly manner. Note: Keep in safe place

Keep the transportation bolts in a safe place for later use. Whenever the appliance is to

10.3 Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts re- moved before installation to prevent damage:

1. Remove the blanking plugs.

2. Remove the back cover

3. Insert the plastic spacers and the transportation bolts.

4. Tighten the bolts with a spanner.

Following connections are possible:

10.5.1 Drain hose to sink

10.5.2 Drain hose to waste water connection

The internal diameter of the stand pipe with vent-hole must be minimum 40 mm. Put the drain hose for approx. 80 mm in the wastewater pipe. (Fig. 10-7). 10-6 10-7

10.5 Drain Water Connection

Fix the water drain hose properly to the piping. The hose has to reach at one point a height WARNING!

Only connect to cold water supply. Before connection, check whether the water is clean and clear.

10.4 Aligning the appliance

Adjust all feet (Fig. 10-5) to achieve a complete level position. This will minimize vibrations and thus noise during use. It will also reduce wear and tear. We recom- mend to use a spirit level for adjustment. Floor should

1. Loose the locknut (1) by using a wrench.

2. Adjust the high by turning the foot (2).

3. Tighten locknut (1) against the housing.

10.6 Fresh Water Connection

CAUTION! leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less

phoning). Drain hose is not to be extended. If necessary contact after sales service. Make sure that the gaskets are inserted.

1. Connect the water inlet hose with the angled

end to the appliance (Fig. 10-9). Tighten the screw joint by hand.

2. The other end connect to a water tap with a

3/4“ thread (Fig. 10-10). Note: Aqua-stop-system: Some models are equipped with an aqua-stop inlet hose (B).The aqua-stop system protects against water damage by automatically cutting the fresh water supply in case of a leaking hose. This is indicated by a red marker (C). The hose must be replaced.

10.5.3 Drain hose to sink connection

The junction must lie above the siphon A spigot connection is usually closed by a pad (A). That must be removed to prevent any disfunc- tion (Fig. 10-8). Secure the drain hose with a clamp. 10-8 10-10 10-910-Installation

Before each connection check if: power supply, socket and fusing are appropriate to the rating plate. the power socket is earthed and no multi-plug or extension are used. the power plug and socket are strictly according. Only UK: Put the plug into the socket (Fig. 10-11). WARNING! Take care these parts are never to be crushed, kinked, or twisted

If the supply cord is damaged, it must be replaced by the service agent (see warranty card) in order to avoid a hazard. . Note: Hygiene

nance run programme HYGIENIC with no load and small amount of detergent in wash-

ing agent compartment (2) or with special machine cleaner to remove possibly corrup- tive residues. 10-11GB 11-Technical data

Suppliers name or trade mark Haier HW90-B14636 Rated capacity (kg) 9 A+++ Energy consumption per year (AE

Energy consumption of standard cotton pro- gramme 60 °C, full load (kWh/cycle)

Energy consumption of standard cotton pro- gramme 60 °C, partial load (kWh/cycle)

Energy consumption of standard cotton pro- gramme 40

Weighted power consumption of the left-on mode (W) 0.55 Water consumption per year (AW

Duration of the left-on mode (T

not applicable Airborne accustical noise (washing/spinning) in dB(A) re 1pW

1) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and par-

tial load, and the consumption of the low-power modes. Actual energy consumption will de- pend on how the appliance is used.

standard washing cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used

4) Based on the standard 60 °C cotton programme at full load and the standard 40 °C cotton pro-

gramme at partial load

in terms of combined energy and water consumption

6) In case there is a power management system.

7) Based on the standard 60°C cotton programme at full load.11-Technical data

HW90-B14636 Dimension (HxWxD in mm) 850x595x550 Voltage in V 220-240 V~/50Hz Current in A 10 Max power in W 2000

Water pressure in MPa

Netto weight in kg 72

11.2 Additional technical data

11.3 Standards and Directives

This product meets the

requirements of all applicable EC directives with the correspon- ding harmonised standa

rds, which provide for CE marking.GB 12-Customer service We recommend our Haier Customer Service and the use of original spare parts. your local dealer or and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Also check the Warranty Card supplied with the product in case of warranty. European Haier addresses

Country* Postal address

L - - o Bonte was Quotidien L/P L/P L - o Wol Laine -
