USER MANUAL HW100B12636N HAIER

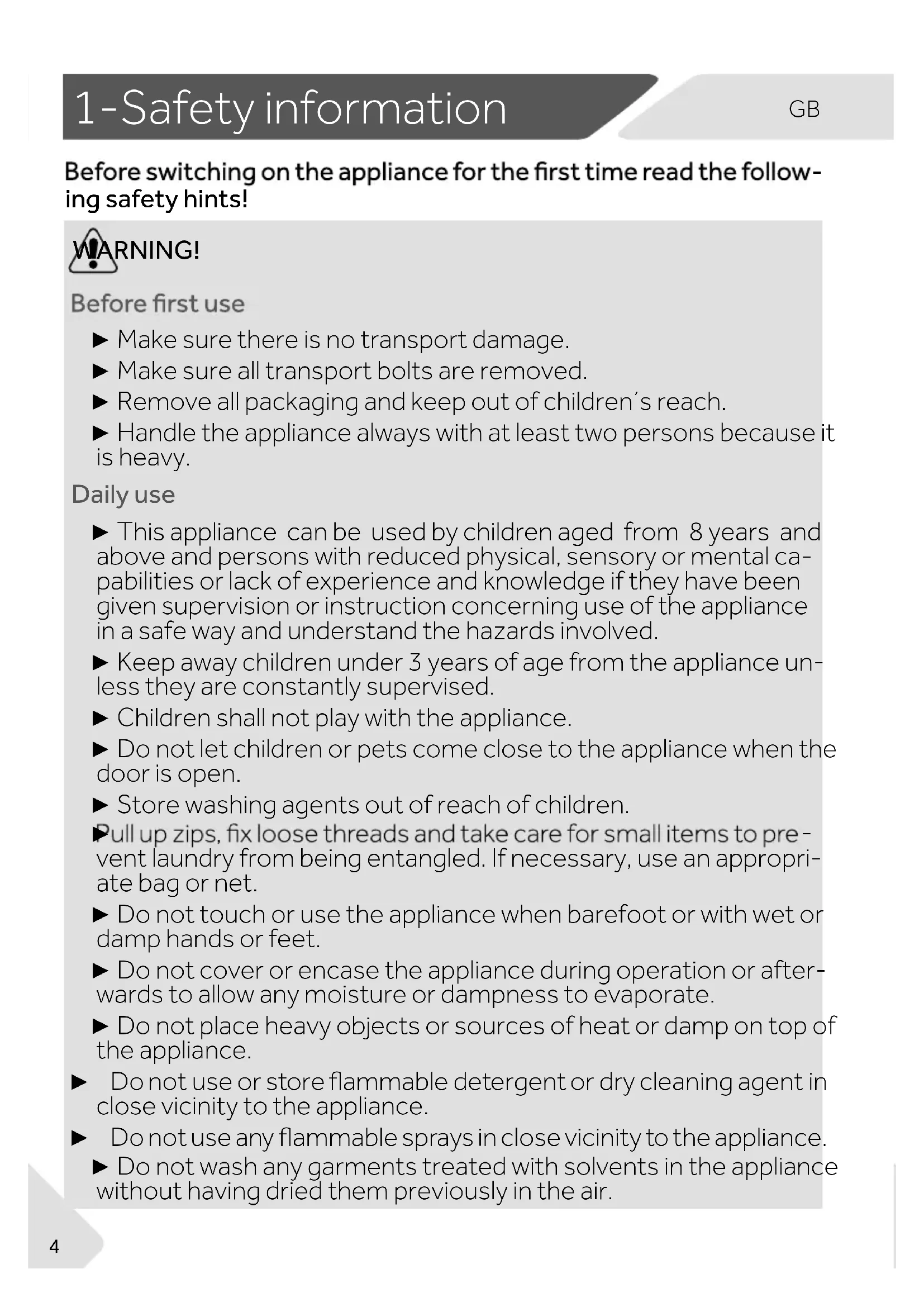

Legend Warning – Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! of it. Remove the door catch to prevent children and pets to get closed in the appliance.GB Content

ing safety hints! WARNING! ▶ Make sure there is no transport damage. ▶ Make sure all transport bolts are removed. ▶ Remove all packaging and keep out of children´s reach. ▶ Handle the appliance always with at least two persons because it is heavy. Daily use ▶ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ▶ Keep away children under 3 years of age from the appliance un- less they are constantly supervised. ▶ Children shall not play with the appliance. ▶ Do not let children or pets come close to the appliance when the door is open. ▶ Store washing agents out of reach of children.

vent laundry from being entangled. If necessary, use an appropri- ate bag or net. ▶ Do not touch or use the appliance when barefoot or with wet or damp hands or feet. ▶ Do not cover or encase the appliance during operation or after- wards to allow any moisture or dampness to evaporate. ▶ Do not place heavy objects or sources of heat or damp on top of the appliance. ▶ Do not use or store flammable detergent or dry cleaning agent in close vicinity to the appliance. ▶ Do not use any flammable sprays in close vicinity to the appliance. ▶ Do not wash any garments treated with solvents in the appliance without having dried them previously in the air.GB 1-Safety information

WARNING! Daily use ▶ Do not remove or insert the plug in the presence of flammable gas. ▶ Do not hot wash foam rubber or sponge-like materials. ▶ Do not wash any laundry which is polluted with flour. ▶ Do not open detergent drawer during any wash cycle. ▶ Do not touch the door during the washing process, it gets hot. ▶ Do not open the door if the water level is visibly over the porthole. ▶ Do not force the door to open. The door is tted with a self-lock device and will open shortly after the washing procedure is ended.

undertaking any routine maintenance and disconnect the appli- ance from the electrical supply to save electricity and for safety. ▶ Hold the plug, not the cable, when unplugging the appliance. Maintenance / cleaning ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. ▶ Keep the lower part of the porthole clean and open door and de- tergent drawer if appliance is not in use to prevent odours. ▶ Do not use water spray or steam to clean the appliance. ▶ Replace a damaged supply cord only by the manufacturer, its ser- ▶ Do not try to repair the appliance by yourself. In case of repair please contact our customer service. Installation ▶ The appliance should be placed in a well-ventilated place. Ensure a location which allows opening the door fully. ▶ Never install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.1-Safet y information

Intended use This appliance is int ended for washing machine-washable laun- dry only. Anytime follow the instructions given on the label of each garment label. It is designed exclusively for domestic use inside the house. It is not intended for commercial or industrial use. Changes or modications to the device are not allowed. Unintended use may cause hazards and loss of of all warranty and liability claims. WARNING! Installation ▶ Install or use the appliance only where the temperature is above 5 °C. ▶ Do not place the appliance directly on a carpet, or close to a wall or furniture. ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). ▶ Make sur e that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electri- cian. ▶ Do not use multi-plug adapt ers and extension cables. ▶ Make sure onl y the delivered electric cable and hose set are used. ▶ Make sure no t to damage the electric cable and the plug. If dam- aged have it replaced by an electrician. ▶ Use a separ ate earthed socket for the power supply which is easy accessible after installation. The appliance must be earthed. Only for UK: The appliance’s power cable is tted with 3-cord (grounding) plug that ts a standard 3-cord (grounded) socket. Never cut o or dismount the third pin (grounding). After the ap- pliance is installed, the plug should be accessible. ▶ Make sur e the hose joints and connections are rm and there is no leakage.GB 2-Product description

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

Check the accessories and literature in accordance with this list (Fig.2-3):Inlet hose-assembly5 Blanking plugsDrain hose bracketUser manualWarranty-card Note:

1 Detergent /Softener drawer2 Worktop 3 Programme selector4 Panel1 Transportation bolts (T1-T4) 2 Back cover3 Back cover screws (S1-S6)4 Power cord5 Water inlet valve6 Drain hose 2-1 2-2 5 Rating plate

Noisereduction pads3-Control panel

1 “ 2 Programme selector 3 Display 4 Detergent /Softener drawer Press this button (Fig. 3-2) gently to switch on, the dis- play is shining, the indicator of the “Start/Pause” button is flashing. Press it again for about 2 seconds to switch

ter a while machine will shut down automatically. 3-2

3.2 Programme selector

By turning the knob (Fig. 3-3) one of 16 programmes can be selected, related LED will light up, its default settings will be displayed.

The display (Fig. 3-4) shows following information: ▶ Washing time ▶ End time delay ▶ Error codes and service information 3-4 5 Function buttons 6 “Delay” button 7 “Start/Pause“ button Note : Acoustic signal In following cases, an acoustic signal is no sounds by default: ▶ when pressing a button ▶ when turning the programme selector ▶ at the end of programme The acoustic signal can be selected if necessary ; see DAILY USE. Express 15 min

The function buttons (Fig. 3-6) enable additional op- tions in the selected programme before programme starts. The related indicators are displayed.

gramme, all options are disabled. If a button has multiple options, the desired option can be selected by pressing the button sequentially. To delete the setting or to cancel the setting process, press the function button until the desired LED lights 3-6

3.5.1-Function button “ Temp.“

Press this button (Fig. 3-7) to change the washing temperature of the programme. If no value is illumi- nated the water will not be heated. In conjunction with the “Steam” button, the child lock

3.5.2-Function button “Speed”

Press this button (Fig. 3-8) to change or deselect the spin of the programme. If no value is illuminated the laundry will not spun. Note: Factory settings there is no special requirement default settings are recommended.

3.4 Detergent drawer

Open the drawer, three compartments can be seen (Fig. 3-5): Compartment 1 : Water inlet only, no detergent Compartment 2 : Detergent for programme Compartment : Softener, Conditioning agent etc. The recommendation on the type of detergents is suitable for the various washing temperatures, please refer to the manual of detergent. 3-5

3.5.3-Function button “Steam“

3-7 3-8Temp.Speed Press this button (Fig. 3-9) to activate the steam function.When this function is activated the default temperature is the maximum temperature of the programme selected.This function can be activated only with the following programmes: Cotton, Synthetic, Mix, Baby Care, Hygiene.When the function is activated the led above the button will light up. Pushing again this button the function can be deactivated and the led above the button will turn off.When the function is activated the temperature of the programme cannot be changed.

Press this button (Fig. 3-10) to rinse the laundry more intense with fresh water. This is recommended for people with sensitive skin. By pressing the button several times one to three ad

ditional cycles can be selected. They appear in the dis

3.5.5 Function “Speed up“

This function saves time and energy. Preferable if laun- dry is slightly soiled. Press simultaneously button “Extra rinse“ and ”Delay” (Fig. 3-11) for about 3 seconds to activate the “Speed up” function; SPEEd

played. This function is not available in all programmes (see PROGRAMMES).

3.7 “Start/Pause“ button

Press this button (Fig. 3-13) gently to start or inter

rupt the currently displayed programme. During pro

gramme setting and during programme run the LED above the button is shining, or if interrupted blinking.

3.6 Function button “Delay”

Press this button (Fig. 3-12) to start the programme with a delay. End time delay could be increased in steps 6:30 means end of programme cycle will be in 6 hours and 30 minut- es.Press “Start/Pause” button to activate delay. It is not applicable to programme Spin,Eco 40-60. Note: Liquid detergent If using liquid detergent, it is not recommended to activate the end time delay.

Press button “Temp.“ and ”Steam” (Fig. 3-14) for 3 seconds simultaneously to block all panel elements against activation. For unlocking please press again the two buttons. The display shows cLo

(Fig. 3-15) if a button will be pressed, when the child lock is activated. The change is not running. 3-15 Extra rinse 3-10 Delay Extra rinseSpeed up 3-11 Delay 3-12 Start/Pause 3-13 3-14 Temp.Speed SteamSteam 3-9 If “Temp.” button is pushed the “Steam” function will be deactivated.You can activate “Steam” function only bef- ore to start any programme. You cannot activate “Steam”

function while the appliance is already executing a programme. (add time to the original programme time).GB 4-Programmes

(no value is illuminated).

Cotton/Synthetic 1000 Underwear5/4.5/4/3.55/4.5/4/3.5 40

Detergent compartment for : Water inlet only, no deter- Detergent Softener or care product

• to 90* to 40* to 40* to 40* to 40* to 30* to 60* to 40* to 90* to 60* to 60* to 60 Fabrics typeSynthetics or mixed fabricAll fabricsCottonDelicate laundryLightly soiledmixed-laundryof cotton andsyntheticsCotton/SyntheticsCotton/SyntheticsCotton/SyntheticCotton/SyntheticSports wearMachinewasha-ble fabric made ofwool or with woolcontentRelating to dry laundry.Choose 90°C wash temperature only for special hygienic requirements. *:water will not heatedReduce detergent amount because programme duration is short.5-Consumption

Note: Auto Weight The appliance is equipped with a loading recognition. At low loading, energy, water and Scan QR code on energy label for energy consumption information. The actual energy consumption may differ from the declared one according to local conditions. EU1015/2010 program Select Eco 40-60, press “speed” 10s, then adjust to 60°C/40°C with max. spin speed. The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled cotton laundry.They are the most efficient programmes in terms of combined energy and water consumption for cotton laundry.Actual water temperature may differ from declared cycle temperature. washing time will be reduced automatically in some programs.The display shows AUtO.GB 6-Daily use

6.3 Preparing laundry

▶ Sort out clothes according to fabric (cotton, syn- thetics, wool or silk etc.) and to how dirty they are (Fig. 6-3).Pay attention to the care labelling of w- ashing labels. ▶ Separate white clothes from coloured ones. they fade or run. ▶ Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).

a wash bag to care for this delicate laundry (hand or dry cleaning would be better). ▶ Close zippers, velco fastener and hooks, make sure the buttons are sewn on tightly.

hem, delicate underwear (Dessous) and small items such as socks, belts, bras, etc. in a wash bag. ▶ Unfold large pieces of fabric such as bed sheets, bedspreads etc. ▶ Turn jeans and printed, decorated or color-inten- sive textiles inside out; possibly wash separately. 6-3

Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION.

6.2 Water connection

▶ Before connecting check the cleanliness and clar- ity of the water inlet. ▶ Turn on the tap (Fig.6-2). Note: Tightness Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap. CAUTION! Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance. 6-1 6-26-Daily use

Care chart Washing Washable up to 95°C normal process Washable up to 60°C normal process Washable up to 60°C mild process Washable up to 40°C normal process Washable up to 40°C mild process Washable up to 40°C very mild process Washable up to 30°C normal process Washable up to 30°C mild process Washable up to 30°C very mild process Wash by hand max. 40°C Do not wash Bleaching Any bleaching allowed Only oxygen/ non -chlorine Do not bleach Drying Tumble drying possible normal temperature Tumble drying possible lower temperature Do not tumble dry Line drying Flat drying Ironing Iron at a maximum temperature up to 200 °C Iron at a medial tem- perature up to 150°C Iron at a low temper- ature up to 110 °C; without steam (steam ironing may cause irre- versible damage) Do not iron Professional Textile Care Dry cleaning in tetra- chloroethene Dry cleaning in hy- drocarbons Do not dry clean Professional wet clean Do not professional wet clean

6.4 Loading the appliance

▶ Put in the laundry piece by piece.

thumb for maximum load: Keep six inches between load and drum top. ▶ Close the door carefully. Make sure that no pieces of laundry are pinched.GB 6-Daily use

6.5 Selecting detergent

▶ W ▶ Use only machine wash approved detergent. ▶ ergents, e.g. for synthetic and woolen fabric. ▶ Mind always detergent manufacturer recommendations. ▶ Do not use dry cleaning agents such as trichloroethylene and similar products. Choose the best detergent Programme Kind of detergent Universal Colour Delicate Special Softener Cotton L/P L/P - - o Synthetic - - L/P - o Mix L/P L/P - - o Underwear

= no If using liquid detergent, it is not recommended to activate the time delay. We recommend by using: ▶ Laundry powder: 20°C to 90°C* (best use: 40-60°C) ▶ Color detergent: 20°C to 60°C (best use: 30-60°C) ▶ Wool/delicate detergent: 20°C to 30°C (best use:20-30°C)

• Choose 90 °C wash temperature only for special hygienic requirements. Wool - - L/P L/P - L/P L/P L/P L/P - - o Eco 40-60 Spin

6.7 Switch on the appliance

(Fig. 6-5). The LED of the Start/Pause“ button is flas-hing.

6.6 Adding detergent

1. Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 6-4). 3. Push back the drawer gently. Note: ▶ Remove detergent residues before next wash cycle from the detergent drawer. ▶ Do not overuse detergent or softener. ▶ Please follow the instruction on the detergent package. ▶ ▶ Concentrated liquid detergent should be diluted before adding into compartment 2. ▶ The best use of liquid detergent is by using a dosing ball, which is given with the laun- dry into the washing machine. ▶ Do not use liquid detergent if “end time delay“ is selected. ▶ Carefully choose the programme settings according to the care symbols on all laun- dry labels and according to the programme table.

6.8 Select a programme

To get the best washing results, select a programme type. Turn the programme knob (Fig. 6-6) to select the right programme. Related programme LED lights up and the default settings are displayed.

6.9 Add individual selections

Select required options and settings (Fig. 6-7); refer to CONTROL PANEL.Temp.Speed SteamDelay Start/Pause Extra rinseSpeed up 6-7 6-4

6-5 6-6 Note: Odour removalamount of detergent in washing agent compartment (2) or special machine cleaner to remove possibly corruptive residues.GB 6-Daily use

1. At programme cycle end

3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.

6. Open the door to prevent formation of moisture and odours. Let it open while not used.

6.13 Activate or deactivate the buzzer

The acoustic signal can be selected if necessary:

1. Switch on the appliance.

2. Select the SPIN programme.

3. Press the “Delay “button and “Extra rinse” button at the same time for about 3 sec-

onds. “ bEEP OFF ” will be displayed and the buzzer will be deactivated. For activating the buzzer press these two buttons at the same time again. “ bEEP On

will be displayed. To interrupt a running programme press gently “Start/Pause“. The LED above the button is flashing. Press it again to resume operation. To cancel a running programme and all its individual settings:

After closing th e program to restart the appliance,select a new programme and start it. Press “On/Off” button to turn on the appliance,select programme Spin and then se-. lect "no Speed"(speed lights are off) ,start the machine to drain the water.

Note: Door lock ▶ For safety reasons the door is locked partially during the washing cycle. It is only pos- sible to open the door at the end of the programme or after the programme was can- celled correctly (see description above). ▶ In case of high water level, high water temperature and during spinning it is not pos- sible to open the door; Loc

is displayed. Note: Standby mode / energy-saving mode The switched on appliance will go into standby mode if it will not be activated within 2 This saves energy. To interrupt the standby mode push “Start/Pause“ button.

6.10 Start wash programme

Press “Start/Pause“ button (Fig. 6-8) to start. The LED of the “Start/Pause“ button stops flashing and lights up continuously. Appliance operates according to present settings. Changes are only possible by cancelling the programme.

6.11 Interrupt / cancel wash programme

Start/Pause 6-87-Eco-friendly washing

Environmentally responsible use ▶ To achieve best use of energy, water, detergent and time you should use the recom- mended maximum load size. ▶ Do not overload (hand width clearance above laundry). ▶ For slightly soiled laundry select the Express 15min programme. ▶ Apply exact dosages of each washing agent. ▶ Choose the lowest adequate washing temperature - modern detergents are ef- ▶ Raise default settings only due to heavy staining. ▶ Select maximum spinning speed if a domestic dryer is used.GB 8-Care and cleaning

8.1 Cleaning the detergent drawer

Take always care there are no detergent residues. Clean the drawer regularly (Fig. 8-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer.3. Flush the drawer with water until it is clean and insert the drawer back in the appliance.

8.2 Cleaning the machine

▶ Unplug the machine during cleaning and mainte-nance. ▶ Use a soft cloth with soap liquid to clean the ma-chine case (Fig. 8-2) and rubber components. ▶ Do not use organic chemicals or corrosive sol- vents. Note: HygieneFor regular maintenance we recommend to run programme HYGIENE with no load in order to remove possible corruptive residues quarterly. Add a small amount of deter-gent in washing agent compartment (2) or use a special machine cleaner. To prevent blockage of water supply by solid substanc- ▶supply. ▶ Unscrew the water inlet hose at the back (Fig. 8-3) of the appliance as well as on the tap. ▶ ▶

8.4 Cleaning the drum

▶ Remove accidentally washed metal parts such as pins, coins, etc. from the drum (Fig. 8-5) because they cause rust stains and damage. ▶ Use a non-chloride cleaner for removing rust stains. Observe the warning hints of the cleaning agent manufacturer. ▶ Do not use any hard objects or steel wool for clean-ing. 8-38-4 8-5

8-28-Care and cleaning

2. Open service flap. You can either use a coin or a

screwdriver (Fig. 8-9).

3. Provide a flat container to catch leach water

(Fig. 8-10). There could be bigger amounts!

4. Pull the drainhose out and hold its end above the

container (Fig. 8-10).

5. Take the sealing plug out of the drainhose (Fig.

6. After complete drainage close drainhose and

push it back into the machine (Fig. 8-11).

7. Unscrew and remove counter clockwise the pump

If the appliance is left idle for a longer period:

and odours. Let door open while not used. Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leakage. WARNING! hot! Before any action please ensure water has cooled down. Note: Hygiene After long periods of disuse we recommended to run programme HYGIENE with no load and small amount of detergent in washing agent compartment (2) or special ma- chine cleaner to remove possibly corruptive residues. for instanvce if the appliance: ▶ Doesn´t drain the water. ▶ Doesn´t spin. ▶ Cause unusual noise while running. 8-8 8-98-10 8-118-12 8-138-6 8-7GB 8-Care and cleaning

CAUTION! ▶ Pump lter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape. ▶ The lter must be in plac e, or it may lead to leakage.

• Lock error. • Shut the door properly.

Drain hose is self-syphoning.

Make sure that tap is fully opened and water pressure is normal.

Check drain hose installation.

Water protective level error. • Contact the After sales service. of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

improper repairs can cause considerable consequential damages. ▶ A damaged power cable should only be replaced by the manufacturer, its service

9.1 Information codes

Following codes are displayed only for information referring to the washing cycle. No measures must be performed. Code Message1:25The remaining wash cycle time will be 1 hour and 25 minutes.6:30The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 min-utes.P--1/2/31/2/3 additional rinses are choosen (see FUNCTION BUTTONS “Extra rinse“). End cLo1- Function child lock is activated. Loc Door is closed because of high water level, high water temperature or spinning cy- cle. bEEP OFF The buzzer is deactivated. bEEP ON The buzzer is activated. SPEEd CLR FLTR upFunction “Speed up” is activated.Water level not reached. 1-GB 9-Troubleshooting

• Temperature sensor error. • Contact the After sales service.

• Contact the After sales service.

• Motor error. • Contact the After sales service. FC1 or FC2

• Abnormal communication error.

• Contact the After sales service. UnB

• Unbalanced load error. • .murd eht ni daol yrdnual ecnalab dna kcehC Reduce the load. Problem Cause Solution Washing machine fails to operate.

• Programme is not yet started. • Check programme and start it.

• Door is not properly closed. • Close the door properly.

• Machine has not been switched on. • Switch the machine on.

• Power failure. • Check power supply.

• Child lock is activated. • Deactivate child lock. Washing machine water.

• No water. • Check water tap.

• Inlet hose is kinked. • Check inlet hose.

• Water pressure is less than 0.03 MPa.

• Check water pressure.

• Door is not properly closed. • Close the door properly.

• Water supply failure. • Ensure the water supply. Machine is draining

• Height of drain hose is below 80 cm.

• Make sure that drain hose is properly installed.

• Drain hose end could reach into water.

• Make sure the drain hose is not in water. Drainage failure. • Drain hose is blocked. • Unblock drain hose.

• Drain hose end is higher than 100 cm above floor level.

• Make sure that drain hose is properly installed. Strong vibration while spinning.

• Not all transportation bolts have been removed.

• Remove all transportation bolts

• Appliance has no solid position.

• Ensure solid ground and a levelled position.

• Machine load is not correct. • Check load weight and balance. Operation stops before completing wash cycle.

• Water or electric failure. • Check power and water supply. Operation stops for a period of time.

• Appliance displays error code. • Consider display codes.

• Problem due to load pattern. • Reduce or adjust load.

• Programme performs soaking cycle.

• Cancel programme and restart.

ance, disconnect the power supply and contact the customer service.

9.4 In case of power failure

The current programme and its setting will be saved. When power supply is restored operation will be re- sumed. In case of power failure during programme run door opening is mechanically blocked. If the laundry is to be removed, the water level must not be visible in the glass door. Danger of scalding! ▶ Lower the water level according to step 1 to 6 of chapter CARE AN CLEANING (PUMP FILTER). ▶ Pull lever (A) beneath service flap (Fig. 9-1) until door is unlocked by a gentle click. ▶ Fix all parts and close the service flap.

9-1 Note: Foam formation If too much foam is inspected during spin cycle, motor stops and drain pump will be ac-tivated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends without spinning. Problem Cause SolutionExcessive foam floats drum and/or deter-gent drawer.

• Detergent is not a appropriate. • Check detergent recommen- dations.
• Excessive use of detergent. • Reduce amount of detergent. Automatic adjust-ment of washing time.
• Washing programme duration will be adjusted.
• This is normal and doesn‘t af- fect functionality. Spinning fails. • Unbalance of laundry. • Check machine load and laun- dry and run a spinning pro- gramme again. Unsatisfactory wash-ing result.• Degree of pollution does not agree with selected programme. • Select an other programme.
• Detergent quantitiy was not suf-
• Choose the detergent accord- ing to the degree of pollution and according to manufacturer

Maximum load has been exceeded.• Reduce loading. Laundry was unevenly distributed in the drum.• Loose the laundry.Washing powder residues are on the laundry.

Insoluble particles of detergent can remain as white spots on the laun

Try to brush the points from the dry laundry.

Choose an other detergent.Laundry has grey patches.

Caused by fats such as oils, creams or ointments.

Pretreat the laundry with a spe cial cleaner.GB 10-Installation

▶ Take the appliance out of the packaging. ▶ Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port-hole. This normal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environmen-tally friendly manner. (1) (2) (3) 10-1

Noise resuction pads installation instructions noise reduction pads.These are used for reducing noise. (Fig. 10-1)

2. Lay the washing machine down to its side, porthole pointing upwards, bottom side towards operator.

pads and remove the double-sided adhesive protective film; the noise redu-ction pads under the washing machine cabinet as sh- own in Figure 10.1(3),two longer pads in position 1 and two shorter pads in position 2 and 4. Finally set themachine upright again. Warm tip:Noise reduction pad is optional , could help to reduce noise , please assemble it or not according to your own demand.

10.3 Dismantle the transportation bolts

The transportation bolts are designed for clamping anti-vibration components inside the appliance during transportation to prevent inner damage.

10.6 Drain w ater connection

Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain WARNING! ▶ Use only the supplied hose set for the connection. ▶ Never reuse old hose sets! ▶ Only connect to cold water supply. ▶ Before connection, check whether the water is clean and clear.

10.5 Aligning the appliance

Adjust all feet (Fig. 10-6) to achieve a complete level position. This will minimize vibrations and thus noise during use. It will also reduce wear and tear. We recom- mend to use a spirit level for adjustment. Floor should be as stable and flat as possible.

1. Loose the locknut (1) by using a wrench.

2. Adjust the high by turning the foot (2).

3. Tighten locknut (1) against the housing.

10-6 Note: Keep in safe place Keep the transportation bolts in a safe place for later use. Whenever the appliance is to

10.4 Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts re- moved before installation to prevent damage:

1. Remove the blanking plugs.

2. Remove the back cover.

3. Insert the plastic spacers and the transportation bolts.

4. Tighten the bolts with a spanner.

10.7 Fresh water connection

CAUTION! ▶ The drain hose should not be submerged in water and should be securely xed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm, the washing machine will continuously drain while being lled (self-si- phoning). ▶ Drain hose is not to be extended. If necessary contact after sales service. Make sure that the gaskets are inserted.

1. Connect the water inlet hose with the angled

end to the appliance (Fig. 10-10). Tighten the screw joint by hand.

2. The other end connect to a water tap with a

3/4“ thread (Fig. 10-11). Note: Aqua-stop system: Some models are equipped with an aqua-stop inlet hose (B).The aqua-stop system protects against water damage by automatically cutting the fresh water supply in case of a leaking hose. This is indicated by a red marker (C). The hose must be replaced.

10.6.3 Drain hose to sink connection

▶ The junction must lie above the siphon. ▶ A spigot connection is usually closed by a pad (A). That must be removed to prevent any disfunc- tion (Fig. 10-9). ▶ Secure the drain hose with a clamp. 10-9 10-1110-10 Following connections are possible:

10.6.1 Drain hose to sink

▶ Hang the drain hose with the U-support over the edge of a sink with adequate size (Fig. 10-7).

10.6.2 Drain hose to waste water connection

▶ The internal diameter of the stand pipe with vent-hole must be minimum 40 mm. ▶ Put the drain hose for approx. 80 mm in the wastewater pipe.

10.8 Electrical connection

Before each connection check if: ▶ Power supply, socket and fusing are appropriate to the rating plate. ▶ The power socket is earthed and no multi-plug or extension are used. ▶ The power plug and socket are strictly according. ▶ Only UK: The UK plug meets BS1363A standard. Put the plug into the socket (Fig. 10-12). WARNING!

dry and leak free! ▶ Take care these parts are never to be crushed, kinked, or twisted. ▶ If the supply cord is damaged, it must be replaced by the service agent (see warranty card) in order to avoid a hazard. Note: Hygiene

nance run programme HYGIENE with no load and small amount of detergent in wash- ing agent compartment (2) or with special machine cleaner to remove possibly corrup- tive residues. 10-12GB 11-Technical data

HW100 HW90 HW80 HW70 Voltage in V 220-240 V~/50Hz Current in A 10 Max power in W 2000 Water pressure in MPa 0.03≤P ≤1 Netto weight in kg 74 72 6474

11.1 Additional technical data

11.3 Standards and Directives

This product meets the requirements of all applicable EC directives with the correspon- ding harmonised standards, which provide for CE marking. Note: The exact height of your washer is dependent on how far the feet are extended from the base of the machine. The space where you install your washer needs to be at least 40mm wider and 20mm deeper than its dimensions. TOP VIEWWallFRONT VIEW

HW100 HW90 HW80 HW70PRODUCT DIMENSIONS

B Overall width of product mm A Overall height of product mm C Overall depth of product (To main control board size) mm D Depth of door open mm E Minimum door clearance to adjacent wall mm

11.2 Product dimensions

12-Customer service We recommend our Haier Customer Service and the use of original spare parts. ▶ your local dealer.

and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model ____________________ Serial No. _____________________ Also check the Warranty Card supplied with the product in case of warranty. European Haier addresses Country* Postal address Country* Postal address Italy Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY France Haier France SAS53 Boulevard Ornano – Pleyad 393200 Saint Denis France Spain Portugal Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN Belgium-FR Belgium-NL Netherlands Luxembourg Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM Germany Austria Haier Deutschland GmbH Konrad-Zuse-Platz 6 81829 München GERMANY Poland Czechia Hungary Greece Romania Russia Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND United Kingdom Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR
