Brand	Feuerdesign
Model	Santorin
Product Type	Tabletop Charcoal Barbecue
Power Supply	Rechargeable Li-ion battery 3.7V 1000mAh (type BL-5C), charges via USB cable
Fan Motor	Built-in electric motor with speed regulator
Package Contents	Grill, charcoal receptacle lid, charcoal receptacle, ignition tray, grease drip bowl, outer tub, fan motor, battery, USB cable, nylon bag, user manual, screw staples
Warranty	2 years (24 months) against manufacturing defects
Usage	Private, outdoor only
Safety	Do not use indoors, do not leave unattended, burn risk, use tongs, do not use water to extinguish, only use with ignition gel compliant with EN 1860-3
Maintenance and Cleaning	Grill and inner tub dishwasher safe, clean after each use, do not use acids or solvents
Spare Parts and Repairability	Fan motor, grill, charcoal receptacle (consumable), ignition tray, grease bowl, lid, outer tub
Included Accessories	USB charging cable, nylon bag
Getting Started Instructions	Charge the battery before first use, use about 250g of charcoal, apply ignition gel on the tray, light with a long lighter, place the receptacle and grill, adjust the ventilation

Frequently Asked Questions - Santorin Feuerdesign

How to light the Santorin barbecue?

Apply a thin layer of ignition gel on the ignition tray, place it centered on the ventilation duct, then light with a long lighter. Then install the charcoal receptacle filled with about 250g of charcoal and the grill. Set the fan motor to maximum power to activate the flame.

What battery does the barbecue use?

The barbecue uses a rechargeable Li-ion battery type BL-5C with a voltage of 3.7V and a capacity of 1000 mAh. It charges via the included USB cable, directly in the motor compartment.

How long does it take for the charcoal to be ready?

After placing the charcoal receptacle on the ignition tray and closing the lid, the charcoal is fully lit in a few minutes. The fan motor speeds up the process.

Can I use the barbecue indoors?

No, the barbecue is only designed for outdoor use. Never use it in enclosed spaces due to risks of carbon monoxide poisoning and fire.

How to clean the barbecue?

Let the barbecue cool completely. The grill and inner tub are dishwasher safe. Do not use water to cool the hot barbecue, as it may cause burns.

What to do if the battery does not charge?

Check that the USB cable is properly connected and the battery is correctly inserted. The charging process should not be done in fast charging mode. If significant heat is generated, stop charging immediately.

Does the warranty cover wear parts?

The 2-year warranty covers manufacturing defects, but not normal wear, corrosion, deformation or discoloration of parts exposed to fire. The charcoal receptacle is considered a consumable.

Can I use alcohol or gasoline to light?

No, never use alcohol or gasoline. Use only ignition gel compliant with EN 1860-3. These products are safe and do not produce uncontrolled flames.

How to adjust the cooking temperature?

Use the adjustment knob on the fan motor: low level reduces temperature, high level increases it. To keep food warm, turn off the motor completely.

Does the barbecue produce smoke on first use?

It is normal for a light smoke to appear during first use due to oil residues on the charcoal receptacle. After preheating for at least 30 minutes, the smoke disappears.

USER MANUAL Santorin Feuerdesign

Top-down view of a dining table setup with a steamer, meat cutouts, and a potted plant (no visible text or symbols)

Two people enjoying food on a rocky beach with ocean and sky in background (no text or symbols visible)

Gebrauchsanweisung

User manual

Mode d'emploi

Manuale d'uso

Manual de usuario

ENG Safety instructions 15

We grant 24 month of warranty for this model, from the date of purchase shown on the receipt. In case of any problem related to material or production defects we'll solve it free of charge. This warranty does not cover a professional use of the product. Any question, comment or warranty issues please contact us every day from Mon to Fri 08:00-12:00 and 13:00-17:00.

Garantie

Black electronic device with four ports and a circular fan, next to a separate black card (no visible text or symbols)

7

Circular metal fan or grid structure with radial lines, no text or symbols visible

1

2

Metallic circular object with a small protrusion on top, resembling a lid or cover (no text or symbols visible)

3
4

Metal mesh sieve with circular top and base, no visible text or symbols

Top-down view of a stainless steel bowl with green and black casing, labeled 5, 6, and 12 (no text or symbols on the main subject)

Feuerdesign Mayon

Coiled USB cable with two connectors, no visible text or symbols

Exterior view of a black electronic device with a circular fan and two small electronic components (no visible text or symbols)

Feuerdesign Teide

Exterior view of a black USB flash drive with a circular fan and two partially visible cards (no text or symbols)

3D wire mesh tray with slats and metal frame (no text or symbols)

Feuerdesign Santorin

Feuerdesign Mayon

Feuerdesign Teide Feuerdesign Santorin

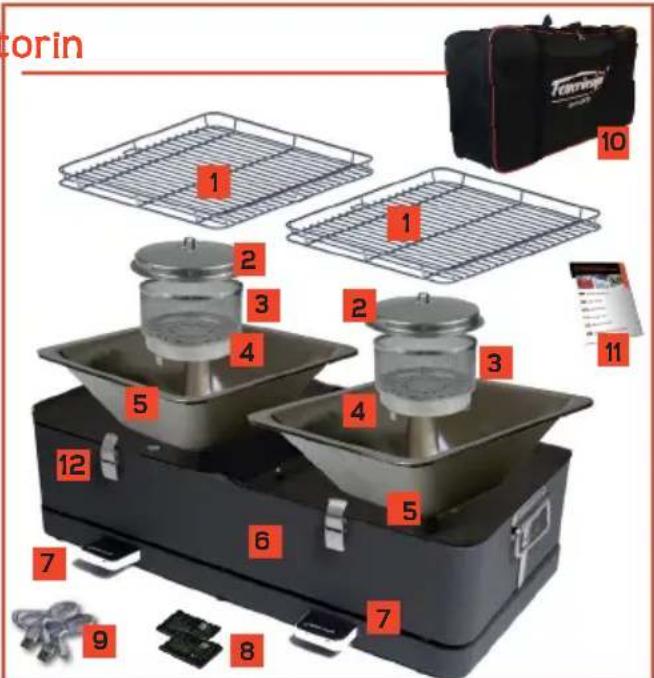

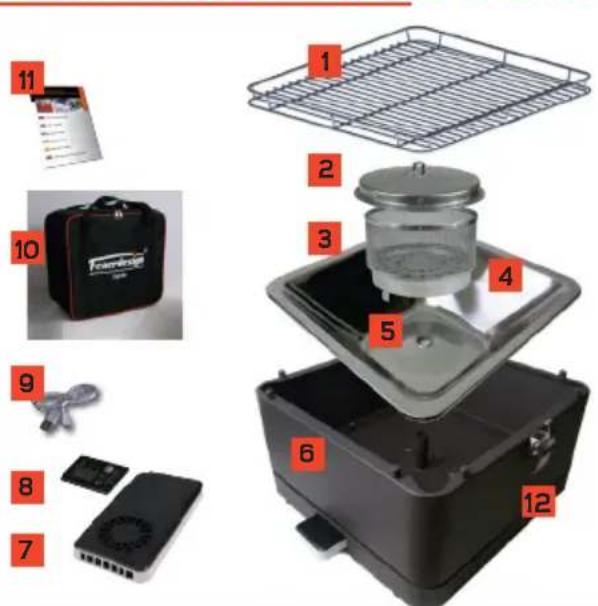

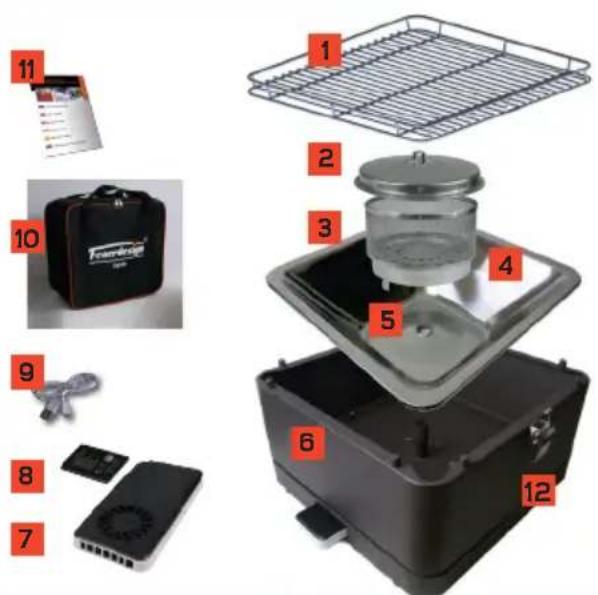

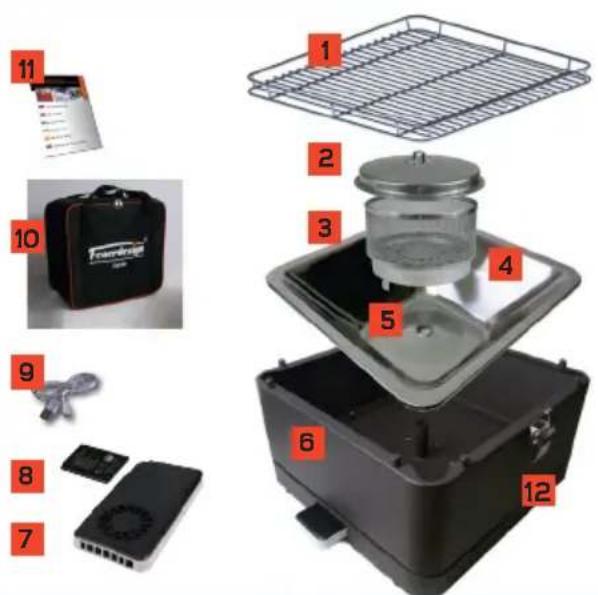

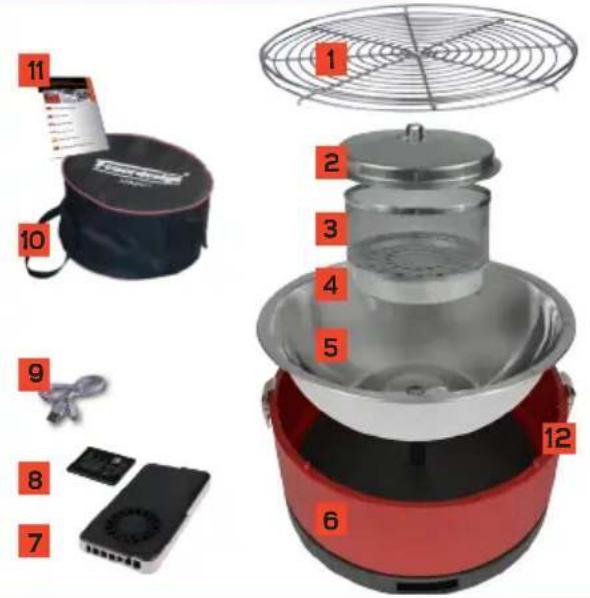

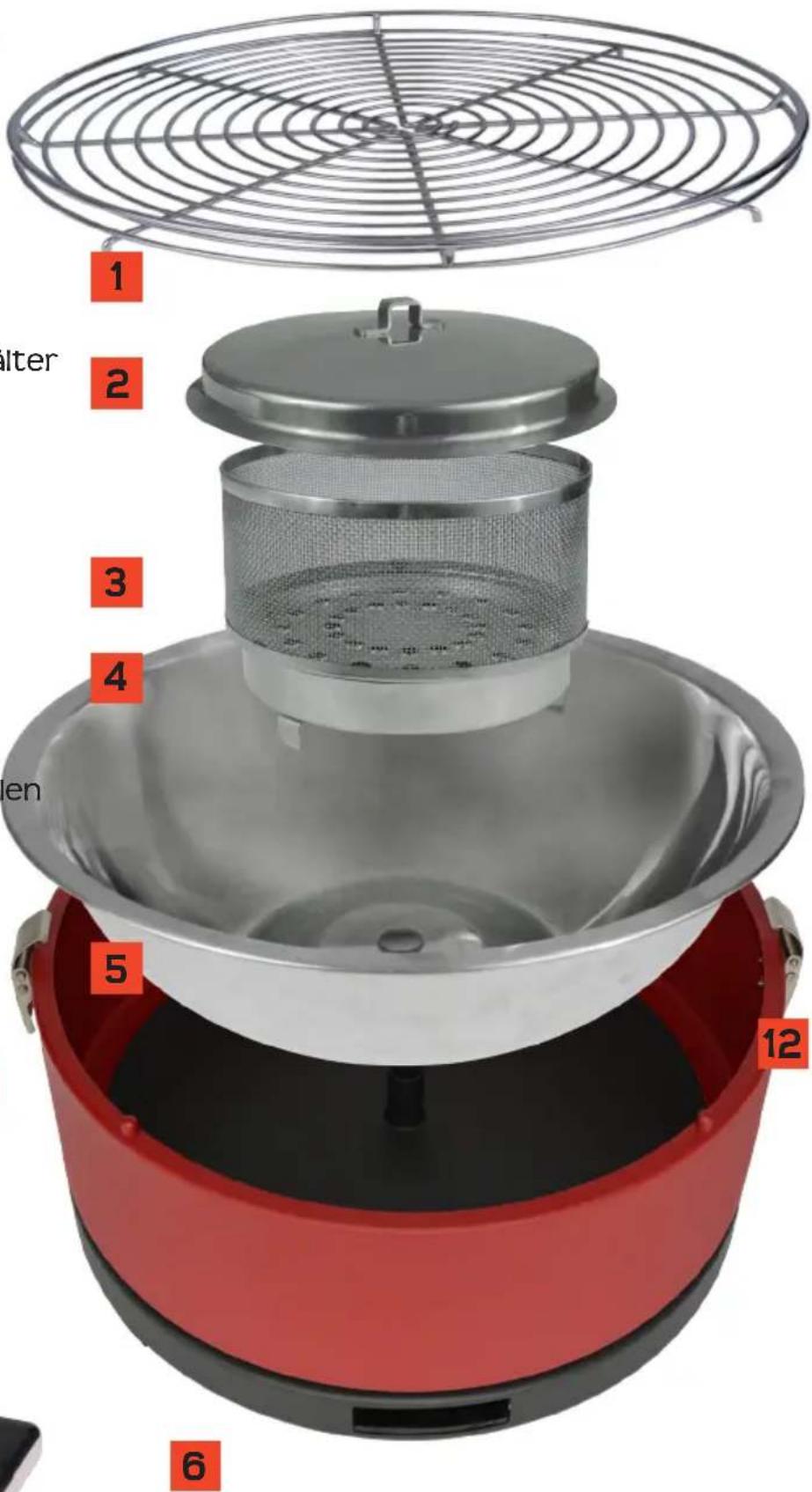

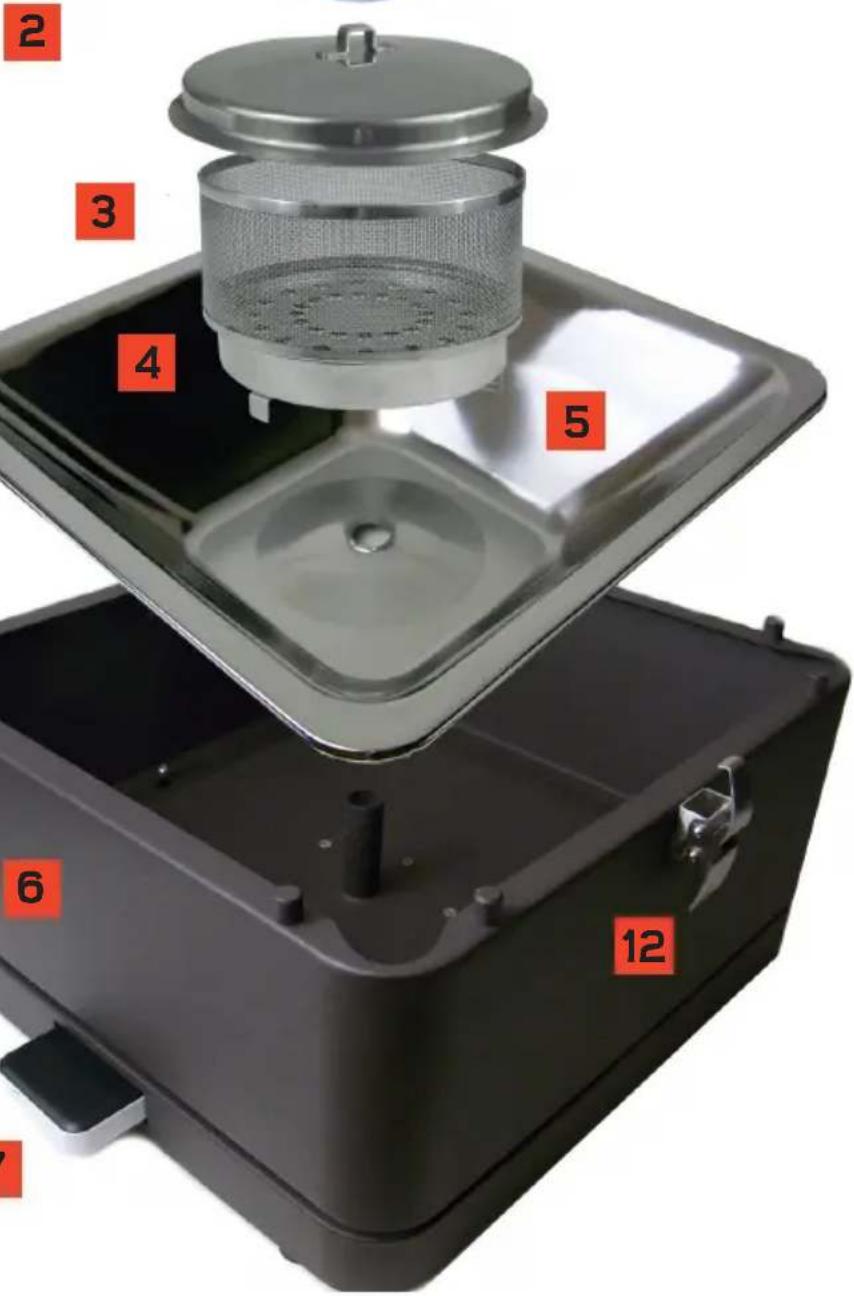

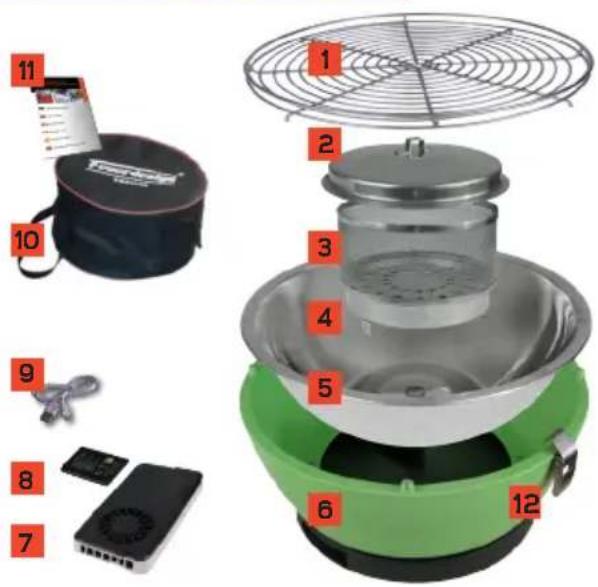

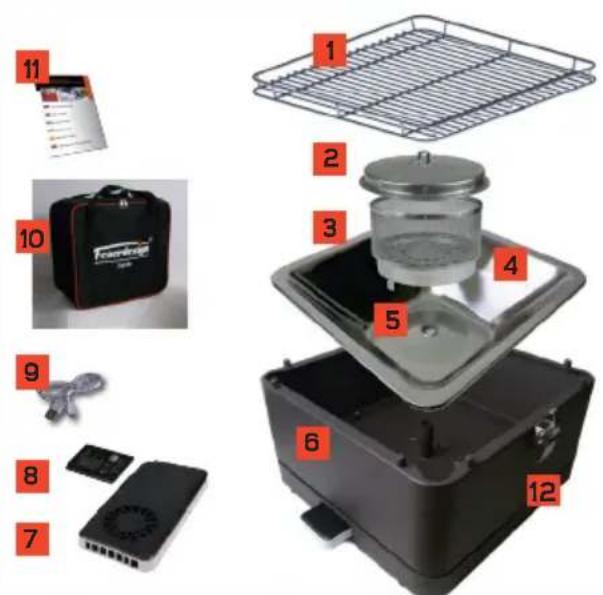

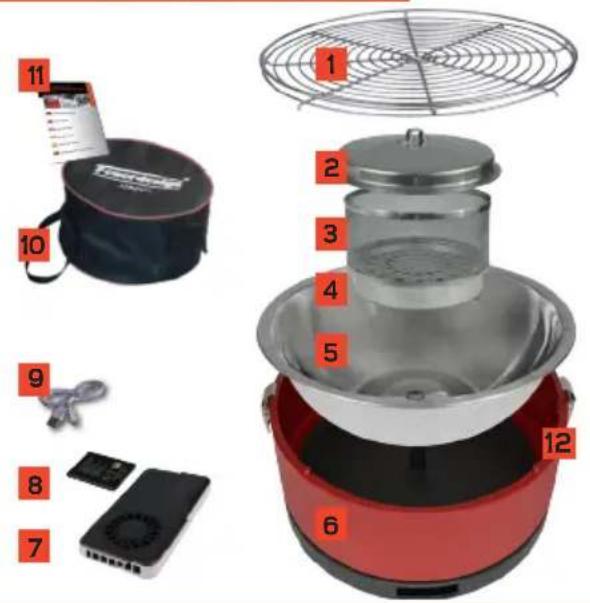

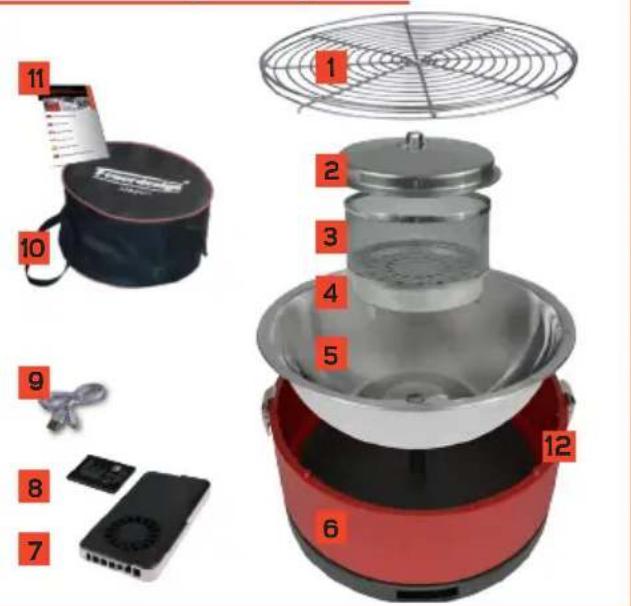

Scope of supplyScope of 1 Grill

Please check after unpa- cking and before operating the grill that all components are in place and order.

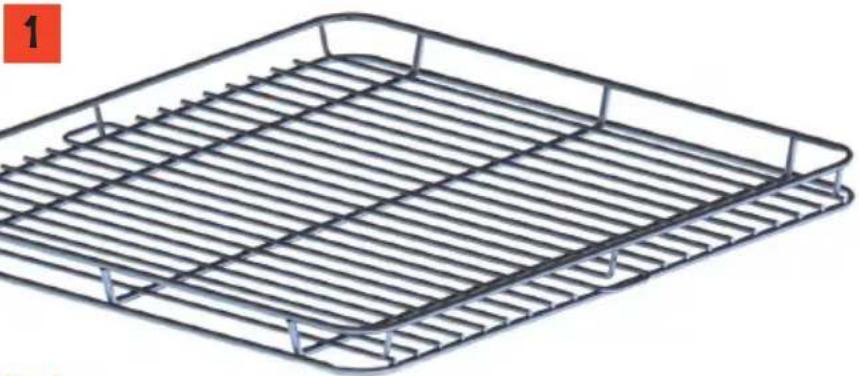

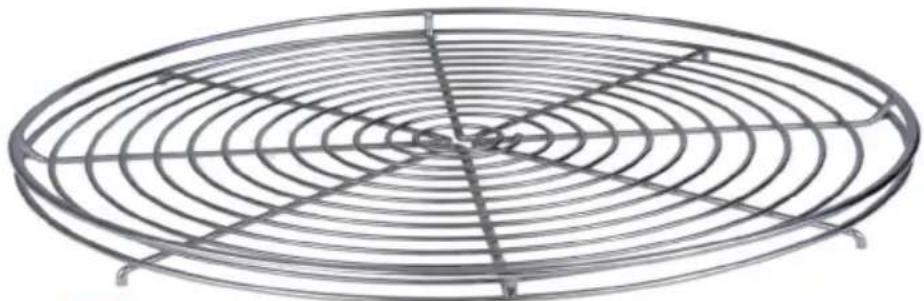

1 Grilly

2 Lid for charcoal container

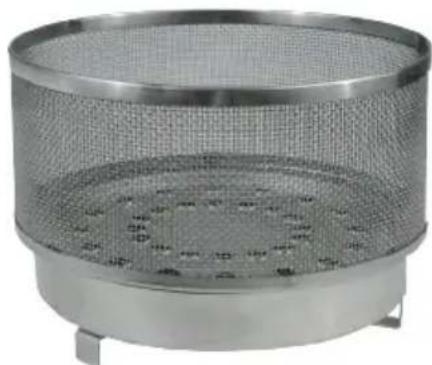

3 Charcoal container
4 Ignition tray

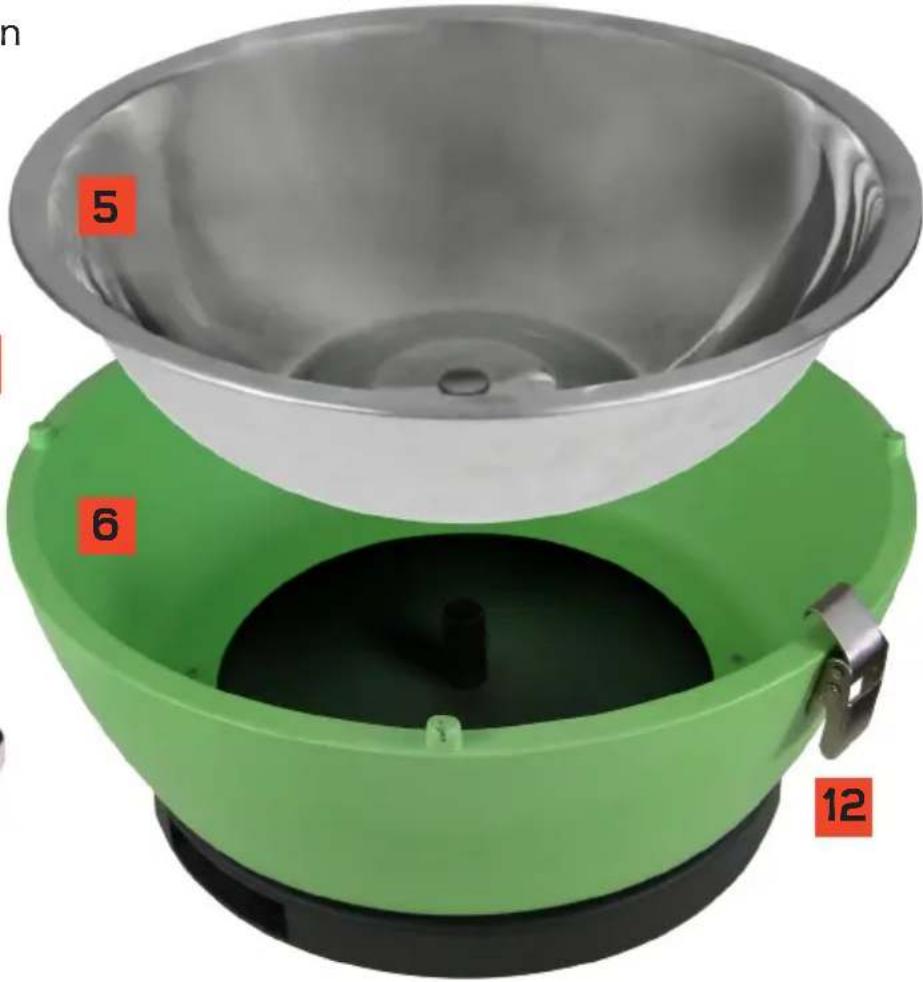

5 Grease collection bowl
6 Outer case with slot for fan motor

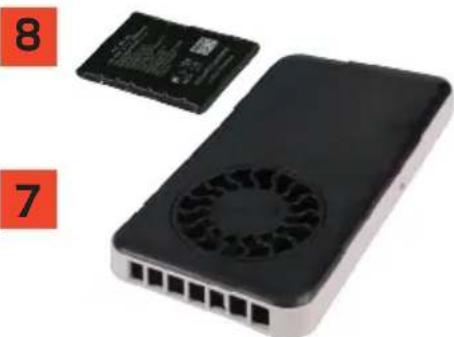

7 Fan Motor
8 1000 mAh battery
9 USB charging cable
10 Nylon bag
11 User manual
12 Screwed clips

Feuerdesign Vesuvio

Feuerdesign Mayon

Feuerdesign Teide Feuerdesign Santorin

Operating instructions and assembly instructions

Read this manual carefully and follow the safety instructions. Take enough time and use a flat surface with sufficient space.

First steps

1 Compare with reference to the item list the completeness of the delivery. Remove the packaging material. Loosen the clamps 12, that secure the grill 1 and the charcoal container 3. Remove the grill and take out the charcoal container.
2 Insert the grease collection bowl 5 in the outer case 6.
3 Fill the charcoal container 3 with about 250g of beech wood charcoal, and put the lid 2 on the charcoal container.
4 Apply a thin layer of the ignition gel on the ignition tray on place them appropriately, centered over the vent pipe.
5 Slide the charged fan motor into the engine slot and set the controller to full power so that the flame receives sufficient air supply. Caution Risk of burns from open flame!
6 Light the gel best with a stick lighter. Make sure that the flame is burning properly.
7 When the gel burns cleanly, place the filled charcoal container 3 with the lid carefully 2 on the ignition tray 4 and secure the charcoal container by placing the grill on top 1 and closing to the brackets 12. Within a few minutes the charcoal is fully ignited and ready for grilling.
8 When placing the individual components, make sure that all are nicely centered fit properly on top of each other.
9 To regulate the grilling temperature set the knob on a lower or higher level. To keep the food warm on the grill you can completely turn of the fan motor.
10 The recommendation that the barbecue shall be heated up and the fuel kept red hot for at least 30 min prior to the first cooking.

CAUTION!

The charcoal container can have some small oil residues, which can produce a light smoke on the first use.

Safety Instructions

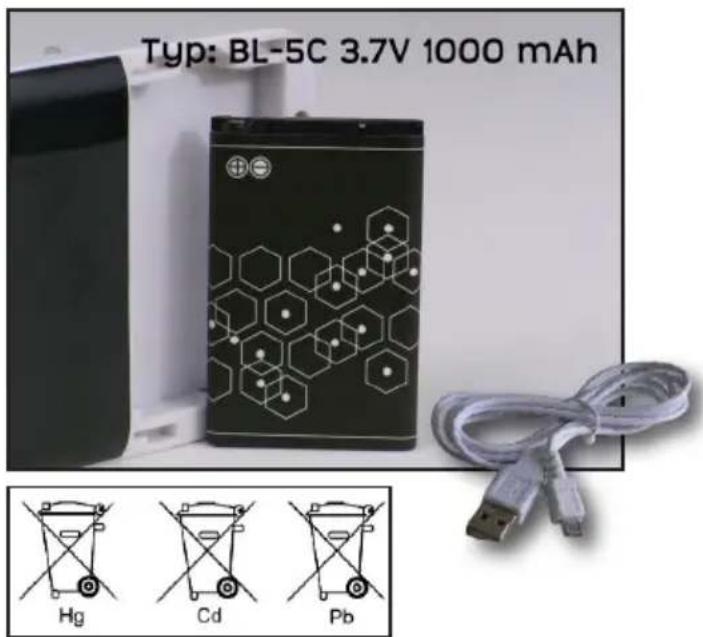

Rechargeable batteries

The rechargeable batteries must always be fully charged prior to first use.

Charge the battery with the appropriate charger. In the case of the Feuerdesign fan motors that have a USB charging slot, the battery must be charged in the device itself with the appropriate USB cable. The charging process should never be performed in the fast-charging mode. In case of a significant heat development of the battery the charging process is to be stopped immediately.

Do not overcharge the batteries. For security reasons, we always recommend that you monitor the charging process! Rechargeable batteries are consumer items and are not subject to warranty. Substitute, in case of justified claims, might be received on the way of goodwill.

Dispose of used batteries as required by law. Disposal in the household garbage is prohibited. You can leave them for free at a municipal collection center. Batteries or rechargeable batteries can be returned after use to us via post.

Cleaning

The grill must be completely cool before cleaning. Do not use water to cool the hot grill, as this may result in burns and scalds. Clean the grill, the inner bowl and other dirty pieces after each use. Grill and inner bowl can be cleaned in the dishwasher. When cleaning, never use acid, mineral spirits or other combustible materials.

Warranty

Your Feuerdesign grill has a two-year warranty against manufacturing defects. The sales receipt is your proof of warranty. Possible wear of, corrosion, deformation and discoloration of the parts (especially the stainless steel parts) that are directly exposed to the fire, are normal and are not considered a reason for complaint. The charcoal container is a consumer item and needs to be replaced after a while.

Safety Instructions

Please read the following the safety instructions carefully. According to battery regulation we inform our customers that batteries and rechargeable batteries should be disposed according to the battery regulation and may not be disposed of in the household waste.

IMPORTANT

• Always be attentive during use!

IMPORTANT

- Do not leave the grill unattended!

ATTENTION

- Risk of property damage or damage to the product.

ATTENTION

- Hazards or unsafe practices that may result in serious injury or even death.

WARNING

- Hazards or unsafe practices that may result in serious injury or even death Hazards or unsafe practices that may result in minor injury or property damage.

- This barbecue will become very hot, do not move it during operation.

WARNING

- Warning of burns!

- Warning of suffocation!

- Do not use indoors!

ATTENTION

- Do not use alcohol or gasoline for igniting!

- Keep children and pets at a distance!

- Only use organic burning gel as ignition help!

- Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!

ATTENTION

- Let the barbecue cool down before cleaning!

ATTENTION

- Use tongs when grilling.

ATTENTION

- Never use water to extinguish the grill

This charcoal table top barbecue may only be used with charcoal and for the preparation of appropriate food. The grill can NEVER be used in confined spaces. All instructions and guidelines in this user manual must be followed at all times.

The charcoal table top barbecue is only intended for private use!
