USER MANUAL Teide Feuerdesign

User manual 13
Safety instructions 15

We grant 24 month of warranty for this model, from the date of purchase shown on the receipt. In case of any problem related to material or production defects we'll solve it free of charge. This warranty does not cover a professional use of the product. Any question, comment or warranty issues please contact us every day from Mon to Fri 08:00-12:00 and 13:00-17:00.

Garantie

Scope of supplyScope of

Please check after unpacking and before operating the grill that all components are in place and order.

1

2 Lid for charcoal container
3 Charcoal container
4 Ignition tray
5 Grease collection bowl
6 Outer case with slot for fan motor

7 Fan Motor
8 1000 mAh battery
USB charging cable
10 Nylon bag
11 User manual
12 Screwed clips

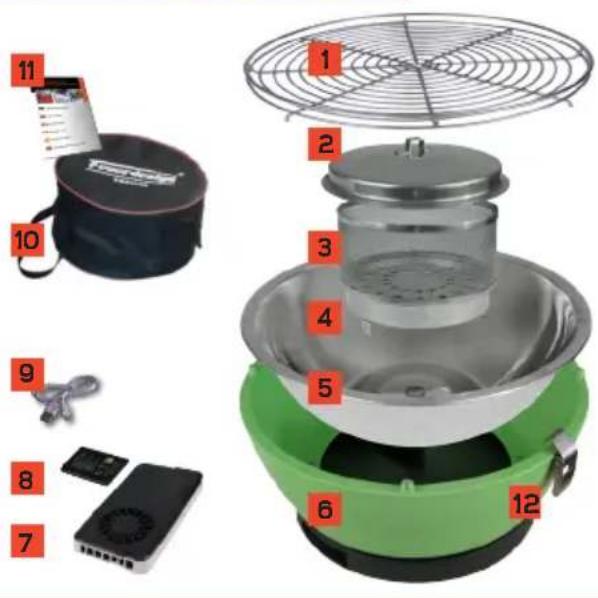

Feuerdesign Vesuvio

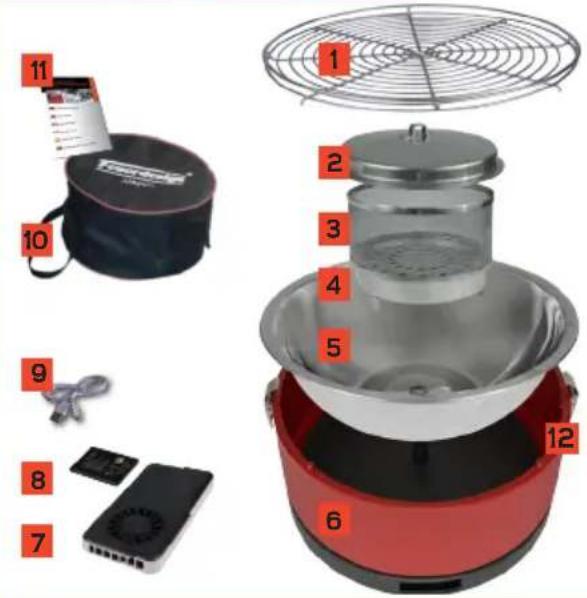

Feuerdesign Mayon

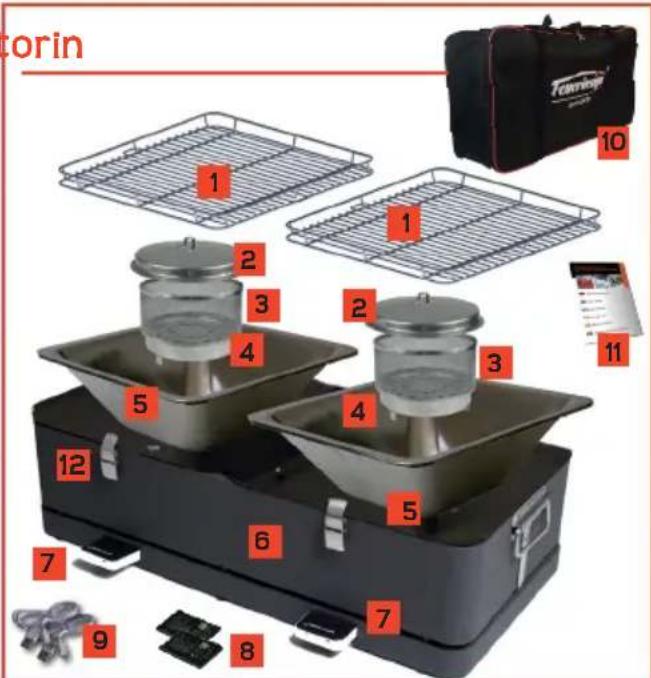

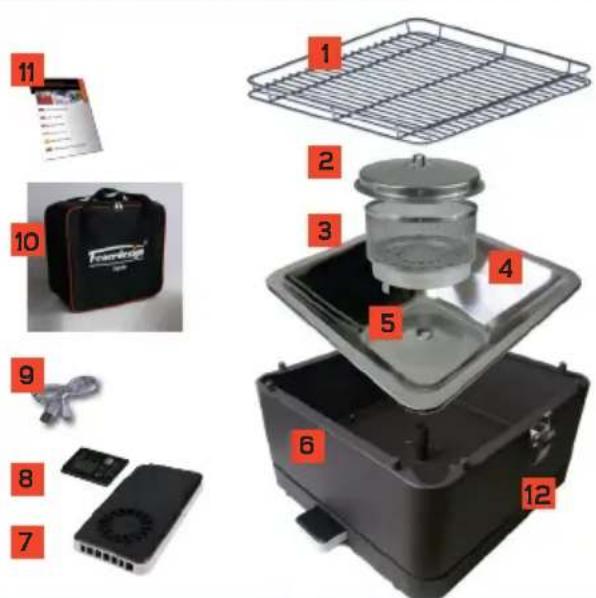

Feuerdesign Teide Feuerdesign Santorin

Operating Instructions and assembly instructions

Read this manual carefully and follow the safety instructions. Take enough time and use a flat surface with sufficient space.

First steps

1 Compare with reference to the item list the completeness of the delivery. Remove the packaging material. Loosen the clamps 12, that secure the grill 1 and the charcoal container 3. Remove the grill and take out the charcoal container.
2 Insert the grease collection bowl 5 in the outer case 6.
3 Fill the charcoal container 3 with about 250g of beech wood charcoal, and put the lid 2 on the charcoal container.
4 Apply a thin layer of the ignition gel on the ignition tray on place them appropriately, centered over the vent pipe.
5 Slide the charged fan motor into the engine slot and set the controller to full power so that the flame receives sufficient air supply. Caution Risk of burns from open flame!
6 Light the gel best with a stick lighter. Make sure that the flame is burning properly.
7 When the gel burns cleanly, place the filled charcoal container 3 with the lid carefully 2 on the ignition tray 4 and secure the charcoal container by placing the grill on top 1 and closing to the brackets 12. Within a few minutes the charcoal is fully ignited and ready for grilling.
8 When placing the individual components, make sure that all are nicely centered fit properly on top of each other.
9 To regulate the grilling temperature set the knob on a lower or higher level. To keep the food warm on the grill you can completely turn off the fan motor.
10 The recommendation that the barbecue shall be heated up and the fuel kept red hot for at least 30 min prior to the first cooking.

CAUTIONI

The charcoal container can have some small oil residues, which can produce a light smoke on the first use.

Safety Instructions

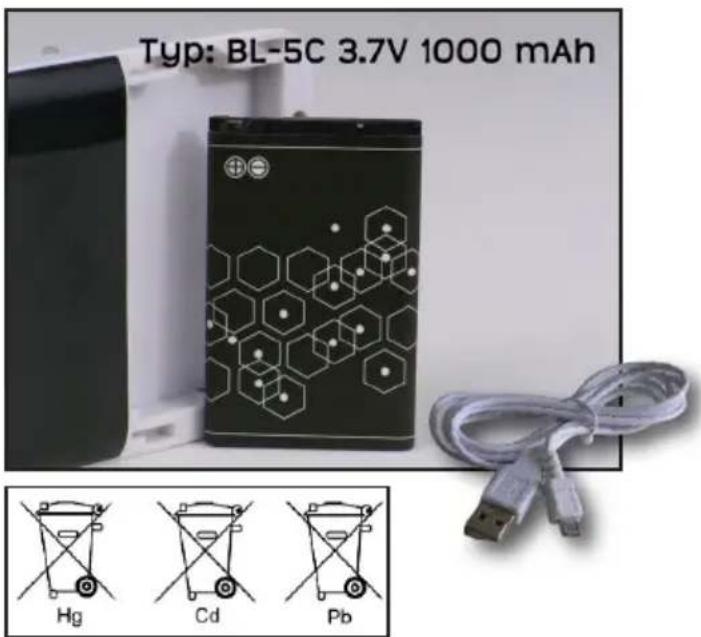

Rechargeable batteries

The rechargeable batteries must always be fully charged prior to first use.

Charge the battery with the appropriate charger. In the case of the Feu-erdesign fan motors that have a USB charging slot, the battery must be charged in the device itself with the appropriate USB cable. The charging process should never be performed in the fast-charging mode. In case of a significant heat development of the battery the charging process is to be stopped immediately.

Do not overcharge the batteries. For security reasons, we always recommend that you monitor the charging process! Rechargeable batteries are consumer items and are not subject to warranty. Substitute, in case of justified claims, might be received on the way of goodwill.

Dispose of used batteries as required by law. Disposal in the household garbage is prohibited. You can leave them for free at a municipal collection center. Batteries or rechargeable batteries can be returned after use to us via post.

Cleaning

The grill must be completely cool before cleaning. Do not use water to cool the hot grill, as this may result in burns and scalds. Clean the grill, the inner bowl and other dirty pieces after each use. Grill and inner bowl can be cleaned in the dishwasher. When cleaning, never use acid, mineral spirits or other combustible materials.

Warranty

Your Feuerdesign grill has a two-year warranty against manufacturing defects. The sales receipt is your proof of warranty. Possible wear of, corrosion, deformation and discoloration of the parts (especially the stainless steel parts) that are directly exposed to the fire, are normal and are not considered a reason for complaint. The charcoal container is a consumer item and needs to be replaced after a while.

Safety Instructions

Please read the following the safety instructions carefully. According battery regulation we inform our customers that batteries and rechargeable batteries should be disposed according to the battery regulation and may not be disposed of in the household waste.

IMPORTANT • Always be attentive during use!

IMPORTANT Do not leave the grill unattended!

ATTENTION Risk of property damage or damage to the product.

ATTENTION - Hazards or unsafe practices that may result in serious injury or even death.

WARNING

• Hazards or unsafe practices that may result in serious injury or even death Hazards or unsafe practices that may result in minor injury or property damage.
• This barbecue will become very hot, do not move it during operation.

WARNING

• Warning of burns!
• Warning of suffocation!
• Do not use indoors!

ATTENTION

• Do not use alcohol or gasoline for igniting!
• Keep children and pets at a distance!
• Only use organic burning gel as ignition help!
• Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!

ATTENTION

• Let the barbecue cool down before cleaning!

ATTENTION

• Use tongs when grilling.

ATTENTION

• Never use water to extinguish the grill

This charcoal table top barbecue may only be used with charcoal and for the preparation of appropriate food. The grill can NEVER be used in confined spaces. All instructions and guidelines in this user manual must be followed at all times.

The charcoal table top barbecue is only intended for private use!
