USER MANUAL RR410 INVENTUM

White and blue portable hair dryer with a black handle and blue body (no visible text or symbols)

1. safety instructions page 11
2. before first use page 14
3. assembly page 14
4. using the window cleaner page 15
5. after use page 15
6. replacing components page 15
7. technical data page 15
   general terms and conditions of service and warranty page 31

Deutsch

Inventum advises the use of original Inventum accessories. Any damages to the product or accessories are not covered by the warranty when non-original accessories are used.

The accessories are available in the webshop of Inventum: https://www.inventum.eu/onderdelen/

Deutsch

Technical diagram of a spray gun with numbered parts and an inset showing a close-up of the component being adjusted.

5 3. 4. 5. 6 1. 2 7 1. 2.

7 3. 8 9 10 1.

10 11 2 1

1 safety instructions

- Carefully and fully read the user manual prior to using the appliance and carefully store the manual for future reference.

- Only use this appliance for the intended uses described in this user manual, i.e. cleaning wet and flat surfaces such as windows, mirrors and tiles. Do not use it for sucking up dust and other contaminants.

- This appliance is only suitable for household use.

- The appliance is not suitable for absorbing large quantities of moisture from horizontal surfaces, such as a tipped over glass of water (max. 25 ml).

- Only use the appliance in combination with the usual agents for cleaning windows (no alcohol or foaming cleaning agents).

- The appliance may be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children are not allowed to play with the appliance.

- The appliance may not be cleaned or maintained by children younger than 8 years of age, unless this is done under supervision.

- Keep the appliance and cable out of reach of children younger than 8 years of age.

- Do not use the spray bottle to spray in the eyes.

- Do not spray directly on electrical appliances, such as the inside of an oven.

- Test the microfibre cloth on a spot that is not visible, before using the appliance on delicate (shiny) surfaces.

- This appliance is intended for household and similar use, such as:

- in staff kitchens, shops, offices and other work environments;

- by guests of hotels, motels and other residential environments;

- in Bed&Breakfast type environments;

- farms.

- Caution: the appliance may not be charged by means of an external timer or a separate remote control.

- Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the type plate of the appliance.

• Do not use the appliance if the plug, cable or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. In that case, consult the shop or our customer service.
• Strict supervision is required if the appliance is used by or near children.
• If the appliance is not being used or if parts or accessories must be mounted or removed or if the appliance is being cleaned, fully switch off the appliance and remove the plug from the socket.
• Do not leave the appliance unsupervised if the appliance is operational.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc.
• Only use the original charger provided with the appliance. The technical details can be found on the type plate of the appliance.
• When the appliance is being charged, it must be in the off position.
• Do not charge the battery at temperatures above 40^ or below 5^ .
• If the appliance is not used as intended or if the instructions in the manual are not observed, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• Never submerge the appliance, charger, cable or plug in water.
• Make sure that children are unable to touch the cable or appliance.
• Do not allow the cable to run over sharp edges, hot components or other sources of heat.
• Do not pull the cable and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.
• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cable after removing the plug from the wall socket.
  Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.

Technical diagram of a spray gun with numbered parts and an instructional note indicating click action.

5 3. 4. 5. 6 1. 2 7 1. 2.

7 3. 8 9 10 1.

10 11 2 1

2 before first use

Follow these instructions when using the window cleaner for the first time: Carefully unpack the window cleaner and all accessories and remove all packaging and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the glass cleaner on a sturdy, dry and flat surface.

3 assembly

Explanation:

1 refers to a drawing number
3 refers to a number in the drawing

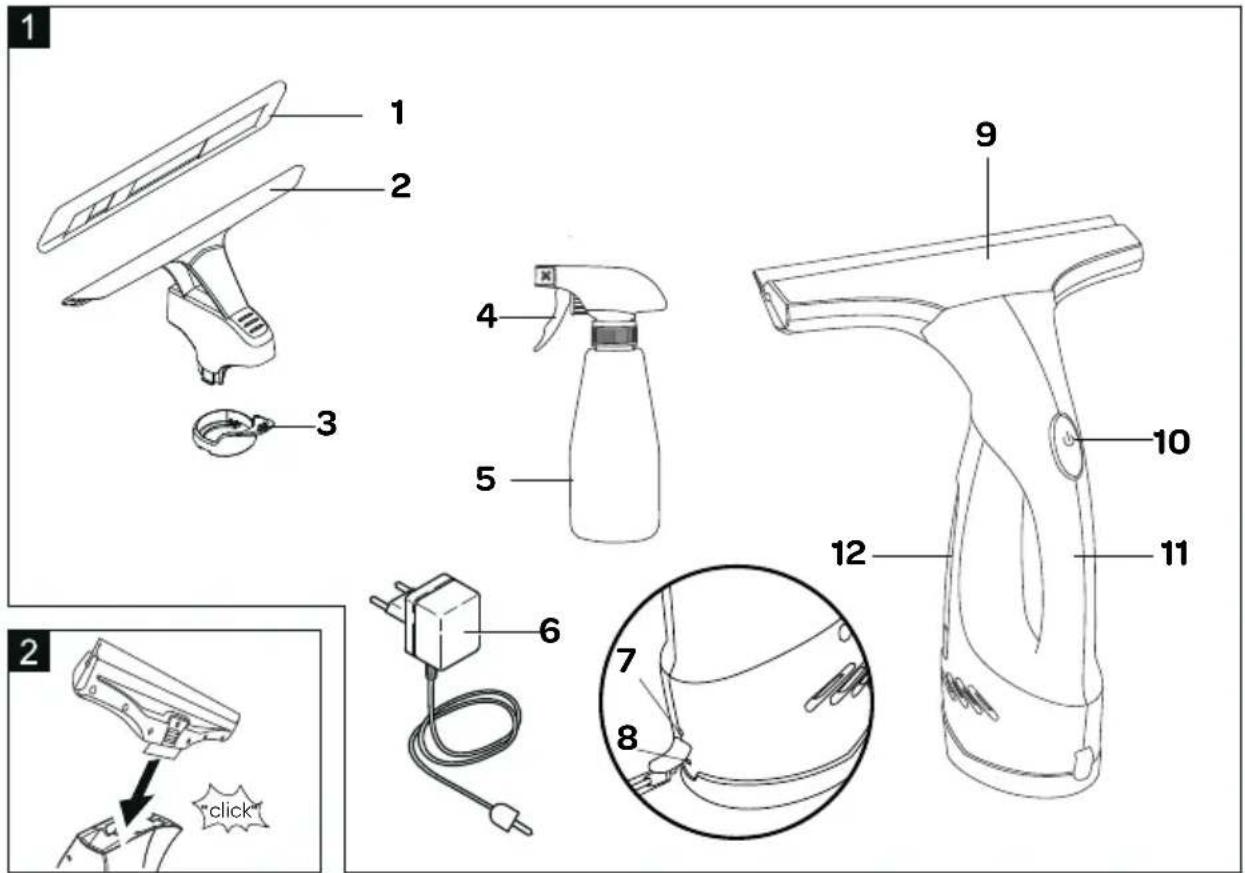

The following components can be found in the packaging 1:

1. Microfibre cloth (2x)
2. Holder - microfibre cloth
3. Coupling piece
4. Spray head
5. Spray bottle
6. Charger with cable
7. Indicator light
8. Connection for charger
9. Squeegee attachment
10. On/off switch ①
11. Basis - window cleaner
12. Collection reservoir

ASSEMBLY

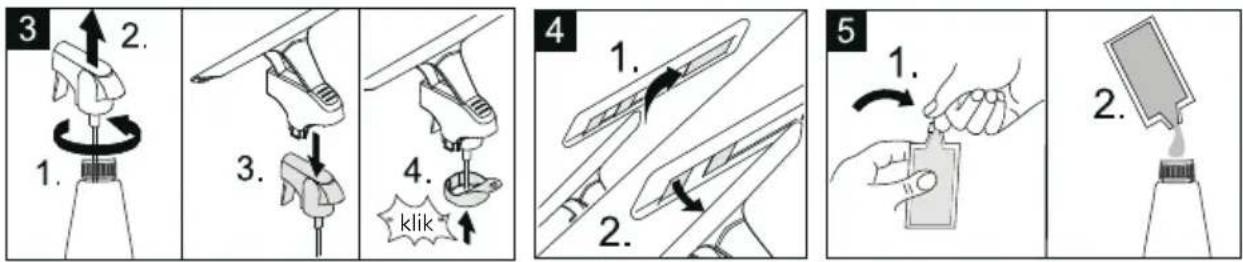

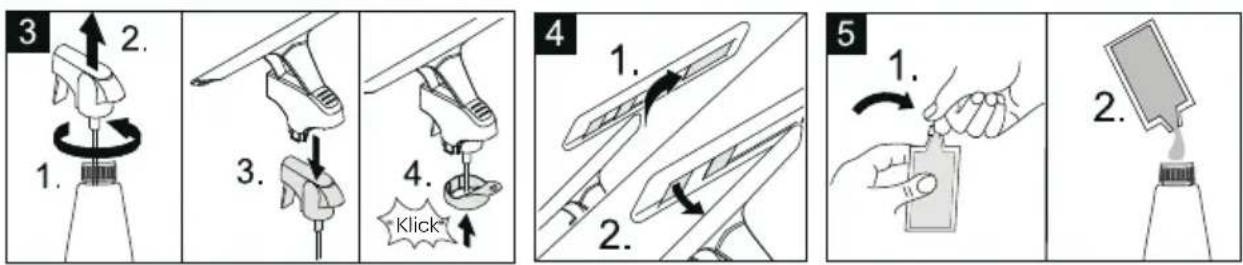

2 Attach the squeegee attachment to the basis of the window cleaner and make sure you can hear it click.
3 Unscrew the spray head 2 from the spray bottle 1.

Place the holder for the microfibre cloth over the spray head 3.

Click the coupling piece 4 to the holder via the bottom side of the spray head, so that the spray head is clamped between the holder and the coupling piece.

4 Attach the microfibre cloth 1 to the holder 2 and fasten it using the velcro.

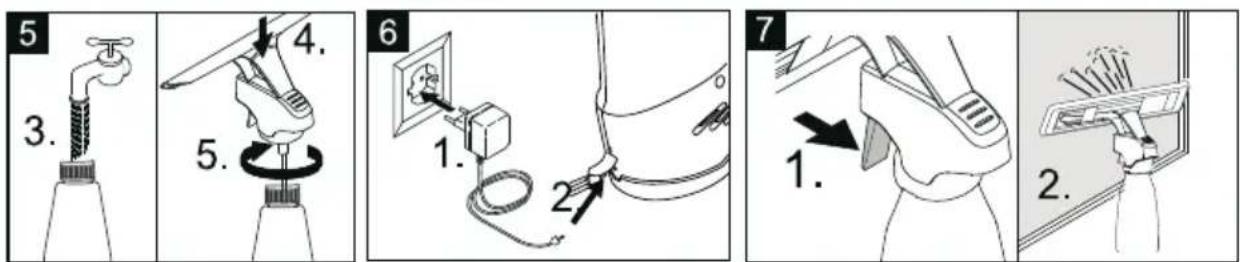

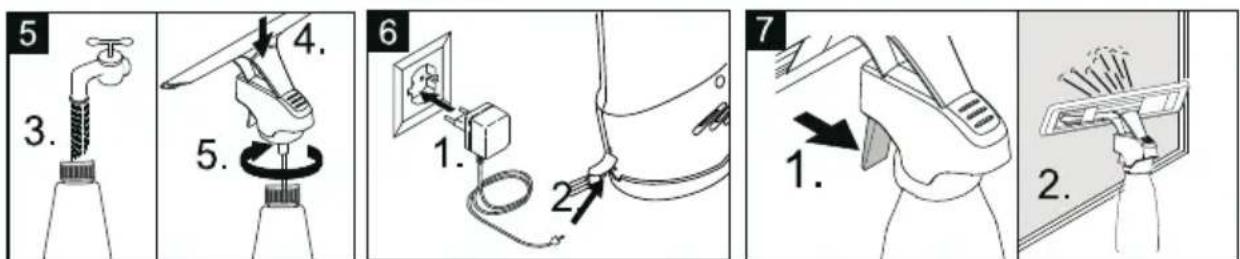

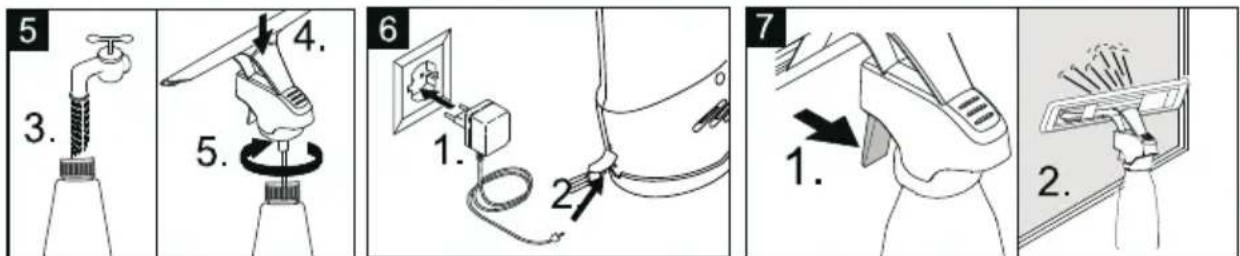

5 Put some cleaning agent 1 in the bottle 2 and make up with water 3. Place the spray head with wiper 4 on the bottle and screw tight 5.

CHARGING THE WINDOW CLEANER

6 Plug the charger 1 in a socket and plug the cable in the connection point 2 of the basis of the window cleaner.

Instruction: during charging, the indicator light will flash. Once the appliance is fully charged, the indicator light will burn continuously.

Always remove the charger from the socket once the appliance is charged.

4 using the window cleaner

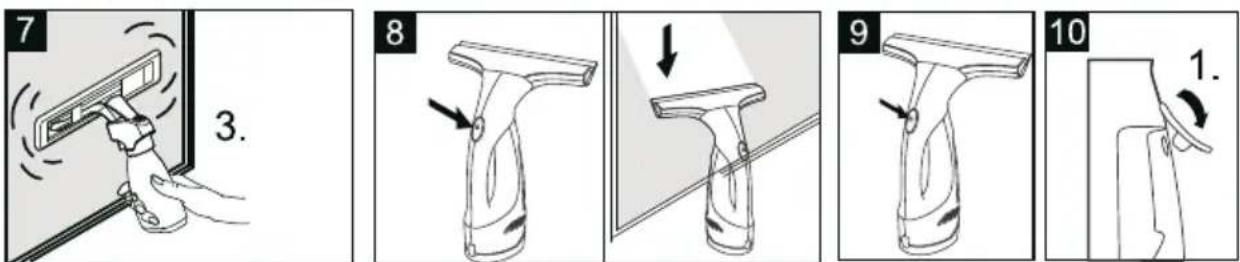

7 Use 1 the spray bottle to spray cleaning agent evenly on the surface to be cleaned 2. Use the microfibre cloth 3 to remove stubborn dirt.

If necessary, wet the microfibre cloth under the tap.

8 Press the on/off switch Ⓤ to switch on the window cleaner. The indicator light switches on. Caution: make sure the rubbers of the squeegee are clean before you start.

Move the window cleaner from top to bottom to suck up the cleaning agent and clean your windows without leaving any streaks.

Instruction: hard to reach places can be cleaned (to a certain extent) with a vertical or horizontal movement.

Instruction: if the battery is almost empty, the indicator light will flash slowly. After a period of time the appliance will switch off completely once the battery is empty. Charge the battery.

9 Press the on/off switch Ⓤ to switch off the window cleaner. Always switch off the appliance when spraying a surface, in order to extend the time that the battery can be used.

Cleaning windows, mirrors or tiles is also possible without using the spray bottle. Clean your windows in the usual way and use the window cleaner to suck up the cleaning agent and clean your windows without leaving any streaks.

EMPTYING THE COLLECTION RESERVOIR.

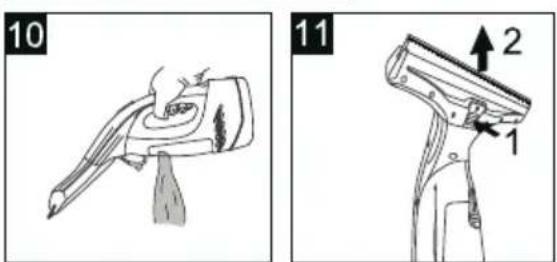

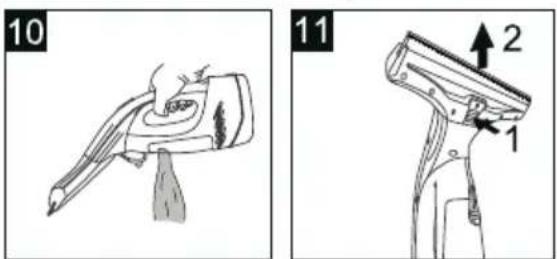

10 Empty the collection reservoir once the amount of dirty water has reached the maximum indication (70 ml). Switch off the appliance.

Open the lip 1 and allow the collection reservoir to drain empty. Once the collection reservoir is empty, press the lip closed again.

5 after use

9 Press the on/off switch to switch off the window cleaner.

1 1 The window cleaner contains electrical components. Do not clean the appliance itself under the tap. Press button 1 to loosen the squeegee attachment 2.

The squeegee attachment can be cleaned under the tap.

- Remove the microfibre cloth from the holder and rinse it under the tap. The microfibre cloth can be washed in the washing machine at 30^ . Do not use a fabric softener.

• The basis of the window cleaner may be wiped with a moist cloth.
• Allow all components to dry thoroughly before reassembling the appliance.
• Charge the battery, so that the appliance is ready for future use.
• Store the appliance in a dry room.

6 replacing components

The rubber of the squeegee has a limited life span and we recommend replacing it when it is damaged. The rubber and other components are available at Inventum.

Slide the old rubber out of the slot and carefully slide the new rubber into the slot of the squeegee. Do not use too much force and do not pull the rubber.

If placing the new rubber poses problems, you can loosen the screws at the back of the squeegee attachment. Remove the cover and place the rubber in the slot. Place back the cover and fasten it again with the screws.

7 technical data

Protection factor IPX4
Capacity collection reservoir 70 ml
Maximum battery usage time 30 minutes
Voltage battery 3.7 V
Connected load 10 watts
Charging time	3 hours

Output voltage, charger	5 V
Output current, charger	700 mA
Weight	650 grammes
Work width	280 mm
Type of battery	Lithium

RECYCLING THE DE BATTERY

- This appliance has an integrated battery; remove the battery before disposal of the appliance.

Caution: do not touch contact points or wiring. Risk of short circuit!

Caution: do not expose the battery to direct sunlight, heat or fire. Hazard of explosion!

Caution: Hazard of personal injury due to short circuit, burns due to chemical reaction or the release of hazardous vapours.

• Do not disassemble the battery pack.
• The appliance may only be opened to remove the battery.
• Remove the battery and take it to a collection point at the shop or at the waste processing department of your municipality.

Technical diagram of a spray gun with numbered parts and an inset showing a close-up of the component being adjusted.

5 3. 4. 5. 6 1. 2 7 1. 2.

7 3. 8 9 10 1.

10 11 2 1

Technical diagram of a spray gun with numbered parts and an instructional note indicating click action.

5 3. 4. 5. 6 1. 2 7 1. 2.

7 3. 8 9 10 1.

10 11 2 1

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
