Product Type	Massage Chair
Brand	Jocca
Model	2105
Power Supply	230 V ~ 50 Hz
Adapter	12 V DC, 1500 mA
Maximum Power	Approximately 18 W
Number of Massage Modes	10 automatic modes
Intensity Levels	10 levels
Timer	1 to 99 minutes (default setting 30 min)
Massage Zones	Calves, glutes, lower back, upper back or entire
Heat Function	Yes, can be activated via remote control
Massage Type	Vibrations with different rhythms (10 modes)
Upholstery Material	Synthetic leather
Chair Composition	Head/neck cushion, backrest, seat, footrest, armrests
Remote Control	With illuminated screen, adjustment buttons
Maximum User Weight	Approximately 120 kg (common estimate)
Usage	Domestic only, not professional
Upholstery Maintenance	Dry cloth; mild stain remover for stains; no alcohol or solvents
Plastic Parts Maintenance	Neutral detergent and cloth
Remote Control Cleaning	Dry cloth
Storage	Clean, dry place, away from sunlight and high temperatures
Standards	Directives 2006/95/EC (LVD) and 2004/108/EC (EMC)

Frequently Asked Questions - 2105 JOCCA

How to assemble the Jocca 2105 massage chair?

Assembly requires fixing the footrest with 4 screws and washers, then the armrests with 2 screws each, and finally the backrest with 2 screws, washers and nuts. Follow the steps in the manual for correct assembly.

How long does an automatic massage cycle last?

By default, the automatic cycle lasts 30 minutes, with one minute per mode (10 modes). You can set the timer from 1 to 99 minutes via the remote control.

Can I use the chair if I am pregnant?

It is not recommended to use the chair during pregnancy or menstruation without medical advice. Consult your doctor before use.

What to do if the vibration stops suddenly?

Check that the adapter is properly plugged in, the remote control is connected and press the I/O button. The timer may also have reached its end (30 min by default).

How to clean the massage chair?

Turn off and unplug the appliance. Use a dry cloth for synthetic leather. For stains, a mild detergent without alcohol. Never use solvents or an iron.

Can the chair be used by children?

No, this device is intended for adults. Do not let children or pets play nearby; they could get hurt.

How to activate the heat function?

On the remote control, press the dedicated heat button. An indicator light shows the function is activated.

What is the electrical power of the chair?

The adapter provides 12 V DC with a current of 1500 mA, approximately 18 W. The device operates on mains 230 V ~ 50 Hz.

Can I use the chair outdoors?

No, use it only indoors on a dry, flat and horizontal surface. Avoid exposure to rain, snow or direct sunlight.

What to do in case of electrical malfunction?

Stop the device immediately, unplug it and contact JOCCA technical service. Do not attempt to repair it yourself.

USER MANUAL 2105 JOCCA

-No permitted that the cable would be used for the purpose of the construction.

JOCCA thanks you for the trust placed in the purchase of our products and we are certain that you will always be satisfied with any of our products.

PRODUCT DESCRIPTION

1-Head and neck cushion
2-Back cushion
3-Armrests
4-Cushion of the seat
5-Footstool cushion
6-Command
7-AC connection to network
8-Support

Remote control front view:

a-Indicating lights

b-Operating key

-On/Off

Intensity

-Up mode

-Down mode

-Massage
-Timer
-Heat
(Auto)-Automatic mode

c-Massage type and intensity type
d-Timer
e-Massage zone

SAFETYWARNINGS

-These instructions are very important. Please read carefully the instructions manual before using the device and keep it for future doubts.
-JOCCA declines any responsibility for the improper use of the product or of any other use which is not described in this manual.

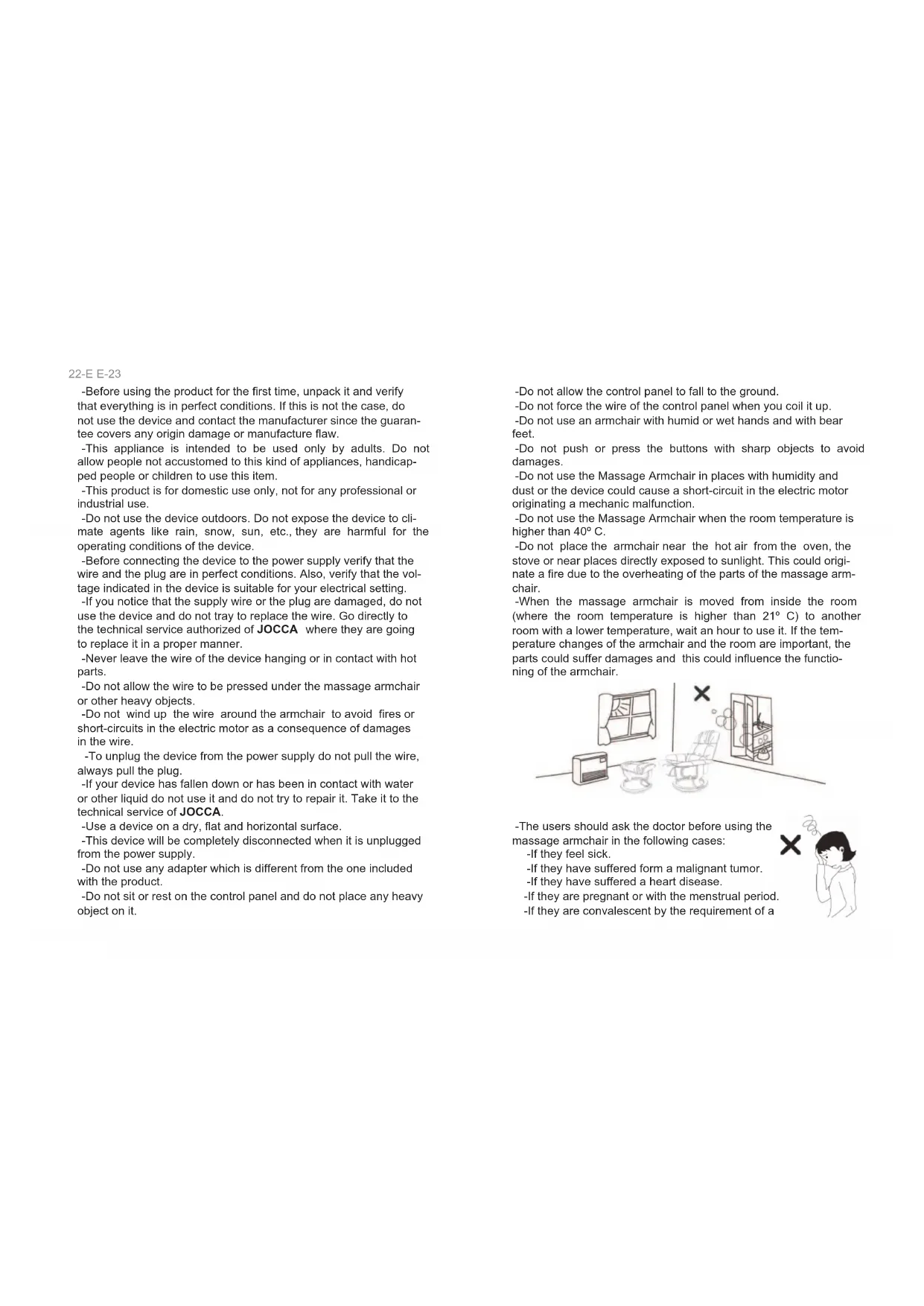

22-E E-23

• Before using the product for the first time, unpack it and verify that everything is in perfect conditions. If this is not the case, do not use the device and contact the manufacturer since the guarantee covers any origin damage or manufacture flaw.

-This appliance is intended to be used only by adults. Do not allow people not accustomed to this kind of appliances, handicapped people or children to use this item.

-This product is for domestic use only, not for any professional or industrial use.

-Do not use the device outdoors. Do not expose the device to climate agents like rain, snow, sun, etc., they are harmful for the operating conditions of the device.

• Before connecting the device to the power supply verify that the wire and the plug are in perfect conditions. Also, verify that the voltage indicated in the device is suitable for your electrical setting.

-If you notice that the supply wire or the plug are damaged, do not use the device and do not tray to replace the wire. Go directly to the technical service authorized of JOCCA where they are going to replace it in a proper manner.

• Never leave the wire of the device hanging or in contact with hot parts.

-Do not allow the wire to be pressed under the massage armchair or other heavy objects.

-Do not wind up the wire around the armchair to avoid fires or short-circuits in the electric motor as a consequence of damages in the wire.

-To unplug the device from the power supply do not pull the wire, always pull the plug.

-If your device has fallen down or has been in contact with water or other liquid do not use it and do not try to repair it. Take it to the technical service of JOCCA.

-Use a device on a dry, flat and horizontal surface.

-This device will be completely disconnected when it is unplugged from the power supply.

-Do not use any adapter which is different from the one included with the product.

-Do not sit or rest on the control panel and do not place any heavy object on it.

-Do not allow the control panel to fall to the ground.

-Do not force the wire of the control panel when you coil it up.
-Do not use an armchair with humid or wet hands and with bear feet.
-Do not push or press the buttons with sharp objects to avoid damages.

-Do not use the Massage Armchair in places with humidity and dust or the device could cause a short-circuit in the electric motor originating a mechanic malfunction.
-Do not use the Massage Armchair when the room temperature is higher than 40^ .

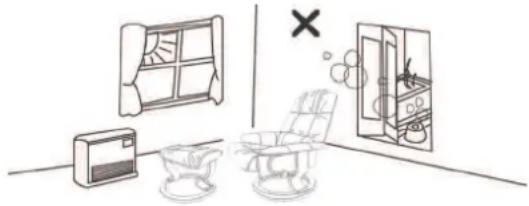

-Do not place the armchair near the hot air from the oven, the stove or near places directly exposed to sunlight. This could originate a fire due to the overheating of the parts of the massage armchair.
- When the massage armchair is moved from inside the room (where the room temperature is higher than 21^ ) to another room with a lower temperature, wait an hour to use it. If the temperature changes of the armchair and the room are important, the parts could suffer damages and this could influence the functioning of the armchair.

• The users should ask the doctor before using the massage armchair in the following cases:

-If they feel sick.
-If they have suffered form a malignant tumor.
-If they have suffered a heart disease.
-If they are pregnant or with the menstrual period.
-If they are convalescent by the requirement of a

24-E E-25

doctor.

-If they have high temperature.

-Do not use the massage armchair with other medical devices or with other household appliances or similar ones to avoid injuries and complications.

-Do not allow children or animals to play near the armchair, especially behind it or under it since they could be injured while the massage armchair is functioning.

-Do not place any heavy object on the armrest, the base or the back of the arm

chair since they could cause flaws in the functioning of the machine or cause injure people.

• The hyperkinesia could appear as a side effect as a consequence of a prolonged use in some parts of the body.

Relax your body while you are receiving the massage.

Situations when the massage armchair should not be used:

-In the event of any of these circumstances you must immediately stop the massage armchair, block the power supply and unplug the device:

• The massage armchair is wet or does not work.

• The leather of the massage armchair is damaged or there are parts of the armchair which are exposed.

-Abnormal pains appear or you experience serious pains during the massage. Stop the device immediately and ask your doctor as soon as possible. There is a flaw in the functioning of the armchair.

-When there is an electrical malfunction.

-During a storm.

-Check the different parts of the body of the armchair to verify that there are no damages.

-Do not use the massage armchair if you notice then the upholstery is broken. You must immediately block the power supply and unplug the device.

Using the massage armchair under these situations could cause injuries as a consequence of an electric shock.

INSTRUCTIONS FOR USE

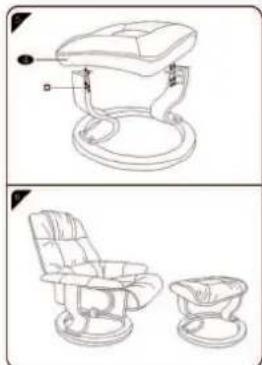

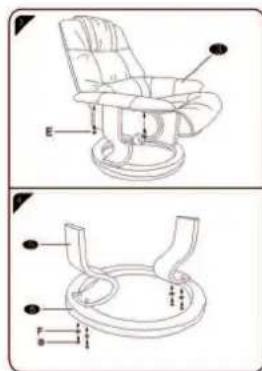

-To assemble an armchair, follow the next steps:
1.Put the washers of 4 screws into a base of a footrest and join 2 parts as it is indicated in the image 4.
2. Then put 4 screws D into a footrest cushion as it is indicated in the image 5.
3. To assemble the arms, put them in an armchair as it is indicated in the image 3 and fit each arm from below with 2 screws E.
4. Finally put a back of armchair into vertical position and fix it with 2 screws, washers and nuts provided, screwing a screw into each side of an armchair.

-When it has been assembled correctly, sit down comfortably and enjoy the effects of a massage armchair.

-Connect AC adaptor from one side to a light and from another side to a back.

-Connect a footrest to a back using a cable and connect a remote control with a seat.

-When a footrest and an armchair, an armchair and power supply have been connected, press 1/0 on a connected remote control to start a massage mode.

-It switches on with an automatic mode AUTO, a timer (d) is pro

26-EE-27

grammed for 30 minutes and massage intensity (c) for level 5.

-For automatic start an armchair is programmed a massage from mode 1 till mode 10, an automatic light mode AUTO switches on and each of massage mode will last 1 minute.

-If you want to add massage intensity, press and a light will indicate you an intensity level from 1 to 10.

-If you press (AUTO), a massage automatic mode fixes.
-If you press ⑦ ,you can programme massage time from 1 to 99 minutes.For automatic start an armchair is programmed for 30 minutes,press ⑨ to achieve the wished time.
-If you want to change a vibration type, you must press or to select a vibration mode from level 1 to 10, a light will indicate you a massage mode.

-If you want to select a massage zone: calves, gluteus, lower back, higher back or all together, press

-If you want to active a heating function, press , a light will indicate you an activated function.

POSSIBLE PROBLEMS

-Check the following possible functioning problems if the massage armchair does not work properly. These problems can be solved in an easy manner following the instructions below.
-Do not dismantle or repair any part of the armchair by yourself.

-If vibration does not work:

Possible problems Possible solutions
An adaptor is not plugged in correctly.	Plug in correctly an adaptor.
A remote control is disconnected.	Connect a remote control to an armchair and press I/O button.

-If vibration has been stopped suddenly or works in an opposite direction than was marked:

Possible problems Possible solutions.
Vibration stops automatically because a timer is predetermined for 30 minutes.	Switch on a remote control pressing On/Off.
Does not work correctly. Discorect a device from light during 20 minutes and afterwards connect it again.
A connector is not connected correctly.	Check if all the connections have been made correctly.

CLEANING AND STORAGE

When the armchair is not used:

-Unplug the device if it is not going to be used for a long time.
-Put the armchair in a clean and dry place.

Conservation:

-Always maintain the armchair clean and free from dust.
-Maintain the armchair in a place where it is not affected by humidity.
-When the armchair is not used for a long period of time, use a cloth to cover it and protect it fro dust.
-Do not place the armchair in places with direct exposition to sunlight or high temperatures; the leather could be discolored.

Maintenance of the massage armchair:

-Block the power supply and unplug the device before cleaning the armchair.

Maintenance of the main body of the massage armchair:

-You can use a neutral detergent to clean the plastic parts and the

iron supports of the armchair. Clean the leather of the armchair with a dry cloth without any detergent that may damage it.

-Do not use a detergent containing alcohol or any other chemical agent to clean the armchair since they could damage the leather.

Remote control:

-Use a dry cloth to clean the remote control.

Cushions of the massage armchair:

-Use a Light detergent to clean stains on the surface of the armchair and then clean with a dry cloth the areas that are wet.

-Do not use an electric iron for the surface of the armchair.

-Do not wash the leather of the armchair using a washing machine.

TECHNICAL SPECIFICATIONS

230V~50Hz

12V DC 1500mA

This device meets the specifications of the Low Voltage Directive 2006/95/CE and of the Electromagnetic Compatibility Directive 2004/108/CE.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

This product has been designed and manufactured with high quality materials and components that can be recycled and reused.

When you see the symbol of a crossed out litter bin on wheels next to a product, this means that the product conforms to the European Directive 2002/96/EC.

Please obtain information about the local recycling system for electric and electronic products.

Follow the local rules and do not dispose of used products by throwing them in the normal bins at home. Proper recycling of your used product will help avoid negative impacts on the environment and people's health.

F-2928-E
