PB108772 - Electric cooking appliance Emerio - Free user manual and instructions

Technical Features	Details not available
Usage	Details not available
Maintenance and Repair	Details not available
Safety	Details not available
General Information	Details not available

Frequently Asked Questions - PB108772 Emerio

How can I turn on the Emerio PB108772?

To turn on the Emerio PB108772, plug the device into a power outlet and press the power button located on the control panel.

What should I do if the device does not start?

Check if the device is properly plugged in and if the power outlet is working. Also, make sure the fuse is not blown.

How do I clean the Emerio PB108772?

Unplug the device before cleaning it. Use a damp cloth to wipe the exterior. Do not immerse the device in water and do not use abrasive cleaners.

The device is making unusual noises, what should I do?

If you hear unusual noises, unplug the device immediately and check for obstructions or loose parts. If the problem persists, contact customer service.

How can I adjust the temperature on the Emerio PB108772?

Use the temperature adjustment knob on the control panel to set the desired temperature. Refer to the user manual for detailed instructions.

Is the device safe to use?

Yes, the Emerio PB108772 is designed with safety features. Make sure to follow the instructions in the manual for safe use.

Where can I find the user manual?

The user manual is usually included in the packaging. You can also download it from the manufacturer’s website.

What is the warranty for the Emerio PB108772?

The Emerio PB108772 is generally covered by a 1-year warranty. Check the warranty details in the user manual or on the manufacturer’s website.

USER MANUAL PB108772 Emerio

Pizza Box CAUTION HOT SURFACE Pizza Box POWER HEAT

Pizza box (EN)

Pizza box (DE)

Pizza box (FR)

Pizza box (SE)

Pizza box (NL)

Instruction manual – English ...... - 2 -

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. WARNING!!

Yellow triangular warning sign with black outline and steam symbol indicating smoke or heat release

Please do not touch surface while in use. The accessible surface may get hot when the appliance is operating.

1. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
2. Do not use outdoors, household use only.
3. Do not immerse plug, cord or cooking unit in water or other liquid to protect against fire, electric shock or injury to person.
4. Do not let cord hang over edge of table or counter, or

touch hot surfaces.

1. Please locate the appliance and plug accessible to the power socket.

2. When using this appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall covering, clothing, dishtowels or other flammable materials during use.

3. Do not use this appliance for other than intended use.

4. Never leave the appliance unattended during use.

5. Warning: This appliance must be earthed.

6. Keep the appliance away from children.

7. The socket used should be in accordance with the plug of the appliance.

8. Make sure that the temperature controller is on the position of "MIN" before plugging.

9. Do not switch on the appliance when the pizza pan is empty.

10. Do not heat without food inside.

11. Do not open the lid when rotating.

12. The surface is hot when rotating. Never touch the outer body before it's cooled to avoid scald.

13. Before first use, please check carefully if all the parts of the appliance are in good condition. Never use this appliance if it is not in good condition or attempt to repair the malfunctioning appliance.

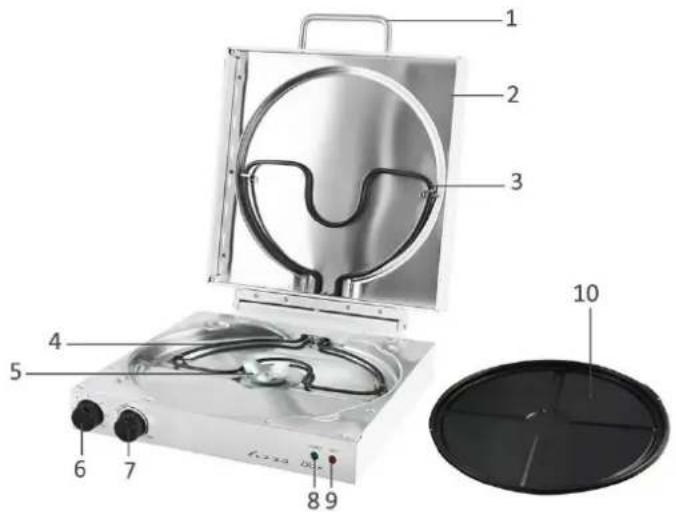

PARTS DESCRIPTION

1. Cool touch handle
2. Lid
3. Upper heating element
4. Lower heating element
5. Center drive shaft
6. Timer
7. Adjustable temperature control
8. Power indicator light
9. Heat indicator light
10. Removable rotating baking pan

Labeled diagram of a portable stove with numbered components for identification

BEFORE FIRST USE

1. Remove all packing material.
2. Be sure to keep the unit unplugged.
3. Clean the pizza pan with warm soapy water.
4. Wipe the inner walls of the appliance with a damp cloth or sponge.
5. Do not immerse in water.

USE

Note: You do not need to preheat the appliance.

1. Always place the appliance on a flat, level and stable surface.
2. Turn the adjustable temperature control and timer to the lowest minimum position before inserting plug into an electrical outlet. NOTE: Always unplug the appliance when not in use.

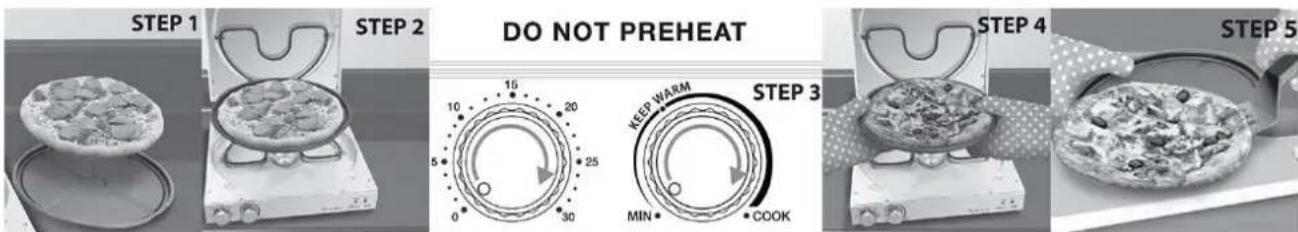

STEP 1 STEP 2 DO NOT PREHEAT STEP 4 STEP 5

STEP 1: Place a 12 inch or smaller pizza in the rotating baking pan. Be sure to remove any plastic or cardboard packaging.

STEP 2: Place the rotating baking pan on the center drive shaft and then closed the lid. Plug the appliance in an electrical outlet.

STEP 3: Adjust the temperature and time to your desired setting as indicated in below table. Rotate the timer, the power indicator lights up. And then rotate the temperature control, the heat indicator lights up. When the desired temperature is reached the heat indicator turns off. NOTE: the rotating baking pan will start turning after timer and temperature settings have been set and when lid is fully closed.

COOKING TABLE
Pizza type & size	Temperature	Cooking time
Fresh Pizza – 9” to 12”	COOK	8-10 minutes
Thin Crust – 9” to 12”	COOK	10-12 minutes
Standard Crust – 9” to 12”	COOK	20-22 minutes
Thick Rising Crust / Pan Pizza – 9” to 12”	COOK	25-27 minutes

NOTE: If you need to use the keep warm function, turn the temperature control to "KEEP WARM" position and keep the timer working. When baking cycle has been completed, timer bell will sound and the rotating baking pan will stop turning. The appliance will turn off automatically. Unplug from the electrical outlet before taking out pizza from unit.

EXTREME CAUTION MUST BE USED WHEN APPLIANCE IS IN USE. TOP OF THE APPLIANCE AND ITS CASING ARE HOT! WARNING: This appliance generates heat and steam that can cause burns and serious injuries.

STEP 4: Carefully take out the rotating baking pan from the appliance by using the heat proof oven mitts. Always use oven mitts when placing or removing food from unit.

STEP 5: Use plastic or wooden utensils to remove the pizza from the rotating baking pan. Place the pizza on cutting board and cut the pizza into slices as desired. Do not use metal forks, knives, spatulas or other utensils on the baking pan as this may damage the non-stick cooking surface.

NOTE: Do not leave your appliance unattended when it is working, contains hot food or still hot. Always supervise children when they are near the appliance. Do not allow children to operate or be near the appliance when it is in use. Caution: appliance becomes hot during operation.

WARNING: Fire hazard. If for any reason food in the appliance ignites during use, do not open the lid (Do not operate the appliance with the lid open). Immediately unplug the appliance from the electrical outlet and allow contents to extinguish itself. Let the appliance cool down completely before opening the lid. After such incident, the appliance should be returned to authorized service center for inspection.

CLEANING

1. Unplug the appliance from electrical outlet.
2. Let the appliance cool down completely before handling or cleaning.
3. Turn the adjustable temperature control and timer to lowest position, making sure power indicator light is turned off.
4. Open the lid and take out the non-stick rotating baking pan. Clean the baking pan in hot soapy water with a soft cloth and let it dry thoroughly before placing it back in the appliance.
5. With the unit fully turned off and disconnected from power outlet, clean the outer casing with damp cloth. Wipe dry with clean dry cloth.
6. Do not immerse the appliance, electrical cord or plug in water or other liquid.
7. Do not let oil, grease or food residue accumulate inside the appliance, especially around heating elements as this could be a fire hazard. Always keep the appliance interior clean using a damp cloth or nylon scrub pad if necessary. Never use water or cleaning liquid inside the appliance. Let it dry completely before use.
8. Do not clean the unit or parts with any abrasive pads or cleaners as this could damage the appliance.
9. Unplug the power cord from the outlet when not in use. Clean and cover the unit and store it in a dry place if not being used for an extended period of time.

REPAIRING

If there is any breakdown or damage, the appliance must be repaired by specialized people. Non-specialized people are not permitted to dismantle or repair the appliance.

TROUBLE SHOOTING

PROBLEM	SOLUTION
Rotating baking pan does not turn.	Timer was not set properly or the rotating baking pan may not be well seated on the center drive shaft. Make sure the rotating baking pan is seated properly on the center drive shaft and timer & temperature control are set.
Rotating baking pan turns but does not cook food.	Temperature control was not set properly.Temperature control must be adjusted to desired temperature in order for heating elements to turn on and begin cooking pizza. Adjust temperaturesetting as shown in above table (STEP 3).
Pizza is not cooked evenly.	Temperature setting was not selected to correct heat level for the type of pizza you are cooking. Adjust temperature setting as shown in above table (STEP 3).
Crust is not crispy enough or toppings are not brown enough.	Always start cooking pizza, using temperature settings as shown in above table (STEP 3). For a crispier crust, cook a few minutes longer and /or at a higher temperature. When doing so, carefully check pizza not to overcook or burn it. Do not leave appliance unattended at any time.

TECHNICAL DATA:

Operating voltage: 230V\~50/60Hz

Power consumption: 1200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]

Warning sign with yellow triangle and black outline indicating hot water or steam

Warning sign depicting steam rising inside a yellow triangle, indicating caution or hazard level

Labeled diagram of a portable stove with numbered components for identification

AVANT LA PREMIERE UTILISATION

Yellow triangular warning sign with black smoke symbol indicating steam or hazard

Labeled diagram of a portable air conditioner unit with numbered components and internal structure

Warning sign with yellow triangle and black outline indicating steam or heat release

Labeled diagram of a portable stove with numbered parts for identification
