USER MANUAL G0080260 Generac

Generac GB1000 and GB2000 Portable Power Station

Owner's Manual

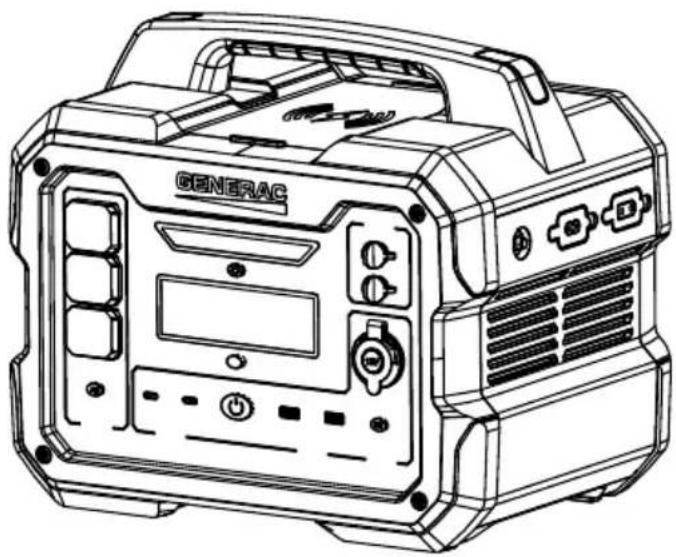

Line drawing of a generic electronic device with control panel and buttons (no text or symbols)

MODEL:

SERIAL:

DATE PURCHASED:

WARNING

Loss of life. This product is not intended to be used in a critical life support application. Failure to adhere to this warning could result in death or serious injury. (000209b)

Register your Generac product at:

WWW.GENERAC.COM

1-888-GENERAC

(1-888-436-3722)

Table of Contents

Section 1 Introduction and Safety ....1

Introduction 1

Safety Rules ....1

Important Alerts 1

FCC Statement 2

Section 2 General Information and Setup ....3

What's Included 4

Know Your Power Station 4

Know Power Station Limits 6

Estimated Operating Time 6

Section 3 Operation ....7

Operation and Use Questions 7

General Use 7

Using the Power Station (Discharging) 7

Charging the Power Station 7

Simultaneous Charge Inputs 8

Pass-Through Charging 8

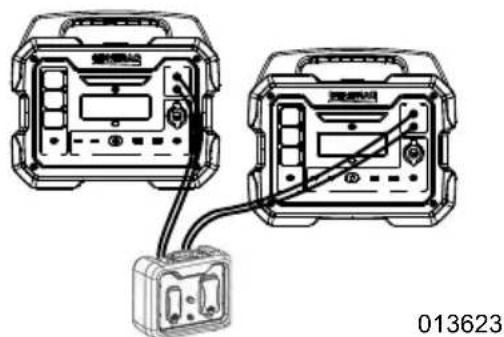

Parallel Connection 8

Transportation 9

Section 4 Maintenance and Troubleshooting ....10

Product Maintenance 10

Storage 10

Disposal 10

FAQ 10

Troubleshooting 10

Notes 12

Section 1 Introduction and Safety

Introduction

Read This Manual Thoroughly

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

If any section of this manual is not understood, contact the nearest Independent Authorized Service Dealer (IASD) or Generac Customer Service at 1-888-436-3722 (1-888-GENERAC), or visit www.generac.com for starting, operating, and servicing procedures. The owner is responsible for proper maintenance and safe use of the unit.

SAVE THESE INSTRUCTIONS for future reference. This manual contains important instructions that must be followed during placement, operation, and maintenance of the unit and its components. Always supply this manual to any individual that will use this unit, and instruct them on how to correctly start, operate, and stop the unit in case of emergency.

The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice.

Safety Rules

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The alerts in this manual, and on tags and decals affixed to the unit, are not all inclusive. If using a procedure, work method, or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others and does not render the equipment unsafe.

Throughout this publication, and on tags and decals affixed to the unit, DANGER, WARNING, CAUTION, and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Alert definitions are as follows:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

(000001)

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

(000002)

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

(000003)

NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual.

These safety alerts cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents.

Important Alerts

Electrical Hazards

DANGER

Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.

(000104)

DANGER

Electrocution. Contact with bare wires, terminals, and connections will result in death or serious injury.

(000756)

DANGER

Electrocution. In the event of electrical accident, immediately shut power OFF. Use non-conductive implements to free victim from live conductor. Apply first aid and get medical help. Failure to do so will result in death or serious injury. (000145)

WARNING

Electrocution. Never charge a battery in wet conditions. Doing so could result in death, serious injury, equipment or property damage.

(000482)

WARNING

Electrocution. Never operate this unit in wet conditions, and always store it under a cover or in a dry location. Failure to do so could result in death, serious injury, or equipment or property damage.

(000713a)

WARNING

Electrocution. Grasp electrical cord plug when unplugging the electrical cord from the outlet. Do not touch metal prongs. Failure to do so could result in death or serious injury.

(000714a)

Fire and Explosion Hazards

WARNING

Explosion. Do not dispose of batteries in a fire. Batteries are explosive. Electrolyte solution can cause burns and blindness. If electrolyte contacts skin or eyes, flush with water and seek immediate medical attention. (000162)

WARNING

Risk of fire. Do not crush, puncture, or subject battery units or modules to strong impacts. Failure to do so could result in death, serious injury, property damage, or equipment damage. (000730)

Additional Personal Property Hazards

WARNING

Equipment and property damage. Do not operate unit on uneven surfaces, or areas of excessive moisture, dirt, dust or corrosive vapors. Doing so could result in death, serious injury, property and equipment damage.

(000250)

WARNING

Injury and equipment damage. Do not use battery as a step. Doing so could result in falling, damaged parts, unsafe equipment operation, and could result in death or serious injury. (000757)

WARNING

Injury and equipment damage. The use of non-Generac equipment could result in unit damage, death or serious injury.

(000752)

WARNING

Risk of burn. Do not open or mutilate batteries. Batteries contain electrolyte solution which can cause burns and blindness. If electrolyte contacts skin or eyes, flush with water and seek immediate medical attention. (000163)

WARNING

Personal injury. Keep out of reach of children. Failure to do so could result in death or serious injury.

(000128a)

FCC Statement

The equipment complies with part 15 of the FCC rules. The operation shall meet the following two conditions:

1. The device may not cause harmful interference, and
2. The equipment must accept any interference received, including interference that may lead to accidental operation.
3. The equipment complies with FCC radiation exposure limits for uncontrolled environments. The equipment shall be installed and operated at a minimum distance of 20 cm between the radiator and the vehicle body.

NOTE: According to part 15 of the FCC rules, the equipment has been tested and found to comply with the limitations of class B digital equipment. These restrictions are intended to provide reasonable protection against harmful interference with residential facilities. The equipment can be used and radiate RF energy. If it is not installed and used according to the instructions, it may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a specific installation. If the equipment does cause harmful interference to radio or television reception, it can be determined by turning off the equipment, and users are encouraged to correct the interference by one or more of the following measures:

1. Reposition or reposition the receiving antenna.
2. Increase the distance between the device and the receiver.
3. Connect the device to an outlet on a circuit different from the circuit to which the receiver is connected.
4. Consult your dealer or experienced radio / TV technician for assistance.

Section 2 General Information and Setup

013615013617

Figure 2-1. Features and Controls
TABLE 1. Components

1 Main ON/OFF Button

2 AC Output ON/OFF Button

3 NEMA 1-15R AC Receptacles

4 AC Output Circuit Breaker

5 DC Output ON/OFF Button

6 12V Car Port

7 USB-A Output Receptacle

8 USB-C Output Receptacle

9 Wireless Charging Pad

10 Display ON/OFF Button

11 Display Screen

12 LED ON/OFF Button

13 Diffused LED Light

14 Parallel Ports

15 AC Charging Port

16 DC Charging Port

17 Cord Storage Pocket

10971 11 3 INPUT 0000 w 100% OUTPUT 0000 w 4 6 DC 5 2 013619

Figure 2-2. Control Panel and LCD Display

TABLE 2. Display Screen Icons

1 Battery State of Charge

2 Battery State of Charge Indicator Bar

3 Input Power (Charging)

4 Output Power

5 AC Output ON/OFF Icon

6 DC Output ON/OFF Icon

7 Estimated Charge / Discharge Time Remaining

8 Low Battery Power Indicator

9 Fault Warning

10 Low Temperature Warning

11 High Temperature Warning

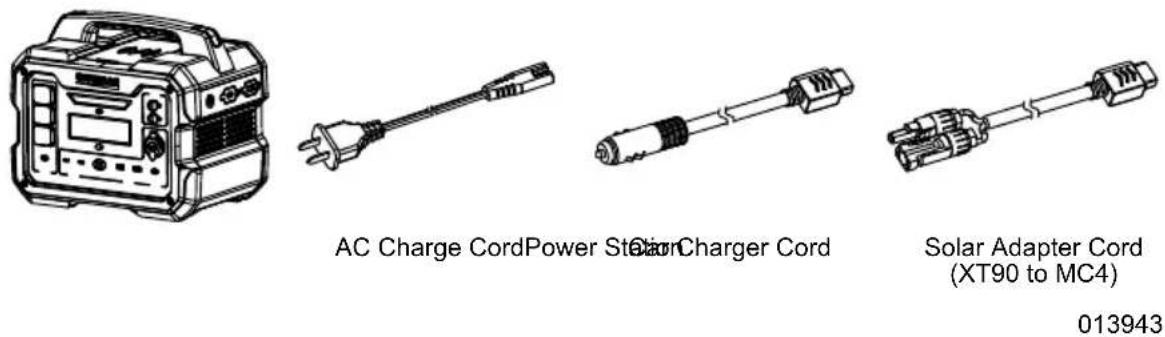

What's Included

AC Charge CordPower StationCharger Cord
Solar Adapter Cord (XT90 to MC4)

013943

Know Your Power Station

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Replacement owner's manuals are available at www.generac.com.

TABLE 3. Product Specifications

	GB1000 GB2000
GENERAL
Dimensions(L x W x H)	14.1 x 10.2 x 12.0 in(359 x 258 x 305 mm)	16.8 x 10.4 x 15.1 in(425 x 265 x 384 mm)
Weight 27.1 lbs (12.3 kg)	43 lbs (19.5 kg)
Output
AC Output (x3) 120VAC / USB-A (x2) 5VDC / 3.1A	13.3A (1600W / 3200W Surge)
USB-C (x2) 5-20VDC / 3.3A	(15.5W max ea.)
12V Car Port 12VDC / 10A	(65W max ea.)
Wireless Charger 15W max
Charge Input
AC Wall Charger 120VAC	60Hz 450W max
DC / Solar Charger 10-28	VDC / 30A (468W max)
Battery
Cell Chemistry Li-ion NMC
Pack Capacity 1086Wh	2106Wh
Cycle Life* 800 cycles to	80% capacity 1000 cycles to	80% capacity
Shelf Life Charge every 3-6 months
Management System	High / Low temperature protection
	Overload protection
	Over voltage protection
	Under voltage protection
	Short circuit protection
Environmental
Discharge Temperature	-4°F to 104°F (-20°C to 40°C)
Charge Temperature	32°F to 104°F (0°C to 40°C)
Storage TemperatureOptimalMax
	59°F to 77°F (15°C to 25°C)
	-4°F to 113°F (-20°C to 45°C)
Exposure Rating	Temporary Outdoor Use
*Cycle life based on charge rate of 0.5C and discharge rate of 1C @ 25°C

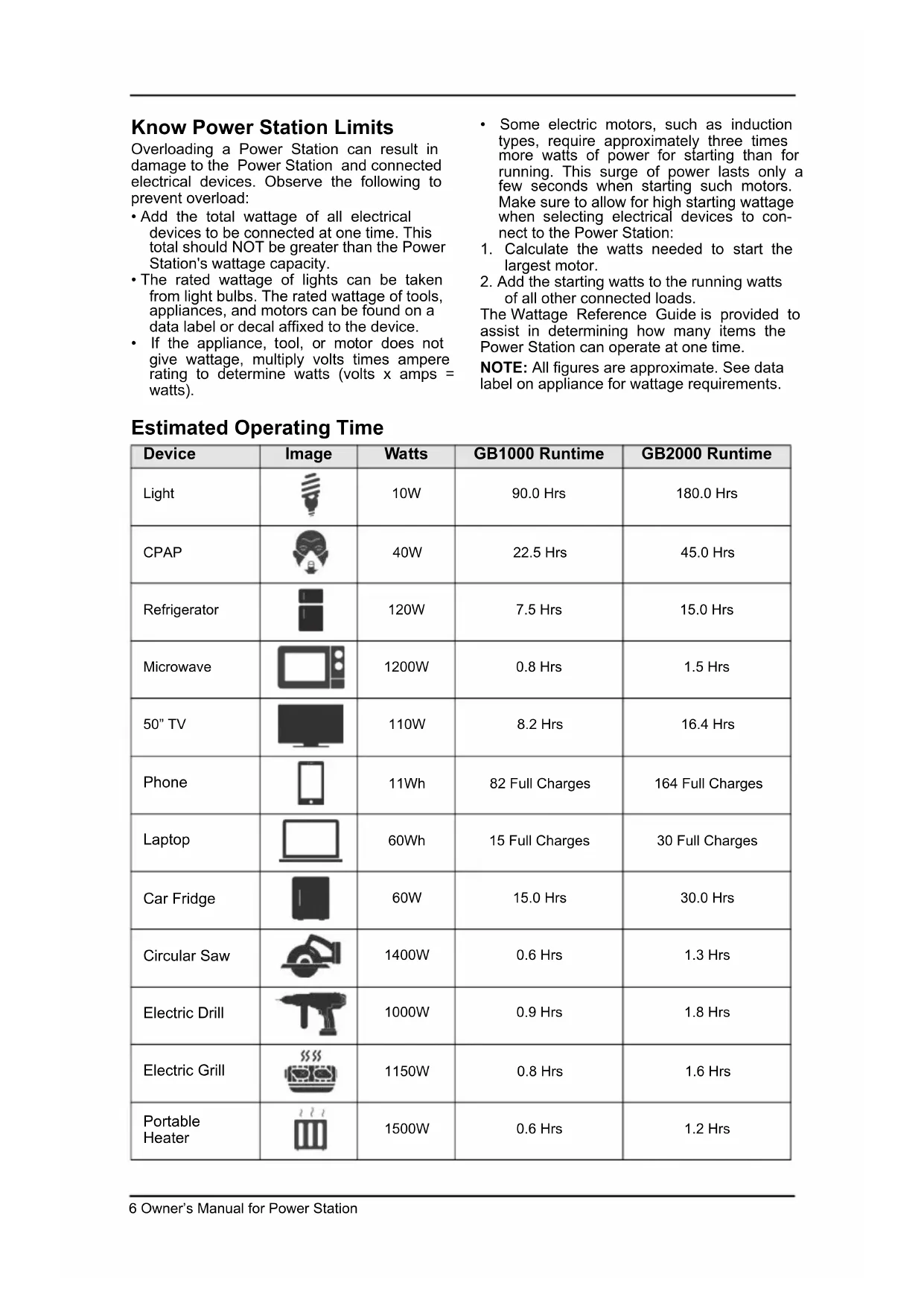

Know Power Station Limits

Overloading a Power Station can result in damage to the Power Station and connected electrical devices. Observe the following to prevent overload:

- Add the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the Power Station's wattage capacity.

- The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances, and motors can be found on a data label or decal affixed to the device.

- If the appliance, tool, or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

- Some electric motors, such as induction types, require approximately three times more watts of power for starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure to allow for high starting wattage when selecting electrical devices to connect to the Power Station:

1. Calculate the watts needed to start the largest motor.

2. Add the starting watts to the running watts of all other connected loads.

The Wattage Reference Guide is provided to assist in determining how many items the Power Station can operate at one time.

NOTE: All figures are approximate. See data label on appliance for wattage requirements.

Estimated Operating Time

Device	Image	Watts	GB1000 Runtime	GB2000 Runtime
Light		10W	90.0 Hrs	180.0 Hrs
CPAP		40W	22.5 Hrs	45.0 Hrs
Refrigerator		120W	7.5 Hrs	15.0 Hrs
Microwave		1200W	0.8 Hrs	1.5 Hrs
50" TV		110W	8.2 Hrs	16.4 Hrs
Phone		11Wh	82 Full Charges	164 Full Charges
Laptop		60Wh	15 Full Charges	30 Full Charges
Car Fridge		60W	15.0 Hrs	30.0 Hrs
Circular Saw		1400W	0.6 Hrs	1.3 Hrs
Electric Drill	[20HT]	1000W	0.9 Hrs	1.8 Hrs
Electric Grill		1150W	0.8 Hrs	1.6 Hrs
Portable Heater		1500W	0.6 Hrs	1.2 Hrs

Section 3 Operation

Operation and Use Questions

Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) with questions or concerns about equipment operation and maintenance.

General Use

Powering ON the Power Station

Press and hold the ON/OFF button to turn ON the Power Station. The ON/OFF button will illuminate, and the LCD display will turn ON.

NOTE: The Power Station will automatically shut down after 60 minutes of idle operation to conserve the battery.

Press and hold the ON/OFF button again to turn off the Power Station.

LCD Display

The LCD display automatically turns ON when the Power Station is turned ON. Once the Power Station is ON, the display can be toggled ON and OFF by pressing the Display Button.

NOTE: The Power Station display will enter sleep mode after 10 minutes of idle operation.

LED Light

With the Power Station powered ON, press the LED button once to turn ON the low flood light. Press the LED Button again to turn ON the high flood light. Press the LED Button again to turn off the light.

Wireless Charger

With the Power Station powered ON, press the DC Button to turn ON the wireless charger.

NOTE: Ensure the device is centered on the wireless charging pad. Wireless charger may not be compatible with certain devices or cases on devices.

AC Output

With the Power Station powered ON, press the AC Button to use the 120V AC receptacles. The AC Button will illuminate, and the AC icon will appear on the display.

NOTE: If the AC Button is flashing, press and hold the AC Button to reset the circuit. See Troubleshooting if the flashing persists.

DC Output

With the Power Station powered ON, press the DC Button to use the USB's, 12V car adapter and wireless charger. The DC Button will illuminate, and the DC icon will appear on the display.

NOTE: If the DC Button is flashing, press and hold the DC Button to reset the circuit. See Troubleshooting if the flashing persists.

Using the Power Station (Discharging)

Starting the Power Station

NOTE: If using only one, or all three AC receptacle(s), the load must not exceed 13.3A current, 1600 watts of power.

1. Confirm the device or equipment requiring power is OFF.
2. Press and hold ON/OFF button for three (3) seconds to turn unit ON.
3. Connect equipment.
4. AC Power - Turn ON AC power switch.
5. DC Power (USB/vehicle charging) - Turn ON DC power switch.

NOTE: Power Station will automatically turn off after 60 minutes if not in use.

Charging the Power Station

WARNING

Injury and equipment damage. The use of non-Generac equipment could result in unit damage, death or serious injury.

(000752)

IMPORTANT NOTE: Always use the charging cord(s) supplied with the unit.

NOTE: The ambient temperature for product use should be between 0 °C to 40 °C (32 °F to 104 °F).

Place the Power Station on a clean, dry, level surface.

The Power Station can be charged three (3) separate ways.

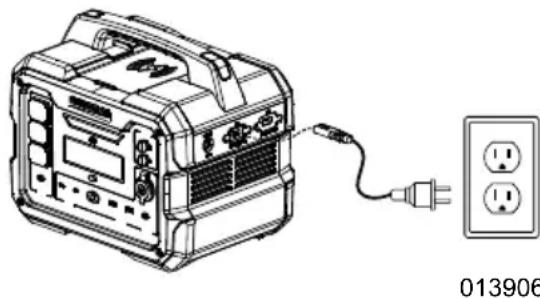

1. See Figure 3-1. AC Power Supply - Insert AC charging cord from the AC charging port to the wall electrical outlet.

Line drawing of an electronic device connected to a power outlet, showing internal components and wiring (no text or symbols)

Figure 3-1. AC Wall Charging

1. See Figure 3-2. Solar Panels - Insert DC charging cord from the solar panel into the DC charger port.

NOTE: Charging time is dependent on the solar panel power and light intensity.

NOTE: Confirm the solar panel is compatible with the power station before connecting the solar panel. Power stations support 10-28VDC, 30A max, up to 468W of solar input. Solar panels not meeting these requirements may damage the power station.

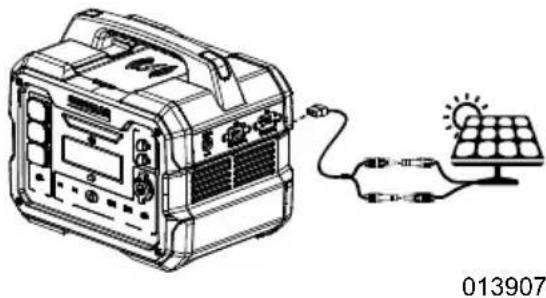

Line drawing of an oscilloscope connected to a solar panel with cables (no text or symbols on the device itself)

Figure 3-2. Solar Charging

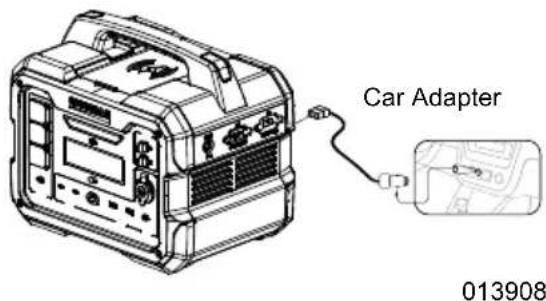

1. See Figure 3-3. Car Charging - Insert DC charging cord from the car power supply into the DC charger port.

NOTE: Car charging the power station will drain the vehicles battery. It is recommended to only charge the power station while the vehicle is running to prevent depletion of the vehicle's battery.

NOTE: Always disconnect the power station when the vehicle is turned off.

Car Adapter 013908

Figure 3-3. Car Charging

Simultaneous Charge Inputs

Power Stations are compatible with simultaneous AC and DC charge inputs (example: solar + generator).

The charging input reference guide provides suggested charge input power range.

NOTE: Exceeding suggested charge input power can reduce battery life.

BATTERY LIFE	GB1000	GB2000
Best	<540W	<1000W
Good	540W - 800W	—
Not Advised	>800W	—

Pass-Through Charging

Power Stations support simultaneous charging and discharging of the battery during operation.

NOTE: This device is not designed to be used as a UPS (Uninterrupted Power Supply).

NOTE: Pass-through charging can reduce battery life.

Parallel Connection

WARNING

Injury and equipment damage. The use of non-Generac equipment could result in unit damage, death or serious injury.

(000752)

• The rated power of equipment should not exceed the total rated power of parallel products.
• Only use with compatible Power Stations and Generac Portable Inverter Generators. See parallel kit manual for complete list of compatible devices.
  • The use of non-Generac equipment could cause unit damage or personal injury.
• Connect parallel devices before turning the power ON.
• Turn the power OFF before disconnecting parallel devices.

Paralleling two Power Stations provides almost twice the power.

1. See Figure 3-4. Insert the parallel plugs from the parallel box into the Power Stations.
2. Press ON/OFF button on the Power Stations.
3. Press AC button on the Power Stations.
4. Plug electrical equipment into the AC outlets. Turn ON equipment.

NOTE: If a fault occurs, the AC power will turn off and the fault light will flash for 10 seconds.

NOTE: AC and DC Power Station outlets can be used at the same time as the parallel kit although output is limited to the Power Station's rating.

Technical line drawing of two connected electrical devices with wires, no visible text or symbols

Figure 3-4. Parallel Connections

Transportation

- Position and/or tie-down power station securely during travel to prevent rolling or tipping of the product. Failure to secure the power station may result in unit damage or personal harm.

- Refer to FAA regulations regarding air travel. Power stations with lithium batteries (>160Wh) are not permitted for commercial air travel.

Section 4 Maintenance and Troubleshooting

Product Maintenance

- Use a damp cloth with mild soap to wipe exterior surfaces clean.

NOTE: Avoid cleaning solvents harmful to plastics to prevent damage to the power station.

• Visually inspect unit to ensure vents are clear before each use.
• Clean dust and debris from vent(s) with a clean cloth before each use.
• Discharge and charge battery once every three (3) months. See Using the Power Station (Discharging).
• Charge the Power Station as soon as the display reads 20% state of charge or less.

Storage

• Store unit in a clean, dry, ventilated area.
• Store at an optimal temperature of 59^ - 77^ (15^ - 25^) and a max temperature of -4^ - 113^ (-20^ - 45^) .
• The Power Station should be between 30-60% state of charge for long term storage. Recharge every three (3) months to maintain battery life.

Disposal

Contact an IASD to return Power Station for disposal.

FAQ

Q: Why does the power station show power output when I don't have anything plugged in?
A: The power station uses power for the display, fans, inverter, etc. Power usage is shown on the LCD display for user awareness.
Q: Can the GB1000/GB2000 be discharged at the same time it is charging?
A: Yes, both models can be simultaneously charged and discharged.

NOTE: Pass-through charging can reduce battery life.

Q: How do I estimate the operating time for a device?
A: Estimated operating time (hrs) = Capacity (Wh) * 0.8 / Device Load (W).
Q: Can I use the GB1000/GB2000 outside?
A: Yes, both models are rated for temporary outdoor use.
NOTE: The power stations should NOT be exposed to rain or moisture.
Q: How do I silence the beeping sound when pressing buttons?
A: Hold the DISPLAY button for five (5) seconds.

Troubleshooting

PROBLEM CAUSE	CORRECTION
Unit does not have output power.	1. Unit turned off.2. AC or DC output turned off.3. AC circuit breaker OPEN.4. Unit is overloaded. (Solid Fault Warning on display)5. Unit temperature is below -4 °F (-20 °C). (Low Temp Warning Icon on display)6. Unit temperature is above 104 °F (40 C°). (High Temp Warning Icon on display)7. AC or DC circuit error (AC / DC display icon flashing).8. Unit is defective. (Flashing Fault Warning on Display)	1. Hold ON/OFF power button on the power station.2. Press AC or DC button to power on circuit.3. Reset circuit breaker.4. See Know Power Station Limits5. Move power station inside to warm up. (This may take some time.)6. Move power station to cooler location. (This may take some time.)7. Hold AC or DC button for three (3) seconds to reset circuit.8. Contact IASD.
PROBLEM CAUSE CORRECTION
Unit will not charge. 1. Bad	power source.2. Loose connection.3. Unit temperature is below 32 °F (0 °C). (Low Temp Warning Icon on display).4. Unit temperature is above 104 °F (40 °C). (High Temp Warning Icon on display).5. Defective charger (Alarm display icon flashing two (2) times).	1. Confirm power source is compatible with the power station.2. Confirm plugs are firmly connected.3. Move power station inside to warm up. (This may take some time.)4. Move power station to cooler location. (This may take some time.)5. Contact IASD.
Unit will not start. 1. Power	station powered ON incorrectly.2. Battery at 0% state of charge.3. Unit is defective.	1. Hold ON/OFF button for three (3) seconds to power ON the power station.2. Charge the power station.3. Contact IASD.
Unit starts, then shuts down.	1. No load present on unit.A. Display sleeps after 10 minutes.B. Power station automatically shuts down after 60 minutes to conserve battery.2. Unit is defective. (Flashing Fault Warning on Display).	1. Hold ON/OFF button to power on the power station. Ensure AC or DC output is turned ON and load is connected.2. Contact IASD.
Unit is overheating - (High Temp Warning on Display).	1. Unit temperature is too high (High Temp Warning Icon on display).2. Dirty or clogged vents.3. Defective cooling fan.	1. Move power station to cooler environment. (This may take some time.)2. Clean vents.3. Contact IASD.
Wireless charger not working.	1. DC output turned OFF.2. Device not centered on wireless charging pad.3. Device not compatible.4. Case on device.	1. Press DC button to power on circuit.2. Center device on wireless charging pad.3. Confirm device is compatible with wireless charging.4. Remove case from device and try again.

Notes

Part No. A0002236216 Rev. A 05/09/2022

©2022 Generac Power Systems, Inc.

All rights reserved

Specifications are subject to change without notice.

No reproduction allowed in any form without prior

written consent from Generac Power Systems, Inc.

GENERAC®

Generac Power Systems, Inc.

S45 W29290 Hwy. 59

Waukesha, WI 53189

1-888-GENERAC (1-888-436-3722)

www.generac.com

Line drawing of a generic electronic device with control panel and buttons (no text or symbols)

MODELO:

SERIE:

FECHA DE COMPRA:

ADVERTENCIA

Line drawing of a portable electronic device with control panel and display (no text or symbols)

Central eléctrica

Line drawing of an electronic device connected to a power outlet, showing ports and wiring (no text or symbols)

Figura 3-1. Carga de pared de CA

Line drawing of an oscilloscope connected to a solar panel via a cable (no text or symbols on the device itself)

Figura 3-2. Carga solar

Two identical electronic devices connected by wires, one with a small component and the other with a diagonal line (no text or symbols visible)

013623
Figura 3-4. Conexiones paralelas

Transporte

©2022 Generac Power Systems, Inc.

Line drawing of a generic electronic device with control panel and buttons (no text or symbols)

MODÈLE :

N° DE SÉRIE :

DATE D'ACHAT :

AVERTISSEMENT

Line drawing of a portable electronic device with control panel and display (no text or symbols)

Centrale électrique

Cordon de charge c.a.

Line drawing of an electronic device connected to a power outlet (no text or symbols on the device itself)

Line drawing of an oscilloscope connected to a solar panel with a power cord (no text or symbols on the device itself)

Figure 3-2. Rechargement photovoltaïque

Two identical electronic devices connected by wires, one with a small box and cable, the other with a grid of ports (no visible text or symbols)

013623

©2022 Generac Power Systems, Inc.
