Technical Specifications	RYOBI P3100 Welding Machine
Welding Type	Arc Welding
Power	3000 W
Power Supply Voltage	230 V
Weight	5 kg
Dimensions	400 x 300 x 200 mm
Usage	Ideal for light to medium welding tasks
Maintenance	Regularly check cables and connections, clean nozzles
Safety	Wear personal protective equipment (PPE): gloves, welding mask
General Information	2-year warranty, after-sales service available

Frequently Asked Questions - P3100 RYOBI

How do I turn on the RYOBI P3100 welding machine?

To turn on the machine, plug it into an electrical outlet, then press the power button located on the control panel.

Why isn\u0027t the machine heating up?

Check that the machine is properly plugged in and that the power cable is not damaged. Also ensure that the temperature selector is set to an appropriate value.

What should I do if the welding wire gets stuck?

Turn off the machine and unplug it. Check the wire path and make sure there are no obstructions. Remove the wire, then reinsert it correctly.

How do I adjust the welding temperature?

Use the temperature adjustment knob on the control panel to set the desired temperature according to the type of material to be welded.

What types of welding wire can I use with the RYOBI P3100?

The RYOBI P3100 is compatible with steel, stainless steel, and aluminum welding wires. Make sure to choose a wire diameter suitable for your project.

How do I clean the machine\u0027s nozzle?

Unplug the machine and let it cool down. Use a small brush or cloth to remove welding residue from the nozzle and surrounding surfaces.

Is the machine making unusual noise when I use it?

If the machine emits unusual noise, it may indicate a mechanical problem. Stop using it and check if any parts are damaged or misaligned.

How do I store the RYOBI P3100 welding machine?

Store the machine in a dry, cool place, protected from moisture. Protect it from shocks and extreme temperatures to prolong its lifespan.

What should I do if the welding wire is not feeding properly?

Check that the wire is correctly installed and that the feeding mechanism is unobstructed. Adjust the feed tension if necessary.

How do I change the wire spool?

Unplug the machine, open the wire spool compartment, remove the old spool, and install a new one following the indicated feed direction.

USER MANUAL P3100 RYOBI

INCLUDES: Soldering Station, Pen Holder, Operator's Manual

TABLE OF CONTENTS

Important Safety Instructions. 2-3
Electrical. 4
Symbols. 5
Assembly. 6
Operation.. 6-7
■ Maintenance. 8
■ Illustrations. 9
Parts Ordering and Service..Back page

WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

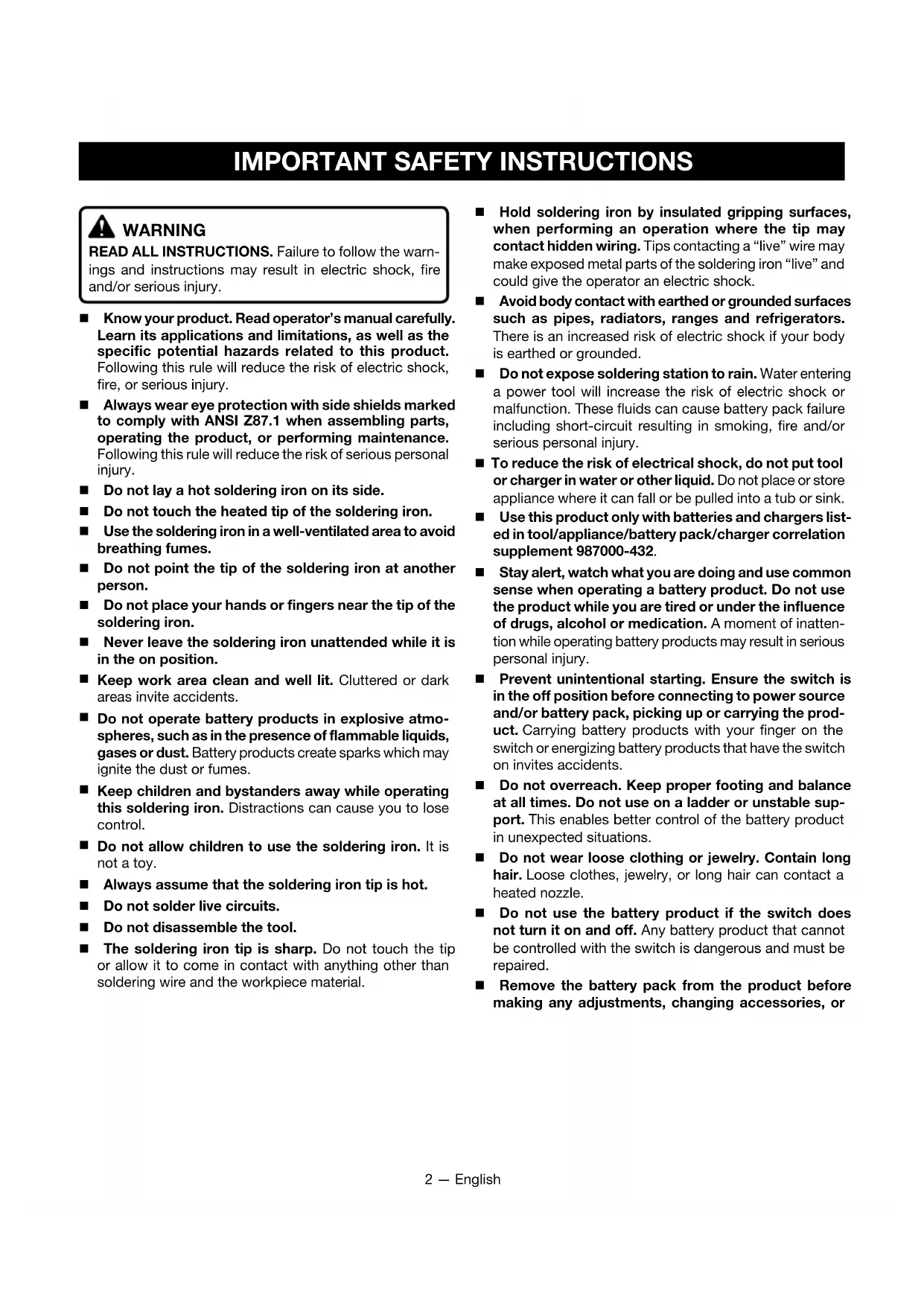

IMPORTANT SAFETY INSTRUCTIONS

WARNING

READ ALL INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Know your product. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this product. Following this rule will reduce the risk of electric shock, fire, or serious injury.
  Always wear eye protection with side shields marked to comply with ANSI Z87.1 when assembling parts, operating the product, or performing maintenance. Following this rule will reduce the risk of serious personal injury.
  Do not lay a hot soldering iron on its side.
  Do not touch the heated tip of the soldering iron.
  Use the soldering iron in a well-ventilated area to avoid breathing fumes.
• Do not point the tip of the soldering iron at another person.
• Do not place your hands or fingers near the tip of the soldering iron.
• Never leave the soldering iron unattended while it is in the on position.
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate battery products in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Battery products create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating this soldering iron. Distractions can cause you to lose control.
• Do not allow children to use the soldering iron. It is not a toy.
  Always assume that the soldering iron tip is hot.
  Do not solder live circuits.
  Do not disassemble the tool.
  The soldering iron tip is sharp. Do not touch the tip or allow it to come in contact with anything other than soldering wire and the workpiece material.

Hold soldering iron by insulated gripping surfaces, when performing an operation where the tip may contact hidden wiring. Tips contacting a "live" wire may make exposed metal parts of the soldering iron "live" and could give the operator an electric shock.
- Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose soldering station to rain. Water entering a power tool will increase the risk of electric shock or malfunction. These fluids can cause battery pack failure including short-circuit resulting in smoking, fire and/or serious personal injury.
To reduce the risk of electrical shock, do not put tool or charger in water or other liquid. Do not place or store appliance where it can fall or be pulled into a tub or sink.
Use this product only with batteries and chargers listed in tool/appliance/battery pack/charger correlation supplement 987000-432.
- Stay alert, watch what you are doing and use common sense when operating a battery product. Do not use the product while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating battery products may result in serious personal injury.
Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the product. Carrying battery products with your finger on the switch or energizing battery products that have the switch on invites accidents.
- Do not overreach. Keep proper footing and balance at all times. Do not use on a ladder or unstable support. This enables better control of the battery product in unexpected situations.
- Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry, or long hair can contact a heated nozzle.
- Do not use the battery product if the switch does not turn it on and off. Any battery product that cannot be controlled with the switch is dangerous and must be repaired.
Remove the battery pack from the product before making any adjustments, changing accessories, or

IMPORTANT SAFETY INSTRUCTIONS

storing the product. Such preventive safety measures reduce the risk of starting the product accidentally.

Store idle products out of the reach of children and do not allow persons unfamiliar with the product or these instructions to operate the product. Battery products are dangerous in the hands of untrained users.
- Maintain battery products. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the product's operation. If damaged, have the product repaired before use. Many accidents are caused by poorly maintained battery products.
Use the battery product, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the product for operations different from those intended could result in a hazardous situation.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use battery products only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Battery products do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery product or when changing

accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury.

• Do not place battery products or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately.
  Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
• Do not charge battery tool in a damp or wet location.
• Do not use, store, or charge battery packs or products in locations where the temperature is less than 50^ or more than 100^ . Do not store outside or in vehicles.
  Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
  Have your battery product serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the battery product is maintained.
• When servicing a battery product, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of shock or injury.
• Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also.

ELECTRICAL

DOUBLE INSULATION

Double insulation is a concept in safety in electric products, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal components with protecting insulation. Double insulated products do not need to be grounded.

WARNING:

The double insulated system is intended to protect the user from shock resulting from a break in the product's internal wiring. Observe all normal safety precautions to avoid electrical shock.

NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service, we suggest you return the product to your nearest authorized service center for repair. Always use original factory replacement parts when servicing.

ELECTRICAL CONNECTION

This is a hybrid product capable of operating on alternating current (AC) through an extension cord or direct current (DC) through a battery pack. If the product does not operate when an extension cord or battery pack is installed, double-check the power supply.

To use alternating current, connect the product to a power supply that is 120 volts, AC only (normal household current), 60Hz
To use direct current, install a manufacturer-recommended 18 volt battery pack only.

NOTE: Do not operate this product on direct current through an extension cord. Doing so would cause a substantial voltage drop, which will cause a loss of power and could cause the product to overheat.

EXTENSION CORDS

When using a product at a considerable distance from a power source, be sure to use an extension cord that has the capacity to handle the current the product will draw. An undersized cord will cause a drop in line voltage, resulting in overheating and loss of power. Use the chart to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter's Laboratories (UL) should be used.

When using this product outdoors, use an extension cord that is designed for outside use. This type of cord is designated with "WA" or "W" on the cord's jacket.

Before using any extension cord, inspect it for loose or exposed wires and cut or worn insulation.

**Ampere rating (on product data plate)

0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length Wire Size (A.W.G.)

25'	16	16	16	16	14
50'	16	16	16	14	14
100'	16	16	14	12	10

**Used on 12 gauge - 20 amp circuit

NOTE: AWG = American Wire Gauge

WARNING:

Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with this product. Failure to do so can result in serious personal injury.

WARNING:

Check extension cords before each use. If damaged replace immediately. Never use a product with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Wet Conditions Alert	Do not expose to rain or use in damp locations.
	Electric Shock	To reduce the risk of electrocution or electric shock, keep away from water and do not use with damaged power cord.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert	Risk of fire and burns. Do not expose battery, battery compartment, or electronic components to rain, water, or liquids.
	Hot Surface To reduce the risk of injury or damage, avoid contact with any hot surface.
	Recycle Symbol	This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt	Power
=	Direct Current	Type or a characteristic of current
~	Alternating Current	Type of current

ASSEMBLY

UNPACKING

This product requires assembly.

• Carefully remove the tool and any accessories from the box. All items listed in the Includes section must be included at the time of purchase.

WARNING:

Items in this Assembly section are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

INSTALLING PEN HOLDER

See Figures 1 - 2, page 9.

Insert the pen holder into the hole on the base as shown.
- Rotate and press the pen holder under the tab until it locks into place.

OPERATION

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always remove battery pack from the tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Do not hold the soldering iron pen with your fingers near any metal part of the tool. The tip of the tool reaches working temperature within seconds. Always assume that the soldering tip is hot. Touching a hot soldering tip can result in serious personal injury.

WARNING:

Do not use or store the soldering iron near flammable or combustible materials or liquids. These materials may ignite when exposed to the high temperatures created by the tip.

APPLICATIONS

You may use this product for the purposes listed below:

Soldering circuits and electrical connections
Soldering of jewelry, stained glass, and other crafts

WARNING:

Battery tools are always in operating condition. Place the switch in the off position and remove the battery pack when the product is not in use or when carrying at your side.

OPERATION

INSTALLING/REMOVING BATTERY PACK

See Figure 3, page 10.

Make sure the on/off switch is in the off position.
Insert the battery pack into the product as shown.
Make sure the latches on each side of the battery pack snap into place and that the battery pack is secured in the product before beginning operation.
Depress the latches to remove the battery pack.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

INSTALLING/REMOVING POWER CORD

See Figure 4, page 10.

WARNING:

Do not route cord under carpets, rugs, runners, furniture, or appliances and always route cord away from traffic areas to prevent a tripping hazard.

Remove the battery pack.
Insert the female end of the power cord into the product as shown.
- Connect the male end of the power cord to the power source.
Make sure the power cord is secured before beginning operation.

Insert sponge tray into the base as shown.
For use, wet the sponge, squeeze out excess water, and place into tray.

NOTE: Remove the tray for easy cleaning.

ON/OFF/TEMPERATURE CONTROL SWITCH

See Figure 6, page 10.

The LED indicator will light up when a charged battery pack is installed or an extension cord is connected and the switch is turned to the on position. If the indicator light is on, the tip is heating.

Connect the product to an AC or DC power supply.
Place soldering pen in holder.
Press the on/off/temperature control switch to turn on the soldering iron.

NOTE: The LED indicator will glow solid red until the tip has reached the selected operating temperature. Once the selected temperature is reached, the indicator will glow solid green.

• Select desired temperature by rotating the on/off/temperature control switch.

NOTE: The temperature range can be adjusted from 400^ to 900^ .
Press the on/off/temperature control switch again to turn the soldering iron off.

NOTE: The LED indicator will flash slowly until the tip has cooled. Do not touch the tip while the LED indicator is solid or flashing.

AUTOMATIC SHUT-OFF

After 10 minutes of operation, the unit will automatically enter an energy saving mode and the LED will slowly fade green. To exit this mode, rotate the control slightly in either direction. After 20 minutes of being in the energy saving mode, the unit will turn off. This preserves the tip and prevents powering an unattended tool.

OPERATING THE SOLDERING IRON

See Figure 7, page 10.

Always hold the soldering iron pen as shown. Apply solder with the tip of the pen.
NOTE: The hybrid soldering station features a grounding loop for use when soldering circuitry or other static-sensitive materials. It is recommended an ESD safe strap (not included) be used when soldering sensitive electronics.
Apply the tip of the soldering iron at the point where the soldering wire touches the workpiece.
After soldering, return the pen to the pen holder. Press firmly to make sure it is secure.
Press the on/off/temperature control switch to turn the soldering iron off.

NOTE: The LED indicator will flash until the tip has cooled. Do not touch the tip while the LED indicator is flashing.

Clean the soldering tip as described in the Maintenance section of this manual.

WARNING:

Always place the pen back into the holder so that the tip does not come in contact with anything while it is heating or when not in use. Following this rule will reduce the risk of damage to items, burns, fire, or serious personal injury.

Always allow 30 minutes for the soldering iron to cool before storing the tool.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

While the tip is hot, wipe the tip against a damp sponge or a metallic wool pad to remove debris. Keeping a clean tip is important to extend the life of the tip and will improve solder melting and flow during use.

REPLACING SOLDERING TIPS

See Figure 8, page 10.

WARNING:

Always allow the soldering tip to cool for a minimum of 30 minutes before removing the tip. Touching a hot soldering tip can result in serious personal injury.

Remove the battery pack from the tool or disconnect from the power supply.
Loosen the nut by turning counterclockwise and remove from tip.
Remove the sleeve by sliding off the pen.
Pull to remove the tip and insert a replacement tip. Push the new tip onto the ceramic heating element.
Hold the body of the pen and slide the sleeve over the new tip.
Reinstall the nut.

STORAGE

Always remove the battery pack and allow the soldering iron to cool completely before storing.

WARNING:

Always remove the battery pack before storage to ensure the product is off. Allow a minimum of 30 minutes of cool-down time before storage. Storing a soldering iron with a hot tip can cause serious burns and/or ignite combustible objects.

NOTE: ILLUSTRATIONS START ON PAGE 9

FOLLOWING FRENCH AND SPANISH LANGUAGE SECTIONS

INSTRUCTIONS IMPORTANTES CONCERNANT LA SECURITE

AVERTISSEMENT

NOTE: AWG = American Wire Gauge

AVERTISSEMENT :

REEMPLACEMENT DES BUSES À SOUDER

Voir la figure 8, page 10.

AVERTISSEMENT :

0-2,0 2,1-3,4 3,5-5,0 5,1-7,0 7,1-12,0 12,1-16,0

LongitudCalibreconductores del cordón (A.W.G.)

25'	16	16	16	16	14	14
50'	16	16	16	14	14	12
100'	16	16	14	12	10	-

No permitted that his family would be in the house of his ex-wife. No permit to his family to move to another place was given to his wife.

ADVERTENCIA:

To request service, purchase replacement parts,

locate an Authorized Service Center and obtain Customer or Technical Support:

Visit www.ryobitools.com or call 1-800-525-2579

If any parts or accessories are damaged or missing,

do not return this product to the store. Call 1-800-525-2579 for immediate service.

Please obtain your model and serial number from the product data plate.

This product is covered under a 3-year limited Warranty. Proof of purchase is required.

MODEL NUMBER SERIAL NUMBER

RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
