USER MANUAL 302748 CSL

TV Simulator with Brightness Sensor

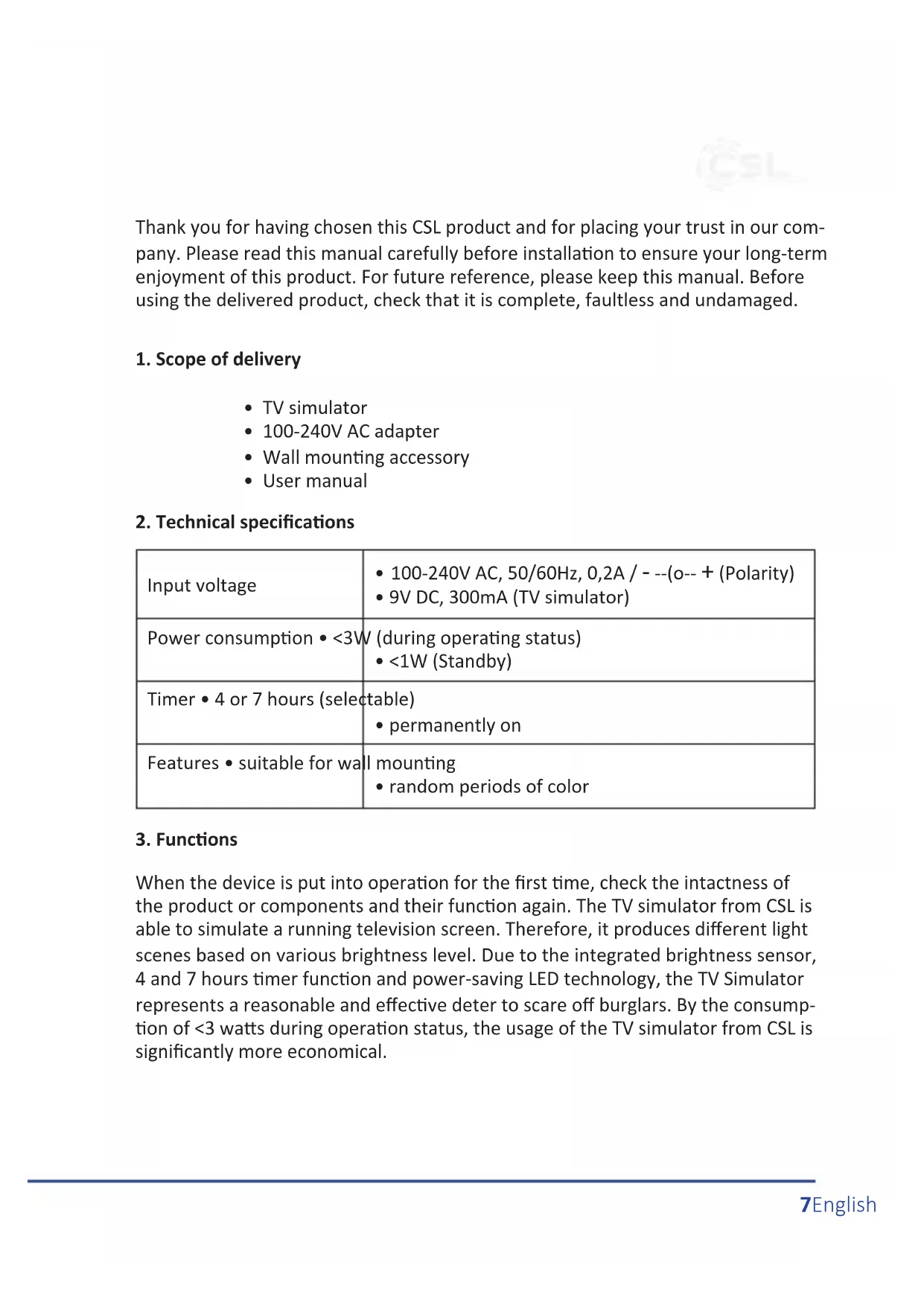

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• TV simulator
  • 100-240V AC adapter
  • Wall mounting accessory
• User manual

2. Technical specifications

Input voltage	100-240V AC, 50/60Hz, 0,2A / - -(o-- + (Polarity)9V DC, 300mA (TV simulator)
Power consumption • <3W	(during operating status)<1W (Standby)
Timer • 4 or 7 hours (selectable)	permanently on
Features • suitable for wall mounting	random periods of color

3. Functions

When the device is put into operation for the first time, check the intactness of the product or components and their function again. The TV simulator from CSL is able to simulate a running television screen. Therefore, it produces different light scenes based on various brightness level. Due to the integrated brightness sensor, 4 and 7 hours timer function and power-saving LED technology, the TV Simulator represents a reasonable and effective deter to scare off burglars. By the consumption of <3 watts during operation status, the usage of the TV simulator from CSL is significantly more economical.

4. Produkt-Details

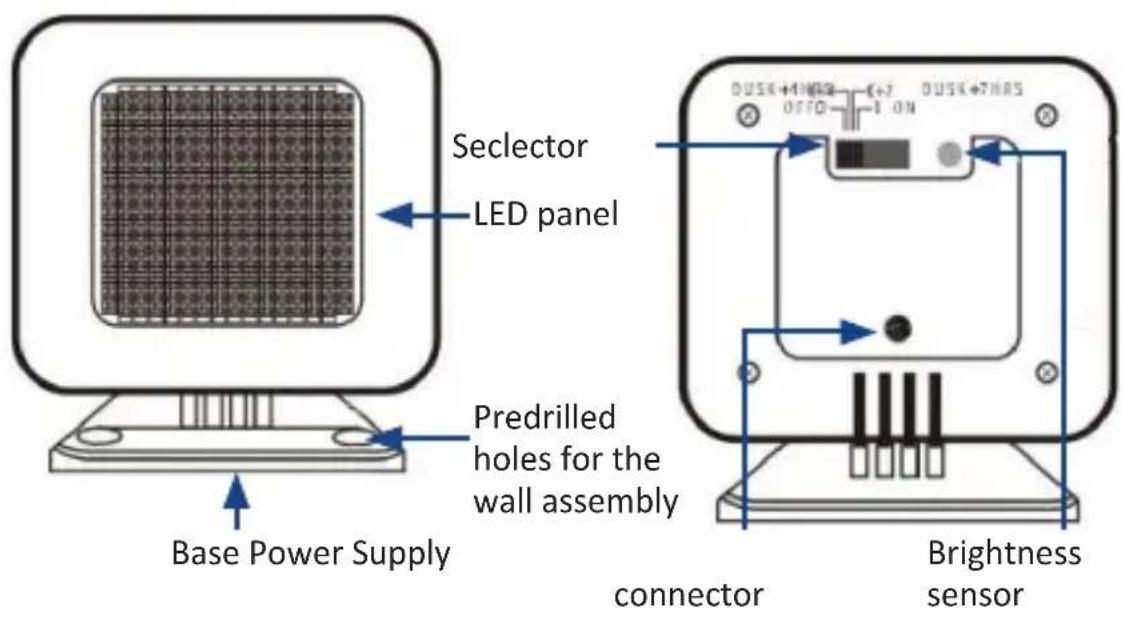

Selector LED panel Predrilled holes for the wall assembly Base Power Supply connector Brightness sensor

5. Handling

Connect the included power adapter to the TV simulator and then plug it into a properly connected outlet. Now set up the TV simulator in a suitable place. Make sure that the brightness sensor on the back side is not covered. By using the selector you can choose your preferred mode.

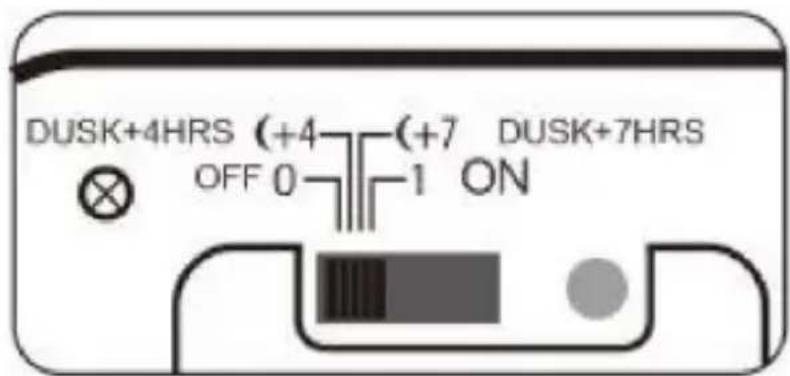

DUSK+4HRS (+4) (+7) DUSK+7HRS OFF 0 -1 ON

If you have chosen the 4-hour timer, the display lights red. In the 7-hour timer mode, the device lights blue. As soon as the brightness sensor has registered daylight, the timer is automatically reset. At the selector position "ON" the TV simulator turns it on permanently. The device switches off when pushing it to the position "OFF" at the selector.

6. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The TV simulator is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Disregard of its warning could lead to coming into contact with the operating voltage, or could generate a short circuit. Pull out the plug before lightning storm or if you do not regularly use this product, to prevent a short-circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperature and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit. Check TV Simulator for signs of damage before putting it in operation.

In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

7. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment to their manufacturer, point of sale, public collection points or importer of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302748/20200925NB049 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
