USER MANUAL Gourmette Chef Grill 15110 TREBS

Gourmette Chef Grill

Model 15110

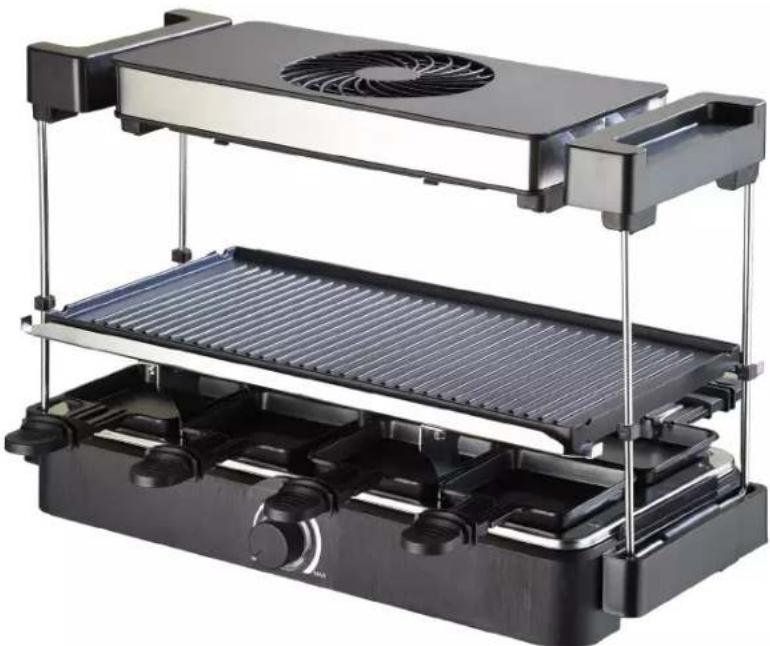

Exterior view of a modern black appliance with a fan and grating (no text or symbols visible)

Gourmet Raclette

Gourmet Raclette

Gourmet-Raclette

Raclette à gourmet

Gurme Raclette

Gourmet Raclette

Raclette gourmet

Raclette Gourmet

Index

English 3

Nederlands....7

Deutsch 11

Français 15

Türkçe 19

Svenska....23

Español 27

Italiano 31

English

IMPORTANT SAFETY REGULATION

Please read all safety regulations carefully before using the product.

1. This appliance is intended for use in households and similar areas, any professional usage is considered to be improper use and may result in personal injury or damage to property. Trebs is not liable for damage caused by improper use.
2. Never submerse the appliance in water or any other liquid.
3. Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
4. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
5. Do not use the appliance if the plug, main cord or the appliance itself is damaged.
6. Regularly check the cable for any damage. If the cable is damaged, it must be replaced by the manufacturer or supplier. The cable may only be repaired by a qualified person to prevent dangerous situations.
7. No parts of this appliance may be replaced by the user.
8. When in operation, or directly afterwards the appliance and grill plates will be very hot. Always allow sufficient time for the appliance to cool down.
9. This product is not suitable for children younger than 8 years old.
10. This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or with a lack of knowledge and experience, unless they're under the supervision of or have received instructions regarding the device from a person responsible for their safety.
11. Do not place the appliance on a hot surface and do not let the mains cord come into contact with hot surfaces.
12. Always make sure to unplug/turn off the appliance when problems occur and during cleaning.
13. Always make sure the appliance is positioned safely on a flat surface before operation.
14. Do not block the air inlet and outlet of the cooking hood.
15. Make sure that foreign objects do not fall into the cooking hoods air outlet.
16. Never leave the device on without proper supervision.
17. Make sure all filters are properly installed before turning on the appliance.
18. Do not insert your fingers or objects into the air outlet to prevent physical injury or malfunctioning of the appliance.
19. The appliance does not remove Carbon Monoxide (CO) or Radon (Rn). It cannot be used as a safety device in case of accidents with combustion processes and hazardous chemicals.
20. To prevent overheating, do not place the device in a corner or against a wall.
21. Do not prepare food that is wrapped in aluminum foil.
22. Never attempt to move the device while on or when it is still hot. Allow for sufficient time to cool the device.
23. Do not cut ingredients on the grill plates.

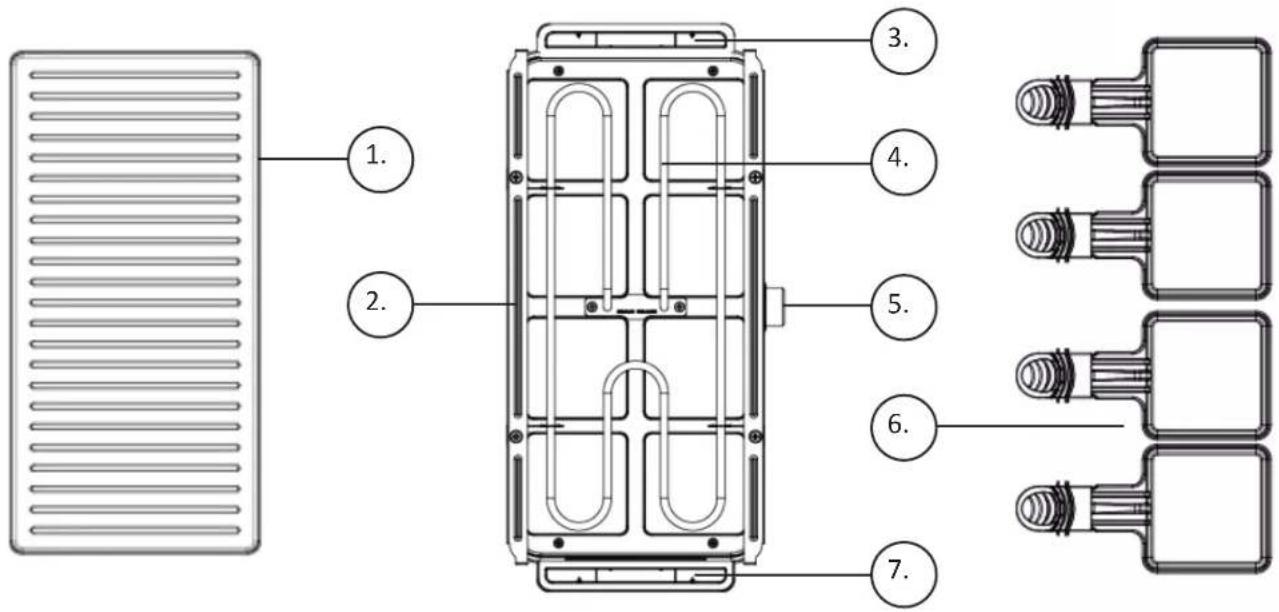

Components

Technical diagram of a heat exchanger or cooling unit with numbered components and labeled parts

8.

Technical diagram of a mechanical component with a central fan and side brackets, no text or symbols present.

Technical line drawing of a multi-tiered industrial fan or heater unit with cooling fins and heat exchangers (no text or symbols)

1. Grill/Teppanyaki plate
2. Base unit
3. Cooker hood connection base
4. Heating element
5. Adjustable thermostat
6. 8x Gourmet/Raclette pan
7. Cooker hood connection base
8. Washable carbon filter
9. 8x Spatula

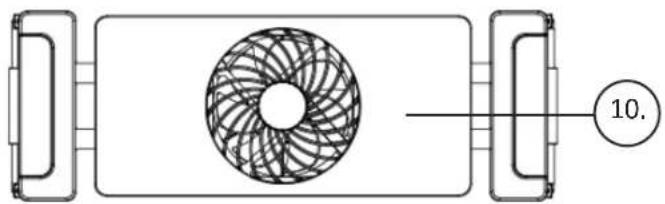

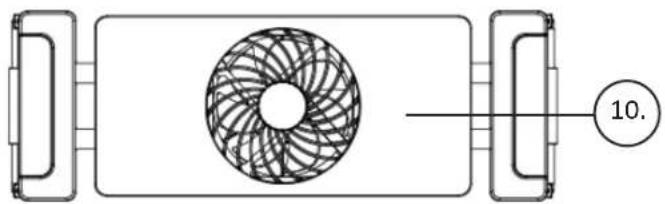

10. Cooking hood

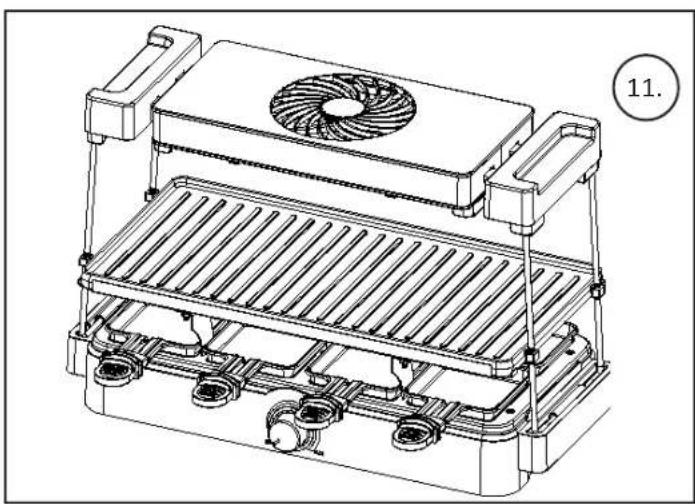

11. Installed plates and cooking hood

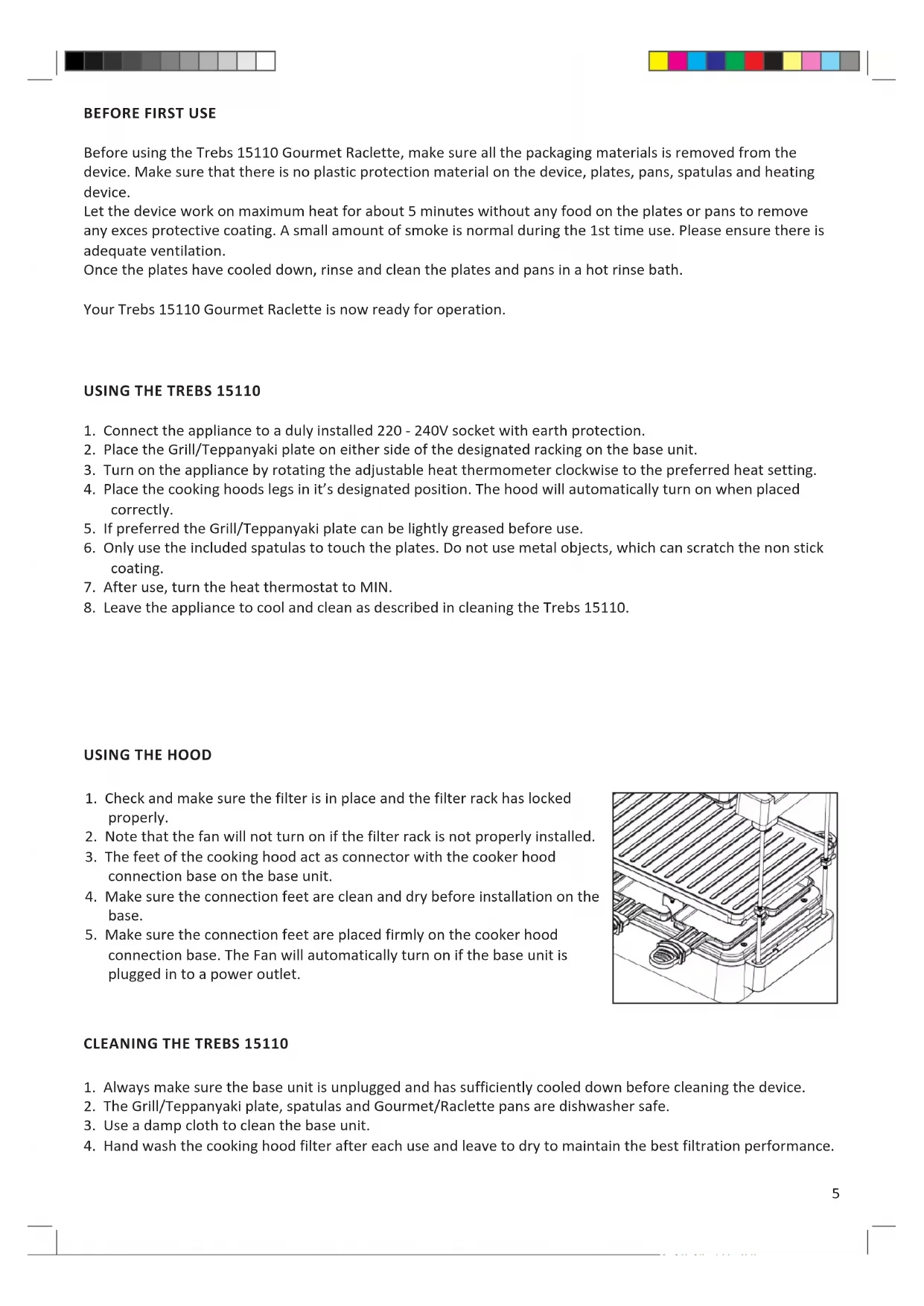

BEFORE FIRST USE

Before using the Trebs 15110 Gourmet Raclette, make sure all the packaging materials is removed from the device. Make sure that there is no plastic protection material on the device, plates, pans, spatulas and heating device.

Let the device work on maximum heat for about 5 minutes without any food on the plates or pans to remove any exces protective coating. A small amount of smoke is normal during the 1st time use. Please ensure there is adequate ventilation.

Once the plates have cooled down, rinse and clean the plates and pans in a hot rinse bath.

Your Trebs 15110 Gourmet Raclette is now ready for operation.

USING THE TREBS 15110

1. Connect the appliance to a duly installed 220 - 240V socket with earth protection.
2. Place the Grill/Teppanyaki plate on either side of the designated racking on the base unit.
3. Turn on the appliance by rotating the adjustable heat thermometer clockwise to the preferred heat setting.
4. Place the cooking hoods legs in it's designated position. The hood will automatically turn on when placed correctly.
5. If preferred the Grill/Teppanyaki plate can be lightly greased before use.
6. Only use the included spatulas to touch the plates. Do not use metal objects, which can scratch the non stick coating.
7. After use, turn the heat thermostat to MIN.
8. Leave the appliance to cool and clean as described in cleaning the Trebs 15110.

USING THE HOOD

1. Check and make sure the filter is in place and the filter rack has locked properly.
2. Note that the fan will not turn on if the filter rack is not properly installed.
3. The feet of the cooking hood act as connector with the cooker hood connection base on the base unit.
4. Make sure the connection feet are clean and dry before installation on the base.
5. Make sure the connection feet are placed firmly on the cooker hood connection base. The Fan will automatically turn on if the base unit is plugged in to a power outlet.

Technical line drawing of a mechanical assembly with ribbed metal components and mounting brackets (no text or symbols)

CLEANING THE TREBS 15110

1. Always make sure the base unit is unplugged and has sufficiently cooled down before cleaning the device.
2. The Grill/Teppanyaki plate, spatulas and Gourmet/Raclette pans are dishwasher safe.
3. Use a damp cloth to clean the base unit.
4. Hand wash the cooking hood filter after each use and leave to dry to maintain the best filtration performance.

DISCARDING OLD EQUIPMENT

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

REMARK

• Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information.
  • Make sure that your old device, until it's picked up, is safely stored out of reach of children.

WARRANTY

• We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials.
- Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.
- The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.
• This device is designed for household use and has the right performance levels.
- Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use.
- In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days from the date of purchase. All further claims are excluded.

When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

TECHNICAL DETAILS

• Model: 15110
• Power source: 220-240V\~50/60Hz
• Product dimensions: 47.5 x 21.5 x 30.7cm (L x W x H)
• Weight: 3.7kg

SERVICE

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service:

CE Regulations

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

CE
