HG05697 - Garden furniture FLORABEST - Free user manual and instructions

Product type	Bistro-style garden table and chairs set
Brand	Florabest
Model	HG05697
Delivery contents	2 chairs, 1 table, 1 instruction manual
Main material	Expanded metal (steel)
Table dimensions (W x D x H)	58 x 58 x 72 cm
Chair dimensions (W x H x D)	46 x 89 x 55 cm
Table weight	5.8 kg
Chair weight	4.4 kg
Maximum table load	35 kg
Maximum load per chair	110 kg
Intended use	Private use, indoor and outdoor (garden, terrace)
Assembly	Manual folding/unfolding, no tools required
Locking mechanism	Yes, for chair and table
Maintenance and cleaning	Damp cloth with mild detergent; dry before storage
Storage	Protected from weather, in a dry place
Weather resistance	Outdoor use, but secure in strong wind
Child safety	Do not leave unsupervised; do not climb
Warranty	3 years from date of purchase
After-sales service France	0800 919270, [e-mail]
After-sales service Belgium	070 270 171 (0.15 EUR/min), [e-mail]
Product reference (IAN)	On the identification plate or manual
Disposal	Recyclable packaging; check with local council

Frequently Asked Questions - HG05697 FLORABEST

How do I unfold the chairs and table?

For the chair, hold the backrest with one hand and pull the seat down with the other until it locks. For the table, unfold it upward until it locks and place the hook in the locking position. Ensure all mechanisms are engaged.

What is the maximum load capacity?

Each chair supports up to 110 kg and the table up to 35 kg. Never exceed these limits to avoid risk of injury or damage.

Can this furniture stay outside all year?

It is designed for outdoor use, but it is recommended to store it sheltered in winter or bad weather to prolong its life. In strong wind, secure the product.

How do I clean the expanded metal?

Use a damp cloth with a mild detergent. Let it dry completely before storing to prevent mold and odors.

Is the product under warranty?

Yes, the warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt as proof of purchase.

How do I claim the warranty?

Contact after-sales service by phone or email. Send the defective product with proof of purchase and a description of the defect. Contact details: France 0800 919270 / [e-mail], Belgium 070 270 171 / [e-mail].

Is the furniture foldable for storage?

Yes, the chairs and table fold easily for compact storage. Make sure the locking mechanisms are disengaged before folding.

Can this product be used indoors?

Yes, it is suitable for both indoor and outdoor use, such as garden, balcony, or terrace. Use on a stable, level surface.

Are there risks of pinching?

Yes, be careful when unfolding and folding to avoid pinching fingers. Keep children away during these operations.

What should I do if visible damage occurs?

Do not use the product if it is damaged or shows signs of wear. Contact after-sales service for exchange or repair under warranty.

USER MANUAL HG05697 FLORABEST

Two black folding chairs with mesh backrests, one on a glass table and the other on a white surface (no text or symbols visible)

STRECKMETALL-BISTROMÖBEL-SET / MESH BISTRO TABLE AND CHAIRS SET / TABLE ET CHAISES STYLE BISTRO EN MÉTAL DÉPLOYÉ

DE AT CH

STRECKMETALL-BISTROMÖBEL-SET

MESH BISTRO TABLE AND CHAIRS SET

Assembly, operating and safety instructions

NL BE

GAASPLAAT-BISTROMEUBELSET

Line drawing of a folding chair with mesh backrest and side legs (no text or symbols)

Line drawing of a folding chair with mesh backrest and ladder (no text or symbols)

Line drawing of a folding table with four legs and a grid-patterned seat, showing rotational arrows (no text or symbols)

DE AT CH

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

GB IE

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY!

FR BE

Intended use Page 11

Parts list Page 11

Technical data Page 11

Safety notices......Page 11

Assembly Page 12

Cleaning and care....Page 13

Disposal Page 13

Warranty Page 13

Warranty claim procedure Page 14

Service......Page 14

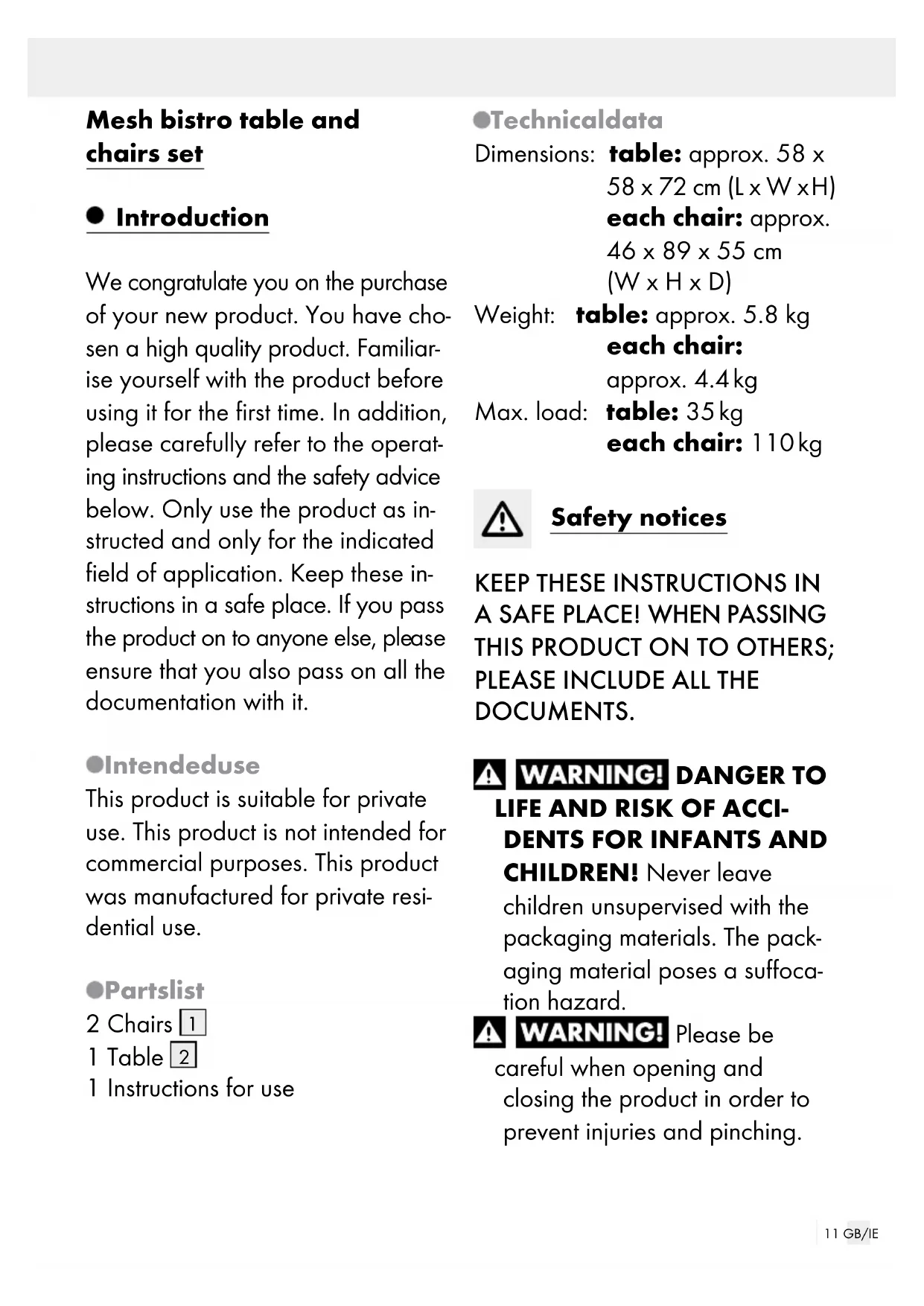

Mesh bistro table and chairs set

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is suitable for private use. This product is not intended for commercial purposes. This product was manufactured for private residential use.

Partslist

2 Chairs 1

1 Table 2

1 Instructions for use

●Technicaldata

Dimensions: table: approx. 58 x 58 x 72 cm (L x W x H) each chair: approx. 46 x 89 x 55 cm (W x H x D)

Weight: table: approx. 5.8 kg each chair: approx. 4.4 kg

Max. load: table: 35 kg each chair: 110 kg

Safety notices

KEEP THESE INSTRUCTIONS IN A SAFE PLACE! WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE INCLUDE ALL THE DOCUMENTS.

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND

CHILDREN! Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard.

WARNING! Please be

careful when opening and closing the product in order to prevent injuries and pinching.

- Secure the product in extreme weather, e.g. strong wind.

- Verify the product is stable before use.

- Set the product on a level, firm surface, otherwise the product could become instable and tip to the side and / or fall over. This can lead to injuries or damage.

■ Ensure that the product has been fully opened before using the product.

This product is not a toy and should only be used under adult supervision.

- Check the product for damage before each use. Only use the product in good condition. Do not use the product if damage is visible or suspected.

Please note the maximum weight capacity of 110 kg for each chair and 35 kg for table. Exceeding this weight limit may result in injuries and / or product damage.

The light weight and fast assembly of the article means that it is not as stable as a standard table. Do not place more than 35 kg load on the table and avoid one-sided loads.

■ The product is not a climbing frame or a toy!

Please ensure that persons, especially children, do not stand on the article or pull themselves up on it. The product could fall over.
■ The product may only be used for the intended purpose.
- Don't sit or stand on the table. Don't stand on the chairs.
■ Never sit on the backrest of the chairs.
■ The chairs may only be used by one person at a time.
- Do not use the product close to a naked flame.
■ Ensure the folding function is correctly locked before using the product.

⚠️ RISK OF PROPERTY DAMAGE!

We are not liable for accidents that occur as a result of non-observance of the above safety notes or through incorrect handling.

- Assembly

Unfolding the chair 1

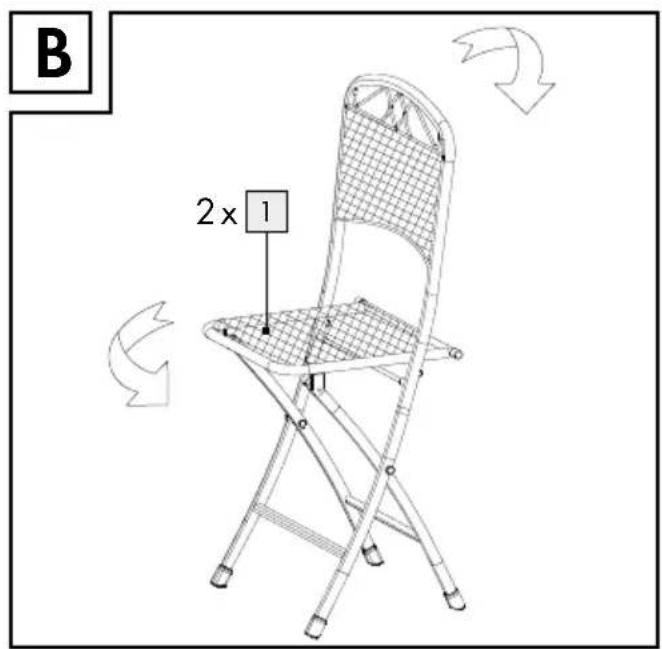

☐ Hold the backrest with one hand and use the other hand to pull the seat down (see fig. B).

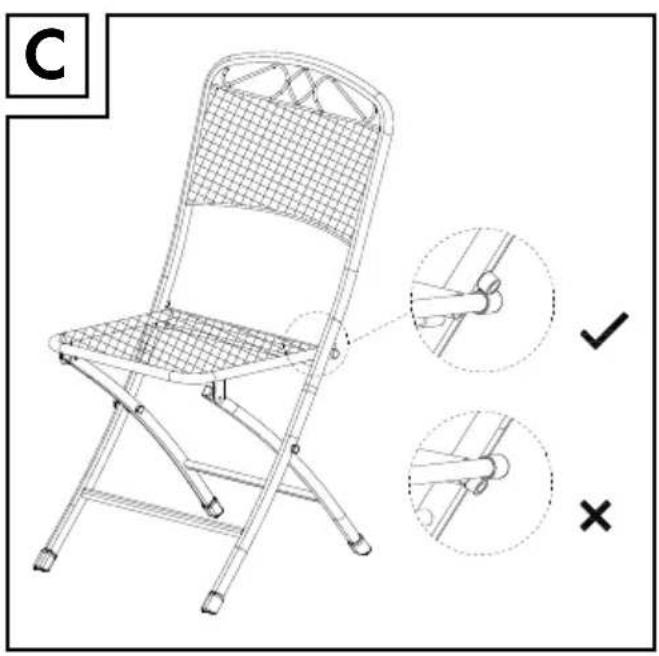

☐ Ensure that the seat and the chair legs are fully unfolded and locked in place (see fig. C).

Unfolding the table 2

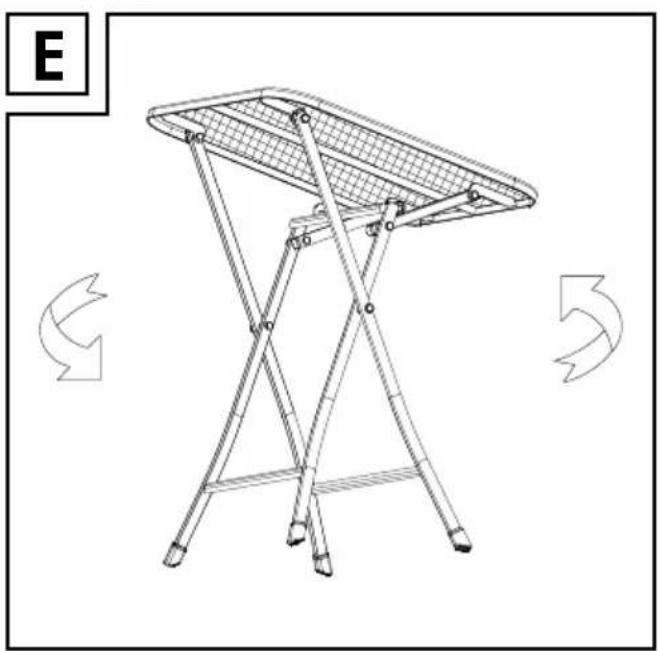

☐ Unfold the table top up. Please ensure that the table is fully unfolded and fixed in place (see fig. E).

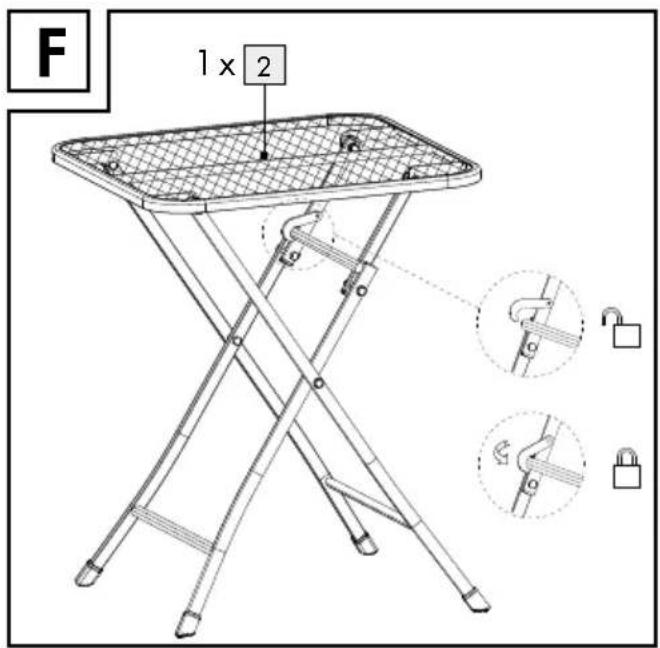

☐ Turn the hook to the locked position (see fig. F).

- Cleaning and care

□ Clean the product with damp cloth and a mild detergent.
- Allow all parts to dry thoroughly before you pack the product up again. This will prevent the formation of moulds, odours and discolouration.

- Disposal

The packaging is made from environmentally friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile

parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

(0,08 EUR / Min., (peak))

(0,06 EUR / Min., (off peak))

E-Mail: [e-mail]

Introduction Page 16

Utilisation conforme......Page 16
