SE 1600 - Hair dryer Orbegozo - Free user manual and instructions

Product type	Hair dryer
Brand	Orbegozo
Model	SE 1600
Voltage	230 V~, 50 Hz
Power	1600 W
Speed levels	2 (low and high)
Cold air function	Yes (dedicated button)
Included accessories	Concentrator nozzle
Auto shut-off	Yes (in case of overheating)
Foldable handle	Yes
Hanging loop	Yes
Cord length	Approximately 2 m
Net weight	Approximately 0.5 kg
Dimensions (L x W x H)	Approximately 25 x 10 x 7 cm
Use	Household use only
Cleaning	Unplug, clean the grille, accessories washable with water
Standards	Compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU

Frequently Asked Questions - SE 1600 Orbegozo

How to use the cold air function?

Press the cold air button when the hair dryer is in position 1 or 2. The airflow becomes cool, ideal for setting your hairstyle.

What to do if the hair dryer turns off automatically?

This is a protection against overheating. Unplug the device, let it cool for a few minutes, then ensure that the air intake and outlet grilles are clear before turning it back on.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Unplug it after use because proximity to water is dangerous even when off. It is recommended to install a residual current device (RCD) with a maximum rating of 30 mA.

How to clean the air intake filter?

Unplug the device. Remove the intake grille and clean dust and hair with a dry cloth or soft brush. Replace the grille before use.

How to store the hair dryer after use?

Unplug and let it cool. Use the hanging loop to hang it on a hook. Never wrap the cord around the device. You can fold the handle for compact storage.

Is the hair dryer foldable?

Yes, the foldable handle allows you to fold the device for easy storage and convenient transport (travel, pool, gym).

What accessories are included with the SE 1600?

The hair dryer comes with a concentrator nozzle that attaches to the air outlet for precise airflow during styling.

What is the power of this device?

The power is 1600 W at a voltage of 230 V~, 50 Hz.

Can the power cord be replaced?

If the cord is damaged, it must be replaced by an authorized technical service, the manufacturer, or a qualified person to avoid any risk.

How to avoid damaging the cord?

Do not pull too hard on the cord, do not wrap it around the device, and check its condition regularly. A damaged cord is a hazard.

USER MANUAL SE 1600 Orbegozo

SECHE-CHEVEUX - MANUEL D'INSTRUCTIONS

SECADOR DE CABELO - MANUAL DE INSTRUÇÕES

Product photo of a RubegoZO hair dryer with black and beige body (no visible text or symbols)

SE 1600

Sonifer,S.A

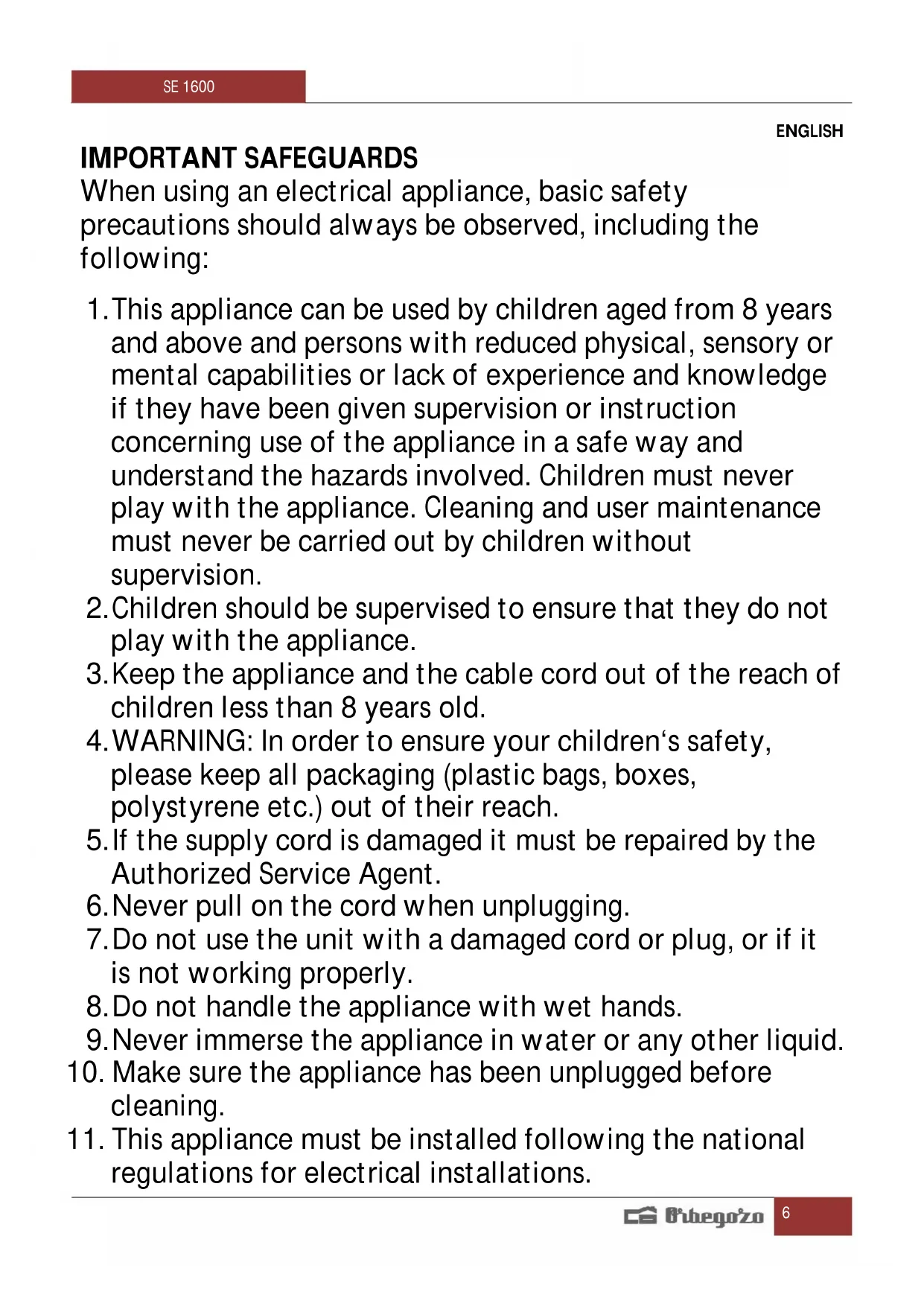

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using an electrical appliance, basic safety precautions should always be observed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Check if the voltage indicated on the appliance corresponds to the local voltage before you connect the appliance.

16. Never block the air grilles.
17. If the appliance overheats, it will switch off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.
18. Do not direct the airflow towards the eyes or other sensitive areas.
19. Do not use the hair dryer for purposes other than drying and styling human hair.
20. Do not pull the cord with unnecessary force. Do not wrap the cord around the unit. Check cord regularly for any sign of damage. Damaged cords can be dangerous.
21. Always switch the appliance off before putting it down, even if it is only for a moment.
    • Always unplug the appliance after use.
22. Let the appliances get cold before store it.
23. Do not introduce any metallic item in the airlet in order to avoid an electric discharge.
24. Do not put the air outcome too close the hair.
25. Do not use this appliance near water.
26. Do not use this appliance near bathtubs, showers,

basins or other vessels containing water.

• When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

DESCRIPTION

1. Concentrator
2. Air inlet filter
3. Cold air button
4. Folding handle
5. Speed knob
6. Hang-up handle

DRYING

1. Put the plug in the wall socket. Make sure the switch is always in position 0 when you plug it.
2. Switch the appliance on by selecting the desired setting.

a. Position 1, low speed and warm air flow, to shape your hairstyle.

b. Position 2, high speed and very hot air flow, for quick drying.

c. Cool button, push this button in whatever of two positions (1 or 2) and hairdryer will work with cool air flow in low speed or high speed.

1. Dry your hair by making brushing movements while holding the dryer at a small distance from your hair.
2. When you finish, select in switch 0 position and unplug the hairdryer.

STYLING ATTACHMENTS

Concentrator

The concentrator enables you to direct the airflow at your hair that you are styling.

Connect the concentrator by simply snapping it onto the appliance. Disconnect it by pulling it off.

you should wait to cool it down before remove it because it will be hot after using and you could burn.

CLEANING

1. Unplug the appliance before cleaning.
2. Remove the grill in order to eliminate the dust and hair.
3. The appliance can be cleaned with a dry cloth.
4. The attachment can be cleaned with a moist cloth or rinsed under a running tap.

Remove the attachment from the appliance before cleaning them. Make sure the attachment are dry before using or storing them.

Never rinse the appliance with water.

STORAGE

When not in use "unplug it."

Allow the appliance to cool and store it in a dry location. This hair dryer features a loop allowing it to be conveniently hung on a hook for easy access. Never wrap the cord around the appliance since this will cause the cord to wear prematurely and break. If the supply cord of this appliance becomes damaged the appliance must be replaced by its manufacturer, its Service Agent or a similarly qualified person in order to avoid a hazard. This dryer is foldable so that when you save it occupy less space and so you can transport it more easily when you travel, to the pool, to the gym, etc.

SPECIFICATION

230V\~, 50Hz // 1600W

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

©

ACCESSOIRES DE COIFFURE

Concentrateur
