SE 2235 - Hair dryer Orbegozo - Free user manual and instructions
Find the device manual for free SE 2235 Orbegozo in PDF.
| Brand | Orbegozo |
| Model | SE 2235 |
| Product type | Hair dryer |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power | 1800-2200 W |
| Cold air function | Yes (cool air button) |
| Speeds | 2 (low and high) |
| Temperatures | 3 (low, medium, high) |
| Included accessories | Concentrator and diffuser |
| Removable air intake grille | Yes, for cleaning |
| Hanging loop | Yes |
| Overheating protection | Yes (automatic shut-off) |
| Cable length | Approximately 1.8 m |
| Weight | Approximately 0.4 kg |
| Dimensions (L x W x H) | Approximately 25 x 8 x 10 cm |
| Care and cleaning | Unplug and clean the grille regularly; do not immerse |
| Safety | Do not use near water; keep out of reach of children |
| Warranty | Legal warranty; contact technical service via orbegozo.com |
Frequently Asked Questions - SE 2235 Orbegozo
User questions about SE 2235 Orbegozo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hair dryer in PDF format for free! Find your manual SE 2235 - Orbegozo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SE 2235 by Orbegozo.
USER MANUAL SE 2235 Orbegozo
SÈCHE-CHEVEUX - MANUEL D'INSTRUCTIONS
SECADOR DE CABELO - MANUAL DE INSTRUÇÕES


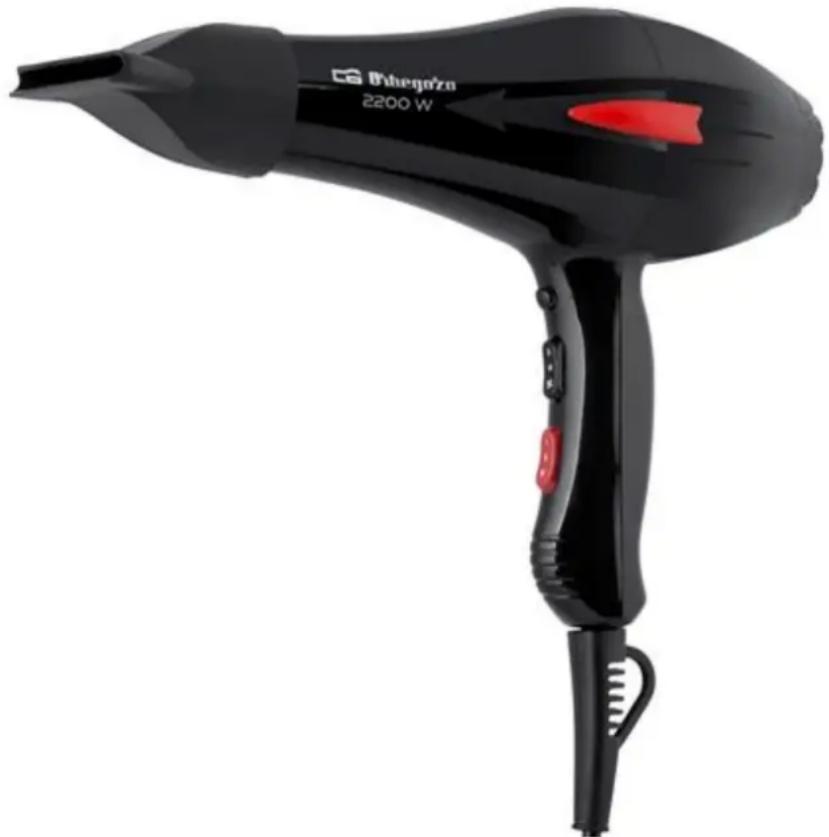

Black and red Bluergelator with black body, handle, and head (no visible text or symbols)SE 2235
Sonifer,S.A.
Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.
- Concentradores
- Difusor
When using electrical appliances, basic safety precautions should always be followed, including the following:
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- Keep the appliance and the cable cord out of the reach of children less than 8 years old.
- WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
- If the supply cord is damaged it must be repaired by the Authorized Service Agent.
- Never pull on the cord when unplugging.
- Do not use the unit with a damaged cord or plug, or if it is not working properly.
-
Do not handle the appliance with wet hands.
-
Never immerse the appliance in water or any other liquid.
- Make sure the appliance has been unplugged before cleaning.
- This appliance must be installed following the national regulations for electrical installations.
- This appliance is for household use only.
- In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
-
WARNING: In case of misuse, there is a risk of possible injury.
-
Never connect the dryer to incorrect voltage.
- Make sure that the air outlet and the grill free when using.
- The dryer is protected against overheating .It drops automatically when overheating and starts again after a short time of cooling. When the dryer stops automatically and you don’t need to use it again, so as to safety switch off and remove the plug from the socket.
- Do not put the air outlet too close to your hair. Please switch off the dryer for lengthy breaks in the drying process and disconnect it after use.
- Let the appliances get cold before store it.
-
Do not introduce any metallic item in the airlet in order to avoid an electric discharge.
-
Do not put the air outcome too close the hair.
- Do not use the unit with a damaged cord or plug, or if it is not working properly.
- Do not use this appliance near water.
- Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
- When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off.
- For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
SPECIFICATIONS:
220-240V\~50/60 Hz 1800-2200W
Cool function
HAIR DRYER PARTS
- Air outlet
- Air inlet, removable grille
- Cold air switch
- Speed switch
- Temperature switch
- Hanging ring
- Concentrators
- Diffuser
HOW TO USE YOUR HAIRDRYER
- Always ensure the switch is set to OFF position before plugging the unit into the power outlet.
- Use the high setting for drying hair, and use low setting for styling.
- If the hair dryer stop for any reason turn it off at once and let it cool down.
- Switches control
0=LOW: cool temperature.
1=Low: low speed
1=MIDDLE: middle hot temperature
2=HIGH: high speed
2=HIGH: high hot temperature
Cool shot: press cold function button with above operation, you will get comfortable cool wind.
- The concentrator & diffuser can be used on or without.
- Switch off when finish using, and then remove the plug from the socket.
MAINTAINANCE
IMPORTANT: Always ensure that hair dryer is disconnected from the mains supply before cleaning. Use a damp cloth for cleaning and wipe dry. This will help preserve the original finish of your hair dryer. Abrasive cleansers should not be used.
WARNING: Never immerse the hair dryer in water and always ensure that plug is kept dry.
After a while of use, you should take the inlet apart and clean it .Operate method: turn the inlet toward to opposite clock-wise direction, after cleaning it, turn toward to clockwise direction and fix it upon the hair dryer.
Frequently clean our any hair or fluff that becomes stuck in the inlet filter. To clean may result in overheating.
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin”
symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
DECLARATION OF CONFORMITY:
This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
GUARANTEE
This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/
For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/
Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES :
0 = Position d'ARRÊT
- Do not introduce any metallic item in the airlet in order to avoid an electric discharge
