Product type	Hair dryer
Brand	Orbegozo
Model	SE 1160
Supply voltage	230 V ~ 50 Hz
Power	1000 - 1200 W
Number of speeds	2 (position 1: low, position 2: high)
Included accessories	Concentrator and diffuser
Handle type	Foldable (collapsible) for compact storage
Suspension system	Integrated hanging loop
Overheat protection	Automatic shutdown in case of overheating
Water protection	Do not use near water; unplug after use in the bathroom
Air intake filter	Removable for cleaning
Maintenance and cleaning	Unplug, remove the grille, clean with a dry cloth; accessories washable with water
Usage	Household use only
Compliance standards	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU
Warranty	Legal warranty; keep the purchase receipt; support via https://orbegozo.com/asistencia-tecnica/
Recycling	Do not dispose of with household waste; follow WEEE directive 2012/19/EU

Frequently Asked Questions - SE 1160 Orbegozo

How to use the Orbegozo SE 1160 hair dryer?

Plug in the device, make sure the switch is in position 0. Select the desired speed: position 1 for moderate hot air, position 2 for fast drying. After use, return to 0 and unplug.

What accessories are supplied with the SE 1160?

The hair dryer comes with a concentrator to direct the airflow and a diffuser for wider drying, ideal for curly hair.

How to clean the hair dryer?

Unplug the device. Remove the air intake grille to remove dust and hair. Clean the body with a dry cloth. The accessories can be cleaned with a damp cloth or rinsed under water, but make sure they are dry before reattaching.

What to do if the hair dryer turns off automatically?

This is an overheat protection. Unplug the device, let it cool down for a few minutes. Check that the air intake and outlet grilles are not blocked by lint or hair before turning it back on.

Can I use the hair dryer in a bathroom?

Yes, but with caution. Do not use it near a bathtub, shower, or sink. After use, unplug it because the proximity of water presents a danger even when off. It is recommended to install a 30 mA residual current device in the bathroom circuit.

How to store the SE 1160?

Unplug it, let it cool down. The handle is foldable for compact storage. Use the hanging loop to hang it on a hook. Never wrap the cord around the appliance to avoid wear.

What is the power of the Orbegozo SE 1160 hair dryer?

The power is between 1000 and 1200 W, with a voltage of 230 V ~ 50 Hz.

Is the hair dryer under warranty?

Yes, it has the legal warranty. Keep your purchase receipt. For any assistance, go to https://orbegozo.com/asistencia-tecnica/ or contact customer service via the website.

How to maintain the air intake filter?

The filter is removable. Unplug the device, remove the grille and clean it to remove hair and dust. This helps maintain good airflow and prevent overheating.

What to do if the power cord is damaged?

Do not use the device. Contact an approved technical service, the manufacturer, or a qualified person to replace it, to avoid any risk of electric shock.

USER MANUAL SE 1160 Orbegozo

SECHE-CHEVEUX - MANUEL D'INSTRUCTIONS

SECADOR DE CABELO - MANUAL DE INSTRUÇÕES

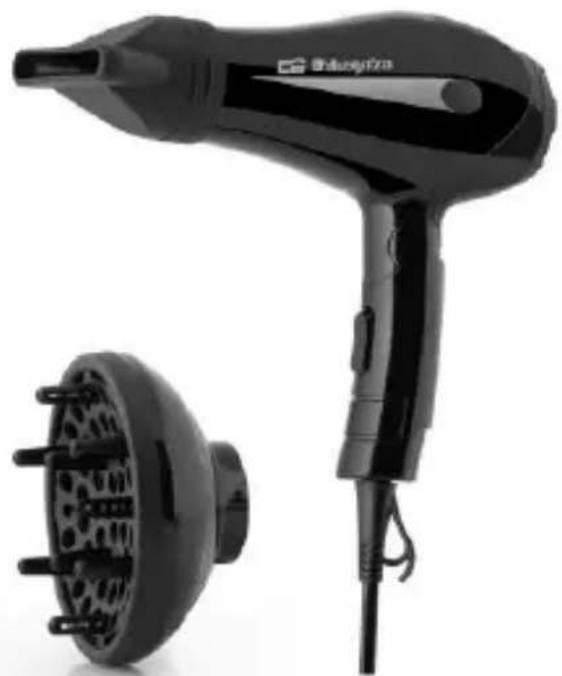

Black hair dryer with a circular base and a side-mounted fan (no visible text or symbols)

SE 1160

Sonifer,S.A

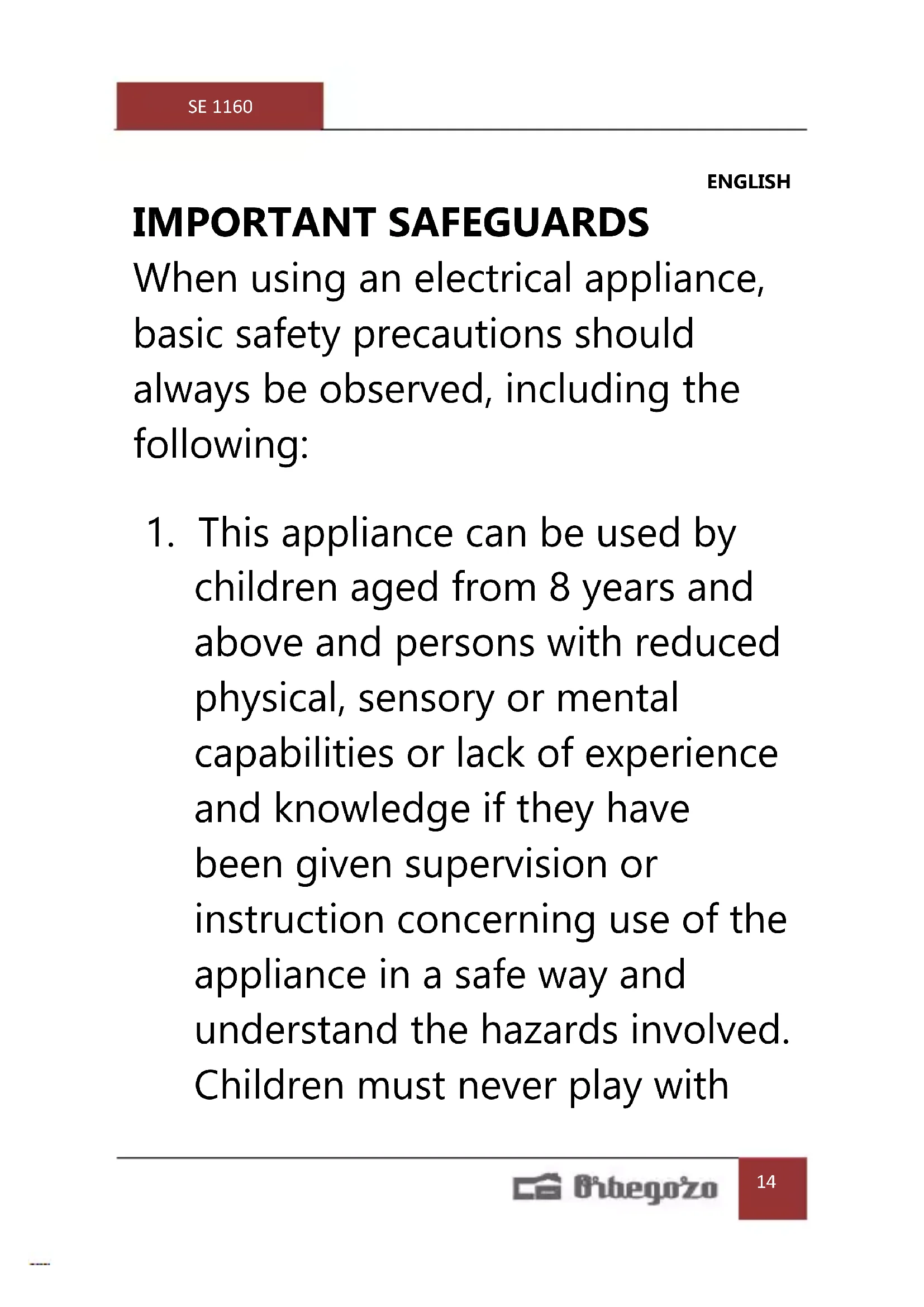

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using an electrical appliance, basic safety precautions should always be observed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with

the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national

regulations for electrical installations.

1. This appliance is for household use only.
2. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
3. WARNING: In case of misuse, there is a risk of possible injury.

- Check if the voltage indicated on the appliance corresponds to the local voltage before you connect the appliance.

- Never block the air grilles.

- If the appliance overheats, it will switch off automatically. Unplug the appliance and let it cool

down for a few minutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.

• Do not direct the airflow towards the eyes or other sensitive areas.
• Do not use the hair dryer for purposes other than drying and styling human hair.

• Do not pull the cord with unnecessary force. Do not wrap the cord around the unit. Check cord regularly for any sign of damage. Damaged cords can be dangerous.

• Always switch the appliance off before putting it down, even if it is only for a moment.

• Always unplug the appliance after use.
• Let the appliances get cold before store it.
• Do not introduce any metallic item in the airlet in order to avoid an electric discharge.
• Do not put the air outcome too close the hair.
• Do not use this appliance near water.
• Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off.

- For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

DESCRIPTION

1. Concentrator
2. Air inlet filter
3. Folding handle
4. Speed knob
5. Diffuser
6. Hang-up handle

DRYING

1. Put the plug in the wall socket. Make sure the switch is always in position 0 when you plug it.
2. Switch the appliance on by selecting the desired setting.

a. Position 1, low speed and warm air flow, to shape your hairstyle.
b. Position 2, high speed and very hot air flow, for quick drying.
3. Dry your hair by making brushing movements while holding the dryer at a small distance from your hair.
4. When you finish, select in switch 0 position and unplug the hairdryer.

STYLING ATTACHMENTS

Concentrator

The concentrator enables you to direct the airflow at your hair that you are styling.

Connect the concentrator by simply snapping it onto the appliance. Disconnect it by pulling it off.

Diffuser

The diffuser enables to distribute the air flow by greater surface of hair. It is recommended use it to dry and shape curling hair. Connect it snapping onto the appliance. Disconnect it by pulling it off.

With both accessories you should wait to cool those down before remove them because they will be hot after using and you could burn.

CLEANING

1. Unplug the appliance before cleaning.
2. Remove the grill in order to eliminate the dust and hair.
3. The appliance can be cleaned with a dry cloth.
4. The attachments can be cleaned with a moist cloth or rinsed under a running tap.

Remove the attachments from the appliance before cleaning them. Make sure the attachments are dry before using or storing them.

Never rinse the appliance with water.

STORAGE

When not in use "unplug it."

Allow the appliance to cool and store it in a dry location. This hair dryer features a loop allowing it to be conveniently hung on a hook for easy access. Never wrap the cord around the appliance since this will cause the cord to wear prematurely and break. If the supply cord of this appliance becomes damaged the appliance must be replaced by its manufacturer, its Service Agent or a similarly qualified person in order to avoid a hazard. This dryer is foldable so that when you save it occupy less space and so you can transport it more easily when you travel, to the pool, to the gym, etc.

SPECIFICATION

230V\~, 50Hz // 1000-1200W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
