USER MANUAL 3090Ci Q-ACOUSTICS
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Zubehör
(5.9 × 10.0 × 10.0 in)
4.1 kg (9.0 lbs)
3020i
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.
When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.
1.1. Instructions
Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
DO NOT connect your loudspeaker terminals to the mains supply.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Unpacking your loudspeakers
Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.
When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.
Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.
Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.
3. Installation
- Only use the accessories supplied with the product.
- To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
- Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
- If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
- DO NOT dismantle the loudspeaker. You will invalidate the warranty.
- Do not connect your loudspeaker terminals to the mains supply.
- Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
- The use of this apparatus is indicated for tropical and/or moderate climates.
3.1. Moisture
- To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
- Do not use this apparatus near water.
3.2. Servicing
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4.0. Symbols used on this product Hazard Warning Symbol
The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Waste Electrical and Electronic Equipment Symbol
This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.
Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.
Introduction
Thank you for purchasing Q Acoustics.
This manual is intended to take you through setup and installation and will help provide optimum performance from the product.
Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.
The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.
The range comprises:
3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.
In the carton you will find: The loudspeaker/s and this product manual.
In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.
We hope you enjoy the Q Acoustics experience.
Preparation
Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

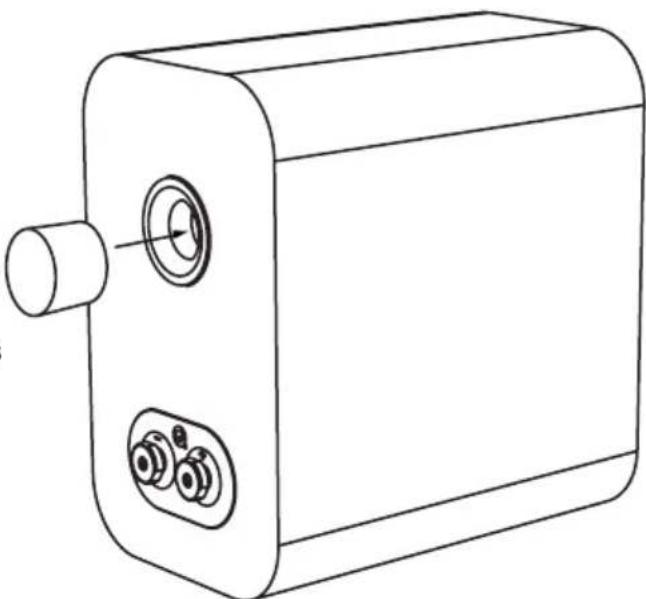

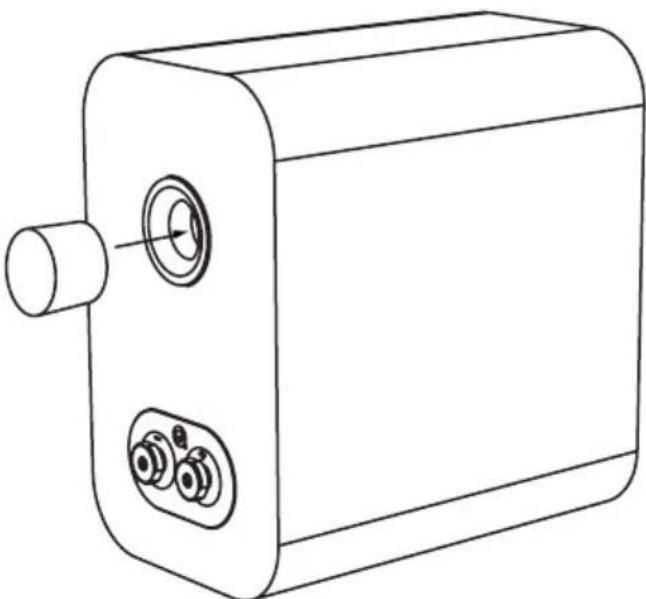

Foam Bung
The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.
Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.
Spikes are sharp. Exercise care!
Never place a spiked loudspeaker where it can cause damage!
Always move your loudspeakers by lifting them - never drag them!

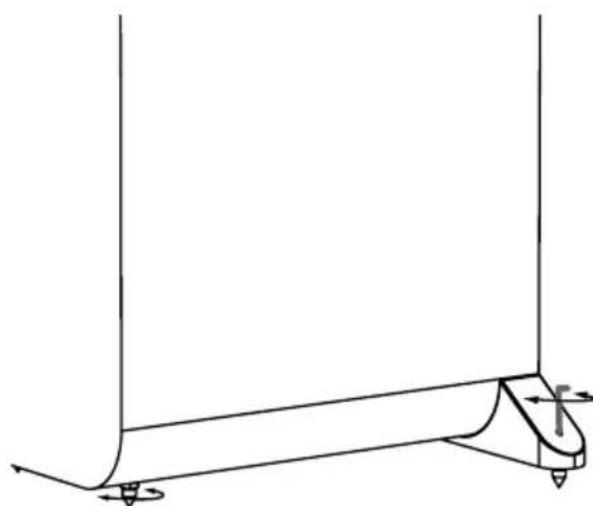

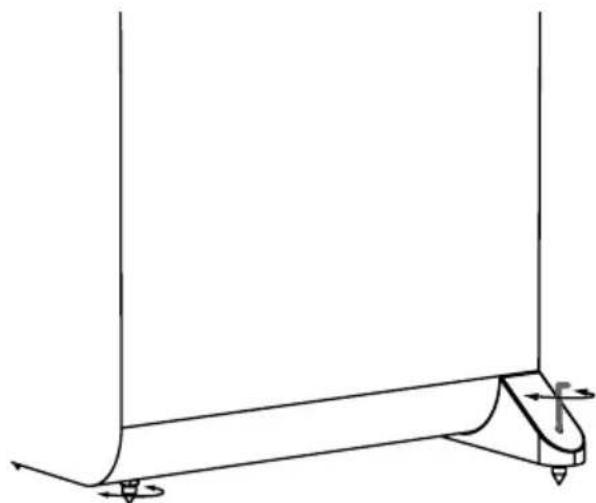

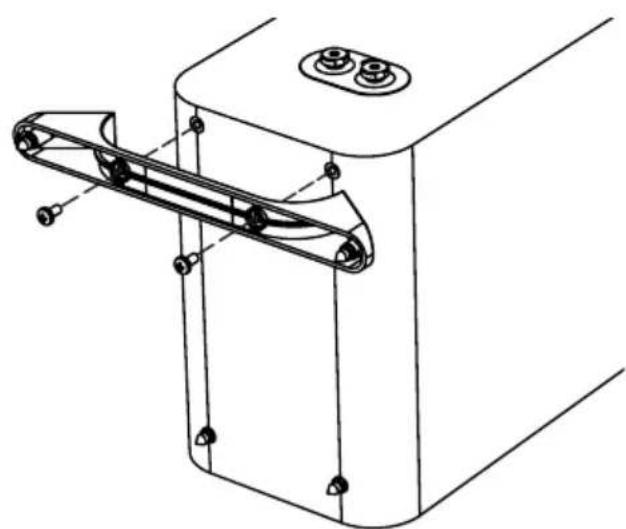

3050i - Attach the rear stabiliser
Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.
Use screws provided to secure feet as shown.

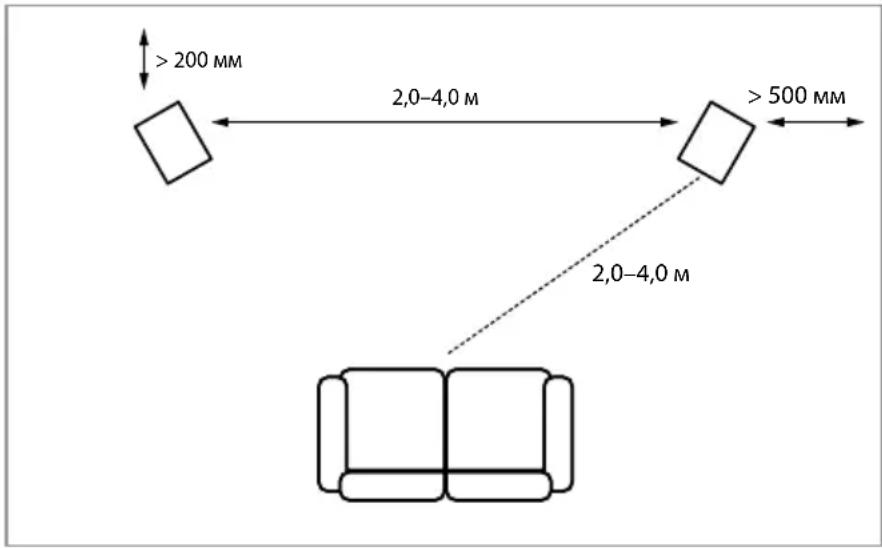

Positioning
All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.
3010i and 3020i
The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slater higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

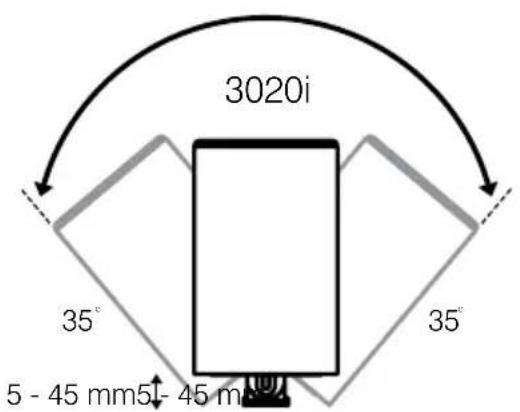

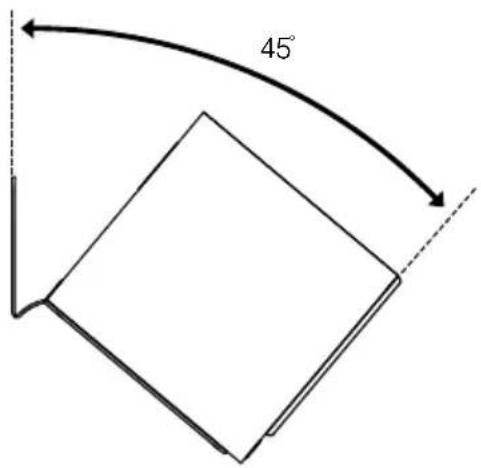

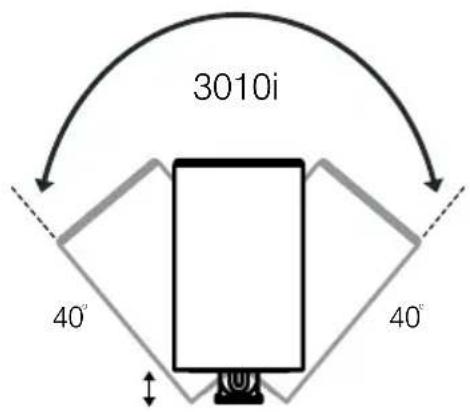

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.
3050i

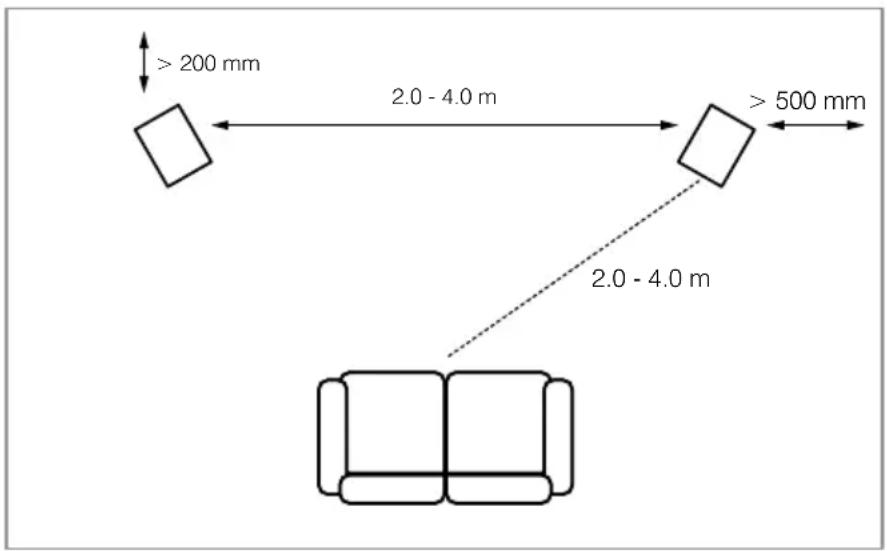

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.
Subwoofer
Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.
Effects loudspeakers
3090Ci
The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.
Dolby and the double-D symbol are trade marks of Dolby Laboratories.
Surround Speakers
There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.
For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.
Connections
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

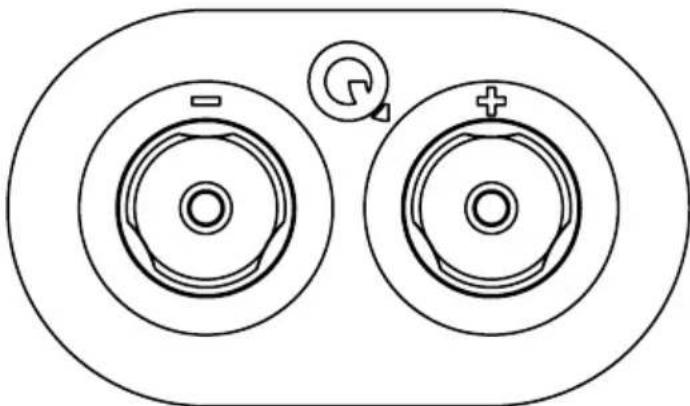

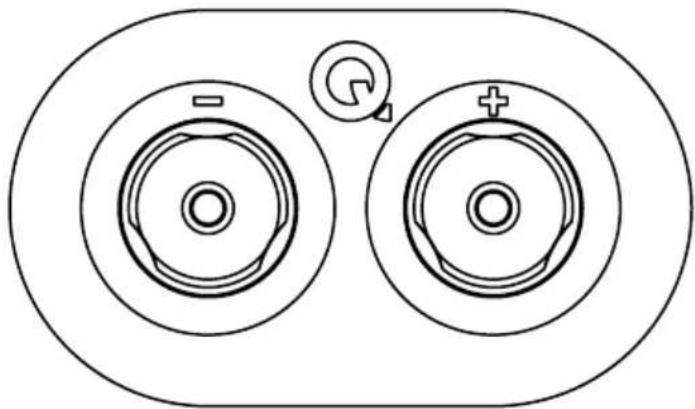

Terminals and Connectors
The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.
3010i, 3020i & 3050i & 3090Ci
Loudspeaker Cables
Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.
Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.
Preparing Cables
Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

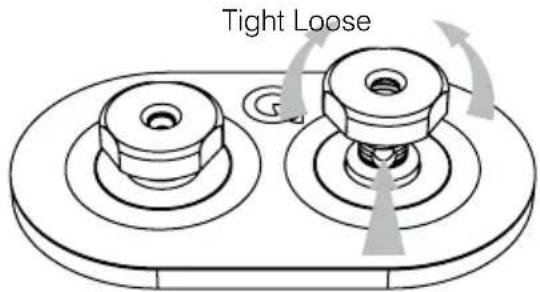

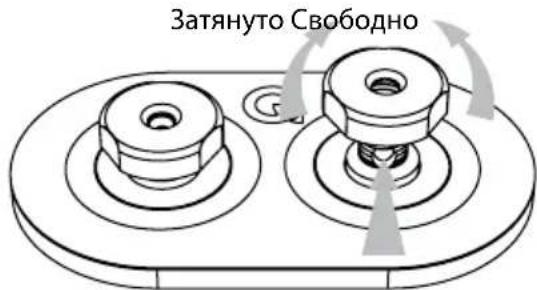

Connecting a Terminal
Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.
Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

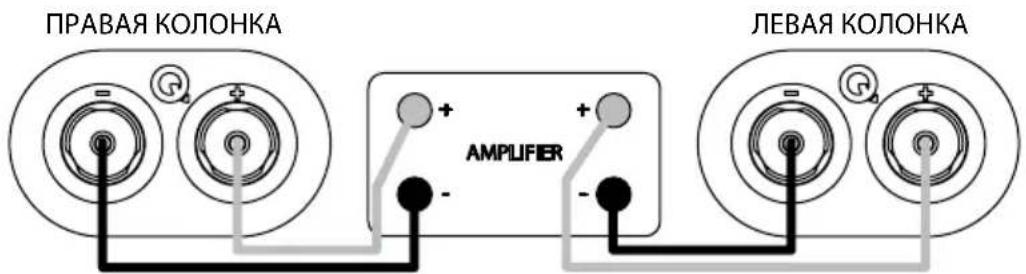

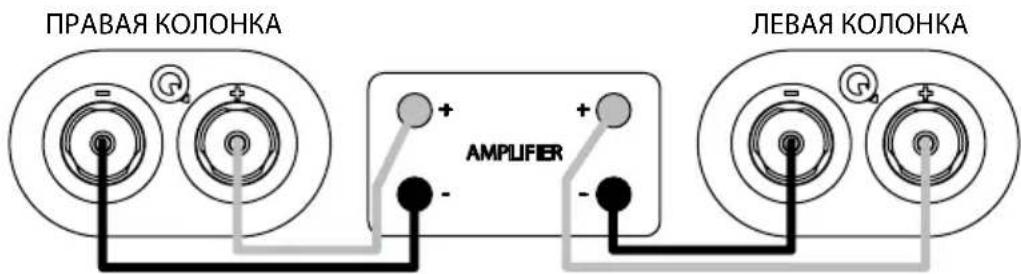

Stereo Connections

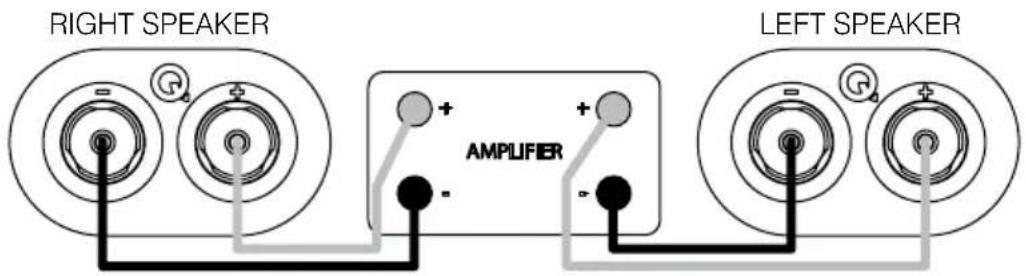

Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.
Standard Wiring:
Aftercare
Cabinet Care
Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.
The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.
Grilles
Grilles should only be cleaned using a soft brush when necessary.
If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.
Drive Units
Do not touch the drive units as they are easily damaged when exposed.
Warranty
Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.
Misuse and fair wear and tear are not covered by warranty.
Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.
Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.
For service information contact: info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Accessories

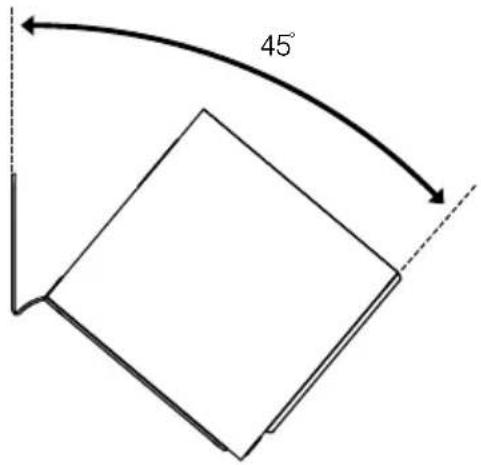

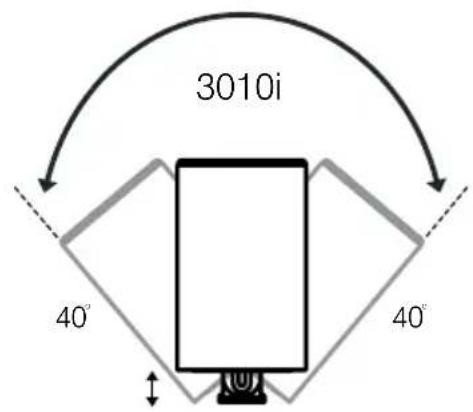

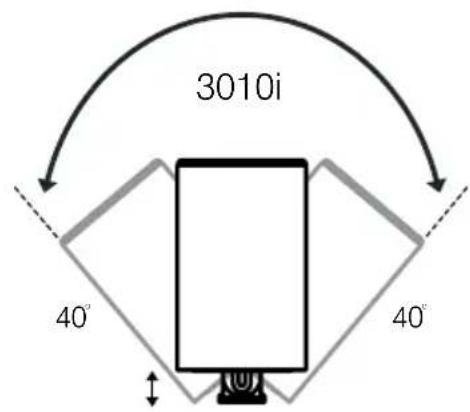

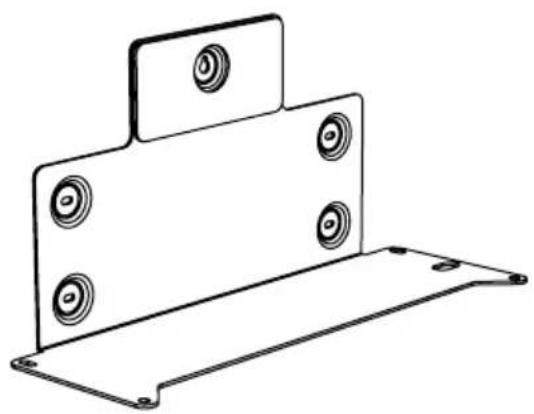

Wall Bracket (Single)
3010i / 3020i / 3090Ci
Black and White
Dimensions (WxHxD): 70 x 159 x 99 mm

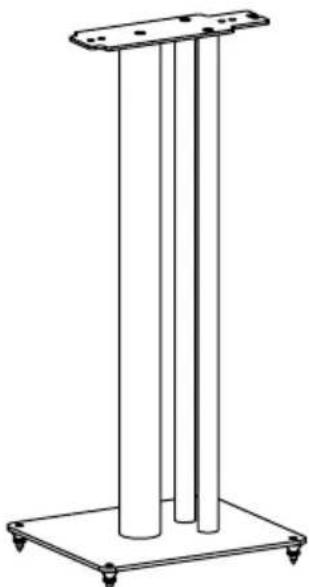

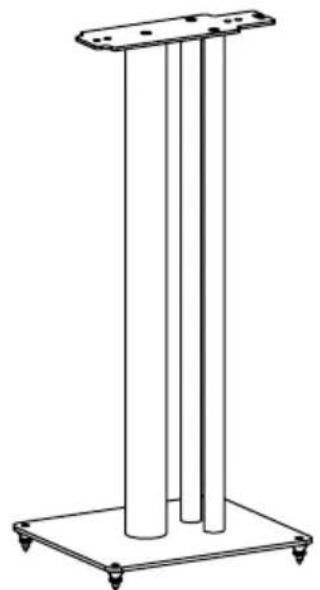

Speaker Stand (Pair)
3010i / 3020i
Black and White
Subwoofer Wall Bracket
3060S
Black
Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm
Passive Loudspeakers
Enclosure type:
Bass unit:
Treble unit:
Frequency response (+3dB, - 6dB)
Average impedance:
Minimum impedance:
Sensitivity (2.83v@1m):
Stereo amplifier power:
AV receiver power (2 ch. driven):
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
(inc. grille, terminal and feet)
Enclosure width:
Weight (per speaker):
3010i
2-wayreflex
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wayreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Active Subwoofer
Enclosure type:
Bass unit:
Amplifier power:
Frequency response (+3dB, - 6dB)
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
Weight:
3060S
Infinite baffle
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inc. spikes
8.5 kg (18.7 lbs)
3050i
2-wayreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-wayreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 ~mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ
Accesorios
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflejo de 2 vías
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer activo:
Tipo de caja:
Unidad de graves:
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Support mural (simple)
3010i / 3020i / 3090Ci
Noir et blanc
Dimensions (L× H× P) .. 70× 159× 99mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex 2 voies
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ
Accessor
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex a 2 vie
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer attivo
Tipoinvolucro:
Unità bassi (mm):
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, GB
CM23 5GZ
Accessoires
Wandbeugel (1 stuk)
3010i / 3020i / 3090Ci
Zwart en wit
Afmetingen (B× H× D) .. 70× 159× 99mm
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Wielka Brytania
CM23 5GZ
Akcesoria
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Acessórios

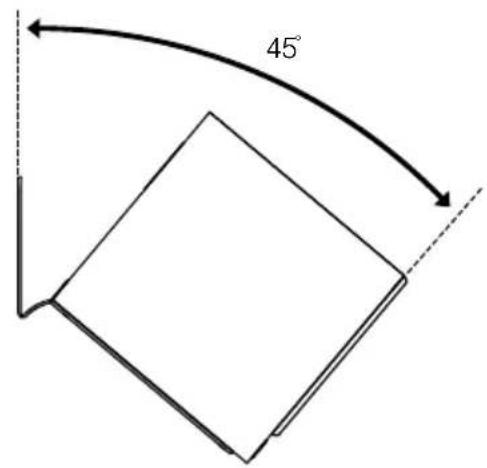

Suporte de parede (unico)
3010i / 3020i / 3090Ci
Preto e bianco
Dimensoes (LxAxD): 70 × 159 × 99 ~mm
Suporte de altovalante (par)
3010i / 3020i
Preto e bianco
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| EN ENGLISH 01 | ||
| DE GERMAN 19 | ||
| ES ESPÁÑOL 37 | ||
| FR FRENCH 55 | ||
| IT ITALIAN 73 | ||
| NL DUTCH 91 | ||
| PL POLISH 109 | ||
| PT PORTUGUESE 127 | ||
| RU RUSSIAN 145 | ||
| SV SWEDISH 16 | ||
| ZH CHINESE 181 |
Important Safety Information andWarnings
1. Safety Information andWarnings
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.
When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.
1.1. Instructions
Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
DO NOT connect your loudspeaker terminals to the mains supply.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Unpacking your loudspeakers
Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.
When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.
Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.
Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.
3. Installation
- Only use the accessories supplied with the product.
- To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
- Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage. - DO NOT dismantle the loudspeaker. You will invalidate the warranty.
- Do not connect your loudspeaker terminals to the mains supply.
- Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
The use of this apparatus is indicated for tropical and/or moderate climates.
3.1. Moisture
- To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
- Do not use this apparatus near water.
3.2. Servicing
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4.0. Symbols used on this product Hazard Warning Symbol
The 'exclamation mark' calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Waste Electrical and Electronic Equipment Symbol
This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.
Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.
Introduction
Thank you for purchasing Q Acoustics.
This manual is intended to take you through setup and installation and will help provide optimum performance from the product.
Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.
The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.
The range comprises:
3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 × 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200mm (8.0 inches) driver.
3090Ci: Centre channel with 2 × 100 mm (4.0 inches) bass drivers.
In the carton you will find: The loudspeaker/s and this product manual.
In addition the packing for the following models contains:
3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.
3060S: A mains power cord or cords, spikes and spike covers.
Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.
We hope you enjoy the Q Acoustics experience.
Preparation
Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.
Foam Bung
The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.
Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.
Spikes are sharp. Exercise care!
Never place a spiked loudspeaker where it can cause damage!
Always move your loudspeakers by lifting them - never drag them!
3050i - Attach the rear stabiliser
Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.
Use screws provided to secure feet as shown.
Positioning
All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.
3010i and 3020i
The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.
An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.
3050i
The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.
Subwoofer
Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.
Effects loudspeakers
3090Ci
The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.
Dolby and the double-D symbol are trade marks of Dolby Laboratories.
Surround Speakers
There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.
For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.
Connections
Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.
Terminals and Connectors
The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.
3010i, 3020i & 3050i & 3090Ci
Loudspeaker Cables
Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose 'bell' or 'zip' wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.
Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.
Preparing Cables
Split the cable to a depth of about 40mm . Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.
Connecting a Terminal
Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.
Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.
Stereo Connections
Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK, Negative (-) terminal of the amplifier. Repeat this procedure for the LEFT channel.
Standard Wiring:
Aftercare
Cabinet Care
Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.
The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.
Grilles
Grilles should only be cleaned using a soft brush when necessary.
If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.
Drive Units
Do not touch the drive units as they are easily damaged when exposed.
Warranty
Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.
Misuse and fair wear and tear are not covered by warranty.
Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.
Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.
For service information contact: info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Accessories
Wall Bracket (Single)
3010i / 3020i / 3090Ci
Black and White
Dimensions (WxHxD): 70 x 159 x 99 mm
Speaker Stand (Pair)
3010i / 3020i
Black and White
Subwoofer Wall Bracket
3060S
Black
Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm
Passive Loudspeakers
Enclosure type:
Bass unit:
Treble unit:
Frequency response (+3dB, - 6dB)
Average impedance:
Minimum impedance:
Sensitivity (2.83v@1m):
Stereo amplifier power:
AV receiver power (2 ch. driven):
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
(inc. grille, terminal and feet)
Enclosure width:
Weight (per speaker):
3010i
2-wayreflex
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wayreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170× 278× 282mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Active Subwoofer
Enclosure type:
Bass unit:
Amplifier power:
Frequency response (+3dB, - 6dB)
Crossover frequency:
Effective volume:
Enclosure dimensions (WxHxD):
Weight:
3060S
Infinite baffle
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inc. spikes
8.5 kg (18.7 lbs)
3050i
2-wayreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-wayreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 ~mm
(16.9× 6.0× 8.5 in)
6.0 kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| EN ENGLISH 01 | ||
| DE | DEUTSCH | 19 |
| ES | ESPÁÑOL | 37 |
| FR | FRENCH 55 | |
| IT | ITALIAN 73 | |
| NL | DUTCH 91 | |
| PL | POLISH 109 | |
| PT | PORTUGUESE 127 | |
| RU | RUSSIAN 145 | |
| SV | SWEDISH 16 | |
| ZH | CHINESE 181 | |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Zubehör
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Reino Unido
CM23 5GZ
Accesorios
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| FR | FRANÇAIS | 0 |
| DE | ALLEMAND | 1 |
| ES | ESPAGNOL | 2 |
| FR | FRANÇAIS | 5 |
| IT | ITALIEN | 73 |
| NL | NÉERLANDAIS | 91 |
| PL | POLONAIS | 3 |
| PT | PORTUGAIS | 127 |
| RU | RUSSE | 145 |
| SV | SUÉDOIS | 163 |
| ZH | CHINOIS | 181 |
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Support mural (simple)
3010i / 3020i / 3090Ci
Noir et blanc
Dimensions (L× H× P) .. 70× 159× 99mm
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex 2 voies
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Q Acoustics
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Regno Unito
CM23 5GZ
Accessor
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
Reflex a 2 vie
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Subwoofer attivo
Tipoinvolucro:
Unità bassi (mm):
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, GB
CM23 5GZ
Accessoires
Wandbeugel (1 stuk)
3010i / 3020i / 3090Ci
Zwart en wit
Afmetingen (B× H× D) .. 70× 159× 99mm
(5.9 × 10.0 × 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-wegsreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170× 278× 282mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Achieve subwoofer
Behuizingstype:
Baseenheid:
Versterkervermogen:
Frequentierresponds (+3dB, - 6dB)
Crossover-frequentie:
Effectief volume:
www.qacoustics.co.uk/register.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, Wielka Brytania
CM23 5GZ
Akcesoria
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
| EN | INGLÉS | 01 |
| DE | ALEMÃO | 19 |
| ES | ESPANHOL | |
| FR | FRANCÉS | 55 |
| IT ITALIANO 73 | ||
| NL | HOLANDÉS | |
| PL | POLACO | 109 |
| PT | PORTUGUES | |
| RU | RUSSO | 145 |
| SV | SUECO | 163 |
| ZH | CHINÊS | 181 |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Acessórios
Suporte de parede (unico)
3010i / 3020i / 3090Ci
Preto e bianco
Dimensoes (LxAxD): 70 × 159 × 99 ~mm
Suporte de altovalante (par)
3010i / 3020i
Preto e bianco
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
ACOUSTICS
RU PYCCKNI 01
DE HEMELIKN 19
ES ICNAHCKN 37
FR ΦPAHLU3CKN 55
IT NTALbHCKN 73
NL HNDEPJIAHIDCKH 91
PL NONbCKN 109
PTIOPTUYAJIbCKH 127
RU PYCCKM 145
SV WIBEIDCKN 163
ZH KNTAUNCKN 181
BaxkhaHΦopMaIyOmepaX6e3oNaChocTINnnpedynpexKdEHH
1.Инфорmaцио мерх 6e3oNaChocTN npedynpeXdEHH
Ipeed NOdknIOueHneM KaKoro-JIN60 6ObOpyIDobAHNA K KOJIOHKAM y6eINTecb, YTO BCE pa6oOHe 6IOKn BaWe nCTEmbl OTKJIIOUeHbl OT 3JeKTpUueCKoCetN.
Pn BKJIOUeHnn ayDIOOCNTMbl NnnepeKJIIOUeHnn IcTOUHNKOB BXOJHBIX CnIHAnOB,ycTahOBtTe 06uN peyIaTOp rPOMKoCTn HaHn3Kn yPOBeHb. PObBIAaTe yPOBeHb rPOMKOCTnNoCTeNEHNO.
HINKOrIa He BkIoUaIte ayDIOscNCTeMy Ha NOJHyo rpOMKocTb. PonoJKeHne peryIaTopa rpOMKocTn MoKeT BBOuNTb B 3a6NyJxHeHne H He yKa3bIbaET yPOBeHb MOUHOCTn CnIHana. NcNoJIb3OBAHne OueHb BblCOKnx yPOBHeN rPOMKOCTn MoKeT IOBpeIITb BaIcIyX.
1.1.Инструкции
PpeKJe qem npntyntb K nCNoJIb3OBaHIO DNHaMnKOB, npoHTnte u npIMnte K CBeDeHIO daHHoe pyKOBoCTBO. TapaHTn aHNHyInpyeTcA, ecn IOBpeXdHeNe cNCTeMbI npOn3OuIIO no npunHe HecO6JIooHeH NHCtpyKzI duHHoro pyKOBoCTBa. XpaHnte daHHoe pyKOBoCTBO B HaJExKHOM MecTe.
PpoHTaTe daHHyIO nHCTpyKcHIO.
CoxpaHnte daHHyIO uHCTpyKuHIO.
PpIMnTe K cBeDeHnIO Bce npEynpeJxDHeNIA.
CneyuTe Bcem yka3aHnma.
- He nCpOJIb3yIte 3TO O6OpUdOBaHne B6nI3N BOJbl. HE noDkIIOuAte nOIOca BaInx KOLOHOK K nITaIOSe cETn.
He yctaHaBnBaIte cnCTemy B6n3n nCTOuHKnOB TeNna, TaKnx KaK: 6aTapeu, pernctpbI OTOnJIeHnY, KxOHhbI pNTbl Nn Dpyrooe o6OpyDoBaHne (B TOM uCNe ycNInTeN), n3nyuaIouee TenNo.
IcnoJb3yIte NCKIOUHTeNbHO npucnocO6neHn/
DOnoJIHNTeNbHoe 06OpyDoBaHHe,
peKOMeHNDoBAHHbIe npON3BOdnteHm.
OTKIOUaIte O6OpyOBAHHe OT cETN BO Bpemr rpo3bl NnB Cnyae, eCNI BbI He co6npaTecb nIb30BaTbCRA IM dIITeNbHOe Bpemr.
2.ИЗВLEЧЕНЕи3унakOBКИ
PonHocTbIO paCnakyIte akCytnueckyUcNTemY. 13BVeKaITe KOJOhKn n3
KapToHHbIX Kopo6OK, npudepXnBaa IX 3a Kopnyc. He nCnoIb3yIte 3aunTHbIe Yexbl IJra N3BneHnRA KOLOHOK.
EcnBbl 3axOTnTe nepemecNTb KOJOHKn, He BOLOHTe INx NO Nony, TaK KaK 3TO MOKeT NOBpeDnTB INX — npINoDHnMnTE KOJOHKn nepeI nepemeeHneM.
TuaTeJbHo npOBepBe KOJOnKn. EcIn KaKne-Jn6o DeTaJI NOTcyTCTByIOT INN NOBpeXKeHbI, COO6UHTe 06 3tOMy CBOemy dIepepy KaK MoKHO cKOpee.
CoxpaHnTe ynaKOBky dny 6dyuue B03MOxHO TpaHCnOpTnpOBKn. Ecnn Bbl peWnte Bbl6pocNTb ynaKOBky, noXaanyIcTa, co6nIoJaTe deNCTByIOoee B BaWei CtpaHe 3aKOHOaTeNbCTBO nO nepepa6OTke OTxoIDOB.
3.YctaHOBka
- IcnoIb3yIte ToJIbKO Te akceccyapbl, KOToPbIe NOCTaBJIOTc BMeCTe C N3dJIinem.
-Bo n36exaHne TpaBM n NOBpeXdHn, daHHOye yCTPOINCTBO DOJXHO 6bITb HaJeXHO yCTaHO HeHO Ha NOy B COOTBeTCTBnC INHCTpyKcIaMn No yCTaHOBKe.
He nCNoIb3yIte cAmOeIbHbIe NOdCTaBKn. YcTaHOBnTe CneuIaNbHyIO NOdCTaBKy npOn3BOJCTBa KOMnAHn Q Acoustics, cJeDy IHNCTpyKUIN N NCNoJIb3yI KpeNExHbIe DeTANI, INdyUe B KOMnJIeKTe. Heo6xOIMyIO INHΦOpMaUIO Bbl MoKeTe NOLyUHTb y BaWero DInIepa. - EcIN Bbl NOIb3yeTeCb KOJIOHKaMn 6e3 3aUHTbIX CeTOK, N03a6ObTEcB O TOM, YTO6bl Y3JIb I npNBOda He 6blnn NOBpeKdEhbl.
HE pa36npaIte akcTnueckyIO cnCTemy. B npOTNBOM cnyae Bbl 6ydeTe IuweHb npaba Ha rapaHTmHoe 6CnyKmbAHne.
He coeHnHnTe BbIXOdbI DnI NOkKIOUeHNn AkyCTNueCKoCNCEmbl C CetBIO NITaHN.
He noDBepraTe CNTeMy BO3DeICTBIOUpe3MepHbIX TemNepaTyp, NOBbiWeHHoBNlaXHOCTNI ININ PnMbIX COJHeuHbIX Lyuei.
B DaHHOM pyKOBoIDCTBe ONIcaHO npIMeHHeNcYCTPOINCTBa B TpONnueCKOM n (nn) yMepeHHOM KJIIMate.
3.1.BlaXHocTb
He cnedyet noDBepraTb yCTpoiCTBO BO3deICTBnIO DoXJa, BlaRn, npocauBaIOSeJcra NN pa36pb3rNaIOSeJcra BObl BO n36exaHne BO3ropaHnna Nn nopajEnn 3JIeKTPnuecknM
TOKOM.
- He nCnoB3yIte 3TO o6OpyOBAHnE B6n3N BOJbl.
3.2.TexHnueckoe 06cnyKuBaHne
Bce pa60tbI no TexHnueckomy 06cnyKuBaHHIO DOJXhbl BbINONHrTbcra KBaINΦNUPOBAHbIM TexHnueckm nepcoHaJOM. TexHnueckoe 06cnyKuBaHne Heo6xOdIMO B Cnyae NOBpeKdEHHa OBOpUdoBAHH, nonadaHHa XNDKOCTNI DpyRnx PpeMeTOB BHyTp bO6OpUdoBAHH, BO3DeiCTBnI DoJkI INI BnAIn, c6oEB pa6ote o6OpUdoBAHH nIe erO naEHn.
4.0.CmBBoJIbHa n3JeJIN
CmboJ npdeynpejckdneHn 06 onachoTn
CnMBOJ 《BOCKNlCuaTeIbHbI 3HaK》 yka3bIbaeT Ha HeKOToPbIe npaMeTpbl, ONiCaHHbIe B DaHHOM pykoBODCTBe; Heo6xOIM IJI ppeOTBpaueHnA
npo6JIem B pa6Ote n TexHnueckOM o6CnyKnBaHN.
BHIMAHHE! Bo n36exkaHne nopaxeHHa 3JIeKTPnueckm TOKOM, y6eIntecb, qTO 7uPnHa IaIKN BnIKN NOxOHT K 7uPnHe rHe3d p03eTKN, IN BnIKa N0JIHOCTbIO BCTaBIAReTcB P03eTKy.
CnBON «OTxoDbl 3JIeKtpnueckoro n 3JIeKtpoHnHO o6OpydoBaHnra
JaHHbI CNMBOJ yKa3bIbAeT Ha TO, yTO yCTpOJIcTBO DOJXHO 6bITb yTNIN3nPOBaHO OTdEJIbHOOT 6bITOBOROMycopa N OTnpaBHeHO Ha CneuHaUN3nPOBaHHbI NyHKT c6opa dJa yTNIN3aUIM IN nepepa6OTKn OTxODOB 3JeKTPnueCKOrO n 3JeKTKPOHHOro 6OpyDoBaHn.
O63aTeIbHo 03HaKOMbTecb C npabnIamn pa3JeIbHOyTNIN3aCmN 3JIeKTpUeCKnx N3JeKTPOHHbIX N3DeNN, DeIcTBYIOUMN B BaWem perNoHe.
Bveedenne
Blaoradapm Bac 3a npno6peHne npodukun Q Acoustics!
JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:
MoeIb 3010i: KompaKTHaNoLOUHaN KOLOHKa C MOuHbIM 100-MuJIIMMeTpObBIM (4,0 IIOMa) Hn3KOaCTOTHbIM DnHaMVKOM.
MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpObBIM (5,0 JIOMa) Hn3KOaCTOTHbIM DInHaMnKOM.
MoJIb 3050i: HanoIbHaa akCyIuecka cnCTema C dBMy MoUHbIMn 165-MuIIImeTpObIMn (6,5 IIOma) HN3KOaCTOTHbIMn DInHaMnKamn.
MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIIMMeTpOBBIMn (8,0 IIOMa) DNHaMnKaMn.
MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MOUHbIMn 100-MuJIImMeTpOBbIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DnHaMnKaMn.
B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDcTBo NO 3KcnIyatauN.
Kpome toro,ynakOBka cneyuoux MoJeNei coepknt:
Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoloHkn.
UectnirpaHbI KInOu dIy 3aKpeHEny yCTaHOBJIeHHbIX IINJIeN.
Moenb 3060S: Hpybl nntaHn, nnu n o6mOTKn nnneJ.
BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, coo6uTe o6 3tOMy CBOEmy dInJepy KaK MoXHO CKopee.
Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.
Poirotobka
N3BneKaIte KOLOHKn n3 KapTOHbIX KOpO6OK, npndepKnBaInx 3a Kopnyc. He npNKacaiTeCb K npedKOHeYbIM KACKaAM nn NcNoB3yIe 3aunTHbIe qexbl npn nx n3BLeuehen. MoDen 3050i n 3060S TjXeJIbe: npn Heo6xOAnMocTn nonpocnte Koro-H6ydb NmOuB Bam.
Ipo6ka n3 neHonnlaacta
KoONKc cepnn 3000i ochauehbl 3aHnMn nopTaMn Inyuwe Bcero pa6otaOT ByCNOBnAx, KOrda 3a HmN NMeETCA HeKOTOpoe npoctpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHbl. Ecn BBi pacnoLoXnTe KOOnHKn 6n3KO K cTeHe/yrny, Heo6xOdImo 6yDet BCTaBnTb B 3aHnne nOpTbI NeHONJaCTOBle npo6Kn, INaYe MOKeT NOBtCBc CInlKOM MHOro Hn3Knx YaCTOT.
Y6eHNTecb, yTO npo6Kn NIOHTO CnT B nOpTAX n He BCTabHeBcI CNuKOM rny60ko. Bbl O6hApyXnte, 4TO yPOBeH H3KNX qACTOT NOHN3NtC, HO npn 3TOM NOBbICNTc qETKOCb N CTENb rny6nHbI baca. 3KcNEpIMeHTnpyIte N IO6NBaITecb HxHoro BAM 3ByaHna. DnA DOCTNXKeHn ONTNMaJIbHOr KOHeUHOro pe3yNbTaT a npo6yIte BHOCNTb He6OBbWne I3MeHeHn B paCNOJoxKeHne KONOHOK.
UHnnn Oueh bocpbe. BybTe octopoxhbl!
HnkOrda He cTaBbTe KOJOnHKy Ha WnIaX TaM, rKe OHN MOrY TcO-JIn6o NOBpeuNTb!
IpepeMaTe KOLOHKn Bcerda no BO3dyxu HnKOrDa He BOIoUHe No NOBepxHOCTaM!
3050i. Ipnkpene 3aHn cTa6nn3atop
BctabbTe 7nHn, o6opyOBOAHbIe cTOnOpHbIM raKAMn, dIO NOJOBHbI B OCHOBaHne n BepHtE KOJHOY B BepTKaJIbHOe NpOJOKeHne. (EcIn y Bac DepeBraHHbI nn KaMeHHbI pON, HadeHbTe npOTEkTOpHa KaJdbI IuNbI 3aTeM BepHtE KOJOHky B BepTKaJIbHOe NpOJOKeHne). KOrda KOJOHka HaxoHTcB I npBaUNbHOM NpOJOKeHn, BCTabbTe WeCTINrpaHHbIKIOUc CBepxv B KaJdbI 3aHN Jn OTpErynpyuTe BCE 7nHn TaK, YTO6bl KOJOHKa cTOnJa npRMO n He 7aTaNaCb.
IcnoB3yIe BnHTbI IaI 3aKpenneHn HOKe, KaYKa3aHO Ha KapTINHe.
BceMn AkyCTHHeKMM OACTeMaMM MOKHO NOnb3OBaTbCpaDM C TENEVBIOHHbIM MOHITopAMM 6e3 KaKOro-ImoBpeHOrO Bo3deJCTBaN, KPOMeMoDmN 3060S,KOTpyHO HepeKOMeHyETORA KOTNYATIpobAtb Ha pacToHMM Mehee 500 MM OT EkaHa TENEVBOPa MM DpyTORo MAnHtTOyBCTBVTeBHORO 6OpdyobAHr. PnaMeHHbIeXKK-EkpaHbTaKaKeHeNoeppeKHeBbPeHMy Bo3deYCTBIVIO.
3010i n 3020i
KoONKn 3010i n 3020i ndaealbno noxodT dny yctahOBKn Ha hanoNbHbe noCTabKn Q Acoustics nn MOHTaKa Ha cTeHy. Ecn Bbl npOn3BOOIne MOHTaK Ha noCTabKn, co6JIouaIte npocToe npabnlo: 6nok, OTBeauoJn 3a nepeDaay BePxHnx qactOT,doJKeH HaxODntBcra Ha ypOBHe rOIOBbl CnJaUeO CnyuataJe. KOONKn, MoHTnpyEmble Ha cTeHy, moXHO paCNOLOXkTb HEMHoro Bblwe, ecN INx CnerKa HaKNOHTb. KOONKn, MOHTnpyEmble Ha noCTabKn, cNeDyeTpaccMaTpNBt KaK HAnOJBhle KOJOhKn, 3a NCKLIOueHne TOrO, UTO INx MOxHO paCNOLOXkTb HEMHoro 6bnke K 3aJHe n CTHe. Bo3MOxH TaKke MOHTaK Ha NOkN.
y Baawero Dnnepea HMeetcB HAnuyn OnuHaBHO NoCTabIeMbIKPOHHTeH, CneuaNBHO pa3pa6oTahbI dIy MoTaJa Ha cTeHy KOLOHOK Q Acoustics 3010i, 3020i n 3090Ci. ImeOTc TaKxe HanoNbIe NODCTABKn dIy MoJeEe 3010i n 3020i. BybTe roTOBbl EKcnepmuENTipoBaT B NOnCKe HAnNyUwero Ha BaW BKyc pacNoJoxHeN KOLOHOK B KOHKpeTHOM, Bb6paHHOM Bamn NOMEueHN.
3050i
KoONK 3050i cneNyet paONIOXNTb MNHmym B 20 CM OT 3aHHe CTHeBn B 50 CM OT 6OKOBbIX CTeH. Pa3MeueHne KOLOHOK 6nHexe K CTHe YcNlHT Hn3Kne qactOTbl, HO MOKe Bbl3BaTb rJI n HeueTKOCTb 3Byka. KOONK IOnXhbl HaxODntbcra B2-4 MeTpax dpyr OT dpyra N CBOHMn ceHTpamn o6paataBcra K cnJaIeMy cnywateJIIO. He6OJbWoi NOBOPOT KOLOHOK fpoNTaJIbHBIMN CTOpOHAmn
Dpyr K npyry Ccenaet YeTue CtepeOKapTuHy, HO MoKTe «Cy3NTb» NCTOCHNK 3ByKa.
Ca6ByΦep
Hn3Kne 3ByKOBBie qactotb B OCHOBHom OINHaKOBI NO BCem HappaBHeHm. XOTa 3OHaayet, YTO BIMoKeTe yCTaHOBT BaI Ca6Byepe npakTnueckn B IIO6OM MeCTe, BCE Je 3ByKOBAa KapTHa 6ydet Lyuwe, ECNI Bbl yCTaHOBTe ca6Byeep Ha yPOBHe NpeDnX DnHAMIKOB n, HACKOBko BO3MOxHO, NO CEHTpy OTNo3NcN CnywAteJr. B MHOROKAHAJIbHOI CNCTeMe 3TO MoXeT 6bITb HeocUeCTBUMO. EcnBbl NoCTaBtE ca6Byeep 6n3KO K CTeHe, TO HIXKHe 3ByKOBBie qactotb MOYr UcNJITbcra N IO3TOMy B HeKOTOpbIX MeCTAX 3BYK MoXe T cTaTb HeueTKIM.
KolonknIynepeaun 3BykoBbIX 00
3090Ci
KoNoHka 3090Ci npedHa3NaueHa dna pa6ObI B6n3n TeNe3KpaHa n pa3Meuen no ero ceHTpabHOJ ocn. Ee cneDyET pa3MecNTb HEnocpeCTBeHHo Ha dKpaHom nn Nn NDn. Ecn y BaC nla3MeHHBn nn KK-MOHITOp, MOHTpynte KOOnHKy 3090Ci Ha CteHy nn Dpyryo NDOxODaYIO NOBepXHOCTb HEnocpeCTBeHHo Ha dKpaHom nn Nn NDn NpN nomouu NaCTeHHoro KPOHTeHa Q-Acoustics. B npOTNBHom cnyae NoDymaTe O pa3MeueHnn TeLeBn3Opa Ha CTennJaK, Ha KOToPbMoXHo 6ydet TaKke NOCTABNTb n KoONHKy 3090Ci (Ha npOuyIO nOLky HEnocpeCTBeHHo ND TeneBn3Opom).
Cnmbolbl Dolby n DD -3To Toprobble Mapkn KOMnaHnn Dolby Laboratories.
Akyctnuecka cnctema o6bemHoro 3ByaHna
KoMaHn Daet CneIyUOuIe peKOMeHdaUIN B OTHOWeHn ayDIOscTeMbI dI nepeaun 30fKeTob 5.1. KOnOHKn IJI na nepeaun oBbemHoro 3Byka cNeJyET MOHTnpOBaTb IO 6OKam OT CnywateJI N HEMHORO C3aI N Hero. KOnOHKn cNeJyET NOBepHyTb Dpyr Kdpry, nPoCTO pa3MeCTNB INx Ha 6OKOBbIX CTehax NOMeHn HII, ecNI NOMEseHne CInsKOM BeNko, Ha BBICOKNX NODCTABkax. Ppi 3tOM CNeJyET paCNOLOXnTb CEHTpbI KOLOHOK Bblwe ypOBHra TOLOBbI CNJaUcero CnywateJI.
ДлгNotOnoHbIX KOLOHOK, KOTOpbIe IcNoJb3yOITcIЯ MHorokaHaJIbHbIX yCTaHOBOK, Mbl peKOMeHdyem accOPTUmEHTycTaHOBOuHORo kpenexa Q Acoustics.
CoeinnHeHn
Ipeep noKIOHnEM KAKORO-JIO6O 06OpyOBaHnK KOJONKaM y6eINTeCb, YTO Bce pa6oue 6noKn BaIeN CnCTEmbl OTKIOUeHbI OT 3JeKTPnueckoCetn. Ppi BKIOUeHm ayIOOCnTcMbI Nn IpeKIOUeHm INTOUHmKB BXODhBIX CNHaIOB, yCTaHOBtE O6uim peYrAToP rOmKOctn Ha Hn3Km IypOBeHb. IOnbIaM Te IypOBeHr pOMKoCTn NOCTeNEHO.
PonocncoeHHTeJI
KoNoHKn 3010i, 3020i, 3050i n 3090Ci oshauehbl cTaNdapThbIMn KpoccoBepamc DBymna NIOUcAmn.
3010i, 3020i, 3050i, 3090Ci
Akyctnueckne ka6einn
CneuHaun3nupoBaHHbIe akyCTnueckNe Ka6eNIO bcncpeuHbAOT 6OJee BbICOKN CTaHdAPT BOCnpOn3BeDeHNy, cem Ka6eNIO o6Uero Ha3NaueHnra Tnna "bell" (ToHKne I nPLOXo N3oJInpoBaHHbIe Ka6eN) nn "zip" (DbYxKnlbHbIe Ka6eNc pa3dennTeNbHbIM OCHOBaHnEM). IInr nepeHero n ceHTpaNBHO rKaHaONB INcNoB3yIte Ka6eNc 6OJbShm KOnNUeCTBOM MeIN. ToHKne Ka6eNc cokpaAsaOT Hn3Kne qactOTbl N orpAnuHBAOT dInHaMnueckn dInaNa3OH. MeHbWee 3NaueHne irpaIoT KaHaJIb IOsbEmHO r3ByaHnra (3aHNHe).
Akyctnueckn Ka6eIb Imeet noLocKy IIN MeTKy BdoJIb OndHO Ka6eIbHO JxNJIb. IIO npaBnIam erO HyJXHO IOKnIOuATb K NOLOKITeJIbHbIM NOnIOcAM. Ka6eI, NODKIIOUaIOUne ycNIteJIb K nepeHNIM KOIOHKaM, B INeane DOnJHbI 6bITb OOnHaKOBOI dInHbI. HIKoRda He coeDNHrTe Ka6eJIb n3 HeCKONbKnx OTpe3KOB — BCerDa NcNoJIb3yIte cElyB Ka6eJIb.
IpoTobKa Ka6eNei
Pacuente Knlb Ka6eHa rny6nHy Okono 40 MM. OroInTe KOHeu KaKdoi Xnlb Ha rny6nHy 10 MM n cKpynte erO, TTo6bl C6paTb B CEJeoe BCE Topaune B CTOpOHb IpOBoDNk. POnpeXbTe oroneHHyU qactb Ka6eNo dnnHb7 MM.
PoiKlnouHne noIIOca
OTKpyTnte NOJOC npOTNB YacOBOc TpeKN DnToro, UTO6bl CTANO BNDHO MOHTaxHoe OTBepCTne BOCHOBAHN KOJOHKn NOLoca.
BCTaBbTe oroneHHK KOHeu Ka6eJ B OTBepCTne. 3akpyntte noJIoc pyKoI Do oTKa3a. Y6eInTeCb, yTO He NMeETcH HnKaKxh Topaunx npOBODKOB, KOTOpblc MoryT kacatbcra cOceHNX nONOCOB. B EC INCNoB30BaHHe 4-MnllnMeTpPoBbIX WTeNCEJbHbIX aKyCTNuuecknx BNLOK pOTNBopeuyHT HopMaM 6e3OnaCH
CtepeofoHnueckne coeHHeHn
Ctahapthbe coeHHeHn
PoiKIOHnTE KAPCHbI (+) noIOc npaBOK KOIOHKn K KPACHOMY noIOXHTBHOMy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPHbI (-) noIOc KOIOHKn K COOTBEcTByIOUeMy UEPHOMY, OtpuataeHbOMy (-) noIOcy ycINTeJI. PioJeaTe Tj Xe npoceDpyB OTHoSeHH NIEBOTO KaHana.
CtAnapTha cnCTema npoBOJIOB:
PoclenpoJauKHoe o6cIyXuBaHne
Yxoid3aKopnycom
Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte YIcTae Ie CpeDCTBa Ha OCHOBe pAcTBOpHTeJe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.
Kak npabnlo, nobepxhoctb kopnyca Tpebyet Tolbko JERKO OUHCTKN OT nbll. Ppi nCpObl3OBaHn a3po30IbHoro nn KaKOro-lno6 Dpyrro OuCTAeero CpeDCTBa HAnocnte ero Ha caNfoTKy, a He Ha cAmo n3dEne. IJra NaUcAHa nonpObyte uChTae CpeDCTBO Ha MaJeHbKOM yAcTke NOBepXHOCTN 3dEInr, TaK KaK HeKOToPbIe ChSTaune CpeDCTBa MOrTy NOBpeDNTb NOKpbItne. N36eraTe NCpObl3OBaHn a6pa3INBOv nn CpeDCTB, CoedePkaux KncIoTHbe nn UeNochBe peAreHTbl. Bo n36exKaHne NobpeXdHn He NcPOnb3yIte ChTae CpeDCTBa dJa NcCTKn rONOBOK n He TporaiTe nx.
3aHTbIe cETKn
3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKoN.
Ecnn Bbl nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, o6raTeNbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn Nll DomaUHHe XuBOTHie.
y3nbl npB0da
K y3nam npnbOda lyuwe He npkacaTbca, TaK KaK nx Ierko nobpeDntb.
TapaHTnA
Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBnI dekeTOB c TOnKu 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roJ dJa ca6Byepe) c DaTbI npno6peTeHn. B TeueHne rapaHTnHOro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3dEIne, ecJn NocJI npoBeHn npOBepKn OHa nn ee Na3NaueHHb IINCTpn6bHTOp nn yPOJHomOueHHb npedCTabNTel b O6HapykaT deeEKT B npedeOCTabHeHHOM Ha npOBepKy n3deHN.
TapaHTnHaPacnpocTppaHReTcHa HEnpabNtBHOe NcNoJIb3OBaHne n ECTeCTBeHHbI N3HOC.
TobapbI dIpeMOHTa DOJIKHbI B nepByIO uepeB 6bITb BO3BpaUeHbI NOCTABNBWeMy Ix DInepy. EcnI 3TO He npedctabJIeTcB BO3MOXHbIM, CBJNTecb C Q Acoustics nII Ha3HaueHHbIM KOMNaHnei DnCTpN6bIOTOpom dIra BaWero perNoHa, UTo6bl OnpeDenItb npaBnIbHyO rapaHTnHyO npoceDpy. Po BO3MOXHOCTn CNe dyET NcNOJb3OBaTb opINHaJIbHyO yNAKOBYd Ira BO3BpaTa n3DeIeNIA, TAK KaK Ha yUeP6, npuHHeHHbI BO Bpemr TpaHCnOpTnpOBKn B ceHTp peMOHTa, He paCnpocTpAHHetcra papaHTn. 3Ta rapaHTn HIKoIM 6pbazOM He BnIeT Ha BaUN 3aKOHHbIe npaba.
Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.
Для получени Информаци O ТЕХИЧЕСКО M OБслУЖИВАПИ OБрацайТecь NO aДпесу ΝЛeКТрОНночы info@qacoustics.co.uk
Q Acoustics
Stortford Hall Industrial Park
Bishop Stortford, Xapтфордшир, Великовптуни CM23 5GZ
Приноалесноctи
HaTeHHbI KPOHHTeH (OdH)
3010i/3020i/3090Ci
UepHbI n 6ebbl
Pa3MepbI (UxBxΓ): 70 x 159 x 99 mm
CtoiKa dIy KonoHok (napa)
3010i/3020i
UepHbI n 6ebbl
HacteHHbI KpOHHTeH nla ca6ByΦepa
3060S
UepHbI
Pa3Mepbl (LxxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxxBxΓ): 422 x 222 x 163 mm
PaccNBbIe akyCTnueckne cntEmbl
Tun Kopnyca:
BLOK HIXKHX YACTOT:
BLOK BepxHnx qactoT:
AMNITyHNo-chaTOTHa
xapaktepuctnka (+3dB, - 6dB)
MnHmMaJIbHbIy mIeJaHc:
CpeDHee conpoTnBLeHne:
UyBCTBNTeJIbHOCTb (2,83V@1M):
MoHocb cTepeoynnteJia:
MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)
Yactota KpoccoBepa:
Pa6ochn o6bem:
Pa3mepbIkopnyca (× × )
(BkIIOUapeWeTky,pa3bEmnHOxKn)
Unpna ukaa:
Bec (Ha cπnkep):
3010i
2-noIOChbIe c
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-NOIOChbIe C
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
AKTNBbI ca6Byep
Tun Kopnyca:
BJOK HIXHINX YACTOT:
MoUHOCb yCUNITeJIa:
Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):
YacToTa KpoccoBepa:
Pa6ochn o6bem:
Pa3MepbI Kopnyca (XxBxΓ):
Bec:
3060S
BeckoHeHbI 3KpaH
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) Bknoa ynnn
8.5 kg (18.7 lbs)
3050i
2-NOIOCHbIe C
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25-180W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2 × 40.1 × 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-nOIOChbIe C
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25-100W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
HaKaOMpaHnCTapaTcNocToaHNo yNyUwTaB HaSy npOdyKuHIO.
KOMNaHnOCTaBnAeT3aCo6oI npaBO BHOcNTb N3MeHeHnB KOHCTpyKUIO INTexHnueckne XapaKTepnCTnK 6e3 ppeBaPntEnbHO rBeDOMneHn.
B daHbI dOkymeHT MOrT BHOCTbcra 3MeHeHHa 6e3 npeBaPntbHOro 3BeUeHHa.
ACOUSTICS
3000i-serial
AGARMANUAL
| EN | ENGELSKA | 0 |
| DE | TYSKA | 19 |
| ESSPANSKA37 | ||
| FR | FRANSKA | 55 |
| IT | ITALIENSKA | |
| NL | HOLLANDSDSKA | 91 |
| PL | POLSKA | 109 |
| PT | PORTUGISISKA | 127 |
| RU | RYSKA | 145 |
| SV | SVENSKA | 16 |
| ZH | KINESISKA | 1 |
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Tillbehör
Vaggfeste (enkel)
3010i/3020i/3090Ci
Svart och vitt
Matt (BxHxD mm): 70 × 159 × 99 ~mm
Kabinettets matt (BxHxD mm):
Kabinettets matt (BxHxD):
Vikt:
3060S
Sluten lada
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inkl. spikes
8.5 kg (18.7 lbs)
3050i
2-vagsreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-vagsreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430× 152× 216mm
(16.9× 6.0× 8.5 in)
6.0 kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
Vär policy ar en kontinuereg likkortforbättring.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
配件
壁架（单个）
3010i / 3020i / 3090Ci
黑与白
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
JaHHaIINHeKa BkIouaet Bce6cJeDyUOne MoeJI:
MoeIb 3010i: KomnakTHaNoLOUHaN KOLOHKa C MOuHbIM 100-MuJIINMeTpOBoBIM (4,0 IIOMa) HN3KOaCTOTHbIM DnHaMVKOM.
MoIeIb 3020i: IonoUHnA KOLOHka c MoUHbIM 125-MuJIImMeTpObBIM (5,0 JIOMa) Hn3KOaCTOTHbIM DInHaMnKOM.
MoJIb 3050i: HanoIbHaayakcytecka cnCTema C DByMa MoUHbIMn 165-MuIIImeTpObIMn (6,5 IIOma) HN3KOaCTOTHbIMn DNHaMnKamn.
MoIeIb 3060S: AKTuBhI ca6Byep MoUHocTbIO 150 Bt c DByMra 200-MnJIIMMeTpOBBIMn (8,0 IIOMa) DNHaMnKaMn.
MoIeIb 3090Ci: LcHtpaIbHbI KaHaJI c DByMa MOUHbIMn 100-MuJIImMeTpOBbIMn (4,0 dIOMa) HN3KOaCTOTHbIMn DnHaMnKaMn.
B KapToHNo yNaKOBKe Bbl HaIeTe KOIoHKn I daHHe pyKOBoDCTBO NO 3KcIyatauN.
Kpome Toro, ynapokbka cneyuoux Moede ne coepknt:
Modelb 3050i: Cta6nna3atop dny 3aHne yactn, uuui n o6motka dny uunne Jkaoon KoONKn.
UectnirpaHbI KIOU dIy 3aKpeHEny yCTaHOBJIeHHbIX IINJIeN.
Moenb 3060S: Hpybl nntaHn, nnu n o6mOTKn nnneJ.
BHHMaTeNbHo npOBepbTe n3dEne. B cnyae ecn KaKne-ln6o DeTaN OTCyTCTBYOT nn NIOBpeXeHbl, COO6uNTe o6 3tOMy CBOEmy dInJepy KaK MoXHO CKopee.
Haedeemc, yTo Bbl noJyUHTe ydoBOLbCTBne O T nCnoIb3ObaHn npOdyKuN Q Acoustics.
POnDrToBka
I3BleKaIte KOLOHKn I3 KapTOHbIX KOpO6K, npInepKnBaI IN 3a Kopnyc. He npInkacaiTecb K npEIOKOHeYbIM Kackaam NIN NCNoB3yIe 3aunTHbIe qexJIbI npN IN3BNeueHm. Modenn 3050i n 3060S TjKeIbe: npN Heo6xOdMocTn nonpocnte Koro-H6yDb NOMOy BaM.
Ipo6ka n3 neHonJaCTa
KoONKc cepnn 3000i ochauehbl 3aHnMn nopTaMN I Lyuwe Bcero pa6oataOT ByCNOBnAx, KOrda 3a HmN NMeETCA HeKOTOpoe npoctpaHCTBO, TO eCTb OKOJIO 20 cm do cTeHbl. Ecn BBi pacnoLoXnTe KOHOKN 6n3KO K cTeHe/yrny, Heo6xOdmo 6yDet BCTaBnTB B 3aHnne nOpTbI NeHOnJaCTOBle npo6Kn, INaue MoKeT NOBtCBc CInlKOM MHOro Hn3Knx YaCTOT.
Y6eHNTecb, yTO npo6Kn NIOtHO CnIaT B nOpTaX n He BCTabHeHb CnIuKOM rny6Oko. Bbl O6hApyKnte, 4TO yPOBeHb H3Knx YAcTOT NOH3NtCra, HO npn 3TOM NOBicNTcA YeTKoCTb N CTeNeHb rny6uHb b6aca. 3KcnepeImeHTnpyIte N Do6NBauTEcb HyxHoro BAM 3ByaHna. DnA DOCTNXKeHn ONTmAlbHoro KOHeUHOro pe3yNbTaT a npo6yIte BHOCNTb He60nbWe n3MeHeHn B paCNOJoxKeHne KOnOHok.
UHnnn Oueh bocptbe. BydbTe octopoxKbI!
HnkOrda He cTabbTe KOLOhky Ha 7nnIax TaM, rJe OHI MoryT YTO-JIn6o NOBpeDntb!
IpepeMaTe KOJIOHKn Bcerda No BO3dyxu HnKOrJa He BOIoUHTe nx no NOBepxHocTAm!
Ctahapthbie coeHHeHH
PoiKIOUHTe KPACHbI (+) noIOc npaOB KOJONHKn K KPACHOMY noJoxNtBHomy (+) noIOcy PPABOTo KaHana ycINTeJI. PoiKIOUHTe YEPbI (-) noIOc KOJONHKn K COOTBeTCTByIOUeMy YEPHOMY, OtpuataJeBHomry (-) noIOcy ycINTeJI. PpOJaTe Ty JxpeDpyy B OTHOseHn JLEBOTO KaHana.
CtAnapTha cnctema npoBOIOB:
PoclenpoJauKHoe o6cIyXuBaHne
Yxoid3aKopnycom
Kopnyc MoXHO uHCTNtB ToIbKO cIeRka CMOeHHo CaJIeTko. He nCNoJb3yIte YIcTae Ie CpeDCTBa Ha OCHOBe pAcTBOpHTeJe. HIKoRa He nCNoJb3yIte a6pa3uBBbl.
KaK npabnlo, NOBepxHocTb KOpnyca Tpe6yeT ToIbKO JERKO OUcCTKN OT nbll. PpN NcNoIb3OBaHN a3po30JbHoro nn KaKOro-ln6o DpyrOro UcCTaero CpeCDtBa HAnOCHTe rO Ha cAfoTeKy, a He Ha cAmo n3dEne. IJa NaUaIa NoPb6yIte YnCTaue CpeCDtBO Ha MaJeHbKOM yAcTKe NOBepXHOCTu 3dEInra, TaK KaK HeKOToPbIE YnCTaue CpeCDtBA MOrTy NOBpeDITb NOKpbItne. N36eraIte NcNoIb3OBaHN a6pa3INBOB nn CpeCDTB, CoedeJkaunx KncIoTHbe nn IIn IeNoUHbIe peAreHtbI. Bo n36exKaHne NOBpeXdEnn He NcNoIb3yIte YnCTaue CpeCDtBA dLn YnCTKn rONOBok n He TporaiTe nx.
3aHTbIe cETKn
3aunthbte cetkn npn Heo6xodmoctn CneJeT uCTntb TOnbKO MrgKo 8eTKoN.
EcnBbI nCnoJIb3yeTe CnCTeMbI Q Acoustics 6e3 3aunTHbIX CeTOK, 6o3aTeJbHO yCTaHaBnBaIte INx Ha MeCTO, KOrJa B KOMHaTe HaxoJrTcJeTIn NII DomaUHHe XuBOTHie.
y3nbl npB0da
K y3nam npuBOna lyUwe He npKacTaBcra, TaK KaK nx IerKo nobpeDntb.
TapaHTnA
Ha npodykuni KOMnAHN Q Acoustics npedocTabIeTc rapaHTnOCTBn IeEeKTOB C TOUKN 3peHn KaueCTBa MaTePnAIOB n N3rOToBneHn Cpokom Ha 4 roda (1 roD dny ca6Byepe) c DaTbI npno6peTeHn. B TeueHne rapaHTnHoro cpoKa KOMnAHN Q Acoustics o6a3yeTc npoIN3BeCTn peMOHT nn 3aMeHnTB n3denn, ecIn nocJe npoBeHn npOBepKn OHa nn ee Na3NaueHHb JDCTp6bHOTop nn yPOJHomOueHHb npedCTabNTel b O6hApjXaT deEeKT B npedocTabHeHOM Ha npOBepKy n3deHN.
TapaHTnHa paCnpocTpaHReTcHa HEnpabInbHOe NcNoIb3ObaHne I eCTeCTBeHHbI u3HOC.
TobapbI dIpeMOHTa DOJXHbIB NepByIO OuepeB 6bITb BO3BpaUeHbI NOCTABUBWemy INx DnIepy. EcnI eTo He npedctabJIeTcR BO3MOXHbIM, CBJINTECb C Q Acoustics nII Ha3HaueHHbIM KOMpAHneI dNCTPb6bIOTOpOM dIra BaWero pERNoHa, UTO6bl ONpeDenITb PpaBnBHyO rapaHTnHyO npoEdupy. IIO BO3MOXHOCTn cIeDyET NCNOJb3OBaTb OPUNHaJIbHyO yNAKOBYI dIra BO3BpATA N3dEInr, TAK KaK Ha yUeP6, npuHNHeHHbI BO BpEMr TpaHCnOPTnpOBKn B ceHTp peMOHTa, He paCnpoCTpaHReTcRApaHTn. 3Ta rapaHTn HIKoIM o6pa3OM He BnREt Ha BaUn 3aKOHHbIe npaBa.
Cpok DeiCTBnra rapaHTn moXHo npOJnTb do 5 neT (2 roJa dIra ca6Byepa), 3aperncTpnpobab n3dennne
Ha Be6-CTpaHnue
www.qacoustics.co.uk/register.
HaTeHHbI KPOHHTeH (OINH)
3010i/3020i/3090Ci
UepHbI n 6ebbln
Pa3Mepbl (UxBxΓ): 70 x 159 x 99 mm
CToIka Jnla KonoHok (napa)
3010i/3020i
UepHbI N 6ebbl
HacTeHHbI KPOHHTeH nla ca6ByΦepa
3060S
UepHbI
Pa3Mepbl (LxBxΓ): 250 x 682 x 290 mm Pa3Mepbl (LxBxΓ): 422 x 222 x 163 mm
PaccNBbIe akyCTnueckne cntEmbl
Tun Kopnyca:
BLOK HIXKHX YACTOT:
BLOK BepxHnx qactoT:
AMNITyHNo-chaTOTHa
xapaktepuctnka (+3dB, - 6dB)
MnHmMaJIbHbIy mIeJaHc:
CpeDHee conpoTnBLeHne:
YbCTBNTeJIbHOCTb (2,83V@1M):
MoHocb cTepeoynnteJia:
MoIHHoCTb AV-pecNBepa (dByxKaHaJIbHbI)
Yactota KpoccoBepa:
Pa6ochn o6bem:
Pa3mepbIkopnyca (× × )
(BkIIOUapeWeTky,pa3bEmnHOxKn)
Unpna ukaa:
Bec (Ha cπιkep):
3010i
2-noIOOChbIe C
100 mm (4.0 in)
22 mm (0.9 in)
65 Hz - 30 kHz
6Ω
4Ω
86 dB
15-75W
50-125W
2.6 kHz
4.0 L (244 cu in)
150 × 253 × 252 mm
(5.9× 10.0× 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-NOIOChbIe C
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88 dB
25-75W
50-125W
2.4 kHz
6.1 L (372 cu in)
170 × 278 × 282 ~mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
AKTNBbI ca6Byep
Tun Kopnyca:
BJOK HIXHINX YACTOT:
MoUHOCb yCUNITeJIa:
Yachotnha xapaKTepeNCTnka(+3 dB, -6 dB):
YacToTa KpoccoBepa:
Pa6ochn o6bem:
Pa3MepbI Kopnyca (XxBxΓ):
Bec:
3060S
BeckoHeHbI 3KpaH
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) Bknoa ynnn
8.5 kg (18.7 lbs)
3050i
2-NOIOCHbIe C
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25-180W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-nOIOChbIe C
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25-100W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 mm
(16.9× 6.0× 8.5 in)
6.0 kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
HaKaOMpaHnCTapaTcNocToaHNo yNyUwTaB HaSy npOdyKuHIO.
KOMNaHnO octabJraTe 3a c6oB npaBO BHOCTb N3MeHeHnB KOHCTpyKUIO INTexHueckne XapaKTepNCtNK 6e3 ppeBaPntbHoro yBeDOMHeHn.
B daHbI dOkymeHT MOrT BHOCTbcra 3MeHeHHa 6e3 npeBaPntbHOro 3BeUeHHa.
ACOUSTICS
3000i-serial
AGARMANUAL
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
Tillbehör
Vaggfeste (enkel)
3010i/3020i/3090Ci
Svart och vitt
Matt (BxHxD mm): 70 × 159 × 99 ~mm
Kabinettets matt (BxHxD mm):
(5.9 x 10.0 x 10.0 in)
4.1 kg (9.0 lbs)
3020i
2-vagsreflex
125 mm (5.0 in)
22 mm (0.9 in)
64 Hz - 30 kHz
6Ω
4Ω
88dB
25-75W
50 - 125 W
2.4 kHz
6.1 L (372 cu in)
170× 278× 282mm
(6.7× 11.0× 11.1 in)
5.5 kg (12.1 lbs)
Aktiv subwoofer
Chassityp:
Basenhet :
Förstarkaeffekt:
Kabinettets matt (BxHxD):
Vikt:
3060S
Sluten lada
200 mm (8.0 in)
150 W Class-D
35 Hz - 250 Hz
35 Hz - 250 Hz (var.)
10.6 L (647 cu in)
480 × 300 × 150 ~mm (18.9 × 11.8 × 5.9 in)
324 mm (12.7 in) inkl. spikes
8.5 kg (18.7 lbs)
3050i
2-vagsreflex
2 × 165 ~mm (6.5 in)
22 mm (0.9 in)
44 Hz - 30 kHz
6Ω
4Ω
91 dB
25 - 180 W
50-165W
2.5 kHz
32.4 L (1977 cu in)
310 × 1020 × 310 ~mm
(12.2× 40.1× 12.2 in)
200 mm (7.9 in)
17.8 kg (39.2 lbs)
3090Ci
2-vagsreflex
2 × 100 ~mm (4.0 in)
22 mm (0.9 in)
75 Hz - 30 kHz
6Ω
4Ω
89 dB
25 - 100 W
50-165W
2.7 kHz
6.6 L (403 cu in)
430 × 152 × 216 mm
(16.9× 6.0× 8.5 in)
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
Vär policy ar en kontinuereg likkortforbättring.
Stortford Hall Industrial Park
Bishops Stortford, Hertfordshire, UK
CM23 5GZ
配件
壁架（单个）
3010i / 3020i / 3090Ci
黑与白
6.0kg (13.2 lbs)
ACOUSTICS
QACOUSTICS.CO.UK
