Quick guide for Video Surveillance kit: TVR36020 | TVR36021

This quickstart guide describes the initial installation steps for your video surveillance kit. More detailed information can be found in the accompanying user guide.

Dear customers,

Thank you for purchasing this product. This product complies with current domestic and European regulations.

Conformity has been proven, and all related certifications are available from the manufacturer on request (ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, Germany).

To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions! Read the entire operating manual carefully before putting the product into operation. Pay attention to all operating and safety information! All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist dealer.

Warnings

Keep the recorder and camera away from strong magnetic fields.

Ensure an uninterrupted power supply.

Keep liquids away from the recorder.

Only store the recorder and camera in the ambient conditions recommended by the manufacturer.

Do not insert any objects into the camera (e.g. needles).

Ensure that there is always sufficient ventilation.

Make sure that the network camera is mounted securely.

Only operate the network camera with a suitable power source.

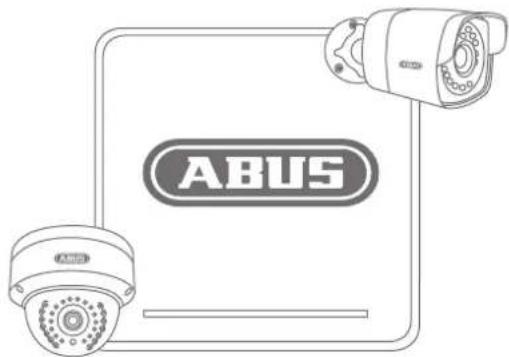

Scope of delivery

4-Channel Network Digital Recorder incl. HDD
- 2 x WLAN HD 720p Outdoor Dome Camera | WLAN HD 720p Outdoor Camera

• 3 x Power supply unit (incl. EU, AU, UK)
• 1x1m network cable

2x18m network cable

• USB mouse
• Installation material
  Quick Guide
  CD

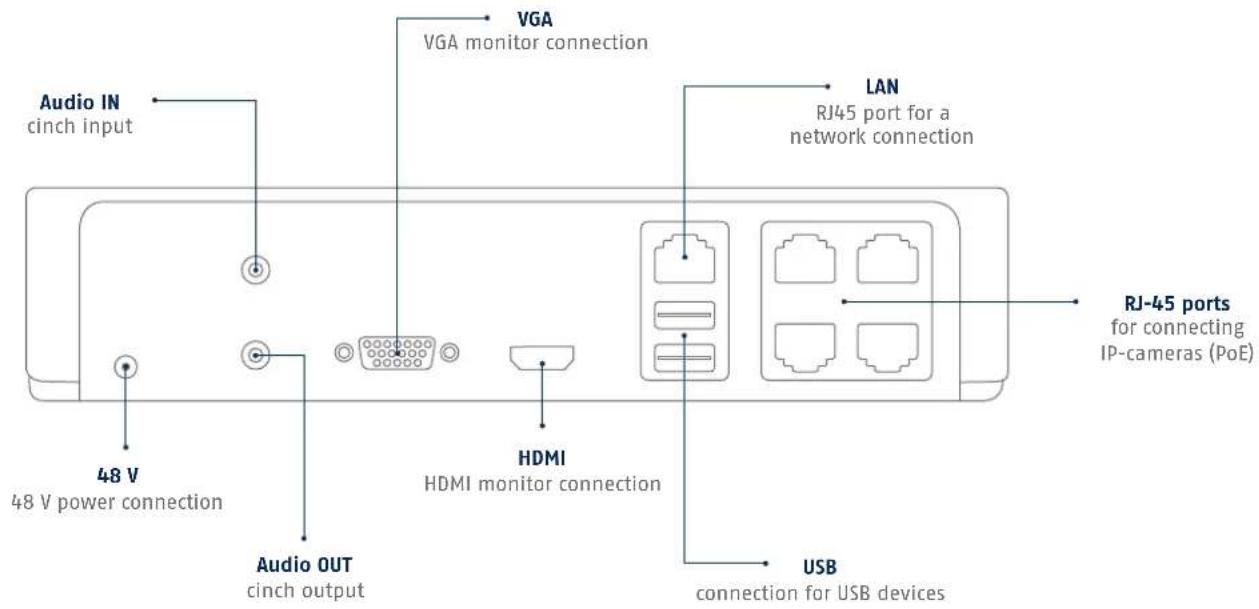

Overview: Network recorder

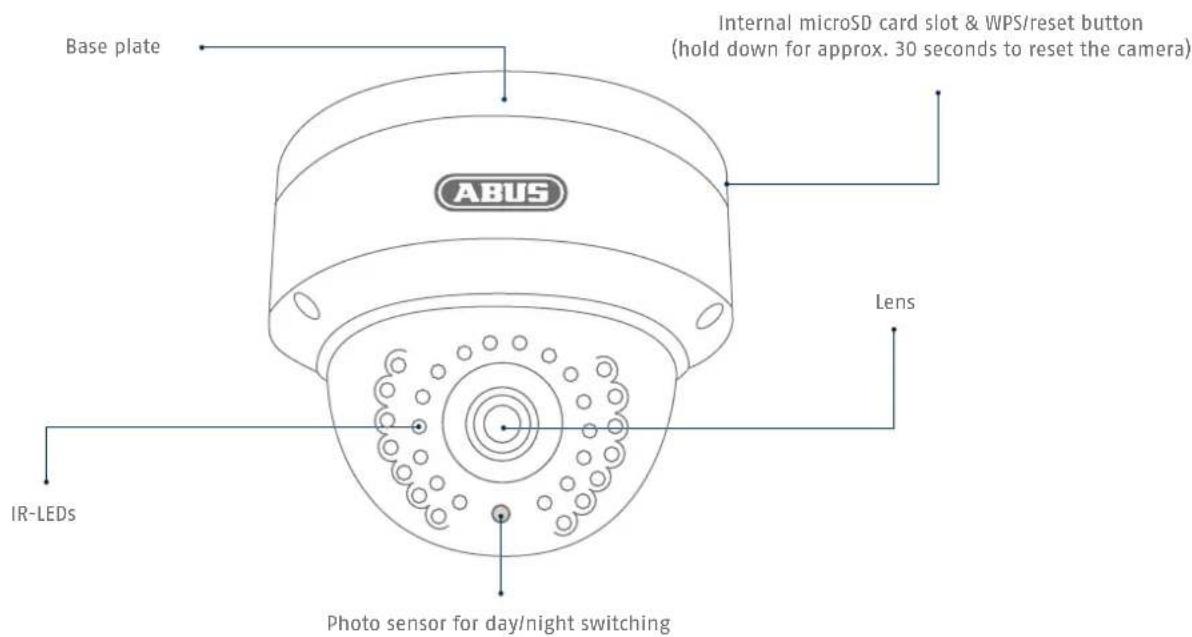

Overview: Outdoor dome camera

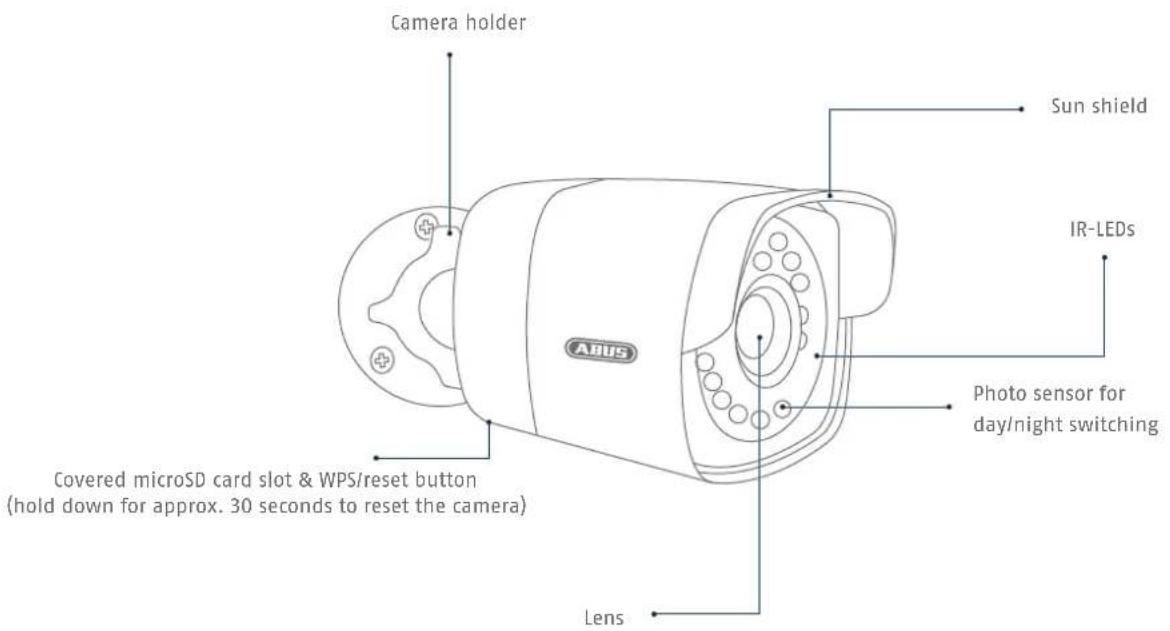

Overview: Outdoor camera

Tips for camera installation

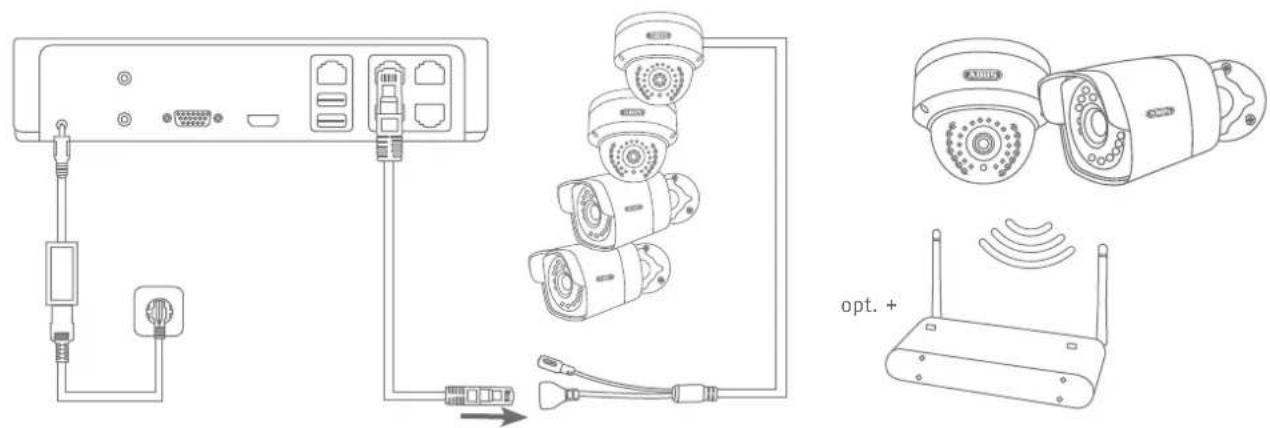

Plug the recorder into the power supply. The blue LED bar on top of the recorder indicates that the device is on. You can choose to turn off the light on the LED bar via the menu.

Software Set-up

123

Select a language and click [n]n . In the

Admin Passwortckfield,benchen the setup wizard will no longer run automatically at the next start-up. Click Next.

12345. Confirm with Enter.

456

To change the password, tick the New Admin Password box. Enter the new password in the New Password and Confirm fields. Make a note of the password and keep it in a safe place. Click Next.

Specify time zone, date and system time. Continue by clicking Next.

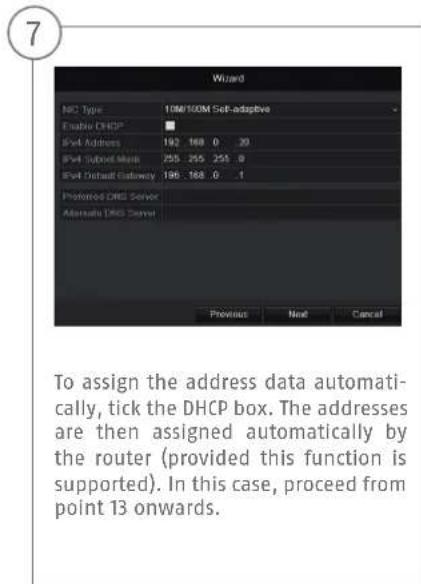

Set the adapter speed type, NIC type manually. Default and recommended setting is the automatic detection (Self adaptive).

10 11-12

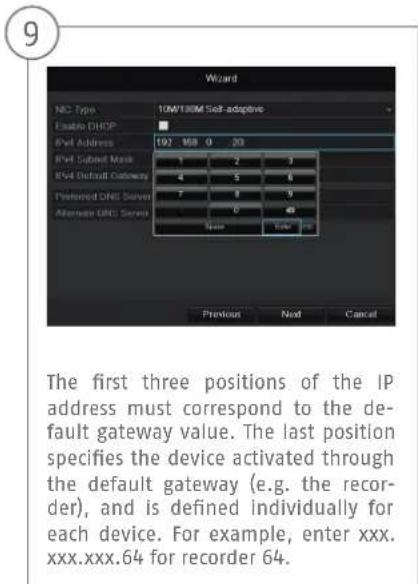

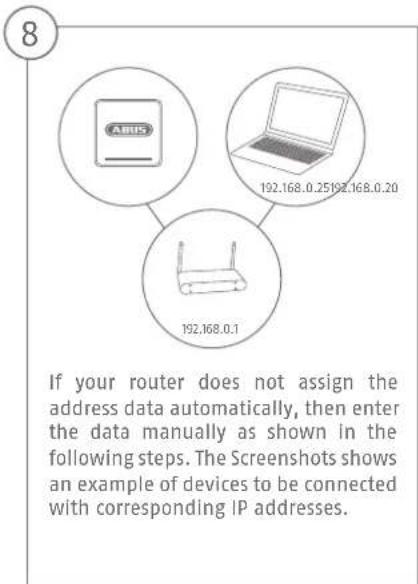

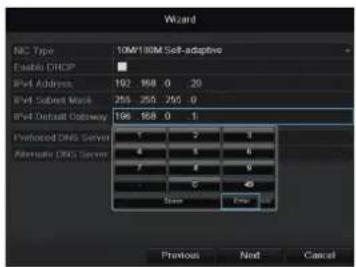

The Subnet Mask is a network segment where IP addresses with identical network addresses are used. The standard value here is usually 255.255.255.0. To determine the value for the IPv4 Default Gateway, use one of the computers connected to the network with Windows.

Call up "Run" in the start menu. Enter "cmd" in the new window, then "ipconfig" in the prompt which follows. Enter the default gateway value in the recorder screen.

The DNS Server translates an Internet address into an IP address. Enter the default gateway value under Preferred DNS Server.

13 14 15

All hard drives which are to be used for recording must be initialized beforehand. To initialise the hard drives, tick the corresponding drive.

Click Init, then confirm the successful initialisation with OK. Exit the screen by pressing OK, then go to the next screen by pressing Next.

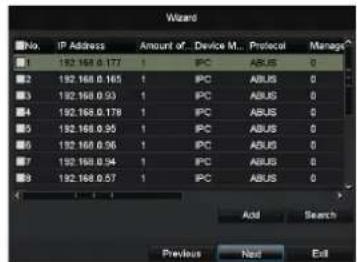

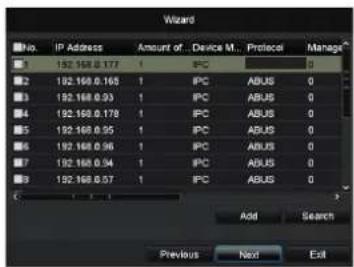

Click on Search to look for available cameras in the network.

16 17 18

You will find all the compatible network cameras below. Tick the checkbox of the cameras you wish to use and click on Add. Go to the next screen with "Next".

Chose the channel which shall be configured at Camera. Please note that you still have to configure the arming schedules in the recorder menu. For further information please read the user manual.

Please click in the checkbox Start Recording to activate the record. Choose between a durable record (Normal) or a record with motion detection (Motion Detection).

1920

For copying these settings to other camera channels please click on Copy. Click in the checkbox of the camera channels you want to transfer the settings to and click on OK to activate these settings.

Click on OK to finish the initial set-up.

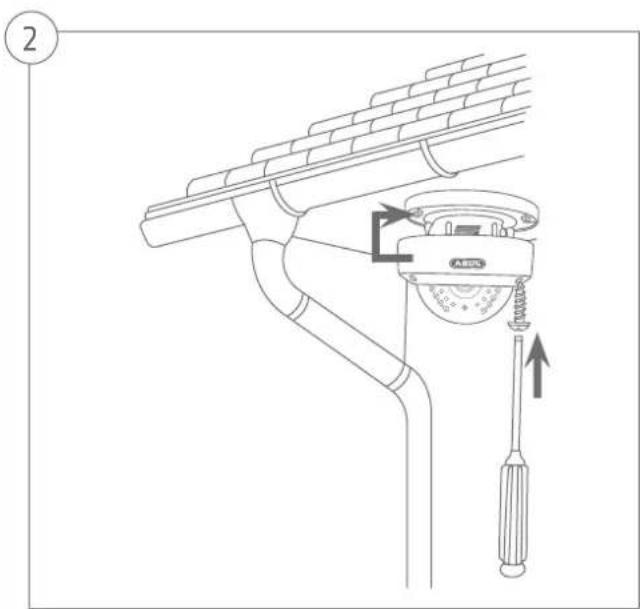

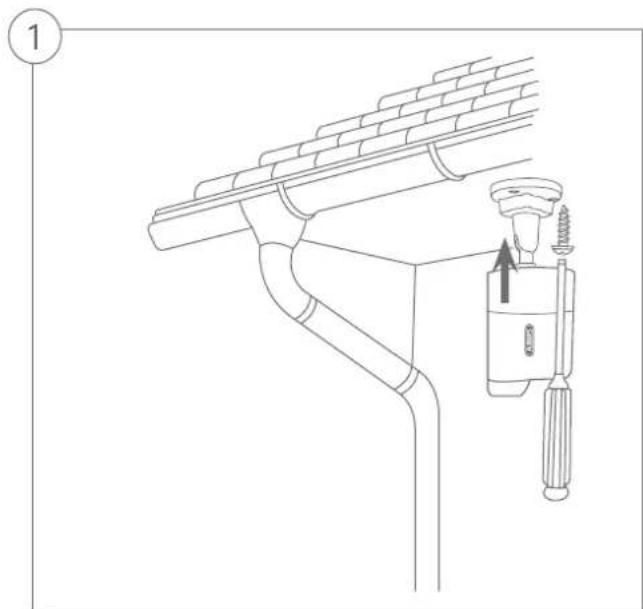

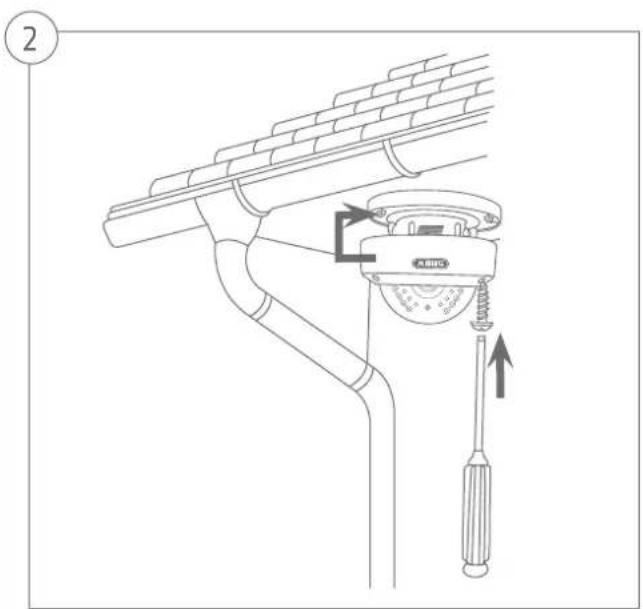

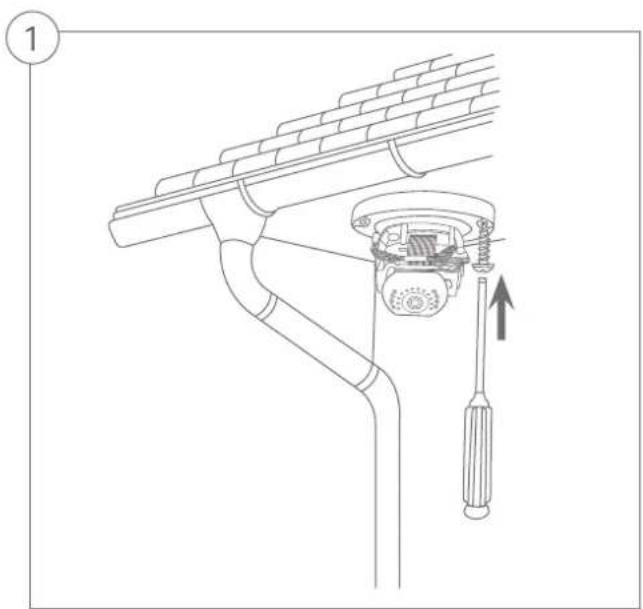

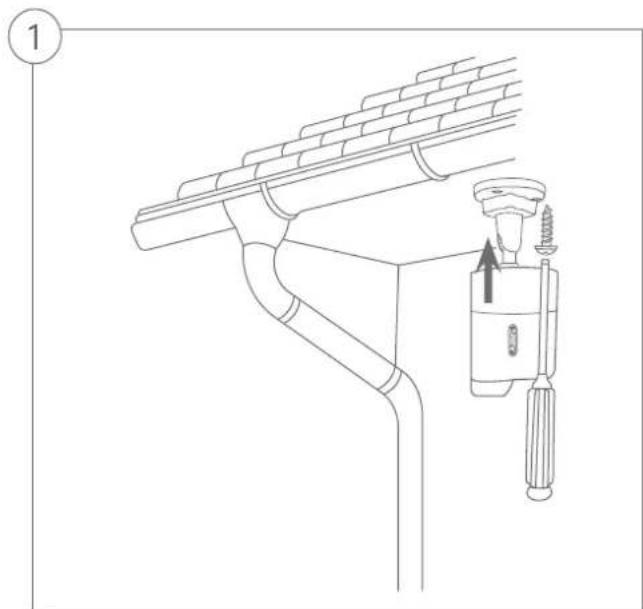

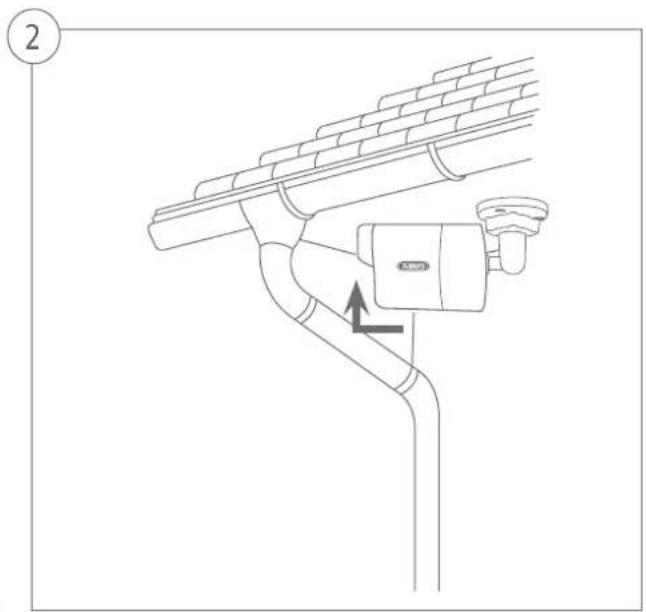

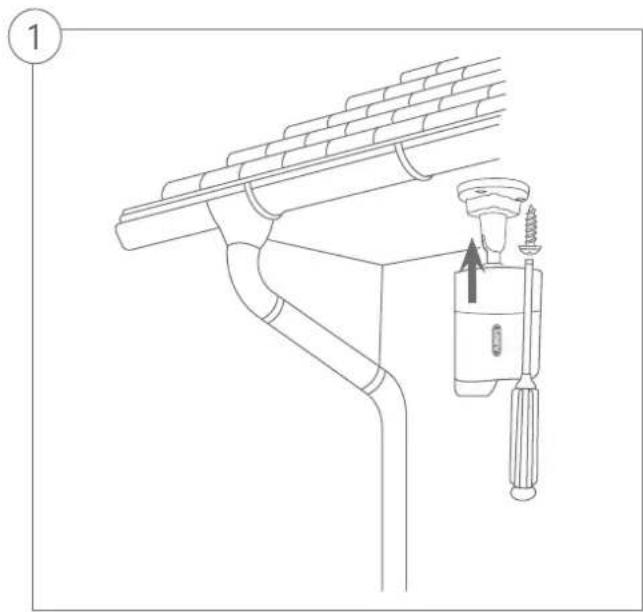

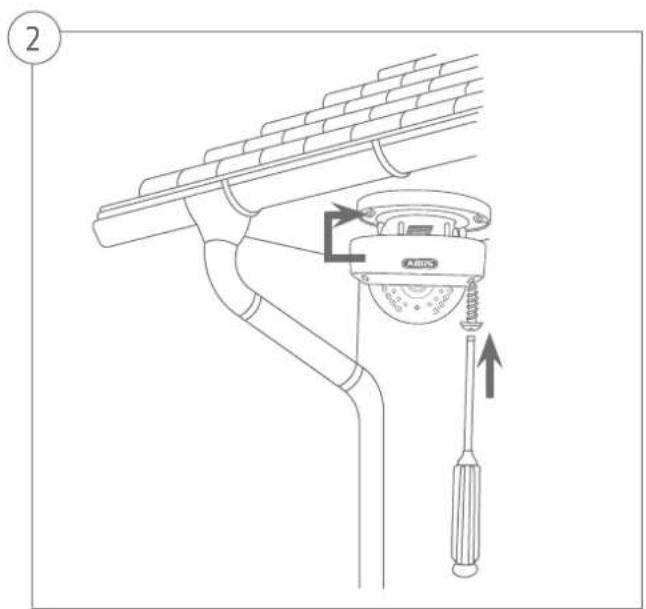

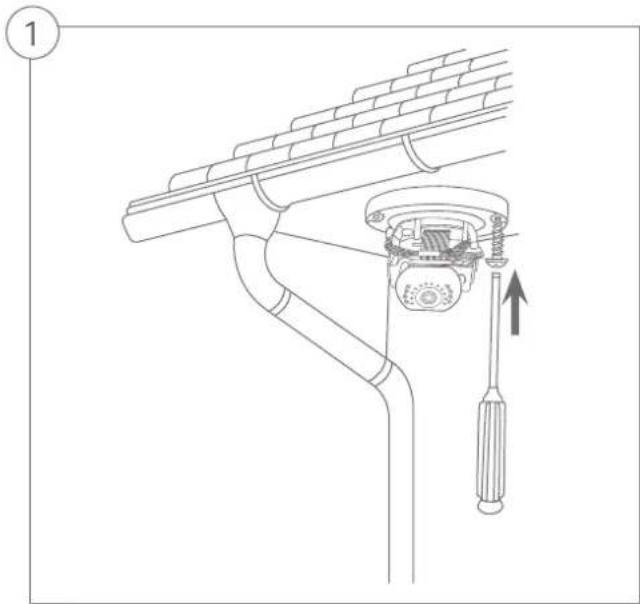

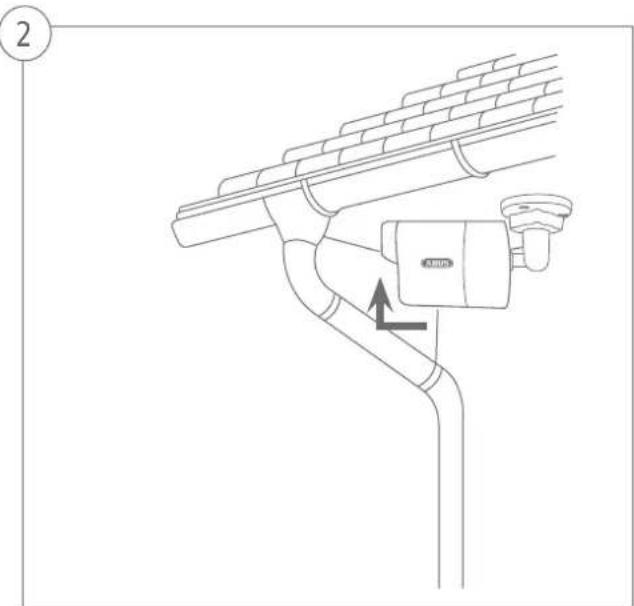

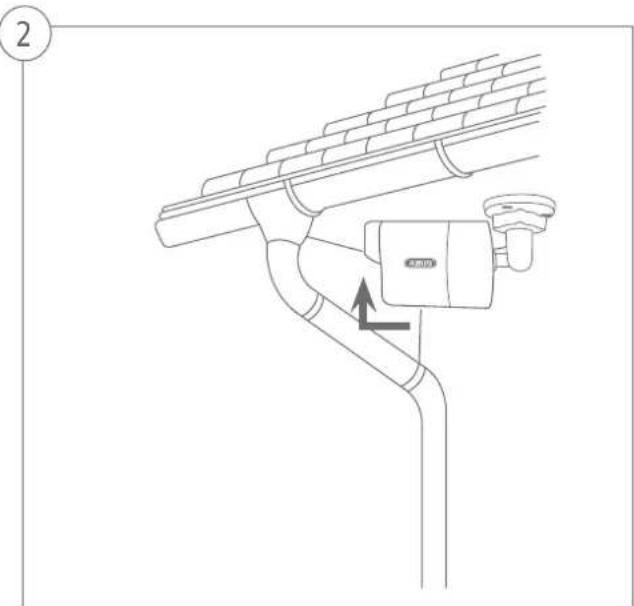

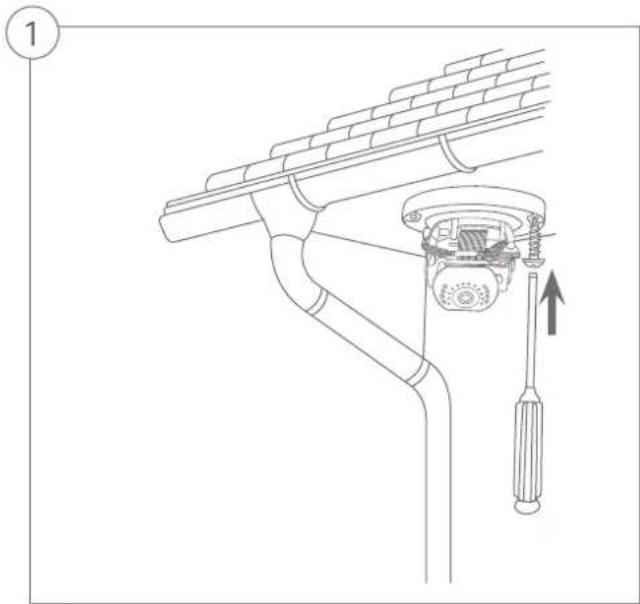

Hardware installation
