USER MANUAL CD965 BUFFALO

Black industrial drying machine with transparent insulation material, no visible text or symbols

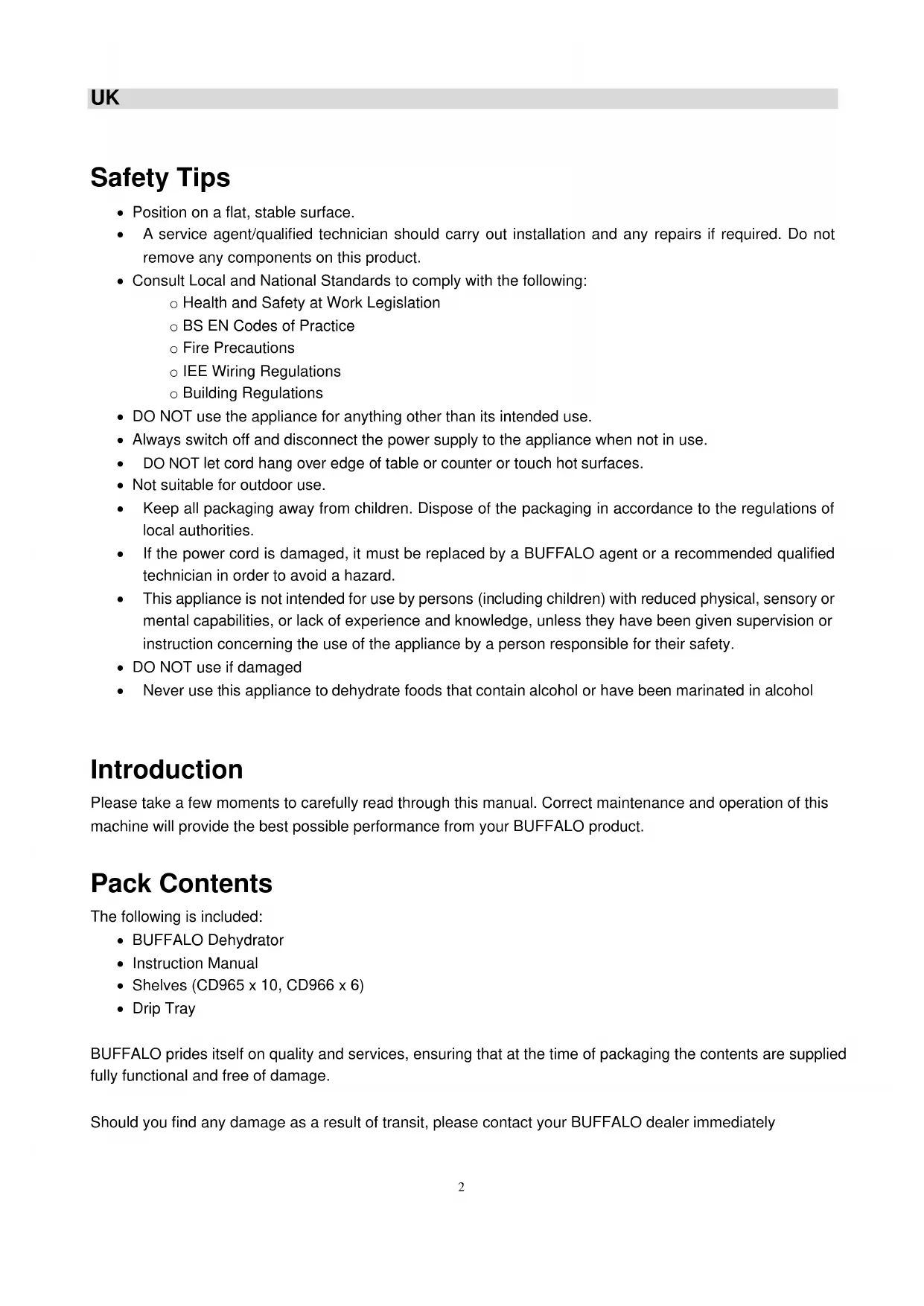

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

o Health and Safety at Work Legislation
o BS EN Codes of Practice
- Fire Precautions
○ IEE Wiring Regulations
○ Building Regulations

• DO NOT use the appliance for anything other than its intended use.
• Always switch off and disconnect the power supply to the appliance when not in use.
• DO NOT let cord hang over edge of table or counter or touch hot surfaces.

• Not suitable for outdoor use.

• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.

• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • DO NOT use if damaged
• Never use this appliance to dehydrate foods that contain alcohol or have been marinated in alcohol

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Dehydrator
• Instruction Manual
  • Shelves (CD965 x 10, CD966 x 6)
• Drip Tray

BUFFALO prides itself on quality and services, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately

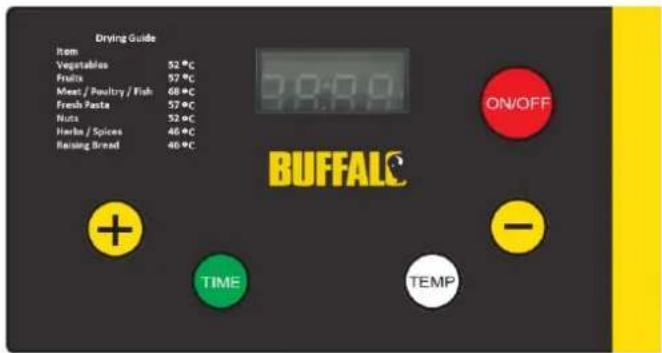

Digital Control

Drying Guide Item Vegetables 52 °C Fruits 57 °C Meat / Poultry / Fish 68 °C Fresh Paste 57 °C Nuts 52 °C Herba / Spices 46 °C Baining Bread 46 °C ON/OFF BUFFALC + TIME TEMP

Operation

The digital control allows or easy adjustment of dehydration temperature. In addition, the timer function will automatically turn off the dehydrator when the selected time has elapsed.

Adjusting Temperature

1. Press the ON/OFF button for 3 second to turn on the unit:
2. Press the TEMP button, the display window will flash, and then press + or - buttons to select the desired temperature. To change the temperature rapidly, hold down the + or - buttons. The temperature range for this dehydrator is 35^ to 70^ C.
3. At any time you can adjust the temperature by using the TEMP, + and - buttons. You can stop the dehydrator at any time by pressing the ON/OFF button for 2 seconds.

Setting Timer

1. Press the TIME button the display will flash, and then press the + or - buttons until the desired time is displayed (30 minutes to 24 hours). To change the time rapidly, hold down the + or - buttons.
2. The time in the display window will begin to countdown.
3. The dehydrator will automatically shut off after the set time has expired. If dehydration is completed, remove food from dehydrator. If additional drying time is needed, follow the preceding steps to continue dehydrating.
4. At any time, you can adjust the time by using the TIME, + and - buttons. You can stop the dehydrator at any time by pressing the ON/OFF button for 2 seconds.

UK

Dehydrating Food

While most food types can be dehydrated at a temperature of approximately 55 °C , when dehydrating meats, poultry and fish (making Jerky, Biltong etc) the temperature needs to be raised to guard against pathogens such as Salmonella and E. Coli.

WARNING – It is recommended that meat and poultry is dehydrated at a temperature of at least 68 degrees centigrade, or alternatively the meat should be preheated to at least 68 degrees centigrade to guard against pathogens.

Fish should be steamed or baked to at least 93 degrees centigrade until flaky before dehydrating at a temperature of least 68 degrees centigrade.

Choosing Food to Dehydrate

• For best results only use highest quality foods.
• Produce in peak season has more flavour and more nutrients.
• Meats, fish and poultry should be lean and fresh.
• Do not use food with bruises and blemishes. Bad produce can spoil the entire batch.
• Remove as much fat as possible from meats prior to dehydrating. You can use a paper towel under meat when dehydrating to absorb fat.

Tips for Pre-Treatment of Foods

With most types of cooking, preparation is important for the best results. Foods that are prepared correctly prior to dehydration will taste better and have a better appearance.

• Cut, shred or dice the food uniformly. Slices should be between 6mm and 20mm thick. Meats should not be thicker than 5mm.
• To avoid browning of fruits soak cut fruit in lemon or pineapple juice for 2-3 minutes, then place in the dehydrator. Alternatively soak in an ascorbic acid solution (made as per manufacturers instruction) for 2-3 minutes, then place in the dehydrator.
• Waxy fruits, (such as peaches, grapes, blueberries, etc.) should be dipped in boiling water to remove the wax. This allows moisture to escape easily during dehydration.
• Blanching can also be used to pre-treat foods for dehydration.

Dehydrating Tips

• Do not overlap foods. Make sure foods are flat when placing on dehydrating trays. Overlapped foods can greatly increase drying time.
• Make sure foods are completely dry before removing. If you are not sure, cut a sample down the middle to check for internal dryness.
• Make sure to label containers when you store your dehydrated food.
• Proper storage helps maintain quality food. Package the food when cool. Foods can be kept longer if stored in a cool, dark and dry place. The ideal storage temperature is 16^ C or lower.
• Place dehydrated foods in plastic freezer bags before storing in metal or glass containers. Remove as much air as possible before sealing.
  • Vacuum sealing is the best way to keep dehydrated foods.
• Food will shrink approximately 14 to 12 their original size and weight during dehydration. Make sure not to cut pieces of food to be dehydrated too small.

Recommended Temperatures for Dehydrating Food

Type	Temperature
Vegetables	52°C
Fruits	57°C
Meat / Poultry / Fish	68°C
Fresh Pasta	57°C
Nuts	52°C
Herbs / Spices	46°C

- Time required to completely dehydrate the food will depend on size of food, humidity and water content.

UK

Making Fruit Roll-Ups

1. Preheat dehydrator to 57 degrees centigrade.
2. Select ripe or slightly over-ripe fruits. Wash and remove blemishes, pits and skin.
3. Puree in a blender. Add yogurt, sweeteners or spices as desired. The puree should be thick in consistency.
4. Cover the dehydrator trays with plastic wrap.
5. Pour puree onto the covered trays. The edges will dry quicker than the centre so if possible make the puree thinner at the centre of the tray.
6. Carefully place the Trays in the Dehydrator.
7. The average dry time for fruit roll-ups is 4 to 6 hours.
8. Once the fruit roll-ups are shiny and non-sticky to the touch, remove them from the dehydrator and allow them to cool.
9. Peel the fruit roll-up from the plastic wrap and roll into cylinders.

Proofing Bread

1. Remove trays and place a shallow bowl of water on the floor of the dehydrator
2. Place one of the removed trays directly above the bowl of water
3. Preheat your dehydrator to 46 degrees centigrade.
4. Place dough on tray and cover with cloth to prevent drying out.
5. Allow dough to rise (this should take between 30 minutes to 1 hour depending on recipe)
6. Remove Dough and proceed with recipe

Cleaning, Care & Maintenance

• Disconnect from power by removing the plug, allow to cool before wiping exterior surfaces and removing any loose debris.
• Trays can be removed for cleaning and are dishwasher safe.

Trouble Shooting

Symptom	Probable Cause	Remedy
Machine does not turn on	The plug is incorrectly positioned in the electrical outlet	Plug in again
	The dehydrator switch is not on	Turn the switch on
Fan is working but there is no heat	Heater malfunction	Turn the dehydrator off. Call BUFFALO agent or qualified engineer
Heater is working but the fan is not working	Check for foreign material stuck in fan	Remove foreign material If fan still does not work Call BUFFALO agent or qualified engineer
Not dehydrating	Too much food on the tray	Reduce the food quantity
	Food is overlapping on the tray	Evenly space food on the tray
Water drops on the door	Too much food on the tray	Reduce the food quantity
	Food contains too much water	Reduce the food quantity and increase dehydrating time
Over heating or little heating	Temperature control system is not working properly	Turn the machine OFF and contact the nearest service centre
Foods are not evenly dehydrated	The thickness of the food is not even	Evenly space the food
	Too much food on the tray	Reduce the food on the tray
Foods are not evenly dehydrated	The thickness of the food is not even	Evenly slice the food
	Too much food on the tray	Reduce the food on the tray
Abnormal sound from the fan	Screen cover in front of fan is rubbing the fan blade	Turn off the machine and unplug from power source. Gently pull screen away from fan blades by using needle nose priers.

Technical Specification

Model	Voltage	Power	Current	Dimensionsh x w x d mm	Weight(kg)
CD965	230v 50hz	800w	3.5A	415 X 362 X 480	9.3KG
CD966	230v 50hz	800W	3.5A	290 X 362 X 480	8.2KG

Electrical Wiring

This appliance is supplied with a 3 pin, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
