Steam Pure ST495E - Hair Straightener BABYLISS - Free user manual and instructions

USER MANUAL Steam Pure ST495E BABYLISS

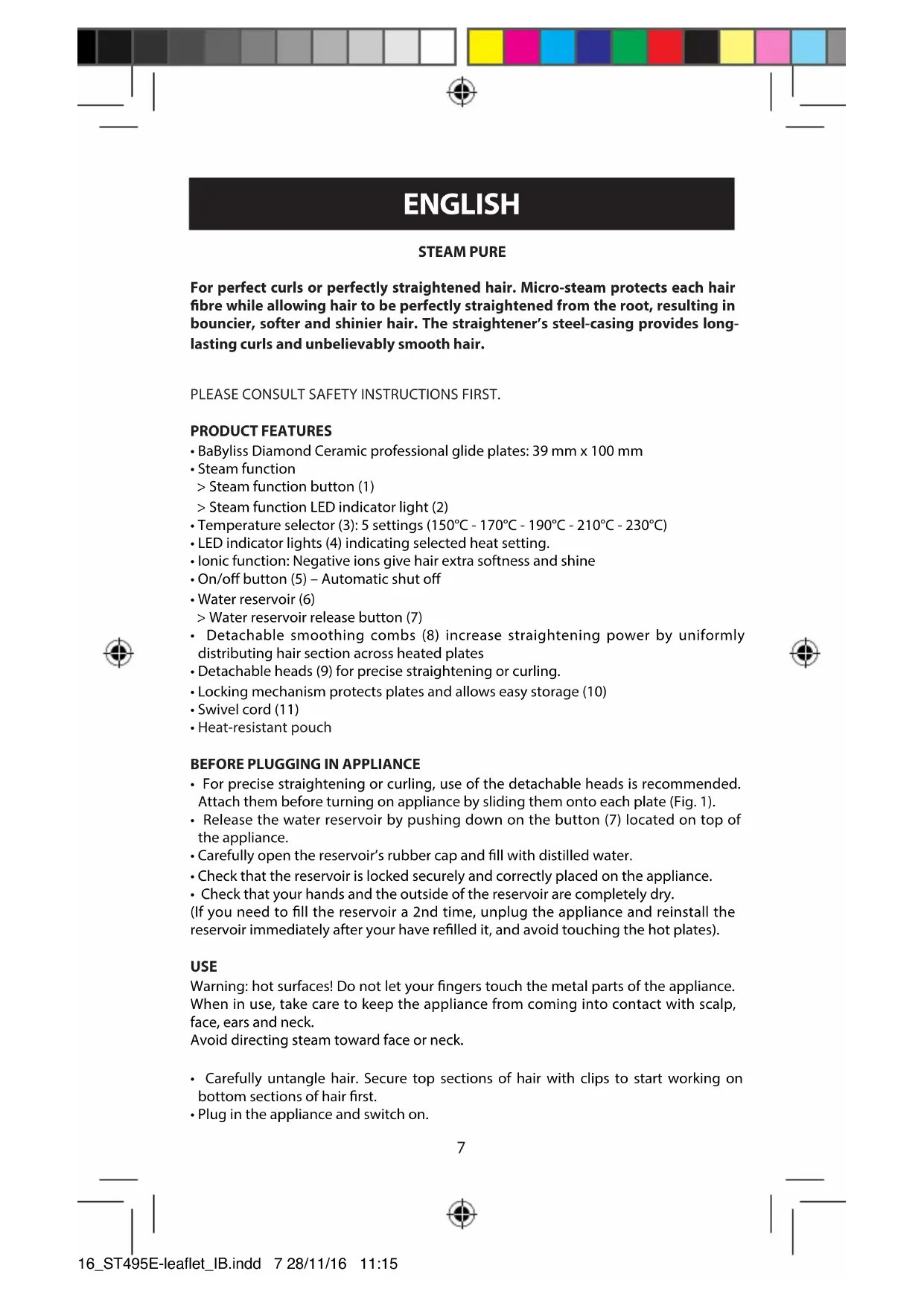

CARACTERISTIQUES DU PRODUIT

• BaByliss Diamond Ceramic professional glide plates: 39 mm x 100 mm

• LED indicator lights (4) indicating selected heat setting.

• Ionic function: Negative ions give hair extra softness and shine

• On/o button (5) – Automatic shut o

• Water reservoir (6) > Water reservoir release button (7)

• Detachable smoothing combs (8) increase straightening power by uniformly distributing hair section across heated plates

• Detachable heads (9) for precise straightening or curling.

• Locking mechanism protects plates and allows easy storage (10)

• For precise straightening or curling, use of the detachable heads is recommended. Attach them before turning on appliance by sliding them onto each plate (Fig. 1).

• Release the water reservoir by pushing down on the button (7) located on top of the appliance.

• Carefully open the reservoir’s rubber cap and ll with distilled water.

• Check that the reservoir is locked securely and correctly placed on the appliance.

• Check that your hands and the outside of the reservoir are completely dry. (If you need to ll the reservoir a 2nd time, unplug the appliance and reinstall the reservoir immediately after your have relled it, and avoid touching the hot plates). USE

Warning: hot surfaces! Do not let your ngers touch the metal parts of the appliance.

When in use, take care to keep the appliance from coming into contact with scalp, face, ears and neck. Avoid directing steam toward face or neck.

• Carefully untangle hair. Secure top sections of hair with clips to start working on bottom sections of hair rst.

• Plug in the appliance and switch on. 16_ST495E-leaflet_IB.indd 7 28/11/16 11:158

• Set the desired temperature using the temperature setting selector (+ and - buttons). We recommend using a lower temperature for ne, bleached and/or damaged hair, and a higher temperature for curly, thick and/or dicult-to-style hair. As each hair type is dierent, we recommend that you start with the lowest heat setting rst. You can gradually increase the heat setting with each successive use, if needed. Refer to the table below as a guide: Temperature Hair type 150 – 170 °C Green LED - Yellow LED Fine, bleached and/or damaged hair 170 – 210 °C Yellow LED - Red LED Normal, coloured and/or wavy hair 210 – 230 °C Red LED Thick and/or very curly hair

• The LED indicator light blinks until the selected temperature has been reached. To straighten hair: We recommend you activate the steam function using the steam function button (1). The steam function LED indicator (2) lights up. The steam feature is instant, you can start straightening your hair right away. Take up a section about 5 cm wide and place it between the 2 heating plates, near the roots of your hair. Close the appliance and keep the plates closed by using your other hand, while taking care not to touch the plates with your hands. Slowly slide the appliance down the whole section of hair from the roots to the tips (Fig. 2). Repeat several times if necessary and repeat this step around the head.

• Let the hair cool down before you comb it.

• After use, switch o and unplug the appliance. • Allow the unit to cool before storing. To curl the hair: you must rst deactivate the steam function to properly curl your hair. We also recommend that you curl your hair without rst straightening it. Take up a section about 2 to 4 cm wide and place it between the 2 heating plates, near the roots of your hair. Turn the appliance 180° or 360° inwards or outwards, depending on the desired eect (Fig. 3). Slowly slide the straightener in a continuous fashion down the entire section of hair, from the roots to the tips, using your other hand to keep the plates rmly closed around the hair (Fig. 4-5). Remove the straightener and twist the section with your ngers so that it falls into its natural position (Fig. 6). Repeat if necessary. You may wish to set the curls using a light misting of hairspray. Several curling methods are available depending on the desired type of curl. Refer to the table below for more details. 16_ST495E-leaflet_IB.indd 8 28/11/16 11:159 section thickness turns around the appliance appliance position movement wave ripple 4cm half turn - 180° 180° vertical quicker loose curl 3 cm full turn - 360° 360° horizontal slower tight curl 2 cm full turn - 360° 360° horizontal slow STEAM FUNCTION Turn on the appliance and activate the steam function using the steam function button. The steam function LED indicator lights up. If the appliance plates are open and not closed for 2 minutes, the steam function is switched o. Close the appliance plates and the steam function will be reactivated. If the appliance plates are closed and are not opened for 2 minutes, the steam function is switched o. Open the appliance plates and the steam function will be reactivated. Notes:

• The rst time you use the appliance, you may notice a slight odour: this is quite normal and it will disappear the next time you use it.

• Each time you use the appliance, you may see some steam. This can be caused by sebum evaporation or traces of hair products (rinse-free treatments, hairspray, etc.).

• It is possible to use a heat protection spray for optimal protection of the hair.

• It is quite normal to hear a slight noise, similar to a crackle: this is the characteristic noise of the ion generator.

If you leave the appliance on for over 72 minutes, it will automatically shut itself o. If you would like to continue to use the appliance following this period, press the on/o button to turn the appliance back on. 16_ST495E-leaflet_IB.indd 9 28/11/16 11:1510 MAINTENANCE

• Unplug the appliance and allow to cool completely.

• Remove attachments. Ensure that the appliance has completely cooled down.

• Ensure that the water reservoir is emptied after every use.

• Clean the plates using a soft, dampened cloth, without soap, to preserve the optimal quality of the plates. Do not scratch the plates.

• It is best to use distilled water to ll the reservoir. Where that is not possible, ensure the appliance is descaled frequently.
