USER MANUAL 2406745 Kooper

GENERAL SAFETY INSTRUCTIONS

WARNING! READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL VERY CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE DURING THE WHOLE LIFE OF THE PRODUCT SINCE THEY PROVIDE IMPORTANT INDICATIONS ABOUT THE FUNCTIONING AND THE SAFETY OF INSTALLATION, USE AND MAINTAINANCE OF THE PRODUCT.

RISK FOR CHILDREN!

• A power device is not a toy. After use, store it out of reach of children. Keep packing material (plastic bags, carton, etc.) out of reach of children.
• The appliance is not suited for persons (as well as children) physically, mentally, sensory disabled, or with no experience, unless they have been supervised or directed by someone responsible of their safety.
• Children should be supervised to make sure they do not play with the appliance.

RISK OF INJURY!

• To avoid injuries, do not introduce your hands in the machine while it is operating and keep away hair, clothes and other objects.
• Switch off and unplug the appliance before changing the accessories! Do not connect the plug to the power socket if the necessary accessories are not installed.
• Never touch the moving parts of the appliance and always wait for the appliance to stop completely.

RISK OF ELECTRIC SHOCK!

• This appliance is intended to work only with AC. Before operating, make sure that mains voltage rating corresponds to the value indicated on the rating plate of the product.
• Connect the appliance ONLY to outlets with a minimum electric current of 10 Ampere.
• Do not pull the power cord or the appliance itself in

order to unplug it from the outlet.

• Unwind completely the power cord before switching on the appliance.
• Use an extension cord only if it is in perfect conditions.
• Do not let the cord hang over sharp edges. Do not squash it.
• Do not let the appliance exposed to the weather (rain, freezing, sun, etc).
• Never use the appliance:

o with wet or damp hands;

o if it has fallen and it clearly broke or doesn't work properly;

o in case of faulty plug or power cord;

o in presence of humidity or gas.

• Never cover the appliance with towels, clothes, etc.
• Place the appliance only on horizontal and stable surfaces, far from showers, bathtubs, sinks, etc.
• However, if the appliance falls into the water, unplug it immediately and take it only afterwards. In this case, stop using the appliance and have it checked by qualifi ed personnel.
• Only operate the appliance in vertical position.
• ALWAYS unplug from the mains supply immediately after the use and before any cleaning or maintenance operation.
• The appliance may only be repaired by a specialized technician.
• Repairing the appliance by yourself might be extremely dangerous.
• Always cut the power cord of a broken unit in order to make it unusable before throwing it away.
• Clean the appliance with a damp cloth after it cooled down. Do not use solvents or abrasive products.
• The appliance is intended only for home use. It can only be used indoor.
• This appliance cannot be used for commercial purposes.

INTENDED USE

This appliance is designed to fry foods, as detailed in these instructions and may only be used for this purpose. Please observe all information contained in these operating instructions, particularly the safety instructions. Any other use is considered unintended use and can result in property damage or even personal injury.

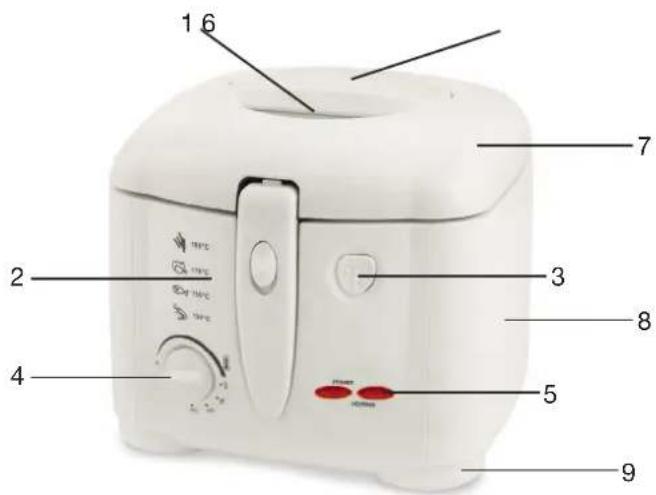

DESCRIPTION

1. Transparent glass
2. Control Panel
3. Lid opener button
4. Temperature control knob
5. Power indicator
6. Anti-odour Filter
7. Lid
8. Fryer Body
9. Fryer Base

FIRST USE

1. Remove the appliance from the box
2. Clean the appliance (see "Cleaning and maintenance")

USING THE APPLIANCE

It is possible to use the fryer for frying small portions of food to the desired temperature.

1. Fill the fryer with approximately 1.3/1.5 litres of suitable oil. Do not use butter or margarine. Make sure the oil level is between "min" and "max"
2. Close the lid.
3. Insert the plug into the socket. The power indicator should light.
4. Turn temperature control knob to the desired temperature. The indicator should turn on. This means that the unit is raising the temperature. It automatically turns off when the oil reaches the desired temperature.
5. Food can now be inserted into the basket.
6. Use the handle of the basket to drop gently the basket in the fryer. Remove the handle and close the lid.
7. As soon as the food is ready open the lid with a quick but delicate movement to let escape the hot steam that has formed inside.
8. Attach the handle and gently remove the basket from the pan. You can use this hook for hanging the basket on the fryer and allow the oil in excess to drain inside the tray.
9. Remove the plug from the socket. The power indicator should switch off.

Caution: Remove any ice residues from the food that you are pouring into the basket.

APPROXIMATE COOKING TIMES AND TEMPERATURE

Use the following table to determine the suitable temperature for every ingredient. Frozen foods can be fried at a higher temperature than fresh food.

Ingredients	Degree (℃)	Time (minutes)
Mushrooms	150	3-5
Chicken cuts	170	12-14
Shrimps	170	2-4
Fish	170	3-5
Fillet	170	5
Onions	190	2-4
Fresh Fries	170	8-10
Frozen Fries	190	2-4

CLEANING AND MAINTENANCE

FILTER CLEANING

The lid of the fryer is provided with a special odour-absorbing fi Iter that must be cleaned at regularly.

1. Leave the pan to cool completely and remove the oil from the inside.
2. Remove the lid of the fryer by opening it completely and then pulling it up.
3. Dip the cover a water and soap or degreaser for about 5-10 minutes.
4. Rinse the cover with water and let it dry thoroughly.
5. Place the cover back on the fryer this time pushing it down into the hinges.

REMOVABLE TANK CLEANING

1. Leave the pan to cool completely and remove the oil from the inside
2. Remove excess oil using absorbent paper.
3. Thoroughly clean the inside of the tank, the handle and the metal basket with a degreasing soap and warm water. Do not use abrasive sponges. Finally, dry it.
4. Clean the plastic parts of the fryer with a damp cloth. If necessary, use a few drops of degreaser. Always wipe thoroughly with a damp cloth and then dry.

5. Put the oil in a bottle or in a dedicated container and store it in a dry place away from sunlight. It is possible to reuse the oil for about 10 times fi ltering it with a paper towel to remove the frying residues.

6. Sore the appliance.

7. Make sure that the plug is disconnected from the outlet before cleaning.
   Clean after each use.

8. Never use corrosive or abrasive sponges, cleaning products.
9. Never immerse the fryer in water or other liquids.

AFTER 10-15 USES IT MAY BE NECESSARY TO REPLACE THE FILTER. THE USE OF THE APPLIANCE WITHOUT FILTER IS NOT RECOMMANDED.

TECHNICAL FEATURES

Power supply: 220-240 V~50 Hz

Maximum absorption: 1400 W

ANOMALY	CAUSE	REMEDY
Bad smell	The oil has deteriorated. The cooking liquid is not suitable anymore,	Replace the oil or cooking fat. Use peanut oil or a good quality vegetable oil
The oil overfl ows	The oil has deteriorated and causes too much foam You have immersed insufficiently dry foods. The basket has been immersed too quickly. The oil level exceeds the maximum limit.	Change the oil or the cooking fat. Carefully dry the ingredients. Add the ingredients slowly. Reduce the amount of oil in the tank.
The ingredients do not turn brown while cooking	The temperature of the oil is too low. The basket is overloaded	Select a higher temperature Reduce the quantity of ingredients.

PRECAUCIONES DE SEGURIDAD IMPORTANTES

iATENION! LEA LAS INSTRUCCIONES DE Este MANUAL CON ATENCION Y GUARDELO PARA CONSULTARLO DURANTE TODA LA VIDA UTIL DEL PRODUCTO, YA QUE PROPORCLONA INDICACIONES IMPORTANTES SOBRE EL FUNCIONAMIENTO Y LA SEGURIDAD DE LA INSTALLACION, USO Y MANTENIMIENTO DEL PRODUCTO.

Information for users about the correct disposal of the product according to the European Directive 2002/96/CE and to the Legislative Decree N. 151/2005.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to "separate collection".

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product.

The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
