Tix 16622 - Juicer Vice Versa - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Vice Versa
Model	Tix 16622
Supply voltage	220-240 V AC
Frequency	50 Hz
Rated power	90 W
Receptacle capacity	Approximately 0.5 L (estimate)
Main materials	Plastic and stainless steel (cone, filter)
Main functions	Citrus juicing (oranges, lemons, grapefruits)
Automatic stop	Yes (as soon as pressure is released)
Swivel spout	Yes, with open/close system
Cable winder	Yes (under the base)
Safety	Do not immerse the motor unit; use under supervision for children
Maintenance and cleaning	Motor unit wiped with a damp cloth; cones, filter, receptacle and lid dishwasher safe (delicate surface)
Spare parts and repairability	Contact the retailer for any repair or replacement
Warranty	2 years from date of purchase
Country of origin	China (made in China)
Dimensions (approx.)	20 x 20 x 25 cm (estimate)
Weight (approx.)	1 kg (estimate)

Frequently Asked Questions - Tix 16622 Vice Versa

How to use the Tix 16622 citrus juicer?

Place a suitable cone on the motor shaft, plug in the appliance, open the spout, cut the citrus fruit in half and press the half onto the cone. The appliance stops automatically when you release the pressure.

How to choose between the small and large cone?

Use the small cone for small fruits (lemons) and the large cone for large fruits (grapefruits, oranges). You can stack both cones to juice fruits of various sizes.

Can I wash the parts in the dishwasher?

Yes, the cones, filter and receptacle can be washed in the dishwasher, but be careful: detergents and high temperatures may damage the surface. Rinse the spout after each use.

What to do if the spout is blocked by pulp?

Unplug the appliance, remove the receptacle and clean it thoroughly. Then rinse the spout to remove accumulated pulp.

Is the appliance safe for children?

It is not a toy. Children over 8 years old may use it under adult supervision. Children under 8 years old should not clean the appliance.

Why doesn't my citrus juicer turn on?

Check that the plug is properly connected and that the cable is not damaged. Make sure the fruit is pressed firmly on the cone; the appliance only starts under pressure.

How to clean the motor unit?

Never immerse it in water. Wipe it with a damp cloth after unplugging the appliance.

What is the warranty on the Tix 16622?

The product is guaranteed for 2 years from the date of purchase against any manufacturing or material defect. Contact the retailer for any claims.

Can I use the juicer for fruits other than citrus?

No, this appliance is designed exclusively for citrus fruits (oranges, lemons, grapefruits). Using it for other fruits could damage the motor or filter.

What to do if the power cord is damaged?

Do not use the appliance anymore and immediately contact the retailer or an authorized repair service. Do not attempt to repair the cable yourself.

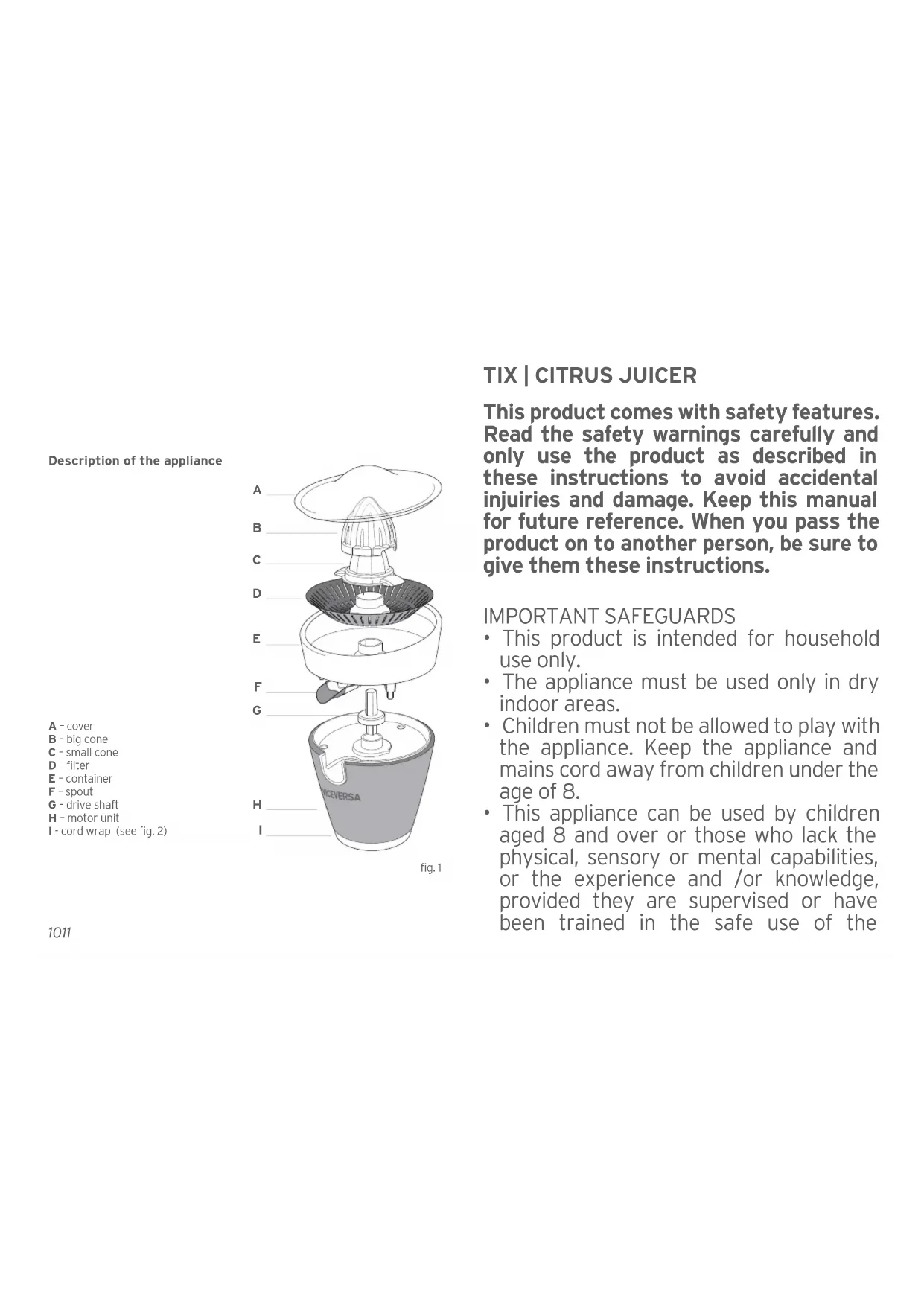

USER MANUAL Tix 16622 Vice Versa

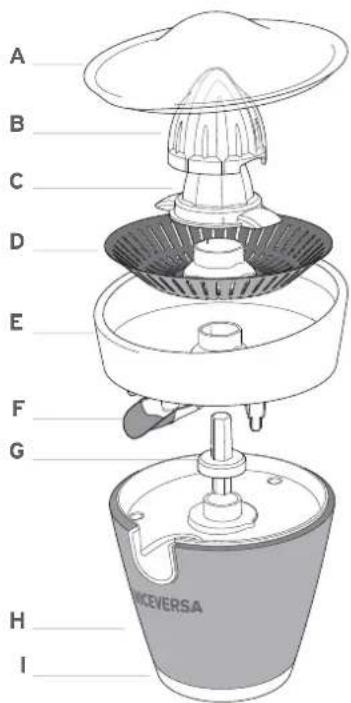

Description of the appliance

A - cover

B-big cone
C-small cone
D - filter
E - container
F - spout
G - drive shaft
H-motor unit
I - cord wrap (see fig.2)

fig.1

TIX | CITRUS JUICER

This product comes with safety features. Read the safety warnings carefully and only use the product as described in these instructions to avoid accidental injuries and damage. Keep this manual for future reference. When you pass the product on to another person, be sure to give them these instructions.

IMPORTANT SAFEGUARDS

This product is intended for household use only.
- The appliance must be used only in dry indoor areas.
Children must not be allowed to play with the appliance. Keep the appliance and mains cord away from children under the age of 8.
- This appliance can be used by children aged 8 and over or those who lack the physical, sensory or mental capabilities, or the experience and/or knowledge, provided they are supervised or have been trained in the safe use of the

appliance and understand the potential dangers.

Children must not be allowed to clean the appliance unless they are over 8 years old and supervised by an adult.
- Set up the appliance in a place where children cannot reach it.
- Keep packaging material out of children's reach. Risk of suffocation!
- Do not submerge the motor block in water or other liquids and do not hold it under running water or it could cause an electric shock.
- Do not operate it outdoors or in rooms with high humidity.
- Unplug the appliance in the following cases: in the event of faulty operation, if the appliance won't being used or if it will be left unattended, before disassembling or assembling the appliance, after use, during thunderstorms and before cleaning. Always pull the plug and not the mains cord.
- Do not use adapters or extensions that do not comply with the safety regulations in force or which exceed the voltage limits

of the appliance.

• The mains cord must not be kinked or squeezed. Keep the mains cord away from hot surfaces and sharp edges.
• Ensure a sufficient distance from heat sources, such as the hob or oven.
• Do not use the juicer if the appliance or the mains cord show visible signs of damage or the appliance has been dropped.
• Place the appliance on a solid, even surface that is easily accessible and easy to clean.
• Never use abrasive or caustic products or hard brushes, etc. for cleaning.
  DANGER to children and adults with restricted capability of operating appliances
• No liability is assumed for any damage arising in the event of:
• incorrect use or that not complying with the intended purpose;
• repairs carried out by unauthorised people.
• Making technical changes which may cause risks is to be strictly avoided.

INSTRUCTIONS:

First-time use

Before using, read all the installation, use and maintenance instructions carefully and also the safety warnings.

1. Remove all packing material.
2. Check the appliance has no visible damage and that there are all parts of it. Finally, check that they are not damaged.
3. Clean the appliance as described in the section "Cleaning".

Squeezing fruit
fig.2

1. Setting up the appliance

• Unwind the mains cord as necessary from the base of the appliance (Fig. 2). Make sure that the mains cord is securely fitted in the cord guide, so that the press stands steadily.
• Place the appliance on an even and easy to clean surface.

fig.3

2. Choosing a cone

• Choosing the most suitable cone for the size of your citrus fruit:

Small cone - for small fruits, e.g. lemons, limes, etc.

Large cone - for large fruits, e.g. grapefruits, oranges, etc.

• Place the small cone directly on the drive shaft. If you would like to use the large cone, first place the small cone on the drive shaft. Now place the large cone on top of the small cone. The gaps in the large cone must click into place on the small cone's stirring blades. To separate the cones, hold the stirring blades and pull the large cone upwards.

fig.4

fig.5 fig.6

3. Squeezing juice

• Remove the lid.
• Place a cone on the drive shaft.
• Plug the appliance into the mains socket. Ensure that your mains supply voltage is the same as marked on the type-plate of your appliance (Fig. 6).
• Press the spout downwards to open it and place a glass beneath it (Fig. 4).
• For changing a glass, or after you have finished squeezing, press the spout upwards to close it (Fig. 5).

fig.7

• Cut the citrus fruit in half and place the cut side on the cone. Do not press down too hard. Too much pressure on the cone can damage the motor. The appliance and cone switch on automatically once the fruit is pushed down. As soon as pressure on the cone subsides the appliance switches off automatically.
  The cone squeezes the juice out. The juice flows through the sieve into the container and from there into a glass. (Fig. 7) For this to happen, the spout must be open (Fig. 4). Seeds and large pieces of pulp remain in the sieve.

• If after all, the spout gets blocked by pulp, remove the container from the motor unit and wash it.

• To get as much juice as possible out of the fruit, press each half down on the cone more than once.

After use

1. Unplug the appliance from the mains.
2. Remove the cone, sieve, juice container and drive shaft and clean all parts as described in the section "Cleaning".
3. Make sure all parts are thoroughly dry before reassembling the citrus press.
4. Place the lid back on the citrus press.

Cleaning

1. Unplug the appliance before cleaning.
2. Wipe the motor block with a damp cloth.
3. Rinse the cone, sieve, juice basin, lid and drive shaft with warm water and a little bit of washing-up liquid.
4. Make sure all parts are thoroughly dry before reassembling the appliance. This will stop any humidity finding its way into the motor. If you use the spout frequently, pulp will collect there. Rinse the spout each time you use the juicer.

Note: The cones, filter and container can be washed in the dishwasher but remember that the detergents and additives used, and also the temperatures reached during the washing cycle can damage the surface finish of the product.

DISPOSAL

At the end of its life, the appliance must be correctly disposed of to prevent pollution of the enviroment; disassemble its components so that they can be eliminated in compliance with the disposal regulations in force in your country.

GUARANTEE

We grant a two-year guarantee from the date of purchase.

This product was manufactured using the latest production techniques and has undergone thorough quality control inspection. We guarantee that the product is in perfect condition. We will remedy all defects in workman- ship or materials within the guarantee period. In order for the guarantee to be granted, all warranty claims must be accompanied by proof.

In the event of malfunctioning, and in particular if the cord gets damaged, contact your Viceversa dealer and in the meantime do not use the citrus juicer.

Technical specifications

tix juicer

made in China

model n°166XX AC 220-240V 50Hz er 90W

VICEVERSA via isonzo 10 22078 turate (CO) ITALY www.viceversa.com

In the course of product improvement, we reserve the right to make technical and optical modifications to the product.
