USER MANUAL EWA5200 AEG

With Electrolux, the choice of professionals.

AEG

GB Instruction book.11-15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

DC

Teile

m = 311

Onderdelen

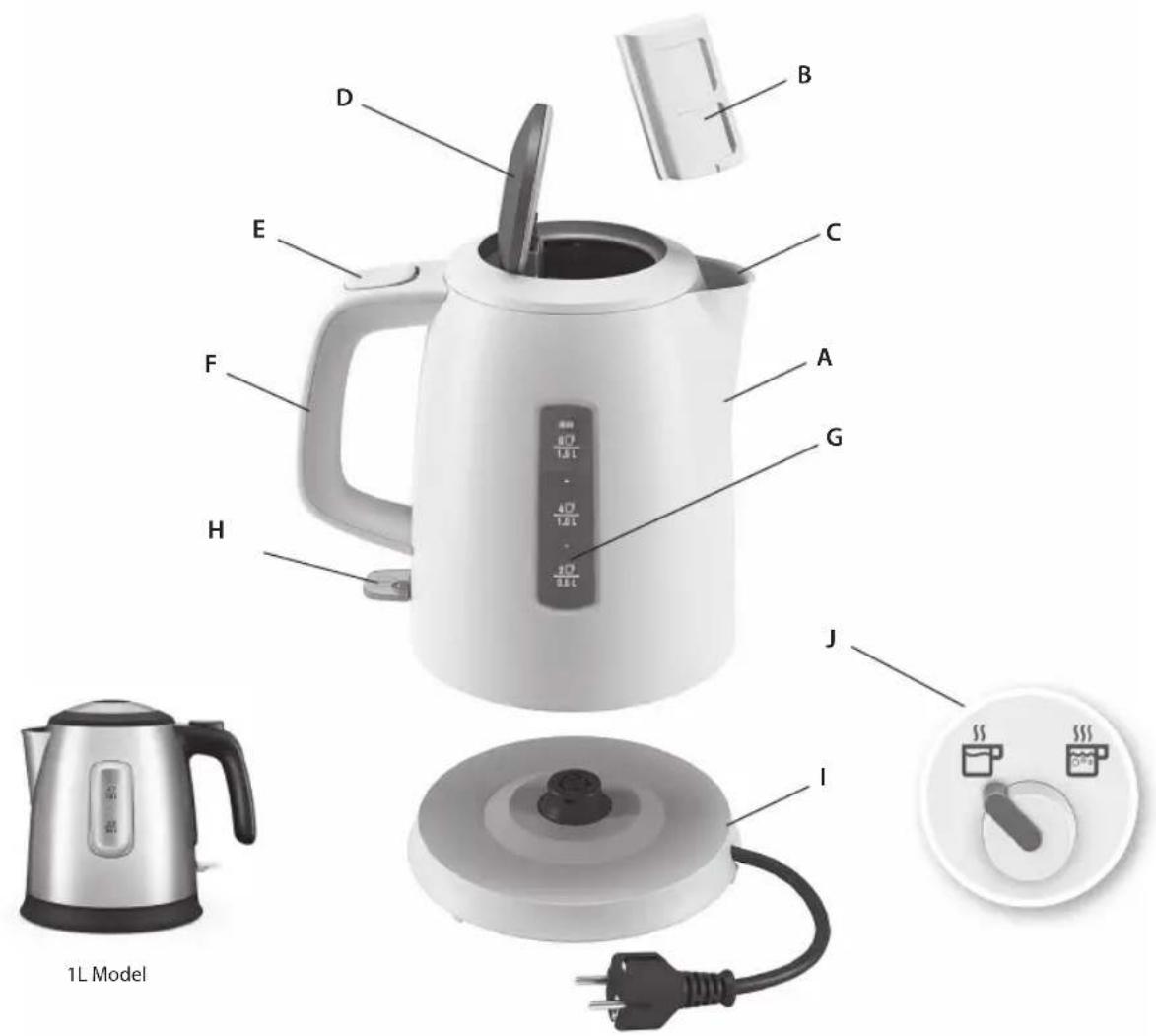

A.Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
I. Separate base and mains cable
J. Temperature selector*

*EEWA 5120

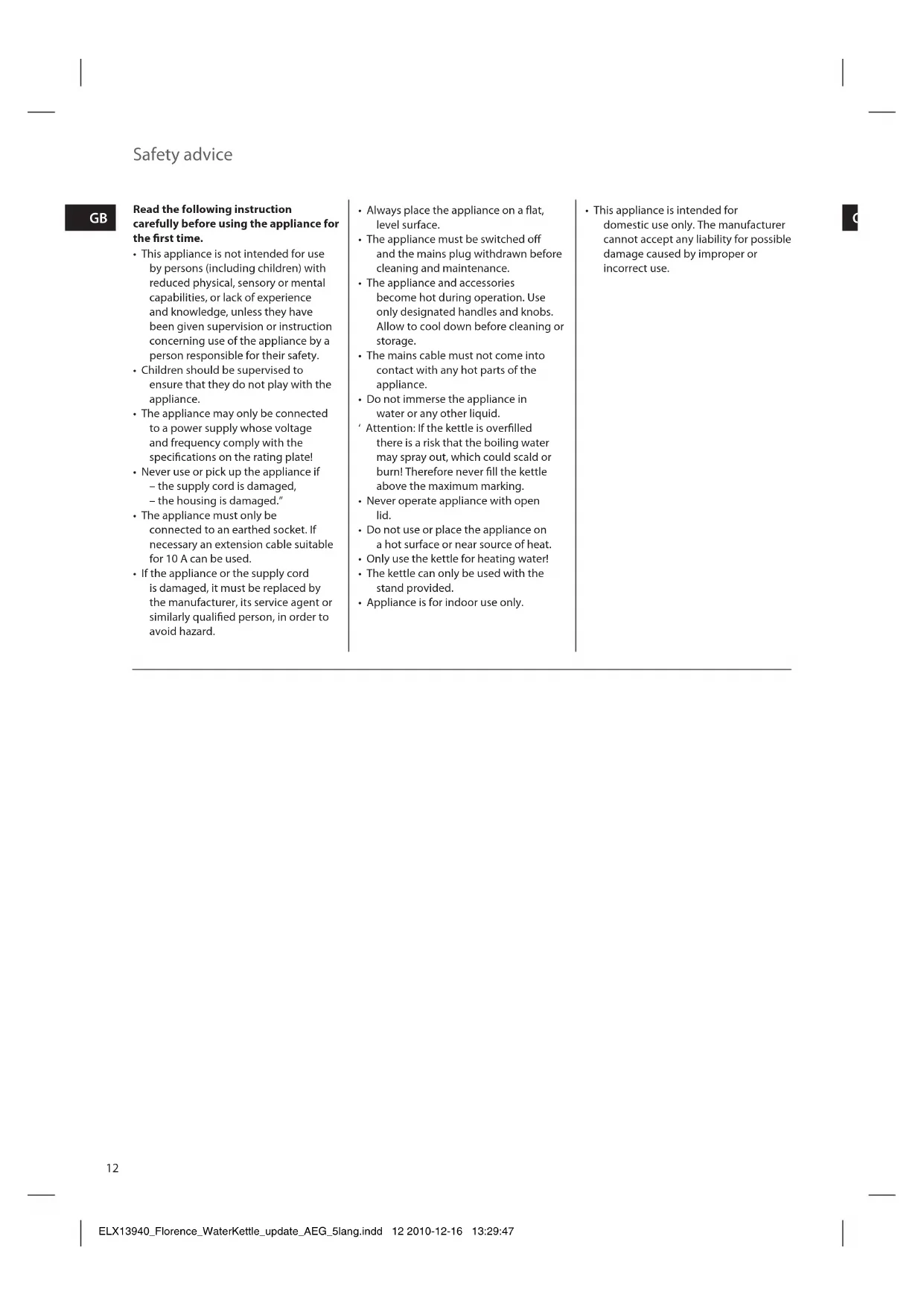

Safety advice

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

Always place the appliance on a flat, level surface.
- The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
Only use the kettle for heating water!
- The kettle can only be used with the stand provided.
- Appliance is for indoor use only.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

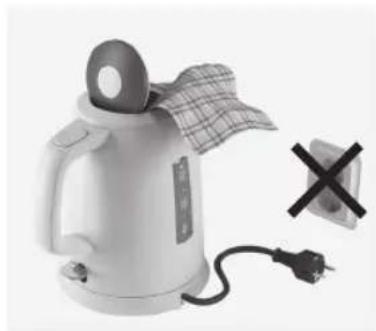

1. Before first use, rinse the inside and wipe the outside of the kettle with a damp cloth.

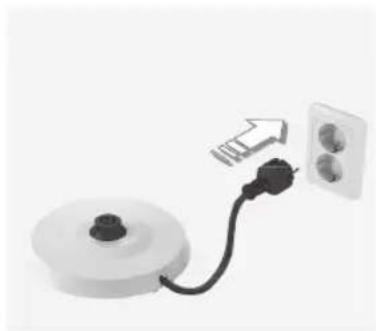

2. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Excess cord can be wound into the bottom of base unit.

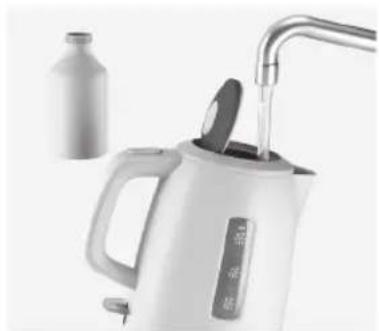

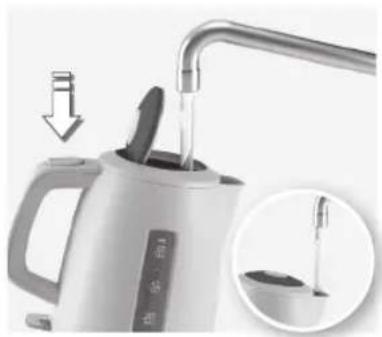

3. Press the button to open the lid, pour water into the kettle. It is also possible to fill the kettle through the spout, without opening the lid. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

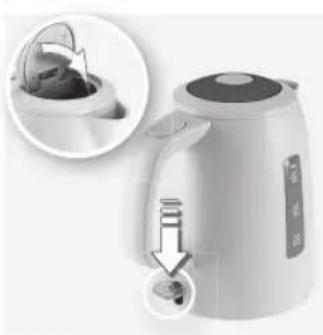

4. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

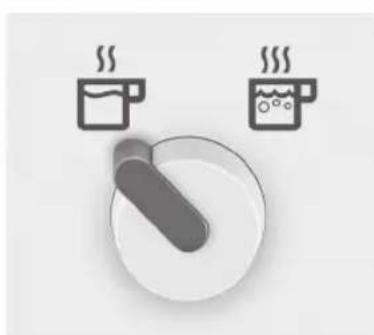

5. Temperature setting*. Depending on what drink you wish to prepare (green tea/instant coffe or black tea), you can select between hot or boiling water by turning the knob to the respective symbol.

6. The automatic switch off function.

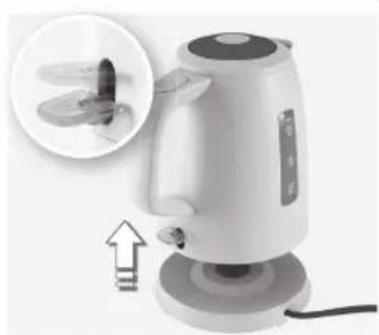

When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

GB

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

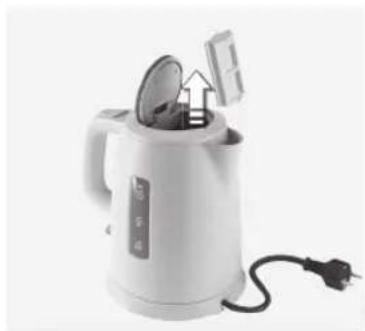

1. To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate superficial spots of rust may appear on the heating plate. Remove with a stainless steel cleaning agent.

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.	Run the decalcifying procedure.
The appliance does not switch off . Close lid until it locks.
	Insert the mesh fiiter correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
