USER MANUAL PABK 60 A1 PARKSIDE

Operation and Safety Notes

Translation of original operation manual

IAN96759

FR

FR

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 25

A

B

Introduction

RoHS Directive (2011/65/EU)

A WARNING! EXPLOSIONSGEFAHR!

[e-mail]

Telefon: [phone]

Intended use
Features and fittings.. Page 26
Technical data.. Page 27

General safety instructions for compressed air tools.. Page 27

General safety information for electrical devices . Page 29
Product-specific safety instructions.. Page 29

Before initial use

Preparations for use

Connecting the airbrush set.. Page 30
Mixing paints for use. Page 30
Turning airbrush compressor on/off. Page 30
Regulating the air pressure.. Page 30
Regulating the spraying results.. Page 30
Connecting the air hose.. Page 30
Using the accessories . Page 31

Cleaning and care.. Page 31

Information about warranty and service processing..

Warranty terms.. Page 32
Scope of warranty . Page 32
Procedure in the case of warranty.. Page 32

Environmental instructions and disposal information.. Page 33

Paint disposal instructions

Declaration of Conformity

PARKSIDE

25GB

Introduction

The following pictograms are used in these operating instructions / on the device:
	Note Supply hose
	Observe caution and safety notes! Danger of electric shock
	Never use hydrogen, oxygen, carbon dioxide or other bottled gases as an energy source.		Risk of burns!
	Wear hearing protection, dust protection mask, protective glasses and protective gloves.		Dispose of packaging and device in an environmentally friendly way!
	For indoor use only.		Warning: Compressor unit can start up without warning.

Airbrush set PABK 60 A1

Introduction

Congratulations! You have chosen a high-quality device from our company. Familiarise yourself with the product

before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Initial operation of this tool must be performed by trained personnel.

KEEP OUT OF THE REACH OF CHILDREN!

Intendeduse

This device is a portable air compressor optimised for use with airbrushes. With the accessories included, it is suitable for use in numerous applications. It is maintenance-free and equipped with noise suppression so it is also suitable for use in closed rooms. Keep these instructions in a safe place. When passing this product on to others please also include all documents. Any use other than the intended is prohibited and potentially dangerous. Damages resulting from noncompliance or misuse are not covered by the warranty and are not included in the manufacturer's

liability. This device has been designed for household use and may not be used for commercial or industrial purposes.

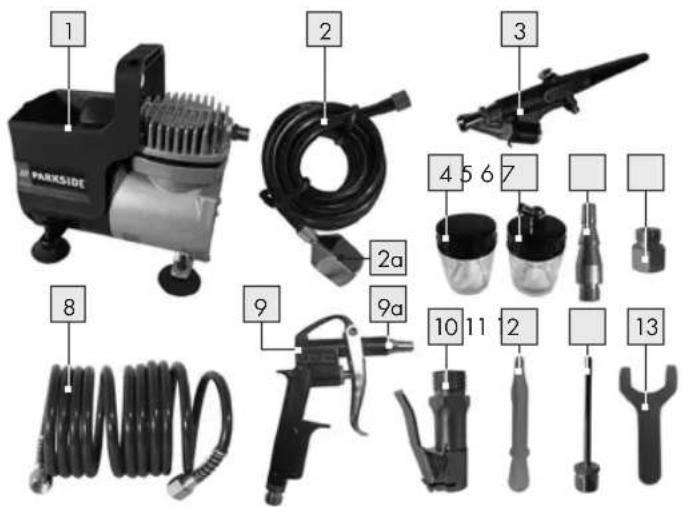

Features and fittings

Check that all the items are present and that the product is in perfect condition immediately after unpacking. Never use

the product if it is defective.

Airbrushcompressor
2Coiledhose
Coiled hose adapter
Spraystylus
4 Paint mixing beaker with closure lid
5 Paint mixing beaker with connection lid
6 Air mattress adapter
Z Threadadapter
8 Compressed air hose
9 Air blow gun
9a Air blow gun nozzle
10 Universal valve connection
[11]Mixingpipette
12 Ballneedle
13Open-endwrench
14 On/Off Switch

Introduction / General safety instructions for compressed air tools

Note: This package also includes six different colours of highly concentrated, water-soluble paints in plastic containers as well as a beaker of thinner (transparent). These are referred to as "consumables" in the following.

-Technicaldata

Output power: approx. 15l/min

Theoretical suction capacity: max. 40l/min

Operating pressure: max. 0.26 MPa

Max. pressure: 0.32 MPa (approx.)

3 bar)

Weight without accessories: 4.175 kg

Motor output

without load: 300W

Operating voltage: 230V 50Hz

Operating mode: S3 15%

Operating time 10 min:

S3 = Intermittent periodic duty not influenced by the starting process. During a 10 min period, the operating time must not exceed 15% (1.5 min).

Output of

compressor speed: 1440 min

Protection class: IPX0

Protection class: I/

Ambient temperature

during operation: 10^ - 30^

General safety instructions for compressed air tools

Note: When used in the following text, the terms "compressed air device" or "device" refer to the compressed air device specified in these instructions for use.

WARNING! Basic safety measures must be followed when using compressed air devices to eliminate the risk of fire, electric shock and personal injury. Be sure to read and follow the notices within these operating instructions prior to using the device and store them in a safe location. The manufacturer assumes no liability for damages or personal injury resulting from failure to follow these operating instructions.

PARKSIDE

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety.
Prevent children from playing with the device.

WARNING! RISK OF INJURY! Before performing maintenance tasks, disconnect the compressed air supply.

Only use the device in applications for which it was designed!
Do not overload the device.

Never use hydrogen, oxygen, carbon dioxide or other bottled gasses to power this tool as doing so may result in explosion, causing severe injuries.
Maintain and clean the device regularly as prescribed (see Chapter "Cleaning and care").

A WARNING! DANGER OF EXPLOSION!

Never use petrol or other flammable liquids to clean the compressed air tool! Sparks could ignite residual vapours inside the compressed air device resulting in the compressed air device exploding. Do not use the device in explosive environments with flammable liquids, gasses or dust. Never work on materials which are or could potentially be highly flammable or explosive.

Check the device for damage before bringing it into use. Always make sure that the device is in perfect condition each time before use.
Remain alert at all times and always watch what you are doing! Unexpected movement of the device may cause hazards.
Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the compressed air device in unforeseen circumstances.
Do not use any device if its switch is defective. A device that can no longer be switched on and off is dangerous and must be repaired.
Store the device out of the reach of children when it is not in use. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Compressed air devices are dangerous when they are used by inexperienced people.

27GB

General safety instructions for compressed air tools

• Maintain the device carefully. Check that moving device parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained devices.
  Switch off the device off when it is not in use.
  Always wear personal protective device and safety glasses. Wearing personal protective devices such as dust mask, non-slip safety shoes, safety helmet or ear protectors, depending on the type of compressed air tool and its application, reduces the risk of injuries.
• Check the connections and supply lines. All maintenance units, couplings and hoses must be equipped to meet the pressure and air amounts specified in the device specific values. Pressure that is too low influences the functioning of the device; pressure that is too high can cause damage to property and personal injury.
• Protect hoses from kinks, constrictions, solvents and sharp edges. Keep hoses away from heat, oil and rotating parts.
  Make sure that the hose clamps are always tightly fastened. If the hose clamps are not tightly fastened or are damaged, the air could escape uncontrollably.
• Replace damaged hoses immediately. A damaged supply line may result in the air hose whipping about and may result in injuries.
  If the power cable of the device is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.
• Do not use the device when tired or under the influence of drugs, alcohol or medications. One moment of carelessness when using the device may result in serious injuries.
• Do not directly inhale the exhaust air. Keep eyes away from exhaust air. Exhaust air from the compressed air device may contain water, oil, metal particles or contamination from inside the compressor. This may result in injury to health.

WARNING! BE CAREFUL WHEN

SETTING DOWN THE DEVICE! Always put down the device so it does not come into contact with the trigger. This could potentially result in accidental activation of the device, which again could result in hazards.

Only use suitable accessories. These may be purchased from the manufacturer. Using nonOEM accessories may result in hazards.
Only use filtered and regulated compressed air. Dust, caustic vapours and / or moisture may damage the motor of a compressed air tool.

The hose must be designed for pressures of at least 8.6 bar or 125 PSI, but at least 150% of the maximum pressure generated in the system.

The tool and supply line must be equipped with a hose coupling to completely remove pressure when connecting the coupling hose.

Do not modify this device in any way without the manufacturer's approval.
Only use the compressed air device with the specified pressure (max. 0.32MPa / approx. 3 bar).
- Disconnect the compressed air device from the air supply after each use and when not in use.
- Do not use the compressed air device if it leaks or is in need of repair.
Never connect the compressed air device to an air hose with pressure exceeding 7 bar.
- Keep your working area clean and well lit. Un-tidy or poorly lit working areas can lead to accidents. Working under proper conditions will allow you better control of the device, particularly under unforeseen circumstances.

WARNING!

Only have the device repaired

by qualified specialist personnel using OEM spare parts. This will ensure that your device remains safe to use.

• Keep children and other individuals away from the device during use. Distractions can cause you to lose control of the device.
  Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

PARKSIDE

General safety instructions ... / Before initial use / Preparations for use

Put down the trigger and device in the event of unexpected compressor failure.
- Whenever possible, use a condensate trap or regularly empty the compressed air device hoses and tubing before and during use to remove condensate (water).

ATTENTION! An undersized compressed air system may minimise the efficiency of your device.

• Never point the compressed air device at yourself, other persons or animals. Otherwise there is a risk of injury.
  Always observe all the safety advice attached to the compressor.
  Make sure that the compressor intake opening is never blocked and the airflow is never hindered.
  Clean the suction filter with a cloth when it is dirty. Switch off the device and pull the plug from the socket to prevent it from being accidentally switched on.
  Do not allow yourself to become distracted while working with the device.

General safety information for electrical devices

Never connect the device to a residual current (FI) protective switch.
Protect yourself against electric shock. As you are working, avoid touching grounded parts (e.g. refrigerator, water supply pipes etc.).
DANGER! Avoid contact with live lines. This device is not insulated against electric shock.
Check extension and power supply cables regularly. Replace any faulty cables with new ones immediately.
If the mains power cable of this device is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.
Store the device in a dry environment when it is not being used over a longer period.
Make sure that the connection cable does not hang over a corner or be stretched; otherwise there is a risk of injury.

PARKSIDE

Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the product, to hang it up or to pull the mains plug out of the mains socket.

• Never pull on the mains cable to remove the mains plug from the socket.
• Never use electrical tool in damp or wet environments and never expose it to rain or high humidity.
  Never switch on the device in the vicinity of inflammable liquids or gases.
  If the device is used outdoors, only use extension cables that are expressly designed for outdoor use.

Product-specific safety instructions

AUTION! RISK OF BURNS!

The compressor heats up after extended operation. Therefore always use the handle on the device to move it. Never touch the device itself!

ATTENTION! The casing of the airbrush compressor may become hot during use. Do not touch hot surfaces in order to prevent burns.
- Never leave the device in operation unattended. Built-up heat generated by the device can be a source of danger.

- Before initial use

Check that all parts of the device are in perfect condition.
Make sure that the available mains voltage is compatible with the voltage intended for operating the compressor.

Note: You will find the intended mains voltage on the type plate of the device.

Preparations for use

Warning: This appliance can slide on smooth surfaces during normal use. This can be prevented by applying light pressure to the appliance.

29GB

Preparations for use

Clean dusty surfaces so that the suction cups can grip well. Otherwise a slight shift in position is possible.

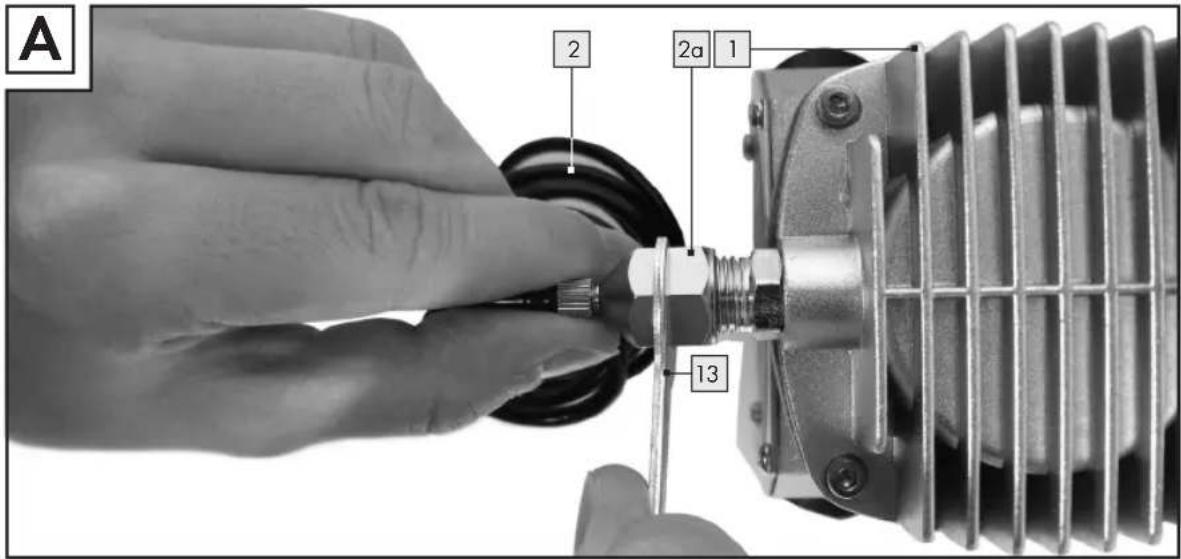

- Connecting the airbrush set

A Be absolutely certain to disconnect the mains plug before connecting the airbrush set to the compressor and release the pressure in the lines by actuating the vent of the air blow gun 9.

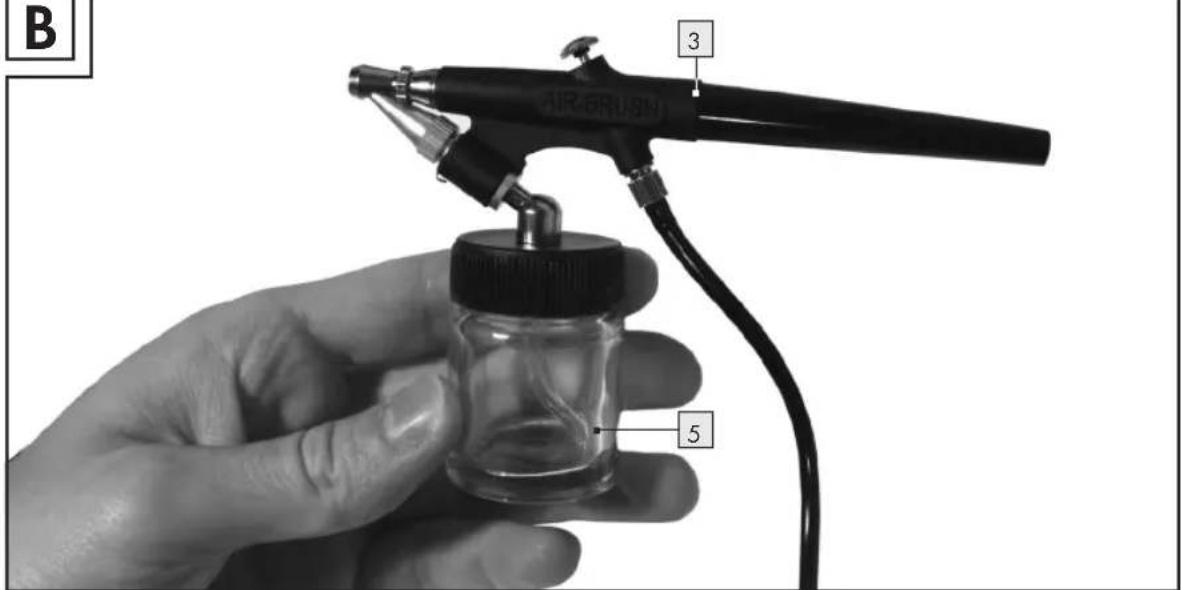

Use the respective screw connection to connect the spray stylus 3 with the coiled hose 2 and the coiled hose to the airbrush connection 1. Use the included open-end wrench. 13 (see Ill. A).
Fasten the paint mixing beaker with connection lid 5 to the spray stylus 3 (see Ill. B).
Insert the mains plug into the mains socket.

Note: For optimal results, professionals con an intermediate pressure reducer (not included with delivery). The pressure reducer can be used to adjust the compressed air at the spray gun and optimise it to your needs.

- Mixing paints for use

The paints included are water-soluble. In order to properly apply the paints, add water and stir. As delivered, the paints are too viscous.

First fill the beaker with your selected paint colour with water.
Now screw the cover back on the beaker and shake it.
Now remove two full droppers (1.5 mark on the dropper) and fill these into a mixed glass filled half way with water.
Shake the beaker. Now your paint has reached the correct consistency.
□ Attach the paint mixing glass 5 according to III.B.

Note: If desired, you can adjust the amount of water added to influence the colour intensity yourself as with a watercolour box. The more water you add, the "thinner" the colour. You can also mix individualised colour tones from the available colour pastes. Please take note, there must be no paint clumps remaining

in the paint containers. The consistency should correspond to that of water.

Note: If the paint used does not cover well, increase the amount of paint in the mixture ratio.

- Turning airbrush compressor on/off

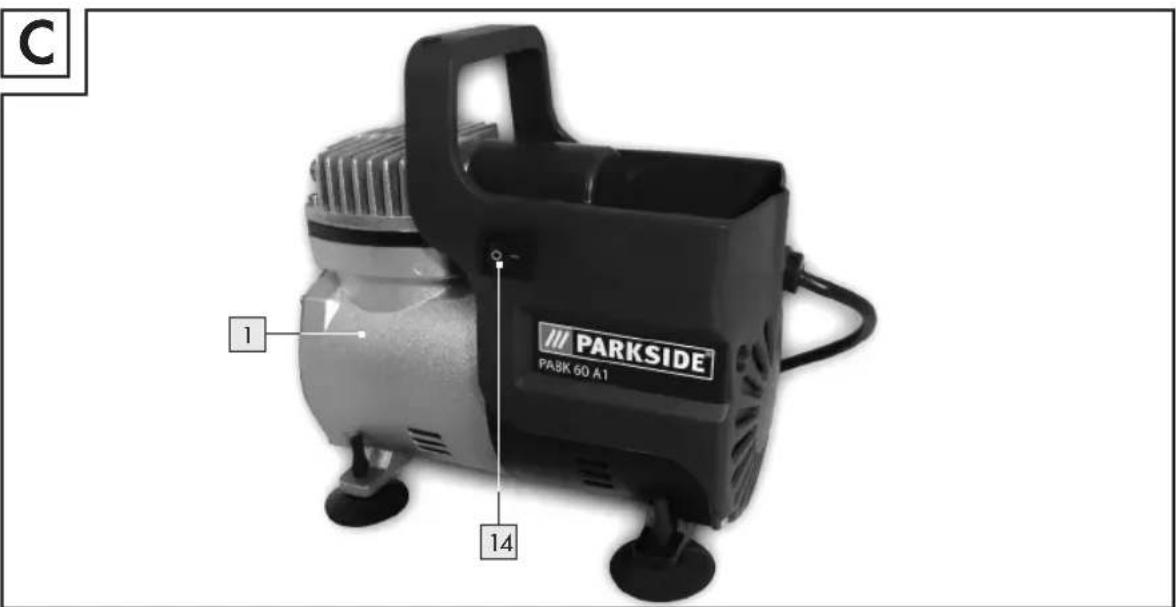

Turn the airbrush compressor 1 on by setting the on/off switch 14 to the position "1" (see Ill. C).
Turn the airbrush compressor 1 off by setting the on/off switch 14 in the position "0" (see III.C).

Note: Full pressure is built up after two seconds.

Regulating the air pressure

Regulate the air pressure by actuating the vent of the air blow gun 9 to more or less of an extent.

ATTENTION! The device has a pressure switch, which periodically and automatically turns the device off if there is excess pressure or if it is not in use. Shortly before reaching the switch-off point, the compressor runs more roughly and vibrates. This may also be the case when re-started under load. The performance and functionality are not impaired by this. This is not a defect, rather, serves to protect the compressor from overloading.

Regulating the spraying results

Regulate the amount of the paint supplied by turning the paint nozzle of the spray stylus to the right or left (see III.B).

- Connecting the air hose

Connect the air hose 8 to the airbrush compressor 1. Use the included open-end spanner 13 to do so (compare Fig. A).

... / Cleaning and care / Information about warranty and service processing

Using the accessories (see Ill. D)

Air mattress adapter 6, Ball needle 12

Use a pipe wrench to unscrew the nozzle 9a of the blow-out gun 9.
Then - depending on what is needed - screw on the air mattress adapter 6 or the ball needle 12 as well as the thread adapter 7 into the barrel of the air blow gun 9.

Universal valve connection 10

Screw the universal valve adapter (suitable for tyres, e.g. bicycle tyres) 10 directly onto the air hose 8.

- Cleaning and care

Thoroughly clean the spray stylus 3 immediately after use. Otherwise the paint can dry and cause problems during the next use.
Thoroughly rinse out the spray stylus 3 with water.
Use the thinner included to clean any stubborn dried paint.

Note: The thinner is not suitable for water-soluble paints. Rather, it corresponds to a varnish for thinning paints containing solvents.

Note: If the air intake of the compressor should become dirty, use a dry cloth to remove the accumulated dirt.

Fault Interrupted	paint jet or intermittent paint delivery
Cause Solution
1. Paint almost empty	1. Fill paint
2. Paint too viscous	2. Lower viscosity
3. Dry/defective nozzle	3. Screw in nozzle tightly or replace
4. Paint supply restricted	4. Cleaning

Fault Interrupted	paint jet or intermittent paint delivery
Cause Solution
5. Incorrect position of spray stylus 3.	5. Correct position angle

Fault Spray pattern	incomplete
Cause Solution
1. Air head dirty / defective	1. Clean / replace air head
	1. Rinse with clear water
2. Nozzle dirty / defective	2. Clean / replace air nozzle

Fault Spray pattern lar with drips
Cause Solution
1. Defective nozzle	1. Replace nozzle. Contact a respective service centre.
2. Paint too viscous	2. Lower viscosity
3. Insufficient working pressure	3. Increase working pressure (if necessary, not included accessories, e.g. pressure reducer)
	3. Hose defective; replace hose

Fault Non-uniform paint amount delivered

Cause Solution

Nozzle dirty/ defective Clean/replace air nozzle

Information about warranty and service processing

Creative Marketing Consulting GmbH warranty

Dear customer, the warranty for this device is 3 years from the date of purchase. In the event the product

PARKSIDE

Information about warranty and service processing

is defective, you have legal rights vis-à-vis the retailer of this product. Your statutory rights are not limited in any way by our warranty detailed below.

inappropriate and improper handling, use of force and of any intervention which was not carried out by our authorized service branch.

Warrantyterms

The warranty period begins on the date of purchase. Please retain the original receipt safely. This receipt is required as proof of purchase.

Should this device show any fault in materials or manufacture within three years from date of purchase, it will be repaired or replaced - at our choice - by us free of charge. In order for the warranty to be valid, the defective device and the proof of purchase (receipt) must be presented within the three-year warranty period, accompanied by a brief written description of the nature of the defect and of the date it arose.

If the defect is covered by our warranty, you will receive the repaired device or replacement in return. A repair or exchange of the device does not extend a new warranty period.

- Scope of warranty

This device has been manufactured to strict quality guidelines and meticulously examined before delivery.

The warranty applies to faults in material or manufacture. This warranty does not apply to product parts subject to normal wear and tear and which can therefore be considered as wear items, or to damage to fragile parts, e.g. switches, storage batteries or glass parts.

This warranty becomes void if the device has been damaged or improperly used or maintained. All instructions provided in the operating instructions must be followed strictly to constitute proper use of the product. Purposes and practices which the operating instructions warn of or advise against must be avoided without fail.

This product is intended for private, non-commercial use only. The warranty is void in the case of

- Procedure in the case of warranty

Please follow the instructions below to ensure quick processing of your matter:

When inquiring about your product please have your receipt and product number (e.g. IAN) ready as your proof of purchase.

The item number can be found on the type plate, an engraving, the cover page of your instructions (bottom left) or the decal at the back or bottom. In the event of malfunctions or other defects please first contact the service department below by phone or e-mail.

A product recorded as defective, along with the proof of purchase (receipt) and a description of the defect and when it occurred, can then be returned free of charge to you at the service address provided.

Note:

Visit www.lidl-service.com to download this and many other manuals, product

videos and software.

How to contact us:

GB

Name: C. M. C. GmbH

Website:www.cmc-creative.de

E-mail:[e-mail]

Phone:[phone]

(standard German landline rates apply)

Registeredoffice:

Germany

IAN 96759

Please note that the following address is not a service address.

Please first contact the service centre listed above.

PARKSIDE

.../ Environmental .../ Paint disposal instructions/ Declaration of Conformity

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

Environmentalinstructions and disposal information

Don't waste, recycle!

The device, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of the compressed air tool through your household waste, or throw into fire or water. If possible, non-operational devices should be recycled. Contact your local retailer for information.

- Paint disposal instructions

• Do not allow to enter sewage system, open bodies of water or soil.

Product: Dispose of at collection facility for old paints/varnishes.

European list of waste materials

08 01 12 waste paint and varnish other than those mentioned in 08 01 11.

Uncleaned packaging:

Only completely emptied containers may be disposed of through recycling. Dispose of residual material that has not hardened in the same manner as the product.

Declaration of Conformity (C)

We,

C. M. C. GmbH

Documentation officer: Markus Zimmer
Katharina-Loth-Str. 15
66386 St. Ingbert

PARKSIDE

declare on our sole responsibility the product

Airbrush set

Serial number: 1715

Year of manufacture: 2014 / 30

IAN:96759

Model: PABK 60 A1

to meet the basic safety requirements of European Directives

Machinery Directive

2006/42/EC

EC Low Voltage Directive

2006/95/EC

EC Directive for Electromagnetic

Compatibility

2004/108/EC

RoHS Directive

(2011/65/EU)

and its amendments.

The conformity assessment is based on the following harmonised standards:

EN 1012-1: 2010

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:1997 + Corrigendum 1997 + A1:2001 +A2:2008

EN 61000-3-2:2006 + A1:2009 + A2:2009

EN 61000-3-3:2008,

EN 60335-1:2012

EN 62233:2008
