USER MANUAL Project 1000 Lofrans

Close-up of a mechanical device with metallic components and a 1000mm label (no readable text or symbols beyond branding)

Close-up of a modern electric vacuum cleaner with metallic casing and control panel (no visible text or symbols)

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

GEBRAUCHSANWEISUNG

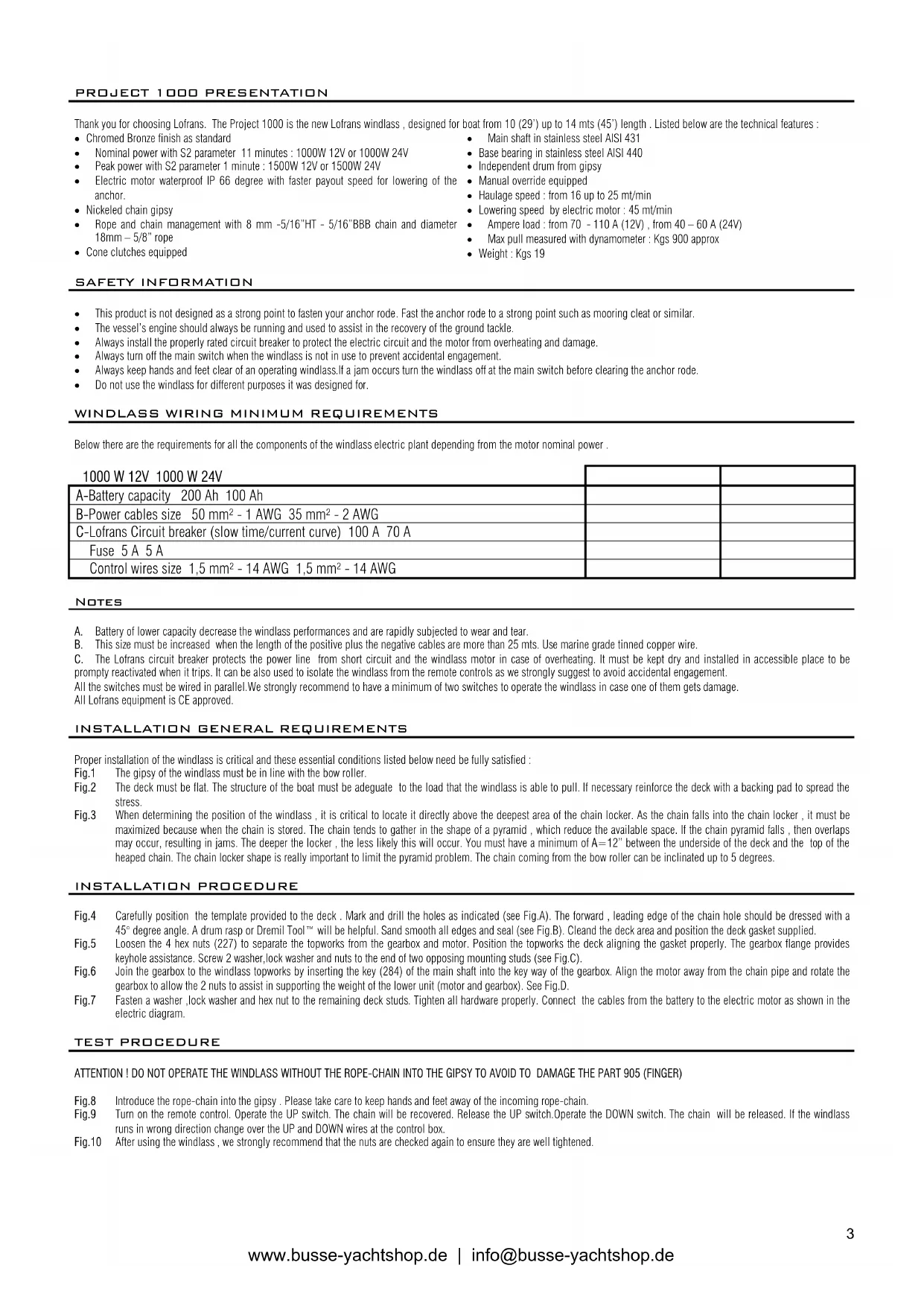

Thank you for choosing Lofrans. The Project 1000 is the new Lofrans windlass , designed for boat from 10 (29') up to 14 mts (45') length . Listed below are the technical features :

• Chromed Bronze finish as standard
• Nominal power with S2 parameter 11 minutes : 1000W 12V or 1000W 24V
• Peak power with S2 parameter 1 minute : 1500W 12V or 1500W 24V
- Electric motor waterproof IP 66 degree with faster payout speed for lowering of the anchor.
- Nickeled chain gipsy
- Rope and chain management with 8 mm -5/16"HT - 5/16"BBB chain and diameter 18mm - 5/8" rope
- Cone clutches equipped

• Main shaft in stainless steel AISI 431
- Base bearing in stainless steel AISI 440
• Independent drum from gipsy
- Manual override equipped
• Haulage speed : from 16 up to 25 mt/min
- Lowering speed by electric motor : 45 mt/min
• Ampere load : from 70 - 110 A (12V) , from 40 - 60 A (24V)
• Max pull measured with dynamometer : Kgs 900 approx
- Weight : Kgs 19

SAFETY INFORMATION

• This product is not designed as a strong point to fasten your anchor rode. Fast the anchor rode to a strong point such as mooring cleat or similar.
- The vessel's engine should always be running and used to assist in the recovery of the ground tackle.
• Always install the properly rated circuit breaker to protect the electric circuit and the motor from overheating and damage.
• Always turn off the main switch when the windlass is not in use to prevent accidental engagement.
• Always keep hands and feet clear of an operating windlass. If a jam occurs turn the windlass off at the main switch before clearing the anchor rode.
- Do not use the windlass for different purposes it was designed for.

WINDLASS WIRING MINIMUM REQUIREMENTS

Below there are the requirements for all the components of the windlass electric plant depending from the motor nominal power.

1000 W 12V 1000 W 24V

A-Battery capacity 200 Ah 100 Ah
B-Power cables size 50 mm^2 - 1 AWG 35 mm^2 - 2 AWG
C-Lofrans Circuit breaker (slow time/current curve) 100 A 70 A
Fuse 5 A 5 A
Control wires size 1,5 mm^2 - 14 AWG 1,5 mm^2 - 14 AWG

NOTES

A. Battery of lower capacity decrease the windlass performances and are rapidly subjected to wear and tear.

B. This size must be increased when the length of the positive plus the negative cables are more than 25 mts. Use marine grade tinned copper wire.

C. The Lofrans circuit breaker protects the power line from short circuit and the windlass motor in case of overheating. It must be kept dry and installed in accessible place to be promptly reactivated when it trips. It can be also used to isolate the windlass from the remote controls as we strongly suggest to avoid accidental engagement.

All the switches must be wired in parallel. We strongly recommend to have a minimum of two switches to operate the windlass in case one of them gets damage.

All Lofrans equipment is CE approved.

INSTALLATION GENERAL REQUIREMENTS

Proper installation of the windlass is critical and these essential conditions listed below need be fully satisfied :

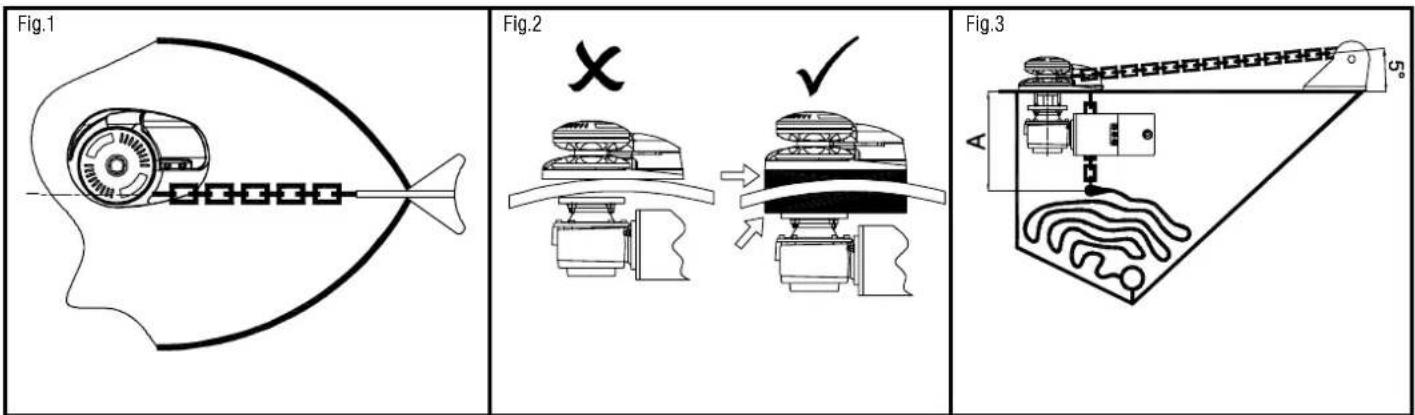

Fig.1 The gipsy of the windlass must be in line with the bow roller.

Fig.2 The deck must be flat. The structure of the boat must be adequate to the load that the windlass is able to pull. If necessary reinforce the deck with a backing pad to spread the stress.

Fig.3 When determining the position of the windlass, it is critical to locate it directly above the deepest area of the chain locker. As the chain falls into the chain locker, it must be maximized because when the chain is stored. The chain tends to gather in the shape of a pyramid, which reduce the available space. If the chain pyramid falls, then overlaps may occur, resulting in jams. The deeper the locker, the less likely this will occur. You must have a minimum of A = 12 between the underside of the deck and the top of the heaped chain. The chain locker shape is really important to limit the pyramid problem. The chain coming from the bow roller can be inclined up to 5 degrees.

INSTALLATION PROCEDURE

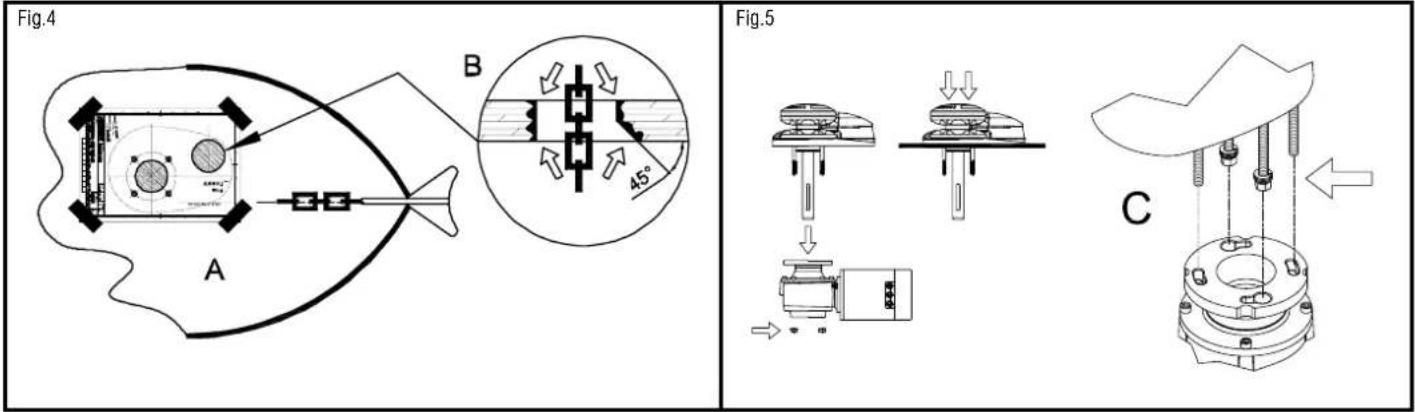

Fig.4 Carefully position the template provided to the deck. Mark and drill the holes as indicated (see Fig.A). The forward, leading edge of the chain hole should be dressed with a 45^ degree angle. A drum rasp or Dremil Tool will be helpful. Sand smooth all edges and seal (see Fig.B). Cleand the deck area and position the deck gasket supplied.

Fig.5 Loosen the 4 hex nuts (227) to separate the topworks from the gearbox and motor. Position the topworks the deck aligning the gasket properly. The gearbox flange provides keyhole assistance. Screw 2 washer, lock washer and nuts to the end of two opposing mounting studs (see Fig.C).

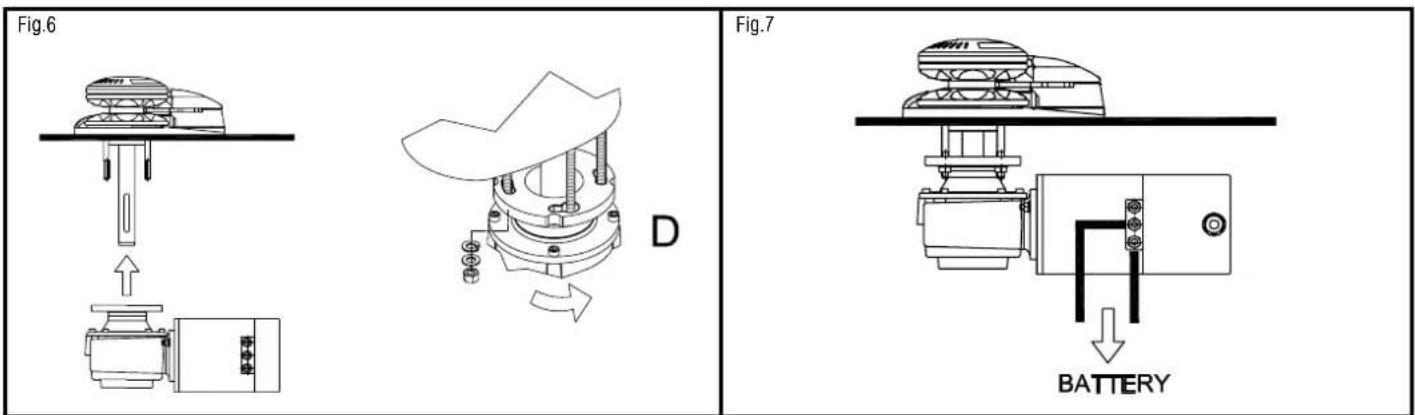

Fig.6 Join the gearbox to the windlass topworks by inserting the key (284) of the main shaft into the key way of the gearbox. Align the motor away from the chain pipe and rotate the gearbox to allow the 2 nuts to assist in supporting the weight of the lower unit (motor and gearbox). See Fig.D.

Fig.7 Fasten a washer, lock washer and hex nut to the remaining deck studs. Tighten all hardware properly. Connect the cables from the battery to the electric motor as shown in the electric diagram.

TEST PROCEDURE

ATTENTION! DO NOT OPERATE THE WINDLASS WITHOUT THE ROPE-CHAIN INTO THE GIPSY TO AVOID TO DAMAGE THE PART 905 (FINGER)

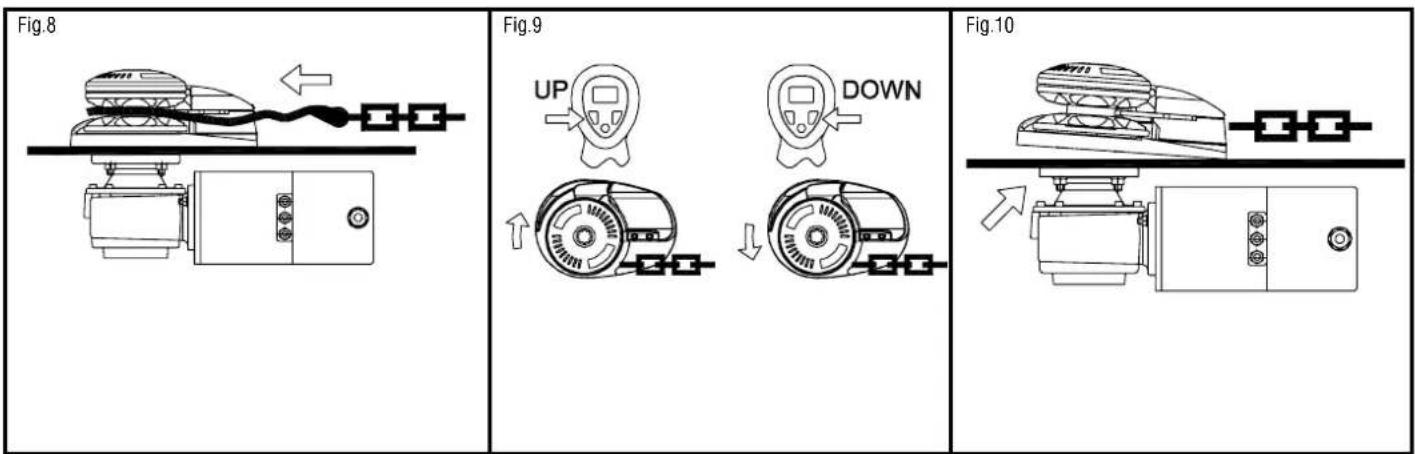

Fig.8 Introduce the rope-chain into the gipsy. Please take care to keep hands and feet away of the incoming rope-chain.

Fig.9 Turn on the remote control. Operate the UP switch. The chain will be recovered. Release the UP switch. Operate the DOWN switch. The chain will be released. If the windlass runs in wrong direction change over the UP and DOWN wires at the control box.

Fig.10 After using the windlass, we strongly recommend that the nuts are checked again to ensure they are well tightened.

The basic operations you need to know are lowering and raising the anchor by electric motor. This product is cone clutch-equipped which allows to you to lower the anchor without using the electric motor. Lofrans strongly recommend to use the chain stopper in conjunction with this windlass. The chain stopper is a device which is normally installed on the boat and will keep your chain in place on deck. It must be used to secure the anchor after anchoring.

OPERATION FIRST ... THEN ...

1. USE OF THE CLUTCH ONTHE LOW PROFILE MODEL	-	To disengage the clutch insert the handle (272) into the star-shaped slot on the gipsy cap(918) and loosen it. To engage the clutch again tight the gipsy can until you cannot move thehandle any more. Anchor and /or chain provide resistance during the tightening.
2. USE OF THE CLUTCH ONTHE STANDARD MODEL	-	To disengage the clutch insert the handle (272) supplied into the clutch nut (912) and loosenit. To engage the clutch tighten it until you cannot move the handle any more.
3. LOWERING THE ANCHOR BYTHE ELECTRIC MOTOR	• Disengage the Chain stopper• Check if the Clutch is engaged• Turn On the Circuit breaker	Simple push the button DOWN.You will have always a perfect control of the operation, which can be interrupted any momentby releasing the button DOWN .
4. AFTER ANCHORING	• Engage the Chain stopper• Engage the Clutch• Turn Off the Circuit breaker	If you have all chain, reduce the windlass load by engaging the chain stopper. If using acombination of rope and chain, fix the rope to a strong point such as a cleat.
5. RAISING THE ANCHOR	• Disengage the Chain stopper• Check if the Clutch is engaged• Turn On the Circuit breaker	Start the engine of the boat. Push the button UP while with the boat at minimum speed goingtowards the anchoring point.Do not use the windlass to pull the boat to the anchor. Releasethe button UP to stop the operation. Pay attention to the speed of the anchor, which maydamage the bow of your boat. In the event that the anchor becomes stranded and the Lofranscircuit breaker trips, wait several minutes before re-setting and try once more. Should thecircuit breaker trip again, we suggest to fix the rope or chain to a cleats and then use the boatengine to break the anchor loose.
6. DURING THE NAVIGATION	• Engage the Chain stopper• Engage the Clutch• Turn Off the Circuit breaker	Windlass must not be used as the sole means of securing the anchor to the bow fitting.Anchors should be independently secured to prevent accidental release.Use a chain stopper or a lanyard to do that.
7. LOWERING THE ANCHOR BY THE CLUTCH	• Disengage the Chain stopper• Turn Off the Circuit breaker	Disengage the clutch. As the chain falls, it can be controlled by the clutch handle.At the end of the operation engage the clutch.
8. USE THE DRUM	• Engage the Chain stopper• Turn On the Circuit breaker	Disengage the clutch. Turn clockwise around the drum with 2-3 laps of rope.Keep the end of rope. Push the button UP, recovering the rope at the same time.
9. USE OF THE MANUAL EMERGENCY	• Disengage the Chain stopper• Engage the Clutch• Turn Off the Circuit breaker	Insert the handle into the star-shaped slot (912 or 918) and turn it clockwise to exceed thegearbox spring strength (924). The stress will be hard in case of deep anchoring.

MAINTENANCE PROGRAM

Below are indicated the operations and the period we consider essential to got the best efficiency and performance of your anchor windlass.

A. Clean all the outer surfaces and the hidden points with fresh water and remove the salt layer.
B. Grease the outer rotation parts. Particularly the main shaft thread and the clutch cones. Check for evidences of corrosion and stress.
C. Check the terminals of the electric motor. Test the drop of voltage at the terminals.
D. Replace of the all outer seals. The geabox is proper filled with SAE 90 long life oil.
E. Remove the windlass from the deck to clean the salt under the base plate.

	YEARLY FREQUENCY OF USE OF THE BOAT
	LESS THAN 2 MONTHS	FROM 2 TO 6 MONTHS	OVER 6 MONTHS	CHARTER
EVERY 3 MONTHS			A,B	A,B
EVERY 6 MONTHS		A,B
EVERY 12 MONTHS	A,B,C	C		C
AFTER 24 MONTHS		D	D	E
AFTER 36 MONTHS	D,E	E		E

The finger (905) device was designed to work with the rope-chain. If you use chain only we suggest to remove it to avoid wear and tear and noise. You can fit the plug (945) where the finger was previously installed. The disinstallation needs 4 steps :

1. Low profile model : unlock the (918). Standard model : unscrew the (912) and remove the (914). Remove the (915, 910) and the (916).
2. Unscrew the two (907) and extract the (908).
3. Turn the (908) and unscrew the (905) and the (906). Insert the (945) into (908) and screw (293) again. Remove (909) from the (904).
4. Remount the (908) and all the other parts.

LOFRANS LIMITED INTERNATIONAL WARRANTY

Lofrans warrants this product for a period of 2 years subjected to the conditions listed below :

1. The product must be registered ____. The registration must be done within 30 days from the date of purchase by one of these options: online going to the web site www.lofrans.com under the page "Product Registration" and following the instructions or by faxing to +039 2004299 the completed registration card attached to the instruction manual.
2. This warranty starts from the date of purchase of the product from the original purchaser. If the product is first equipment of a new boat the warranty starts from the date of purchase of the boat.
3. This warranty covers original defects in material and workmanship.
4. This warranty is limited to the repairment and/or the replacement of the original defective part.
5. The claim of warranty must be promptly notified in writing and sent by fax or e-mail to Lofrans or Lofrans authorised distributor providing the serial number of the product and the registration warranty number. Lofrans reserves the right to require the proof of purchase of the product to accept the claim of warranty.
6. The defective part/product must be returned to Lofrans or Lofrans authorized distributor. List of authorised distributors is available on the web site www.lofrans.com.
7. This warranty does not cover failures due to : use of the product in applications for which they are not intended , corrosion , normal wear and tear , discoloration , unauthorised alteration of the product , improper installation , incorrect use or maintenance of the product , conditions that exceed the product's performance specifications
8. This warranty does not cover any loss or damages to the original purchaser due to a proven non conformity of the product with the exception of the cases ruled by the Italian law.
9. Lofrans reserves the right to disclaim the warranty in case the product be controlled by improper electric devices and/or in case of non installation of a proper circuit breaker on the electric power line.

The consumer statutory rights are not affected by this warranty according to the national legislation, disciplining the sale of goods.

This warranty is ruled by the Italian law

For every controversy the Court of Milan is competent exclusively.

APPENDIX

GIPSY CODE TYPE OF CHAIN
	DIAMETER	PITCH		ROPE	DIAMETER
06101 6 ISO 6 mm 18 mm N/A3/16"American Acco BBB 3/16" 0,78" N/A
8 ISO 8 mm 24 mm081015/16"American Acco BBB 5/16" 1,00"5/16"American G-4 ISO		16 mm – 5/8"8 German Din 766BB 5/16" 1,00"5/16"American G-4 ISO	8 mm16 mm – 5/8"5/16"	24 mm1,03"	16 mm – 5/8"16 mm – 5/8"
10101	10 ISO3/8"American G-4 ISO		10 mm3/8"	30 mm1,23"	N/AN/A
10102 10 German Din 766	10 mm	28 mm N/A

- Consumo : from 70 - 110 A (12V) , from 40 - 60 A (24V)

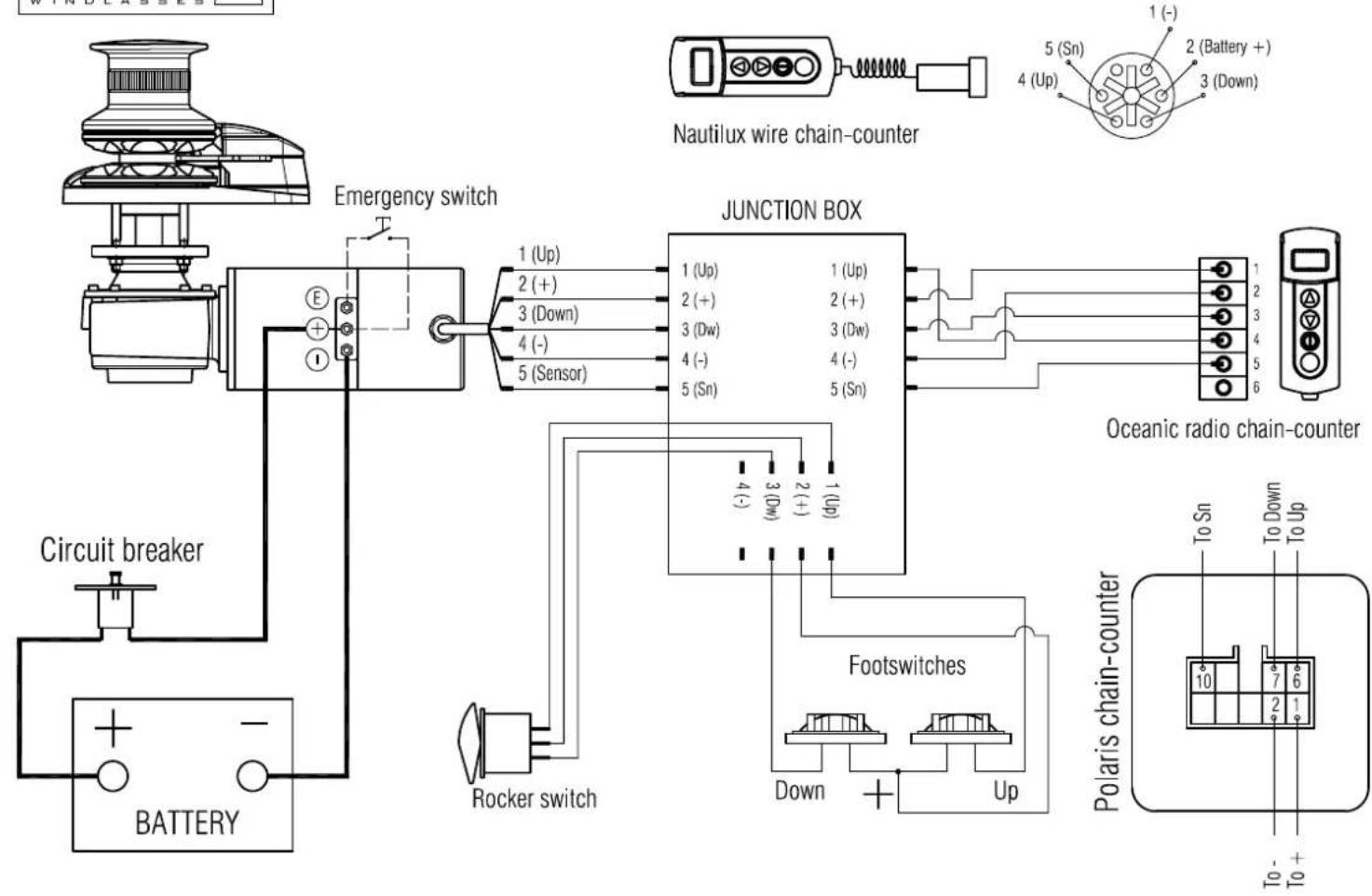

WIRING DIAGRAM WITH JUNCTION BOX

WIND CABBES Nautilux wire chain-counter 5 (Sn) 4 (Up) 1 (-) 2 (Battery +) 3 (Down) Emergency switch JUNCTION BOX 1 (Up) 2 (+) 3 (Down) 4 (-) 5 (Sensor) 4 (-) 5 (Sn) 1 (Up) 2 (+) 3 (Dw) 4 (-) 5 (Sn) 1 (Up) 2 (+) 3 (Dw) 4 (-) 5 (Sn) 4 (-) 2 (+) 1 (Up) 3 (Dw) Footswitches Down + Up Polaris chain-counter To - Sn To - Down To Up Circuit breaker BATTERY

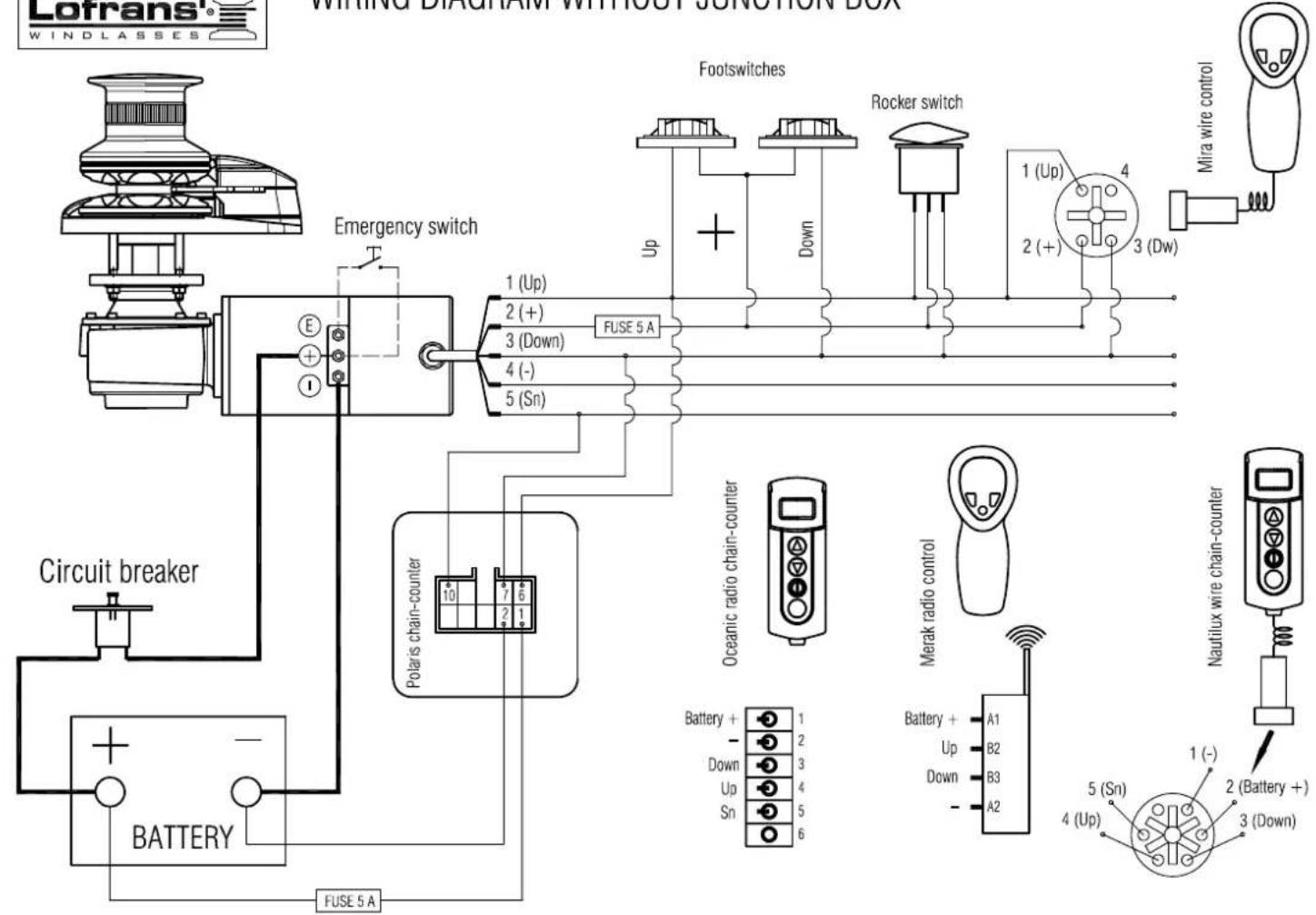

WIRING DIAGRAM WITHOUT JUNCTION BOX

Lorrans® WINDLASSES WIRING DIAGRAM WITHOUT JUNCTION BOX Footswitches Rocker switch Mira wire control Emergency switch 1 (Up) 2 (+) 3 (Down) 4 (-) 5 (Sn) FUSE 5 A Polaris chain-counter 10 7 6 2 1 Circuit breaker BATTERY FUSE 5 A Oceanic radio chain-counter Merak radio control Nautilux wire chain-counter Battery + 1 2 3 4 5 6 Battery + A1 Up B2 Down B3 - A2 1 (-) 2 (Battery +) 3 (Down) 5 (Sn) 4 (Up)

Fig.1 Fig.2 Fig.3

Fig.4 A B 45° Fig.5 C

Fig.6 D Fig.7 BATTERY


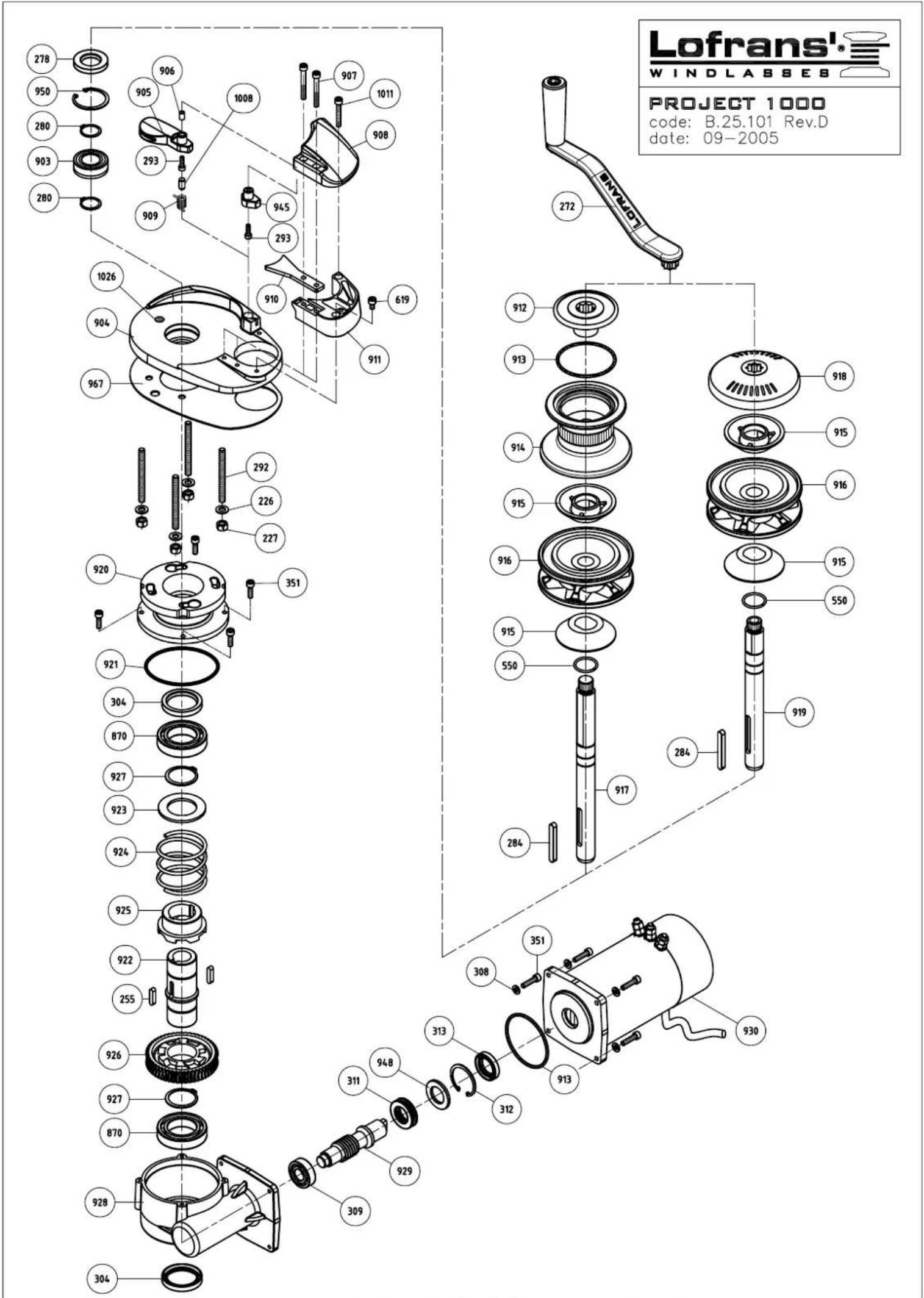

Lofrans' WINDLASSES PROJECT 1000 code: B.25.101 Rev.D date: 09-2005

PROJECT 1000

ItemDescriptionKitQ.tyltemDescriptionKitQ.ty
226 Washer for M8 screw Kit B 4 KA25101
227 Nut M8 Kit B 4 KB25101
255 Key 6x6x25 Kit C 2 KC25101
272 Handle 1 KD25101 Kit D - Circlips		1
278	Seal 25-47-7	Kit A	1
280	Circlip 25 Din 471	Kit D	2
284 Key 8x7x60 Kit C 1
292a	Stud M8x75		4
293	Hd cap screw M5x16 Kit F 1
304	Seal 40-55-7	Kit A 2
308 Washer for M6 screw Kit B 4
309	Bearing 6203		1
311 Thrust bearing 51105 1
312	Circlip 43 Din 472	Kit D 1
313	Seal 25-43-8	Kit A 1
351	Hd cap screw M6x20	Kit B 8
550	Ring		1
619	Hd cap screw M6x10	Kit B 1
870	Bearing 6008		2
903	Stainless steel bearing 6005 2RS		1
904a	Base		1
905a	Finger	Kit F	1
905b	Stainless steel finger (option)	Kit F	1
906 Spacer Kit F 1
907	Hd cap screw M6x50 Kit B 2
908a Cover 1
909	Spring	Kit F	1
910	Stripper		1
911	Support		1
912	Clutch nut		1
913	O Ring 3287 Kit A 2
914a	Drum		1
915	Cone clutch		2
916a	Gipsy chain 06101		1
916b	Gipsy chain 08101		1
916c	Gipsy chain 10101		1
916d	Gipsy chain 10102		1
917a	Std main shaft		1
918a	Gipsy cap		1
919a LP main shaft 1
920	Gearcase - upper		1
921	O Ring 4375 Kit A 1
922	Sleeve		1
923	Washer		1
924	Spring		1
925	Dog clutch		1
926 Wormwheel 1
927	Circlip 40 Din 471	Kit D 2
928	Gearcase - lower		1
929	Worm		1
930a	Electric motor 1000W 12V 1
930b	Electric motor 1000W 24V 1
945	Cap	Kit F	1
948	Bush		1
950	Circlip 47 Din 472	Kit D 1
967	Gasket		1
1008	Pivot 7x14	Kit F	1
1011	Hd cap screw M6x40	Kit B 1
1026	Cap		1

	Kit A - Seals		1
	Kit B - Screw&Nuts		1
	Kit C - Keys		1
KF25101	Kit F - Finger		1
KF25102	Kit F - S/S Finger (option)		1
