USER MANUAL Jaden T2081 Topmark

IMPORTANT: KEEP FOR FUTURE

Read this instructions carefully before use and keep for future reference.

Your child’s safety may be affected if you do not follow these instructions. Use only spare parts delivered by importer for replacing parts or reparation. Damages caused by overloading or wrong folding are not granted. Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics. Do not expose this product to extreme temperatures. WARNING

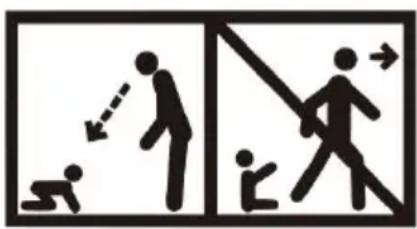

Never leave your child unattended.

The use of this chair is recommended for children from 6–36 months. The maximum weight is up to 15 kg.

Do not overload the basket with more than 2 kg.

Only to be used for a child that is able to sit in an upright position. Always use the restraint system.

Always use the 5 points safety harness. Always use the crotch strap in combination with the waist belt. Make sure that the harness is correctly fitted. Do not use the chair if any parts are broken, torn or missing. Do not use the high chair unless all components are correctly fitted and adjusted. Ensure chair is completely erected and check all locks are engaged before placing child in the chair.

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the chair. Avoid hot liquids, power cables and other possible dangers may come within range of a child.11

Check if following spare parts are in the box:

Seat with inlay, seat reducer and 5 points safety harness

2 base legs and 2 wheels Note that the fabric patterns, colour pictures and stroller accessories on this product in this instruction manual may vary from that of the product that you have purchased. If one or more of the above mentioned spare parts are missing or broken, please contact the store where you bought the product, before using. WARNING Please keep all packaging material away from babies and children, to prevent suffocation. Do not let your child play with this product. Do not allow child to stand on seat or footrest.

Do not allow objects on top of table as this chair may become unstable.

Do not allow more children, as chair may become unstable. Do not use accessories or replacement parts other than the ones recommended by instruction manual. Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommend by the manufacturer/ distributor shall be used.

Do not allow any children, animals or other object to be placed under or near the chair while child is seated in the chair.

Do not force tray into child when adjusting tray, always allow breathing space for child's comfort.

Only the tray is not enough to grant the safety of your child, ALWAYS use the 5 points safety harness. The product must be assembled by an adult.

Never put chair near steps or stairs.12

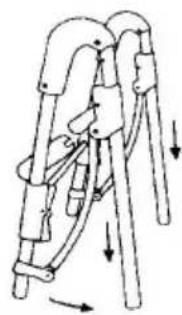

1. Remove frame from packaging.

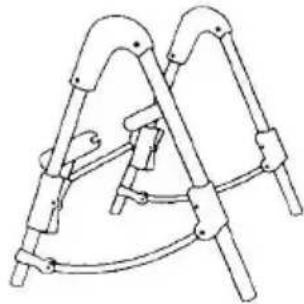

2. Press both buttons on the rear tube

and slide them down to open the rear tube.

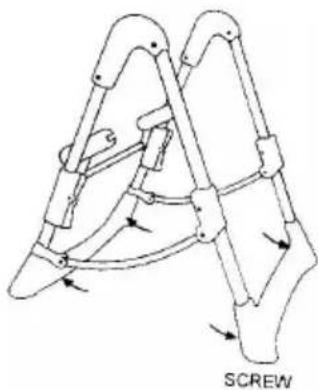

3. Put front and rear tube into plastic

base side with screw holes inside and fix 4 screws as drawing. B. Seat assembly

1. Hook the seat onto the seat support

located on top of frame (ensure that two female slots of seat support are a lined with corresponding male pieces on seat).

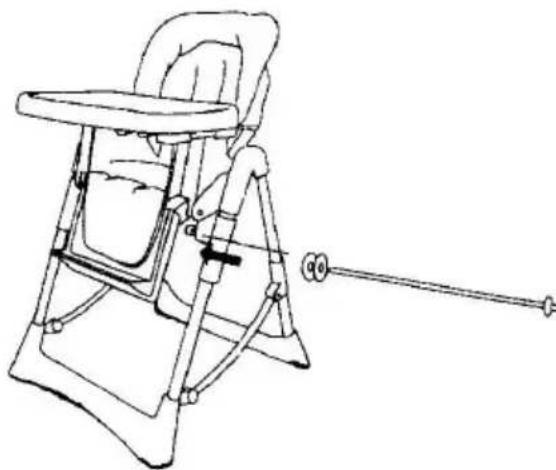

2. Secure seat with axel rod and attach

clips on correct side.

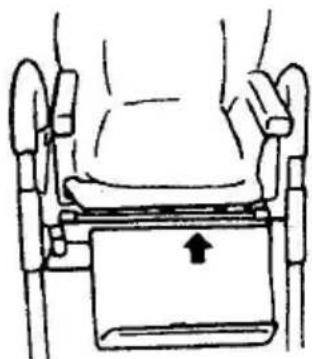

3. To install footrest, starting from the left,

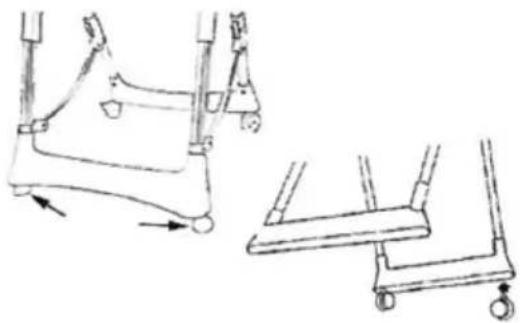

insert part of footrest, then insert other part of footrest on the right side. Continue simultaneously left to right until footrest is inserted completely.13 ASSEMBLING C. Wheel and footrest fixation

1. Take the highchair on side to the ground.

2. Fix the two base legs on the front part of

the frame on the basement plastics.

3. Fix the two wheels at the rear part of the

4. The wheels are including brakes.

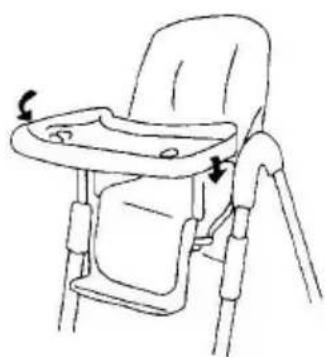

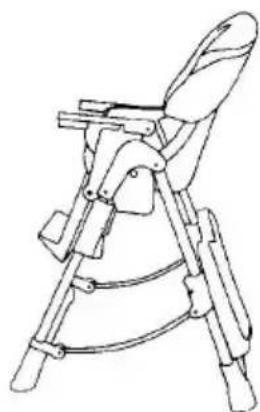

D. To install and operate tray

1. Grab either side of tray adjustment levers and

2. Tray has three-position adjustment

mechanism and can therefore be adjusted to three different positions.

3. The tray can be removed and hanged up

on the buttons located on the rear tube as drawing. EN14 USING E. To recline the backrest (3 positions)

1. Pull the backrest adjustment lever upwards to

release the backrest. Find the most suitable position and release the lever to secure the backrest in the required position.

2. The backrest can be adjusted while your child is

in the seat. F. To adjust the height of the seat (5 positions)

1. Stand in front of the high chair. Press the two but-

tons found under the seat at the same time and raise or lower the seat to the desired position. Release the buttons to secure the seat at the required height.

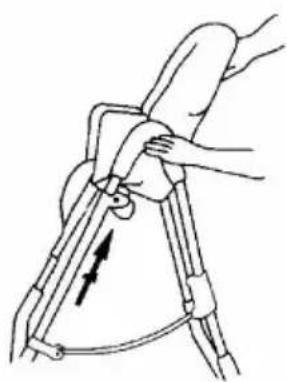

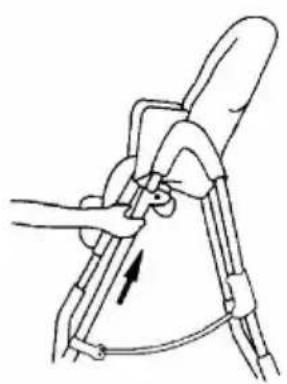

2. To adjust the seat to the highest position with child

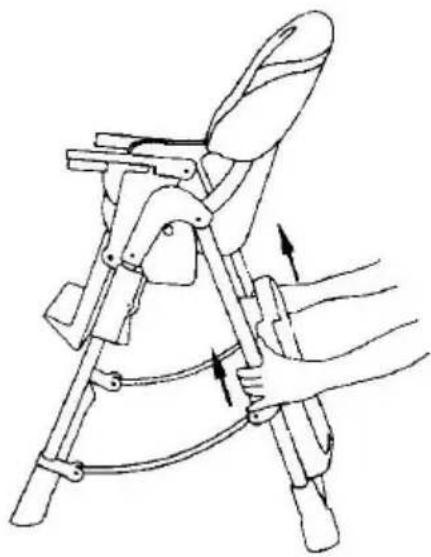

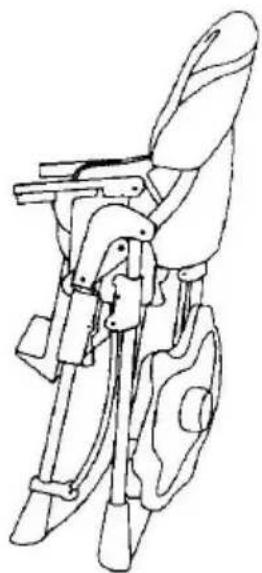

in the seat: one hand holds the frame housing, the other hand holds the lever on the top of backrest and pull it upwards to required position. Only this adjustment your child can sit in the chair. EN15 USING G. To fold the highchair

1. Unfasten the restraint harness and remove

your child from the high chair.

2. Remove the tray and hang it up on the rear

3. Stand behind the chair, move your body

down and press two buttons found on either side of rear tubes and push the rear tubes forwards until an audible click is heard to indicate that the high chair is secured in the closed position.

4. When highchair is in closed position push

the buttons on both sides of the armrest so you can lift up the armrests. You can scroll down the seat to minimize the space.

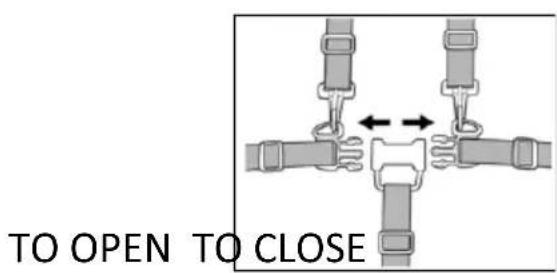

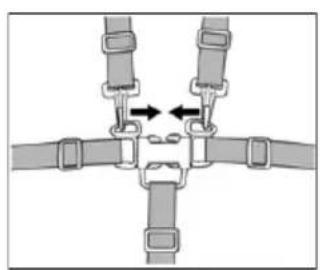

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts. Lock buckle parts of hip belts together into the cross belt (belt between the legs) until secure click is heard. Adjust shoulder, hip and crotch belt in right length to fit your child. To release belt just squeeze the buttons.

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of time. Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not dry clean or use bleach. Do not machine wash, tumble or spin dry, unless the care labelling on the product permits these methods. The fabric coating is 100% PVC. Inlay and chair may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the parts may be affected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area. Always check parts regularly for tightness of screws, nuts and other fasteners, tighten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts. Use only parts and accessories approved by the supplier.

GUARANTEE We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product. Damages caused by overloading or wrong folding are not granted. To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the first owner and is not transferable. Top Mark BV Postbus 308 8200 AH Lelystad NETHERLANDS consument@topmark.nl www.topmark.nl EN 1498818
