Product type	Refrigerator-freezer
Brand	Samsung
Model	RB29FWRNDBC
Climate class	SN, N, ST, T (from +10°C to +43°C depending on class)
Recommended refrigerator temperature	3 °C
Recommended freezer temperature	-19 °C
CoolSelect Zone	Yes, with adjustable temperature range (meat/fish at 0°C, vegetables at 3°C)
Quick Freeze function	Yes, active for 50 hours before returning to previous temperature
Sealed vegetable drawer	Yes, with humidity control (depending on model)
Power supply	220-240 V / 50 Hz (standard estimate)
Dimensions (approx.)	Height: 178 cm, Width: 60 cm, Depth: 65 cm (estimate)
Capacity (approx.)	290 litres (estimate based on RB29 model)
Weight (approx.)	65 kg (estimate)
Number of shelves	Adjustable shelves
Interior lighting	LED (common assumption)
Safety instructions	Do not use as built-in appliance, respect the climate class
Maintenance and cleaning	Clean regularly, defrost as needed
Spare parts available	Yes, for 7 years (thermostats, sensors, etc.) and 10 years (door gaskets)
Warranty	24 months minimum
Regulatory information	EPREL registration via https://eprel.ec.europa.eu

Frequently Asked Questions - RB29FWRNDBC SAMSUNG

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature is 3 °C for the refrigerator and -19 °C for the freezer.

How to activate the Quick Freeze function?

Activate the Quick Freeze function at least 20 hours before placing a large amount of food in the freezer. It runs for 50 hours then returns to the previous temperature. Remember to deactivate it if necessary.

What is the CoolSelect Zone?

The CoolSelect Zone is a compartment with adjustable temperature: 0 °C for meat and fish, 3 °C for vegetables (models RB29*C* and RB31*C*).

What are the climate classes of this appliance?

The appliance can operate in climate classes SN (+10 to +32 °C), N (+16 to +32 °C), ST (+16 to +38 °C) and T (+16 to +43 °C). Check the rating plate for the exact class.

How to store food for optimal preservation?

Cut food into small portions, use shallow containers, cover food to avoid odors. Place fruits and vegetables in the sealed vegetable drawers with humidity control. Do not store perishable items in the door.

What is the storage time for food in the refrigerator and freezer?

Refer to the table in the manual. Examples: milk 1 week in the fridge, 1 month in the freezer; fresh meat 3-4 days in the fridge, 2-3 months in the freezer.

How to adjust the humidity level in the vegetable drawers?

The vegetable drawers are equipped with humidity control devices. For vegetables, set to high humidity; for fruits, set to low humidity (depending on the model).

Can I use this appliance as built-in?

No, this appliance is not intended to be built-in. It must be installed freestanding.

Where to find spare parts and how long are they available?

Parts such as thermostats, sensors, handles are available for 7 years; door gaskets for 10 years. Visit http://www.samsung.com/support.

How to register my product on EPREL?

Go to https://eprel.ec.europa.eu, enter the model identifier shown on the energy label (RB29FWRNDBC) to view regulatory information.

USER MANUAL RB29FWRNDBC SAMSUNG

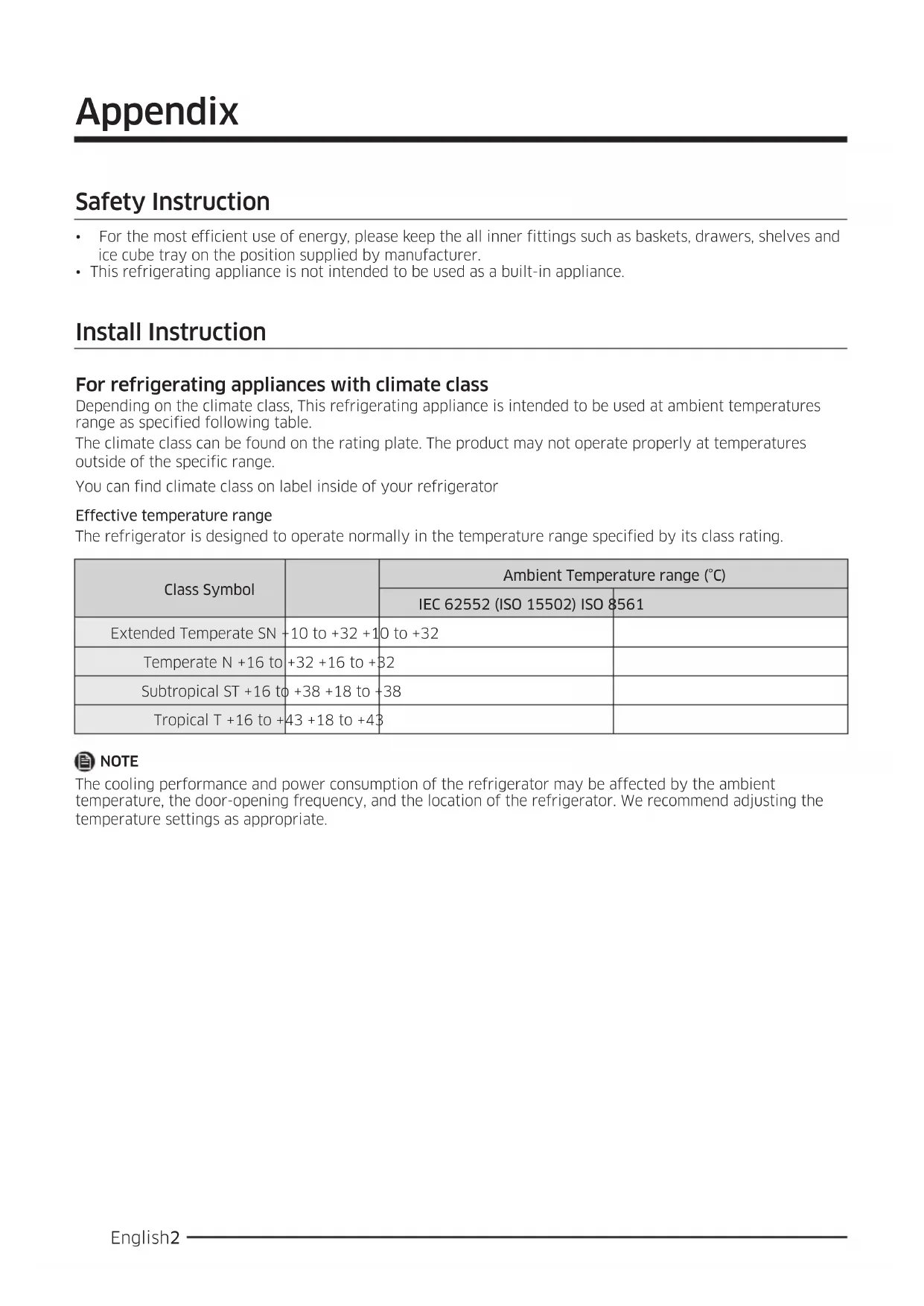

• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Install Instruction

For refrigerating appliances with climate class

Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

You can find climate class on label inside of your refrigerator

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN	+10 to +32 +10	to +32
Temperate N +16 to	+32 +16 to +32
Subtropical ST +16 to	+38 +18 to +38
Tropical T +16 to +43 +18 to +43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

Fridge: 3^
Freezer: -19 °C
- Meat and fish of Coolselect Zone: 0^ C (only for RB29****C** & RB31****C** model)
Vegetable of Coolselect Zone: 3^ (only for RB29***C** & RB31***C** model)

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25^ .

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

Placement of Foods

Shelves Shelves should be adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed risper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions. Crispers are equipped with controls devices to control the humidity level. ("Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don't store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product Refrigerator Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month -

Meat

Product Refrigerator Freezer
Fresh roasts, steaks, chops	3-4 days	2-3 months
Fresh ground meat, stew meat	1-2 days	3-4 months
Bacon	7 days	1 month
Sausage, Raw from pork, beef, turkey	1-2 days	1-2 months

Poultry / Eggs

Product Refrigerator Freezer
Fresh poultry	2 days	6-8 months
Poultry salad	1 day	-
Eggs, Fresh in shell	2-4 weeks	Not recommended

Fish / Seafood

Product Refrigerator Freezer
Fresh fish	1-2 days	3-6 months
Cooked fish	3-4 days	1 month
Fish salad	1 day	Not recommended
Dried or pickled fish	3-4 weeks -

Fruits

Product Refrigerator Freezer
Apples 1 month -
Peaches 2-3 weeks -
Pineapple 1 week -
Other fresh fruit 3-5 days 9-12 months

Vegetables

Product Refrigerator Freezer
Asparagus 2-3 days -
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days -
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week -
Carrots, beets, radishes 2 weeks -

Information for model and ordering spare parts

Model information

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown

Part information

The minimum period during which spare parts, necessary for the repair of the appliance, are available
7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers)
- 10 Years door gaskets
The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.
- Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
You can find professional repair information on http://samsung.com/support.
You can find user servicing manual on http://samsung.com/support.
