50f Neon - Smartphone ARCHOS - Free user manual and instructions

Product Type	Smartphone
Brand	ARCHOS
Model	50f Neon
Network	3G / 2G (dual SIM)
SIM slots	2 x Micro-SIM
Memory card slot	Micro-SD (up to 32 GB)
Battery	Removable rechargeable lithium-ion
Charging	Micro-USB port, included power adapter
Audio jack	3.5 mm jack
Operating system	Android (unspecified version)
Sensors	Not specified (estimated: accelerometer, proximity)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth
Weight	Approximately 150 g (estimated)
Dimensions	Approximately 145 x 72 x 10 mm (estimated)
Care and cleaning	Clean with a soft, dry cloth. Avoid water and chemicals.
Safety	Do not expose to extreme temperatures. Use only the provided charger.
Spare parts and repairability	Removable battery. For other repairs, contact ARCHOS support.
General information	User manual available in multiple languages. Support page: faq.archos.com

Frequently Asked Questions - 50f Neon ARCHOS

How to insert the SIM cards and memory card?

Remove the back cover using the notch. Insert the Micro-SIM cards into slots 1 and 2 (3G/2G) and the Micro-SD card into slot 3, following the diagram. Replace the cover.

How to charge the battery for the first time?

Plug the charging cable into the micro-USB port and connect it to the charger. Fully charge the battery before first use.

How to turn on the phone?

Press and hold the ON/OFF button until the screen lights up. Then follow the on-screen instructions.

How to enable mobile data?

Pull down the status bar, then touch it again to access quick settings. Select 'Settings', then under 'Wireless & networks', choose 'Data usage' and the tab for your SIM card. Turn on the 'Mobile data' switch.

How to connect to a Wi-Fi network?

Pull down the status bar, touch it again, then select the Wi-Fi icon. Choose 'WiFi' at the bottom, then select the desired network. If it is protected, enter the password.

What to do if the phone becomes unresponsive?

Press the ON/OFF button for 10 seconds. If that does not work, remove the battery, reinsert it, and turn the device back on.

How to update the phone software?

Go to 'Settings' > 'About phone' > 'Update' to check if an update is available.

How to reset the phone to factory settings?

Back up your files, then go to 'Settings' > 'Backup & reset' > 'Factory data reset'. Confirm the operation.

The startup logo loops repeatedly, what to do?

Visit faq.archos.com, select your device, then under 'Backup & reset', choose 'How to reset my ARCHOS' and follow the instructions.

Where to find the declaration of conformity?

The declaration of conformity is available at http://www.archos.com/support/download/conformity/CE_DOC_AC50FNE.pdf.

USER MANUAL 50f Neon ARCHOS

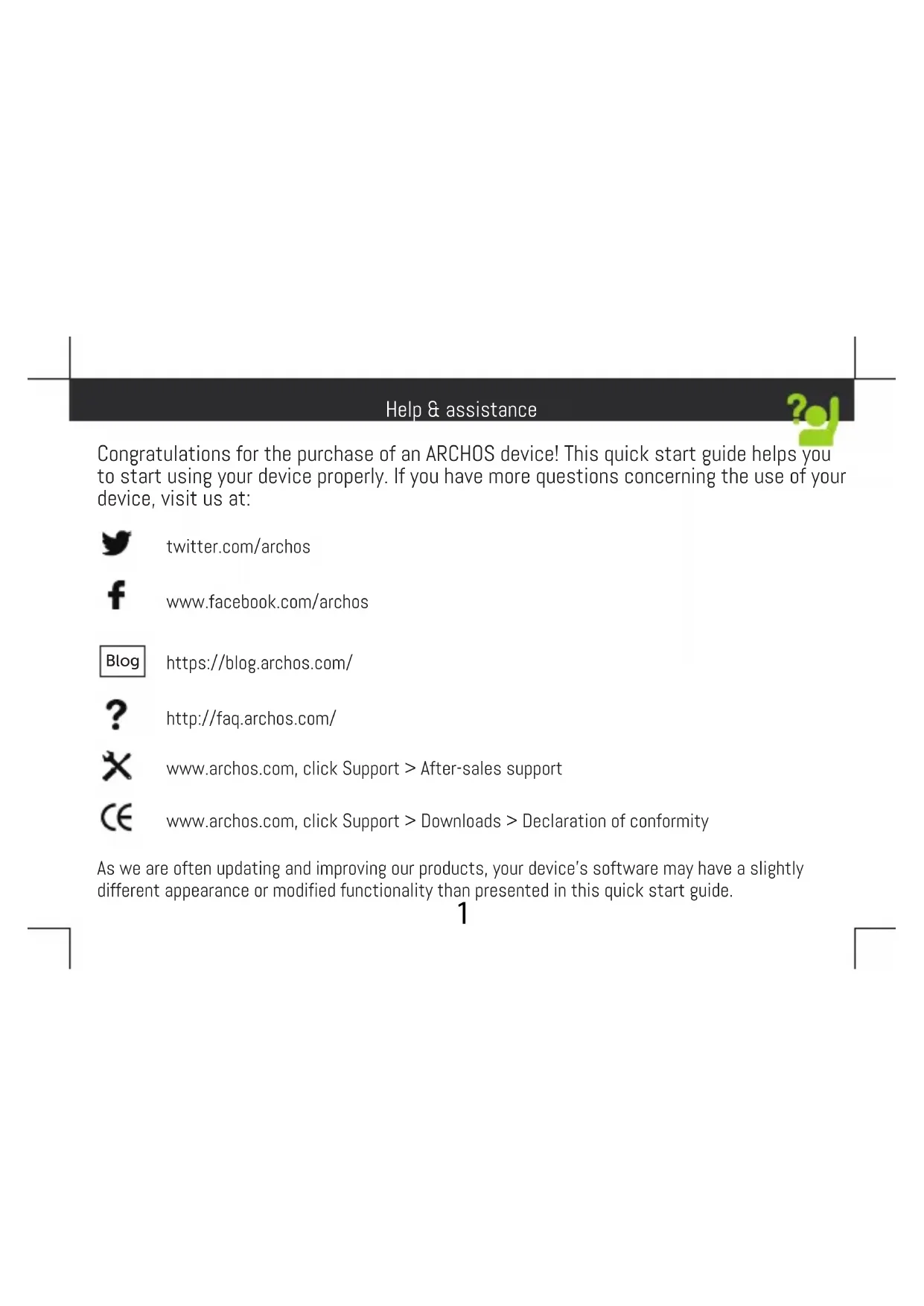

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

ARCHOS 50F Neon

Warranty, legal and safety notice

Quick start guide

Charger adapter

Charging cable

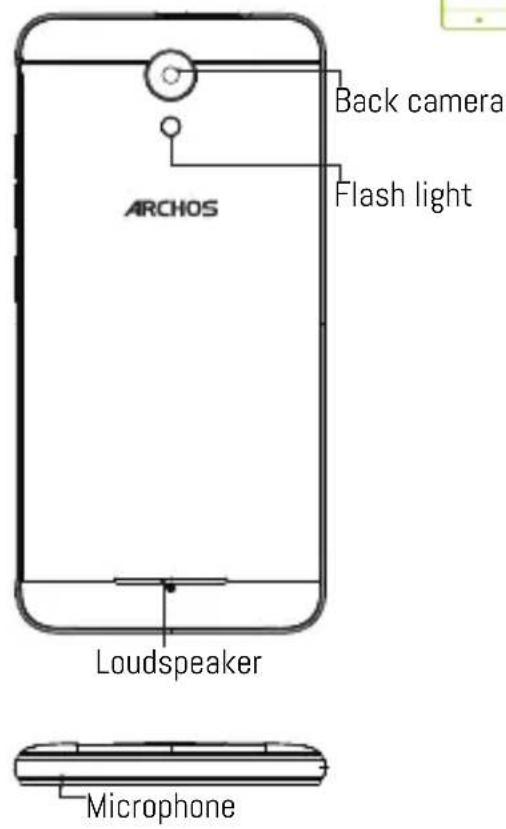

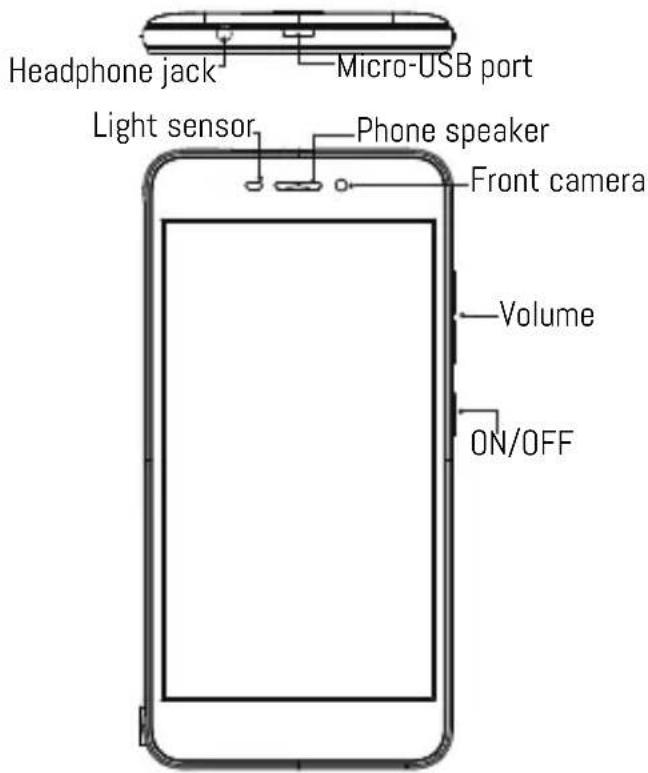

Describing your device

Assembling

After you have unpacked your mobile phone box:

1. Remove the device's back cover using the notch.
2. Insert your SIM card or Memory card in the corresponding slot.
3. Insert the device's battery.
4. Replace the back cover.

3G/2G	slot 1	Micro-SIM
3G/2G	slot 2	Micro-SIM
Memory card	slot 3	Micro-SD card

When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet. Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device.

Activating mobile date connection

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the Settings icon.
4. In Wireless & networks, select Data usage, then the SIM card tab.
5. Slide the Mobile data switch to turn on/off.

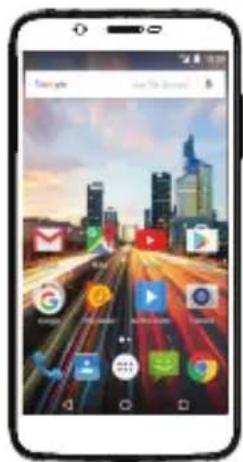

Activating WiFi connection

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

Troubleshooting

• My device is frozen: press the ON/OFF button for more than 10 seconds or remove and replace the battery, then turn on the device.
• My device encounters dysfunctions: go to Settings > About phone > Check for update system to check for updates. If your device is up-to-date, try to reset the device from Settings > Factory data reset > Backup & restore. We recommend to save your files before resetting.
• My WiFi reception is too low: make sure you are not far from the WiFi hotspot. Update the firmware of the device: http://www.archos.com/support. Reset and redefine your connection parameters. Contact your WiFi connection provider.
• My device bootlogo is playing in a loop: you need to completely reset your device. Go to faq.archos.com and select your device. In Backup & Recovery, select How to reinitialize my ARCHOS.

FOR MORE ANSWERS ABOUT YOUR TECHNICAL DIFFICULTIES, DO NOT HESITATE TO VISIT: FAQ.ARCHOS. COM

Contactez-nous

www.archos.com, click Support > After-sales support

Activating mobile date connection

Activating WiFi connection

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction ReasonRemark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to Military Radiolocation use. Refarming of the 2.4 GHz band 10 mW e.i.r.p. within the has been ongoing in recent years to allow current relaxed band 2454-2483.5 MHz regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications Federation

Note: Frequencies 2454-2483.5MHZ are restricted to indoor use in France.

SAR

After the laboratory measurements, the SAR values for this mobile are:

• Head Max: 0.665 W/Kg (10g)
• Body Max: 1.364 W/Kg (10g)

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC50FNE.

pdf
