HZ30 - Heated blanket/cushion INVENTUM - Free user manual and instructions

Product type	Heating pad / cushion
Brand	Inventum
Model	HZ30
Dimensions	26 x 26 x 32 cm
Weight	Approximately 1 kg
Power supply	220-240 V ~ 50-60 Hz
Power	100 W
Outer material	Teddy (plush)
Removable cover	Yes, hand washable
Number of heat levels	3 (1, 2, 3)
Level display	Illuminated
Automatic shut-off	Yes, after 90 minutes
Rapid heating	Yes, during the first 10 minutes
Safety system	ISS (Inventum Safety System) – overheat protection
Recommended use	Warming human feet, do not use for animals
Usage precautions	Do not fold, do not wet, do not insert needles
Cleaning	Switch: dry cloth; cover: hand wash (gentle detergent)
Storage	In original packaging, without folding, after cooling
Warranty	24 months
After-sales service	Return postage paid with invoice

Frequently Asked Questions - HZ30 INVENTUM

How to clean the Inventum HZ30 heating pad?

Unplug the device before any cleaning. The switch can be cleaned with a dry cloth. The removable teddy cover can be hand washed with a delicate laundry detergent. Do not machine wash, do not bleach, do not iron. Make sure everything is completely dry before reusing.

The heating pad turns off by itself after a while, is that normal?

Yes, the HZ30 heating pad is equipped with an automatic shut-off after approximately 90 minutes of use. The temperature levels then flash. To turn it back on, set the switch to 0 (off), wait 5 seconds, then select a heat level again.

Can I use this heating pad for a child or a person with reduced mobility?

This pad should not be used by very young children (0-3 years). Children aged 3 to 8 can use it under adult supervision with the switch set by an adult. Persons with reduced sensitivity to heat should avoid using it. For children over 8 and disabled persons, supervision or awareness of risks is required.

What are the different temperature levels and how to set them?

The sliding switch allows you to choose between 3 positions: 1 (minimum heat), 2 (medium heat), and 3 (maximum heat). Position 0 turns off the device. For rapid heating, use level 3 for the first 10 minutes, then lower to avoid overheating.

What to do if the pad no longer heats up and the lights don't turn on?

This may indicate that the ISS safety system has irreversibly deactivated the device. First check that the outlet works and that the switch is on 1, 2, or 3. If nothing lights up, the pad must be sent to after-sales service for repair. Do not attempt to repair it yourself.

Can I use this heating pad to warm a bed or for animals?

No, this pad is designed only for warming human feet. It should not be used under a bed or for animals. Additionally, do not use it with shoes.

How to store the heating pad when not in use?

Let it cool completely, then store it in its original packaging or flat. Do not fold the pad and do not place objects on it, as this could damage the internal wires. Keep it in a dry place.

What is the power and electricity consumption of the HZ30?

The power is 100 W at 220-240 V. This corresponds to moderate power consumption, suitable for individual use.

Is the cover removable and washable?

Yes, the teddy cover is removable and can be hand washed with a delicate laundry detergent. Do not machine wash, do not spin dry, and do not tumble dry. Make sure it is completely dry before putting it back on the device.

Is there a warranty on this product and how to activate it?

The warranty is 24 months from the date of purchase. Keep your receipt or invoice. The warranty does not cover normal wear, improper use, or unauthorized repairs. In case of a problem, contact after-sales service and return the device postage paid with the invoice.

USER MANUAL HZ30 INVENTUM

Illustration of a small wooden sock with dotted pattern and a remote control unit, placed on a textured surface (no text or symbols visible)

Illustration of a pink and white patterned sock with a small thermometer placed on its side (no text or symbols visible)

explanation of symbols page 10
1. safety instructions page 11
2. appliance description page 13
3. intended use page 13
4. operation page 13
5. cleaning & maintenance page 14
6. storage page 15
7.disposal page 15
8. problems & solutions page 15
guarantee & after sales service page 29

Deutsch

	Read the instructions! Do not wash.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chemically.
			The textiles used for this device meet stringent human ecological requirements of Oeko Tex Standard 100, as verified by Hohenstein Research Institute.
	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Failure to observe the information provided below van lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. Therefore, observe this safety information and pass these instructions together with the product.
• This foot warmer must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating.
• This foot warmer may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This foot warmer may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the foot warmer safely.
• This foot warmer may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the foot warmer.
• Cleaning and user maintenance shall not be made by children without supervision.
• This foot warmer is not intended for use in hospitals.
• This foot warmer must not be used to keep animals warm.
• Do not use this foot warmer with shoes.
• Do not insert needles.
• Do not use folded or bunched up.
• Do not use if wet.
• The electrical and magnetic fields emitted by this foot warmer may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic

field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this foot warmer.

• Do not pull, twist or make sharp bends in the cables.
• This foot warmer must be examined frequently for signs of wear or damage. If there are such signs, if the foot warmer has been mis-used or does not work, return it to the supplier before switching it on again.
• If the mains connection cable of the foot warmer is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• When in use, the electronic components in the controll of the foot warmer make the controll slightly warm. The controll should therefore never be covered or placed on the foot warmer when it is in operation.
• If you should have any questions about using our devices, please contact Customer Services.
  • Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

2 appliance description

HZ30/HZ31

Electric foot warmer

Size: 26 x 26 x 32 cm

Switch with 3 illuminated settings

Automatic switch off after 90 minutes

Removable lining hand washable

100 Watt

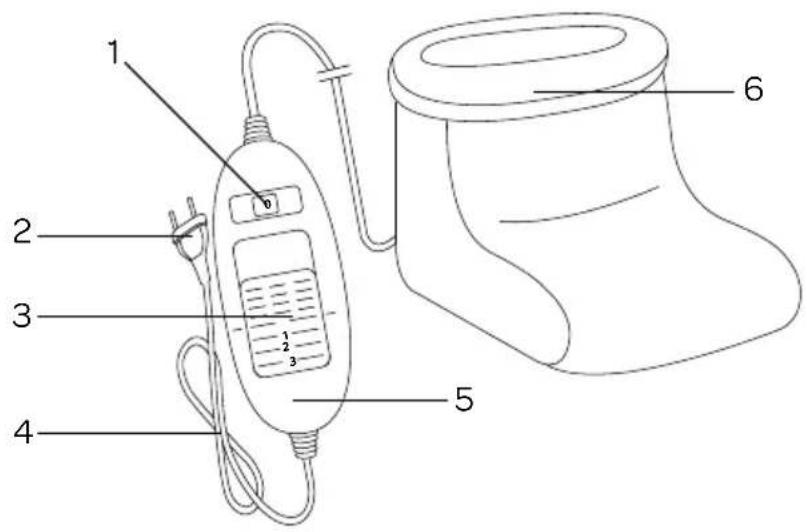

1. Illuminated display for temperature settings
2. Mains plug
3. Sliding switch for ON/OFF and temperature settings
4. Mains cable
5. Controller
6. Foot warmer

3 intended use

CAUTION

This foot warmer is intended only for heating human feet.

4 operation

4.1 Safety

CAUTION

This foot warmer is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the foot warmer from overheating by automatically switching off in the event of a fault. If the safety system switches off the foot warmer automatically as a result of a fault, the settings are no longer illuminated even when the foot warmer is switched on. Please note that, after a fault has occurred, the foot warmer can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

Insert the mains plug into the socket.

4.3 Switching on

To switch on the foot warmer, set the slider for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature setting is illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting1: minimum heat

Setting 2: medium heat

Setting 3: maximum heat

NOTE

• The fastest way to heat up the foot warmer is to select the highest temperature setting of the controller, first.

NOTE

- This foot warmer has a fast heating function, which allows the foot warmer to warm up faster in the first 10 minutes.

WARNING

If the foot warmer is used continuously (for several hours) it is recommended to use the lowest setting (1) of the control to avoid overheating of the feet of the user, which may lead to burns to the skin.

4.5 Automatic switch off

This foot warmer is equipped with an automatic switch-off function. This turns off the heat supply approx. 90 minutes after the initial use of the foot warmer. The temperature setting display then starts to flash. So that the foot warmer can be switched back on, the sliding switch for ON/OFF and temperature setting must first be set to setting O (OFF). After about 5 seconds it is possible to switch it on again.

4.6 Switching off

To switch off the foot warmer, set the slider for ON/OFF and temperature settings to setting 0 (OFF). The temperature settings are then no longer illuminated.

NOTE

If the foot warmer is not in use, switch the sliding switch for ON/OFF and temperature settings to setting 0 (OFF) and unplug the mains plug from the socket.

5 cleaning & maintenance

WARNING

Before cleaning, always remove the mains plug from the socket first. Otherwise there is a risk of electric shock.

CAUTION

- The controller must never get in contact to water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

Small marks on the foot warmer can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

- Please note that the foot warmer may not be washed, chemically cleaned, wrung out, tumble dried, put through a mangle or ironed. Failure to do so may damage the foot warmer.

The removable fleece lining can be washed by hand.

Use a delicate laundry detergent and measure it out according to the manufacturer's instructions.

WARNING

- Only use the foot warmer again once the foot warmer and fleece insert have fully dried. Otherwise there is a risk of electric shock.

14 • English

6 storage

If you do not plan to use the foot warmer for a long period of time, we recommend that you store it in the original packaging.

CAUTION

Please allow the foot warmer to cool down first. Otherwise, the foot warmer may be damaged. To avoid sharp folds in the foot warmer, do not place any objects on top of it while it is being stored.

7 disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8 problems & solutions

Problem Cause Remedy
The temperature settings are not illuminated while- the mains plug is connected to a working socket;- the sliding switch is set to 1, 2 or 3.	The safety system hasswitched the foot warmeroff permanently.	Send the foot warmer to the servicedepartment.

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.
• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.

• Guarantee is not valid in case of:

• normal wear;
• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance;
  for assessment by our technical department.

• The guarantee is not valid for:

• normal wear;
• external cables;
• (interchangeable) signal- and controllamps

for assessment by our technical department.

after sales service

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.
