Product type	Aviator watch
Brand	IWC
Model	Pilot Mark XVII 3265
Movement	Automatic mechanical, 21 jewels
Power reserve	Approximately 42 hours
Water resistance	6 bar (60 meters)
Crystal	Sapphire, hardness 9 Mohs
Case	Steel, screw-down case back, shock and magnetic field protection
Bracelet	Metal with fold-over clasp and precise adjustment up to 6 mm
Functions	Hours, minutes, seconds, date, luminescence
Case diameter	41 mm (approx.)
Thickness	11 mm (approx.)
Weight	100 g (approx.)
Power	Automatic and manual winding
Maintenance	Overhaul every 5 years, annual water resistance check
Safety	Screw-down crown, water resistance 6 bar, anti-magnetic
Spare parts	Available at authorized dealer
General information	Made in Switzerland, multilingual instructions

Frequently Asked Questions - Pilot Mark XVII 3265 IWC

How to set the date on the IWC Pilot Mark XVII watch?

To set the date, pull the crown to position 1 and turn left. Do not do it between 8 PM and 2 AM to avoid damaging the movement.

How to manually wind the watch?

In position 0 (unscrewed), turn the crown about 20 times for a full wind. This ensures maximum accuracy.

How to set the time accurately?

Pull the crown to position 2 to stop the movement. Ideally, stop the seconds at 60. Advance the minute hand a few marks beyond the desired time, then move it back exactly to the minute mark. Push back to position 0 to start the seconds.

What is the water resistance of the watch?

The water resistance is 6 bar (equivalent to 60 meters). The crown must be screwed down to ensure this water resistance.

How to adjust the size of the metal bracelet?

Use the provided tool to push in the fixing pins and remove links. The clasp has a precise adjustment of up to 6 mm by pressing the IWC pusher.

How to read the time in the dark?

The hour and minute hands and the dial indexes are luminescent. The triangle at 12 o'clock helps with orientation.

What is the power reserve of the watch?

The power reserve is approximately 42 hours after full winding of the automatic movement.

When should the watch be serviced?

IWC recommends a water resistance check once a year and a complete overhaul every 5 years at an authorized dealer.

Why avoid setting the date between 8 PM and 2 AM?

During this period, the date change mechanism is in action. Manual adjustment could damage the gears, so it is not recommended.

How to maintain the leather strap of the watch?

Avoid any contact with water, oils, solvents, and cosmetics. Leather is a natural material that discolors or deteriorates quickly upon contact with these substances.

USER MANUAL Pilot Mark XVII 3265 IWC

Welcome to the small circle of individuals who, if we are to be absolutely precise, demand slightly more of a watch than absolute precision. Appreciation of a watch is more than mere appreciation of the correct time. It is enthusiasm for an ingenious idea. For the interplay between precision and imagination. Between time and timelessness. Between boundaries and infinity. Between laws to which the entire world is subject, and taste, which cannot be dictated to anyone. That is why, since 1868, we have been devoting rather more of our time to watches that must not only run with absolute precision but which also, with every passing second, exert a fascination with the great achievements of master craftsmanship: a fascination with new inventions of a technical, material or formal nature, even if they are concealed in minute details that are perhaps not even visible. You are now the owner of a beautiful new example of this IwC tradition. We would like to congratulate you on your choice and send you our best wishes for the time you will spend with your watch, which perhaps cannot be described with any greater accuracy than it is here.

IWC MANAGEMENT

THE TECHNICAL REFINEMENTS OF THE PILOT'S WATCH MARK XVII

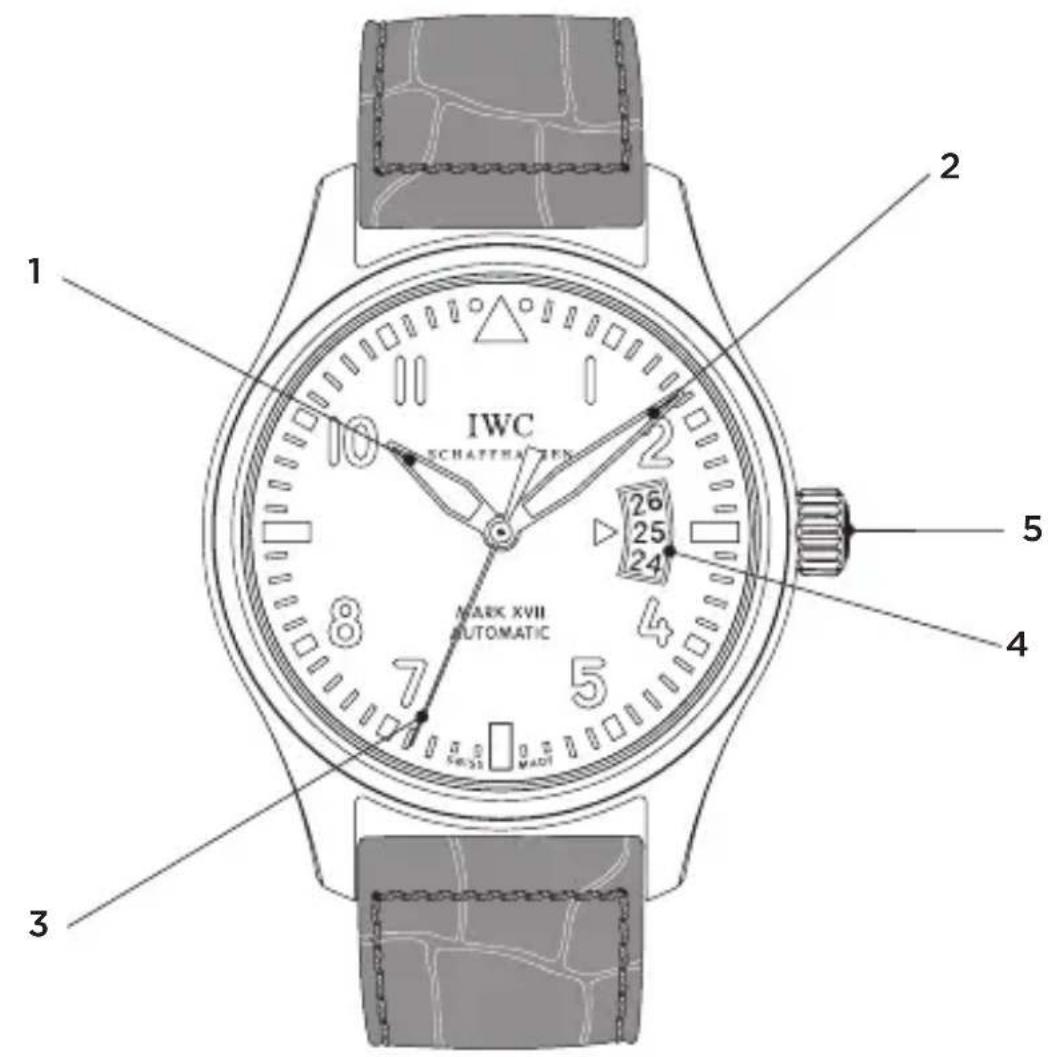

Your IWC watch shows you the time in hours, minutes and seconds together with the date. The mechanical movement with automatic winding has 21 jewels (synthetic rubies) and a power reserve of approximately 42 hours when fully wound. Your Pilot's Watch Mark XVII is protected by a sapphire glass of hardness grade 9 on Mohs' scale. The glass is retained securely in the case at low pressure, for example when a drop in air pressure occurs at extreme altitudes. Your watch is water-resistant 6 bar. The soft-iron inner case provides protection against magnetic fields. To ensure that this extraordinary watch continues to perform faultlessly in the future, it is essential to observe a few important operating instructions.

1 Hour hand Date display 4
2 Minute hand Screw-in crown 5
3 Seconds hand

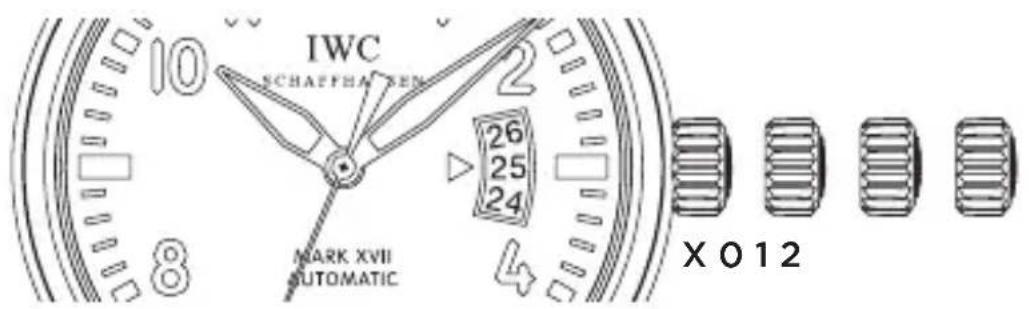

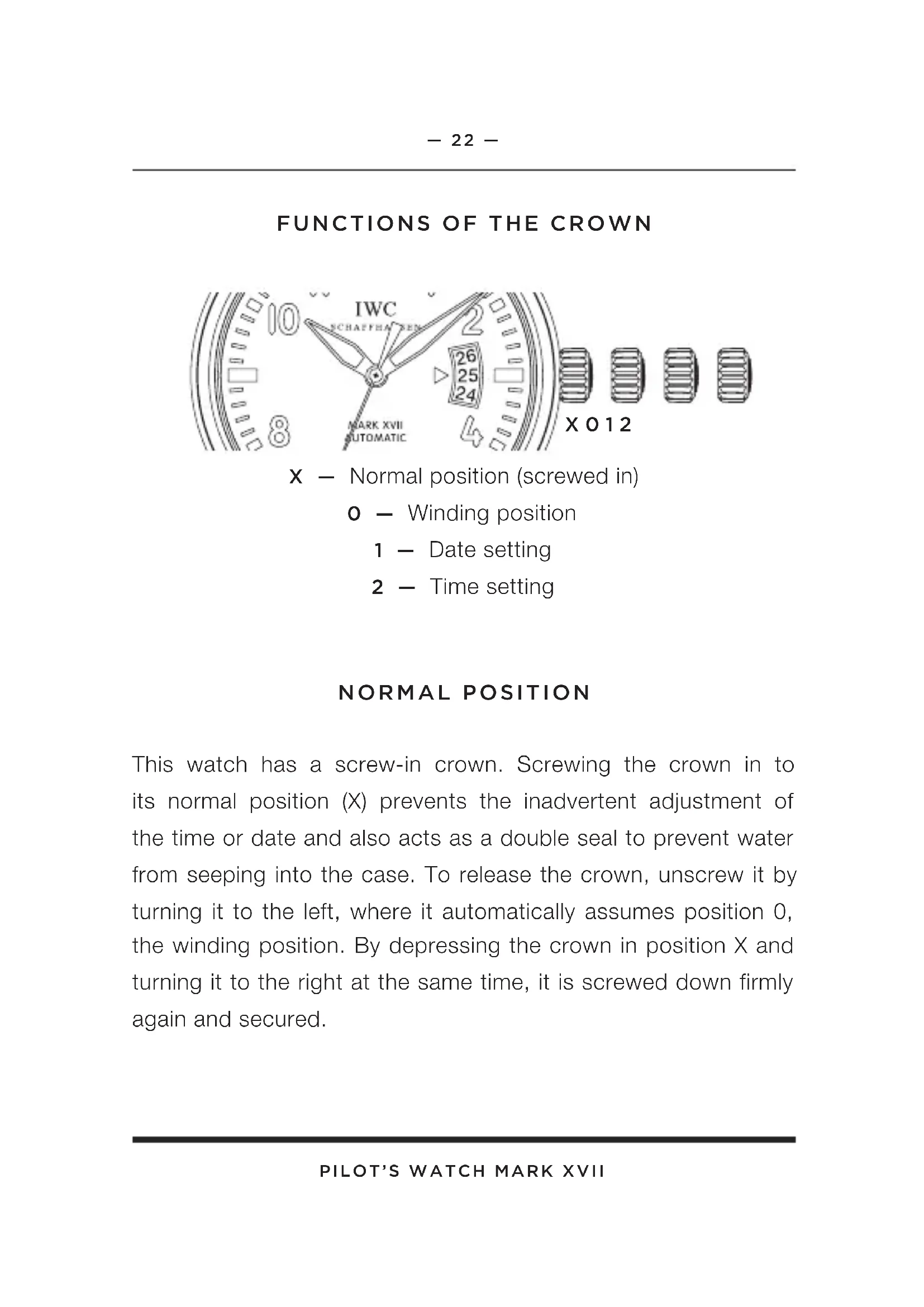

FUNCTIONS OF THE CROWN

X - Normal position (screwed in)

0 - Winding position

1 - Date setting

2 - Time setting

NORMAL POSITION

This watch has a screw-in crown. Screwing the crown in to its normal position (X) prevents the inadvertent adjustment of the time or date and also acts as a double seal to prevent water from seeping into the case. To release the crown, unscrew it by turning it to the left, where it automatically assumes position 0, the winding position. By depressing the crown in position X and turning it to the right at the same time, it is screwed down firmly again and secured.

WINDING POSITION

With the crown in the winding position (0), you can also wind the automatic movement by hand. A few revolutions of the crown are enough to start the movement. However, it is better to wind the watch by turning the crown through approximately 20 revolutions as this will ensure maximum accuracy.

DATE SETTING

If a month has fewer than 31 days, you will need to set the date manually to the first day of the following month. Release the screw-in crown and pull it out to position 1. You can now set the date by turning the crown to the left (rapid advance). You should not use the rapid-advance function between 8 p.m. and 2 a.m. because the movement automatically advances the date during this period.

TIME SETTING

Pull out the crown to position 2. This will stop the movement. To set the time accurately to the second, it is best to stop the movement as the seconds hand passes 60. Now move the minute hand a few minute strokes beyond the time to be set. Then position the minute hand by moving it gently backwards until it is exactly above the correct minute stroke. This ensures that the minute hand begins to move immediately when you restart the movement. To start the seconds hand, push in the crown to position 0. When setting the time, please be aware of the date change, which always takes place at 12 midnight. If this change has already taken place at 12 noon, you must move the hands forwards by 12 hours.

Important: Although the watch is water-resistant in positions 0, 1 and 2, the crown should always be screwed in again for normal use (position X).

READING THE TIME IN THE DARK

Both the dial and the hour and minute hands of your watch have luminescent elements that allow you to read the time effortlessly, even in total darkness. The distinctive triangle at 12 o'clock serves as a reference point.

ADJUSTING AND SETTING THE METAL BRACELET

The metal bracelet has been designed so that you can easily adjust it to the size of your wrist. You can make this adjustment yourself by removing or adding individual bracelet links. Furthermore, for your personal convenience, this bracelet has an innovative fine adjustment system, permitting you to extend or reduce the length of the bracelet quite simply by up to 6 millimetres, depending on your needs. To increase the length of bracelet, press the button with the IWC logo and pull the bracelet slightly apart. To shorten it, push it together in the area of the clasp; here the button does not need to be pressed.

TAKING THE BRACELET APART

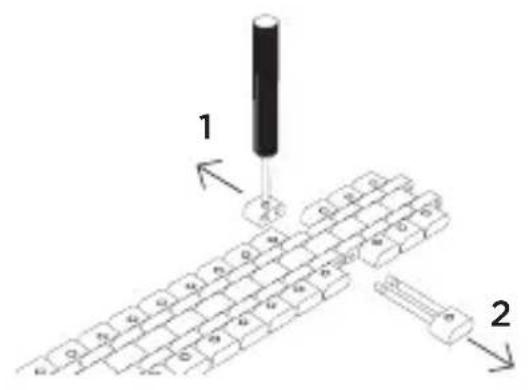

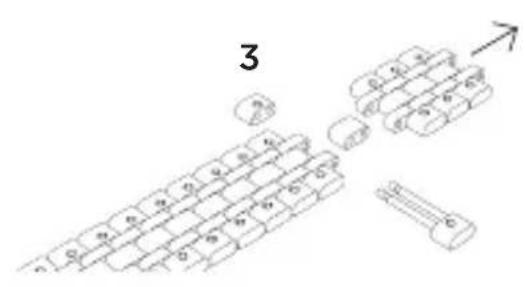

Open the folding clasp by pressing the button on the side. Lay the bracelet with the outside on a firm base. To avoid scratching the bracelet and base, place a cloth underneath the bracelet. Using the special tool provided, you can now push down the securing pin at the desired point of separation and, at the same time, slide the bracelet link outwards (1). Now slide the opposing external bracelet link away from the bracelet with both the pivot pins, without pushing down its securing pin (2). The bracelet is now separated (3).

DETERMINING HOW MANY LINKS TO REMOVE

Place the watch with the folding clasp closed around your wrist and use the overlap to estimate the number of surplus bracelet links that you can now remove as described below. If you need to shorten the bracelet by several links, we recommend removing the same number of links from each half of the bracelet, if possible, to ensure that the clasp can be worn more or less in the centre of the wrist.

Please observe the following recommendation: Generally the size of your wrist will increase during the course of the day, depending on temperature and physical exertion. Before you remove individual bracelet links, depending on the time of day you should have the fine adjustment system on the clasp closed (in the morning) or open (in the evening).

REMOVING INDIVIDUAL LINKS AND ATTACHING THE BRACELET

Repeat steps 1 to 3 at the distance from the first point of separation you have just determined.

Remove the unnecessary links and reassemble the shortened bracelet. When reassembling the central link, make sure that the outside is still facing downwards.

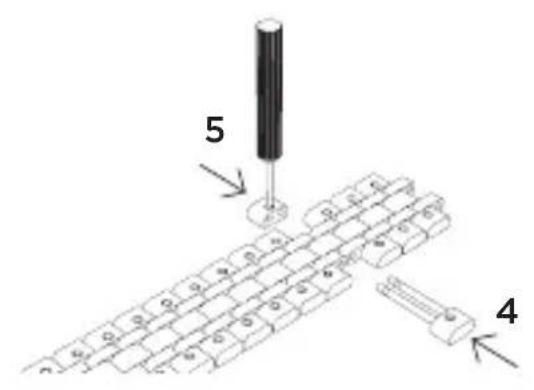

Reinsert the external link with both the pivot pins, which was removed at the beginning, back into the bracelet (4). Now you can slide the opposing external bracelet link back into the bracelet until it lies flush, by simultaneously pressing down its securing pin (5).

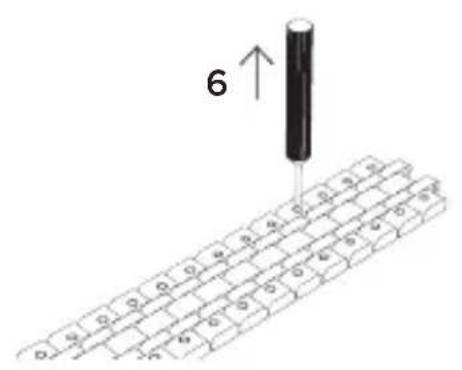

To finish, check that the securing pins are sitting correctly (6). These must be brought up flush with the upper edge of the external links.

Keep the surplus links and separating tool in a safe place for use in any adjustment at another time.

WATER-RESISTANCE

The water-resistance of IwC watches is stated in bar and not in metres. Metres, which are often used elsewhere in the watch industry to indicate water-resistance, cannot be equated with dive depth because of the test procedures that are frequently used. Water-resistance shown in metres provides no indication as to actual use of the watch in the presence of moisture and wetness, and in or under water. Recommendations for use in connection with the water-resistance of your watch can be found on the Internet at www.iwc.com/water-resistance. Your authorized IwC Official Agent will also be pleased to provide you with information.

To ensure that your watch continues to function perfectly, you should have it checked by an IwC service centre at least once a year. Your watch should also be tested after exposure to unusually harsh conditions. If the tests are not carried out as stipulated, or if the watch is opened by unauthorized persons, IwC will accept no warranty or liability claims.

Recommendation: Your authorized IwC Official Agent must carry out a water-resistance test whenever your IwC watch is opened and serviced.

NOTE

Leather is a natural and permeable material. Make sure, therefore, that the high-quality leather strap does not come into contact with water, oily substances, solvents, cleaning agents or cosmetic products. This way you can prevent discoloration and premature ageing of the material.

SERVICING YOUR PILOT'S WATCH MARK XVII

Although the parts in this watch are all manufactured from top-quality materials, a number of components are subject to natural wear and tear. It is particularly important to ensure that the points at which wear occurs are always well lubricated and that oil contaminated by metal abrasion is regularly removed. For this reason, we recommend that you have your watch serviced approximately every five years. Please contact an authorized IWC Official Agent or send your watch directly to the IWC Customer Service Department in Schaffhausen.

Effective from October 2011. Technical specifications subject to change.
