Product type	Pedestal fan
Brand	Ices
Model	IF1045 (IFS-1045)
Blade diameter	40 cm
Rated power	50 W
Supply voltage	220-240 V~50 Hz
Oscillation	Yes, mechanical button
Height adjustment	Yes, telescopic tube
Base type	Cross
Protection	Removable front and rear grilles
Number of speeds	3 speeds (estimated)
Blade material	Plastic
Base material	Plastic
Net weight	Approximately 4 kg
Cable length	1.5 m (estimated)
Intended use	Indoor, flat and stable surface
Maintenance	Unplug before cleaning
Safety	Do not use in humid environments, do not insert objects
Package contents	Assembled fan, manual, screws, grille clips
Manufacturer	Ices

Frequently Asked Questions - IF1045 Ices

How to assemble the Ices IF1045 fan?

Follow the manual: attach the lower tube to the cross base with the provided screws, insert the upper tube into the joint and tighten, hang the motor and button compartment on the upper tube, attach the rear guard to the motor shaft with the nut, push the blades and tighten, then attach the front grille with the clips.

How to activate the fan oscillation?

Press the oscillation button to activate the rotating motion. To stop it, pull the same button outward.

How to clean the fan?

Before cleaning, unplug the power cord. Use a damp cloth to clean the grilles and blades. Never immerse the appliance in water.

Can I use the fan in a bathroom?

No, the fan must not be installed in a humid place like a bathroom, as this poses an electric shock risk.

What to do if the fan does not rotate?

Check that the plug is properly inserted and the cable is not damaged. If the problem persists, contact a qualified technician. Do not attempt to repair it yourself.

How to adjust the fan height?

Loosen the rotary lock on the upper tube, adjust the height, then retighten the lock. Ensure the button compartment is properly seated.

The fan makes noise, is this normal?

A slight operating noise is normal. If the noise is loud or unusual, check that the blades are tightly secured and the grilles are not deformed. If the problem persists, contact after-sales service.

How to store the fan in winter?

Clean it thoroughly, unplug it, then store it in a dry place away from dust. You can partially disassemble it to save space.

What to do if the power cord is damaged?

The cord must be replaced by a service agent or qualified technician. Do not use the appliance with a damaged cord.

Where can I find spare parts for this fan?

Spare parts (blades, grilles, etc.) are available from the manufacturer Ices or authorized dealers. Contact customer service for more information.

USER MANUAL IF1045 Ices

Thank you for your purchasing this fan. Please read all instructions carefully and keep for future use.

Dear Customer,

Please read these operating instructions through carefully before connecting your device to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information.

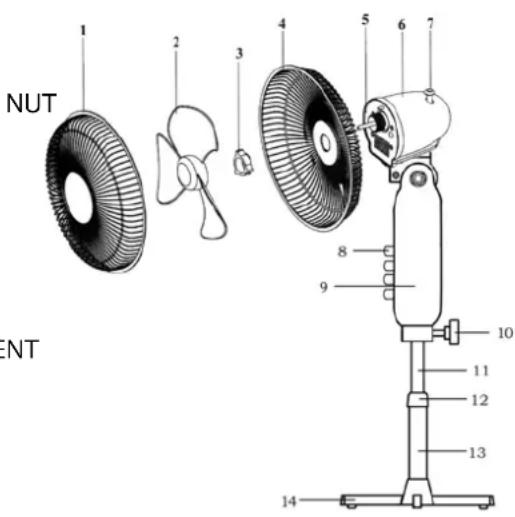

STRUCTURE

1. FRONT GUARD
2. FAN BLADES
3. GUARD MOUNTING
4. BACK GUARD
5. MOTOR SHAFT
6. MOTOR HOUSING
7. OSCILLATING KNOB
8. SWITCHES
9. SWITCH COMPARTMENT
10. LOCK SPRAIN
11. UPPER PIPE
12. PIPE CONNECTOR
13. LOWER PIPE
14. CROSS BASE

ASSEMBLY

1. Secure lower pipe with Pipe support to the hub of Cross Base with screw provided.
2. Extend upper pipe, insert the pipe connector through upper pipe onto lower pipe and tighten.
3. Attach the motor with switch compartment onto the upper pipe. Ensure the switch compartment is pushed fully onto the upper pipe and secured with the screw provided.
4. Loosen Guard Mounting Nut from the Motor Housing.
5. Position Back Guard firmly to Motor Housing and then fasten by turning Guard Mounting Nut clockwise tightly.
6. Push the Blade along Motor Shaft and fasten firmly with the Blade.
7. Hang the Front Guard to Back Guard with the position fixer provided at the rim of Guard, and then fix together with clips provided.

OSCILLATION CONTROL

1. Push the oscillation knob to oscillate.
2. Pull the oscillation knob to stop.

CAUTION

1. Read and retain these instructions for future use.
2. Improper installation may result in the risk of fire, electric shock, or serious injury to persons.
3. Power plug must be removed from power socket before cleaning, servicing, maintenance and when moving from one location to another.
4. The fan should be placed on a flat and stable surface when operating to avoid overturning.

5. The fan should not be placed in a damp place or where humidity is high (such as in a bathroom).

6. Do not insert fingers or other objects through the fan guard.

7. Unplug from mains if not in use.
8. This is not a toy. Keep out of reach of children.
9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
10. Children should be supervised to measure that they do not play with the appliance.
11. If the cord is damaged, it should be replaced by service agent or qualified technician.

TECHNICAL DETAILS

Model No.: IFS-1045

Power consumption: 50W

Main Voltage: 220-240V~50Hz

INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE).

Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If all consumers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
