LAM2878 - Basket Lamona - Free user manual and instructions

Product type	Decorative hood
Brand	Lamona
Model	LAM2878
Number of speeds	4 (speed 1, 2, 3, intensive)
Lighting	Yes, integrated
Filter type	Washable metal grease filter and charcoal filter (optional)
Grease filter cleaning	Dishwasher safe or hand wash with mild detergent
Charcoal filter replacement	Every 4 months
Hob²Hood function	Yes, automatic infrared connection with the hob
Minimum installation distance	65 cm between the hob and the hood
Power supply	Connection to a grounded mains socket
Repairability	Original parts available, contact customer service

Frequently Asked Questions - LAM2878 Lamona

How to install the LAM2878 hood?

Installation must be carried out by a qualified professional. Respect the minimum distance of 65 cm between the hob and the hood. Use the screws provided and plug the appliance into a grounded socket. Refer to the manual for details.

What is the minimum distance between the hob and the hood?

The minimum distance is 65 cm between the cooking surface and the bottom of the hood, unless otherwise specified in the installation instructions.

How to clean the grease filters?

Remove the filters by pressing the clips. Wash them by hand with a mild detergent or in the dishwasher at low temperature on a short cycle. Dry them before replacing.

How often should the charcoal filter be replaced?

The charcoal filter is optional and must be replaced every four months. Its saturation time depends on usage and regularity of grease filter cleaning.

What does the filter indicator mean?

The filter indicator lights up continuously if the grease filter needs cleaning, and flashes if the charcoal filter needs replacing or cleaning. Press the corresponding symbol for 3 seconds to reset.

How to use the Hob²Hood function?

This automatic function connects the hob to the hood via an infrared communicator. The fan speed adjusts automatically based on temperature. Activate it from the hob control panel.

How to activate the maximum motor speed?

Press the maximum speed symbol (usually the 4th). The hood operates at intensive speed for 8 minutes, then returns to the previous setting.

Can I use the hood with other appliances?

Yes, but ensure the vacuum generated in the room does not exceed 0.04 mbar. Ventilate sufficiently to prevent gas backflow.

How to reset the filter signal?

Press the filter notification symbol (6) for 3 seconds to reset the indicator after cleaning or replacing the filter.

What to do in case of lighting failure?

Ensure the appliance is turned off before replacing the bulb. Use an original replacement bulb. If the cable is damaged, have it replaced by a professional.

USER MANUAL LAM2878 Lamona

Free 3 year guarantee

Call now

0333 010 0009

Alternatively, visit www.howdens.com/appliance-registration

LAMONA

3 year guarantee available. Register your appliance within 90 days

By registering your appliance and creating an account, we will keep you up to date with the latest product information and notify you immediately of any important product updates

1Lines are open Monday to Friday 9am to 5pm. Calls will be charged at your local rate and may be recorded and monitored for training and quality purposes.
So that in the event of an important product update, or recall, we can contact you.

Register my appliance

See back page for product serial number.

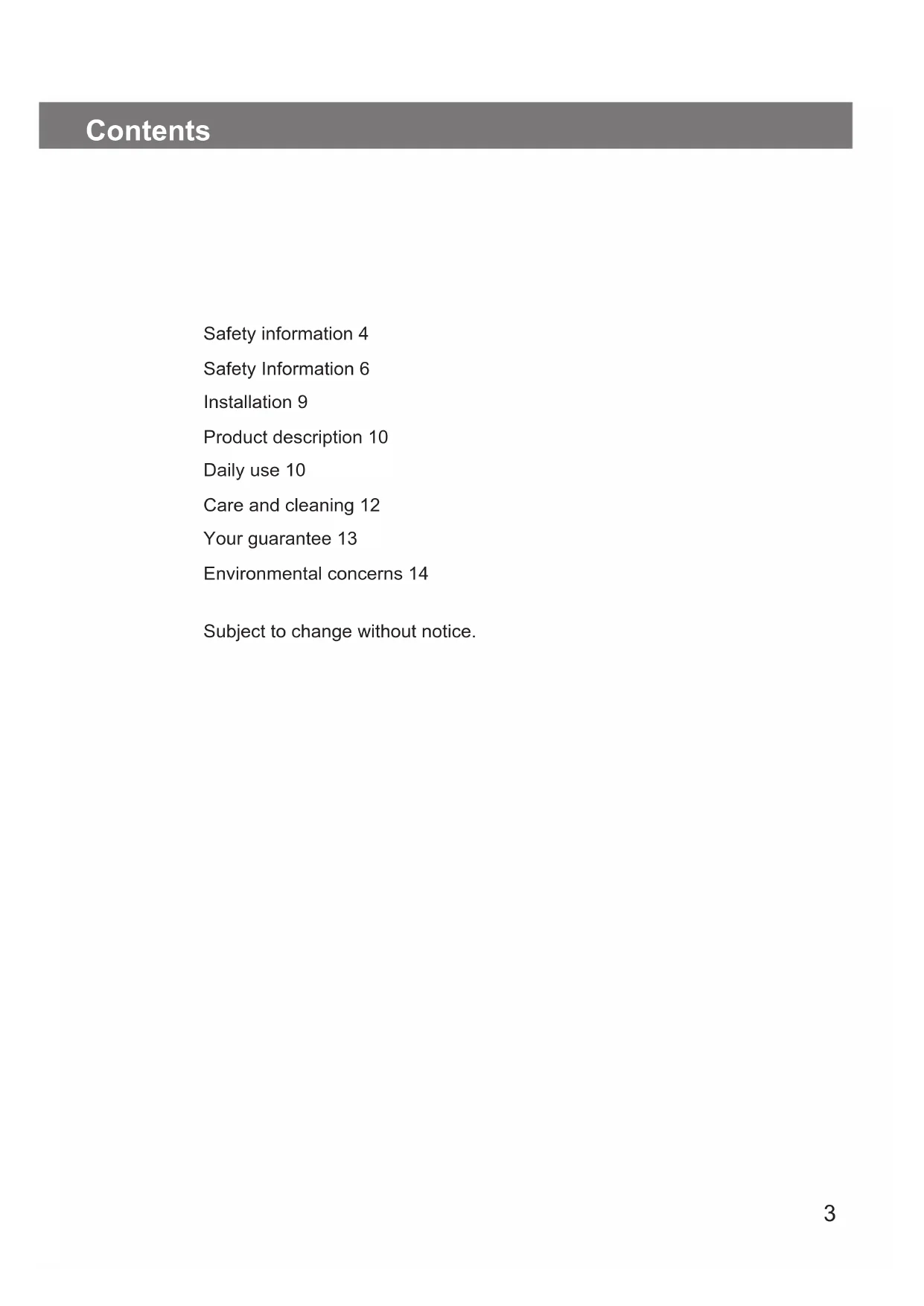

Safety information 4

Safety Information 6

Installation 9

Product description 10

Daily use 10

Care and cleaning 12

Your guarantee 13

Environmental concerns 14

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation

instructions. Install the appliance in a safe and suitable place that meets installation requirements.

• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65~cm , unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flâbé under the appliance.

• Do not use to exhaust hazardous or explosive materials and vapours.

• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.

• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

Safety Information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

SAFETYWARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised. Children must not play with the appliance. Keep all packaging away from children and dispose of it appropriately. Children shall not carry out cleaning and user maintenance of the appliance without supervision. If the appliance has a child safety device, it should be activated.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electrical shock.
This appliance is for household use only. Do not change the specification of this appliance.
Always cook with the oven door closed. Use oven gloves to remove pans and accessories.
Do not use a steam cleaner to clean the appliance. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the symbol ( ) is not printed on the rating plate, the appliance must be earthed.
• Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

Service

To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

Installation

WARNING! Refer to Safety chapters.

Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

Product description

Control panel overview

Function Description

1 On/OffTurnsthehoodonandoff.
2 First speed The motor switches to first speed level.
3 Second speed The motor switches to second speed level.
4 Third speed The motor switches to third speed level.
Maximum speed The motor switches to maximum speed level.
Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.
7 Hob²Hood Indicator of the function to control hood from hob.
8 Lamp Turns the lights on and off.

Daily use

Using the hood

Check the recommended speed according to the table below.

While heating up food, cooking with covered pots.

While cooking with covered pots on multiple cooking zones or burners, gentle frying.

While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

While boiling and frying big quantities of food without a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.

To operate the hood:

1. Turn on the appliance by pressing the ① symbol.
   You can now activate the functions.
2. To activate the function touch the symbol.

The hoods light works independently to other hood functions. To illuminate the cooking surface touch

To turn off the appliance press the symbol again.

Hob²Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

Activating Maximum Motor Speed

When you touch the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on does not have any effects.

Filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to cleaning the grease filter in care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.

To reset the function touch or 3 seconds.

To activate or deactivate function:

1. Switch on the control panel.
2. Make sure that the icons are turned white.
3. To activate function touch for 3 seconds.

If the function is activated, the filter icon flashes five times.
4. To deactivate function touch for 3 seconds.

If the function is deactivated, the filter icon turns on for 4 seconds.

Care and cleaning

Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.

2. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

Replacing the charcoal filter - optional

WARNING! Depending on type, filter can be or cannot be regenerated. Refer to the leaflet provided with the filter.

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.
2. press the tab (1) and slightly tilt the front of the filter.

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

Your guarantee

Product Guarantee Details (UK only)

Your appliance has the benefit of a comprehensive manufacturer's guarantee which covers the cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document).

• Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE)
• The product must be correctly installed and operated in accordance with the manufacturer's instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alternations which are likely to affect the product.
  The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.

(The guarantee in no way affects your statutory or legal rights)

What to do if you need to report a problem

Please ensure you have ready:

The product's model & serial numbers
- Howdens Proof of Purchase document
- Your full contact details

Environmental concerns

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Sous reserve de modifications.

Product serial number (Place sticker here)

LAMONA
