| Type of product | Built-in induction hob |
| Model | LAM1803 |
| Brand | Lamona |
| Power supply | 220-240 V / 400 V 2N, 50-60 Hz |
| Total power | 6.6 kW |
| Number of cooking zones | 4 induction zones |
| Zone diameters (front left / rear left / front right / rear right) | 21.0 cm / 14.5 cm / 14.5 cm / 18.0 cm |
| PowerBoost | Yes (front left and front right zones) |
| Automatic shut-off | Yes |
| Control panel lock | Yes |
| Child safety device | Yes |
| Residual heat indicator | Yes |
| Power management | Yes |
| Control type | Touch controls |
| Cooking level adjustment | 9 levels + PowerBoost |
| Care and cleaning | Damp soft cloth and non-abrasive detergent; scraper for stubborn dirt |
| Spare parts | Original parts available through authorized after-sales service |
| Reparability | Repair by authorized after-sales service |
| Serial number (PNC) | 949 492 468 00 |
| Type | 63 B4A 00 AA |
| Country of manufacture | Romania |
| Energy consumption (EC) | 183.8 Wh/kg |
Frequently Asked Questions - LAM1803 Lamona
User questions about LAM1803 Lamona
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual LAM1803 - Lamona and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LAM1803 by Lamona.
USER MANUAL LAM1803 Lamona
Free 3 year guarantee
Call now
0333 010 0009
Alternatively, visit www.howdens.com/appliance-registration
LAMONA
3 year guarantee available. Register your appliance within 90 days
By registering your appliance and creating an account, we will keep you up to date with the latest product information and notify you immediately of any important product updates
1Lines are open Monday to Friday 9am to 5pm. Calls will be charged at your local rate and may be recorded and monitored for training and quality purposes.
So that in the event of an important product update, or recall, we can contact you.
Register my appliance
See back page for product serial number.

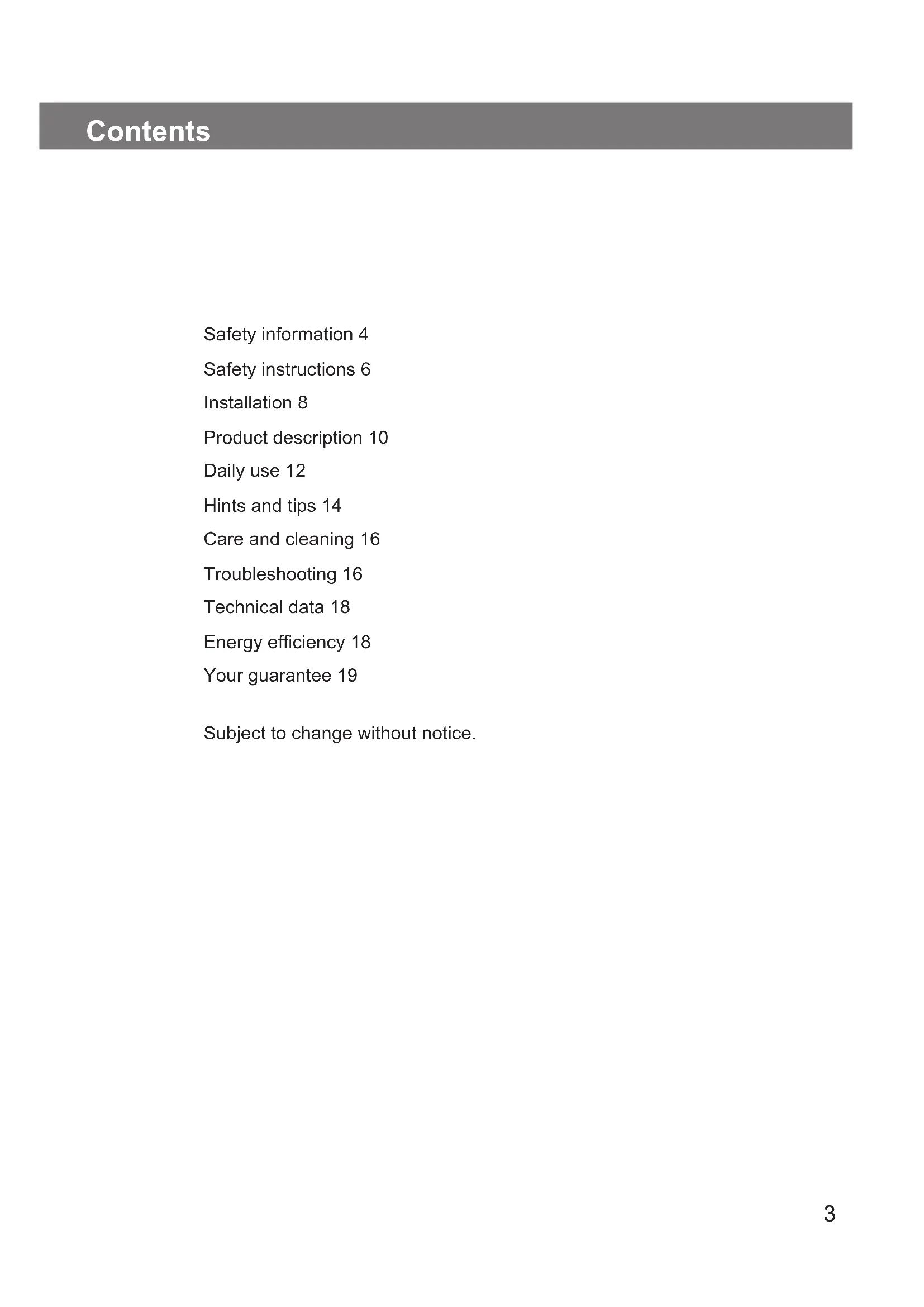

Safety information 4
Safety instructions 6
Installation 8
Product description 10
Daily use 12
Hints and tips 14
Care and cleaning 16
Troubleshooting 16
Technical data 18
Energy efficiency 18
Your guarantee 19
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised. - Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
- Do not let children play with the appliance.
- Keep all packaging away from children and dispose of it appropriately.
- WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use.
- If the appliance has a child safety device, it should be activated.
- Children shall not carry out cleaning and user maintenance of the appliance without supervision.
General Safety
-
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
-
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
- CAUTION: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
- WARNING: Danger of fire: Do not store items on the cooking surfaces.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
- Do not use the appliance before installing it in the built-in structure.
- Do not use a steam cleaner to clean the appliance.
After use, switch off the hob element by its control and do not rely on the pan detector. - If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
- If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
Safety instructions
Installation
WARNING! Only a qualified person must install this appliance.
WARNING! Risk of injury or damage to the appliance.
- Remove all the packaging.
- Do not install or use a damaged appliance.
- Follow the installation instructions supplied with the appliance.
- Keep the minimum distance from other appliances and units.
- Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Seal the cut surfaces with a sealant to prevent moisture from causing swelling.
- Protect the bottom of the appliance from steam and moisture.
- Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
- If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer is sufficient for air circulation.
- The bottom of the appliance can get hot. Make sure to install a separation panel made from plywood, kitchen carcass material or other non-flammable materials under the appliance to prevent access to the bottom.
- The separation panel has to cover the area under the hob completely.
- Make sure that the ventilation space of 2mm , between the worktop and the front of the below unit, is free. The warranty does not cover damages caused by the lack of an adequate ventilation space.
Electrical Connection
WARNING! Risk of fire and electric shock.
- All electrical connections should be made by a qualified electrician.
- The appliance must be earthed.
- Before carrying out any operation make sure that the appliance is disconnected from the power supply.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
- Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
- Use the correct electricity mains cable.
- Do not let the electricity mains cable tangle.
- Make sure that a shock protection is installed.
- Use the strain relief clamp on the cable.
- Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.
-
Do not use multi-plug adapters and extension cables.
-
Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
- The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- If the mains socket is loose, do not connect the mains plug.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
- The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
Use
WARNING! Risk of injury, burns and electric shock.
- Remove all the packaging, labelling and protective film (if applicable) before first use.
- This appliance is for household use only.
- Do not change the specification of this appliance.
- Make sure that the ventilation openings are not blocked.
- Do not let the appliance stay unattended during operation.
- Set the cooking zone to "off" after each use.
- Do not rely on the pan detector.
- Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
- Do not operate the appliance with wet hands or when it has contact with water.
- Do not use the appliance as a work surface or as a storage surface.
- If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
- Users with a pacemaker must keep a distance of minimum 30~cm from the induction cooking zones when the appliance is in operation.
- When you place food into hot oil, it may splash.
WARNING! Risk of fire and explosion
- Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
- The vapours that very hot oil releases can cause spontaneous combustion.
- Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
WARNING! Risk of damage to the appliance.
- Do not keep hot cookware on the control panel.
- Do not put a hot pan cover on the glass surface of the hob.
-
Do not let cookware boil dry.
-
Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
- Do not activate the cooking zones with empty cookware or without cookware.
- Do not put aluminium foil on the appliance.
- Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
- This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
Care and cleaning
- Clean the appliance regularly to prevent the deterioration of the surface material.
- Switch off the appliance and let it cool down before cleaning.
- Do not use water spray and steam to clean the appliance.
- Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
Service
- To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
Disposal
WARNING! Risk of injury or suffocation.
- Contact your municipal authority for information on how to discard the appliance correctly.
- Disconnect the appliance from the mains supply.
- Cut off the mains electrical cable close to the appliance and dispose of it.
Installation
WARNING! Refer to Safety chapters.
Before the installation
Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.
Serial number
Built-in hobs
Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.
Connection cable
- The hob is supplied with a connection cable.
- To replace the damaged mains cable, use the cable H03BB-F, H03V2V2-F or H05V2V2-F for single phase connection or H05BB-F or H05V2V2-F for a two phase connection. Speak to your local Service Centre. The connection cable may only be replaced by a qualified electrician.

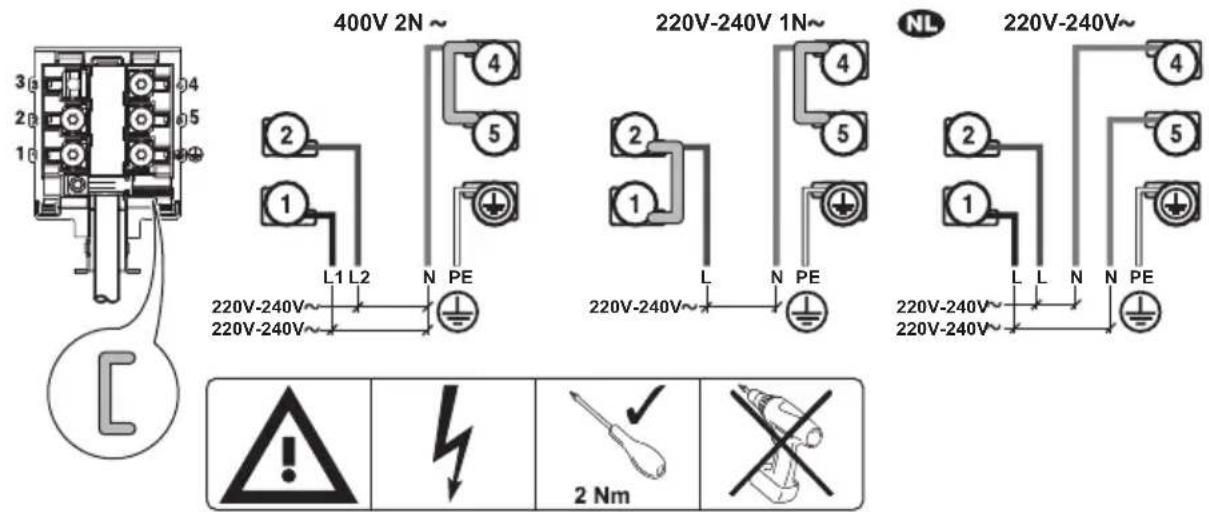

Connection diagram
i Insert the shunts between the screws as shown.
Assembly
If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.
If the appliance is installed above a drawer, the hob ventilation can warm up the items stored in the drawer during the cooking process.
Product description

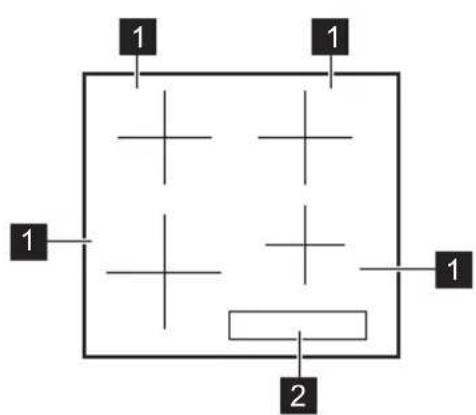

Cooking surface layout
1 Induction cooking zone
2 Control panel
Control panel layout
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.
| Sensor field | Function Comment | ||
| 1 | 0 | ON / OFF To activate and deactivate the hob. | |
| 2 | 6 | Lock / Child Safety Device To lock / unlock the control panel. | |
| 3 | / P | - To select the cooking zone. | |
| 4 | - Heat setting display To show the heat setting. | ||
| 5 | / √ | - To set a heat setting. |
Heat setting displays
| Display Description | |
| 0 | The cooking zone is deactivated. |
| 1-9 | The cooking zone operates. |
| P | PowerBoost operates. |
| E + digit | There is a malfunction. |
| H | A cooking zone is still hot (residual heat). |
| L | Lock / Child Safety Device operates. |
| F | Incorrect or too small cookware or no cookware on the cooking zone. |
| - | Automatic Switch Off operates. |
Residual heat indicator
WARNING! As long as the indicator is on, there is a risk of burns from residual heat.
The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.
The indicator appears when a cooking zone is hot.
The indicator may also appear:
- for the neighbouring cooking zones even if you are not using them,
- when hot cookware is placed on cold cooking zone,
- when the hob is deactivated but the cooking zone is still hot.
The indicator disappears when the cooking zone has cooled down.
WARNING! Refer to Safety chapters.
Activating and deactivating
Touch for 1 second to activate or deactivate the hob.
Automatic Switch Off
The function deactivates the hob automatically if:
- all cooking zones are deactivated,
- you do not set the heat setting after you activate the hob,
- you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
- the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
- you use incorrect cookware. The symbol comes on and the cooking zone deactivates automatically after 2 minutes.
- you do not deactivate a cooking zone or change the heat setting. After some time comes on and the hob deactivates.
The relation between the heat setting and the time after which the hob deactivates:
| Heat setting The hob deactivates after | |
| 1 - 2 6 hours | |
| 3 - 4 5 hours | |
| 5 4 hours | |
| 6 - 9 1.5 hour |
Selecting the cooking zone
To select a cooking zone touch the sensor field corresponding to this zone. The display shows the heat setting (0).
The heat setting
Set the cooking zone.
Touch to increase the heat setting. Touch to decrease the heat setting. Touch and at the same time to deactivate the cooking zone.
PowerBoost
This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.
The function is available for the left front and the right front cooking zones only.
Refer to "Technical data" chapter.
To activate the function for a cooking zone: first set the cooking zone and then set the maximum heat setting. Touch until comes on.
To deactivate the function: touch
Lock
You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.
Set the heat setting first.
To activate the function: touch comes on for 4 seconds.
To deactivate the function: touch The previous heat setting comes on.
When you deactivate the hob, you also deactivate this function.
Child Safety Device
This function prevents an accidental operation of the hob.
To activate the function: activate the hob with ① do not set any heat setting. Touch ⑧ for 4 seconds. ⑤ comes on. Deactivate the hob with .
To deactivate the function: activate the hob with 0 do not set any heat setting. Touch for 4 seconds. 0 comes on. Deactivate the hob with .
To override the function for only one cooking time: activate the hob with ① comes on. Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob with ① the function operates again.
Power management
If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides the available power between all cooking zones. The hob controls heat settings to protect the fuses of the house installation.
- Cooking zones are grouped according to the location and number of the phases in the hob. Each phase has a maximum electricity loading (3300 W). If the hob reaches the limit of maximum available power within one phase, the power of the cooking zones will be automatically reduced.
- The heat setting of the cooking zone selected last is always prioritised. The remaining power will be divided between the previously activated cooking zones in reverse order of selection.
- The heat setting display of the reduced zones changes between the initially selected heat setting and the reduced heat setting.
- Wait until the display stops flashing or reduce the heat setting of the cooking zone selected last. The cooking zones will continue operating with the reduced heat setting. Change the heat settings of the cooking zones manually, if necessary.
Refer to the illustration for possible combinations in which power can be distributed among the cooking zones.
Hints and tips
WARNING! Refer to Safety chapters.
Cookware
For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.
Use the induction cooking zones with suitable cookware.
- The bottom of the cookware must be as thick and flat as possible.
- Ensure pan bases are clean and dry before placing on the hob surface.
- In order to avoid scratches, do not slide or rub the pot across the ceramic glass.
Cookware material
- correct: cast iron, steel, enamelled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
- not correct: aluminium, copper, brass, glass, ceramic, porcelain.
Cookware is suitable for an induction hob if:
- water boils very quickly on a zone set to the highest heat setting.
- a magnet pulls on to the bottom of the cookware.
Cookware dimensions
- Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.
- The cooking zone efficiency is related to the diameter of the cookware. The cookware with a diameter smaller than the minimum receives only a part of the power generated by the cooking zone.
- For both safety reasons and optimal cooking results, do not use cookware larger than indicated in "Cooking zones specification". Avoid keeping cookware close to the control panel during the cooking session. This might impact the functioning of the control panel or accidentally activate hob functions.
Refer to "Technical data".
The noises during operation
If you can hear:
- crack noise: cookware is made of different materials (a sandwich construction).
- whistle sound: you use a cooking zone with a high power level and the cookware is made of different materials (a sandwich construction).
- humming: you use a high power level.
- clicking: electric switching occurs.
- hissing, buzzing: the fan operates.
The noises are normal and do not indicate any malfunction.
Examples of cooking applications
The correlation between the heat setting of a zone and its consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase of the consumption of power. It means that a cooking zone with the medium heat setting uses less than a half of its power.
The data in the table is for guidance only.
| Heat setting Use to: Time | (min) | Hints |
| 1 Keep cooked food warm. as | neces-sary | Put a lid on the cookware. |
| 1 - 2 Hollandaise sauce, melt: butter, chocolate, gelatine. | 5 - 25 Mix from time to time. | |
| 1 - 2 Solidify: fluffy omelettes, baked eggs. | 10 - 40 Cook with a lid on. | |
| 2 - 3 Simmer rice and milkbased dishes, heat up ready-cooked meals. | 25 - 50 Add at least twice as much liq-uid as rice, mix milk dishes halfway through the procedure. | |
| 3 - 4 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons of liquid. | ||
| 4 - 5 Steam potatoes. 20 - 60 Use max. 1/4 l of water for 750 g | of potatoes. | |
| 4 - 5 Cook larger quantities of food, stews and soups. | 60 - 150 | Up to 3 l of liquid plus ingredi-ents. |
| 6 - 7 Gentle fry: scalole, veal cor-don bleu, cutlets, rissoles, saus-ages, liver, roux, eggs, pan-cakes, doughnuts. | as neces-sary | Turn halfway through. |
| 7 - 8 Heavy fry, hash browns, loin steaks, steaks. | 5 - 15 Turn halfway through. | |
| 9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips. | ||
Care and cleaning
WARNING! Refer to Safety chapters.
General information
- Clean the hob after each use.
- Always use cookware with a clean base.
- Scratches or dark stains on the surface have no effect on how the hob operates.
- Use a special cleaner suitable for the surface of the hob.
- Use a special scraper for the glass.
Cleaning the hob
- Remove immediately: melted plastic, plastic foil, sugar and food with sugar, otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.
- Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
- Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.
Troubleshooting
WARNING! Refer to Safety chapters.
What to do if...
| Problem Possible cause Remedy | ||
| You cannot activate or operate the hob. | The hob is not connected to an electrical supply or it is connected incorrectly. | Check if the hob is correctly connected to the electrical supply. |
| The fuse is blown. Make sure that the fuse is the | cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician. | |
| Problem Possible cause Remedy | ||
| You do not set the heat setting for 10 seconds. | Activate the hob again and set the heat setting in less than 10 seconds. | |
| You touched 2 or more sensor fields at the same time. | Touch only one sensor field. | |
| There is water or fat stains on the control panel. | Clean the control panel. | |
| An acoustic signal sounds and the hob deactivates. An acoustic signal sounds when the hob is deactivated. | You put something on one or more sensor fields. | Remove the object from the sensor fields. |
| The hob deactivates. You put something on the sensor field | Remove the object from the sensor field. | |
| Residual heat indicator does not come on. | If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre. | |
| The heat setting changes between two levels. | Power management oper- ates. | Refer to "Daily use". |
| The sensor fields become hot. | The cookware is too large or you put it too near to the con- trols. | Put large cookware on the rear zones, if possible. |
| L comes on. | Child Safety Device or Lock operates. | Refer to "Daily use". |
| F comes on. | There is no cookware on the zone. | Put cookware on the zone. |
| The cookware is unsuitable. Use suitable cookware. Refer to | "Hints and tips". | |
| The diameter of the bottom of the cookware is too small for the zone. | Use cookware with correct di- mensions. Refer to "Technical data". | |
| E and a number come on. | There is an error in the hob. Deactivate the hob and activate it again after 30 seconds. If E comes on again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem con- tinues, speak to an Authorised Service Centre. | |
Problem Possible cause Remedy
You can hear a constant beep noise.
The electrical connection is incorrect.
Disconnect the hob from the electrical supply. Ask a qualified electrician to check the installation.
If you cannot find a solution...
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the hob correctly.
Technical data
Rating plate
Model LAM1803 PNC 949 492 468 00
Typ 63 B4A 00 AA 220 - 240 V / 400 V 2N 50 - 60 Hz
Induction 6.6 kW Made in Romania
Ser.Nr. 6.6 kW
LAMONA
Cooking zones specification
| Cooking zone | Nominal pow- er (maximum heat setting) [W] | PowerBoost [W] | PowerBoost maximum du- ration [min] | Cookware di- ameter [mm] |
| Left front 2300 | 2800 10 180 - 210 | |||
| Left rear 1200 - | 125 - 145 | |||
| Right front | 1200 1800 4 | 125 - | 145 | |
| Right rear | 1800 - - 145 - 180 |
The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.
For optimal cooking results use cookware no larger than the diameter in the table.
Energy efficiency
Product information*
Model identification
LAM1803
| Type of hob Built-In Hob | ||
| Number of cooking zones 4 | ||
| Heating technology Induction | ||
| Diameter of circular cooking zones (Ø) Left front | 21.0 cm | |
| 14.5 cm | ||
| 14.5 cm | ||
| 18.0 cm | ||
| Energy consumption per cooking zone (EC electric cooking) | Left front | 190.1 Wh / kg |
| Left rear | 181.0 Wh / kg | |
| Right front | 180.1 Wh / kg | |
| Right rear | 183.8 Wh / kg | |
| Energy consumption of the hob (EC electric hob) 183.8 Wh / kg | ||
- For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine according to 742/2019.
EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance
Energy saving
You can save energy during everyday cooking if you follow below hints.
- When you heat up water, use only the amount you need.
- If it is possible, always put the lids on the cookware.
- Before you activate the cooking zone put the cookware on it.
- Put the smaller cookware on the smaller cooking zones.
- Put the cookware directly in the centre of the cooking zone.
- Use the residual heat to keep the food warm or to melt it.
Your guarantee
Product Guarantee Details (UK only)
Your appliance has the benefit of a comprehensive manufacturer's guarantee which covers the cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document).
- Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE)
- The product must be correctly installed and operated in accordance with the manufacturer's instructions and used for normal domestic purposes.
- This guarantee does not cover accidental damage, misuse or alternations which are likely to affect the product.
- The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
The product's model & serial numbers
- Howdens Proof of Purchase document
- Your full contact details
Call the Service Line on 0344 460 0006
Environmental concerns
Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
Sous reserve de modifications.
Product serial number (Place sticker here)
