SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
  Please read these instructions carefully and follow the instructions.
  Observe all safety warnings. Never remove safety warnings or other information from the equipment.
• Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
- Do not switch the unit on and off in short intervals.
- Do not connect the unit to a dimmerpack.
- Install the unit in a well ventilated place.
- Never place any material over the lens.
- Never let the sunlight lights directly to the front lens, even when the unit is not working.
Always allow free air space of at least 50~cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
- Never attempt to bypass the thermostatic switch or fuses.
- Do not dismantle or modify the unit.
- For replacement use fuses/bulb of same type and rating only.
- Repairs, servicing and electric connection must be carried out by a qualified technician.
The ambient temperature must always be between -5^ and +45^
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
- Plastic bags must be kept out of reach of children.
Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to

avoid the risk of electrocution or fire.

RIGGING

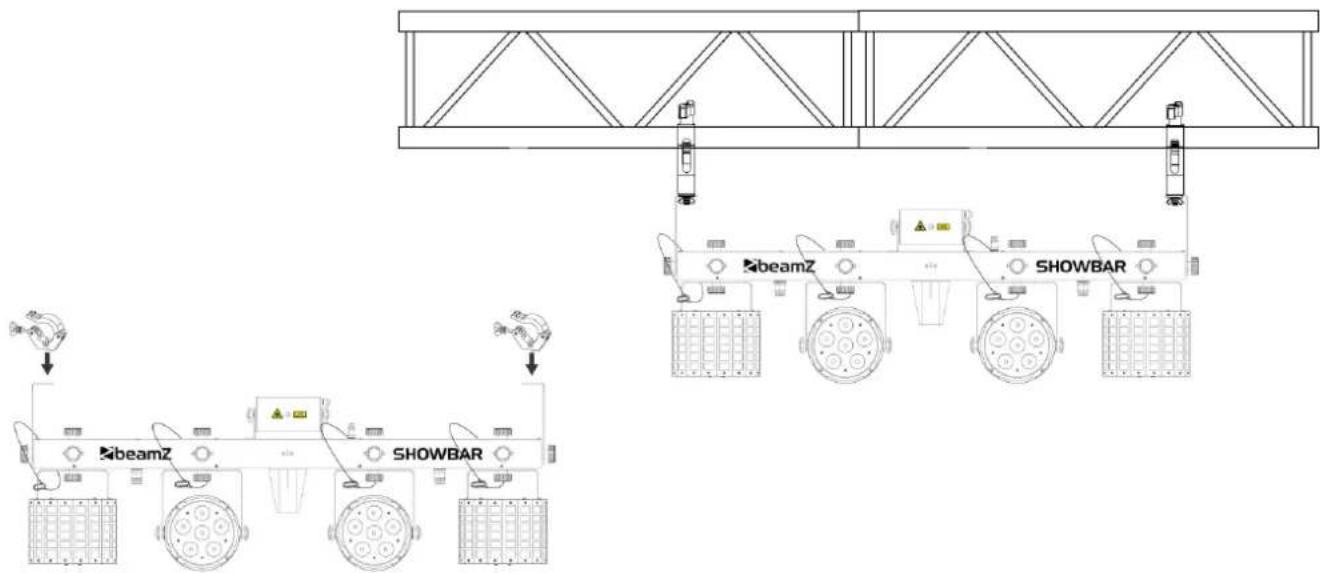

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

DMX512 CONTROL

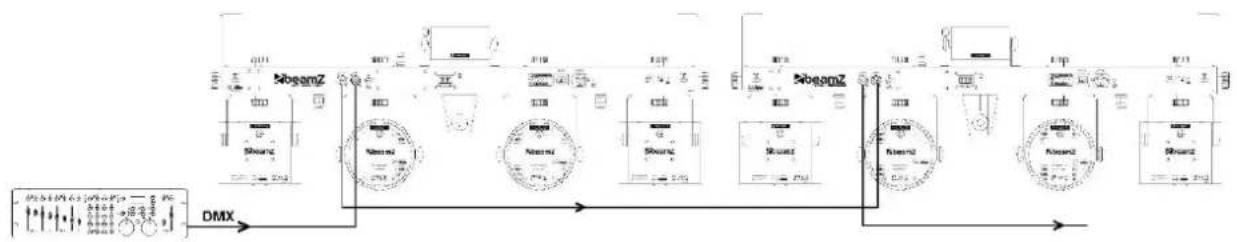

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

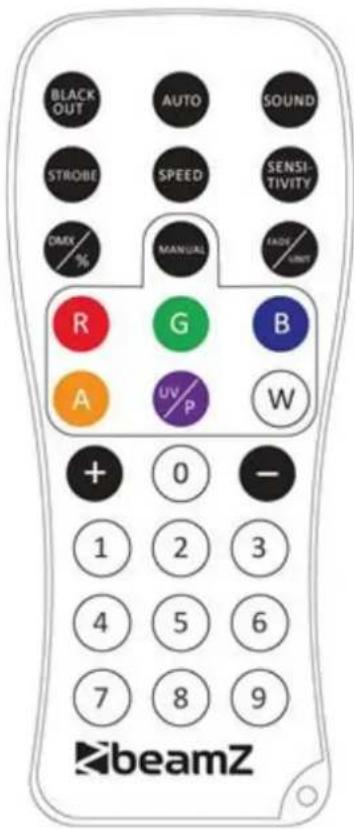

REMOTE CONTROLLER

BLACK OUT MODE

Presspress return the lastBlackOUT>

AUTO MODE

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode:

1. Press emote controller.
2. Press to choose between the different auto programs.

SOUND MODE

Sound-Active mode will enable the product to respond to the music.

To turn on Sound-Active mode:

1. Press mote controller.
2. Press or to choose between the different sound programs.

STROBE MODE

To adjust the strobe speed of the automatic program and the sound active program.

1. Press STROB note controller.
2. Press + or - to either increase or decrease the speed of the program.
3. Press a strobof off the strobe.

SPEED MODE

To adjust the speed of the automatic program and the sound active program.

1. Press (SPED) mole controller.
2. Press tother increase or decrease the speed of the program.

SENSITIVITY MODE

To adjust sound sensitivity for in Sound-Active mode
1. Press (SENSITIVONTROLLER.
2. Press to either increase or decrease sound sensitivity.

DMX / % MODE

To enable DMX or disallow DMX on the product.

Press DMX remote controller, the product work on the DMX controlling modes.

MANUAL MODE

1. Press MANUAL note controller.
2. Press R.G.B.W.Ared, green, blue, white or amber) to choose your colour.
3. Press again R , G , B , W , A [red, green, blue, white or amber] to close your colour.
4. Press to tber increase or decrease the percentage of each colour.

FADE/UNIT MODE

To adjust the FADE speed of the automatic program, the sound active program and the manual mode.

1. Press on the remote controller.
2. Press again to turn off the Fade mode.

NUMBER 1-9

To adjust the brightness value of the automatic program, the Sound active program and Manual Mode.

Press digit to change different brightness on the device.

CAUTION The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the

remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
  Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.	Check that power is turned on. Check cables and connections. Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
	Fuse blown or internal fault.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected. Bad DMX-line.	Connect controller. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. Insert DMX terminator plug in DMX output socket of last unit on DMX-line.
	DMX-line has no end resistance.	Insert DMX terminator plug in DMX output socket of last unit on DMX-line.
	Incorrect unit addressing. A unit is defective and is disturbing data transmission on the DMX-line.	Check unit address and DMX mode settings. Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Have defective unit serviced by an authorized technician.
	Pin 2 and 3 are reversed in XLR connection.	Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.
	LEDs damaged.	Disconnect unit and contact Beamz support or Beamz authorized service partner.
	The power supply settings do not match local AC voltage and frequency.	Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

REEMPLACEMENT DU FUSIBLE

MENU			DESCRIPTION
AUTO	Auto	Au-1	Auto program 1
		Au-2	Auto program 2
		Au-3	Auto program 3
SOUND	Soun	So-1	Sound program 1
		So-2	Sound program 2
		So-3	Sound program 3
SPEED	SPEE	SP1-SP9	Speed value for program adjustable
SENSITIVITY	SEns	Se1-Se9	MIC value adjustable
SILENT SCENE	SILE	OFF	The fixture is open light on music by Sound program
		ON	The fixture is closed light on music by Sound program
INFR	InFr	ON	Enable IR remote signal receiving.
		OFF	Disenable IR remote signal receiving.
FOOT	Foot	ON	Enable Foot remote signal receiving.
		OFF	Disenable Foot remote signal receiving.
DMX	Addr	2CH	2 channels DMX mode
		9CH	9 channels DMX mode
		18CH	18 channels DMX mode
		30CH	30 channels DMX mode
SLAVE	SLAV	Slav	Slave
RGB	RGB	Red	Dimmer 0-100%
PAR + EFFECT		Green	Dimmer 0-100%
		Blue	Dimmer 0-100%
		White	Dimmer 0-100%
		UV	Dimmer 0-100%
COLOUR	Colo	C1	Red
		C2	Green
		C3	Blue
		C4	UV
		C5	Red + Green
		C6	Red + Blue
		C7	Red + UV
		C8	Green + Blue
		C9	Green + UV
		C10	Blue + UV
		C11	Red + Green + Blue
		C12	Red + Green + UV
		C13	Red + Blue + UV
		C14	Green + Blue + UV
		C15	Red + Green + Blue + UV

DMX CHANNELS

2 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Auto /Sound Mode	000-009	No function
		010-199	Auto DMX
		200-255	Sound DMX
2	Mode speed	000-255	Auto DMX / Sound DMX Speed (From slow to fast)

9 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Laser	000-009	No function
		010-099	Red
		100-199	Green
		200-255	Red +Green
2	Laser	000-009	No function
		010-127	Anticlockwise [From slow to fast]
		128-137	No function
		138-255	Clockwise [From slow to fast]
3	White strobe	000-009	No function
		010-029	White LED1
		030-049	White LED2
		050-069	White LED3
		070-089	White LED4
		090-109	White LED1+2
		110-129	White LED1+3
		130-149	White LED1+4
		150-169	White LED2+3
		170-189	White LED2+4
		190-209	White LED3+4
		210-219	White LED1+2+3
		220-229	White LED1+2+4
		230-239	White LED1+3+4
		240-249	White LED2+3+4
		250-255	White LED1+2+3+4
4	Par	000-009	No function
		010-029	Red
		030-049	Green
		050-069	Blue
		070-089	UV
		090-109	Yellow
		110-129	Magenta
		130-149	Red+UV
		150-169	Green+Blue
		170-189	Green+UV
		190-209	Blue+UV
		210-219	Red+Green+Blue
		220-229	Red+Green+UV
		230-239	Red+Blue+UV
		240-249	Green+Blue+UV
		250-255	Red+Green+Blue+UV
5	Butterfly Effect	000-009	No function
		010-029	Red
		030-049	Green
		050-069	Blue
		070-089	White
		090-109	Red +Green
		110-129	Red + Blue
		130-149	Red + White
		150-169	Green + Blue
		170-189	Green + White
		190-209	Blue + White
		210-219	Red + Green + Blue
		220-229	Red + Green + White
		230-239	Red + Blue + White
		240-249	Green + Blue + White
		250-255	Red + Green + Blue + White
6	Rotation butterfly	000-180	Position 360
		181-255	back and forward movement (slow to fast)
7	Strobe	000-009	No function
		010-255	Strobe (From slow to fast )
8	Auto / Sound Mode	000-009	No function
		010-199	Auto DMX
		200-255	Sound DMX
9	Mode Speed	000-255	Auto DMX / Sound DMX Speed (From slow to fast)

18 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Laser	000-009	No function
		010-099	Red
		100-199	Green
		200-255	Red+Green
2	Laser strobe	000-009	No function
		010-255	Strobe (From slow to fast)
3	White strobe	000-009	No function
		010-127	Anticlockwise (From slow to fast)
		128-137	No function
		138-255	Clockwise (From slow to fast)
4	White strobe	000-009	No function
		010-029	White LED1
		030-049	White LED2
		050-069	White LED3
		070-089	White LED4
		090-109	White LED1+2
		110-129	White LED1+3
		130-149	White LED1+4
		150-169	White LED2+3
		170-189	White LED2+4
		190-209	White LED3+4
		210-219	White LED1+2+3
		220-229	White LED1+2+4
		230-239	White LED1+3+4
		240-249	White LED2+3+4
		250-255	White LED1+2+3+4
5	Strobe All	000-009	No function
		010-255	White LED strobe (From slow to fast)
6	Par	000-255	PAR1&2 Red
7		000-255	PAR1&2 Green
8		000-255	PAR1&2 Blue
9		000-255	PAR1&2 UV
10	Par	000-009	No function
		010-255	PAR LED strobe (From slow to fast)
11	Butterfly Effect	000-255	Effect1&2 Red
12		000-255	Effect1&2 Green
13		000-255	Effect1&2 Blue
14		000-255	Effect1&2 White
15	Butterfly effect rotation	000-180	Clockwise rotation
		181-255	back and forward movement with increasing speed
16	Butterfly effect strobe	000-9	No function
		010-255	Effect LED strobe (From slow to fast)
17	Auto / Sound Mode	000-009	No function
		010-199	Auto DMX
		200-255	Sound DMX
18	Speed Mode	000-255	Auto DMX / Sound DMX Speed (From slow to fast)

30 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Laser	000-009	No function
		010-099	Red
		100-199	Green
		200-255	Red +Green
2	Laser Strobe	000-009	No function
		010-255	Strobe (From slow to fast)
3	Laser rotation	000-009	No function
		010-127	Anticlockwise (From slow to fast)
		128-137	No function
		138-255	Clockwise (From slow to fast)
4	White dimmer	000-255	White LED1
5		000-255	White LED 2
6		000-255	White LED 3
7		000-255	White LED 4
8	White LED strobe	000-009	No function
		010-255	White LED strobe (From slow to fast)
9	Par 1	000-255	PAR1 Red
10		000-255	PAR1 Green
11		000-255	PAR1 Blue
12		000-255	PAR1 UV
13	Par 2	000-255	PAR2 Red
14		000-255	PAR2 Green
15		000-255	PAR2 Blue
16		000-255	PAR2 UV
17	Par Strobe	000-009	No function
		010-255	PAR LED strobe (From slow to fast)
18	Butterfly Effect 1	000-255	Effect1 Red
19		000-255	Effect1 Green
20		000-255	Effect1 Blue
21		000-255	Effect1 White
22	Butterfly rotation 1	000-180	Clockwise rotation
		181-255	back and forward movement with increasing speed
23	Butterfly Effect 2	000-255	Effect 2 Red
24		000-255	Effect 2 Green
25		000-255	Effect 2 Blue
26		000-255	Effect 2 White
27	Butterfly rotation 2	000-180	Clockwise rotation
		181-255	back and forward movement with increasing speed
28	Butterfly Strobe	000-009	No function
		010-255	Effect LED strobe (From slow to fast)
29	Auto / Sound Mode	000-009	No function
		010-199	Auto DMX
		200-255	Sound DMX
30	Mode speed	000-255	Auto DMX / Sound DMX Speed (From slow to fast)

TECHNICAL SPECIFICATIONS

Rated voltage :100-240VAC, 50-60Hz

LED :12x8W LED 4-in-1/8x3W LED 4-in-1/4x1W White

Laser : Red100mW / Green 70mW

Fuse :T3A

DMX Channels : 2/9/18/30

Functions : DMX, Automatic programs, Sound to light and Master-Slave.

Dimensions per unit :1200x220x400mm

Weight (per unit) :17.05 kg

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Trionios B.V.

London W1G 7JU, United Kingdom

S.I. 2016:1101

S1.2016:1091

S.I. 2012:3032

BEAMZ

YOUR FUTURE

YOUR SKILLS

YOUR PLATFORM

YOUR PARTY

YOUR EVENT

beamZ

is a leading developer of lighting products, including intelligent DMX moving heads, wireless battery operated DMX effects, static washes, sound-activated club effects, strobes & blacklights, LED lighting, fog and special effects machines, lasers and indoor and outdoor architectural lighting, as well as lighting controllers and protective bags.
