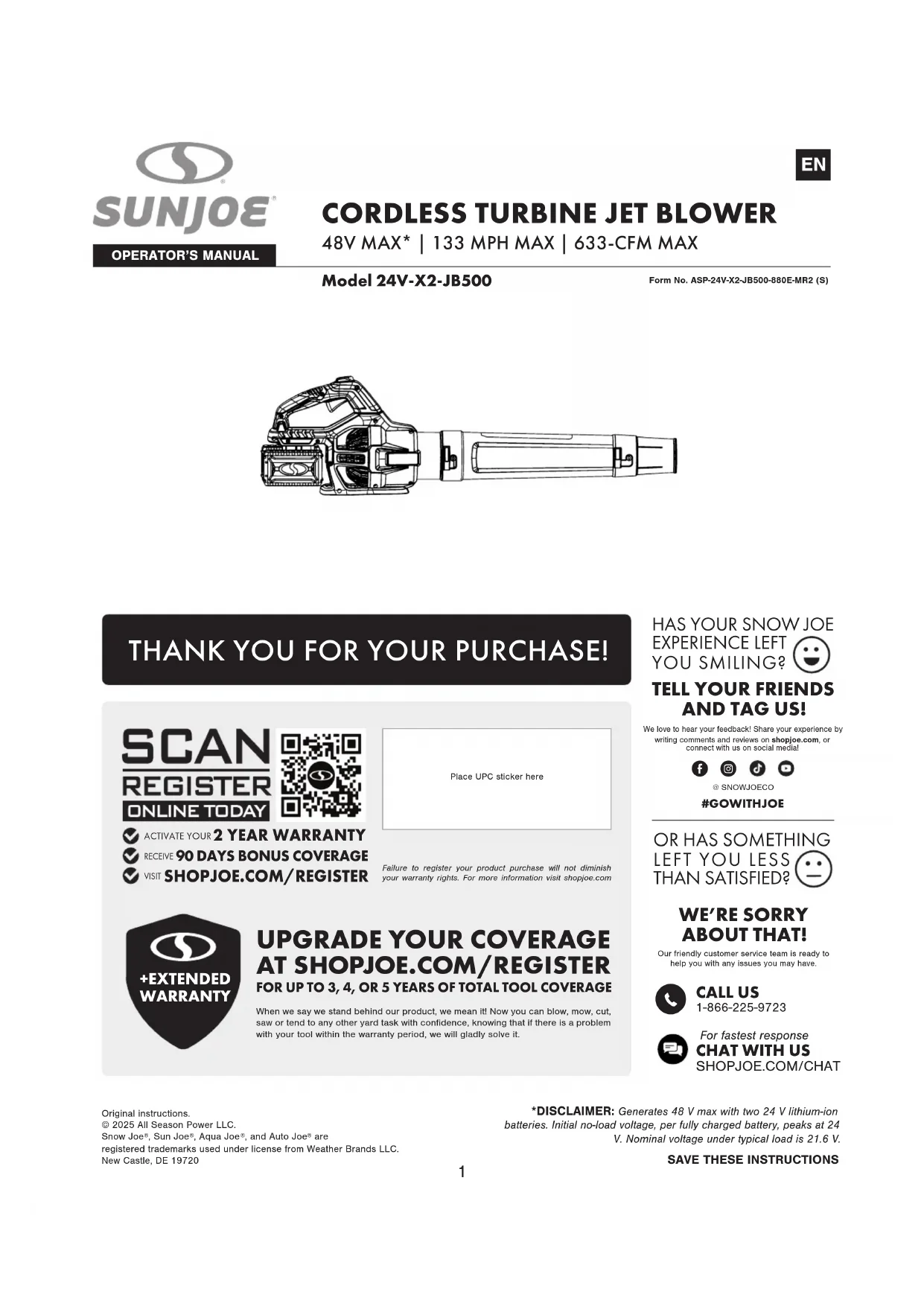

USER MANUAL 24VX2JB500 Sun Joe

*DISCLAIMER: Generates 48 V max with two 24 V lithium-ion batteries. Initial no-load voltage, per fully charged battery, peaks at 24 V. Nominal voltage under typical load is 21.6 V.SAVE THESE INSTRUCTIONSOriginal instructions.© 2025 All Season Power LLC.Snow Joe , Sun Joe , Aqua Joe , and Auto Joe are registered trademarks used under license from Weather Brands LLC.New Castle, DE 19720 THANK YOU FOR YOUR PURCHASE! Failure to register your product purchase will not diminish your warranty rights. For more information visit shopjoe.com Place UPC sticker here

REGISTER FOR UP TO 3, 4, OR 5 YEARS OF TOTAL TOOL COVERAGEWhen we say we stand behind our product, we mean it! Now you can blow, mow, cut, saw or tend to any other yard task with confidence, knowing that if there is a problem with your tool within the warranty period, we will gladly solve it. +EXTENDED WARRANTYACTIVATE YOUR 2 YEAR WARRANTYRECEIVE 90 DAYS BONUS COVERAGEVISIT

SHOPJOE.COM/REGISTER

TELL YOUR FRIENDSAND TAG US!We love to hear your feedback! Share your experience by writing comments and reviews on shopjoe.com, or connect with us on social media!HAS YOUR SNOW JOE EXPERIENCE LEFT YOU SMILING? #GOWITHJOE E Q OR HAS SOMETHING LEFT YOU LESS THAN SATISFIED?WE’RE SORRY ABOUT THAT!Our friendly customer service team is ready to help you with any issues you may have.@ SNOWJOECOCALL US1-866-225-9723 For fastest responseCHAT WITH USSHOPJOE.COM/CHATEN

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Read all the instructions contained in this manual. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to another person, make sure to provide these operating instructions. Basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. mDANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death. mWARNING! This indicates a hazardous situation, which, if not followed, could result in serious injury or death. mCAUTION! This indicates a hazardous situation, which, if not followed, could result in minor or moderate injury.Improper use of the machine will invalidate the warranty, relieve the manufacturer from all liabilities. The user will consequently be liable for all and any damage or injury to himself/herself or others. General Safety

FOR HOUSEHOLD USE ONLY

Work Area Safety mCAUTION! Wear appropriate hearing protection during use. After long periods of extended use, the noise generated from this appliance may cause hearing loss if your ears are not properly protected. mWARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool.Failure to follow all instructions listed below may result inelectric shock, fire and/or serious injury. Save all warnings andinstructions for future reference. 1. Keep work area clean and well-lit – Cluttered, dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools creates sparks which may ignite the dust or fumes.3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical Safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.3. Do not expose power tools to rain or wet conditions. Water entering a blower will increase the risk of electric shock.4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.6. If operating a power tool in a damp location is unavoidable, use a RESIDUAL CURRENT DEVICE (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or Battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.3

6. Dress properly. Do not wear loose clothing or jewellery.

Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7. If devices are provided for the connection of dust extraction

and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards.

8. Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power Tool Use + Care

1. Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn it on

and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/or remove

the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do

not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

8. Keep handles and grasping surfaces dry, clean and

free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery Tool Use and Care

1. Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

2. Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury and fire.

3. When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

4. Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5. Do not use a battery pack or tool that is damaged or

modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

6. Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130 °C may cause explosion.

7. Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service

1. Have your power tool serviced by a qualified repair person

using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2. Never service damaged battery packs. Service of battery

packs should only be performed by the manufacturer or authorized service providers. Jet Blower Safety Warnings

1. Do not use the machine in bad weather conditions,

especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

2. Wear eye protection and ear protection. Adequate

protective equipment will reduce the risk of personal injury.

3. While operating the machine, always wear non-slip and

protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet.

4. Do not wear loose fitting clothing or articles such as

scarves, strings, chains, ties, etc., that could get drawn into the air inlets. Tie back or cover long hair to make sure it does not get drawn into the air inlets. If any of these items are drawn into the air inlets, it can increase the risk of personal injury.

5. Keep bystanders away while operating the machine. Thrown

debris can increase the risk of personal injury.4

6. Never point the blower nozzle in the direction of people

or pets or in the direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles and walls that can cause debris to ricochet. Thrown objects can damage property and increase the risk of personal injury.

7. Do not use the machine to blow anything that is burning or

smoking, such as cigarettes, matches or hot ashes. These ignition sources may increase the risk of fire.

8. Do not touch the fan while still in motion. Turn off the

machine, wait until the fan stops and unplug the machine, before removing any part that may give access to the fan. This reduces the riskof injury from moving parts.

9. When clearing jammed material or servicing the machine,

make sure the power switch is off and the power cord is disconnected. Unexpected actuation of the machine while clearing jammed material or servicing may increase the risk of personal injury. Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery packs can cause cell damage. IMPORTANT! Analyses confirm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the jet blower and cause it to malfunction. mCAUTION! To reduce the risk of injury, charge the IONMAX™ 24V* lithium-ion battery packs only in the designated IONMAX™ 24V* lithium-ion charger. Other types of chargers present risk of fire, personal injury and damage. Do not wire the battery packs to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery packs.

• Avoid dangerous environments – Do not charge the battery packs in rain, snow or in damp or wet locations. Do not use the battery packs or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting or removing the battery packs, which could lead to a fire.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open flames near charging battery packs Vented gases may explode. NOTE: The safe temperature range for the batteries are 41°F – 105ºF (5°C – 40.5°C). Do not charge the batteries outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of fire and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Charger 24VCHRG-DPC is rated for 120 volt AC only – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of fire, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery packs or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, fire or exposure to toxic battery chemicals. If the batteries or charger are damaged, please contact an authorized Snow Joe

dealer or call the All Season Power customer service center at 1-866-225 9723 for assistance.5

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery fluids, wash the affected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – When battery packs are not in use, keep them away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Store your battery packs and charger in a cool, dry place – Do not store the battery packs or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Information about the batteries

1. The battery packs supplied with your cordless jet blower

is only partially charged. The battery packs have to be charged completely before you use the tool for the first time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery packs frequently.

3. Store the battery packs in a cool place, ideally at 77°F

(25°C) and charged to at least 40%.

4. Lithium-ion batteries are subject to a natural aging process.

The battery packs must be replaced at the latest when their capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery packs are no longer capable of meeting the high power requirements needed for the proper operation of your jet blower, and therefore pose a safety risk.

5. Do not throw battery packs into an open fire as this poses a

6. Do not ignite the battery packs or expose them to fire.

7. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the batteries fall noticeably or the electronic protection system triggers. Place the battery packs in storage only after they have been fully charged.

8. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the batteries' housing even if this overheating is not apparent externally.

9. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery packs appear to be undamaged. The battery cells inside the batteries may have suffered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

10. If the battery packs suffer overloading and overheating,

the integrated protective cutoff will switch off the equipment for safety reasons. IMPORTANT! Do not press the ON/OFF button any more if the protective cut-off has been activated. This may damage the battery packs.

11. Do not use battery packs or an appliance that is damaged

or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

12. Do not expose battery packs or an appliance to fire or

excessive temperature. Exposure to fire or temperature above 266ºF (130°C) may cause explosion.

13. Follow all charging instructions and do not charge the

battery packs or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the batteries and increase the risk of fire. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.

2. Protect the battery charger and its cord from damage. Keep

the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualified technician at an authorized Snow Joe

in any way. Do not use any adapter plugs with grounded appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery pack(s) and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery packs will become

warm. Allow the battery packs to cool to room temperature before inserting it into the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of charged or partially charged battery packs will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

8. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a fire.6

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suffered dangerous damage.

11. Do not use batteries that have suffered curvature or

deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.)

12. Never fully discharge the battery packs (maximum

recommended depth of discharge is 80%). A complete discharge of the battery packs will lead to premature aging of the battery cells. Protection from environmental influences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and flammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads, overcharging

and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery packs in a cool, dry place at a temperature of 77°F (25°C). Protect the battery packs, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

8. Prevent the lithium-ion battery packs from freezing. Battery

packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.7 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

MANUAL(S) – Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning or a danger. Immediately remove the plug from the mains if the power cable is damaged, frayed or entangled. Always keep the power cable away from heat, oil and sharp edges. WARNING! Do not expose the unit to rain or wet conditions. Wear hearing protection. Wear eye protection. Wear breathing protection. Keep bystanders and children a safe distance away. Symbols Symbols Descriptions Descriptions DANGER! Rotating impellers pose a serious risk of injury. Keep hands and feet away from openings while the machine is running. The rotating part will continuously run for several seconds after you turn off the machine. Beware of flying objects and debris. WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories or conducting any other maintenance task.8 Know Your Cordless Turbine Jet Blower Read the owner’s manual and safety instructions carefully before operating the cordless turbine jet blower. Compare the illustration below to the cordless jet blower in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

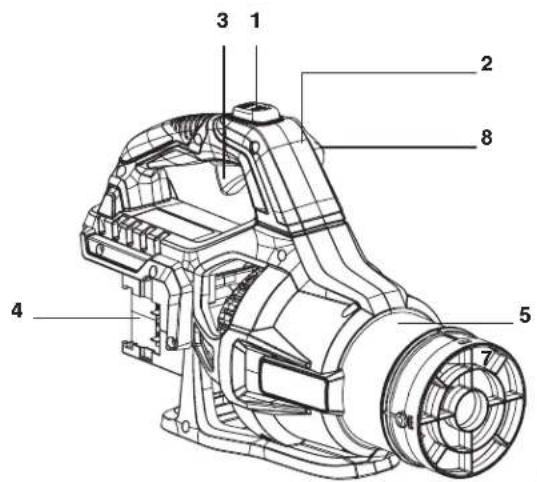

4. Battery compartment (2)

1. Carefully remove the cordless jet blower and check to see

that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless jet blower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless jet blower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suffocation risk! Battery Pack Operation The equipment is powered by two lithium-ion batteries. The battery packs are completely sealed and maintenance free. mWARNING! The cordless turbine jet blower can only be powered by both of the batteries together. One battery cannot provide sufficient power to the tool. Make sure to use two batteries of the same voltage and the same capacity. Using the tool with batteries of different capacity will cause damage to the batteries. mWARNING! Before first use, the batteries require 55 min charge time to be fully charged. When the batteries are at low capacity, recharge for 55 min again before resuming operation. Battery Charge Level Indicator The battery packs are equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.

• 1 level monitoring LED is lit: Battery is flat. Stop work IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. NOTE: If the charge level button does not appear to be working, connect the battery to the charger and charge as needed. NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. Charger Operation mWARNING! Charge only IONMAX™ 24V* lithium-ion battery packs with their compatible IONMAX™ 24V* lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to flow into the charger's AC/DC plug. When to Charge the IONMAX™ 24VBAT Lithium-Ion Batteries NOTE: The IONMAX™ 24VBAT lithium-ion battery packs do not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery packs before placing them into the charger.

• Use the battery charge indicator lights to determine when to charge your IONMAX™ 24VBAT lithium-ion battery packs.

• You can "top-off" your battery packs' charge before starting a big job or after a long day of use. Charging the Batteries

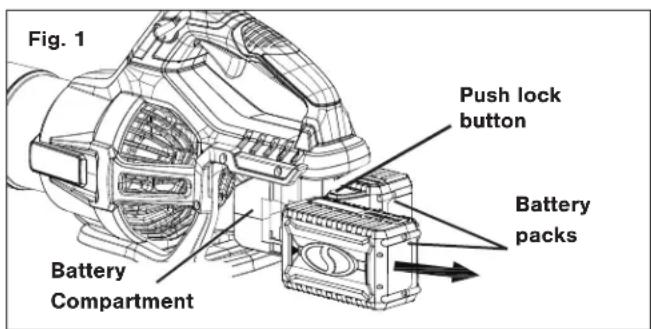

1. Push the push lock buttons on each battery to pull the

battery packs out of the equipment (Fig. 1). Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights Fig. 1 Battery packs Battery Compartment Push lock button10

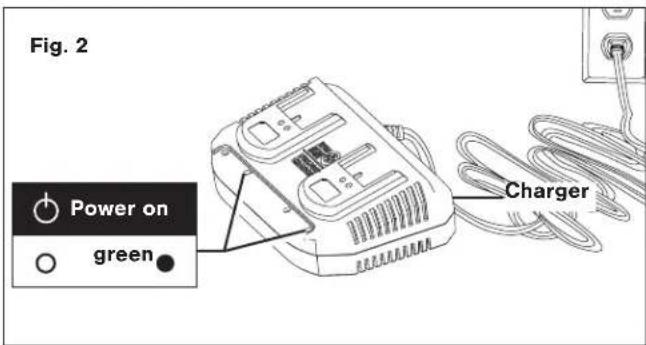

2. Check that the mains voltage is the same as that marked

on the rating plate of the battery charger. Then, insert the charger's plug into the electrical wall outlet. When you plug in the charger, two green lights will illuminate and stay green (Fig. 2).

3. Place the battery packs into the charger by sliding the

packs to lock them into position. When you insert the batteries into the charger, the two green lights will go off, and the red lights will illuminate to indicate that the batteries are charging (Fig. 3).

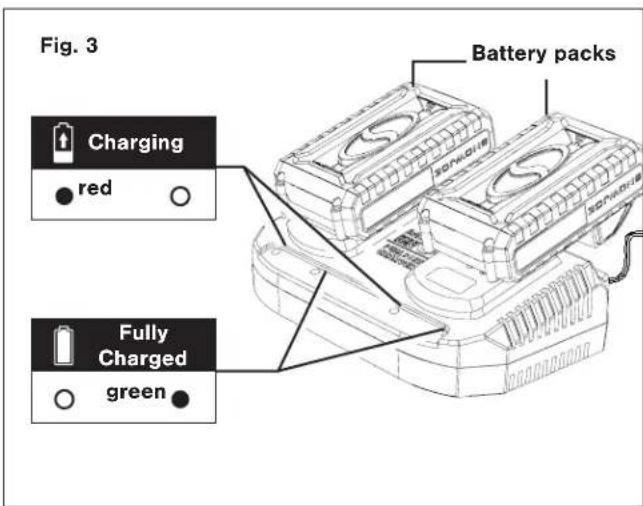

4. When the charger lights turn green, the batteries are fully

charged (Fig. 3). NOTE: A fully discharged pack with an internal temperature in the normal range will fully charge in 55 min (between 32ºF/0ºC and 113ºF/45ºC).

5. If the light indicators do not come on at all, check that the

battery packs are fully seated into the bay. Remove the battery packs and reinsert. If the problem persists, contact an authorized Snow Joe

dealer or call the All Season Power customer service center at 1-866-225-9723 for assistance.

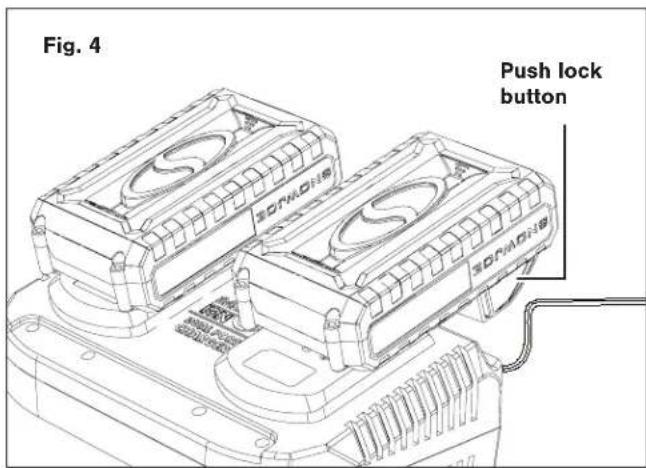

6. When charging is complete, remove the batteries from the

charger by pressing the push lock buttons and sliding the batteries backward to unlock them from the charger (Fig. 4). mCAUTION! FIRE HAZARD. When removing the batteries from the charger, be sure to unplug the charger from the outlet first, then remove the batteries from the charger. mWARNING! This charger does not automatically turn off when the batteries are fully charged. Please take care not to leave the batteries in the charger. Switch off or unplug the charger at the mains when charging is complete.

7. Timely recharging of the batteries will help prolong the

batteries' life. You must recharge the battery packs when you notice a drop in the equipment's power. IMPORTANT! Never allow the battery packs to become fully discharged as this will cause irreversible damage to the batteries. Charging a Hot or Cold Battery Pack The green indicator lights on the charger base indicates that the battery packs' temperatures are outside the charging range. Once the packs are within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold battery packs may take longer to charge. Assembly mWARNING! To avoid serious personal injury, read and understand all safety instructions provided. mWARNING! Do not insert batteries until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. mWARNING! Before performing any maintenance, make sure batteries are removed. Failure to heed this warning could result in serious personal injury. mWARNING! To prevent serious personal injury, make sure the speed dial is in initial position when the tool is not in use, otherwise the tool will turn on when the batteries are installed. Fig. 2 Charger green Power on Fig. 3 Battery packs red Charging green Fully Charged Fig. 4 Push lock button11 Attaching the Jet Blower Tube

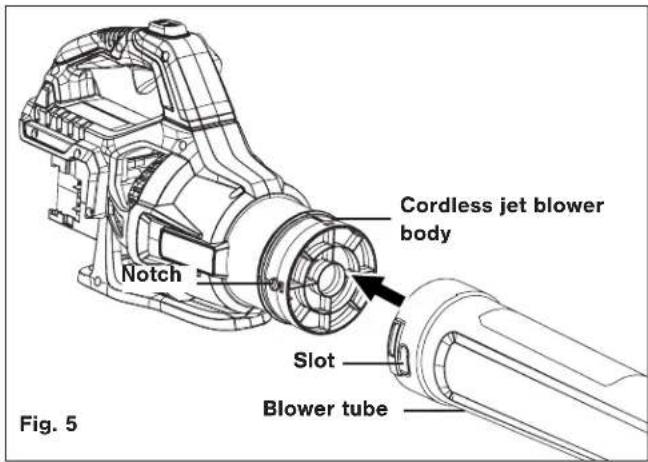

1. Align the slot on the blower tube with the notch on the

cordless jet blower body. Slide the two together (Fig. 5).

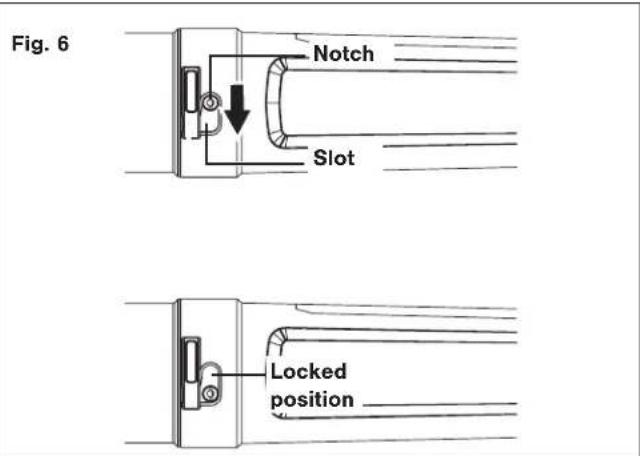

2. Twist the blower tube counter-clockwise until the notch

clicks into the end of the slot (Fig. 6).

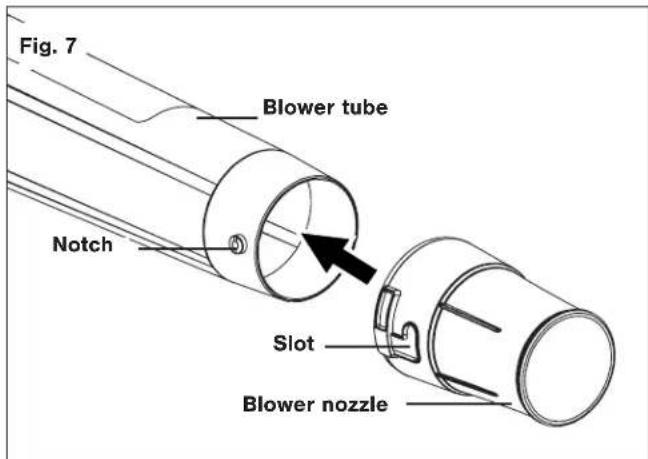

3. Then, align the notch on the blower tube with the slot on the

blower nozzle. Slide the pieces together until they click in place (Fig. 7).

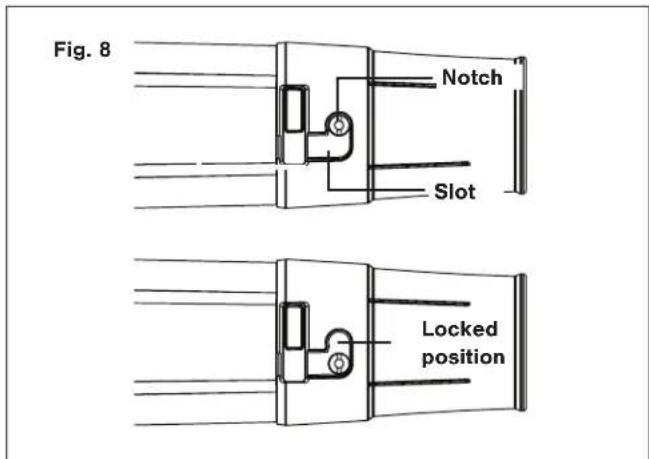

4. Twist the blower nozzle clockwise until the notch clicks into

the end of the slot (Fig. 8). mWARNING! To avoid the risk of injury, it is not recommended to disassemble the blower tube. Operation Starting + Stopping mCAUTION! Starting, stopping, and restarting a DC motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless jet blower, always wait at least five seconds after stopping before restarting the jet blower.

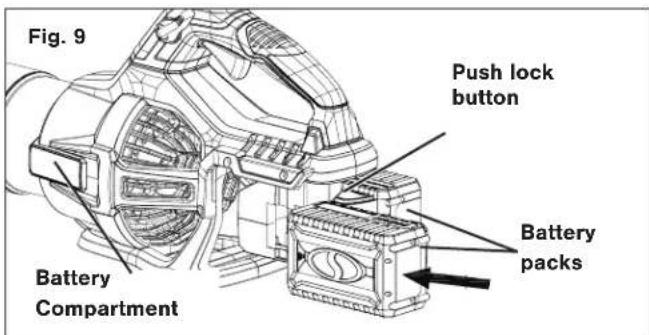

1. Insert the batteries in the battery compartments (Fig. 9).

2. To turn the tool on, hold the cordless jet blower firmly with

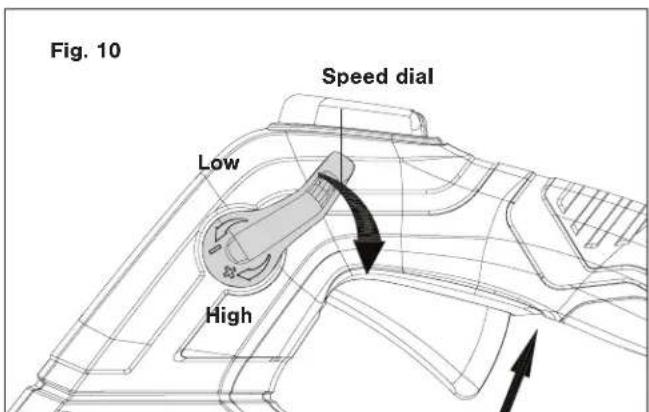

hand on the handles. Then squeeze and hold the trigger switch. For long term operation under a certain speed, you can use the speed dial to adjust between low to high speed, and reach up to 106 mph, when speed is set, you can release the trigger switch (Fig. 10). Fig. 5 Blower tube Cordless jet blower body Slot Notch Fig. 6 Notch Locked position Slot Fig. 7 Blower nozzle Blower tube Slot Notch Fig. 9 Battery packs Battery Compartment Push lock button Fig. 8 Notch Locked position Slot12

3. This unit is equipped with a Turbo button that will allow the

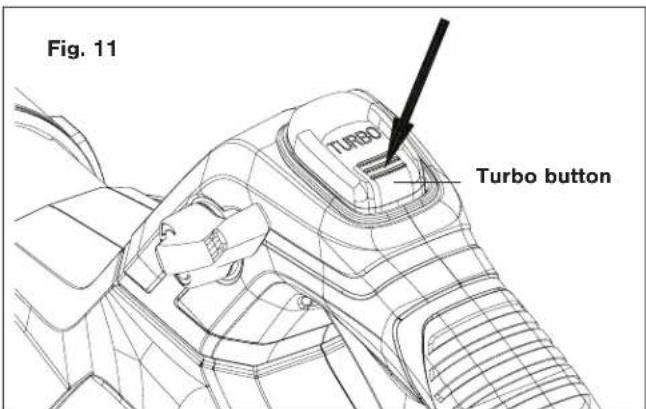

blower to reach 133 mph. Press and hold the Turbo button to activate. Release the Turbo button to turn Turbo mode off (Fig. 11). mWARNING! The Turbo button is for short term use only. Do not use the Turbo function for extended periods of time. Using this function for an extended time can cause damage.

4. To turn the tool off, simply adjust the speed dial to initial

position.(Fig.11). mWARNING! Please ensure the speed dial is in initial position when the tool is not in use, otherwise the tool will be turn on when the batteries are installed. Operating Tips mWARNING! Use the cordless jet blower only in daylight or good artificial light.

• When using the cordless jet blower, plant your feet firmly on the ground and place your dominant hand on the unit handle to control the unit. Use your other hand to steady the unit as needed.

• Wear personal protective equipment during your work session. This includes boots, safety glasses/goggles, ear defenders, long pants and a long-sleeve shirt.

• Make sure the jet blower tube nozzle is not directed at anybody or any loose debris before starting the unit.

• Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.

• Keep a firm grip on the unit handle while in use.

• To reduce the risk of hearing loss associated with increased sound levels, hearing protection is required.

• Operate power equipment only at reasonable hours— not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

• To reduce noise levels, limit the number of pieces of power equipment used at any one time and operate power blowers at the lowest possible speed setting necessary to do the job.

• Use rakes and brooms to loosen debris before blowing.

• In dusty conditions, slightly dampen surfaces.

• Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches and gardens.

• Blow debris into a safe, open area away from children, pets, open windows or freshly washed cars.

• Clean up after using leaf blowers and other lawn equipment. Dispose of debris appropriately. mWARNING! To avoid serious personal injury, wear ear defenders, goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations. mWARNING! To prevent serious personal injury or damage to the unit, make sure the blower tube is in place before operating the unit. Air Vents Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling. mWARNING! To avoid serious personal injury, do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air vents. To make sure long hair does not get drawn into the air vents, tie back long hair. Blowing Operation

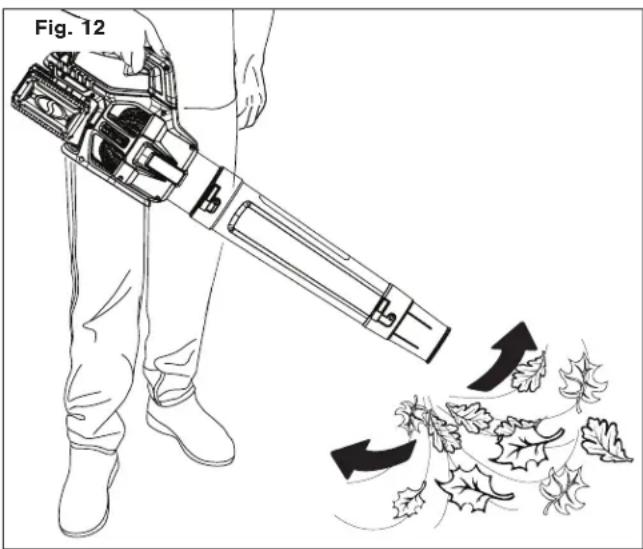

• Hold the jet blower firmly with your dominant hand on the unit handle. Sweep from side to side with the nozzle several inches above the ground or floor (Fig. 12).

• Slowly advance the unit, keeping the accumulated pile of debris in front of you. Fig. 11 Turbo button High Low Fig. 10 Speed dial13 Maintenance mWARNING! Always wear protective gloves during maintenance operations. Do not carry out maintenance when the engine is running or hot. mWARNING! Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury and poor performance. To order genuine replacement parts or accessories for the Sun Joe

24V-X2-JB500 cordless jet blower, please visit shopjoe.com or contact the All Season Power customer service center at 1-866-225-9723. Proper Care for Battery + Charger mWARNING! To reduce the risk of injury, always unplug the charger and disconnect the battery pack from the charger before performing any maintenance task. Never disassemble the battery pack or charger. Contact your Snow Joe

dealer or the All Season Power customer service center for all repairs.

1. To reduce the risk of injury and damage, never immerse your

battery pack or charger in liquid or allow any liquid to flow inside these components.

2. Clean out dust and debris from charger vents and electrical

contacts by blowing with compressed air.

3. Use only mild soap on a damp cloth to clean the battery

pack and charger, keeping away from all electrical contacts. Certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around battery packs, battery chargers or tools.

4. The 24V* IONMAX™ lithium-ion battery charger has no

serviceable parts. Storage

1. Examine the cordless jet blower thoroughly for worn, loose,

or damaged parts. Should you need to repair or replace a part, contact an authorized Snow Joe

dealer or call the All Season Power customer service center at 1-866-225-9723 for assistance

2. Remove the batteries from the cordless jet blower

3. Store the jet blower in a dry, well-ventilated place that is

inaccessible to children. Keep away from corrosive agents. Battery + Charger Off-Season Storage

1. Do not expose your battery pack or charger to water, rain

or allow them to get wet. This could permanently damage the charger and the battery pack. Do not use oil or solvents to clean or lubricate your battery pack as the plastic casing can become brittle and crack, causing a serious risk of injury.

2. Store the battery pack and charger at room temperature

away from moisture. Do not store in damp locations where corrosion of terminals may occur. As with other battery pack types, permanent capacity loss can result if the pack is stored for long periods of time at high temperatures (over

3. IONMAX™ 24VBAT lithium-ion battery packs maintain their

charge during storage longer than other battery pack types. As a general practice, it is best to unplug the battery charger and remove the battery pack when they are not in use. Recharge the battery pack every 6 months to 60% capacity (2 lights on) during off-season storage to maintain optimal battery performance. Battery Caution + Disposal Always dispose of your battery packs according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery packs from shorting, which could cause a fire or explosion. Fig. 1214 mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual for

specific information.

2. Install only new batteries of the same type in your product

3. Failure to insert batteries in the correct polarity,

as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not mix Alkaline, Standard (Carbon-Zinc), or

Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

6. Do not dispose of batteries in fire.

7. Batteries should be recycled or disposed of as per state

and local guidelines. Service and Support If your Sun Joe

24V-X2-JB500 cordless jet blower requires service or maintenance, please call the All Season Power customer service center at 1-866-225-9723. Model and Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. 24VCHRG-DPC Federal Communications Commission (FCC) mWARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Record the following numbers from the housing or handle of your new product:Model #:Serial #:24V-X2-JB50015 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this turbine jet blower. Contact All Season Power if you are unsure whether it is safe to use a particular replacement part or accessory with your turbine jet blower. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. 24VCHRG-QC ModelAccessories Item

24VCHRG-DPC NOTE: Accessories are subject to change without any obligation on the part of All Season Power. Accessories can be ordered online at shopjoe.com or via phone by contacting the All Season Power customer service center at 1-866-225-9723. 24V* IONMAX

2.5 Ah Lithium-ion Battery

4.0 Ah Lithium-ion Battery

5.0 Ah Lithium-ion Battery

Lithium-ion Dual Port Battery ChargerR7_06022025

OUR CUSTOMER PROMISE + LIMITED WARRANTY

OUR WARRANTY: All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase or delivery by the original, end-user purchaser when purchased from All Season Power or from one of All Season Power’s authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If you have any questions about how to buy from an authorized seller, chat with us at shopjoe.com/support or call us at 1-866-225-9723. If your Product does not work or there’s an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product (which may include a refurbished, like-new product) at no charge, or (3) repair the Product. How cool is that! PRODUCT REGISTRATION: All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, by chatting with us at shopjoe.com/support or calling our Customer Service Department at 1-866-225-9723. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by All Season Power to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com or by calling 1-866-225-9723. We encourage you to use CERTIFIED AUTHENTIC Snow Joe

replacement parts + accessories. Damage caused by the use of any other parts + accessories on your Product will not be covered under the warranty. Genuine parts + accessories can be found and purchased here by entering the model number of your product. ABOVE ALL ELSE, All Season Power, LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products. When you register your powered or non-powered Product with All Season Power at shopjoe.com/register, you will receive an additional 90 days of warranty coverage. In addition, you will have the option of purchasing extended warranty coverage beyond the standard 2-year manufacturer’s warranty. Choose from one, two, or three years of extended coverage through Extend, Inc. Additional charges apply. When you Go With Joe

, you’re not just buying an extended warranty; you’re buying total peace of mind to know that you can rely on our top-notch tools, top-tier customer support, complete product coverage + no hassle return policy. Chat with us at shopjoe.com/support or call us at 1-866-225-9723 7 days a week 10AM-6PM EST. We’ve got you covered! There are no warranties which extend beyond those stated herein. ANY IMPLIED WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. UNDER NO CIRCUMSTANCES SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. This warranty supersedes those printed in product manuals.
