USER MANUAL MBH31 Summit

Please read this user manual first!

Dear customer,

This product is produced in modern plants and undergoes rigorous quality control, to serve you with optimum performance.

In this regard, we request that you read the entire user manual carefully before using the product, and keep it as a reference resource.

This user manual....

will help you put the product into use rapidly and safely.

Please follow all safety instructions.

Keep this manual for future reference and also read the additional documents supplied with the product.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health that could otherwise be caused by inappropriate waste handling of the product.

NOTICE:

Due to continuous product improvement, the manufacturer reserves the right to modify this product without prior notification.

When using this appliance, follow the precautions listed below:

ELECTRICAL REQUIREMENTS

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a cord having a grounding wire with a grounding plug that must be inserted into a properly installed and grounded outlet.

DO NOT USE AN EXTENSION CORD

Use an exclusive wall outlet. Do not connect your refrigerator to extension cords or together with any other appliance in the same wall outlet.

Do not splice the cord.

IMPORTANT WARNING: An empty refrigerator is a very dangerous attraction to children. Remove either the gasket, latches, lids or doors from an unused appliance, or take some other action that will guarantee it harmless.

DANGER: Risk of Child Entrapment!

Before you throw away your old refrigerator :

Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

DON'T WAIT! DO IT NOW!

CAUTIONS

• Storing too many items or opening the door too frequently will cause the appliance to use more electrical power which can lead to a malfunction.
• Do not place objects on the work top that are heavy, sharp or corrosive.
• Open the door as little as possible during power failures.
• Try not to open the door too often, especially when the weather is hot and humid. Once the door is open, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
• If there is an outer condenser, the rear wall should be always be kept clean and dust-free.

Remove exterior and interior packaging, wipe the outside thoroughly with a soft dry cloth and the inside with a damp, lukewarm cloth. Avoid placing the unit in a narrow recess or near any heat source, direct sunlight, or moisture. Let air circulate freely around the unit. Keep the rear of the minibar 2 inches away from the wall.

Location

1) Select a place with a level surface.
2) Allow 2 inches of space between the back of the minibar and the wall and 2 inches on either side and at the top.
3) Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher consumption of electricity.
4) Avoid damp places. Too much moisture in the air will cause frost to form very quickly on the evaporator.

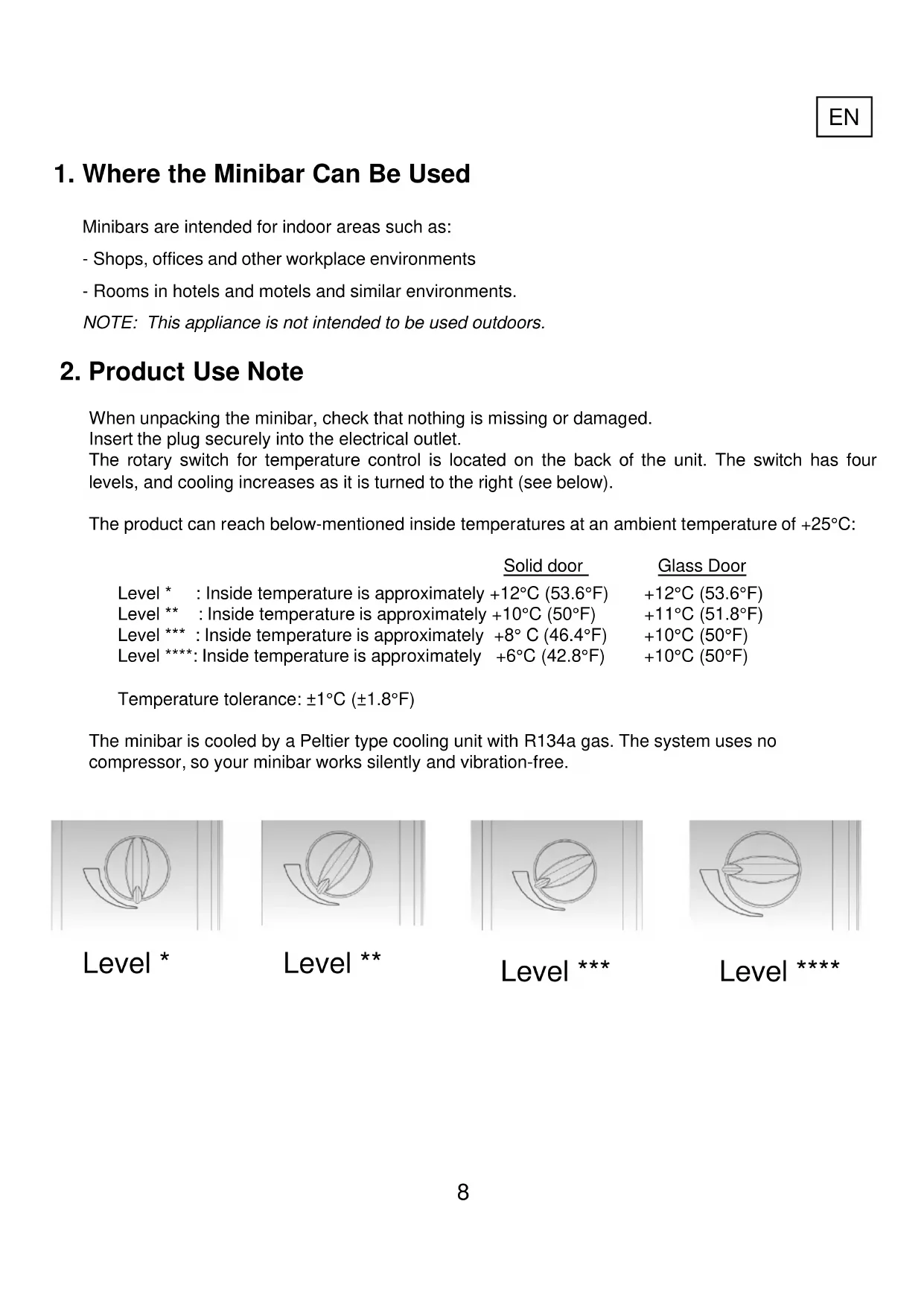

Minibars are intended for indoor areas such as:

• Shops, offices and other workplace environments
• Rooms in hotels and motels and similar environments.

NOTE: This appliance is not intended to be used outdoors.

2. Product Use Note

When unpacking the minibar, check that nothing is missing or damaged. Insert the plug securely into the electrical outlet.

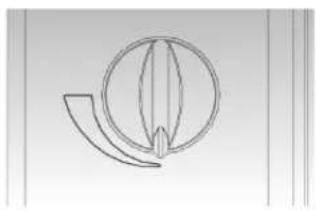

The rotary switch for temperature control is located on the back of the unit. The switch has four levels, and cooling increases as it is turned to the right (see below).

The product can reach below-mentioned inside temperatures at an ambient temperature of +25^ :

	Solid door	Glass Door
Level * : Inside temperature is approximately +12°C (53.6°F)		+12°C (53.6°F)
Level ** : Inside temperature is approximately +10°C (50°F)		+11°C (51.8°F)
Level *** : Inside temperature is approximately +8°C (46.4°F)		+10°C (50°F)
Level ****: Inside temperature is approximately +6°C (42.8°F)		+10°C (50°F)

Temperature tolerance: ± 1^ (± 1.8^)

The minibar is cooled by a Peltier type cooling unit with R134a gas. The system uses no compressor, so your minibar works silently and vibration-free.

Level*

Level **

Level ***

Level ***

3. Disposal

Packing materials may be dangerous for children. Keep them out of the reach of children or dispose of them in accordance with local regulations. Do not include them with normal household trash. The packing of your minibar is manufactured from recyclable materials.

Dispose of your old machine without harming the environment. Consult your authorized dealer or the waste collection center of your municipality about the disposal of your minibar. Before disposal, cut off the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

4. Cleaning the Minibar

Turn off and unplug the appliance before cleaning it!

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Clean the inside and outside of the minibar with warm water before usage. Then rinse with tap water and dry thoroughly. Never use soap or granular cleansing materials, especially including baking soda, when cleaning the minibar.

Also clean the equipment inside the minibar the same as described above. The door gasket must not be exposed to humidity and lubricating oil. The gasket will remain soft if powdered occasionally with talcum powder (especially near the hinges) and will last a long time. Once a year, clean the back of the minibar with a brush or soft fabric. This part does not need special maintenance.

5. Transportation

1) Original box and styrofoam should be kept for re-transporting the unit.
2) Product should be emptied before moving.
3) Tape shelves in place before moving the minibar, and tape the door shut.
4) Keep unit vertical. Transportation instructions on the box should be heeded.

6. Problem Solving

In case of a breakdown...

• Check whether electricity is provided to the unit or if it is plugged into the socket.
• Check whether there is any warming of the cooling unit.
• Check whether the unit is stable or not.
• Check whether the door is closed or not.

If the breakdown continues, please call Summit's customer service line at 1-800-932-4267.

7. Tips for Saving Energy

• Install the appliance in a dry, well-ventilated room, but not in direct sunlight and not near a heat source (e.g., radiator, stove, etc.).
• Open and close the door as seldom and as briefly as possible.
• Allow drinks to cool down before placing in the appliance.
• Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.

EN

The Symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the place where you purchased the product.

FR

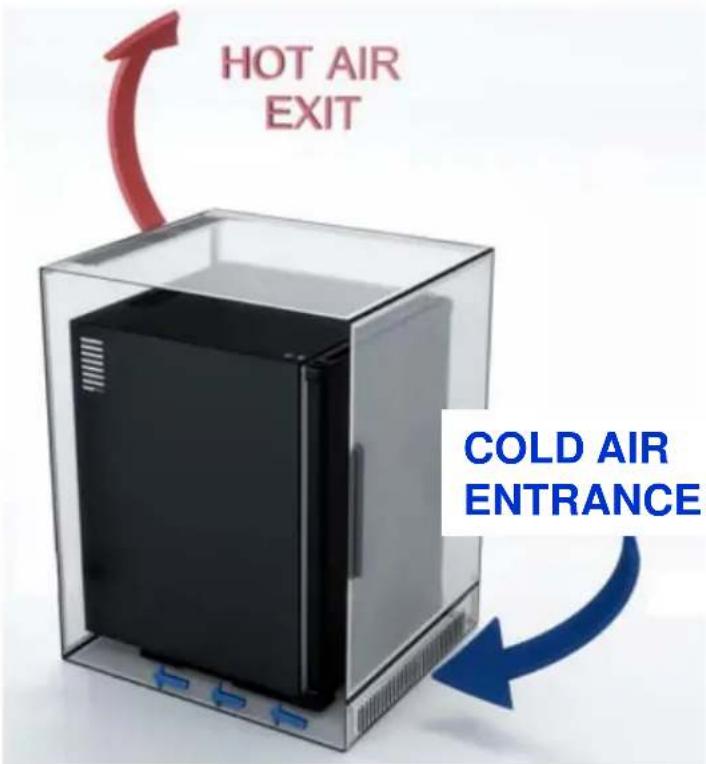

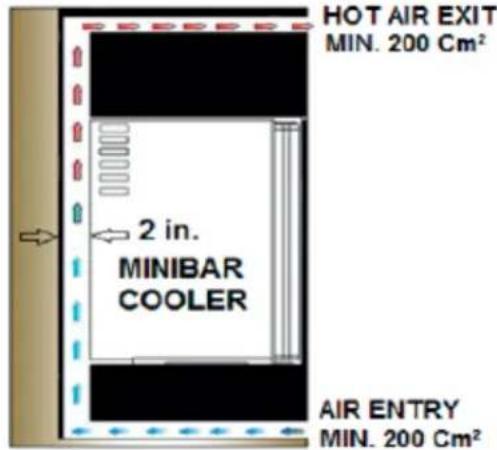

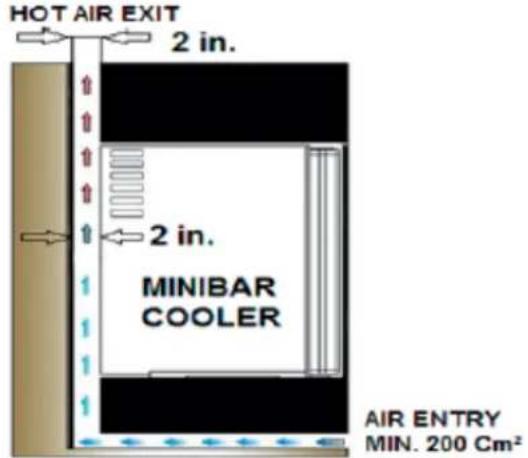

Assure aeration of the cooling block with correct ventilation and don't obstruct the air passage for enclosed installations. Create the correct air intakes to easily dispose of the hot air produced. The diagrams shown are a few examples of correct installations.

INSTALLATION

The minibar must be positioned on a horizontal support that is perfectly level. This operation can be checked using a spirit level.
The warranty is not valid for inclinations exceeding 2 degrees.

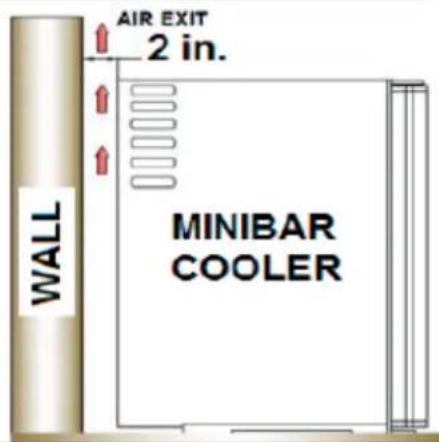

The back part must be at least 2 in. a way from the wall.
-Leave a space of at least 2 in. on the sides.
-Do not for any reason cover up the aerating grill at the top of the minibar. This would cause an increase in heat detrimental to the correct functioning of the equipment.
-Do not expose the minibar to sources of heat.

INSTRUCTIONS D'ASSEMBLAGE

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

ITEMS WARRANTYOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTY - LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTYOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTYES OF MERCHANTIBILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING! This product may contain chemicals known to the state of California to cause cancer or birth defects or other reproductive harm. For more information, visit: www-summitappliance.com/prop65

Chemicals known by the manufacturer to be present in this product in concentrations higher than threshold limits: NONE.

FELIX STORCH, INC.

770 Garrison Avenue

Bronx, NY 10474

Phone: [phone]

Fax: [phone]

www-summitappliance.com

SUMMIT

For parts and accessory ordering, troubleshooting and helpful hints, visit:

www-summitapplianceparts.com
