USER MANUAL ER326AB90D SIEMENS

Operating instructions

• Switching on manually p. 8
• Switching on automatically p. 8
• Safety system p. 9
• Switching off a burner p. 9
• Power levels p. 9
• Warnings p. 10
• Suitable pans p. 10
• Wok pan p. 10
• Accessories p. 11
• Additional wok pan support p. 11
• Cooking recommendations p. 11
• Precautions for use p. 12
• Cleaning and maintenance p. 13
• Cleaning p. 13
• Unsuitable products p. 13
• Maintenance p. 14
• Faults p. 14
• Technical Assistanse Service p. 15
• Warranty conditions p. 15

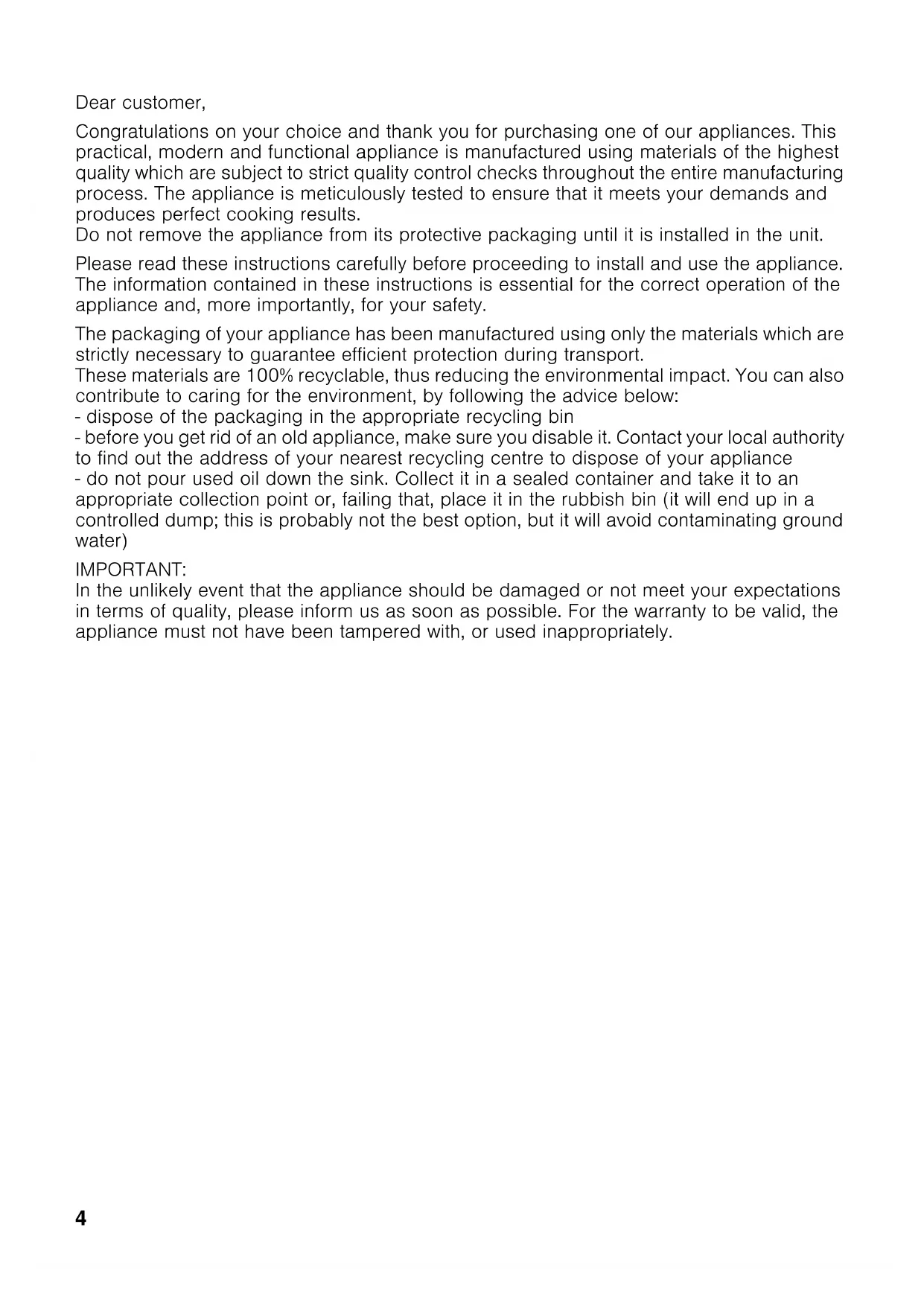

• Used appliances and packaging Environmentally-friendly waste management . 154 Dear customer, Congratulations on your choice and thank you for purchasing one of our appliances. This practical, modern and functional appliance is manufactured using materials of the highest quality which are subject to strict quality control checks throughout the entire manufacturing process. The appliance is meticulously tested to ensure that it meets your demands and produces perfect cooking results. Do not remove the appliance from its protective packaging until it is installed in the unit. Please read these instructions carefully before proceeding to install and use the appliance. The information contained in these instructions is essential for the correct operation of the appliance and, more importantly, for your safety. The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport. These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment, by following the advice below: - dispose of the packaging in the appropriate recycling bin - before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance - do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water) IMPORTANT: In the unlikely event that the appliance should be damaged or not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately.5 Safety precautions Read these instructions carefully. Reading these instructions will enable you to use your appliance safely and effectively. Keep the operation and installation instructions and provide them along with the appliance if it is passed on to another user. The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with. The images shown in these instructions are for guidance only. Do not remove the appliance from its protective packaging until it is installed in the unit. Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service. This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance. This appliance must only be used in well ventilated places. All operations relating to installation, connection, regulation and conversion to other gas types must be carried out by an authorised installation engineer, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations. It is recommended you contact the Technical Assistance Service to change to another gas type. Before installing your new hob, ensure that it is being installed according to the assembly instructions. This appliance leaves the factory set to the type of gas that is indicated on the specifications plate. If this needs to be changed, please consult the assembly instructions. This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed. This appliance is only intended for cooking purposes, not as a heating system. This appliance is not intended for operation with an external clock timer or a remote control. Never leave the appliance unattended during operation. This appliance may be used by children 8 years old and older and by persons with reduced physical, sensory or mental capacity or a lack of experience or knowledge if they are supervised or they have been instructed about6 the safe use of the appliance and have understood the associated dangers. Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children. Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Carefully read the instructions and warnings on the operation of gas burners. The hotplates and surrounding area become very hot. Never touch the hot surfaces. Children under 8 years old must be kept at a safe distance from the appliance. The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob. Do not store or use corrosive chemicals, steamers, inflammable materials or non-food products below or near this domestic appliance. Fat or oil which is overheated can catch fire easily. Do not leave oil or fats to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Risk of burns! Put the fire out by covering the pan with a lid and switch off the hotplate. Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans. The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when the hob is in use: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood). Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system. Do not subject the appliance to draughts. These might blow out the burners. Do not clean the hob using a steam cleaner. Risk of electrocution! In the event of a malfunction, turn off the appliance’s gas and electricity supply. For repairs, call our Technical Assistance Service. Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service. If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately, so that they can repair or replace it. Cracks or fractures in the glass may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.7 Your new appliance These individual appliances can be combined and/or with conventional hobs of the same make, using the joint accessory. See the catalogue for details. Pan supportDual double-flame burner (up to 6 kW) Control knob Pan support Burner (up to p. 15

Burner (up to 2.8 kW) Control knob Pan supportDual double-flame burner (up to 6 kW) Control knob8 The gas burners Operation There are indications to show which burner each control knob operates. Fig. 1. It is essential to ensure that all the burner parts and the pan supports are correctly installed for the appliance to work correctly. Fig. 2-3-4-5. Fig. 5 Switching on manually

1. Press the chosen burner control and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter,

matches, etc.) and bring it close to the burner. Switching on automatically If your hob features the automatic ON function (ignition sparkers):

1. Press the chosen burner control and turn it

anticlockwise to the maximum power setting. While the control is still pressed down, sparks are produced on all burners. The flame ignites (it is no longer necessary to press down the control).

2. Turn the control to the required setting.
