USER MANUAL ES326BB20E SIEMENS

Operating instructions 3

Warranty conditions . . . . . . . . . . . . . . . . . . 15

Used appliances and packaging. . . . . . . 15

Environmentally-friendly waste management . . 154

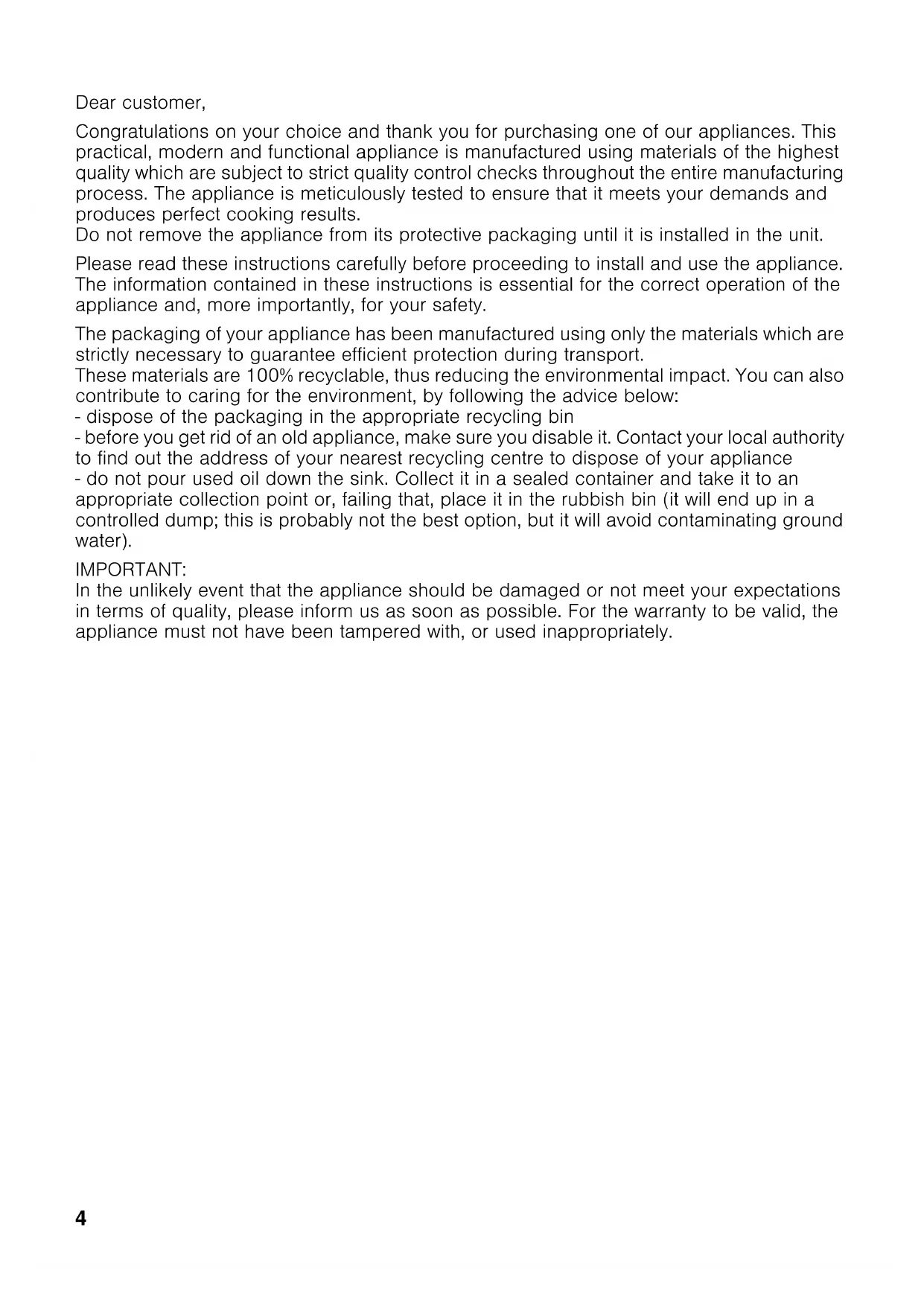

Congratulations on your choice and thank you for purchasing one of our appliances. This

practical, modern and functional appliance is manufactured using materials of the highest

quality which are subject to strict quality control checks throughout the entire manufacturing

process. The appliance is meticulously tested to ensure that it meets your demands and

produces perfect cooking results.

Do not remove the appliance from its protective packaging until it is installed in the unit.

Please read these instructions carefully before proceeding to install and use the appliance.

The information contained in these instructions is essential for the correct operation of the

appliance and, more importantly, for your safety.

The packaging of your appliance has been manufactured using only the materials which are

strictly necessary to guarantee efficient protection during transport.

These materials are 100% recyclable, thus reducing the environmental impact. You can also

contribute to caring for the environment, by following the advice below:

- dispose of the packaging in the appropriate recycling bin

- before you get rid of an old appliance, make sure you disable it. Contact your local authority

to find out the address of your nearest recycling centre to dispose of your appliance

- do not pour used oil down the sink. Collect it in a sealed container and take it to an

appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a

controlled dump; this is probably not the best option, but it will avoid contaminating ground

In the unlikely event that the appliance should be damaged or not meet your expectations

in terms of quality, please inform us as soon as possible. For the warranty to be valid, the

appliance must not have been tampered with, or used inappropriately.5

Read these instructions carefully. Reading these

instructions will enable you to use your appliance safely

All operations relating to installation, regulation and

conversion to other types of gas must be carried out by

an authorised installation engineer, respecting applicable

regulations, standards and the specifications of the local

gas and electricity providers.

You are recommended to contact the Technical

Assistance Service to convert to another type of gas.

Before installing your new hob, ensure that it is being

installed according to the assembly instructions.

This appliance can only be installed in a well-ventilated

place in accordance with existing regulations and

ventilation specifications. The appliance must not be

connected to a combustion product removal device

This appliance has been designed for home use only, not

for commercial or professional use. This appliance

cannot be installed on yachts or in caravans. The

warranty will only be valid if the appliance is used for the

purpose for which it was designed.

The place in which the appliance is installed must have

fully-functioning ventilation, in accordance with the

Do not subject the appliance to draughts. These might

blow out the burners.

This appliance leaves the factory set to the type of gas

that is indicated on the specifications plate. If this must

be changed, read the Assembly instructions.

Do not tamper with the appliance's interior. If necessary,

call our Technical Assistance Service.

These operating and installation instructions should be

retained, and passed onto the buyer if the appliance is

Do not switch on the appliance if it is damaged in any

way. Contact our Technical Assistance Service.

The surfaces of cooking appliances heat up during use.

Care must be taken when using these appliances. Keep

children well away from this appliance.

This appliance is only intended for cooking purposes, not

as a heating system.6

Fat or oil which is overheated can catch fire easily. Do not

leave oil or fats to heat up unattended. If oil or fats do

catch fire, never use water to put the fire out. Risk of

burns! Put the fire out by covering the pan with a lid and

switch off the hotplate.

In the event of a malfunction, turn off the appliance’s gas

and electricity supply. For repairs, call our Technical

If one of the control knobs will not turn, do not force it.

Call the Technical Assistance Service immediately, so

that they can repair or replace it.

Never place unstable pans on the hob or the burners, as

they may accidentally tip over.

Do not clean the hob using a steam cleaner. Risk of

This appliance is class 3 type, according to the EN 30-1-

1 standard for gas appliances: built-in appliance.

Do not store or use corrosive chemicals, steamers,

flammable materials or non-food products below or near

this domestic appliance.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

Never leave the appliance unattended during operation.

The graphics in this instruction manual are given as a

The manufacturer is exempt from all responsibility if the

requirements of this manual are not complied with.7

There are indications to show which burner each control

knob operates. Fig. 1.

It is essential to ensure that all the burner parts

and pan supports are correctly installed for the

appliance to work correctly. Fig. 2-3-4.

Switching on manually

1. Press the chosen burner control knob and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter,

matches, etc.) and bring it close to the burner.

1. Press the chosen burner control knob and turn it

anticlockwise to the maximum power setting. Fig. 1Fig. 2 Fig. 3

While the control knob is still pressed down, sparks are

produced on all burners. The flame ignites (it is no longer

necessary to press down the control knob).

2. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off

setting and repeat the steps above. This time, press and

hold the control knob for longer (up to 10 seconds).

Warning! If after 15 seconds the flame does not ignite,

switch off the burner and open a nearby window or door.

Wait at least one minute before trying to switch the

Depending on the model, your hob may have a safety

system (thermocouple) that prevents the flow of gas if

the burners accidentally switch off. To ensure that this

device is active, switch on the burner as usual and,

without releasing the control knob, press and hold it

down firmly for 4 seconds after lighting the flame.

Switching off a burner

Turn the corresponding control knob clockwise to the 0

The progressive control knobs can be used to control the

power needed, from minimum to maximum power.

It is normal to hear a slight whistling noise while the

burner is operating.

When it is first used, it is normal for the burner to give off

odours; this does not pose any risk and does not indicate

a malfunction; they will disappear in time.

A few seconds after the burner is switched off, a sound

(thud) will be produced. This is not a fault - this means

that the safety device is no longer operating.

Keep the burner as clean as possible. If the ignition

sparkers are dirty they will not light properly. Clean them

periodically using a small non-wire brush. Bear in mind

that the ignition sparkers must not suffer any serious

An orange-coloured flame is normal. This is caused by

the presence of dust in the atmosphere, spilt liquids, etc.

The kitchen will become hot and humid when this gas

appliance is used. You must therefore ensure that the

kitchen is well ventilated: either keep the natural

ventilation apertures open, or install a ventilation system

If using the appliance intensively for prolonged periods,

you may require additional ventilation (e.g. by opening a

window) or more effective ventilation (e.g. by increasing

the hob's ventilation, if possible).

If the burner flames are accidentally blown out, switch off

the burner operating control knob and do not try to relight

it for at least one minute.

Wok pan A wok is a cooking vessel originating in China; it is a kind

of deep, round, lightweight pan with handles and a flat or

Food can be prepared in various ways in a wok: it can be

stewed, stir fried, cooked on a low heat, pan-fried or

steamed. It could be said that woks serve as both as a

saucepan and a frying pan and, owing to their shape and

size, they can be used to cook quite large ingredients.

When cooking with a wok, heat is diffused more uniformly

and gently; the intense heat which accumulates means

that food takes less time to cook and also requires less

oil, making it one of the quickest and healthiest ways of

Always follow the manufacturer's instructions when

cooking with a wok pan.

Depending on the model, the hob may include the

following accessories. These are also available from the

Technical Assistance Service.

Only for use on the double flame burner with pans which

are more than 26 cm in diameter (roasting dishes,

earthenware pots, etc.) and with pans with a concave

The manufacturer accepts no liability if these additional

pan supports are not used or are used incorrectly.

Burner Very high High Medium Low

Double flame burner Boiling, steaming,

griddling, toasting,

Reheating and keeping things hot:

cooked and pre-cooked dishes.

Rapid burner Escalopes, steaks,

Reheating and keeping things hot:

pre-cooked dishes and delicate

The following advice is intended to help you save energy

and prevent pan damage:

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame

should not touch the sides of the pan.

Do not use damaged pans, which do not sit evenly on

the hob. Pans may tip over.

Only use pans with a thick, flat base.

Do not cook without using a lid and make sure the lid is

properly fitted to avoid wasting energy.

Always place the pan right over the burner, not to one

side. Otherwise it could tip over.

Do not place large pans on the burners near the control

knobs. These may be damaged by the very high

Place the pans on the pan supports, never directly on

Pans should be placed on the hob carefully.

Do not strike the hob and do not place excessive weight

Make sure that the pan supports and burner covers are

correctly positioned before using the appliance13

Cleaning and maintenance

Once the appliance is cool, use a sponge to clean it with

After each use, clean the surface of the respective burner

parts once they have cooled down. If any bits are left

(overcooked food, drops of grease etc.), however few,

they will become stuck to the surface and more difficult

to remove later. The holes and grooves must be clean for

the flame to ignite properly.

The movement of some pans may leave metal residue on

Clean the burners and pan supports using soapy water

and scrub with a non-wire brush.

If the pan supports are fitted with rubber rests, ensure that

these are also cleaned. The rests may come loose and

the pan support may scratch the hob.

Always dry the burners and pan supports completely.

Water droplets or damp patches on the hob at the start

of cooking may damage the enamel.

After cleaning and drying the burners, make sure the

burner covers are correctly placed on the burner flame

Never slide pans across the glass surface, as you may

scratch it. In addition, try not to drop heavy or sharp

objects on the glass. Never strike any part of the hob.

Do not use steam cleaners. This could damage the hob.

Never use abrasive products, steel scourers, sharp

implements, knives, etc. to remove bits of hardened food

If your hob is fitted with a glass or aluminium panel, never

use a knife, scraper or similar to clean the point where it

Do not use knives, scrapers or similar implements to

clean the point where the glass meets the burner trims,

the metal frames or the glass/aluminium panels, if fitted.

Always clean off any liquid as soon as it is spilt: you will

save yourself any unnecessary effort.

Grains of sand that may come from cleaning fruits and

vegetables will scratch the glass surface.

Melted sugar, or foods which contain a lot of sugar which

may have spilt, should be cleaned off the hotplate

immediately, using the glass scraper.14

Sometimes certain faults detected can be easily resolved.

Before calling the Technical Assistance Service, bear in

mind the following advice:Servicio de asistencia técnica

Fault Possible cause Solution

The general electrical

The automatic safety switch

or circuit breaker has tripped.

Check the fuse in the main fuse

box and change it if it is

Check the main control panel to

see if the automatic safety switch

or circuit breaker has tripped.

function does not work.

There may be food or

cleaning products stuck

between the ignition sparkers

The burners are wet.

The burner covers are not

correctly positioned.

The appliance is not earthed,

is not correctly connected or

the earth wire is faulty.

The space between the ignition

sparker and the burner must be

Dry the burner covers carefully.

Check that the covers are

correctly positioned.

Contact the electrical installer.

The burner flame is not

The burner components are

not correctly positioned.

The grooves on the diffuser

Ensure the components are

correctly positioned.

Clean the grooves on the

The flow of gas does

not appear normal or

The gas supply is blocked via

intermediary valves.

If the gas is supplied from a

gas cylinder, check that this

Open all intermediary valves.

Change the gas cylinder.

The kitchen smells of

A gas tap has been left on.

There may be a leak in the

gas cylinder coupling.

Turn off the gas taps.

Check that the coupling is

The safety valves on

one of the burners are

The control knob was not

held down for long enough.

The grooves on the diffuser

Once the burner is lit, hold the

control knob down a few

Clean the grooves on the

Technical Assistance Service

When contacting our Technical Assistance Service,

please provide the product number (E-No.) and

production number (FD) of the appliance. This

information is given on the specifications plate located on

the lower section of the hob and on the label in the user

The applicable warranty conditions are those set out by

the company's representative office in the country of

purchase. Detailed information is available from retail

outlets. Proof of purchase must be presented to obtain

the benefits of the warranty.

We reserve the right to introduce changes.

Used appliances and packaging

If the ) symbol is shown on the specifications plate, bear

in mind the following instructions.

Environmentally-friendly waste

Unpack the appliance and dispose of the packaging by

environmentally-friendly means.

This appliance complies with European directive 2002/

96/CE on electrical and electronic equipment identified

as WEEE (waste electrical and electronic equipment).16

electronic equipment).29

electronic equipment).42

and electronic equipment).55

Hervir, cocer, asar,

Coloque correctamente as

Limpe as ranhuras do difusor.

and electronic equipment).81

aardleiding is defect.

electronic equipment).94
