USER MANUAL Aqua Back Single Vaude

bike hardware b ike bags

DEUTSCH 1
ENGLISH 9
FRANÇAIS 17
ITALIANO 25
ESPANOL 33
中文 41

ALLGEMEINE WARNING!

These instructions may contain WARNINGS. Read the instruction manual thoroughly before using the product for the first time and save it for future reference.

The incorrect assembly and use of VAUDE Bike backpacks can lead to severe injury or death.

Before use, inspect all parts to make sure they are functioning properly and do not show signs of significant wear.

Before use, make sure that all movable parts have been secured.

Before use, make sure that all hooks and/or ties of the fastening system have been attached and are securely closed.

Do not use too much or too little torque to tighten screws and fasteners. Otherwise, you run the risk of excessive tension or parts falling off.

The Plug and Ride, Hard Back Pro and Cycle fastening systems are approved to bear loads of maximum 10 kg.

Use only original VAUDE accessories and replacement parts.

ENGLISH

TABLE OF CONTENTS

Hard Back Pro 10

Cycle 12

Plug and Ride 13

Top Case 14

Karakorum 15

Handlebar bags with KLICKfi x^® The KLICK 15

VAUDE seat bags 16

QUICK GUIDE

HARD BACK PRO

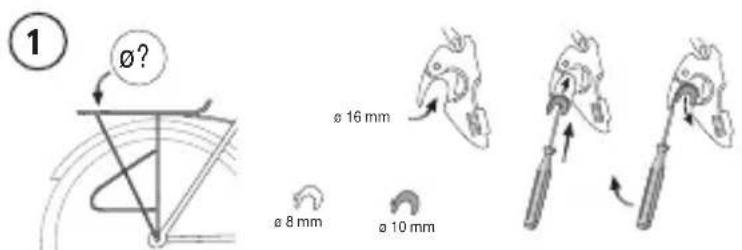

Using the adapter included, the Hard Back Pro holder QMR hook can be adapted to different rack tube diameters (1).

To assemble, release the QMR hook knurl catches and move them into position. Tighten the knurl catches again to fix the hook in position (2).

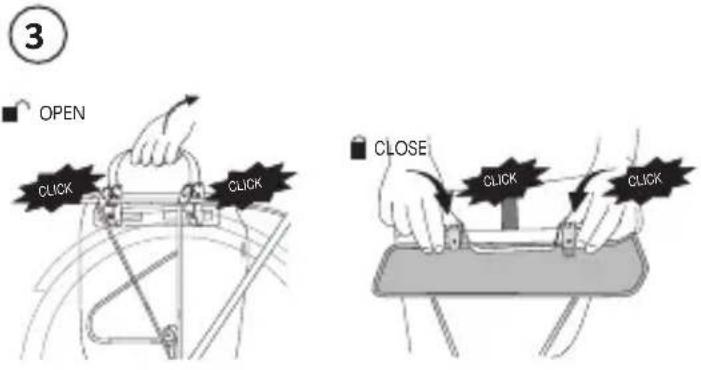

Pull the bag's handle to open the QMR hooks. Next, hang the bag on the rack and press it until the QMR hooks automatically click into place (3).

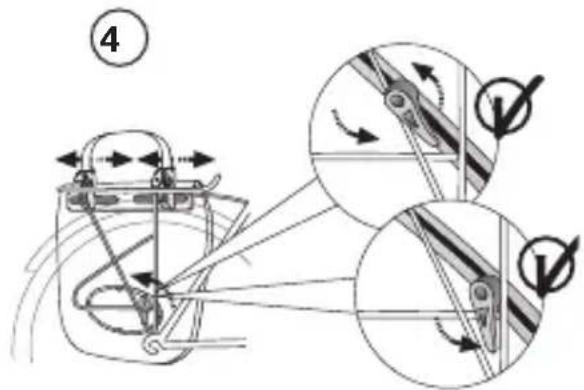

Now loosen the fi xing screw of the lower guide hook (Caution: maximum two turns) and turn and shift the hook until it hooks into the rack (4). Hand-tighten the fi xing screw (Caution: not too tightly). Note: If possible, align the lower guide hook on the rack in the direction of motion. This will prevent the bag from slipping, even when braking suddenly.

You will only need to set the hook once, before initial use.

ENGLISH

QUICK GUIDE

①

②

3

CYCLE

Using the adapter included, the Hard Back Pro holder QMR hook can be adapted to different rack tube diameters (see Hard Back Pro).

To assemble, release the QMR hook knurl catches and move them into position. Tighten the knurl catches again to fix the hook in position (1). Pull the bag's handle to open the QMR hooks. Next, hang the bag on the rack and press it to make the QMR hooks automatically click into place (2).

Now hook the elastic band with the hook to the rack and pull it tight with the slide adjustment buckle at the other end (3).

PLUG AND RIDE

The Plug and Ride fastening system allows you to adjust the upper guide rail. Fix the bag at a slant to prevent your heel from catching it while pedaling. The upper guide rail can also be removed - it won't get in the way when you are using your pannier bag as a shoulder bag.

ADJUSTING THE GUIDE RAIL

Flip open the buckle catch on the right side of the guide rail. First, pull the rail out of the ftting on the right side and then on the left side. Now you can return the rail to the ftting at the required angle - proceeding in reverse order. Press the buckle catch to close it again, listening for the click.

Using the adapter included, the QMR hook can be adapted to different rack tube diameters (see Hard Back Pro).

To assemble, release the QMR hook knurl catches and move them into position. Tighten the knurl catches

QUICK GUIDE

ENGLISH

Top Case

again to fix the hook in position (see Hard Back Pro). Pull the bag's handle to open the QMR hooks. Next, hang the bag on the rack and press it to make the QMR hooks automatically click into place (see Hard Back Pro).

TOP CASE

The welded Top Case provides 30 l of extra storage volume. You can combine it with the Aqua Back and Aqua Back Plus pannier bags.

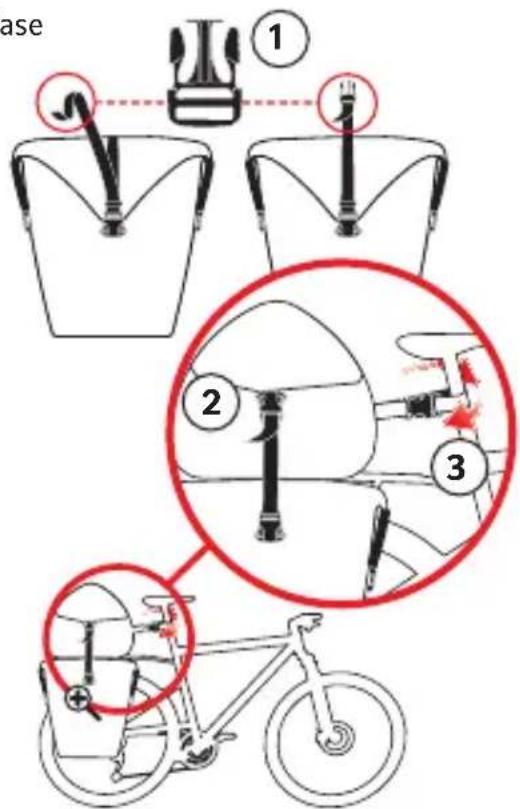

To fix the Top Case in place, use the two side quick-release buckles to attach it to the Aqua Back (2) and one quick-release buckle to the seat post (3). Extra quick-release buckles (1) are included. They are stowed in the side straps of the Aqua Back bags.

KARAKORUM

The Karakrom 3-piece bag set is also equipped with the Hard Back Pro attachment system. To assemble the side bags, see the Hard Back Pro section.

You can place a Top Case on top of the side bags and attach it with a zip on each side. Remove it and use the two shoulder straps in the pocket at the back to turn it into a lightweight day pack. A rain cover is included.

HANDLEBAR BAGS WITH KLICKFIX® THE KLICK

fi x^® system is a quick, safe method of securely attaching handlebar bags to a bicycle. Put the adapter piece of the bag on the holder attached to the handlebar - it catches automatically with a click. A push of the red button is all it takes to release the bag. VAUDE handlebar bags are made with the KICKfi x^® system. Read the enclosed instructions for use carefully.

QUICK GUIDE

KLICKfix

ENGLISH

StickTwist Adapter

VAUDE SEAT BAGS

The seat bags are attached with the Twist adapter or Stick closure, and the Ultralight bags are attached with a lightweight Velcro closure. In the Twist adapter system, an adapter is installed between the seat braces. Simply insert the seat bag into the adapter and use a half-turn to lock it in place. In the Stick closure system, attach one or two straps to the seat bag, weave them through the seat braces and fasten the two quick-release buckles.

Velcro-Closure
