USER MANUAL MBB1756DM AEG

WE’RE THINKING OF YOU

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for:

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Subject to change without notice. Warning/Caution-Safety information General information and tips Environmental information Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.registeraeg.com Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop 1. SAFETY INFORMATION..................................................................................................30

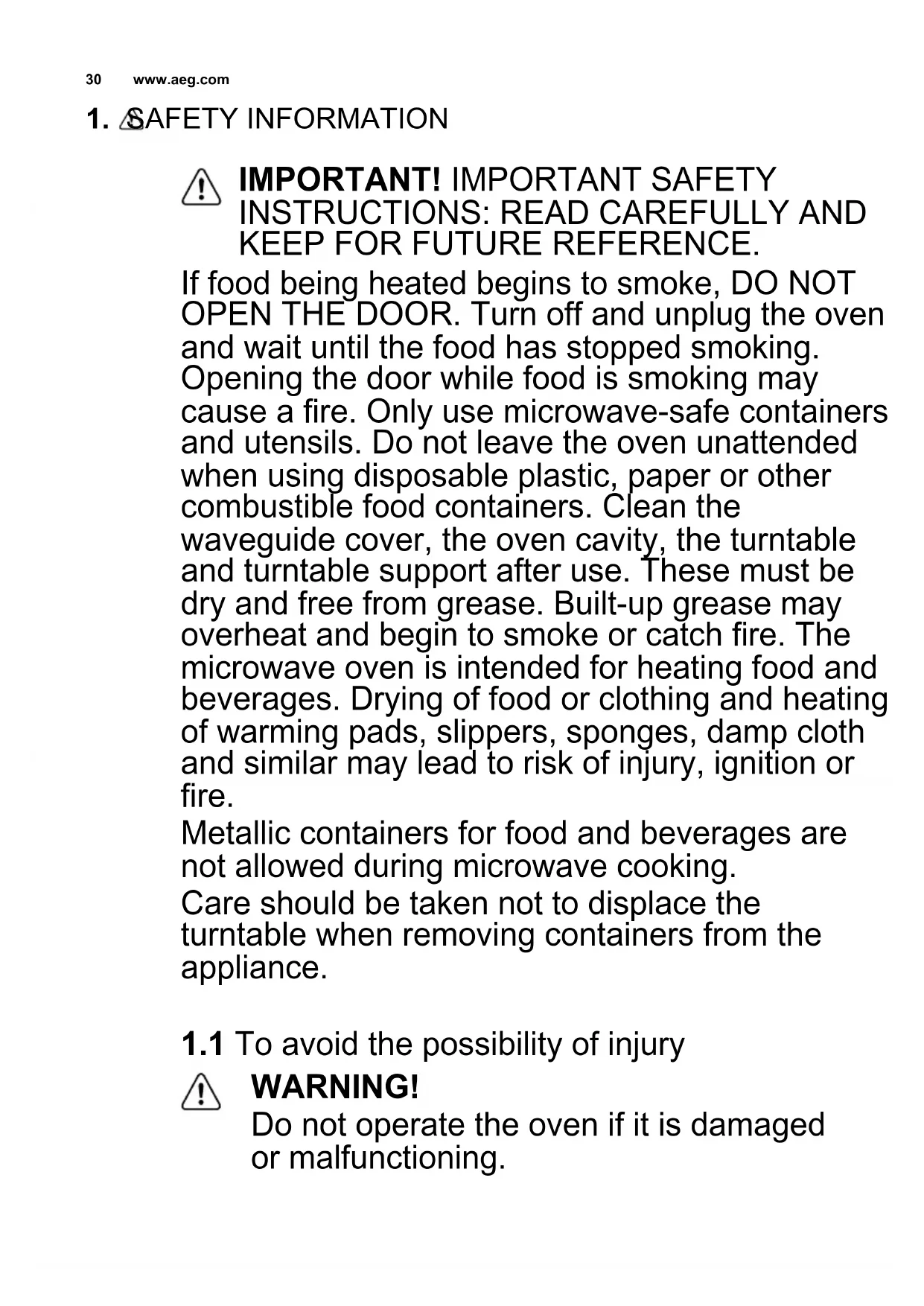

INSTRUCTIONS: READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE. If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. Metallic containers for food and beverages are not allowed during microwave cooking. Care should be taken not to displace the turntable when removing containers from the appliance.

1.1 To avoid the possibility of injury

WARNING! Do not operate the oven if it is damaged or malfunctioning. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3031 ENGLISH Check the following before use: a) The door; make sure the door closes properly and ensure it is not misaligned or warped. b) The hinges and door safety latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged. Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for ‘Care and cleaning’. Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Do not attempt to replace the oven light yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven light fails, please consult your dealer or call an authorised ELECTROLUX service agent. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3132 www.aeg.com

1.2 To avoid the possibility of explosion and

sudden boiling WARNING! Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them burning themselves. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, ventilation openings, accessories and dishes during GRILL mode and DUAL GRILL mode as they will become hot. Before cleaning make sure they are not hot. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3233 ENGLISH

1.3 To avoid the misuse by children

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments. This appliance is not intended for use at altitudes above 2000m. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3334 www.aeg.com

1.4 To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 220-240 V, 50 Hz, with a minimum 16 A distribution line fuse, or a minimum 16 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors. Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces. Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

1.5 To avoid the possibility of

electric shock Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven. If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent.

1.6 To avoid the possibility of

explosion and sudden boiling Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape. To prevent sudden eruption of boiling liquid and possible scalding:

• Stir liquid prior to heating/reheating.

• It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.

• Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling. Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

1.7 To avoid the possibility of

burns Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns. Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3435 ENGLISH special attention to packaging (e.g. self- heating materials) designed to make food crisp, as they may be extra hot.

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

1.9 To promote trouble-free use

of your oven and avoid damage Never operate the oven when it is empty except where recommended in the operation manual. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish’s instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable. To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.

• Do not put hot foods or hot utensils on a cold turntable.

• Do not put cold foods or cold utensils on a hot turntable. Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode and DUAL GRILL mode because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable. IMPORTANT! If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3536 www.aeg.com

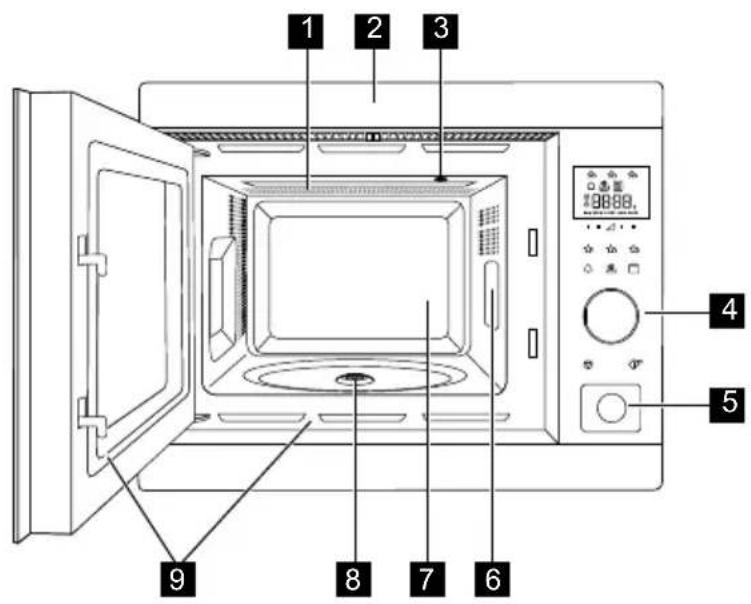

Grill heating element Front trim Oven light Control panel Door opening button Waveguide cover Oven cavity Seal packing Door seals and sealing surfaces

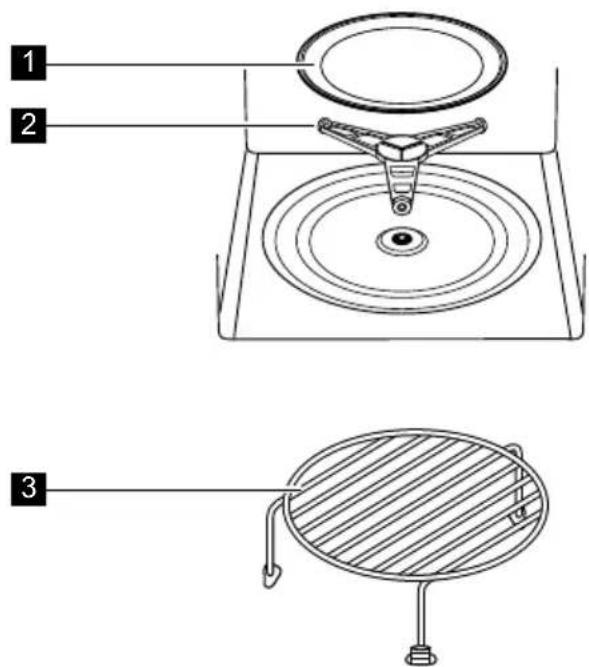

Check to make sure the following accessories are provided: Turntable Turntable support Rack

• Place the turntable support in the seal packing on the floor of the cavity.

• Then place the turntable on the turntable support.

• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven. When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

When the oven is plugged in for the first time it will ask if you want to set the clock.

1. The oven will beep and all of the display

icons will be switched on for half a second. The oven will ask if you want to turn on the clock.

2. Press the START key to confirm.

(See ‘Setting the clock’ for instruction.) To turn the clock off, turn the knob until the display shows ‘oFF’.

3. Press the START key to confirm, or

The oven will automatically enter standby mode if it is not used within a 5 min period.

1. If the clock has been set it will display

the time for 3 min, then it will display ‘Econ’ for 3 seconds. The display will switch off.

2. If the clock has not been set:

The display will switch off.

3. To exit standby mode you can:

Open the door, press any key or rotate the knob.

3.3 Setting the clock

The oven has a 24hr clock. Example: To set the clock to 18:45.

1. Press the TIMER key twice, the clock

symbol will be displayed.

2. Rotate the knob until ‘on’ is displayed.

3. Press the START key to confirm.

4. Rotate the knob to adjust the hour.

5. Press the START key to confirm.

6. Rotate the knob to adjust the minutes.

7. Press the START key to confirm.

3.4 Adjusting the clock when set

You can adjust the clock after the time has been set. Example: To change from 18.45 to 19.50.

1. Press the START key. The hours will

3. Press the START key.

4. Rotate the knob till 50 is displayed.

5. Press the START key.

3.5 To cancel the clock and set

standby (Economy mode)

1. Press the TIMER key twice.

2. Rotate the knob until ‘oFF’ is displayed.

3. Press the START key to confirm.

3.6 Child safety lock

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been turned off. Switching the lock on or off is only possible when the oven is not running. Example: To switch the lock on. Press and hold the STOP key until the ‘child lock’ symbol switches on. Example: To switch the lock off. Press and hold the STOP key until the ‘child lock’ symbol switches off. When child lock is switched on, all keys are disabled except the STOP key. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 3839 ENGLISH

4.1 Microwave cooking

Example: To heat soup for 2 minutes and 30 seconds on 560 W microwave power.

1. Press the POWER LEVEL key to the

right of the triangle until 560 W is displayed.

2. Rotate the knob to enter the time.

3. Press the START key.

In microwave cooking mode, you can adjust the power level of the oven by pressing the key directly below the required setting. You can set the power level when the oven is running by pressing and holding the required POWER LEVEL key until the new power setting is highlighted on the display. If 800 W is selected then the maximum microwave time that can be input is 20 minutes. If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on. Power setting Suggested use 800 W/HIGH Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish). 560 W Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides. 400 W For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender. 240 W/ DEFROST To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard. 80 W For gentle defrosting (e.g. cream gateaux or pastry). 0 W For standing/kitchen timer. W = WATT Cooking mode Standard time Reduced power level Microwave 800 W 20 minutes Microwave 560 W Grill 10 minutes Grill 500 W Dual Grill 10 minutes Grill 500 W

4.3 Reduced power level

4.4 Adjusting the cooking time

during cooking You can adjust the cooking time during cooking. Example: To add 2 minutes (120 seconds) using the START key.

1. Press the START key four times.

The cooking time will increase by 120 seconds.

4.5 Using the stop key

Press the STOP key once to enter Pause mode. Press the STOP key again to cancel the cooking time.

To set the kitchen timer.

1. Press the TIMER key.

2. Rotate the knob to enter the time.

3. Press the START key. The timer will

automatically start. The time can be extended when the timer is running by rotating the knob or pressing the START key. The timer function can only be used when the oven is not running.

You can directly start cooking on 800 W/HIGH for 30 seconds by pressing the START key. To add more time press the START key.

To turn the sound off.

1. Press the TIMER key 3 times until

‘Soun’ is displayed.

2. Rotate the knob until ‘oFF’ is displayed.

3. Press the START key.

To turn the sound on.

1. Press the TIMER key 3 times until

‘Soun’ is displayed.

2. Rotate the knob until ‘on’ is displayed.

3. Press the START key.

To pause whilst the microwave is running.

1. Press the STOP key or open the door.

2. The oven will pause for up to 5 minutes.

3. Press START to continue cooking.

4.10 Grill and dual grill

This microwave oven has two grill cooking modes: Grill only Dual grill (grill with microwave) IMPORTANT! The rack is recommended for grilling. You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

1. Rotate the knob to enter the cooking

2. Press the GRILL key once for Dual Grill

mode (Grill + Microwave) and press the START key. Press the GRILL key again to select Grill only mode.

3. Press the START key.

In Dual Grill mode the 80 W and 800 W microwave power levels are not available. To exit Dual Grill or Grill mode press the GRILL key until the microwave only symbol is illuminated on the display.

The oven has 3 Favourite recipes. Soften Butter Melt Chocolate Mug Cake Example: To soften butter.

1. Press the FAVOURITE 1 key once.

2. Rotate the knob to enter the weight.

3. Press the START key.

2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4041 ENGLISH If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop. The power levels for the pre-set Favourite recipes cannot be adjusted. 1-4 Mug cakes can be cooked. WARNING! Chocolate may become very hot! If the chocolate needs longer cooking time then add 10 seconds. Take care with chocolate as it may overheat and burn. To overwrite Favourites for your own recipes.

2. Rotate knob to enter the required

you want to set until you hear a single beep and the favourite star is visible. To re-set Favourites to the factory settings.

1. Press the STOP key.

2. Press and hold POWER LEVEL 400 W

for 3 seconds. The oven will reset Favourites to the factory settings.

Auto defrost automatically works out the correct cooking mode and cooking time based on the weight of the food. You can choose from 2 auto defrost menus.

1. Select the auto defrost menu by

pressing the AUTO DEFROST key once.

2. Rotate the knob to select the weight.

3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the programme will automatically stop. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4142 www.aeg.com

Favourites Weight Key Procedure Soften Butter 0.05-0.25 kg • Place the butter into a pyrex dish. Stir well after cooking. Melt Chocolate 0.1-0.2 kg • Break up the chocolate into small pieces. Place the chocolate into a pyrex dish. Stir when audible bell sounds. Stir well after cooking.

WARNING: Chocolate may

become very hot! If the chocolate needs longer then add 10 seconds cooking time. Take care with chocolate as it may overheat and burn. Mug Cake 1-4 mugs • Make the cake as the recipe. Place the mug towards the edge of the turntable. Stand for 30 seconds after cooking. Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

3. Place the mug off centre on the

4. Cook using . The cake will rise out of

the mug during cooking. After cooking, stand for 30 seconds. Decorate with a swirl of chocolate buttercream. Tip: To make Chocolate Orange Mug Cake replace the vanilla extract with ½ tsp orange extract. Rich Chocolate Mug Cake 2½ tbsp (25 g) Plain Flour 2 tbsp (12 g) Cocoa Powder 2½ tbsp (30 g) Castor Sugar ¼ tsp Baking Powder 1½ tbsp (15 g) Vegetable Oil ¼ tsp Vanilla Extract 1 Medium Egg Ingredients for 1 Mug:

5.2 Mug cake recipes

1. Put all of the dry ingredients into a mug,

mix well with a fork.

3. Fold in the jam using a spoon so that it

streaks the mixture.

4. Place the mug off centre on the

of the mug during cooking. After cooking, stand for 30 seconds. Decorate with a swirl of vanilla buttercream. Raspberry Ripple Mug Cake 2½ tbsp (25 g) Plain Flour 2½ tbsp (30 g) Castor Sugar ¼ tsp Baking Powder 1½ tbsp (15 g) Vegetable Oil ½ tsp Vanilla Extract 1 Medium Egg 1½ tbsp Seedless Raspberry Jam Ingredients for 1 Mug: 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4243 ENGLISH Method:

1. Put all of the dry ingredients (except for

the biscuit) into a mug, mix well with a fork.

2. Add the Vegetable oil and egg, mix

3. Gently fold in the apple sauce using a

spoon so that it streaks the mixture.

4. Top with the crushed digestive biscuit

5. Place the mug off centre on the

of the mug during cooking. After cooking, stand for 30 seconds. Top with a scoop of vanilla ice cream. WARNING! The apple sauce will be hot. Apple Crumble Mug Cake 2½ tbsp (25 g) Plain Flour 2 tbsp (30 g) Soft Brown Sugar ¼ tsp Baking Powder ¼ tsp Ground Cinnamon 1½ tbsp (15 g) Vegetable Oil 1 Medium Egg 1½ tbsp (30 g) Apple Sauce half (7 g) Digestive Biscuit, crushed Ingredients for 1 Mug: Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, vanilla extract,

peanut butter, and egg mix well.

3. Place the mug off centre on the

of the mug during cooking. After cooking, stand for 30 seconds. Top with chocolate spread. Tip: Use crunchy peanut butter if you prefer. Peanut Butter Mug Cake 2½ tbsp (25 g) Plain Flour 2 tbsp (30 g) Soft Brown Sugar ¼ tsp Baking Powder 1½ tbsp (15 g) Vegetable Oil ¼ tsp Vanilla Extract 2 tbsp (30 g) Smooth Peanut Butter 1 Medium Egg Ingredients for 1 Mug: 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4344 www.aeg.com Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the Vegetable oil, lemon zest and

3. Place the mug off centre on the

of the mug during cooking.

5. Make the drizzle topping by mixing the

lemon juice with the castor sugar.

6. After cooking, loosen the cake, pierce

the top all over with a skewer, then drizzle the topping over the cake, stand for 30 seconds. Lemon Drizzle Mug Cake 2½ tbsp (25 g) Plain Flour 2½ tbsp (30 g) Castor Sugar ¼ tsp Baking Powder 1½ tbsp (15 g) Vegetable Oil 1 tsp Lemon Zest 1 Medium Egg Topping: 1 tbsp Lemon Juice mixed with 2 tbsp Castor Sugar Ingredients for 1 Mug: Method:

1. Put all of the dry ingredients into a mug,

mix well with a fork.

2. Add the sunflower oil, orange zest,

grated carrot and egg, mix well.

3. Place the mug off centre on the

of the mug during cooking.

5. Make the topping by mixing the butter,

icing sugar, cream cheese and orange juice together. After cooking, stand for 30 seconds. Allow the cake to cool, then add the topping. Carrot Mug Cake 2 tbsp (20 g) Plain Flour 2½ tbsp (30 g) Light Brown Sugar ¼ tsp Baking Powder ¼ tsp Ground Cinnamon ¼ tsp Ground Nutmeg 1 tbsp Ground Almonds 1½ tbsp (15 g) Sunflower Oil zest from ½ Orange 30 g Grated Carrot 1 Medium Egg Cream Topping: 15 g Butter, Softened 40 g Icing Sugar 40 g Full-fat Cream Cheese ½ tsp Orange Juice Ingredients for 1 Mug: 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4445 ENGLISH Auto defrost Weight Key Procedure Meat/fish/poultry (Whole fish, fish steaks, fish fillets, chicken legs, chicken breast, minced meat, steak, chops, burgers, sausages) 0.2-0.8 kg • Place the food in a flan dish in the centre of the turntable.

• When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil.

• After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted.

• Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible. Not suitable for whole poultry. Bread 0.1-1.0 kg • Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable.

• When the audible bell sounds, turn over, rearrange and remove defrosted slices.

• After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted.

Enter the weight of the food only. Do not include the weight of the container. For food weighing more or less than weights/quantities given in the chart, use manual operation. The final temperature will vary according to the initial temperature. Steaks and chops should be frozen in one layer. Minced meat should be frozen in a thin shape. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4546 www.aeg.com

from chilled Food/drink Quantity -g/ml- Setting Power Level Time -Min- Method Milk, 1 cup 150 Micro 800 W 1 do not cover Water, 1 cup 6 cups 1 bowl

Micro Micro Micro 800 W 800 W 800 W 1-2 10-12 11-13 do not cover do not cover do not cover One plate meal (vegetables, meat and trimmings) 400 Micro 800 W 3-6 cover, stir halfway through cooking Soup/stew 200 Micro 800 W 1-2 cover, stir after heating Vegetables 500 Micro 800 W 4-5 cover, stir halfway through cooking Meat, 1 slice

200 Micro 800 W 3-4 thinly spread sauce over the top, cover Fish fillet

200 Micro 800 W 2-3 cover Cake, 1 slice 150 Micro 400 W ½ place in a flan dish Baby food, 1 jar 190 Micro 400 W 1 transfer into a suitable microwaveable container, after heating stir well and test the temperature Melting margarine or butter

50 Micro 800 W ½ cover Melting chocolate 100 Micro 400 W 2-3 stir occasionally Food Quantity -g- Setting Power Level Time -Min- Method Standing time -Min- Goulash 500 Micro 240 W 8-12 stir halfway through defrosting 10-30 Cake, 1 slice 150 Micro 80 W 2-5 place in a flan dish 5 Fruit (e.g. cherries, strawberries, raspberries, plums) 250 Micro 240 W 4-5 spread out evenly, turn over halfway through defrosting

5.4 Heating food and drink

Carrots 500 Micro 800 W 10-12 cut into rings, add 4-5 tbsps water, cover, stir halfway through cooking

Roasts (pork, beef, lamb) 1000 Micro Dual Grill Micro Dual Grill 400 W 400 W 400 W 240 W 16-17 9-10

9-10 9-10 season to taste, place in a flan dish, turn over after

9-10 place on the rack, turn over after

, season after grilling Browning of gratin dishes Grill 10-14 place dish on the turntable Cheese toastie 1 piece Grill Grill 4-5

place 2 slices of bread on the high rack, cover one slice with cheese, cook

place toasted slice on top of the cheese on toast, turnover and cook

Frozen pizza 400 Micro Dual Grill 400 W 400 W 4-5 4-5 place on rack If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on. Food Quantity -g- Setting Power Level Time -Min- Method Standing time -Min- Fish fillet 300 Micro 800 W 10-12 cover 2 One plate meal 400 Micro 800 W 9-11 cover, stir after 6 minutes 2

5.6 Cooking from frozen

5.7 Cooking and grilling

Cookware Microwave safe Comments Aluminium foil/ containers 3 / 7 Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully. China and ceramics 3 / 7 Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration. Glassware e.g. Pyrex ®

Care should be taken if using fine glassware as it can break or crack if heated suddenly. Metal

It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire. Plastic/polystyrene e.g. fast food containers

Care must be taken as some containers warp, melt or discolour at high temperatures. Freezer/roasting bags

Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing. Paper-plates, cups and kitchen paper

Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire. Straw and wooden containers

Always attend the oven when using these materials as overheating may cause fire. Recycled paper and newspaper

May contain extracts of metal which will cause arcing and may lead to fire. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 4849 ENGLISH Microwave cooking advice Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Size For even cooking make all the pieces the same size. Temperature of food The initial temperature of food affects the amount of cooking time needed. Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam. Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks). Cover Use vented microwave cling film or a suitable lid. Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages). IMPORTANT! Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled). Stir, turn and rearrange For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre. Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food. Shield Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken).

6.2 Microwave cooking advice

OR SCOURING PADS ON ANY PART

INTERVALS AND REMOVE ANY FOOD

DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Oven exterior The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel. Control panel Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner. Oven interior For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven. Do not use spray type cleaners on the oven interior. Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell. Turntable and turntable support Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe. Door To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Rack This should be washed in a mild washing up liquid solution and dried. The rack is dishwasher safe. IMPORTANT! A steam cleaner should not be used. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 5051 ENGLISH

Problem Check if . . . The microwave appliance is not working properly?

• The fuses in the fuse box are working.

• There has not been a power outage.

• If the fuses continue to blow, please contact a qualified electrician. The microwave mode is not working?

• The door is properly closed.

• The door seals and their surfaces are clean.

• The START key has been pressed. The turntable is not turning?

• The turntable support is correctly connected to the drive.

• The ovenware does not extend beyond the turntable.

• Food does not extend beyond the edge of the turntable preventing it from rotating.

• There is nothing in the well beneath the turntable. The microwave will not switch off?

• Isolate the appliance from the fuse box.

• Call an authorised ELECTROLUX service agent. The interior light is not working?

• Call your authorised ELECTROLUX service agent. The interior light can be exchanged only by a trained authorised ELECTROLUX service agent. The food is taking longer to heat through and cook than before?

• Set a longer cooking time (double quantity = nearly double time) or

• If the food is colder than usual, rotate or turn from time to time or

• Set a higher power setting. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 5152 www.aeg.com The microwave can be fitted in position A, B, C or D:

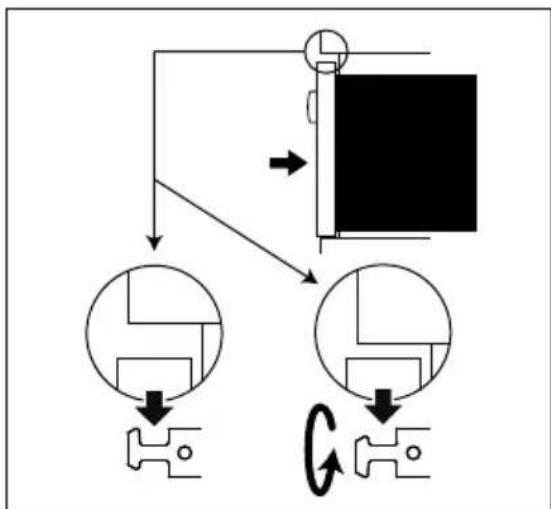

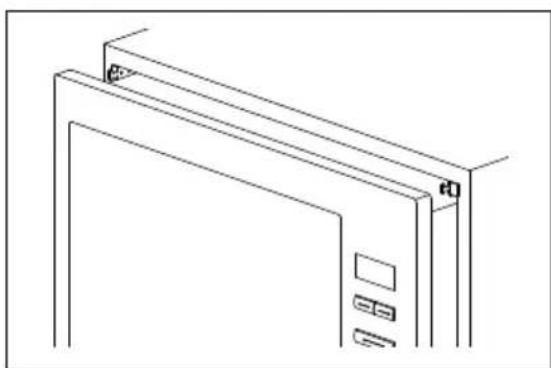

1. Remove all packaging and check

carefully for any signs of damage.

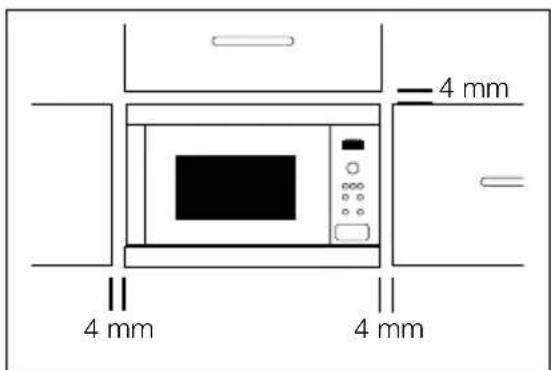

2. This oven is designed to fit into a

360 mm high cupboard as standard. When fitting into a 350 mm high cupboard:- Unscrew and remove the 4 feet from the bottom of the oven. There are 3 tall feet and 1 short foot. Replace the 3 tall feet with those provided in the accessory pack. Do not replace the short foot.

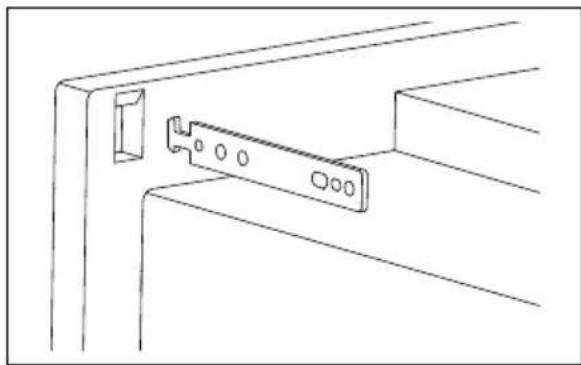

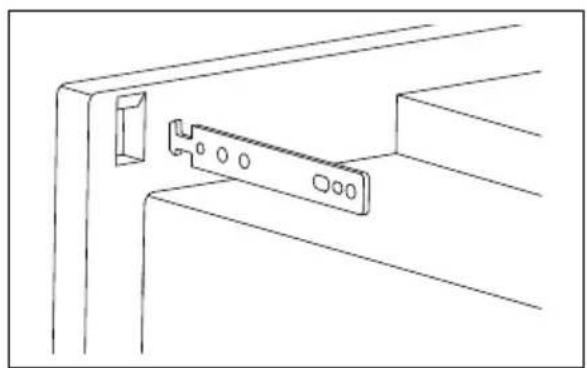

3. Fit the fixing hooks to the kitchen

cupboard using the instruction sheet and template supplied.

4. Fit the appliance into the kitchen

cupboard slowly, and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.

5. Ensure the appliance is stable and not

leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram). 4 mm 4 mm 4 mm 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 5253 ENGLISH

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• The socket should not be positioned behind the cupboard.

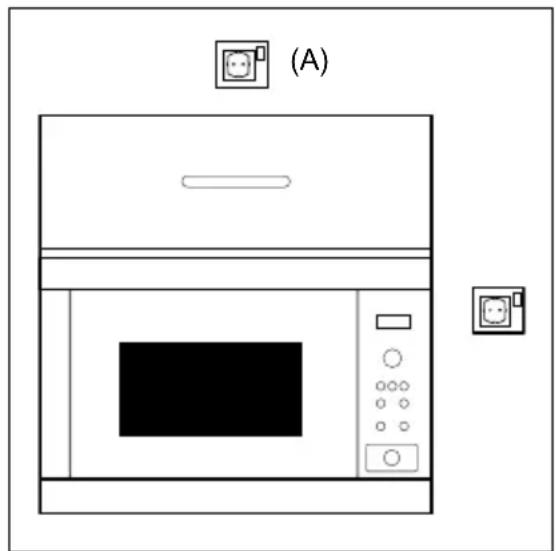

• The best position is above the cupboard, see (A).

• Connect the appliance to a single phase 220-240 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 16 A fuse.

• The power supply cord may only be replaced by an electrician.

• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.

• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.

• Do not immerse the power supply cord or plug in water or any other liquid.

9.3 Connecting the appliance to

the power supply IMPORTANT! Ensure the bottom of the oven is 85 cm or more above the floor. It is important to ensure that the installation of this product conforms to the instructions in this operation manual and the conventional oven manufacturer’s installation instructions. (A)

9.2 Safe use of the appliance

If fitting the microwave in position B or C:

• The cupboard must be a minimum of 500 mm (E) above the worktop and must not be installed directly above a hob.

• This appliance has been tested and approved for use near domestic gas, electric and induction hobs only.

• Sufficient space between hob and microwave should be allowed to prevent overheating of microwave oven, surrounding cupboard and accessories.

• Do not operate the hob without pans when the microwave oven is operating.

• Care should be taken when attending to the microwave oven while the hob is on. 2_AEG16_EN230_CG_BASE_AL28_Layout 1 18/07/2016 16:15 Page 5354 www.aeg.com Recycle materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and recycle waste electrical and electronic appliances. Do not dispose of appliances marked with the symbol with household waste. Return the product to your local recycling facility or contact your municipal office.

This Product fulfils the requirement of the European standard EN55011.In conformity with this standard, this product is classified as group 2 class B equipment.Group 2 means that the equipment intentionally generates radio-frequency energy in the form ofelectromagnetic radiation for the heat treatment of food.Class B equipment means that the equipment is suitable to be used in domestic establishments. Internal capacity is calculated by measuring maximum width, depth and height.Actual capacity for holding food is less.AC Line Voltage 220-240 V, 50 Hz, single phaseDistribution line fuse/circuit breaker Minimum 16 AAC Power required: Microwave Grill Microwave/Grill1.25 kW0.85 kW2.05 kWOutput power: Microwave Grill800 W (IEC 60705)800 WMicrowave Frequency 2450 MHz (Group 2/Class B)Outside Dimensions: MBB1756D 594 mm (W) x 371 mm (H) x 316 mm (D)Cavity Dimensions 285 mm (W) x 202 mm (H) x 298 mm (D) Oven Capacity 17 litres Turntable ø 272 mm, glassWeight approx. 16.2 kg WARNING!

THIS APPLIANCE MUST BE

EARTHED The manufacturer declines any liability should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your authorised ELECTROLUX service agent.

Mug cake alle carote
