Product Type	Built-in Dishwasher
Brand	KitchenAid
Model	KUDE70FXSS
Dimensions (W x H x D)	60,96 x 86,36 x 60,96 cm (approx.)
Net Weight	Approximately 45 kg
Power Supply	120 V, 60 Hz, 15 A
Water Consumption	4.0 to 7.9 gallons (15 to 30 liters) per cycle
Capacity	10 to 12 place settings
Wash Cycles	ProWash™, Heavy Duty, Normal Wash, Light/China, 1 Hour Wash, Rinse Only
Available Options	ProScrub®, Hi-Temp Scrub, Sani Rinse, Top Rack Only, ProDry™, Heat Dry, Delay (4 h/8 h), Control Lock
Filtration System	Triple Silent Filtration

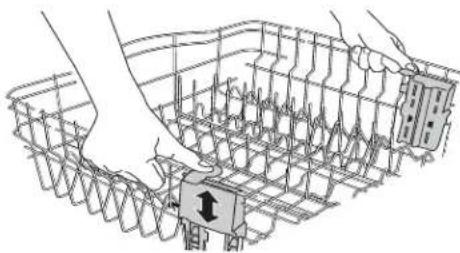

Racks	Upper height-adjustable and removable, lower with ProScrub® zone and Flexi-Fold Down™ tines, covered cutlery basket, Culinary Caddy® utensil basket
Tub Material	Stainless Steel
Sound Level	Quiet (value not specified)
Safety	Overflow protection device, control lock, grounding
Warranty	1 year parts and labor, 5 years on certain components, lifetime on stainless steel tub and inner door panel
Maintenance	Regular filter cleaning, use of rinse aid recommended
Certifications	NSF/ANSI 184 compliant for Sani Rinse option
Color	Stainless Steel (SS)

Frequently Asked Questions - KUDE70FXSS KITCHENAID

How to start a wash cycle?

Select the desired cycle and options, then press Start/Resume. If the button is located on the door, close the door within 3 seconds of pressing. The cycle starts.

What to do if the dishwasher does not start?

Check that the door is properly closed and latched, that the dishwasher is plugged in, and the circuit breaker hasn't tripped. Make sure a cycle has been selected. If the Start/Resume light is blinking, close the door and press the button.

Why is the dishware not dry?

For optimal drying, use a rinse aid and select the Heat Dry or ProDry™ option. Plastic items retain more water; towel drying may be necessary.

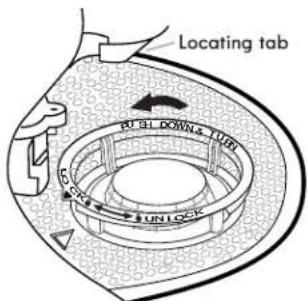

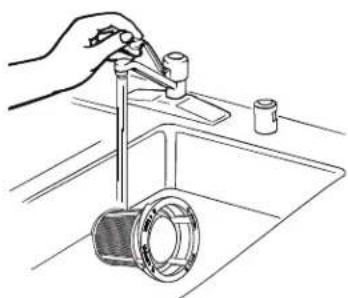

How to clean the filters?

Turn the upper filter a quarter turn counterclockwise to remove it. Lift the lower filter. Rinse them under running water with a soft brush if needed. Reinstall in reverse order, ensuring the upper filter is properly seated.

What type of detergent to use?

Use only automatic dishwasher detergent (powder, liquid, or tablet). Pre-measured tablets or packets are recommended for simplicity and effectiveness. Add detergent just before starting the cycle.

Can I add a dish after starting?

Yes, if the Add a Dish light is on (on some models). Open the door gently, wait for the spray to stop, check that the detergent dispenser is still closed, add the dish, close the door and press Start/Resume.

How to cancel a running cycle?

Open the door, press and hold the Cancel/Drain button until the light comes on. Close the door; the dishwasher will drain for about 2 minutes. The cycle is canceled.

Why are there white spots on the dishes?

This is often due to hard water. Adjust the amount of detergent and rinse aid. Clean the filters regularly. Run a vinegar rinse (2 cups white vinegar in the lower rack, normal cycle without detergent).

What is the typical cycle duration?

The normal duration is about 2 hours 30 minutes, but it varies depending on the cycle and options selected. The 1 Hour Wash cycle is faster. Drying options add time.

How to activate the control lock?

Press the Control Lock or 4 Hour Delay button (depending on model) for 3 seconds. The light flashes briefly. To deactivate, repeat the same action.

USER MANUAL KUDE70FXSS KITCHENAID

THANK YOU for purchasing this high-quality product. Register your new dishwasher at www.kitchenaid.com. In Canada, register your dishwasher at www.kitchenaid.ca.

For future reference, please make a note of your product model and serial numbers. These can be located on the label located near the door on the right-hand or left-hand side of the dishwasher interior.

Model Number

Serial Number

Table of Contents

DISHWASHER SAFETY	2
PARTS AND FEATURES	4
START-UP/QUICK REFERENCE	5
QUICK STEPS	6
DISHWASHER USE	7
CYCLE AND OPTION DESCRIPTIONS	9
DISHWASHER FEEDBACK SECTION	13
DISHWASHER FEATURES	14
FILTRATION SYSTEM	16
DISHWASHER CARE	18
TROUBLESHOOTING	19
WARRANTY	22

Dishwasher Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Do not touch the heating element during or immediately after use.
■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

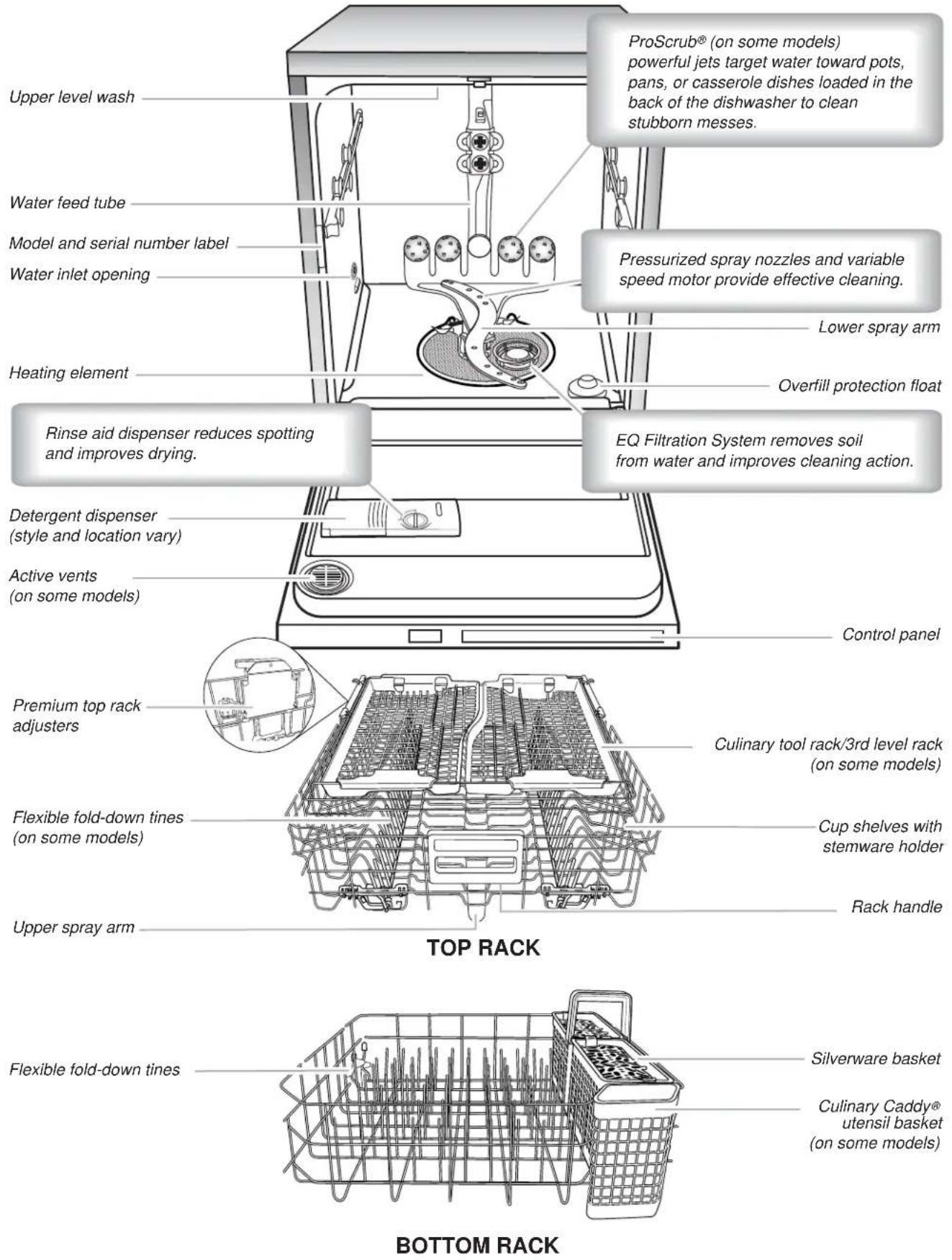

Parts and Features

ProScrub® (on some models) powerful jets target water toward pots, pans, or casserole dishes loaded in the back of the dishwasher to clean stubborn messes. Upper level wash Water feed tube Model and serial number label Water inlet opening Pressurized spray nozzles and variable speed motor provide effective cleaning. Lower spray arm Heating element Overfill protection float Rinse aid dispenser reduces spotting and improves drying. EQ Filtration System removes soil from water and improves cleaning action. Detergent dispenser (style and location vary) Active vents (on some models) Control panel Premium top rack adjusters Culinary tool rack/3rd level rack (on some models) Flexible fold-down tines (on some models) Cup shelves with stemware holder Upper spray arm Rack handle TOP RACK Flexible fold-down tines Silverware basket Culinary Caddy® utensil basket (on some models) BOTTOM RACK

Start-Up/Quick Reference (varies by model)

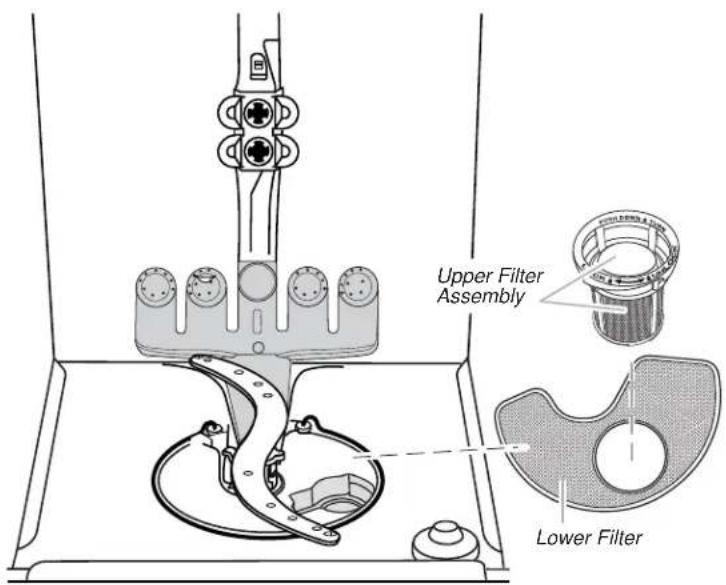

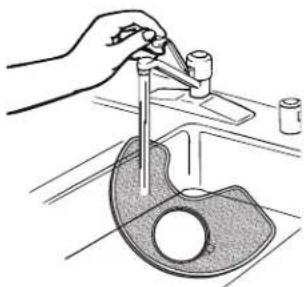

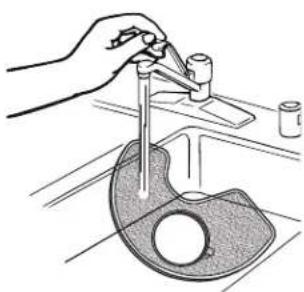

Clean EQ Wash System removable filters to maintain peak performance.

Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher.

See the "Filtration System" section for information on removing and maintaining the filters.

Technical drawing of a mechanical component with a flanged base and cylindrical housing (no text or symbols)

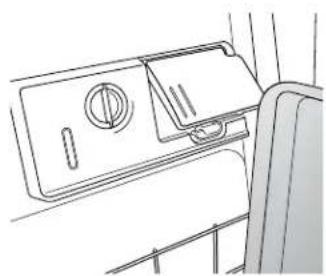

IMPORTANT: Do not block detergent dispenser.

For hinged style detergent dispensers, tall items placed in the lower rack may block the dispenser door. Cookie sheets and cutting boards loaded on the left-hand side of the dishwasher can easily block the dispenser. If detergent is inside of the dispenser or on the bottom of the tub after the cycle is complete, the dispenser was blocked.

Line drawing of a vehicle cabin with seats and a double door (no text or symbols)

Drying - Rinse aid is essential.

You must use a drying agent such as a rinse aid for good drying performance (sample included). Rinse aid along with the Heat Dry or ProDry™ option will provide best drying and avoid excessive moisture in the dishwasher interior.

125" RISE AID FOR BROODER DRYING R.125" R.125"

For best drying, use the Heat Dry or ProDry™ option.

Line drawing of a hand holding a device with a labeled component (no text or symbols present)

Dispensers vary by model

Proper Detergent Dosing

It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See "Add Detergent" and "Add Rinse Aid" in the "Dishwasher Use" section, to determine the amount of detergent needed based on your water hardness.

1 Hour Wash - When you need fast results.

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. When you need fast results, the

1 Hour Wash will clean your dishes using slightly more water and energy. Select the Heat Dry or ProDry™ option to speed drying times (adds approximately 27 to 35 minutes to the 1 Hour Wash cycle).

ProWash™ cycle for optimal cleaning

The most advanced and versatile cycle. ProWash™ cycle senses the load size, soil amount, and toughness of soil, to adjust the cycle for optimal cleaning using only the amount of water and energy needed. The ProWash™ and Heavy Duty cycles are recommended for tough soil. No need to prerinse dishes; just scrape and load.

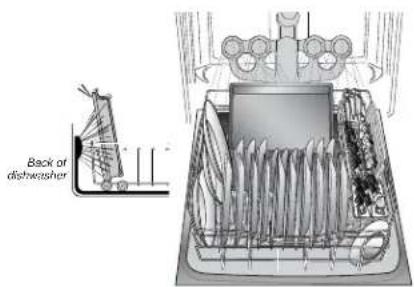

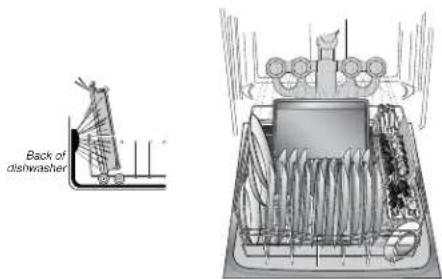

ProScrub® option for loading to clean baked-on food (some models)

When the ProScrub ^® option is selected, it provides a concentrated wash on the back of the lower dish rack for hard-to-clean dishes. Place these dishes with the soiled surface of the dish toward the ProScrub ^® spray jets in the lower rack of the dishwasher.

Back of dishwasher

Press START/RESUME every time you add a dish.

IMPORTANT: If anyone opens the door (such as, for adding a dish, even during the Delay Hours option), the Start/Resume button must be pressed each time.

If the Start/Resume button is located on top of door: Push door firmly closed within 3 seconds of pressing START/RESUME. If the door is not closed within 4 seconds, the Start/Resume button LED will flash, an audible tone will be heard, and the cycle will not start.

Quick Steps

1 Prepare and load dishwasher.

Illustration of two mechanical components: a circular component being cut and a cylindrical tool inserted into a base (no text or symbols)

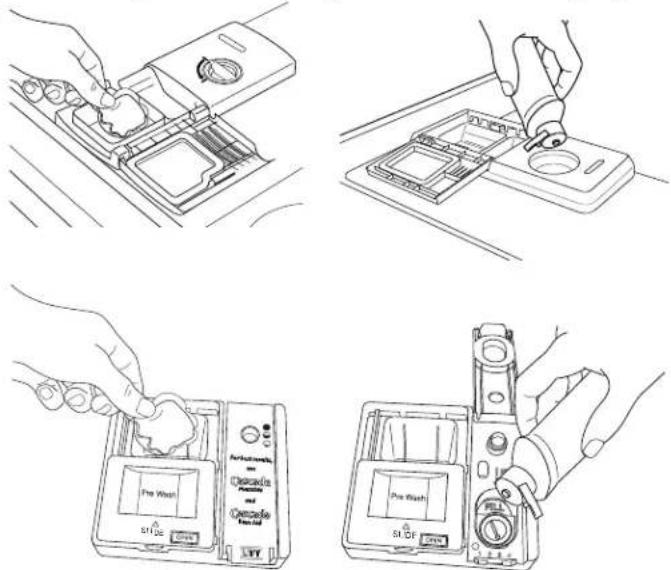

2 Add detergent for cleaning and rinse aid for drying.

Technical line drawings showing four steps of cleaning a device with labeled components: pre-wash, upgrade, pre-wash, and side.

Dispensers vary by model.

2 Select a cycle and option.

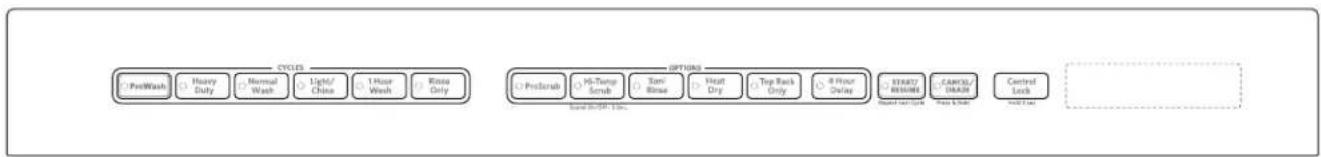

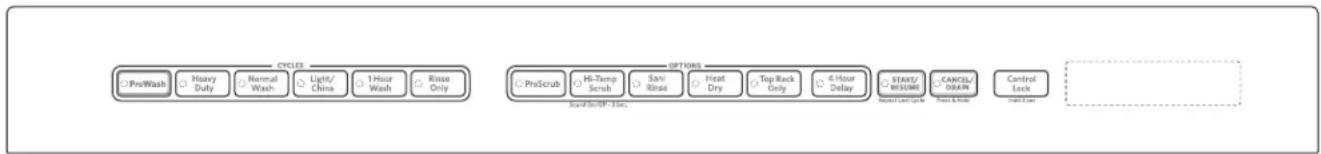

CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only OPTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● ProDry ■ Found On/Off-32m

4 Start dishwasher.

NOTE: If the Start/Resume button is located on the top of door, push door firmly closed within 3 seconds of pressing START/RESUME.

Dishwasher Use

STEP 1

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks and other hard items from the dishes. Remove labels from containers before washing.

Technical line drawings of industrial equipment components, showing internal structure and exterior view (no text or symbols)

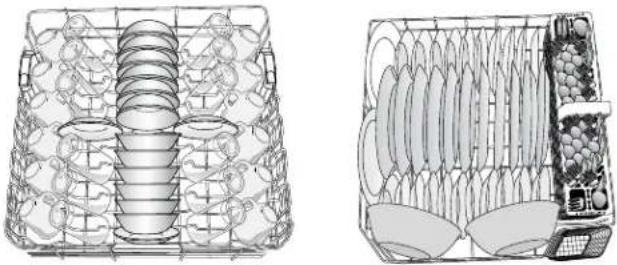

10-place load - upper rack 10-place load - lower rack

Two technical line drawings of a food basket and its side view, showing different food compartments (no text or symbols present)

12-place load - upper rack 12-place load - lower rack

4 5 2 3 2 1 2 1 2 2 3 4 5 5 5 5 5 5 5 5 5 5 5 4 4

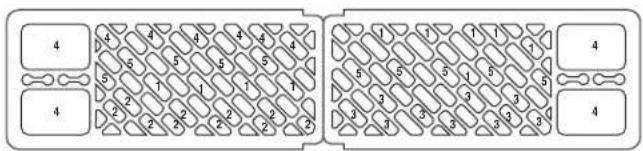

10-place load – silverware basket


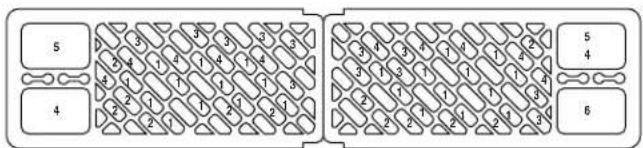

12-place load – silverware basket

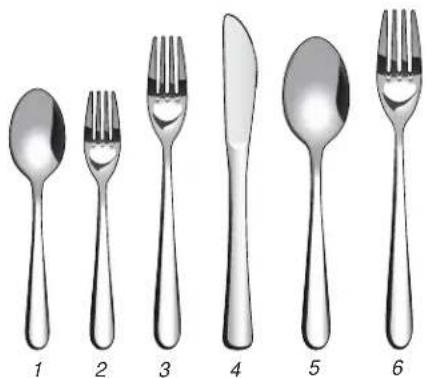

Six types of kitchen utensils arranged in a row, labeled 1 to 6, with no text or symbols on the items themselves.

1. Teaspoon
2. Salad fork

3. Dinner fork

4. Knife

5. Tablespoon/large serving spoon
6. Large serving fork

■Make sure nothing keeps spray arm(s) from spinning freely. It is important for the water spray to reach all soiled surfaces.
■Make sure that when the dishwasher door is closed, no items are blocking the detergent dispenser.
■Items should be loaded with soiled surfaces facing down and inward to the spray as shown. This will improve cleaning and drying results.

Diagram illustrating kitchen utensils and food containers with labeled components and directional arrows indicating movement or flow.

Do not block spray arms

■ Avoid overlapping items like bowls or plates that may trap food.
■ Place plastics, small plates, and glasses in the upper rack. Wash only plastic items marked "dishwasher safe."
■ To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in the racks.
- Improper loading can cause dishes to be chipped or damaged. When loading glasses or mugs, it is best to load these items in between rows of tines instead of loading them over tines as shown.

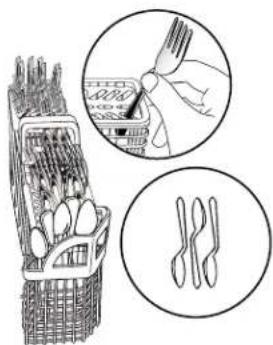

■ When loading silverware, always place sharp items pointing down. Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

STEP 2

Add Detergent

NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle. Do not use detergent.

■ Use automatic dishwasher detergent only. Add powder, liquid, or tablet detergent just before starting a cycle.
■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place.

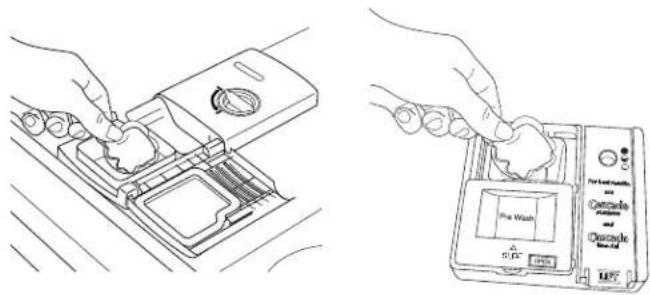

Hinged lid style Sliding lid style

Technical diagram showing hand installation of a washing machine with labeled components and a close-up of the device's internal structure.

Premeasured Detergents

Many detergents now come in several forms (gel packs, tablets, or powder packs).

We recommend that you use high quality tablets or packs for convenience and improved performance. High quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. Also, by using a rinse aid, you can minimize repeat buildup of white film. These forms are suitable for all hardness and soil levels. Always place detergents in the main compartment and slide lid to close.

Pre Wash SPIN For next refresh, on Outside maximum and Outside Max Air LIFT

Place selected detergent in the dispenser. Place finger, as shown, and slide lid closed. Press firmly until it clicks.

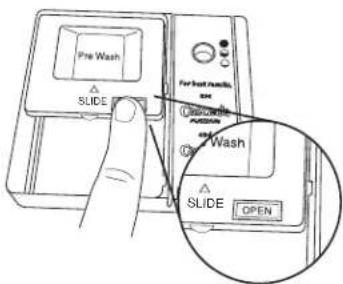

Pre Wash SLIDE For best ready. OK ● Open ● Maintain ○ Wash SLIDE OPEN

Push OPEN, as shown, and the lid will slide open.

Powders and Gels

■The amount of detergent to use depends on:

How much soil remains on the items – Heavily soiled loads require more detergent. The hardness of the water – If you use too little in hard water, dishes won't be clean. If you use too much in soft water, glassware can etch.

Soft to Medium Water (0-6 grains per U.S. gallon) [typical water softener water and some city water] Medium to Hard Water (7-12 grains per U.S. gallon) [well water and some city water]

■ Depending on your water hardness, fill the Main Wash section of the dispenser as shown. Fill the Pre-Wash section to the level shown if needed.

NOTE: Fill amounts shown are for standard powdered detergent. Follow instructions on the package when using gel dishwasher detergents.

Hard Water Soft Water Main Wash Hard Water Soft Water Pre-Wash

Premeasured forms are suitable for all hardness and soil levels. Always place premeasured detergents in the main compartment and close the lid.

Add Rinse Aid (dispenser varies by model)

• Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. The Heat Dry or ProDry™ option will not perform as well without rinse aid.
• Rinse aid keeps water from forming droplets that can dry as spots or streaks. It also improves drying by allowing water to drain off of the dishes after the final rinse.
  ■ Rinse aid helps to reduce excess moisture on the dish racks and interior of your dishwasher.
• Check the rinse aid indicator with the door down (varies by model). Add rinse aid when indicator drops to "Add" level.

■Add rinse aid to hinged lid style dispenser by twisting the dispenser cap 1/4 turn clockwise to open and lift off. Pour rinse aid into the opening until the indicator level is at "Full." Replace the dispenser cap and turn to "Lock." Make sure cap is fully locked.

Lock ¼ turn clockwise to lock

■To add rinse aid to sliding lid style dispenser, open the rinse dispenser lid by gently pushing in the center of the lid with your thumb and pulling up on the edge. Pour rinse aid into the opening until the dispenser is full. Then, close the dispenser by pushing down gently on the lid.

Technical diagram showing a hand holding a device with labeled parts and a magnified view of the screen area.

NOTE: For most water conditions, the factory setting will give good results. If you have hard water or notice rings or spots, try a higher setting. Turn the arrow adjuster inside the dispenser by either using your fingers or inserting a flat-blade screwdriver into the center of the arrow and turning.

Diagram showing a dial with numbered zones and an arrow pointing to a circular component, possibly indicating a measurement or direction.

Higher numbers dispense more rinse aid. You should change this setting only a little at a time and then run a few cycles before changing it again because just enough rinse aid is more effective than too much.

STEP 3

Select a Cycle (cycles vary by model)

See “Cycle and Option Descriptions” charts in the following section. Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2½ hours, but can take less or more time to complete depending on selections.

Select Options (options vary by model)

See "Cycle and Option Descriptions" charts in the following section.

You can customize your cycles by pressing the options desired. If you change your mind, press the option again to turn off the option. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash.

STEP 4

Start or Resume a Cycle

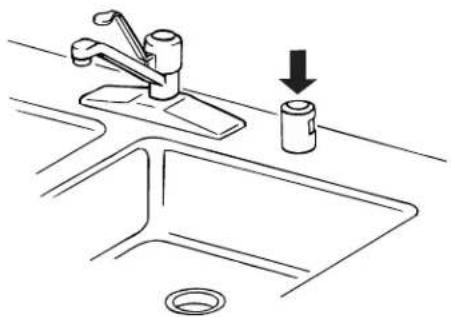

■Run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.
■Press START/RESUME once to show which selections you used. Select the wash cycle and options desired OR press START/RESUME to repeat the same cycle and options as in the previous wash cycle.

IMPORTANT: If anyone opens the door (such as, for adding a dish, even during the Delay Hours option), the Start/Resume button must be pressed each time.

If the Start/Resume button is located on top of door, push door firmly closed within 4 seconds of pressing START/RESUME. If the door is not closed within 4 seconds, the Start/Resume button LED will flash, an audible tone will be heard, and the cycle will not start.

Cycle and Option Descriptions

KitchenAid CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only ○PTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● PreDry ● 4 Hour Delay ● START/RESUME ● CANCEL/DRAIN ● Control Locked ● Washing ● Drying ● Clean ● Sanitized ●

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

CYCLE SELECTIONS

CYCLES SOIL LEVEL WASH TIME* (MINS.)
			W/O OPTIONS		WATER USAGE GALLONS (Liters)
			Typical** Max
	The most advanced and versatile cycle. ProWashTMcycle senses the load size, soil amount, and toughness of soil, to adjust the cycle for optimal cleaning using only the amount of water and energy needed.	Light to Medium 1	10 150 4.2 (16.1)
		Tough/Baked-On125	190 5.0 (19.1)
		Heavy 125 19	90 6.8 (25.8)
	Use for hard-to-clean, heavily soiled pots, pans, casseroles, and tableware.	Light to Medium 1	30 150 5.0 (19.1)
		Heavy/Baked-On 1	40 205 6.8 (25.8)
	This cycle, with only the Heat Dry or ProDryTM option selected, and without other options selected, is recommended to completely wash and dry a full load of normally soiled dishes. The energy usage label is based on this cycle and option combination. Includes Heat Dry.	Light to Medium 1	10 150 4.0 (15.0)
		Heavy 125 19	90 6.8 (25.8)
	Use for lightly soiled items or china and crystal. Light to	Medium 105 145 4.2 (15.2)
		Heavy/Baked-On 1	20 185 6.8 (25.8)

CYCLE SELECTIONS

CYCLES SOIL LEVEL WASH TIME* (MINS.)
		W/O OPTIONSTypical** Max			WATERUSAGEGALLONS(Liters)
1 Hour Wash	When you need fast results, the 1 Hour Wash will clean dishes using slightly more water and energy. Select the Heat Dry or ProDryTM option to speed drying times (add approximately 27 to 35 minutes to the 1 Hour Wash cycle).	All soil levels 58	62 7.9 (30.0)
Rinse Only	Use for rinsing dishes, glasses, and silverware that will not be washed right away.Do not use detergent.	All soil levels 17	20		2.4 (9.0)

Wash times depend on water temperature, heavy soil condition, dish load size and options selected. Adding options will add time to the cycle.

*Adding options will add time to the cycle. See options information section.
**This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results from low temperature of the incoming water.

OPTION SELECTIONS

OPTIONS CAN BE		WHAT IT DOES ADDED TIME TO CYCLE ADDED
		SELECTED WITH		TYPICAL MAX	WATER GALLONS (LITERS)
	Cleans pans, casseroles, etc., with tough food soil to eliminate the need for soaking and scrubbing of dirty, baked-on dishes.	Heavy Duty Normal Wash	Activates the ProScrub ^ spray jets to provide intensified cleaning power to items at the back of the lower rack.	53 73 0 - 3.0	(0 - 11.2)
Sound On/Off-3 Sec	Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.	Heavy Duty Normal Wash	Raises the main wash temperature from 105°F (41°C) to 120°F (49°C).	22 40 0 - 3.0	(0 - 11.2)

OPTION SELECTIONS

OPTIONS CAN BE SELECTED WITH WHAT IT DOES ADDED TIME TO CYCLE ADDED
■ Sani Rinse	Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy.The Sani Rinse indicator glows at the end of the cycle if the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.	Heavy Duty Normal Wash	Increases the main wash temperature from 105^ ( 41^ ) to 130^ ( 54^ ) and the final rinse from 140^ ( 60^ ) to 155^ ( 68^ ).	53 73 0 - 3.0	WATER GALLONS (LITERS)(0 - 11.2)
■ Top Rack Only	For added convenience, use for washing a small load of dishes in the top rack to help keep the kitchen continuously clean.	Available with any cycleCannot be used with ProScrub® option	Slightly faster wash for smaller loads	-7 -30 0
■ ProDry	Dries dishes with heat and a fan. This option with the use of rinse aid will provide the best drying performance. Plastic items are less likely to deform when loaded in the top rack. Turn ProDryTM option off for an air dry.	Available with any cycle except Rinse Only	Uses the heating element to heat air, plus a system of vents and a fan that ventilates moist air out of the dishwasher to speed drying times.ProDryTM option defaults to ON when any cycle is selected except for 1 Hour Wash.	44 51 0
■ Heat Dry	Dries dishes with heat.This option with the use of rinse aid will provide the best drying performance.Plastic items are less likely to deform when loaded in the top rack. Turn Heat Dry off for an air dry.	Available with any cycle except Rinse Only	Activates the heating element at the end of the wash cycle to speed drying times. Heat Dry defaults to ON when any cycle is selected except for 1 Hour Wash.	52 52 0

OPTION SELECTIONS

OPTIONS CAN BE SELECTED WITH WHAT IT DOES ADDED TIME TO CYCLE ADDED
or	Runs the dishwasher at a later time or during off-peak electrical hours. Select a wash cycle and options. Press 4 or 8 Hour Delay. Press START/RESUME. Close the door firmly.NOTE: Anytime the door is opened (such as, to add a dish), the Start/Resume button must be pressed again to resume the delay countdown.	Available with any cycle	Delays the start of a cycle up to 4 or 8 hours	240 240 0
Control LockHold 3 Secor	Avoids unintended use of the dishwasher between cycles, or cycle and option changes during a cycle.To turn on Lock, press and hold CONTROL LOCK or 4 HOUR DELAY (depending on model) for 4 seconds. The Control Lock light will stay on for a short time, indicating that it is activated, and all buttons are disabled. If you press any button while your dishwasher is locked, the light flashes 3 times. The dishwasher door can still be opened/closed while the controls are locked.NOTE: You may need to disable Sleep Mode by pressing either START/RESUME or CANCEL, or by opening and closing the door before you are able to turn Control Lock off.To turn off Control Lock, press and hold CONTROL LOCK or 4 HOUR DELAY (depending on model) for 4 seconds. The light turns off.NOTE: If your model requires you to press and hold 4 HOUR DELAY to lock the controls, the Control Lock LED will be on or off to indicate if Control Lock is active or not.

CONTROLS AND CYCLE STATUS
CONTROL PURPOSE COMMENTS
	To start or resume a wash cycle	If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator flashes. The cycle will not resume until the door is closed and START/RESUME is pressed.NOTE: If the Start/Resume button is located on top of door, push door firmly closed within 3 seconds of pressing START/RESUME. If the door is not closed within 4 seconds, the Start/Resume button LED will flash, an audible tone will be heard, and the cycle will not start.
	To reset any cycle or options during selection.To cancel a wash cycle after it's started.	Press and hold CANCEL/DRAIN to reset any control selections made.See “Canceling A Cycle” and “Changing A Cycle After Dishwasher Is Started” sections.
	To turn the audible tones on or off.	Press and hold the HI-TEMP SCRUB button for 4 seconds to turn the audible tones on or off. Only audible tones for confirming button presses can be turned on/off. Important audible tones, such as indicating a cycle has been interrupted, cannot be deactivated.

Dishwasher Feedback Section

CONTROLS AND CYCLE STATUS
CONTROL PURPOSE COMMENTS
	The Cycle Status Indicator Lights are used to follow the progress of the dishwasher cycle. Located on the front of the dishwasher for front control models, and located on the top of the door for hidden control models.	Clean indicator glows when a cycle is finished.If you select the Sani Rinse option, when the Sani Rinse cycle is finished, the Sanitized indicator glows. If your dishwasher did not properly sanitize your dishes, the light flashes at the end of the cycle. This can happen if the cycle is interrupted, or the water could not be heated to the required temperature.The Clean and Sanitized lights go off when you open and close the door or press and hold CANCEL.
	The Front Indicator Light or Single Exterior Light (A) shows progress of your dishwasher cycle by color (for hidden control models only).	The light will be blue if the dishwasher is washing or rinsing. The light will be red when the dishwasher is drying. The light will be green to indicate that the cycle is complete. If the Front Indicator Light is blinking, see “Troubleshooting” section.
	The Cycle Status Display is used to follow the progress of the dishwasher cycle, and to show other information.(Available on some models instead of Cycle Status Indicator Lights)	The indicators will inform you if you are able to add a dish to the cycle after it has started. It will also inform you if the dishwasher is washing, rinsing, drying, complete, and/or sanitized. They will show whether the control is locked and/or the delay option is selected. A series of bars will count down the duration of the cycle remaining from left to right. Each bar equals approximately 24 minutes of cycle length. The bars will also count down the delay feature from left to right, and the delay indicator will be activated.

Canceling a Cycle

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.
2. Press and hold Cancel/Drain button once. The Cancel/Drain light will light up.
3. Close the door and the dishwasher starts a drain cycle (if water remains in bottom of dishwasher). Let the dishwasher drain completely. The Cancel/Drain light turns off after 2 minutes.

Changing a Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure:

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

2. Check that detergent dispenser cover is still closed. If cover is open, you will need to refill the detergent dispenser before restarting your new cycle.

3. Press and hold CANCEL/DRAIN twice to reset the control.

4. Select new cycles and options.

5. Press START/RESUME.

Adding a Dish After Dishwasher Is Started

1. Check if Add a Dish indicator is lit. (Available on some models. Otherwise, proceed to Step 2.)
2. Open the door slightly to stop the cycle. Wait for the spraying action to stop, and then open the door completely.
3. Check whether the detergent dispenser cover is still closed. If it is open, the wash cycle has already started and adding a dish is not recommended.
4. If detergent has not yet been used (detergent dispenser cover is closed), you may add a dish.
5. Press START/RESUME.

Dishwasher Features

Your KitchenAid dishwasher may have some or all of these features.

ProScrub® Option Wash Area

The ProScrub ^® option wash area is located at the back of the lower level rack.

Back of dishwasher

NOTE: You must select the ProScrub® option to use this feature. Make sure items do not interfere with the water feed tube, spray arms, or ProScrub® spray jets.

• Keep the last tine row in the back of the lower rack in the 60° angled position when using the ProScrub® option.
• Load pans, casserole dishes, etc., in the back of the lower dish rack with the soiled surfaces facing the ProScrub® spray jets, and resting on the last row of tines in the angled position.
  ■Only one row of items may face the ProScrub ^® spray jets. Stacking, overlapping or nesting items will keep the ProScrub ^® spray jets from contacting all of the surfaces.

Silverware Basket

Use the slots in the covers to keep your silverware separated for optimum wash. There are specially designed slots (small round holes) for chopsticks. Mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons, for best cleaning results.

Diagram illustrating food preparation steps with labeled dishes and corresponding biological diagrams showing feeding, processing, and cell division.

NOTE: If your silverware does not fit into the designated slots, flip the covers up and push them down into the basket.

Line drawing of a hand using a tool to cut a metal component into a grid-patterned structure (no text or symbols)

Line drawing of a hand holding a tool over a fence with objects inside (no text or symbols)

Use the utensil basket to hold specialty cooking utensils (serving spoons, spatulas, and similar items), or overflow silverware items.

The basket hangs on the bottom rack in the right-hand corner. Load the basket while it is on the bottom rack or remove the basket for loading on a counter or table.

NOTE: Spin the spray arms. Be sure items in the basket do not stop the rotation of the spray arms.

Illustration of woven baskets with a magnified inset showing internal objects (no text or symbols)

SURE-HOLD® Cup and Stemware Holder

Fold down the extra shelf on the left-hand or right-hand side of the mid level rack to hold additional cups, stemware or long items such as utensils and spatulas.

Diagram showing a magnified view of cellular or tissue structures with a black arrow pointing to a specific region (no text or labels present)

Technical diagram of a mechanical assembly with multiple cylindrical components and a highlighted section (no text or labels)

NOTE: Remove the culinary tool basket(s) when washing tall stemware or other tall items in the top rack.

FLEXI-FOLD DOWN™ Flexible Tines

The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.

To adjust the fold-down tines:

1. Grasp the tip of the tine that is in the tine holder.
2. Gently push the tine out of the holder.
3. Lay the tines down, toward the center of the rack.

Diagram of a bicycle frame with an inset showing a hand holding a bicycle, no text or symbols present.

NOTE: The bottom rack may also have 1 or 2 rows of flexible tines located in the back of the rack. Follow the same instructions to adjust.

Premium Adjustable 2-Position Top Rack

After removing the culinary tool rack, you can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Each adjuster has 2 preset positions.

To raise the rack, press both rack adjusters and lift the rack until it is in the up position and level.

To lower the rack, press both rack adjusters and slide the rack to its down position and level.

Technical line drawing of a mechanical assembly with no visible text or symbols

Removable Top Rack (for SatinGlide ^® rails)

The removable top rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT: Remove dishes prior to removing the top rack from dishwasher.

To remove the rack

To gain access to the track stops, pull the upper rack forward about halfway out of the tub.

To open, flip the track stop toward the outside of the tub. After opening both track stops, pull top rack out of the rails.

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Track stop closed Track stop open

Removable Top Rack (for SatinGlide® Max rails)

The removable top rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT: Remove dishes prior to removing the top rack from the dishwasher.

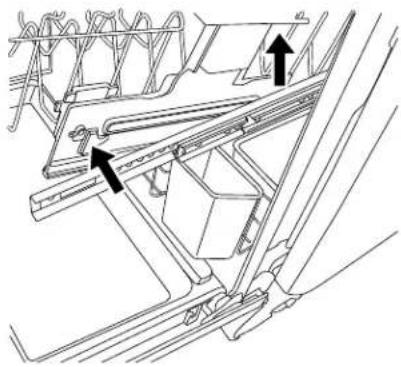

To remove the rack:

To gain access to the removable tabs on the tracks/rails, pull the

upper rack forward about halfway out of the tub.

On one side, press the tab on the track in and pull up the front end of the rack out of the track. Then repeat this step on the other side to completely remove the front end of the rack.

Then remove the back end of the rack, by pulling the back end out with a slightly forward, and then upward motion.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols present)

To replace the rack:

Pull the tracks forward about halfway out of the tub.

Along the sides of the racks are round attachment tabs. Align the rack's back end attachment tabs with the cutout in the track. Push down into place.

Pull the tracks completely out, and align the rack's front end attachment tabs with the cutout in the track. Push down into place. You will hear a snap when the front end of the rack is secured into place on each side.

Removable Culinary Tool Rack (3rd level rack)

The removable culinary tool rack (3rd level rack) allows you to wash larger items in the upper rack, or remove both the culinary tool rack and top rack to wash larger times in the lower rack. See "Removable Top Rack" section.

Technical diagram showing labeled components A and B in a mechanical assembly or assembly.

A. Track stop B. Track

To remove the rack:

1. To access track stops, pull the rack forward until it stops and clicks into place.

2. To open track stops, flip the track stop to the outside of the track.

3. After opening both track stops, slide front wheels up and out of the slot in track. Continue to pull rack forward in track and slide the back wheels up and out of the track.

4. Close track stops.

5. Slide rack tracks back into dishwasher.

To replace the rack:

1. Gently pull rack tracks forward in dishwasher until they stop and click into place.

2. To open track stops, flip the track stop to the outside of the track.

3. Place the back rack rollers on each side of the rack into the track slot and roll the rack back into the tracks.

4. Insert front rack rollers on each side of the rack into the rack slots.

5. Close track stops on both sides of rack and slide rack back into dishwasher.

Culinary Tool Rack (3rd level rack)

The culinary tool rack is designed with 2 movable baskets to hold extra silverware, knives and cooking utensils.

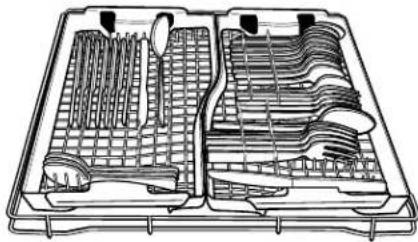

Install the baskets in this up position when you have extra silverware and flatware to wash.

Illustration of a multi-box kitchen drawer containing various kitchen utensils and utensils (no text or labels)

Up position

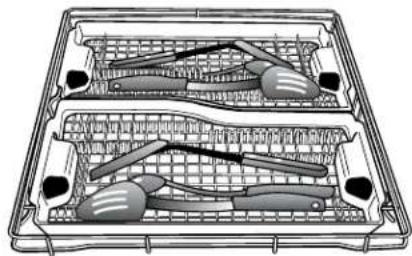

Install the baskets in this down position when you have extra silverware, knives, or utensils requiring more room to wash.

IMPORTANT: When you are using the culinary tool baskets in the down position, the top rack must also be in the lowest position.

Illustration of a tray with multiple eggplants and decorative items (no text or symbols)

Down position

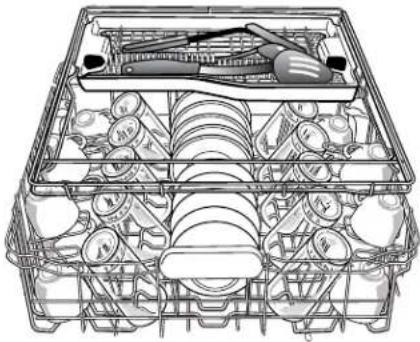

Remove the front basket in the down position, when you are using the cup shelves or other tall items in the top rack for more room.

Line drawing of a multi-tiered plastic crate filled with various items, no text or symbols present

Filtration System

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance.

The triple filter system consists of 2 parts, an upper filter assembly and a lower filter.

■ The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles, out of the pump.
■ The lower filter keeps food from being recirculated onto your dishware.

The filters may need to be cleaned when:

■ Visible objects or soils are on the Upper Filter Assembly.
■ There is degradation in cleaning performance (that is, soils still present on dishes).
■Dishes feel gritty to the touch.

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

Upper Filter Assembly Lower Filter

RECOMMENDED TIME INTERVALS TO CLEAN YOUR FILTER

Number of Loads Per Week	If you wash before loading	If you scrape and rinse before loading	If you only scrape before loading*	If you do not scrape or rinse before loading
1-3	Once per year	Once per year	Twice per year	Every two months
4-7 Once per year	Once per year Twice per year	Once per month
8-12	Once per year	Twice per year	Every three months	Every two weeks
13-14 Once per year	Twice per year Every three months	months Once per week

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see "Troubleshooting" section.

Filter Removal Instructions

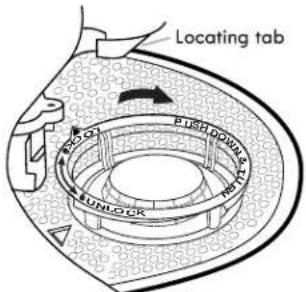

1. Turn the Upper Filter Assembly 14 turn counterclockwise and lift out.

2. Grasp the Lower Filter in the circular opening, lift slightly, and pull forward to remove.

3. Clean the filters as shown below.

Locating tab PULL DOWN & SUNL SUNLOCK + SUNLOCK

To remove Upper Filter Assembly

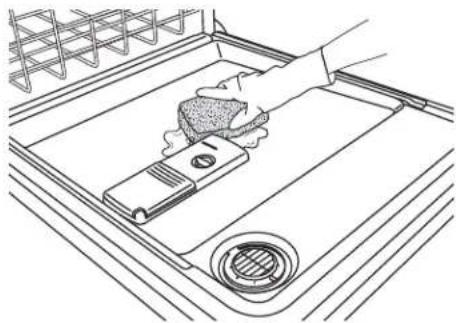

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Line drawing of a hand using a tool to clean or wash a bowl on a sink (no text or symbols)

Illustration of a hand using a tool to measure a mechanical component (no text or symbols visible)

Filter Reinstallation Instructions

1. Noting the previous illustrations, place the Lower Filter under the Locating Tabs in the bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub.

Locating tab PUSHROOM SUNLOCK TOMATO

To replace Upper Filter Assembly

1. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.
2. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

NOTE: The Upper Filter Assembly arrow does not have to align with the arrow in the Lower Filter as long as the filter is locked.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the filters properly installed. Be sure the Lower Filter is securely in place and the Upper Filter Assembly is locked into place. If the Upper Filter Assembly turns freely, it is not locked into place.

Dishwasher Care

Cleaning

Cleaning the exterior

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

Cleaning the interior

Line drawing of a hand cleaning a kitchen sink with a cloth and drain (no text or symbols)

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. You may want to wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.

To clean interior:

Make a paste with powdered dishwasher detergent on a damp sponge and clean.

OR

Use liquid automatic dishwasher detergent and clean with a damp sponge.

OR

See the vinegar rinse procedure in "Cloudy or spotted dishware (and hard water solution)" in "Troubleshooting" section.

NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.

Drain Air Gap

Line drawing of a kitchen sink with faucet and sink, showing a downward arrow indicating a drop or change (no text or symbols)

Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap when your dishwasher is not draining well.

The drain air gap is usually located on top of the sink or countertop near the dishwasher.

NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

To clean the drain air gap

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary.

Dishwasher Maintenance Procedure

Cleaning the Dishwasher

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended - Stainless Steel Cleaner and Polish Part Number 31462A.

Removal of Hard Water/Filming:

Recommended use of a monthly maintenance product such as affresh® Dishwasher Cleaner Part Number W10282479.

• Load your dishwasher (preferably with dishes affected by filming/hard water).
  ■ Place tablet in main wash compartment of detergent dispenser.
  ■Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.

Vacation or Extended Time Without Use

To reduce the risk of property damage

If you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and damage your dishwasher or home. Damage from freezing is not covered by the warranty.
■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Troubleshooting

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device, or visit http://kitchenaid.custhelp.com. In Canada, visit www.kitchenaid.ca (website may not be compatible with some mobile devices).

Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada:

KitchenAid Brand Home Appliances

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

PROBLEM SOLUTION

DISHWASHER DOES NOT RUN	NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.If the Start/Resume light is blinking, close the door and push START/RESUME.Be sure the door is closed and latched.Be sure you have disabled Sleep Mode by pressing either START/RESUME or CANCEL, or opening and closing the door before selecting your cycle/option.Check that there is not an interference with large casserole dishes and the wash system at the back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched.Be sure you have selected a cycle. (See “Cycle and Option Descriptions” section.)Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped.If lights other than Start/Resume blink and the unit will not run, you will need to call for service.
DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB	Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.Be sure your detergent is fresh and lump free.Be sure the cycle has completed (the Clean light is on). If it has not completed, you will need to resume the cycle by closing the door and pressing START/RESUME.
CYCLE RUNS TOO LONG NOTES:■ To use less water and reduce energy consumption you will encounter cycles that typically run for up to 3 hours.■ A water heater setting of 120^ ( 49^ ) is best, the dishwasher will delay longer while heating cooler water.■ Some options will add time to the cycle. (See “Cycle and Option Descriptions” section.) The ProDryTM or Heat Dry option adds approximately 12 hour.Try the 1 Hour Wash cycle.Run the hot water at a faucet close to the dishwasher before starting the cycle.
DISHWASHER NOT DRYING	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary.Use of rinse aid along with the ProDryTM or Heat Dry option is needed for proper drying.Proper loading of items can affect drying. (See specific loading instructions within this guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.■Unload the bottom rack first.■ Locate these items on the more slanted side of the rack for improved results.
PROBLEM SOLUTION
WILL NOT FILL	Be sure the water is turned on to the dishwasher.Check that the float is free from obstructions. (See “Parts and Features section.”)Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water. (See “Blinking Lights” in “Troubleshooting” section.)
WATER REMAINS IN THE TUB/WILL NOT DRAIN	Be sure the cycle has completed (the Clean light is on). If it has not, you will need to resume the cycle by closing the door and pressing START/RESUME.If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.Check for kinks in the drain hose.Check for food obstructions in the drain or disposer.Check your house fuse or circuit breaker.
HARD WATER(WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)	NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:Use a commercial cleaner designed for dishwashers once per month.Clean the upper and lower filters at least once per month. (See “Cleaning Instructions” in the “Filtration System” section.)Always use a rinse aid.Always use a high-quality, fresh detergent.Use a detergent booster/water softener additive designed for dishwashers.
ODORS	NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run, or use the Top Rack Only option (on some models) for partial loads.Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the Heat Dry or ProDryTM option turned off. Do not use detergent.The dishwasher may not be draining properly, see “Water Remains In The Tub/Will Not Drain” in the “Troubleshooting” section.
NOISY NOTES:	■ Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.■ Normal water valve hissing may be heard periodically.■ A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle.■Improper installation will affect noise levels.Be sure the filters are properly installed.A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
FOOD SOILS REMAIN ON DISHES	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance (see “Dishwasher Use” section).Check filter to ensure it is properly installed. Clean it if needed. (See “Cleaning Instructions” in the “Filtration System” section for details.)Select the proper cycle and option for the type of soils. The ProWashTM or the Heavy Duty cycle with the ProScrub® (on some models) option can be used for tougher loads.Be sure the incoming water temperature is at least 120°F (49°C).Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions.Scrape food from dishes prior to loading (do not prerinse).
DISHES DIRTY/SUDS IN DISHWASHER/CYCLE NOT COMPLETE	If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.Suds can come from:■ Using the incorrect type of detergent, such as dish detergent for hand washing dishes, laundry detergent, or hand soap.■ Not replacing the rinse aid dispenser cap after filling (or refilling) the rinse aid.■Using an excessive amount of dishwasher detergent.Call for service.If no water was present in the machine at any time during a heated wash cycle, the cycle will end and the Clean LED will not come on. See “Will Not Fill” in the “Troubleshooting” section.
DID NOT SANITIZE	If the sanitized light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse, or the temperature for your water heater is set too low. Set your water heater to 120°F (49°C).
DAMAGE TO DISHWARE	Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.)
BLINKING LIGHTS	Blinking LEDs will occur when the cycle is paused or when the cycle has been interrupted by opening the door. In this case, the Start/Resume button LED, the Cycle Status Indicator LED(s), and the countdown bars on the Cycle Status display all blink together to indicate that attention is needed. See “Start or Resume a Cycle” in the “Dishwasher Use” section.Blinking LEDs can also occur when certain errors have been detected. In this case, the Clean/Complete LED will blink 4 times in a row with a pause in between each set of blinks. When this error occurs, the controls will lock out and not allow another cycle to be started.Call for service.
CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)	NOTES:■ Liquid rinse aid is necessary for drying and to reduce spotting.■Use the correct amount of detergent.Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See “Hard Water (White Residue On Dishwasher Interior Or Glassware)” in the “Troubleshooting” section. If it does not come clear, it is due to etching (see below).Be sure the incoming water temperature is set at 120°F (49°C).Try using the High Temp and Sani Rinse options.To remove spotting, run a vinegar rinse through the dishwasher.■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a normal cycle with the Heat Dry or ProDryTM option turned off. No detergent is needed.
ETCHING (PERMANENT CLOUDINESS)	This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C).
LEAKING WATER Be sure dishwasher has been installed properly and is level.Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.
TUB IS DISCOLORED NOTES:■High iron content in the water can discolor the tub.■ Tomato-based foods can discolor the tub or dishware.■A citrus-based cleaner can be used to clean.

KITCHENAID® DISHWASHER LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit http://kitchenaid.custhelp.com.
2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

http://kitchenaid.custhelp.com

KitchenAid Customer eXperience Center

In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies.

LIFETIME LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada, LP (hereafter "KitchenAid") will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDED

In the second through fifth years from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited 5-year warranty on the below named parts only and does not include repair labor.

■Nylon dish racks
Electronic controls

LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB AND INNER DOOR LINER ONLY)

For the lifetime of the product from the date of original purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor for the following components to correct non-cosmetic defects in materials or workmanship that existed when this major appliance was purchased:

■Stainless steel tub
■Inner door liner

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine KitchenAid parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by KitchenAid.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days.
9. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
10. Pick-up or delivery. This product is intended for in-home repair.
11. Travel or transportation expenses for service in remote locations where an authorized KitchenAid servicer is not available.
12. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
13. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask KitchenAid or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Technical illustration of a mechanical component with a circular hole and cylindrical shaft (no text or symbols)

Line drawing of a cabinet or drawer with a circular vent and side panel, no text or symbols present

Line drawing of a handheld electronic device with a control panel and display case (no text or symbols visible)

Illustration of hands using a tool to cut a circular component, with no visible text or symbols

Technical line drawings showing four steps of appliance repair or cleaning: washing, cutting, cleaning, and cleaning with a device labeled 'Pro Wash'.

CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only OPTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● ProDry ■ Record On/OFF-3 sec

Technical line drawing of a mechanical assembly with multiple cylindrical components arranged in a grid (no text or symbols)

Cross-sectional diagram of a solar panel with layered structure and internal components (no text or labels)

Technical line drawing of a mechanical component with threaded and flanged sections (no text or symbols)

Illustration of a fish jumping over a container with fish, showing shell patterns and fruit (no text or symbols)

Six types of kitchen utensils arranged in a row, labeled 1 to 6, with no text or symbols on the items themselves.

Technical diagram showing cross-sectional views of a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing hand operating a device with labeled components and a close-up of the device's internal structure.

Pre Wash OPEN For heat results, and Cascade PUDDER and Cascade Line Aid LIFT

Pre Wash SLIDE For best results with Outside plastication with Wash SLIDE OPEN

Technical diagram showing a hand holding a device with labeled parts and a magnified view of the screen.

Circular dial indicator with pointer pointing to a textured center (no text or symbols)

1 2 3 4

KitchenAid CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only ○PTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● ProDry ● 4 Hour Delay ● START/RESUME ● CANCEL/DRAIN ● Control/Locked ● Washing ○ Drying ○ Clean ○ Sentinol

Diagram illustrating chromosome structure with labeled parts and magnified views showing hand and fork components

Architectural line drawing of a building facade with window grilles and ceiling grilles (no text or symbols)

Canastilla para utensilios CULINARY CADDY®

Illustration of a woven basket with a magnified inset showing internal objects (no text or symbols)

Diagram showing a magnified view of cellular or tissue structures with a black arrow pointing to a specific region (no text or labels present)

Technical diagram of a mechanical assembly with multiple cylindrical components and a highlighted section (no text or labels)

Technical line drawing of a mechanical assembly with an inset showing a lever mechanism (no text or symbols)

Diagram of a mechanical assembly with a hand holding a component, showing internal structure and motion direction (no text or symbols)

Canasta superior removable (para los rieles SatinGlide®)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing labeled components A and B in a mechanical assembly or assembly, with no visible text or symbols beyond labels.

Line drawing of a dietary or kitchen appliance with grilles, utensils, and a tray (no text or symbols)

Posición alta

Top-down diagram of a tray with multiple trays containing food items, no text or symbols present

Posición baja

Line drawing of a multi-tiered grocery drawer filled with various items (no text or symbols)

Two-step diagram showing hand positioning of a mechanical component on a sink, with no text or symbols present.

Line drawing of a hand cleaning a metal railing (no text or symbols)

Line drawing of a hand cleaning a kitchen tray with a cloth (no text or symbols)

Line drawing of a kitchen sink with faucet and sink, showing a drop in the drain (no text or symbols)

KitchenAid Brand Home Appliances

KitchenAid Canada

Customer eXperience Center

Whirlpool Canada LP

553 Benson Road

200 - 6750 Century Ave

Benton Harbor, MI 49022-2692

Mississauga ON L5N 0B7

Technical illustration of a mechanical component with a circular cutout and a cylindrical shaft (no text or symbols)

Line drawing of a vehicle cabin interior showing dashboard, seatbelt, and seat (no text or symbols)

Line drawing of a handheld device with a control panel and handle, no text or symbols present

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Technical line drawings showing four steps of appliance cleaning and installation, including a device with 'Pre Wash' and a digital timer.

CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only OPTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● ProDry

Technical line drawing of a mechanical assembly with multiple cylindrical components and layered structures (no text or symbols)

Technical line drawing of a multi-tiered industrial or processing unit with circular components and a vertical inset showing textured surfaces (no text or symbols)

Technical line drawing of a mechanical component with internal threading and mesh structure (no text or symbols)

Illustration of a food delivery box with fruit and a container (no text or symbols)

Six types of kitchen utensils arranged in descending order from spoon to fork (no text or symbols)

Technical diagram showing cross-sectional views of a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical illustration showing hand positioning and cleaning of a portable washing machine with labeled components

Pre Wash OPEN For best result, and Cascade pumpers and Cascade Box Air LEFT

Pre Wash SLIDE For best results use Delicate wash Wash SLIDE OPEN

Technical diagram showing a hand operating a mechanical component with labeled parts and dimensions

KitchenAid CYCLES ● ProWash ● Heavy Duty ● Normal Wash ● Light/China ● 1 Hour Wash ● Rinse Only OPTIONS ● ProScrub ● Hi-Temp Scrub ● Sani Rinse ● Top Rack Only ● PreDry ● 4 Hour Delay ● START/RESUME ● CANCEL/DRAIN ● Control Locked ● Washing ● Drying ● Clean ● Sanitized ●

Diagram of a mechanical or electrical component with pipes and a central block, no visible text or symbols

Illustration of a food delivery box with hands holding a fork, accompanied by two hand-drawn diagrams showing the same food items (no text or symbols present)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Illustration of woven baskets and a magnified inset showing internal components (no text or symbols)

Diagram showing a magnified view of a mechanical component with circular features, no visible text or symbols

Diagram of a mechanical assembly with multiple cylindrical components and a highlighted section (no text or labels)

Technical line drawing of a mechanical assembly with a magnified inset showing a gear mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a directional arrow (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing labeled components A and B in a mechanical assembly or assembly.

Technical line drawing of a multi-box appliance with internal compartments (no text or symbols)

Position élevée

Top-down line drawing of a tray with multiple food items (no text or symbols)

Position basse

Line drawing of a multi-tiered plastic crate filled with various items, no text or symbols present

Line drawing of a hand using a tool to lift a mechanical component into a sink (no text or symbols)

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

Line drawing of a kitchen sink with a hand holding a tool, no text or symbols present

Line drawing of a kitchen sink with faucet and sink, showing a drop in the drain (no text or symbols)

KitchenAid Brand Home Appliances

KitchenAid Brand Home Appliances

Customer eXperience Center

Whirlpool Canada LP

553 Benson Road

200 - 6750 Century Ave.

Benton Harbor, MI 49022-2692

Mississauga ON L5N 0B7

http://www.kitchenaid.ca
