Product type	Thermoelectric wine cellar
Brand	SABA
Model	CAV305
Dimensions (W x D x H)	345 x 515 x 985 mm
Net weight	23.3 kg
Power supply	220-240 V ~ 50 Hz, 140 W
Storage capacity	30 bottles (Bordeaux type, 75 cl)
Usable volume	80 L
Energy efficiency class	D
Annual energy consumption	258 kWh/year
Climate class	N (16°C to 32°C)
Noise emissions	47 dB(A)
Defrosting	Automatic
Installation type	Freestanding
Adjustable temperature range	11°C to 18°C
Interior lighting	Yes, touch control
Number of shelves	9 wooden shelves
Recommended interior cleaning	Hot water and baking soda (2 tbsp/L)
Exterior cleaning	Mild detergent and warm water
Included accessories	Manual, energy label, 9 shelves

Frequently Asked Questions - CAV305 SABA

How to adjust the temperature of the wine cellar?

Use the touch buttons on the control panel. Press + or - to adjust the temperature in 1°C increments, within the range of 11°C to 18°C.

What to do if the cellar is not cooling enough?

First check the set temperature. Make sure the ambient temperature is between 16°C and 32°C. The door must be properly closed and the seal intact. Avoid opening too often.

Why is my appliance vibrating?

Vibrations are often due to lack of leveling. Adjust the front feet so that the cellar is perfectly horizontal.

The door does not close properly, what to do?

Check the level of the appliance, clean the door seal, and make sure the shelves are properly positioned. If the seal is damaged, contact customer service.

How to clean the interior of the wine cellar?

Unplug the appliance and remove the contents. Clean the interior with a solution of hot water and baking soda (about 2 tablespoons per liter of water). Wipe with a soft cloth.

What to do in case of excessive noise?

Check that the cellar is level. Make sure nothing is rubbing against the fan. If the noise persists, contact customer service.

Can I store food in this wine cellar?

No, this appliance is designed only for storing wine bottles. Do not store food, as conditions are not suitable.

How to defrost the appliance?

Defrosting is automatic. Defrost water flows into a collection tray located at the back of the appliance, which should be cleaned periodically.

What to do if the control panel does not light up?

Check that the appliance is plugged in and the power cord is not damaged. Test the electrical outlet. If nothing works, contact customer service.

How to move the wine cellar?

Empty all contents, securely fix the shelves and water tray. Set the feet to minimum. Close the door with soft adhesive tape. Always transport the appliance in vertical position.

USER MANUAL CAV305 SABA

Black double-chip refrigerator with glass doors and white shelves, no visible text or symbols on the cabinet itself.

1.CHARNIÈRE SUPÉRIEURE
2.ECLAIRAGE
3.CARROSSERIE
4. CLAYETTE
5.GRILLE DU VENTILATEUR
6.PIEDS
7.BAC DE RECUPERATION D'EAU
8.VITRE
9.JOINT DE LA PORTE
10.CHARNIERE DU BAS
11. INTERRUPTEUR DE L'ECLAIRAGE
12.TABLEAU DE CONTROL LED
13.REGLAGE+ DE LA TEMPERATURE
14.REGLAGE- DE LA TEMPERATURE
15.POIGNEE ENCASTREE

INSTALLATION DE VOTRE CAVE THERMOELECTRIQUE

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Black double-chip refrigerator with glass doors and white bottles, no visible text or symbols

Thermoelectric cooler

CAV 305

INSTRUCTION MANUAL

CAV 305

Thank you to have chosen the SABA quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

• TECHNICAL INFORMATION
• IMPORTANT SAFETY INSTRUCTIONS
• ILLUSTRATED STRUCTURE
• INSTALLATION OF YOUR THERMOELECTRIC COOLER
• ELECTRIC CONNECTION
• USING YOUR THERMOELECTRIC COOLER
• CLEANING AND MAINTENANCE
• PROBLEM DISPOSAL
• IMPORTANT
• ELIMINATION
• ACCESSORIES
• REMOVAL OF APPLIANCES

TECHNICAL INFORMATION

Model	SABA CAV 305
Category of household refrigerating appliances:	Category 10
Energy class	D
Annual energy consumption (1)	258 kWh/an
Useful volume of compartments	80L
Defrosting Automatic
Climate class + range of ambient temperatures	N(from +16°C to +32°C)
Airborne acoustical noise emissions	47dB(A) re 1pW
Supply	220V-240V / 50Hz 140W
Storage capacity	30 bottles(Bordeaux-type) (2)
Dimension (L x D x H)	345 x 515 x 985 (mm)
Weight 23.30kg
Installation type	Freestanding

(1)The number of bottles indicated is always based on bottles considered “standard” or “75 cl standard Bordeaux” (according to the Eco-label sheet/Official Journal of the European Union L314/32)
For a diverse collection of bottles, take a margin of approximately 20% to 30% less into account

WARNING: To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions.

DANGER or WARNING: risk of child entrapment.

-Junked or abandoned appliances are dangerous ...even if they just sit in the garage a few days.

Before you throw away your old thermoelectric cooler: take of the door, leave the shelves in place so that children may not easily climb inside.

-Children should be supervised to ensure that they do not play with the appliance.

-Never clean appliance parts with flammable

fluids. The fumes can create a fire hazard or explosion.

-Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance.

-Do not store food in thermoelectric cooler, as interior temperature may not get cool enough to prevent spoilage.

→This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should not play with the appliance.

Cleaning and user maintenance should not be made by children without supervision.

→If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

→Disposing of the appliance

To avoid damage to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle appliance responsibly to promote the reuse of material resources. Disposal must be done safely in public collection points provided for this purpose.

→Installation and commissioning:

The device must be installed on the ground, on a level surface, making sure that the vents are properly identified.

Never attempt to replace or repair part or component of the appliance by yourself, ask the aid of a professional and qualified staff if necessary.

→Handling

Always handle the appliance with care to avoid damaging it.

→This appliance is intended to be used in household and similar applications such as:

-the corners reserved for staff kitchens of shops, offices and other working environments; -farm houses and by clients in hotels,

motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

→Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

→ Do not use with a programmer, timer, separate remote-control system or any other device that switches on.

→ For installation and cleaning, please refer to the chapters on “INSTALLATION YOUR THERMOELECTRIC COOLER” and “CLEANING AND MAINTENANCE”.

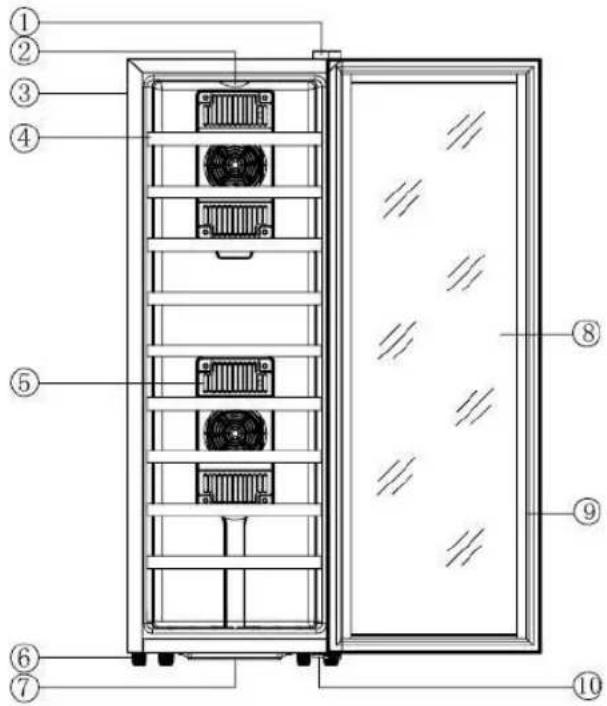

ILLUSTRATED STRUCTURE

1. UPPER HINGE
2. LIGHT
   3.CABINET
   4.SHELF
   5.COLD FAN MASK
   6.FOOT
   7.WATER TRAY
   8.GLASS
   9.DOOR SEAL
3. LOWER HINGE
4. LIGHT SWITCH
   12.TEMPERATURE DISPLAY WINDOW
   13.TEMPERATURE UP KEY
   14.TEMERATURE DOWN KEY
   15.RECESSED HANDLE

INSTALLATION YOUR THERMOELECTRIC COOLER

Before using your thermoelectric cooler:

-Remove the exterior and interior packing -Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

-Clean the interior surface with lukewarm water using a soft cloth.

-Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.

-For recedes installation away from direct sunlight and sources of heat (stove, heater, radiator, etc.) Direct sunlight may affect the acrylic coating and heat sources may

increase electrical consumption.

-Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly. The unit must be placed in a room where the temperature is between 16-32°C.

-The appliance is for indoor use only. Not designed for placement in garage or basement.

-Caution: Please keep the appliance away from substance, which can cause ignition.

ELECTRIC CONNECTION

WARNING : Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not cut or remove the ground wire from the power cord supplied under any circumstances.

Use of extension cords is not recommended.

This unit requires a standard 220-240V/50HZ electrical outlet with 2-pin plug.

The cord should be secured behind the thermoelectric cellar and not let exposed or dangling to prevent accidental injury.

USING YOUR THERMOELECTRIC COOLER

The thermoelectric cooler is built for operating under climate class N (16-32°C). However, for an optimal function as well as energy consumption, it is recommended to install the appliance in a place where the ambient temperature is between 16-26°C above which the adjusted interior temperature is long to reach.

HOW TO SET TEMPERATURE

There are three touch buttons on the control panel:

• and increases or decreases the set temperature by 1°C (temperature range is 11-18°C).
• button turns on or off the interior light.

Note:

• This product is designed for maximum cooling of 14°C below ambient temperature.
• When the ambient temperature around 25^ C or less, unit can maintain a temperature range between 11-18^ C.

CLEANING AND MAINTENANCE

Cleaning your thermoelectric cooler

Unplug the thermoelectric cooler and remove your products inside.

Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

The outside of thermoelectric cooler should

be cleaned with mild detergent and warm water.

Draw out the water tray at the bottom, and wash.

Moving your thermoelectric cooler

Remove all the items inside. Securely tape down all loose items inside your thermoelectric cooler. Turn the leveling legs up to the base to avoid damage. Tape the door.

Be sure the thermoelectric cooler stays in the upright position during transportation.

PROBLEM DISPOSAL

You can solve many common thermoelectric cellar problems easily, saving you the cost of a possible service call.

PROBLEM POSSIBLE CAUSE
Thermoelectric cooler do not operate.	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Thermoelectric cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is open too often or not closed completely.The door seal does not seal properly.
Vibrations. Check to assure that the thermoelectric cooler is level.
The thermoelectric cooler seems to make too much noise	The thermoelectric cooler is not level.Check the fan.
The door will not close properly.	The thermoelectric cooler is not level.The doors were reversed and not properly installed.The seal is weak.The shelves out of position.
LED could not display.	Main control board does not work or there is some problem with the plug.
Buttons are not functional.	Temperature controller panel is damaged.

IMPORTANT

1. This machine is designed to be only used in N climate class (temperature range from 16 to 32°C)
2. Upon receipt and inspection of the unit, If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
   For any additional information or questions, please contact the service center.

WARNING: please do not uses where children can touch the unit, nor let children use the unit by themselves.

ELIMINATION

1. Please remove the door before you dispose your thermoelectric cooler.
   2, Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
2. Information regarding disposal of the appliance
   Flammable insulation blowing gases should be disposed appropriately. Take the cabinet to a recycling plant for flammable insulation blowing gases.

ACCESSORIES

Energy label

English/French instruction manual

9 wood shelves

REMOVAL OF APPLIANCES

The European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

(WEEE), requires that old household appliances uses are not thrown in the normal municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the separate collection obligations.

Consumers should contact their local authority or retailer for information

concerning the correct disposal of their old appliance.
