USER MANUAL Silence Force Extreme TW5951 TEFAL

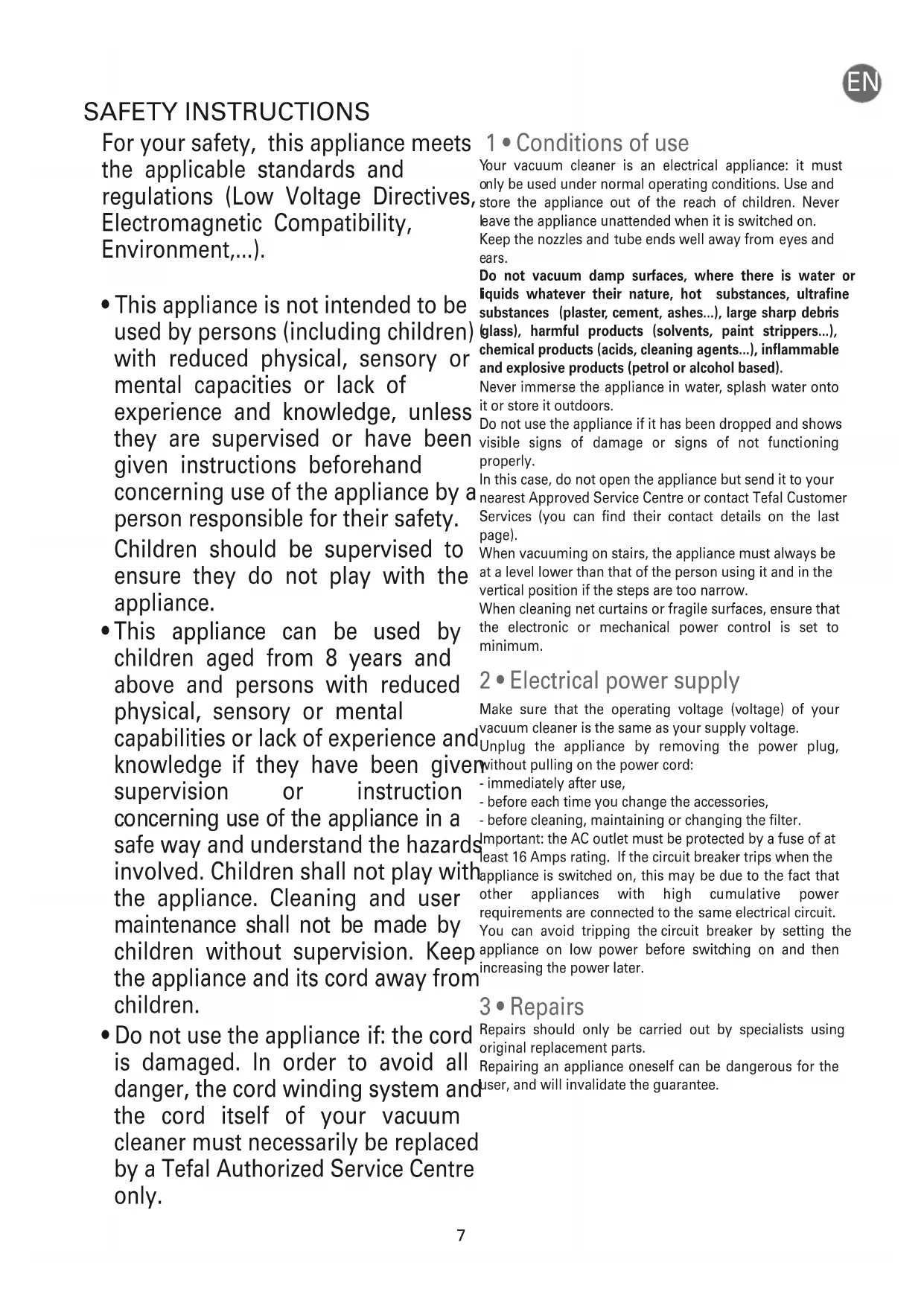

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord away from children.

• Do not use the appliance if: the cord is damaged. In order to avoid all danger, the cord winding system and the cord itself of your vacuum cleaner must necessarily be replaced by a Tefal Authorized Service Centre only. 1 • Conditions of use

our vacuum cleaner is an electrical appliance: it must

nly be used under normal operating conditions. Use and store the appliance out of the reach of children. Never

eave the appliance unattended when it is switched on. Keep the nozzles and tube ends well away from eyes and

ars. Do not vacuum damp surfaces, where there is water or

iquids whatever their nature, hot substances, ultrafine substances (plaster, cement, ashes...), large sharp debris

glass), harmful products (solvents, paint strippers...), chemical products (acids, cleaning agents...), inflammable and explosive products (petrol or alcohol based). Never immerse the appliance in water, splash water onto it or store it outdoors. Do not use the appliance if it has been dropped and shows visible signs of damage or signs of not functioning properly. In this case, do not open the appliance but send it to your nearest Approved Service Centre or contact Tefal Customer Services (you can find their contact details on the last page). When vacuuming on stairs, the appliance must always be at a level lower than that of the person using it and in the vertical position if the steps are too narrow. When cleaning net curtains or fragile surfaces, ensure that the electronic or mechanical power control is set to minimum. 2 • Electrical power supply Make sure that the operating voltage (voltage) of your vacuum cleaner is the same as your supply voltage. Unplug the appliance by removing the power plug, without pulling on the power cord: - immediately after use, - before each time you change the accessories, - before cleaning, maintaining or changing the filter. Important: the AC outlet must be protected by a fuse of at least 16 Amps rating. If the circuit breaker trips when the appliance is switched on, this may be due to the fact that other appliances with high cumulative power requirements are connected to the same electrical circuit. You can avoid tripping the circuit breaker by setting the appliance on low power before switching on and then increasing the power later. 3 • Repairs Repairs should only be carried out by specialists using original replacement parts. Repairing an appliance oneself can be dangerous for the user, and will invalidate the guarantee. SAFETY INSTRUCTIONS

736299-01_TW58-59_SILENCE-FORCE-EXTREME_736299/01 12/01/15 09:21 Page78 1 • Removing packaging Unpack your appliance and remove any unwanted stickers, Keep your guarantee form and read the instructions carefully before using your appliance for the first time. 2 • Advice and precautions Each time before use, the power cord must be unwound completely. Do not jam it and do not allow it to rub against sharp edges. If you’re using an electrical extension, check that it is in perfect condition and that it is suited to the power of your vacuum cleaner. Never unplug the appliance by pulling on the power cord. Never operate the vacuum cleaner without a bag in it and without its filtration system (cassette). For your peace of mind your vacuum cleaner is fitted with two safety check systems: for the bag (13 & 14) and for the (H)EPA filter cassette (16). Do not move the vacuum cleaner by pulling on the power cord, the appliance must be moved using its carrying handle. Do not use the power cord for lifting the appliance. Switch off and unplug your vacuum cleaner each time you’ve finished using it. Always switch off and unplug your vacuum cleaner before maintaining or cleaning it. Only use original Tefal or Wonderbag bags and filters. Only use Tefal original accessories. Check that all the filters are correctly in place. If you experience difficulties getting hold of the accessories and filters for this vacuum cleaner, please contact Tefal customer services.

BEFORE USING FOR THE FIRST TIME

Thanks to the exclusive TEFAL EXTREME SILENCE SYSTEM we promise you’ll notice just how much quieter your vacuum cleaner is.

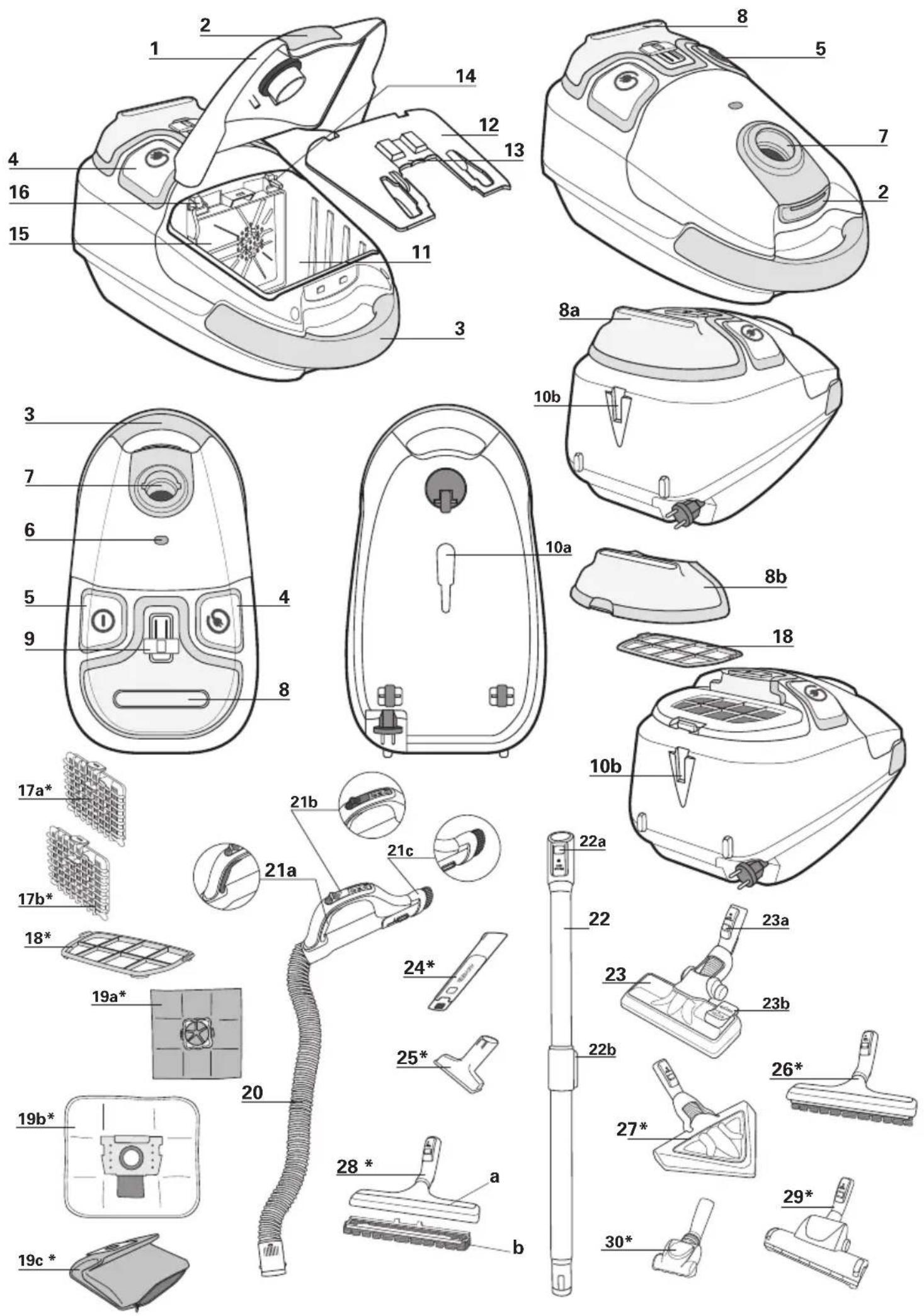

• Depending on models: either equipment specific to cer- tain models or available as an optional accessory.

arrying power nozzle

– Horizontal parking

Bag in vacuum cleaner sensor

(H)EPA* filter cassette compartment

(H)EPA* filter cassette sensor 17 a - (H)EPA* filter case (ref. ZR002901) adapted to Won- derbag* vacuum bags and high filtration bags*.

- (H)EPA* filter cassette (ref. ZR005201) for synthetic bags*

Flexible hose with power nozzle ERGO COMFORT

- 2 position button: brush in retracted position for rugs and carpets / brush in advanced position for parquets and smooth floors.

Nozzle with removable brush*

- use on smooth surfaces with crevices

ush the flexible hose into the vacuum inlet (Fig.1) and turn until it locks. To remove it, turn in the opposite

• Push the metal telescopic tube into the end of the power

ozzle until you hear a locking ‘click’ (Fig.2) (to release it, push the locking button on the tube and remove it).

• Push the all floor type nozzle (23) into the end of the metal

elescopic tube until you hear a locking ‘click’ (Fig.3) (to release it, push the locking button on the nozzle and remove it).

• Adjust the telescopic metal tube to the required length using the telescopic system (TELESCOPIC SYSTEM) (Fig.4) Fit the appropriate accessory to the end of the metal telescopic tube or the power nozzle: - For rugs and carpets: use the all floor type nozzle in the retracted brush nozzle position or the Turbobrush* (fibres and animal hairs).: - For smooth surfaces and smooth surfaces with crevices (such as tiled floors): use the all-surface nozzle (23) with the brush extended or, for better results, use the smooth surface nozzle* (28.a*) without the removable brush. - For fragile surfaces, such as parquet, it is recommended to use the standard parquet nozzle (26*) or the nozzle with a line of bristles (28.b*) - For corners and hard to reach spots: use the telescopic crevice tool*. - For furniture and fragile surfaces: use the brush built into the power nozzle (EASY BRUSH) or the upholstery nozzle*. 2 • Plugging in the power cord and switching on the appliance Unwind the power cord completely, plug in your vacuum cleaner and press on the On/Off button (Fig.7). Remark: you can use your vacuum cleaner in the horizontal position (sleigh position) but also in the vertical position, notably when you are vacuuming the stairs or removing dust from the curtains. Adjust the suction power: using the electronic power control (Fig.8) with the manual power nozzle switch (Fig. 9)

• Position (MIN) for vacuuming delicate fabrics (net curtains, textiles)

• Position (Medium) for everyday vacuuming for all types of floors, which are only slightly dirty

• Position (MAX) for vacuuming hard floors and very dirty rugs and carpets. 3 • Storing and carrying your vacuum cleaner After use, switch off your vacuum cleaner by pressing the On/Off switch and unplug it (Fig.10). Rewind the power cord by pressing the power cord rewind button (Fig.11). In the vertical position place the nozzle in the parking position (Fig.12). This allows you to carry and store your vacuum cleaner when it is in the parking position (Fig.13).

IMPORTANT Never operate your vacuum cleaner without its bag and without its filtration system (cassette). IMPORTANT Always switch off and unplug your vacuum cleaner before changing the accessories. COMFORT TIPS

omfortable to use, the ERGO COMFORT SILENCE range has been designed to make using your

acuum cleaner an easier and more enjoyable experience.

o that you can keep an upright position and avoid bending your back, make sure you:

. Adjust the length of the metal telescopic tube ERGO COMFORT SILENCE to suit your body build (Fig.5).

2. Place your second hand in front of the power

nozzle handle ERGO COMFORT SILENCE (Fig.6).

• Depending on models: either equipment specific to cer- tain models or available as an optional accessory.

IMPORTANT: The nozzle for smooth surface with crevices 28.a* is used to measure performance associated to the energy label. This nozzle allows you to optimise the dust-collection performance of your appliance on smooth surfaces with crevices. 736299-01_TW58-59_SILENCE-FORCE-EXTREME_736299/01 12/01/15 09:22 Page910

The air we breathe contains particles that may be allergens:

ite larvae and droppings, mould, pollen, smoke and animal residues (hair, skin, saliva, urine). The smallest particles

enetrate deep into the respiratory system where they can cause inflammation and lung impairment.(H)EPA filters (High

fficiency Particulate Air) are used to filter out the smallest particles. With the (H)EPA filter, the air released back into the room is healthier than the air that is vacuumed. 1 • Changing the bag The change bag light tells you that the bag is full or saturated. If you notice that your vacuum cleaner is not working as well as it should be, turn the power up to maximum and hold the lifted nozzle above the floor. If the light stays red, replace the bag. a) If your vacuum cleaner is fitted with a Wonderbag* (19a) : IIMPORTANT Wonderbag* UNIVERSAL (Classic, Freshline, Endura ref. WB4xxx) bags are available from retail outlets and at Approved Service Centres. Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.15a). Remove the Wonderbag* bag from the bag support (Fig.15b). Throw the Wonderbag* bag away (Fig.15c). Place a new Wonderbag* bag in the bag support using its ring (Fig.15d). Place the bag support in the bag compartment and fit the bag inside the compartment (Fig.15e). Make sure that the bag is correctly positioned before closing the cover. b) If your vacuum cleaner is fitted with a High filtration bag* (19b) : The bags (ref. ZR002001) are available from your retailer or from Approved Service Centres. Open the cover of your vacuum cleaner (Fig. 14). Remove the bag support from the bag compartment (Fig.16a). Before removing the dust bag from the bag support, pull the tab on the card bag closure to seal the bag and avoid dust escaping: grip the tab (Fig. 16b) and pull out fully to seal the opening (Fig. 16c). Detach the bag from the support (Fig. 16d). Dispose of the bag in the waste bin (Fig. 16e). Place a new bag in the bag support: slide the card bag closure into the slots of the bag support (Fig.16f) until fully inserted (Fig.16g) (the paper tab used to

eal the bag when full should be located underneath the bag support).

lace the bag support into the bag compartment and spread the bag out within the compartment (Fig.16h).

nsure that the bag support is correctly positioned before closing the cover.

) If your vacuum cleaner is fitted with a synthetic (textile) bag* (19c) : Synthetic bags* (ref.RS-RT2274) are available from Approved Service Centres. Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.17a). Remove the synthetic bag* from the bag support (Fig.17b). Open the synthetic bag* using the zip (Fig.17c) then empty it into a dustbin (Fig.17d). Check that the zip is properly closed once more before putting the bag back in again (Fig.17e). Place the synthetic bag* on the bag support using its cardboard holder (Fig.17f), place the bag support in the bag compartment and fit the bag inside the compartment (Fig.17g). Make sure that the bag is correctly positioned before closing the cover. 2 • Changing the (H)EPA* filter case (ref. ZR002901)* (for the appliances fitted with a Wonderbag vacuum bag or a high filtration bag*) The (H)EPA filter cassette ref. ZR002901* is available from all retail outlets and at approved Service Centres. Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.15a or 16a), then remove the (H)EPA* filter cassette (Fig.18a) and throw the cassette into a bin (Fig.18b). Fit the new (H)EPA* filter cassette (ref. ZR002901*) into its compartment (Fig.18c) Put the bag support back into the compartment (Fig.15e or 16h). Make sure that the (H)EPA* filter cassette is correctly positioned before closing the cover.

CLEANING AND MAINTAINING

MPORTANT Always switch off and unplug your vacuum cleaner before servicing it. IMPORTANT Replace the filtration system once a year. IMPORTANT Never operate the vacuum cleaner without a bag. For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the bag is inside (the cover won’t close unless you’ve put the bag in). IMPORTANT Wonderbag* COMPACT bags can’t be used on this appliance. Using them could damage the vacuum cleaner and may invalidate the appliance guarantee.

• Depending on models: either equipment specific to cer- tain models or available as an optional accessory. 736299-01_TW58-59_SILENCE-FORCE-EXTREME_736299/01 12/01/15 09:22 Page1011 3 • Cleaning the HEPA* filter cassette (ref ZR005201*) (for appliances which come with a synthetic bag*) The (H)EPA* filter cassette ref. ZR005201* is available from

ll retail outlets and at approved Service Centres. Open the cover to your vacuum cleaner (Fig.14). Remove the

ag support from the bag compartment (Fig.17a), then remove the (H)EPA* filter cassette (Fig.19a). Tap the (H)EPA* filter cassette above a dustbin (Fig.19b). Put the (H)EPA* filter cassette (ref. ZR005201*) back in its compartment (Fig.19c). Put the bag support back with the synthetic bag* in the bag compartment. Make sure that the (H)EPA* filter cassette is correctly positioned before closing the cover. 4 • Change microfilter in air outlet*

Remove the air ventilation cover (8b) which is located at the

ack of the vacuum cleaner: unclip the air ventilation cover (Fig.20a) then remove it (Fig.20b)

Remove the microfilter (Fig.20c).

• Dispose of it in a bin (Fig.20d) then replace it with a new

• Make sure that the microfilter is in the right position before

losing the casing again (Fig.20f). The microfilter is available with high filtration bags (ref.

R002001). The microfilter is also available separately (ref. ZR901901). 5 • Cleaning your vacuum cleaner Wipe the body of the appliance and the accessories with a soft cloth (Fig.21). Do not use detergents, chemical or abrasive products. If your vacuum cleaner won’t start

• The appliance has not got any power: check that the appliance is correctly plugged in. If your vacuum cleaner doesn’t have any suction power

• An accessory or the flexible hose may be blocked: unblock the accessory or the flexible hose.

• The cover will not close properly: check the positioning of the bag, bag support and (H)EPA filter cassette and close the cover. If your vacuum cleaner has less suction power, makes noise, whistles

• An accessory or the flexible hose is partially blocked: unblock the accessory or the flexible hose.

• The bag is full or saturated with fine dust: replace the bag (19a or 19b) or empty the synthetic bag* (19c).

• The filtration system is saturated: change the (H)EPA* filter cassette (ref ZR002901*) and put it back into its housing or clean the (H)EPA* filter cassette (ref ZR005201*) as indicated in the procedure.

• The mechanical power control switch (21b) is open: close the power nozzle adjustable manual power switch. If the change bag light stays on Red

• The bag is saturated: replace the bag (19a or 19b) or empty the synthetic bag* (19c). If the cover won’t close (presence sensors 13, 14, 16)

• Check that that the bag support is fitted as well as the bag and that it is positioned correctly.

• Check that the (H)EPA filter cassette is fitted or that it is correctly positioned. If the nozzle is difficult to move

• Reduce the power by opening the power nozzle adjustable manual power switch (21b) or by moving the electronic power control (9) to the MIN position. If the power cord does not rewind completely

• The power cord is slowed down when rewinding: pull the power cord out again and press the power cord rewind button. If a problem persists, take your vacuum cleaner to your local Tefal Approved Service Centre. Check the list of Tefal Approved Service Centres or contact Tefal Customer Services (you can find contact details on the last page). TROUBLESHOOTING IMPORTANT: As soon as you notice that your vacuum cleaner is not working as well as it should be and before carrying out any checks, switch it off using the On/ Off button.

• Depending on models: either equipment specific to cer- tain models or available as an optional accessory.

IMPORTANT Never use the vacuum cleaner without a (H)EPA filter cassette. For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the (H)EPA cassette filter is in place (the cover won’t close unless you’ve put the (H)EPA) filter cassette in. IMPORTANT! This cleaning procedure is only for

In accordance with current regulations, any appliance which is no longer needed must be rendered unusable once and for all: unplug and cut off the power cord be- fore disposing of the appliance. Help us take care of the environment! Your appliance contains many materials which can be recovered or recycled. Leave it at a waste collection point so that it can be processed.

• Depending on models: either equipment specific to cer- tain models or available as an optional accessory.

• This product has been designed for domestic use only. Any

ommercial use or professional use, inappropriate use or failure to comply with the instructions, the manufacturer

ccepts no responsibility and the guarantee will not apply.

• Read the instructions for use carefully before using your

ppliance for the first time: any use of the appliance which does not conform to these instructions will release Tefal from
