7205 - Vacuum Cleaner WAGAN - Free user manual and instructions

Product Type	Wet/Dry Vacuum
Brand	WAGAN
Model	7205
Input Voltage	12 V
Power	120 W
Dimensions	28.0 x 20.8 x 16.5 cm
Weight	1.1 kg
Power Source	12V Cigarette Lighter
Usage	Vacuuming liquids and solids, inflation
Hose	1 m angled hose
Brush	Brush for upholstery and carpets
Nozzle	Nozzle for tight areas and under seats
Inflation Adapter	Included for inflating mattresses, sports equipment
Filter	Washable fabric filter
Tank Capacity	Approximately 0.5 L (estimated)
Filter Maintenance	Clean by hand with mild soap and warm water, dry completely
Exterior Maintenance	Clean with a damp cloth, do not immerse
Safety Instructions	Do not immerse; do not vacuum hot, flammable, corrosive substances; use out of reach of children
Replacement Parts	Replacement filter (ref. AA5321) available at wagan.com
Warranty	1 year, limited to United States
Included Accessories	Hose, brush, nozzle, inflation adapter, filter

Frequently Asked Questions - 7205 WAGAN

How to use the WAGAN 7205 vacuum?

Choose the appropriate attachment and plug it into one end of the hose. Connect the other end to the vacuum inlet. Plug the DC cable into your car's cigarette lighter. Make sure other electrical equipment is turned off to avoid draining the battery. Turn the switch on. Let the engine run during use to preserve the battery. After use, turn off and unplug the cable.

Can you vacuum water with this vacuum?

Yes, the WAGAN 7205 is a wet/dry vacuum. After vacuuming water, immediately clean the tank and filter. Let all parts dry completely before storing to prevent mold.

How to clean the filter?

Unclip the four latches on the tank and remove it. Locate the fabric filter around the air inlet protector and carefully remove it. Clean it by hand with mild soap and warm water. Let dry completely before reinstalling. Never operate the vacuum without the filter.

Where can I buy replacement filters?

Replacement filters are available on the website wagan.com under reference AA5321. Make sure to order the compatible model.

What accessories are included?

The vacuum comes with: a 1 m angled hose, a brush for upholstery and carpets, a nozzle for tight areas, an inflation adapter and a filter.

How to use the inflation function?

Attach the inflation nozzle to one end of the hose. Connect the other end to the inflation port on the vacuum. Plug the DC cable into the cigarette lighter, turn the device on, and use it to inflate sports equipment or air mattresses. Let the engine run to avoid draining the battery.

Can I use the vacuum without a filter?

No, never operate the vacuum without the filter installed. The filter protects the motor and ensures effective suction. Using without a filter can damage the device.

What are the important safety precautions?

Do not immerse the vacuum in water. Do not vacuum hot, flammable, corrosive or acidic substances, or large sharp debris like glass. Keep attachments away from eyes and ears. Store the device out of reach of children. Do not use near flammable vapors.

How to maintain the vacuum after vacuuming liquids?

After vacuuming water, clean the tank and filter with soapy water. Let all parts dry completely before reassembling and storing the device. Wipe the exterior with a damp cloth, without immersing the vacuum.

What is the warranty for this product?

The WAGAN 7205 comes with a limited one-year warranty from the date of purchase, valid only in the United States. The warranty covers defects in materials and workmanship. For any claims, contact customer service and obtain an RA number before returning the product.

USER MANUAL 7205 WAGAN

We are constantly improving our products so specifications are subject to change without notice. Visit our website for the latest product information.

Thank you for purchasing the Wet/Dry AutoVac by Wagan Tech. With normal care and proper treatment, it will provide years of reliable service. Please read all operating instructions carefully before use.

SPECIFICATIONS

Operating Voltage 12V
Operating Wattage 120W
Dimensions 11.0 × 8.2 × 6.5 (in)
Weight 2.4 lbs

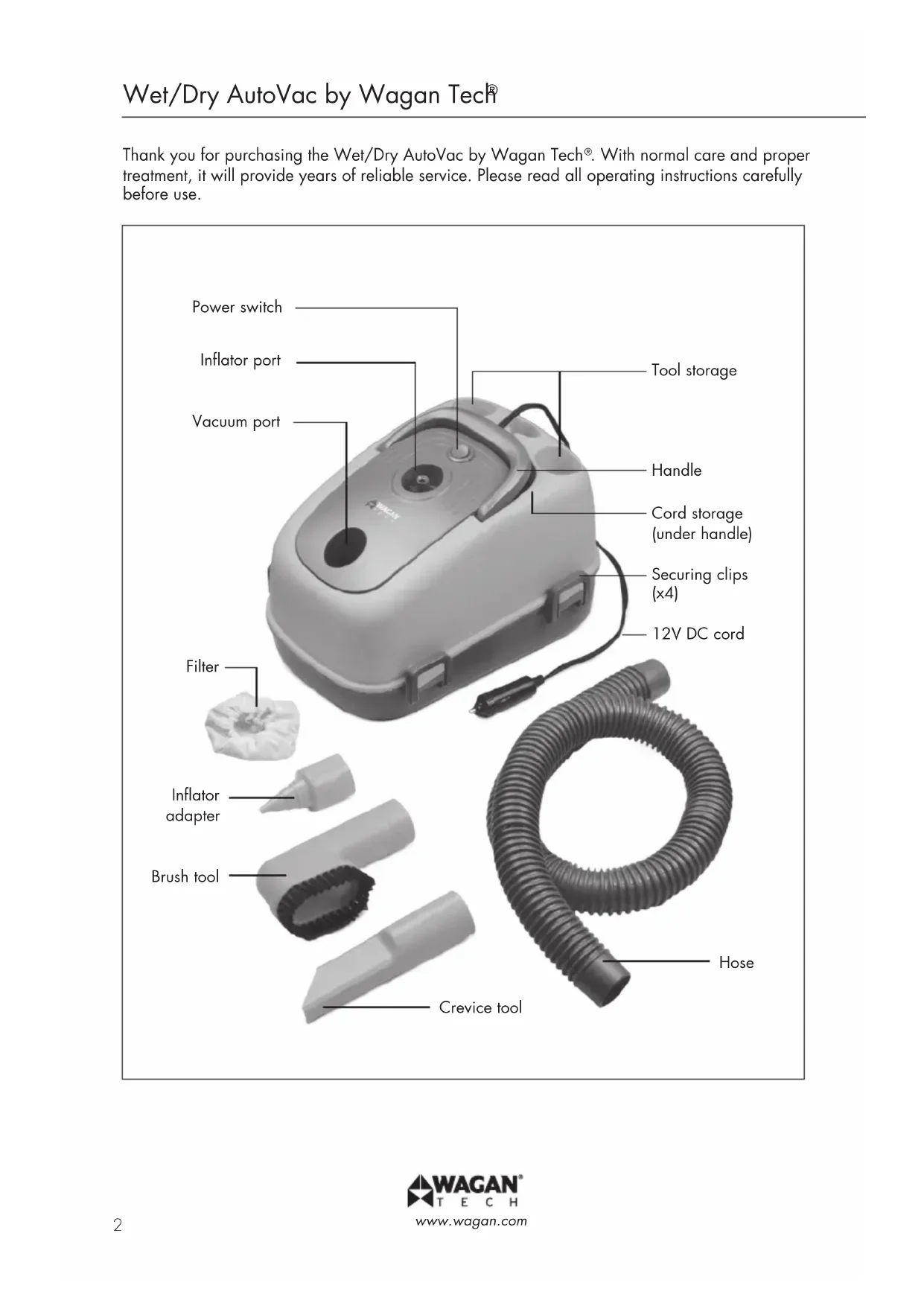

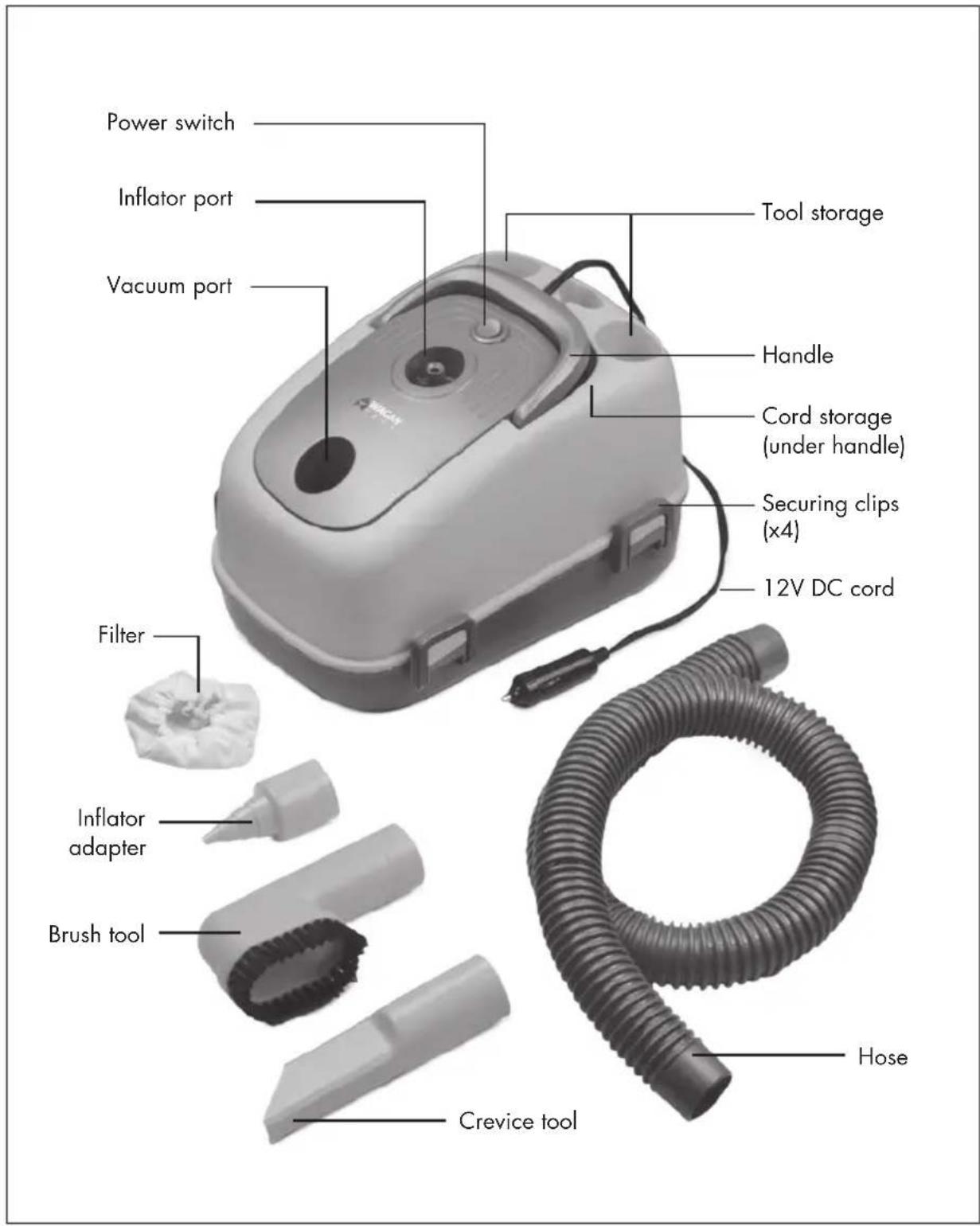

PARTS & ACCESSORIES

1. Detach the dirt reservoir by releasing the four clips located around the reservoir.
2. Remove all contents from the reservoir and make sure you have the following:

40-inch flexible hose
- Brush tool: ideal for upholstery and carpet
- Crevice tool: allows you to clean under seats and other narrow areas
- Inflating adaptor: for pumping air into sports equipment, air mattresses, etc.
Filter

1. Resecure the reservoir back in place with the four clips.

CAUTION

• Do not submerge the vacuum in water.
• The vacuum is not a toy. The vacuum should be used and stored out of the reach of the children. Keep nozzles away from eyes and ears at all times.
• Do not vacuum hot or smoldering substances, solvents, corrosive or acidic liquids, flammable or explosive substances or large pieces of sharp edged debris such as glass.
• Do not operate near gasoline and other flammable vapors.

USAGE

Vacuuming Instructions

1. Select the attachment you wish to use and connect it to one end of the hose.
2. Connect the other end of the hose to the Vacuum Port.
3. Plug the DC cord into your DC socket.

A You must ensure that all other electrical equipment in the car is switched off when vacuum is in use, including other items plugged into the 12V socket.
4. Locate the power switch and turn the vacuum on.
For optimal performance and to avoid draining your battery, your vehicle's engine should be running when operating your vacuum.
5. When finished, turn the vacuum off and then unplug the DC cord from the DC socket.
6. Clean out dirt, debris, and etc from the reservoir by unlatching the four clips in the same manner as described in "Parts & Accessories".

Inflating Instructions

1. Connect the Inflator Adapter to one end of the hose.
2. Connect the other end of the hose to the Inflator Port.
3. Follow steps #3-5 from the "Vacuuming Instructions".

CARE & MAINTENANCE

1. DO NOT submerge vacuum in water. You may wipe the outside with a damp cloth.
2. After using the Wet/Dry AutoVac to vacuum up liquid, make sure to clean the reservoir and filter. Let all parts dry fully before storing it away for future use.

FILTER CLEANING & REPLACEMENT

1. Unlatch the four securing clips from the dirt reservoir and detach.
2. Locate cloth filter around air intake guard and remove carefully.
3. Clean filter by hand with mild soap and warm water. Allow to dry thoroughly.
4. To order replacement filters, visit www.wagan.com (Part AA5321).

Do not run vacuum without filter in place.

WAGAN Corp. Limited Warranty

The WAGAN Corporation warranty is limited to products sold only in the United States.

Warranty Duration:

Product is warranted to the original purchaser for a period of one (1) year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail.

Warranty Performance:

During the warranty period, a product with a defect will be replaced with a comparable model when the product is returned to WAGAN Corporation with an original store receipt. WAGAN Corporation will, at its discretion, replace or repair the defective part. The replacement product will be warranted for the balance of the original warranty period. This warranty does not extend to any units which have been used in violation of written instructions furnished.

Warranty Disclaimers:

This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume any other liability in connection with the sale of our products. There shall be no claims for defects or failure of performance or product failure under any theory of tort, contract or commercial law including, but not limited to negligence, gross negligence, strict liability, breach of warranty, and breach of contract.

Returns:

WAGAN Corporation is not responsible for any item(s) returned without an official Return Authorization number (RA#). Please contact our customer service team by phone or email to obtain an RA#. You can also visit our website and chat with our team during our normal business hours. For more details and instructions on how to process a warranty claim, please read the "Returns" section under the "Contact" page on our website. WAGAN Corporation is not responsible for any shipping charges incurred in returning the item(s) back to the company for repair or replacement.

Register your product online at http://tinyurl.com/wagan-registration to be added to our email list. You will receive previews on our upcoming products, promotions, and events.

Tel: [phone]
U.S. & Canada Toll Free: +1.800.231.5806
[e-mail]
www.wagan.com

©2017 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation
