USER MANUAL Mini HD D-LINK

Quick Installation Guide

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi Camera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Power Adapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Baseplate

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x Screws 2 x Wall Anchors

Simple line drawing of a bucket with a circular border (no text or symbols)

Camera Mount

Simple line icon of a document inside a circle (no text or symbols)

Quick Start Guide

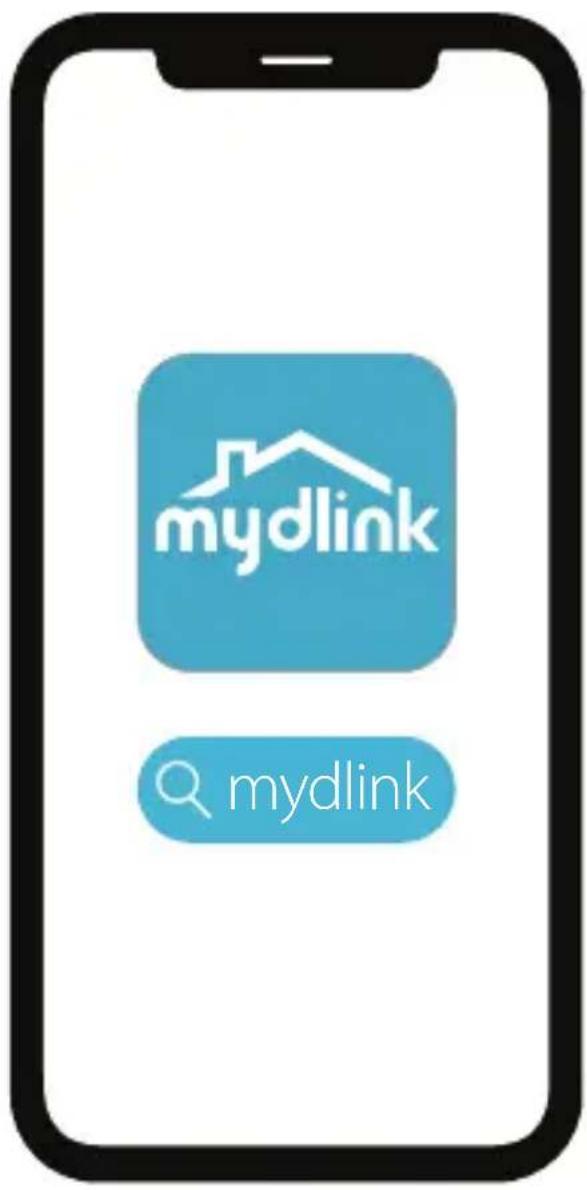

Download the App

Download on the App Store

GET IT ON Google Play

mydlink mydlink

Search for mydlink and download the app.

Note: This product is incompatible with other mydlink apps such as 'mydlink Home,' 'mydlink Lite,' etc.

2

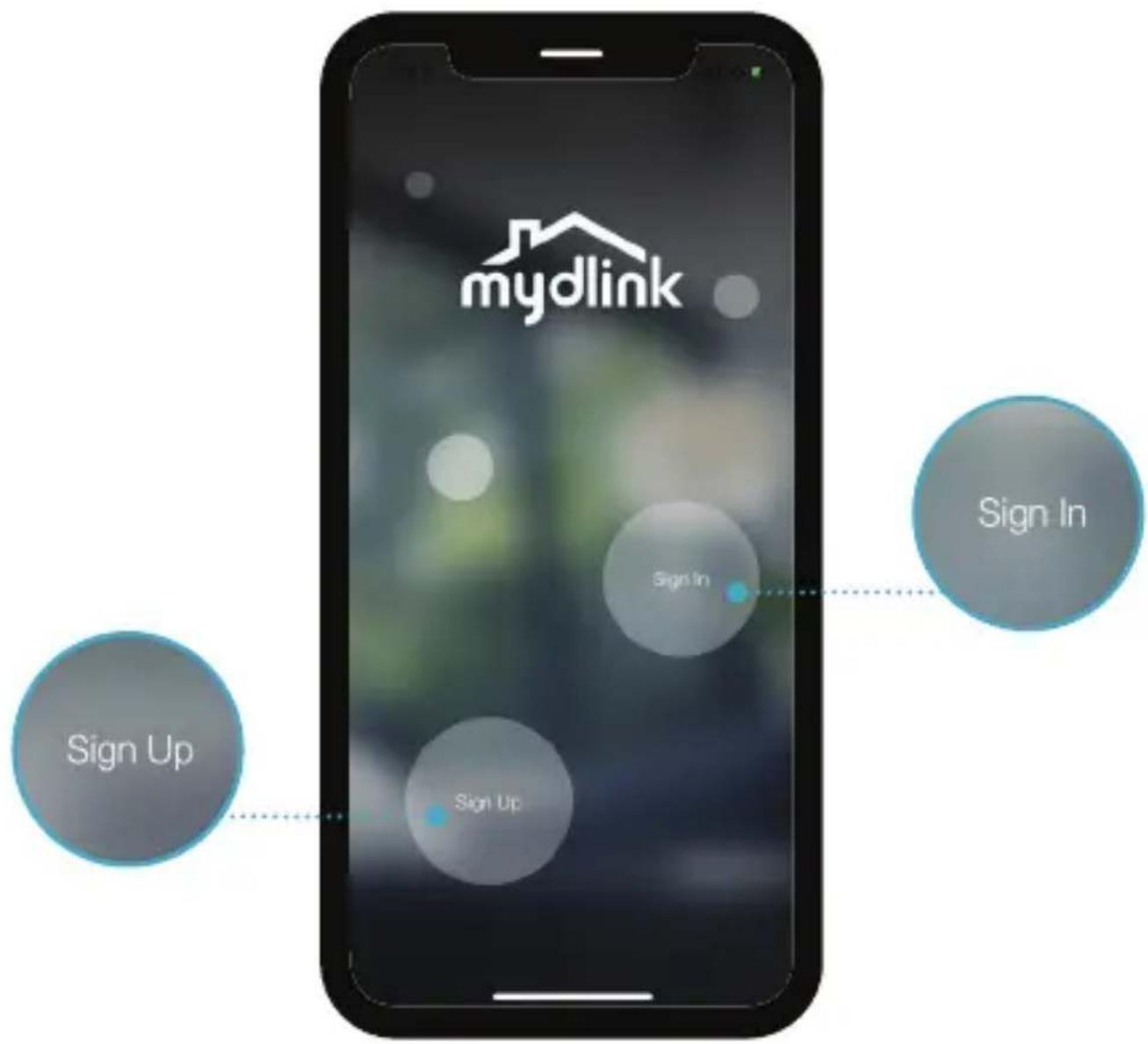

Log In

mydlink Sign Up Sign In Sign Up

Sign In or Sign Up for a mydlink account. mydlink Lite users may sign in with the same account.

3

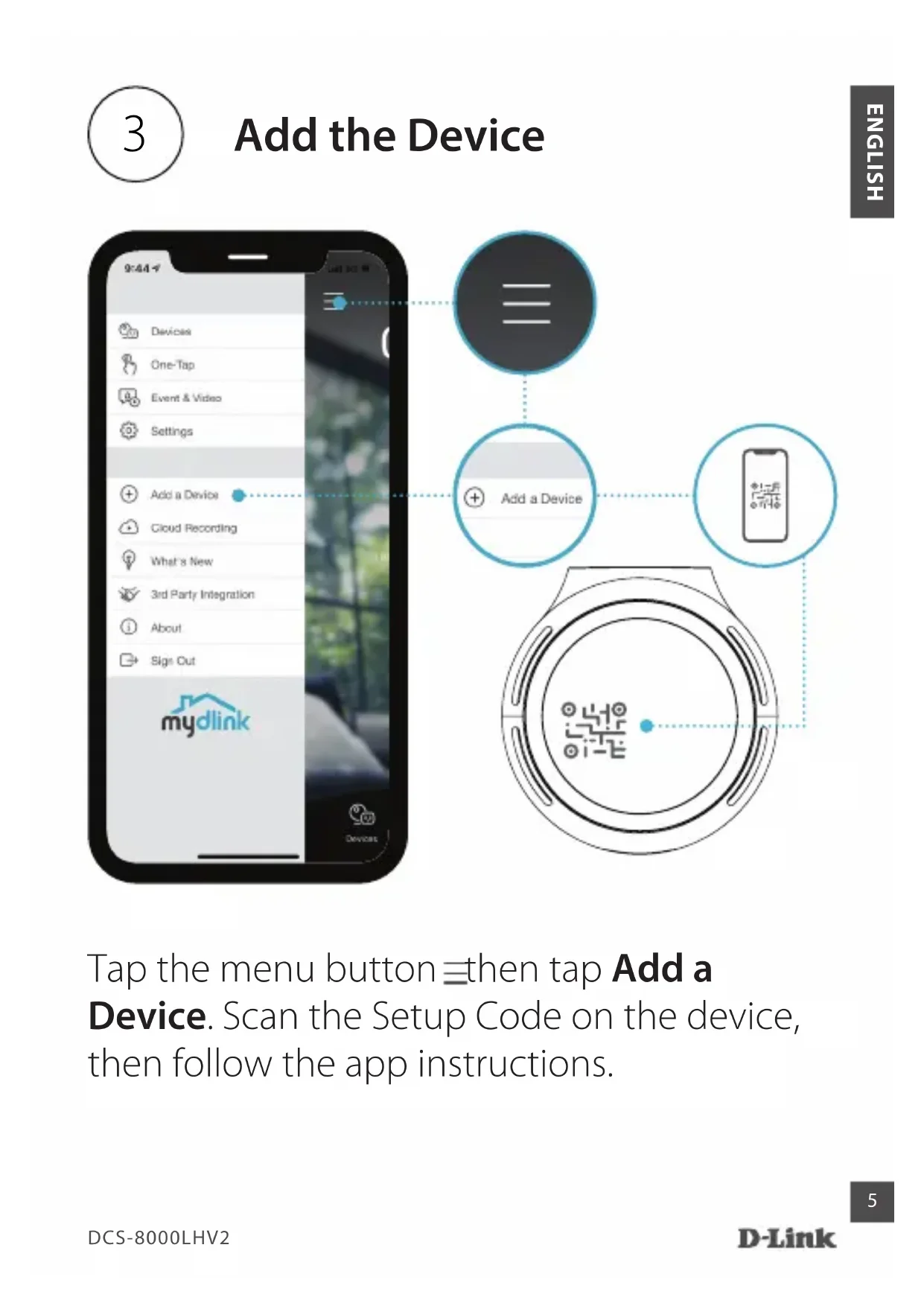

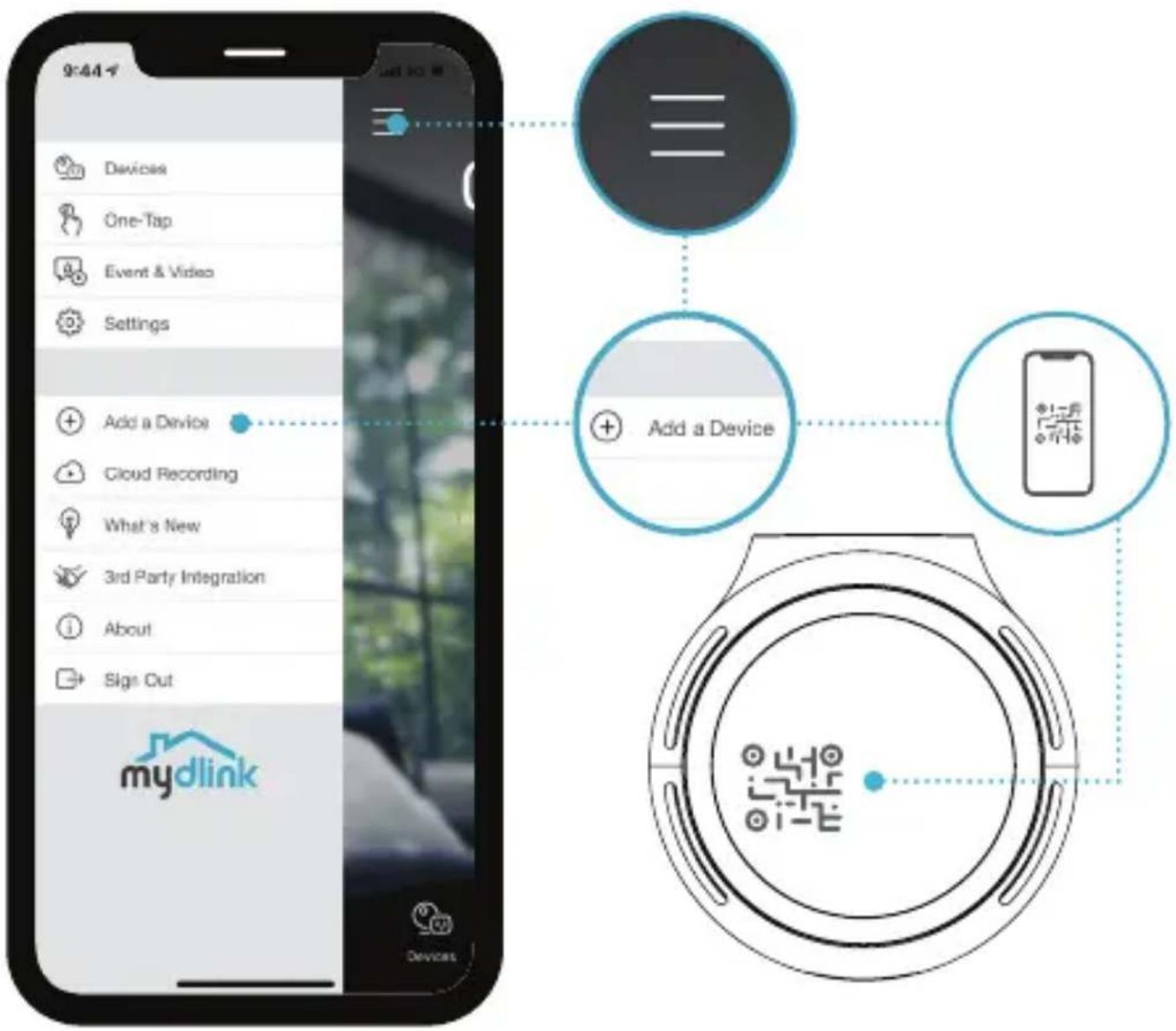

Add the Device

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Tap the menu button ≡ then tap Add a Device. Scan the Setup Code on the device, then follow the app instructions.

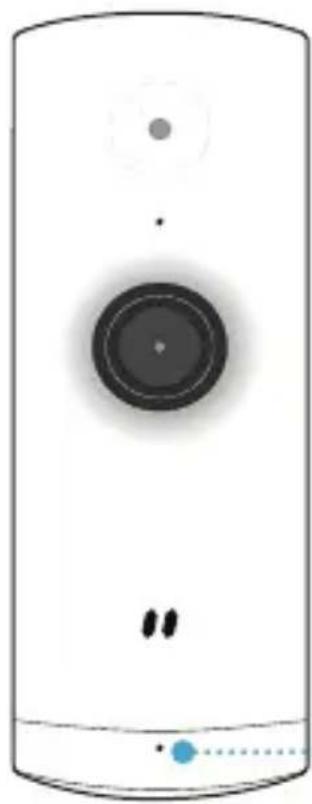

Device Information

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Status LED

LED Behavior

Connected to Wi-Fi and mydlink

- Booting up

Ready for setup

Firmware being upgraded - do not power off

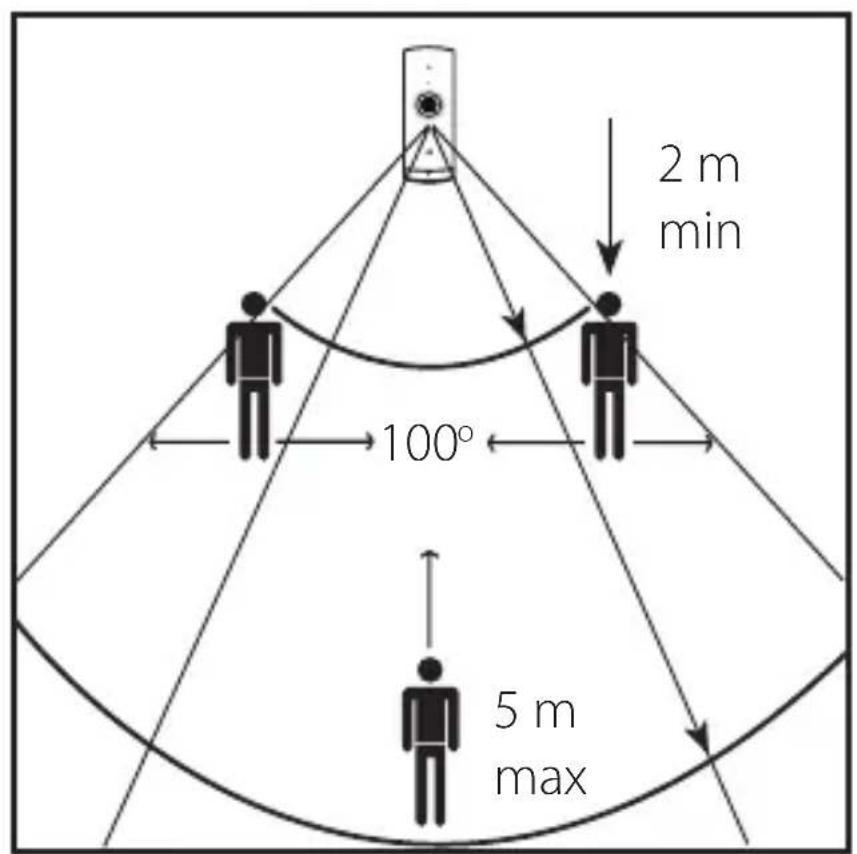

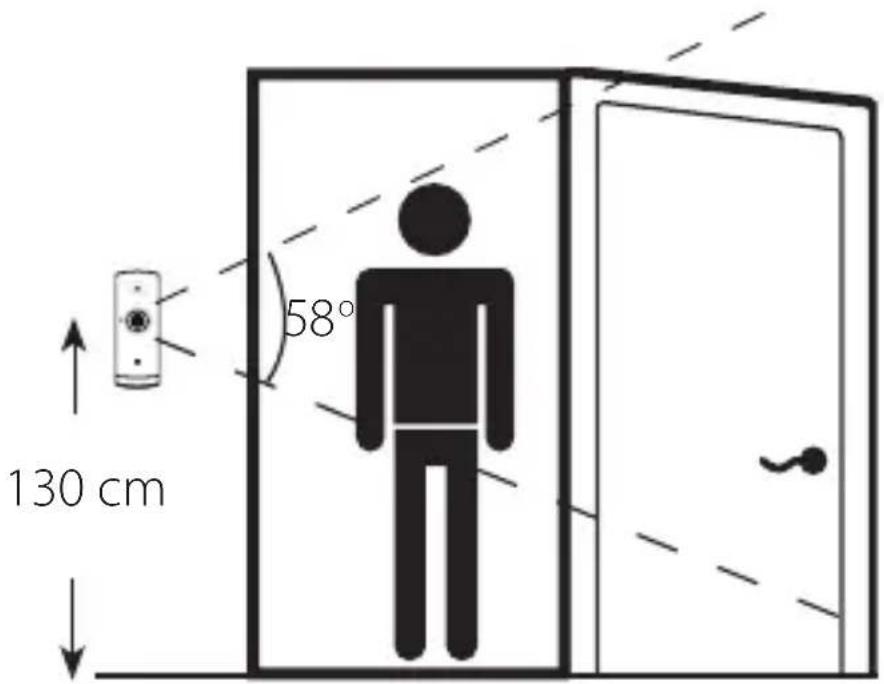

Placement

Place the camera at least 1.3 meters from the ground. The viewing distance for Person Detection is between 2 - 5 meters.

130 cm 58°

2 m min 100° 5 m max

Mounting

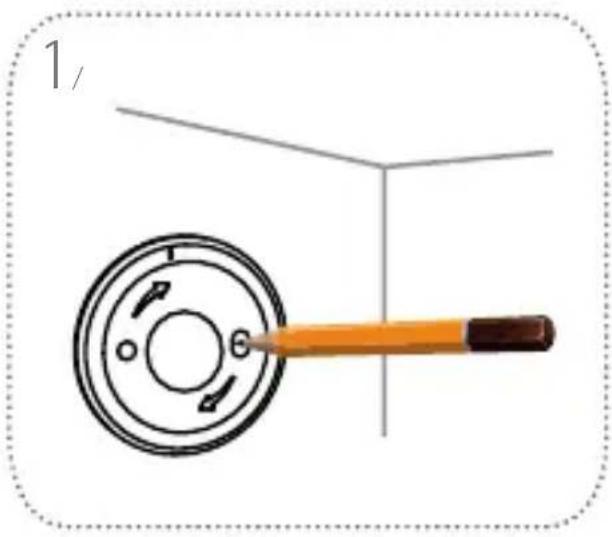

1/

Position the baseplate on the wall. Keep it in the same place while using a pencil to mark the two holes.

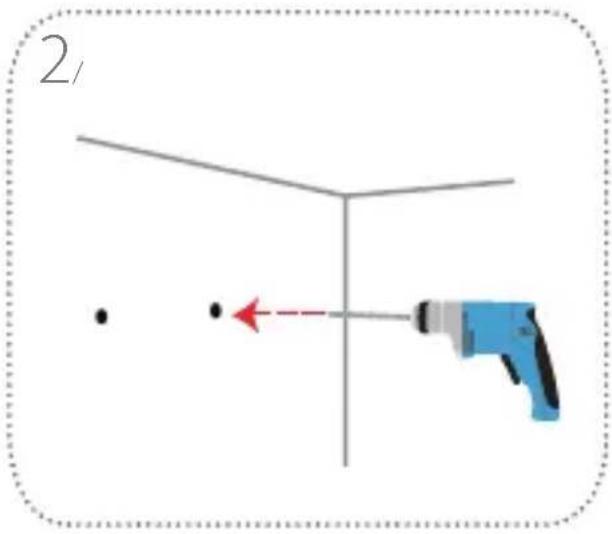

2,

Drill two 25mm deep holes with a 6mm drill bit over the pencil marks. If necessary, hammer in the plastic wall anchors to support the screws.

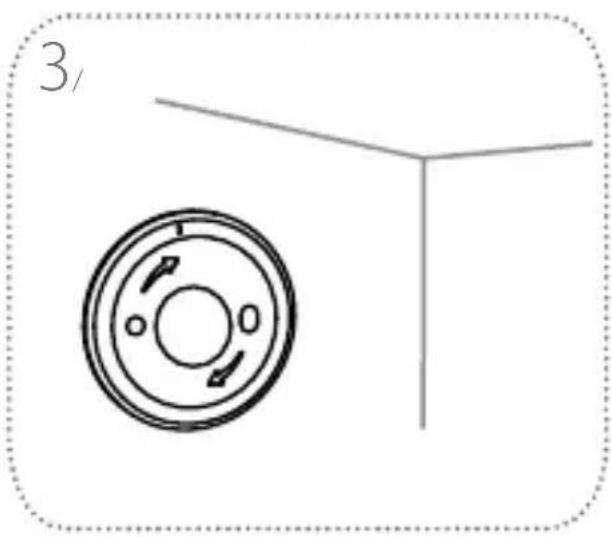

3/

Place the baseplate on the wall where you can see both holes through the baseplate. Screw the screws into the wall to secure the baseplate.

Mounting

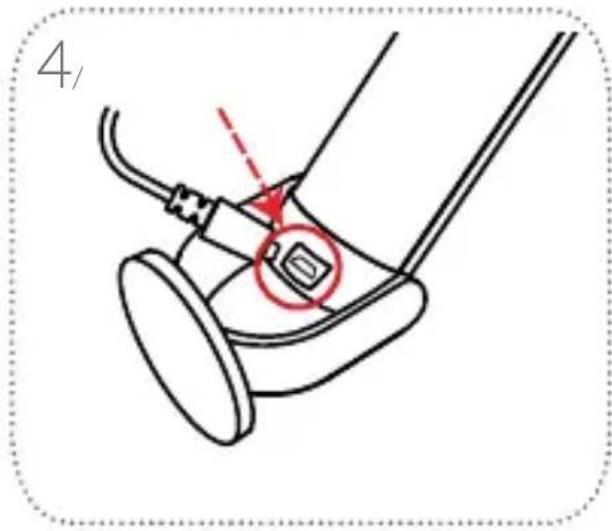

4/

Place the camera into the mount, ensuring that the power port in the back is exposed. Plug the USB power cable into the camera ensuring it is plugged in all the way.

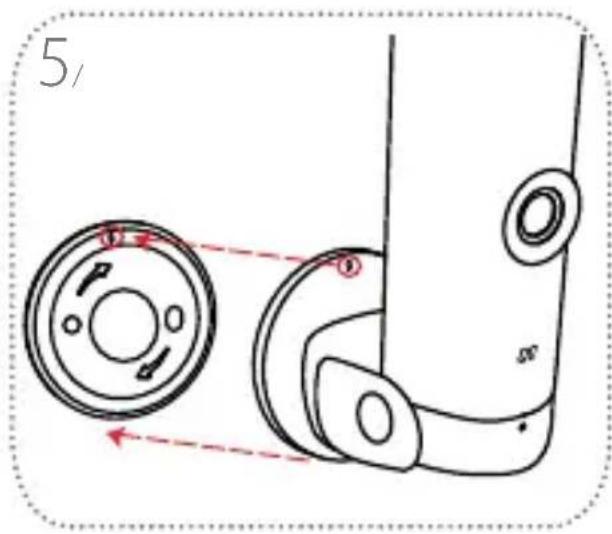

5,

Align the slash markings on the camera mount and baseplate. Press the camera mount onto the baseplate.

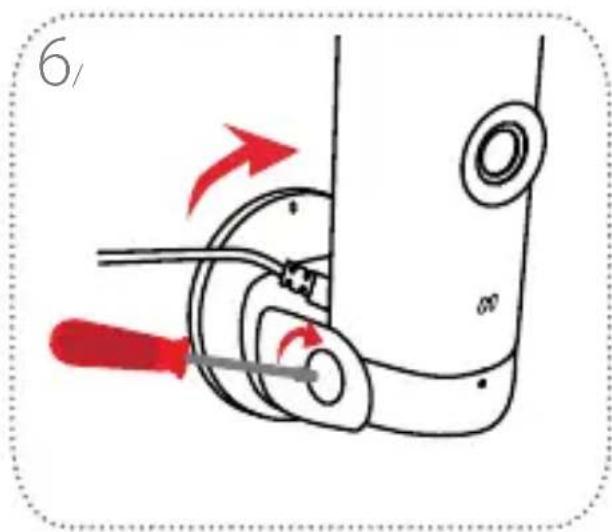

6/

Twist the camera mount slightly to the right to lock it onto the baseplate. Adjust the camera angle, then tighten the screw on the left to lock it in place.

FAQ

What do I do if my device is not working properly?

Reset the device and reinstall it. To reset your device, use a paper clip to press and hold the recessed Reset button until the LED turns solid red.

During installation, ensure that:

• your router is connected to the Internet and has Wi-Fi enabled
• your mobile device is connected to your router Wi-Fi and has Bluetooth enabled
• your mydlink device is in range of your Wi-Fi network

Why is there a white haze when viewing in night vision mode?

When viewing in night vision mode, the IR lights on your camera may be reflecting off a nearby surface. Try repositioning your camera to avoid glare from IR LEDs.

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi Kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Netzteil

Circular diagram with concentric rings and directional arrows, no text or symbols present

Bodenplatte

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x Schrauben

2 x Dübel

Simple line drawing of a bucket with a circular border (no text or symbols)

Kamerahalterung

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a white rectangular device with a central circular lens and control buttons at the bottom (no text or symbols)

Status-LED

LED-Verhalten

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini caméra Full HD Wi-Fi

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Adaptateur secteur

Circular diagram with concentric rings and directional arrows, no text or symbols present

Plaque de base

Simple line drawing of two screws with different head positions (no text or symbols)

2 vis 2 chevilles

Simple line drawing of a bucket with a circular border (no text or symbols)

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Voyant d'état

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Circular diagram with concentric rings and directional arrows, no text or symbols present

Placa base

Simple line drawing of two screws with different tip positions (no text or symbols)

2 tornillos

2 anclajes de pared

Simple line drawing of a bucket with a circular border (no text or symbols)

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a white rectangular device with a central circular lens and control buttons at the bottom (no text or symbols)

LED de estado

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Camera Mini Full HD Wi-Fi

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Alimentatore

Circular diagram with concentric rings and directional arrows, no text or symbols present

Piastra base

Simple line drawing of two screws with different tip positions (no text or symbols)

Simple line drawing of a bucket with a circular border (no text or symbols)

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

Cerca mydlink e scarica la app.

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED di stato

Funzionamento LED

Connessione a Wi-Fi e mydlink

Avvio

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD wificamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Stroomadapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Basisplaat

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x schroeven
2 x muurpluggen

Simple line drawing of a bucket with a circular border (no text or symbols)

Camerasteun

Simple line icon of a document inside a circle (no text or symbols)

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Statusledlampje

led-legende

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Minikamera Wi-Fi Full HD

Simple line drawing of a plug connected to a power outlet, enclosed in a circle (no text or symbols)

Zasilacz sieciowy

Circular diagram with concentric rings and directional arrows, no text or symbols present

Płytka podstawy

Simple line drawing of two screws with different tip positions (no text or symbols)

Simple line drawing of a bucket with a circular border (no text or symbols)

Montaż kamery

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device POLSKI

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Dioda LED stanu

Sygnalizacja LED

Diagram of a mechanical component with a circular base and a wooden handle, no text or symbols present.

Diagram showing a blue electric drill with a red arrow indicating motion direction (no text or symbols)

Simple line drawing of a circular component with three arrows pointing inward, connected to a Y-shaped line (no text or symbols)

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Napájecí adaptér

Circular diagram with concentric rings and directional arrows, no text or symbols present

Základní deska

Simple line drawing of two screws with different tip positions (no text or symbols)

Simple line drawing of a bucket with a circular border (no text or symbols)

Připojení kamery

Simple line icon of a document with lines, enclosed in a circle (no text or symbols)

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Stavová LED kontrolka

Chování LED

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi kamera

Simple line drawing of a plug connected to a power outlet, enclosed in a circle (no text or symbols)

Tápadapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Alaplemez

Simple line drawing of two screws with different shading patterns (no text or symbols)

2 db csavar

2 db dübel

Simple line drawing of a bucket with a circular border (no text or symbols)

Kameratartó

Simple line icon of a document with lines, enclosed in a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device MAGYAR

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Állapotjelző LED

A LED viselkedése

Diagram of a circular mechanical component with a central rod and directional arrows, connected to a Y-shaped axis (no text or symbols)

Diagram showing a blue electric drill with a red arrow indicating direction, no text or symbols present

Simple line drawing of a circular component with three arrows indicating direction, connected to a Y-axis (no text or symbols)

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Full HD Wi-Fi-minikamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Strømadapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Grunnplate

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x skruer 2 x veggplugger

Simple line drawing of a bucket with a circular border (no text or symbols)

Kameramontering

Simple line icon of a document inside a circle (no text or symbols)

Hurtigstartveiledning

1

Last ned appen

Download on the App Store GET IT ON Google Play NORSK mydlink mydlink

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED-indikator for status

LED-atferd

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Fuldt HD Wi-Fi-kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Strømforsyning

Circular diagram with concentric rings and directional arrows, no text or symbols present

Basisplade

Simple line drawing of two screws with different head positions (no text or symbols)

2 x skruer
2 x skruedybler

Simple line drawing of a bucket with a circular border (no text or symbols)

Kamerabeslag

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Status-LED

LED-signaler

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD -Wi-Fi-kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Virtasovitin

Circular diagram with concentric rings and directional arrows, no text or symbols present

Aluslevy

Simple line drawing of two screws with different tip positions (no text or symbols)

Simple line drawing of a bucket with a circular border (no text or symbols)

Kamerakiinnike

Simple line icon of a document inside a circle (no text or symbols)

Pikaopas

1

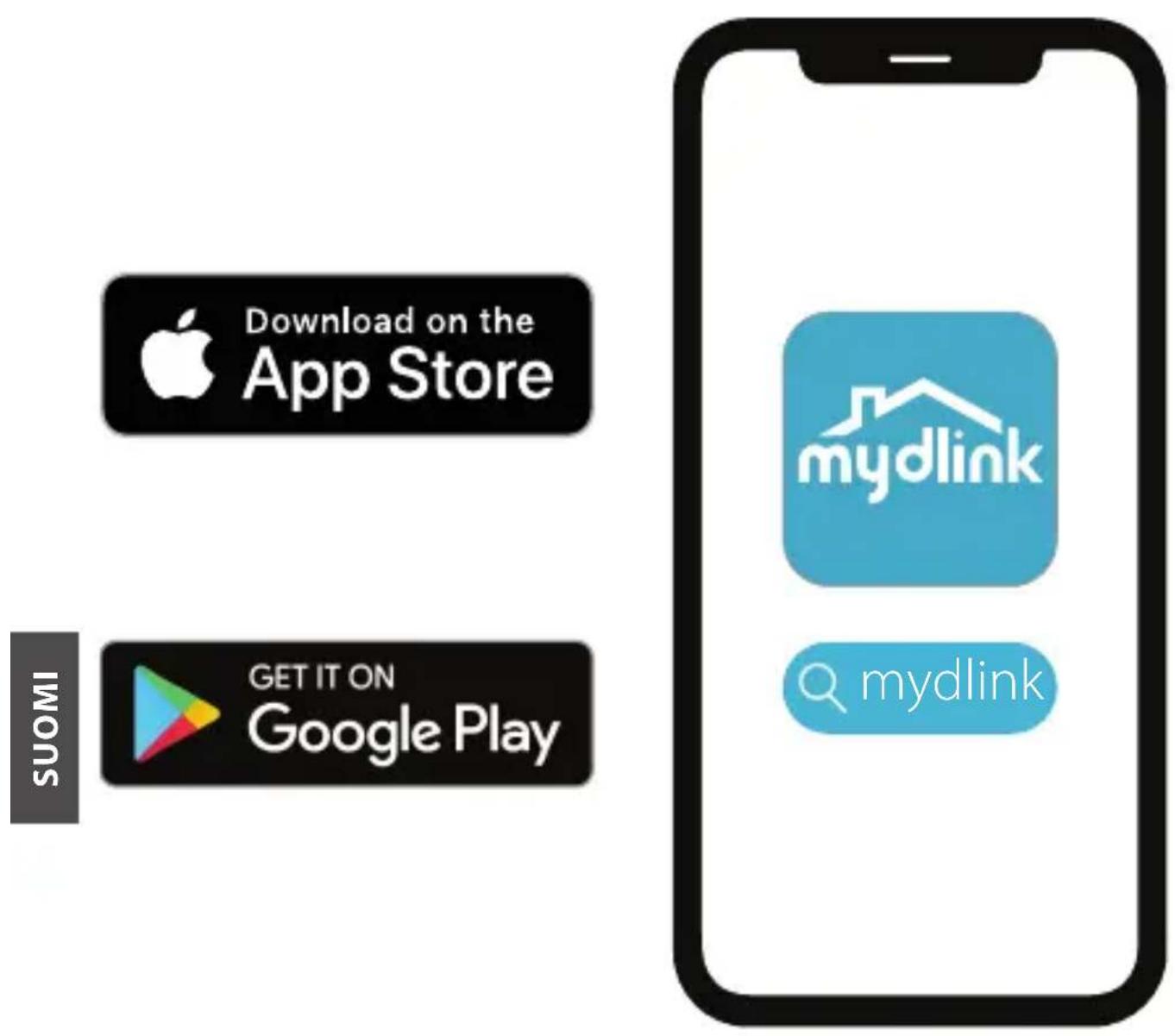

Lataa sovellus

Download on the App Store GET IT ON Google Play mydlink mydlink SUOMI

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a white rectangular device with a central circular button and two small buttons at the bottom (no text or symbols)

Tilan merkkivalo

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi-kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Strömadapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Basplatta

Simple line drawing of two screws with different head positions (no text or symbols)

Simple line drawing of a bucket with a circular border (no text or symbols)

Kamerafäste

Simple line icon of a document inside a circle (no text or symbols)

Snabbstartsguide

1

Ladda ned appen

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Statuslysdiod

Lysdiodsbeteende

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Câmara Wi-Fi Mini Full HD

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Circular diagram with concentric rings and directional arrows, no text or symbols present

Placa de base

Simple line drawing of two screws with different tip positions (no text or symbols)

2 parafusos

2 buchas

Simple line drawing of a bucket with a circular border (no text or symbols)

Suporte da câmara

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED de estado

Significado do LED

Ligado a Wi-Fi e ao mydlink

A iniciar

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Τροφοδοτικό

Circular diagram with concentric rings and directional arrows, no text or symbols present

'Ελασμα βάσης

Simple line drawing of two screws with different tip positions (no text or symbols)

2 × βίδες

2 x ούπα για τοίχο

Simple line drawing of a bucket with a circular border (no text or symbols)

Βάση κάμερας

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a white rectangular device with a central circular button and control buttons (no text or symbols)

LED κατάστασης

Diagram of a mechanical component with a circular base and a wooden handle, no text or symbols present

Diagram showing a blue electric drill with a red arrow indicating motion, no text or symbols present

Simple line drawing of a circular component with three arrows indicating direction, connected to a vertical line (no text or symbols)

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Strujni adapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Ploča nosača

Simple line drawing of two screws with different tip positions (no text or symbols)

2 vijka

2 tiple za zid

Simple line drawing of a bucket with a circular border (no text or symbols)

Nosač za montažu kamere

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Dodirnite gumb izbornika i zatim dodirnite Dodaj uređaj. Skenirajte kod za postavljanje na uređaju, zatim pratite upute u aplikaciji.

Informacije o uređaju

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED lampica stanja

Ponašanje LED lampice

Povezano na Wi-Fi i mydlink

Dizanje sustava

Spremno za instalaciju

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Simple line drawing of a plug connected to a power outlet, enclosed in a circle (no text or symbols)

Napajalni adapter

Circular diagram with concentric rings and directional arrows, no text or symbols present

Podstavek

Simple line drawing of two screws with different tip positions (no text or symbols)

2 vijaka 2 stenski sidri

Simple line drawing of a bucket with a circular border (no text or symbols)

Nosilec kamere

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Tapnite gumb za meni nato pa tapnite Dodaj napravo. Skenirajte namestitveno kodo v napravi, nato pa upoštevajte navodila v aplikaciji.

Informacije o napravi

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED stanja

Vedenje lučke LED

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Adaptor de alimentare

Circular diagram with concentric rings and directional arrows, no text or symbols present

Placă de bază

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x şuruburi 2 x ancore de perete

Simple line drawing of a bucket with a circular border (no text or symbols)

Suport cameră

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED stare

Comportament LED

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Мини Full HD Wi-Fi камера

Simple line drawing of a plug connected to a power outlet, enclosed in a circle (no text or symbols)

Захранващ адаптер

Circular diagram with concentric rings and directional arrows, no text or symbols present

Simple line drawing of two screws with different tip positions (no text or symbols)

2 x винта
2 x дюбела за стена

Simple line drawing of a bucket with a circular border (no text or symbols)

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present

Simple line drawing of a rectangular device with a circular button, enclosed in a circle (no text or symbols)

Mini Full HD Wi-Fi kamera

Simple line drawing of a plug connected to a cable, enclosed in a circle (no text or symbols)

Napájací adaptér

Circular diagram with concentric rings and directional arrows, no text or symbols present

Základná doska

Simple line drawing of two screws with different tip positions (no text or symbols)

2x skrutka

2x úchytka do steny

Simple line drawing of a bucket with a circular border (no text or symbols)

Upevnenie kamery

Simple line icon of a document inside a circle (no text or symbols)

Download on the App Store GET IT ON Google Play

Vyhl'adajte výraz mydlink a prevezmite si aplikáciu.

9:44 Devices One-Tap Event & Video Settings Add a Device Cloud Recording What's New 3rd Party Integration About Sign Out mydlink Devices Add a Device

Illustration of a remote control device with a circular lens and indicator lights (no text or symbols)

LED indikátor stavu

Diagram of a mechanical component with a circular base and a pencil, no text or symbols present
