USER MANUAL MP1313 JENSEN

AM/FM/CD/MP3 Receiver

Receptor AM/FM/CD/MP3

Operating Instructions 2
Tuner Operation 6
CD Player Operation 8
MP3/WMA File Requirements. 10
MP3/WMA Operation 12
Remote Control 15
Care and Maintenance. 16
Troubleshooting 17
Specifications 18

Toll-Free Installation Assistance

If you require assistance, contact Technical Support at 1-800-323-4815 from 9:00 a.m. to 6:00 p.m. EST Monday through Friday (U.S.A. and Canada only).

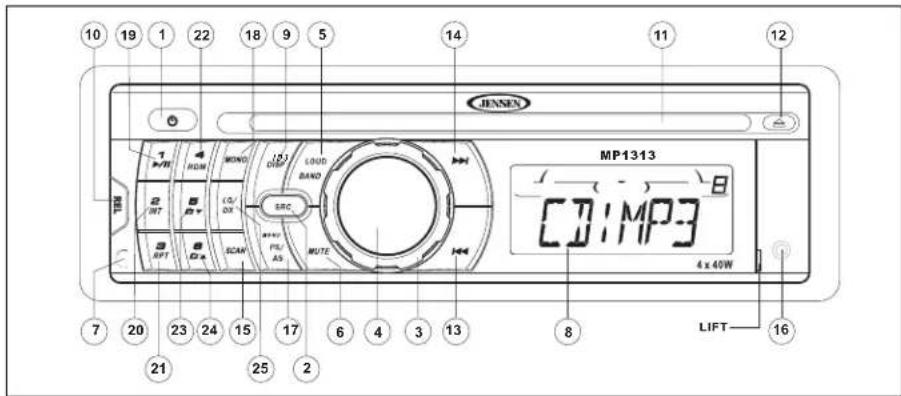

OPERATING INSTRUCTIONS

Power

Press the power button (1) or any other button on the face of the receiver to turn the unit on when the ignition switch is on. Press the power button again to turn the receiver off. If the radio was left on when the ignition was last turned off, the receiver will turn on automatically when the ignition switch is again turned on. If the receiver was off when the ignition was last turned off, the receiver must be turned on manually when restarting the vehicle.

Source

Press the SRC button (2) to select a different mode of operation as indicated on the display panel. Available sources include Tuner, CD, and Auxiliary Input. During CD player operation, pressing SRC will change to the tuner source without ejecting the disc. To access the Auxiliary Input source, press the SRC button until "AUX" is indicated in the display.

Volume

To increase the volume, turn the AUDIO CONTROL (3) clockwise. To decrease the volume, rotate the AUDIO CONTROL counter clockwise. When volume is adjusted, the volume level is shown on the display panel as a number ranging from "00" (lowest) to "100" (highest).

MP1313

Select

Press the AUDIO CONTROL button (4) to step through the menu of audio functions: volume (VOL), bass (BAS), treble (TRB), balance (BAL), fader (FAD),

and volume (VOL). When adjusting audio functions, the unit will automatically exit select mode and return to the normal display after five seconds or when another function is activated.

Bass

Press the AUDIO CONTROL button (4) twice until "BAS" appears in the display. Within five seconds, turn the AUDIO CONTROL (3) clockwise or counter clockwise to adjust the bass from -10^ to +10^ . "00" represents a flat response. The bass level is shown on the display for five seconds or until another function is activated.

Treble

Press the AUDIO CONTROL button (4) three times until "TRB" appears in the display. Within five seconds, turn the AUDIO CONTROL (3) clockwise or counter clockwise to adjust Treble from "-10" to "+"10". "00" represents a flat response. The treble level is shown on the display for five seconds or until another function is activated.

Balance

Press the AUDIO CONTROL button (4) four times until "BAL" appears in the display. Within five seconds, turn the AUDIO CONTROL (3) clockwise (or counter clockwise) to adjust Balance between the right and left speakers from "BAL 10R" (full right) to "BAL 10L" (full left). "BAL L=R" represents an equal balance level between the right and left speakers. The balance position is shown on the display for five seconds or until another function is activated.

Fader

Press the AUDIO CONTROL (4) five times until "FAD" appears in the display. Within five seconds, turn the AUDIO CONTROL (3) clockwise or counter clockwise to adjust balance between the front and rear speakers from "FAD 10R" (full rear) to "FAD 10F" (full front). "FAD F=R" represents an equal balance level between the front and rear speakers. The fader position is shown on the display for five seconds or until another function is activated.

Loudness (BAND)

Press and hold the LOUD/BAND button (5) for two seconds to activate the LOUD feature. When listening to music at low volume levels, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing. When activated, "LOUD"

appears on the display. Press LOUD/BAND again for two seconds to deactivate this feature.

Audio Mute (MUTE)

Press the MUTE button (6) to mute the audio volume. "MUTE" flashes on the display. Restore volume to the previous setting by pressing the mute button again, adjusting the AUDIO CONTROL.

Equalizer Selector (PEQ)

The equalizer function applies preset sound effects to the unit's audio output signal. Press the PEQ button on the remote control to activate one of the following operating modes: FLAT, CLASSICS, POP M, ROCK M or DSP OFF. When the equalizer function is activated, the most recently selected bass/treble levels are ignored. If the bass and/or treble levels are adjusted while the equalizer function is active, the equalizer function will revert to FLAT. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels.

Beep Tone

The beep tone feature allows the selection of an audible beep tone to be heard each time a button is pressed on the face of the radio. To access the Beep Tone menu, press and hold the AUDIO CONTROL (4). Turn the AUDIO

JENSEN

MP1313

CONTROL to select from the following Beep Tone options:

• BEEP ALL: Beep is heard any time a button is pressed (function activated).
• BEEP 2ND: Beep is heard only when a secondary function is activated (press and hold).
• BEEP OFF: Beep is not heard.

Liquid Crystal Display (LCD)

The liquid crystal display (LCD) panel (8) displays the frequency, time and activated functions of the unit.

NOTE: After being subjected to cold temperatures, LCD panels may take longer to respond and visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

Display (DISP)

When the unit is on, the LCD automatically shows the display for the current source of operation.

When the unit is on, press the DISP button (9) to display the time of day. After five seconds, the display reverts to the current source.

Setting the Clock

1. Turn the unit on.
2. Press the DISP button to display the clock.
3. When the clock is displayed, press and hold the DISP button until the time begins to flash.
4. Use the >> button to set the hour.
5. Use the << button to set the minutes.
6. After 5 seconds, the clock will time out and return to the previous display. The time is now set.

Auxiliary Input

Lift the cover on the right side of the radio to reveal the AUX IN connector (16). Simply connect your external media player via a 3.5mm cable, readily available at most electronics stores.

Front Panel Release

The front panel REL (release) button (10) releases the mechanism that holds the front panel to the chassis.

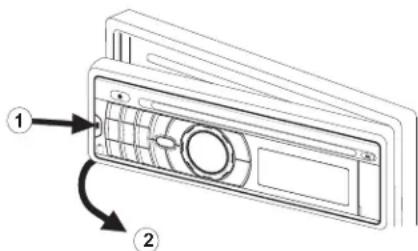

Detaching the Front Panel

To detach the front panel, first press the REL button (10) to release the left side of the panel. Next, grasp the released side and pull the panel off the chassis. After removing the front panel,

store it in the supplied carrying case to protect it from dirt and damage.

REMOVE FRONT PANEL

Re-attaching the Front Panel

To re-attach the front panel, make sure the electrical terminals on the back of the panel are free of dust and dirt, as debris could cause intermittent operation or other malfunctions. Position the right side of the panel in place so that it is correctly engaged, and then lightly press the left side of the panel until the panel locks into place.

MP1313

Reset Button

The reset button (26) is located on the front of the chassis and can only be accessed with the front panel removed. The reset circuitry protects the microprocessor circuitry. Since resetting the unit will erase the time and preset memories, it should only be activated upon initial installation after all wiring is complete, or if there is a malfunction of any of the switches on the unit. In these circumstances, pressing the reset button will clear the system and return the unit to normal operation.

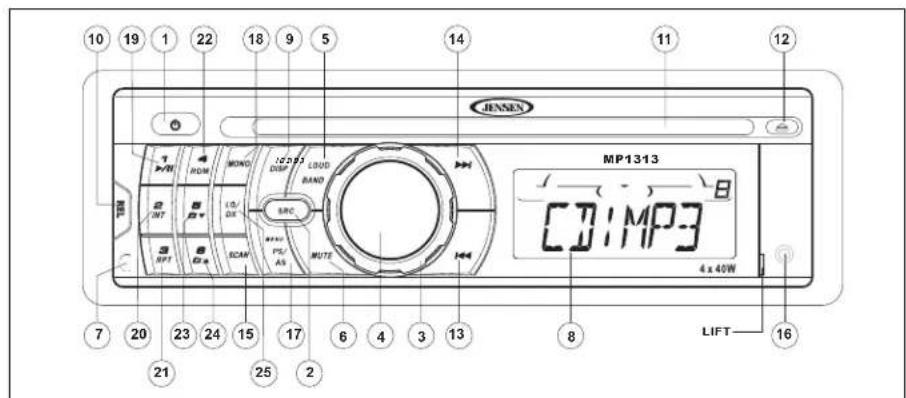

TUNER OPERATION

AM/ FM Band Selector (BAND)

Press the BAND button (5) during radio play to switch between three FM bands and one AM band. "F1", "F2", "F3" or "AM" will appear in the display to indicate the band currently selected.

Tuning

Automatic Tuning

Press the >> button (14) to tune upward in frequency and the |<< button (13) to tune downward in frequency. The unit will automatically stop at the next strong station. If

the Local mode is active, the radio will seek the next strong local station when either button is pressed.

Manual Tuning

Press the >>| (14) or < < (13) button for more than two seconds to select manual tuning mode. "MANUAL" will appear in the display. Press the Up or Down Tuning buttons to move radio frequency up or down two digits at a time. Press and hold the Up or Down Tuning buttons to quickly advance to a certain frequency. Release when the desired frequency is

US/EU (EUROPEAN) FREQUENCY SWITCH

On the right side of the chassis, under the mounting sleeve, is a switch labeled US/EU that allows the customer to switch between US and EU (European) frequency spacing.

Press the RESET button after moving the US/EU switch.

reached. If tuning is not adjusted within five seconds of entering manual tuning mode, the radio will revert to automatic tuning and "AUTO" will appear in the display.

Scan Tuning (SCAN)

Press the SCAN button (15) to scan upwards through all the strong channels in the current band. The unit will pause and play each station for five seconds, and the station frequency will flash in the display during this time. Press SCAN again to stop scanning and listen to the current station.

NOTE: The Scan function does not work correctly in "MANUAL" mode.

Preset Stations

Up to six stations on each band can be stored as presets and can then be instantly recalled by pressing the associated preset button on the front panel (19-24) or remote control. To store a station, turn the radio on and select the desired band and station. Press and hold the desired preset button (numbered one through six on the face of the radio or remote control) for more than two seconds. When stored, the preset number will appear in the display. The station is now stored and can be recalled at any time by pressing the corresponding preset button. Repeat for the remaining five presets on the current band and for all presets on the other three bands.

Preset Scan / Automatically Store (PS/ AS)

Automatically Store

Select six strong stations and store them for all bands using the Automatic Store feature. To enable this feature, press and hold the PS/AS button (17) for more than two seconds. The radio will automatically scan each band and enter strong stations into the preset memory positions. After entering the stations into

memory, the unit will automatically stop at each station for five seconds so each can be heard. When using the Automatically Store feature, the new stations replace any stations already stored in preset memory.

Preset Scan

Press the PS/AS button (17) to scan the six preset stations in the AM band or all FM bands. The unit will stop at each station for five seconds before continuing to the next preset station, and the preset number will flash on the display during the preset scan. Press PS/AS again to stop scanning and listen to the current station.

Mono/ Stereo Selector (MONO)

Press MONO (18) during FM radio operation to select mono reception of the broadcast signal. Under normal reception, the unit should be left in the stereo mode, as indicated by the "ST" designation that appears on the display panel when tuned to an FM stereo signal. If the signal is too noisy for comfortable listening, press MONO to switch to mono reception. The "ST" indication will disappear. Press MONO again to return to stereo mode.

Local / Distance Selector

This feature is used to designate the strength of the signals at which the radio will stop during automatic tuning. Distant, or "Dx" is the default setting, allowing the radio to stop at a broader

range of signals. To set the unit to select only strong local stations during automatic tuning, press the LO/DX button (25). The "LOC" icon appears in the display when LOCAL reception mode is selected.

CD PLAYER OPERATION

NOTE: The unit is designed for play of standard 5^ (12 cm.) compact discs only. Do not attempt to use 3^ (8 cm.) CD singles in this unit, either with or without an adaptor, as damage to the player and/or the disc may occur. Such damage will not be covered by the warranty on this product.

Insert CD

With the label surface facing up, gently insert the disc into the CD slot (11) until the soft-loading mechanism engages and pulls the disc in. Disc play begins and "CDP PLAY" will appear in the display. The track number and elapsed time appear in the display.

Track Select

Track select features are used to quickly access the beginning of a particular track when a disc is in play. Press the >> button (14) to move forward or the << button (13) to move

backward on the disc to locate the desired track. Track numbers will appear in the display as they are accessed.

Press and hold the >>| or | button to fast forward or fast reverse through a disc. During either function, the elapsed time will appear on the display. Release the button to resume CD play.

Play/Pause

Press the play/pause button (19) to suspend disc play. "S--PAUSE" will appear in the display. Press the play/pause button again to resume

disc play. The "S--PAUSE" indication will disappear from the display, and play will resume from the pausing point.

Disc Intro Scan (INT)

During disc play, press the 2 INT button (20) to play the first 10 seconds of each track on the disc. "S--SCN" will appear in the display. When the desired track is reached, press 2 INT again to end the scan function and play the selected track. "S--SCN" will disappear from the display. The scan function will also be canceled when activating the repeat or shuffle functions.

MP1313

Disc Repeat (RPT)

Press the 3 RPT button (21) during disc play to continuously repeat the selected track. "S--RPT" will appear in the display. Press 3 RPT again to stop repeating. "S--RPT" will disappear from the display, and regular play will resume. The repeat function will also be canceled when activating the scan or shuffle functions.

Disc Shuffle (RDM)

Press the 4 RDM button (22) during disc play to play all tracks on a CD in random, shuffled order. "S--SHF" will appear in the display. Press 4 RDM again to stop random play. "S-SHF" will disappear from the display and regular play will resume. The shuffle function will also be canceled when activating the scan or repeat functions.

Disc Eject

Press the eject button (12) to stop CD play and eject the disc. The unit will change to tuner or AUX operation, depending on which mode was in operation prior to disc play. If the disc is not removed from the unit within 15 seconds, the disc will be reloaded to prevent accidental damage. Disc play can be resumed by pressing SRC (2) to choose the CD player function.

CD Player Error Codes

If a problem should develop while operating the CD player, "Disc Error" or "Error 1" may appear

on the display panel. If "Disc Error" appears, try ejecting and reloading the disc into the player. While the disc is out of the unit, make sure it is clean and undamaged, and then load it correctly. "Error 1" can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player. Pressing the reset button (26) may help, but will erase the time and preset memory. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance.

MP3/WMA FILE REQUIREMENTS

MP3 and WMA (Windows Media Audio) music files are digital audio files that are compressed to allow more files on a single CD. This unit can play MP3/WMA directly from files contained on a CD-R/RW using the buttons on the receiver (or remote control) as described below. Many types of software are available for converting audio files into MP3/WMA formats. Phase Linear recommends Nero or Roxio Easy CD Creator. Depending on the media type and recording method, some CD-R/RWs may be incompatible with this unit. The unit supports playback of MP3/WMA and CDDA (CDA), Mixed-Mode CDs and CD-Extra (including multi-session discs), but discs on which the session has not been closed will not play.

Notes on MP3/WMA Play

This unit can play MP3 (MPEG1, 2, 2.5 Audio Layer 3). However, the MP3 recording media and accepted formats are limited. When writing MP3/WMA, pay attention to the following restrictions.

Acceptable Media

The MP3/WMA recording media acceptable to this unit are CD-ROM, CD-R and CD-RW. When using CD-RW, use full format rather than quick format to prevent malfunction.

Acceptable Disc Formats

The following formats are available for the media used in this unit. The maximum number of characters used for file name including the delimiter (") and three-character extension are indicated in parentheses.

• ISO 9660 Level 1 (11 characters)
• ISO 9660 Level 2 (31 characters)
  Joliet (31 characters)
  Romeo (31 characters)

Up to 200 characters can be displayed in the long file name format. For a list of available characters, see the instruction manual of the writing software and the section "Entering File and Folder Names" below. The media reproducible on this unit has the following limitations:

Maximum number of nested folders: 8
Maximum number of files per disc: 999
Maximum number of folders per disc: 255
MP3/WMA written in formats other than those listed above will not play successfully and their file names or folder names will not be displayed properly.

MP3/WMA Encoder and CD Writer Settings

Use the following settings when compressing audio data in MP3 data with the MP3 encoder.

• Transfer bit rate: 32 - 320 kbps
  Sampling frequency: 32, 44.1, 48kHz (WMA) and 16, 22.05, 24, 32, 44.1, 48kHz (MP3)

When using a CD writer to record MP3/WMA up to the maximum disc capacity, disable additional writing. To record an empty disc up to the maximum capacity at once, select the "disc at once" option.

Entering ID3 Tag

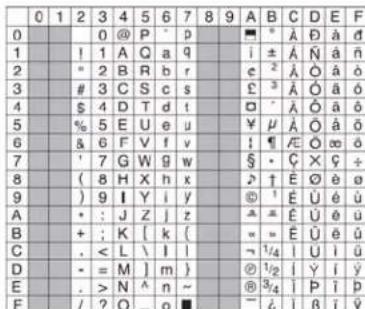

This unit supports ID3 tag versions 1.0 and 1.1. For the character codes, refer to the table below.

Entering File and Folder Names

Names using the code list characters are the only file names and folder names that can be entered and displayed. Other characters will not display correctly. The unit recognizes and plays only files with the MP3/WMA extension.

NOTE: A file name entered with characters not on the code list may not play correctly.

Writing Files into a Disc

When a disc containing MP3/WMA data is loaded, the unit checks all data. If the disc contains many folders or non-MP3/WMA files, MP3/WMA play will be delayed, it may take time for the unit to move to the next file, and searches may not be performed smoothly. Loading such a disc may produce loud noise and cause damage to the speakers.

NOTE: Do not attempt to play a disc containing a non-MP3/WMA file with the MP3/WMA extension or a disc containing non MP3/WMA files.

Electronic Shock Protection

10 seconds for CDDA (CDA)
- 60 seconds for MP3/WMA recorded at 44.1kHz, 128kbps

Bit Rates

The unit supports bit rates from 32 - 320 kbps.

File Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played.

You may be able to set the order in which MP3/WMA are to be played by writing them onto a disc such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".

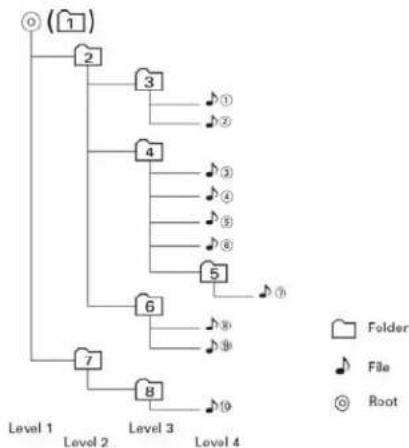

For example, a disc with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select as shown below.

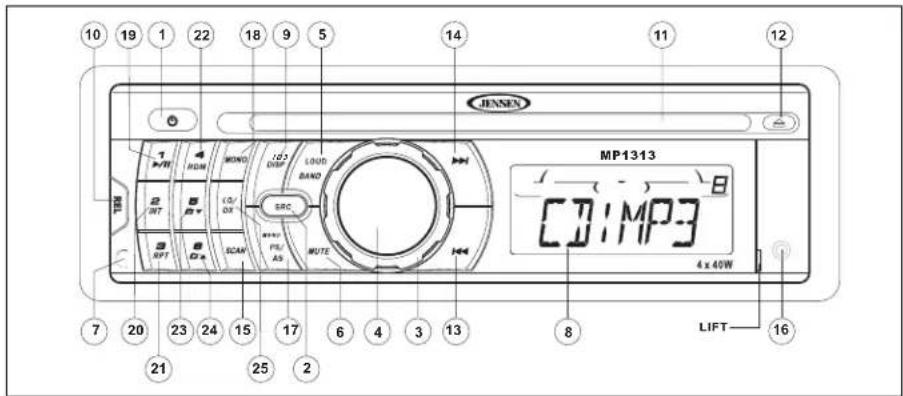

MP3/WMA OPERATION

Pause

Press the 1 >/|| button (19) to suspend disc play. Press the play/pause button again to resume play.

Track Select

Press the >>| (14) or | (13) button for less than one second to advance to the next track on the disc, or press and hold to fast forward or fast reverse through the disc. Disc play starts when the button is released.

Navigating Folders

Press the 5 V and 6 A buttons (23, 24) to select the next or previous folder/direction.

Intro Scan (INT)

During disc play, press the 2 INT button (20) to play the first 10 seconds of each track on the disc. When the desired track is reached, press 2 INT again to end the scan and play the selected track.

Repeat (RPT)

Press the 3 RPT button (21) to repeatedly play the current file. Press 3 RPT again to resume normal playback.

Random (RDM)

Press the 4 RDM button (22) to randomly play all files on the disc. Press 4 RDM again to resume normal playback.

MP3/WMA File or Folder Search

The unit offers four methods of searching for files or folders on a disc.

Direct File Number Search

Press the PS/AS button (17) to enter Direct Track Search mode. The LCD will display "MP3 T" followed by a blinking asterisk. Refer to the Number column in Table 1 to enter a track number to play.

Table 1: Search Characters

Key Number	Character
1 >/|| 1 A, B, C
2 INT 2 D, E, F
3 RPT 3 G, H, I
4 RDM 4 J, K, L
5	5	M
6	6	P,
SRC	7	S, T, U
|<<	8	V, W, X
>>|	9	Y, Z, blank
DISP	0_, -, +

If you enter a three-digit track number, the unit will search the track immediately. If you enter one or two digits, press the AUDIO CONTROL button (4) to begin the search, or wait a few seconds for the search to begin automatically.

You can also turn the rotary to access and file numbers sequentially. After locating the desired file, press the BAND button (5) to begin playback.

Directory/File Search

1. Press the PS/AS button (17) twice to enter Directory or File Name Search mode. The LCD will display a blinking asterisk.
2. Use the keys specified in Table 1 or turn the AUDIO CONTROL (3) to enter a search string. Pressing the appropriate key repeatedly will scroll through the corresponding number and characters.
3. Press the AUDIO CONTROL button (4) to confirm each character.
4. Press the BAND button (5) to begin the search. N

If the search results in a directory name, a folder icon will appear on the display.

1. In this case, use the >>| (14) or |<< (13) buttons to select a song/folder in the directory.
2. Press the BAND button (5) to confirm and begin playback.

Repeat if the search results in another directory.

Root Directory Search

1. Press the PS/AS button (17) three times to enter Root Directory Search mode. The LCD will display the first folder or file name in the root directory.

2. Turn the AUDIO CONTROL (3) to browse all available folder or files in the root directory.

3. Press the AUDIO CONTROL button (4) to select a folder or file.

4. If a folder is selected, a folder icon appears on the LCD, indicating that the selection is a folder. Repeat steps 2 and 3 to select a file for playback.

5. If a file is selected, playback begins automatically.

Current Directory Search

1. Press the PS/AS button (17) four times to enter Current Directory Search mode. The LCD will display the current directory name, followed by the file currently playing.
2. Turn the AUDIO CONTROL (3) to browse all available folders or files in the current directory.

3. Press the AUDIO CONTROL button to select a folder or file.

4. If a folder is selected, a folder icon appears on the LCD, indicating that the selection is a folder. Repeat steps 2 and 3 to select a file for playback.

5. If a file is selected, playback begins automatically.
6. Select the folder icon to return to the previous file level and select a different directory or file.

Display Information

Press the DISP button (9) to display the clock or available ID3 information, as follows: song title, directory name, artist name, etc.

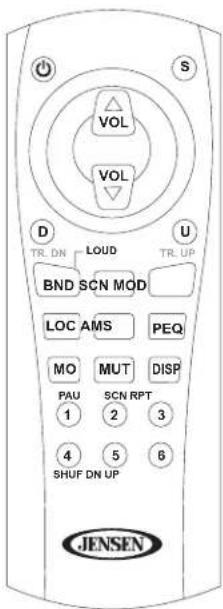

REMOTE CONTROL

The remote control will allow you to control the basic functions of your head unit.

The remote control sensor is located on the left side of the front panel to the left of the 3 RPT button (3).

Remote control functions are as follows:

• S = Select (audio menu)
  VOL = Volume Up
  VOL V=Volume Down
  D = Tune/Track Down
• U = Tune/Track Up
• BND = BAND/LOUD
• SCN = SCAN
  • M O D = S R C
  LOC = LO/DX
  AMS = AS/PS
• SCN = Scan, AM, FM
  M O = M O N O
  MUT MUT E
• PEQ = Preset Equalizer Settings

CARE AND MAINTENANCE

CD Player

The following guidelines will help you extend the life of your CD player:

1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit.
2. The CD player will not operate properly in extreme hot/cold or under damp conditions. In case of such conditions, wait until the vehicle interior reaches a normal temperature or any condensation on the disc player lens has evaporated before using the player.
3. Never insert anything other than round 5^ CDs into the player. Attempting to insert CDs of other sizes (even with an adaptor) will cause damage not covered by the warranty.
4. Always remove the CD when the player is not is use.
5. The unit is designed with a vibration dampening CD mechanism to minimize interruption of disc play due to normal vibration in a moving vehicle. However, occasional sound skips may occur when driving on very rough roads. This will not scratch or damage the disc, and normal play will resume when the rough conditions cease.

Compact Discs

CD-R/CD-RW

Depending on media type and method of "recording / burning", some CD-R/RWs may be incompatible with this unit. After "recording / burning" the session must be closed. Please refer to your software's recommended procedures for closing a disc / session. Review your recording software to familiarize yourself with the correct "recording / burning" procedures. We recommend using the latest versions of ROXIO™ or NERO™ burning software.

In addition, this unit will only recognize the CDDA (Compact Disc Digital Audio), .MP3 and .WMA formats "recorded / burned" onto a CD-R/RW. This unit does not support .WAV, .OGG or other formats.

CD Care and Handling

Dirt, dust, scratches and warpage can cause skips in the playback and deterioration of sound quality. Please follow these guidelines to take care of your compact discs.

1. Carefully wipe fingerprints, dust and dirt from the disc's playing surface with a soft cloth. Wipe in a straight motion from the inside to the outside of the disc.

2. Never use chemicals such as record sprays or household cleaners to clean CDs, as they can irreparably damage the disc's surface.

3. Discs should be kept in their storage cases when not in use.
4. Do not expose discs to direct sunlight, high temperatures or high humidity for long periods.
5. Do not stick paper, tape or CD labels on disc surfaces, as internal damage may occur.

TROUBLESHOOTING

Problem Cause Corrective Action
Does not operate (display does not light)	No power to yellow wire; no power to red wire	Check connection with test light; check vehicle fuse with test light.
	Inline fuse blown Replace fuse.
No power to unit Inline fuse blown Check/replace fuse.
Not all speakers operate	Incorrect splices or connections	Check all splices and connections.
	Speaker wires shorting to chassis ground or to each other	Check splices; insulate all bare wires.
Blows fuses Power wire shorting to ground	Make sure wire is not pinched.
	Speaker wires shorting to ground Make sure wire	is not pinched.
	Incorrect fuse or fuse too small Install fuse of correct rating.
CD skips too much Receiver mount is not solid or backdrop is not secure		Check mounting and backdrop; tighten if needed.

SPECIFICATIONS

CEA Power Ratings

Power output: 13 watts RMS X 4 channels into 4-ohms @ ≤ 1% THD+N

Signal to noise ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms)

Frequency response: 20Hz to 20kHz (-3dB), Auxiliary input used as source reference Reference supply voltage: 14.4VDC

CD Player

Signal-to-noise ratio: >90dBA

Frequency response: 20Hz-20kHz, -3dB

Channel separation: >55dB @ 1kHz
D/A converter: 1 Bit/CH

FM Tuner

Tuning range (USA): 87.5MHz - 107.9MHz
Tuning range (Europe): 87.50MHz-108.00MHz

Mono sensitivity: 12dBf

50dB quieting sensitivity (stereo): 16dBf Stereo separation @ 1kHz: >35dB

Frequency response: 30Hz - 14kHz ± 3dB

AM Tuner

Tuning range (USA): 530 kHz - 1710 kHz

Tuning range (Europe): 522kHz-1620kHz

Sensitivity @ 20dB signal to noise: 30 V

Frequency response: 50Hz-2kHz, -3dB

Auxiliary Input

Input sensitivity: 400mV RMS for 1 watt RMS into 4-ohms

Frequency response: 20Hz to 20kHz, -3dB
Input impedance: 10 k-ohms

General

Power supply: 11-16 VDC, negative ground
Power Antenna (Blue): 500mAmp Max, current limited protection.

Operating Temp: -10C~60C

Fuses: 15 amp fast blow ATO

DIN chassis dimensions: 2^ × 7^ × 7^ (51mm x 178mm x 178mm)

Specifications subject to change without notice.

MP1313

For instructions in English, see page 1.

Selector Local / Distante

For instructions in English, see page 1.

Para Obtener instrucciones en Espanol, dirjase a la page 19.

COMMENCER

Table des matieres

Reproduction/ suspension

Sortie puissance : 13 watts RMS X 4 channels into 4- ohms @ ≤ 1% THD+N

Limited Warranty DO NOT RETURN THIS PRODUCT TO THE STORE

CD or Multimedia Radios/Head Units

Audiovox Electronics Corporation ("the Company") is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800-323-4815 with any questions.

Who is covered?

The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. This warranty is not transferable or assignable. Proof of purchase is required in the form of an original sales receipt.

What is covered?

The Company warrants that should this product or any part thereof, under normal use, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with a new or reconditioned product (at the Company's option) without charge for parts and repair labor.

What is not covered?

This Warranty does not cover the following:

• Damage incurred during shipping or transporting the product to the Company or a service center
• Elimination of car static or motor noise
• Defects in cosmetic, decorative or non-operative structural parts
• Correction of antenna problems
  Costs incurred for installation, removal or reinstallation of the product
• Consequential damage to compact discs, USB devices, digital media cards, accessories or vehicle electrical systems
• Damage caused by improper installation, mishandling, misuse, neglect, accident, blown fuse, battery leakage, theft or improper storage
• Products whose factory serial number/bar code label(s) or markings have been removed or defaced
• Damage resulting from moisture, humidity, excessive temperature, extreme environmental conditions or external natural causes

Please review the "Care and Maintenance" section of your Installation and Operation Manual for additional information regarding the proper use of your product.

Limitations

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY, ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Obtaining Warranty Service

• To obtain repair or replacement within the terms of this Warranty, call 1-800-323-4815 for the location of a warranty station serving your area.
• You must prepay the initial shipping charges to the Company. The Company will pay the return shipping charges for all warranted products returned to an address within the U.S.A., Puerto Rico or Canada.
• Please package the product securely to avoid shipping damage. We recommend using a carrier that provides tracking service to prevent lost packages. Lost or damaged packages are not covered by this warranty.
• Provide a detailed description of the problem(s) for which you require service.

Audiovox Electronics Corporation

150 Marcus Boulevard

Hauppauge, NY 11788

1-800-323-4815

www.Jensen.com

N1049

©2010 Audiovox

v.051110
