USER MANUAL Safetynet Contour Rectangular EXIT

3D rendering of a trampoline with netting and safety netting (no text or symbols)

Contour Rectangular

7H12FT / 214H366cm

8H14FT / 244H427cm

English4

Deutsch16

Nederlands28

Français40

1.0 Introduction

Congratulations on choosing a EXIT Contour Safetynet!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www.exittoys.com and discover more cool new products.

The EXIT Toys team

2.0 Guidelines for safe use

Using your product as instructed in this manual will eliminate virtually all hazards. However, please bear in mind that children have a natural urge to play and that this may lead to unforeseen dangerous situations for which the manufacturer cannot be held responsible. Teach your children how to use the product and point out possible dangers to them.

BEFORE YOU BEGIN USING YOUR TRAMPOLINE:

Read and understand all this information provided to you in this manual. As with all physical sports and activities there is the risk of participants receiving an injury. To ensure your future enjoyment and the prevention of injury, be sure to follow appropriate safety rules and tips.

WARNING

To avoid serious injury:

• Read and understand the manual before use.
  • WARNING: Only for domestic use
• WARNING: CHOKING HAZARD! - Small parts. Not for Children under 3 years old.
• Protect children

- Prevent falls and strangulation - Exit through the door only, and use caution.

- Assist young children in and out of Safety net.

• WARNING: Only one user at a time; danger of collision!
  • WARNING: Always jump in the middle of the jump mat.
  • WARNING: Do not perform summersaults or other difficult jumps!
• WARNING: Empty your pockets before use of the trampoline! Continuous adult supervision is required.
• To prevent accidents due to slipping, don't use the trampoline when it's wet.
  • The trampoline is to be assembled by an adult prior to use.
• In case of missing or broken parts, please contact place of purchase for assistance.
  • We are not liable for any injuries that may occur when using the trampoline.

Max. User weight: 7x12ft (214x366cm): 120 kg.

8x14ft (244x427cm): 120 kg.

Simple line drawing of two stick figures standing on a table with a diagonal line above (no text or symbols)

Simple line drawing of a hand holding a circular object above a rectangular container (no text or symbols)

Simple line drawing of two stick figures standing at a table with a horizontal bar (no text or symbols)

2.1 General Safety Instructions

1. Please read and follow all instructions before you start exercising with your safety net.
2. Please inspect the safety net before each use for bent steel tubes, torn mat, loose and broken springs and overall stability of the trampoline.
3. You shall always be sure that the equipment is working normally and safety before you work out on your safety net
4. Never have more than one person bouncing on the trampoline. The safety net has been made for only one person
5. A supervisor is absolutely necessary when children use this trampoline.
6. Safety net isn't created in order to replace adult supervision.
7. This product is intended for home use only.
8. Wind or air movement shall be calm and gentle, Don't use trampoline in gusty or severe wind
9. Ensure that a person always supervises the user of the trampoline.
10. WARNING: Always close the entrance of the safetynet before using the trampoline.
11. Moving the Trampoline. If the trampoline and enclosure needs to be moved, it should be moved by two persons, kept horizontal, and lifted slightly. If necessary, the trampoline and enclosure can be taken apart for moving. To take the trampoline apart, follow the assembly steps in reverse order.
12. WARNING Check the product before and after jumping – especially the following parts – for damage and wear:
13. jumping mat
14. safety net
15. padding and its fastening
16. springs and their fastenings

3.0 General Information

• It is not necessary to break-down the trampoline during winter.
• Self-securing nuts and screws are suitable only for one time setting-up, and must be replaced after breakdown of the trampoline and/or safetynet.
• The safetynet has a minimum durability of 5 years after purchasing.
• It is recommended to place the trampolines on a flat and level surface with at least 2 m distance to other superstructures, or barriers, e.g. fence, garage, house, tree branches, washing lines, or electrical cables.
• The trampoline shall not be placed over hard surfaces like asphalt, concrete etc.
  Exchange defective parts according to the supplier's recommendation.
• Changes to the trampoline (e.g. addition of an accessory) must be done according to the supplier's instruction.

4.0 SAFETY NET ASSEMBLY

STEP BY STEP CONSTRUCTION

Please read the assembly instructions before beginning to assemble the product.

Please refer to the table below for parts description and numbering.

Make sure you have all the parts listed. If you are missing any parts, please contact place of purchase.

Please use gloves to protect your hands from pinch points during assembly. When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly.

Parts list

Part.Nr.	Description 7x12Ftft 8x14Ft
1 Upper Tube 8 8
2 Lower Tube 8 8
3 Socket (welded) 8 8
4 Net 1 1
5 Sleeve 8 8
6 Foam 16 16
7 Screw 8 8
8 Bolt M6X65 16 16
9 Nut M6 16 16
10 Washer M6 32 32
11 Plastic bushing 16 16
12 Pole cap 8 8
13 End cap 8 8
14 Tool 1set 1set

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

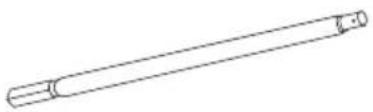

Simple line drawing of a long cylindrical rod or rod (no text or symbols)

(1)

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

(2)

(3)

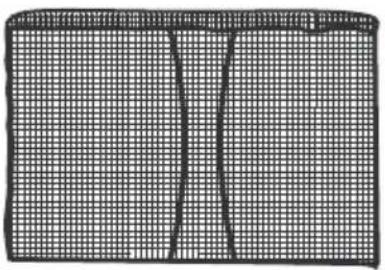

Grid-patterned object with a vertical line and two horizontal lines, no visible text or symbols

(4)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

(5)

Simple line drawing of a cylindrical object with a textured center (no text or symbols)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

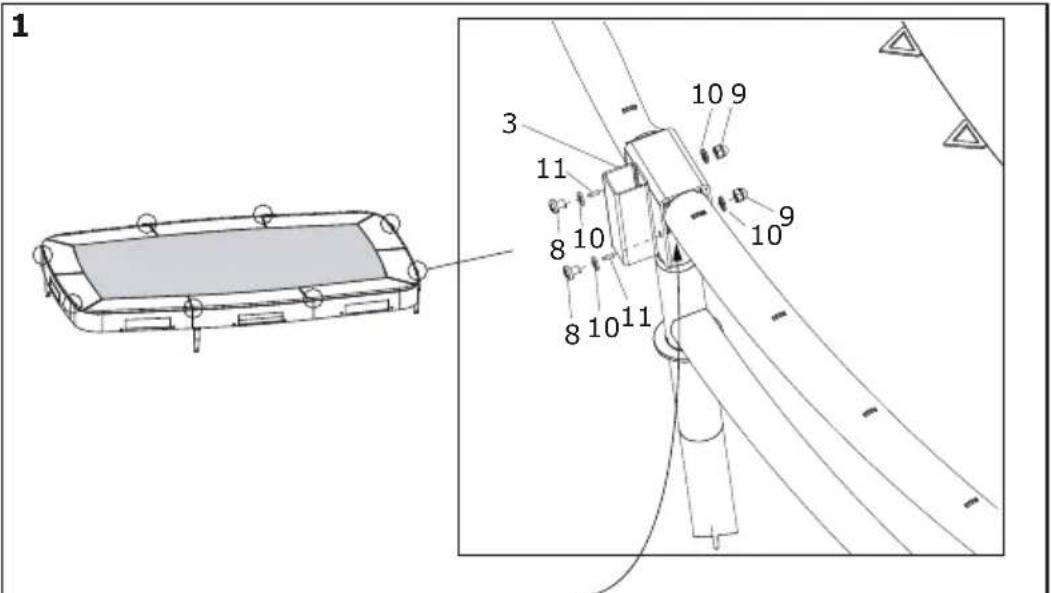

Step 1

Assemble the Socket(3) into the frame of the trampoline, secure with M6X65 Bolt (8), M6 Nut(9) and Washer(10) and Plastic Bushing(11), as shown. Repeat this process until all the Sockets are assembled

1 3 11 8 10 8 10¹¹ 10 9 10⁹

EN: Notice, part 11 should be inside of the Socket (3)
DE: Bitte beachten: Teil 11 sollte sich innerhalb des Rahmenrohres befinden (3).
NL: Opmerking: onderdeel 11 dient aan de binnenkant van de aansluiting (3) te zitten.
FR: Attention: la partie 11 devrait être à l'intérieur de la douille (3).

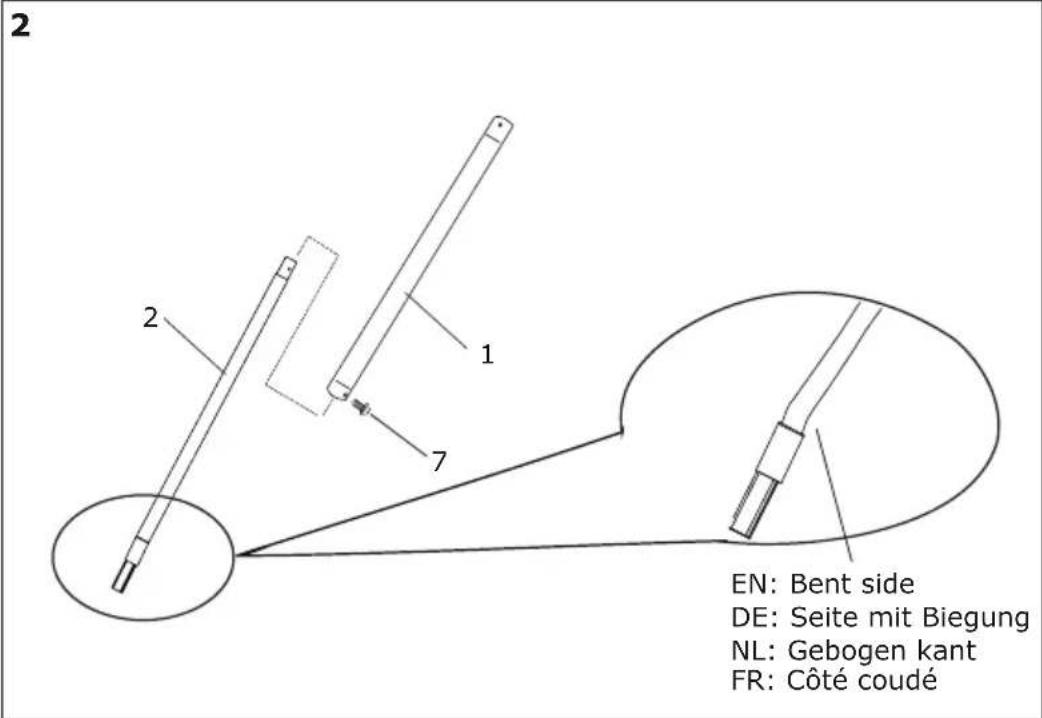

Step 2

Insert the Lower tube(2) into the Upper tube(1), secure with Screw(7)

Spring clip is facing the center of the trampoline Notice: Bent side is facing outside

Step 4

4

EN: The strap sewn to the sleeve

Diagram illustrating a mechanical setup with labeled parts and checkmark indicators for inspection or testing.

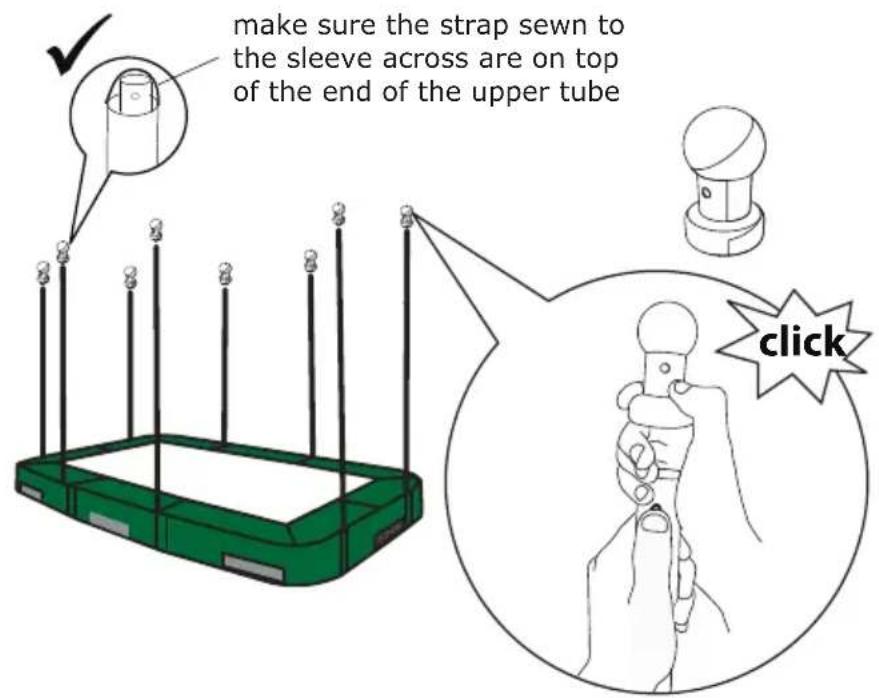

Step 5

5

make sure the strap sewn to the sleeve across are on top of the end of the upper tube click

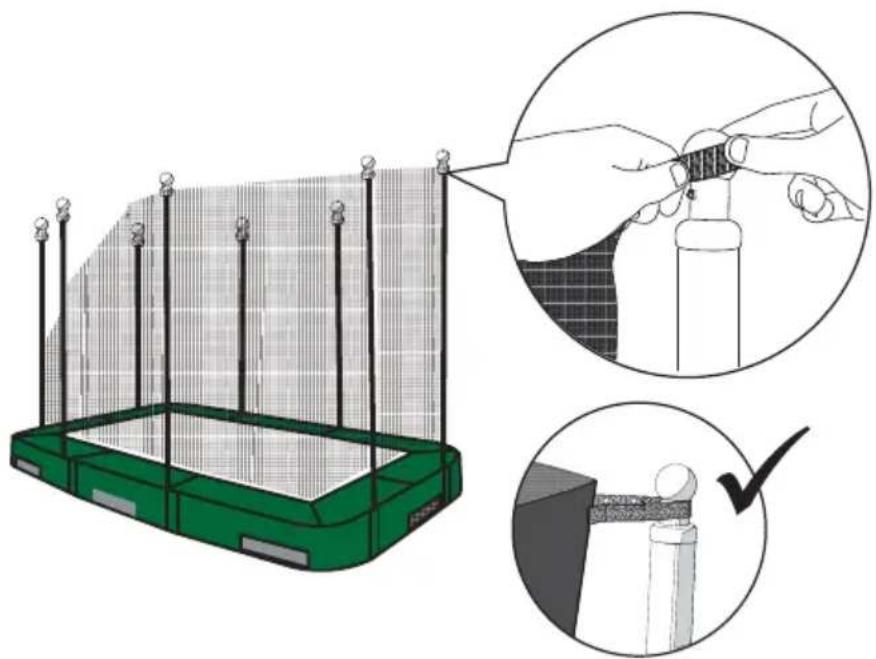

Step 6

6

Diagram illustrating a tennis netting technique with magnified views showing step-by-step assembly and detail

Step 7

7 EN: Bottom side DE: Unterseite NL: Onderkant FR: Dessous EN: Fix DE: Befestigen NL: Bevestigen FR: Fixer

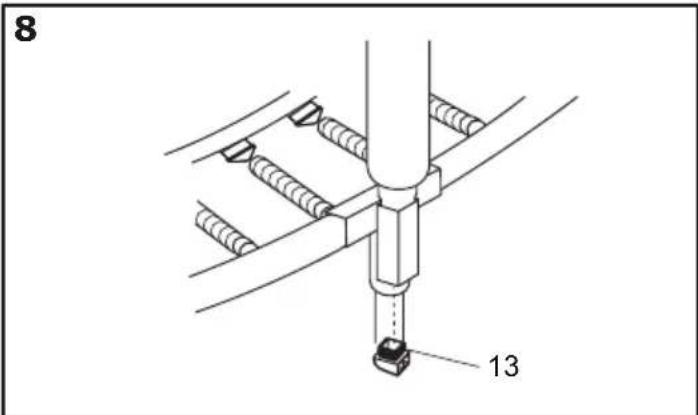

Step 8

Insert the end cap(13) into the bottom hole of the socket.

8 13

Congratulations! Your trampoline enclosure is now fully assembled.

Make sure that all parts are securely attached. Familiarize yourself and all users with the trampoline and enclosure with the safety precautions, use and instructional materials, and care and maintenance instructions in this manual before using the trampoline and enclosure.

5.0 CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Maintenance instructions

It is particularly important to follow the following maintenance instructions at the beginning of each season and periodically during the use season:

• It is necessary to determine whether all nuts and bolts are tight, and if necessary they are tightened;
• It shall be verified that all spring-loaded connections (locking pin) are undamaged and not move while playing;
• Any cover screws and sharp edges must be checked and replaced if necessary;
  • The maintenance manual shall be kept;

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

• Punctures, holes, or tears in the trampoline mat
• Sagging trampoline mat
• Loose stitching or any kind of deterioration of the mat
• Bent or broken frame parts, such as the legs
• Broken, missing, or damaged springs
• Damaged, missing, or insecurely attached frame pad
• Protrusions of any types (especially sharp types) on the frame, springs, or mat

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS, OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

WINDY CONDITIONS

In severe wind situations, the trampoline can be blown about. If you expect windy weather conditions, the trampoline should be moved to a sheltered area or disassembled. Another option is to tie the round, outside portion (top frame) of the trampoline to the ground using ropes and stakes. To ensure security, at least three (3) tie downs should be used. Do not just secure the legs of the trampoline to the ground because they can pull out the frame sockets.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two people should be used. All connector points should be wrapped secured with weather resistant tape, such as duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating. When moving, lift the trampoline slightly of the ground and keep it horizontal to the ground. For any type of other move, you should disassemble the trampoline.

6.0 Warranty

1. After the date of the purchase invoice, the owner of the EXIT Toys JumpArena has a:

2. 2 year warranty on the breaking of the frame

3. 1 year warranty on the tearing of the net

4. The warranty applies only to the material and construction defects with respect to this product or its components.

5. The warranty becomes defunct if:

6. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.

7. This product is not assembled and maintained according to the instruction booklet.
   • Technical repairs to this product are not carried out professionally.
8. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
9. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.
10. The product is rented out or was made available to various unspecified persons in any other manner.
11. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.
12. The owner is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.
13. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced – according to its choice – free of charge during the warranty period mentioned in Article 1.
14. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.
15. This warranty cannot be transferred to third parties.
16. The trampoline is designed for personal use. It is not permitted to rent out or place the trampoline in public areas like schools or day-care centres. The guarantee and any other liabilities shall expire if the playhouse is rented out or used in public areas.

Notes

1.0 Einführung

Simple line drawing of two stick figures standing on a bed with a diagonal line crossing above (no text or symbols)

Simple line drawing of a table with a circular object and diagonal lines (no text or symbols)

Simple line drawing of two stick figures standing at a table, no text or symbols present

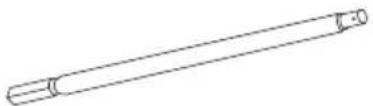

Simple line drawing of a cylindrical rod or rod with two circular ends (no text or symbols)

(1)

Simple line drawing of a cylindrical rod or tube with no text or symbols

(2)

(3)

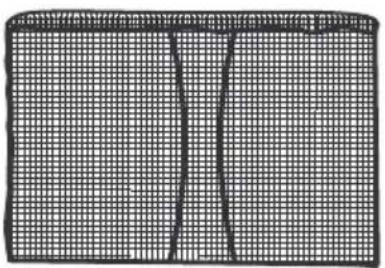

Grid-patterned surface with a central vertical line (no text or symbols)

(4)

Simple line drawing of a cylindrical object with a circular end (no text or symbols)

(5)

Simple line drawing of a cylindrical object with a textured center (no text or symbols)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

Technical line drawing of a bent tool and a rectangular mechanical part (no text or symbols)

Schritt 1

EN: The strap sewn to the sleeve

Diagram illustrating a mechanical setup with labeled parts and checkmark indicators for inspection or validation.

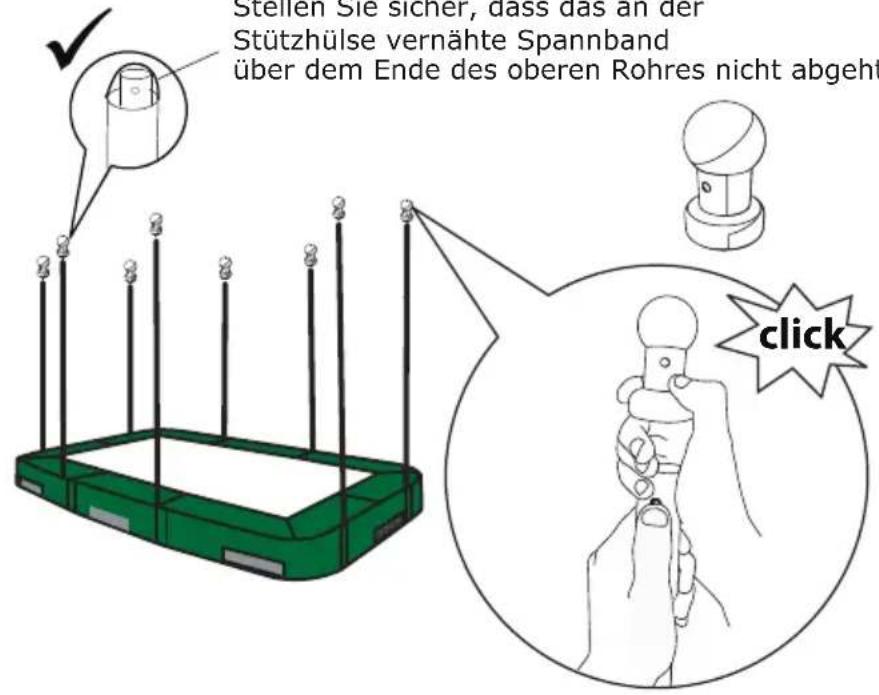

Schritt 5

5

Diagram illustrating a tennis netting technique with magnified views showing step-by-step assembly and detail

Schritt 7

7 EN: Bottom side DE: Unterseite NL: Onderkant FR: Dessous EN: Fix DE: Befestigen NL: Bevestigen FR: Fixer

Schritt 8

Simple line drawing of two stick figures standing on a table with a diagonal line crossing through them (no text or symbols)

Simple line drawing of a hand holding a circular object above a rectangular base, with diagonal lines indicating motion or force (no text or symbols)

Simple line drawing of two stick figures standing at a table, one seated and one standing (no text or symbols)

Simple line drawing of a cylindrical rod or rod with two circular ends (no text or symbols)

(1)

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

(2)

(3)

Grid-patterned object with a central vertical line and two horizontal lines, no visible text or symbols

(4)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

(5)

Simple line drawing of a cylindrical object with a textured pattern (no text or symbols)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

Stap 1

Diagram illustrating a mechanical assembly with labeled parts and checkmark indicators for inspection or validation.

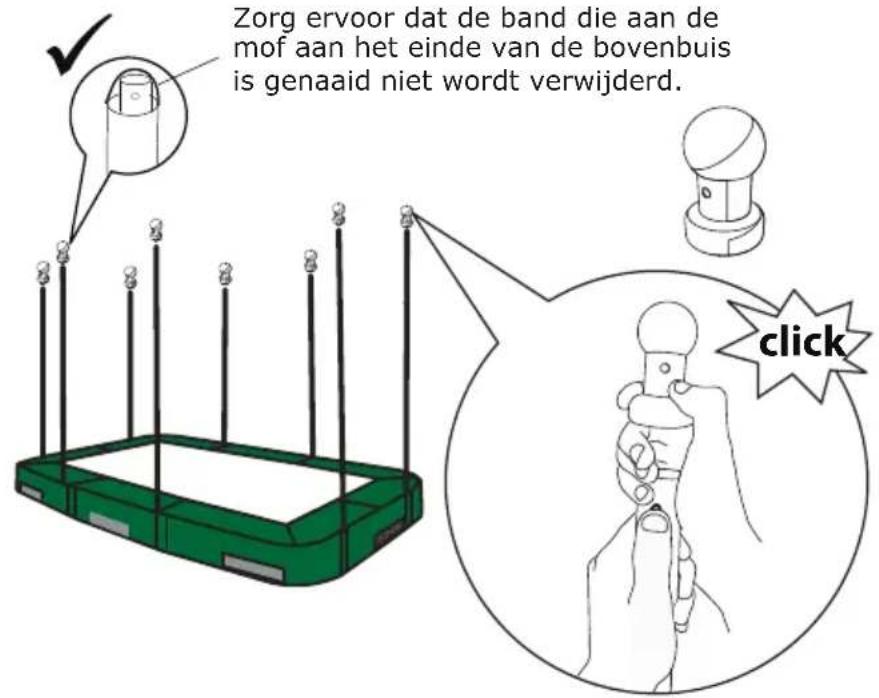

Stap 5

5

Diagram illustrating a tennis netting technique with magnified views showing step-by-step assembly and detail

Stap 7

7 EN: Bottom side DE: Unterseite NL: Onderkant FR: Dessous EN: Fix DE: Befestigen NL: Bevestigen FR: Fixer

Stap 8

Simple line drawing of two stick figures standing on a bed, no text or symbols present

Simple line drawing of a person bending over a surface with a diagonal line above (no text or symbols)

Simple line drawing of two stick figures standing at a table with a horizontal bar (no text or symbols)

Simple line drawing of a cylindrical rod or rod (no text or symbols)

(1)

Simple line drawing of a cylindrical rod or rod with no text, numbers, or symbols

(2)

(3)

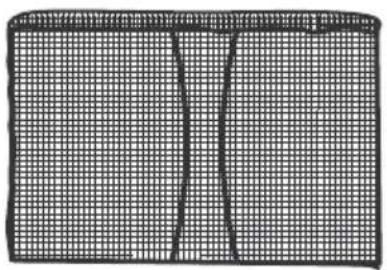

Grid-patterned fabric with a central vertical seam and two horizontal lines (no text or symbols)

(4)

Simple line drawing of a cylindrical rod or tube (no text or symbols)

(5)

Simple line drawing of a cylindrical object with a textured center (no text or symbols)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

Technical line drawing of a pencil and a mechanical part (no text or symbols)

Étape 1

Diagram illustrating a mechanical setup with labeled parts and checkmark indicators for inspection or validation.

Étape 5

5

Diagram illustrating a tennis netting technique with magnified views showing step-by-step assembly and detail

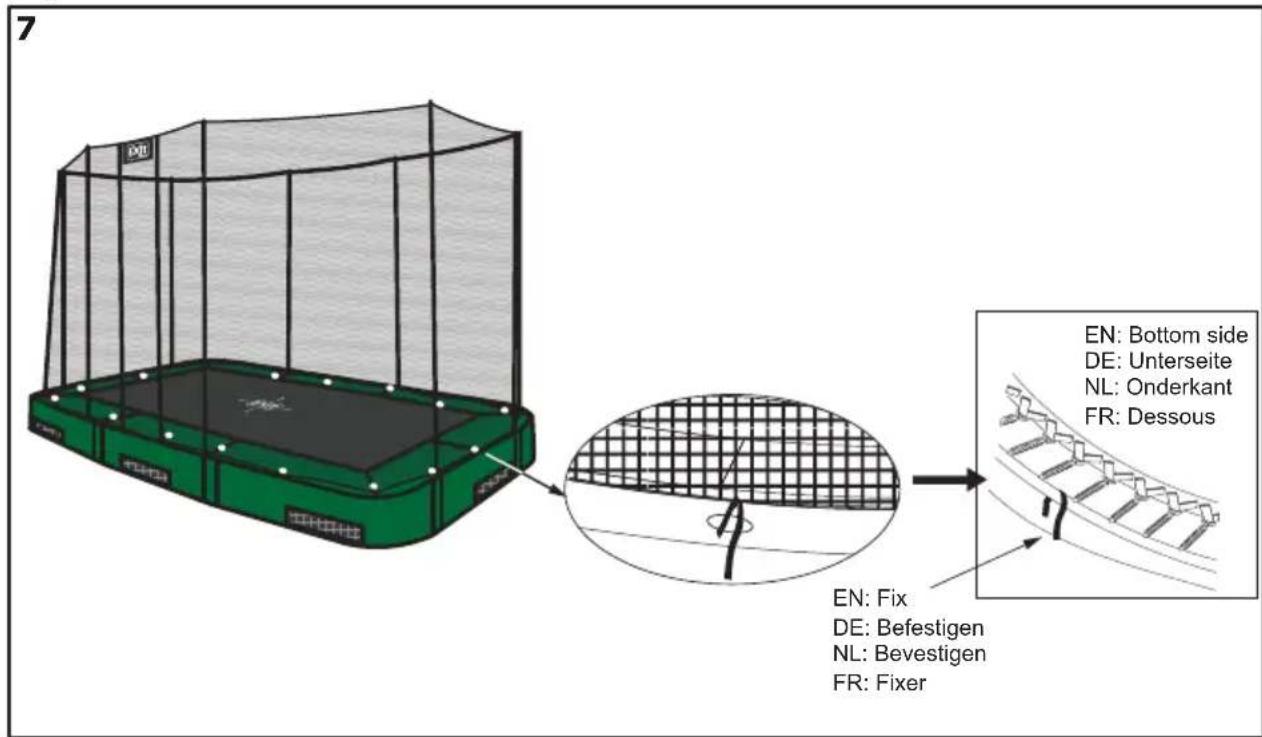

Étape 7

7 EN: Bottom side DE: Unterseite NL: Onderkant FR: Dessous EN: Fix DE: Befestigen NL: Bevestigen FR: Fixer

Étape 8

3D rendering of a trampoline with netting and safety fencing (no text or symbols)
