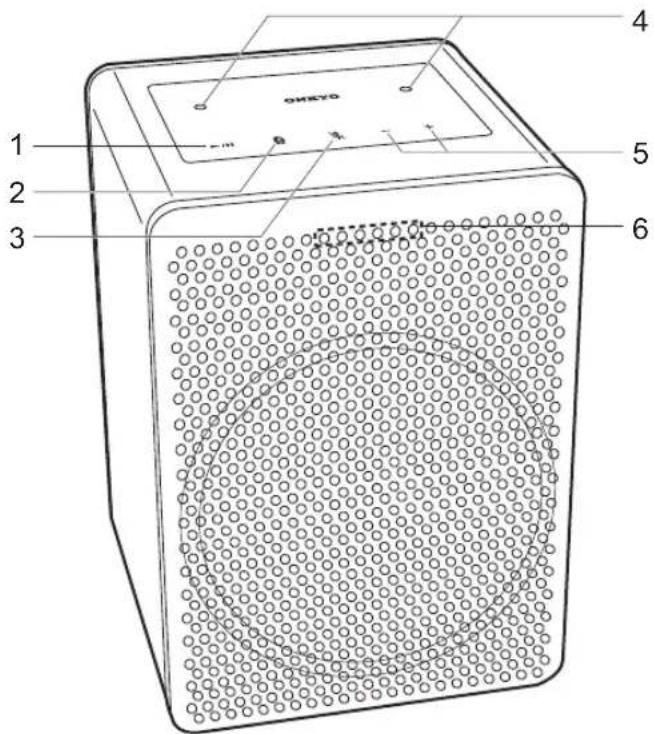

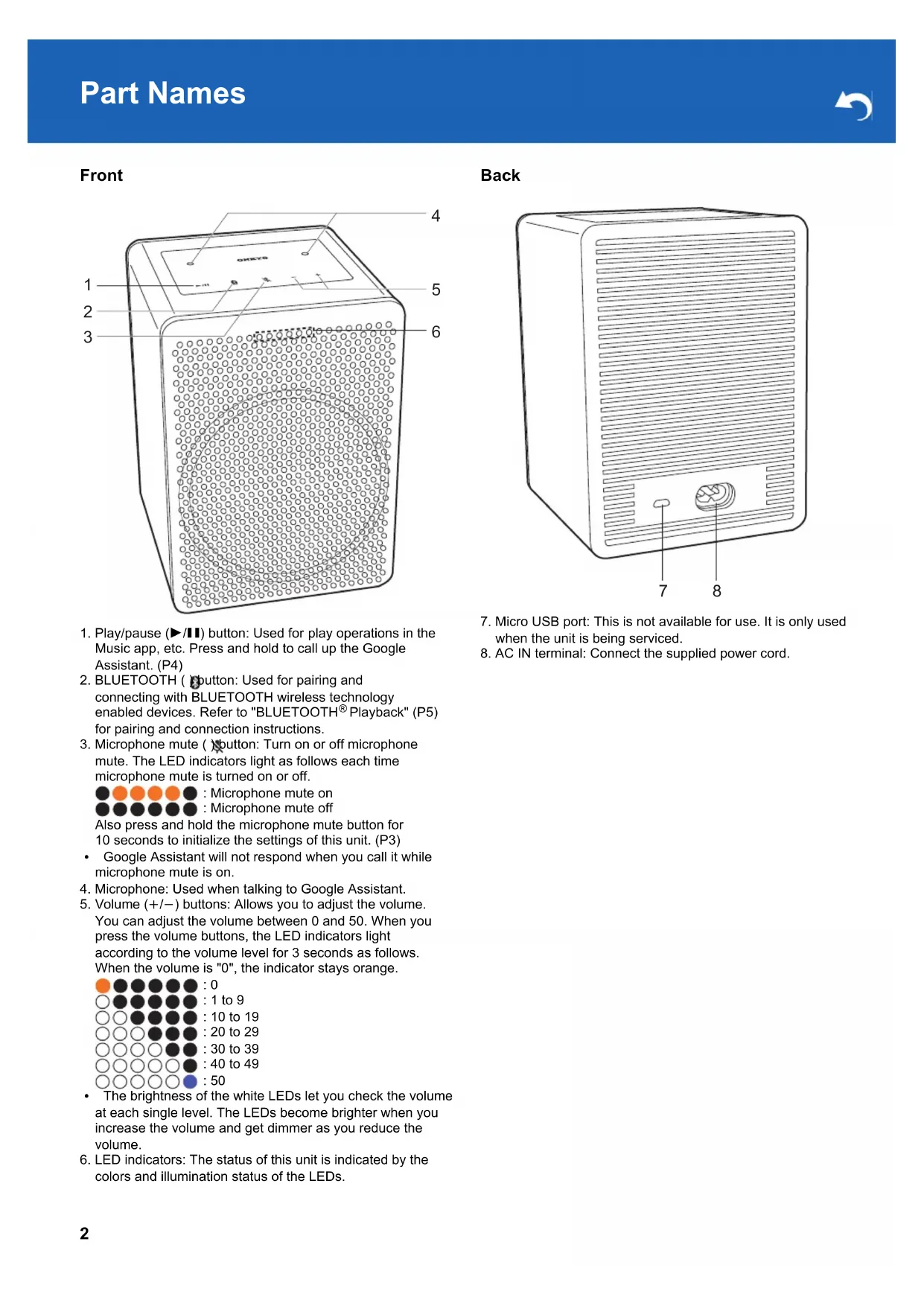

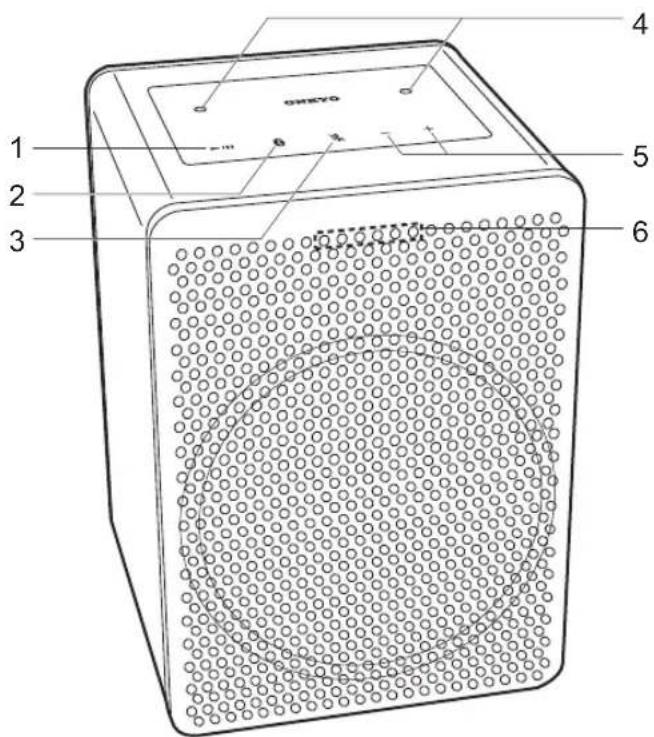

1. Play/pause (▶/■) button: Used for play operations in the Music app, etc. Press and hold to call up the Google Assistant. (P4)
2. BLUETOOTH ( button: Used for pairing and connecting with BLUETOOTH wireless technology enabled devices. Refer to "BLUETOOTH® Playback" (P5) for pairing and connection instructions.
3. Microphone mute ( button: Turn on or off microphone.
   mute. The LED indicators light as follows each time
   microphone mute is turned on or off.

: Microphone mute on : Microphone mute off

Also press and hold the microphone mute button for 10 seconds to initialize the settings of this unit. (P3)

• Google Assistant will not respond when you call it while microphone mute is on.

• Microphone: Used when talking to Google Assistant.

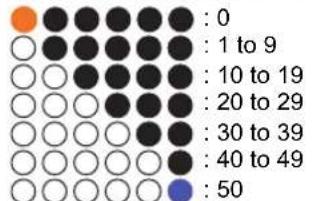

• Volume (+ / - ) buttons: Allows you to adjust the volume. You can adjust the volume between 0 and 50. When you press the volume buttons, the LED indicators light according to the volume level for 3 seconds as follows. When the volume is "0", the indicator stays orange.

• The brightness of the white LEDs let you check the volume at each single level. The LEDs become brighter when you increase the volume and get dimmer as you reduce the volume.

• LED indicators: The status of this unit is indicated by the colors and illumination status of the LEDs.

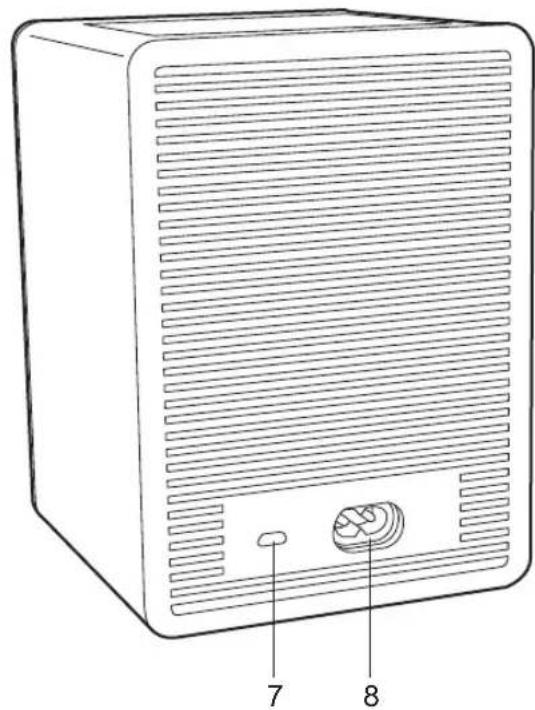

Back

1. Micro USB port: This is not available for use. It is only used when the unit is being serviced.
2. AC IN terminal: Connect the supplied power cord.

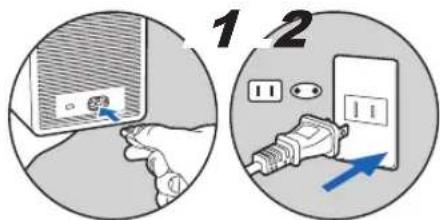

Power Cord Hookup

This unit includes a removable power cord. Connect the power cord to AC IN of the unit and then connect to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

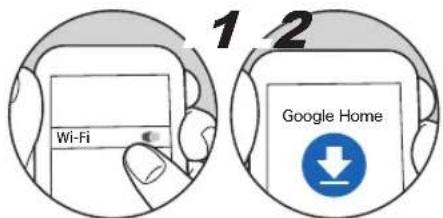

Download the Google Home app

Use the Google Home app to setup the unit and operate it. Download the Google Home app from Google Play or the App Store to your smartphone or tablet.

• Google Home app can be used on the following operating systems. (As of September 2017)

AndroidTM: Android 4.2 or later

iOS: iOS 8.0 or later (supported on iPhone®, iPad®, and iPod touch®)

The smartphone or tablet needs to be connected to the same network as this unit to setup and operate the unit. Check network connection beforehand.

Initial Setup

Perform the following procedure when the unit is on. 1.Start the Google Home app.

When you tap "ACCEPT" for the terms of service and privacy policy, the network connection between this unit and the smartphone is initiated. Follow the on-screen instructions to complete the initial settings.

1. You can select a tutorial which lets you practice using the Google Assistant once initial settings are complete. Refer to "Meet your Google Assistant" (P4) for information on the Google Assistant.

Initialize

Initialize the settings of the unit to return the settings to the status at the time of purchase. Press and hold the microphone mute button for 10 seconds to initialize the unit. The LED indicators flash as follows when initializing is

started.

It takes about 20 seconds to initialize. The LED indicators turn off when initializing is finished, and the settings return to the default settings.

You can call up the Google Assistant by saying "OK Google" at the unit, or by pressing and holding the play/pause button. The LED indicators flash white when the Google Assistant has started and ready to receive questions.

Talk to the unit while the LED indicators are flashing white. The LED indicators light as follows when a question is recognized.

The question is answered after a while. The LED indicators flash white while the answer is being given.

• The LED indicators light orange when microphone mute is on, and there will be no response from the Google Assistant even if you call it.

Question to Google Assistant

How are you?

Stop

Turn it up

Volume level 6

What can you do?

Play some Music

Play dance music on Youtube

Pause

Next Song

Set a timer 15 minutes

How many teaspoons in a cup?

When's my first event tomorrow?

Wake me up at 6 am tomorrow

Tell me about my day

What's the weather today?

What's the latest news?

How do you I say hello in Spanish?

How calories in an apple?

What sound does a cow make?

Who is the President of Mexico?

What is the nearest pharmacy?

When do they close?

What is their phone number?

Play some music on AV Receiver

Pause the Living Room Speaker

Play sneezing panda video on TV

Set the thermostat 72 degrees

Turn on the living room light

Dim the light in the kitchen

Turn off the bed room light

Pairing

Pairing is necessary when connecting the BLUETOOTH enabled devices for the first time. Perform the following procedure when the unit is on.

1. Press and hold the BLUETOOTH button on this unit for 3 seconds.

The LED indicators flash as follows when pairing is started.

1. Enable (turn on) the BLUETOOTH function of the BLUETOOTH wireless technology enabled device, then select this unit from amongst the devices displayed. This unit is displayed as "VC-GX30XXXX".

1. The LED indicator on the right lights blue when pairing is finished.

Pairing has failed if the LED indicator on the right does not light. Retry from step 1.

• Do steps 1 to 3 to connect another BLUETOOTH wireless technology enabled device.
• The coverage area is within about 10m . Note that connection is not always guaranteed with all BLUETOOTH wireless technology enabled devices.

Playing Back

Perform the following procedure when the unit is on.

1. Perform the connection procedure on the BLUETOOTH wireless technology enabled device.

2. You can also press the BLUETOOTH button on this unit to connect the BLUETOOTH wireless technology enabled device that was last connected. Note that this may not work with some BLUETOOTH wireless technology enabled devices.

3. Play the music files. Increase the volume of the

BLUETOOTH wireless technology enabled device to an appropriate level.

• Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH wireless technology enabled device.

■ Analog Audio Output

RMS Output Power 40 W (4 ohm at 1 kHz THD 10% ), 10 W (8 ohm at 10 kHz THD 10% )

Network Section

Wireless LAN
IEEE802.11 a/b/g/n/ac standard
5 GHz/2.4 GHz band
EU: 1-13ch, 36-48ch, 52-64ch, 100-140ch
JP: 1-14ch, 36-48ch, 52-64ch, 100-140ch
US: 1-11ch, 36-48ch, 52-64ch, 100-140ch, 149-165ch

Bluetooth Section

Communication system BLUETOOTH Specification version 4.2

Frequency band 2.4 GHz (2.402 GHz - 2.480 GHz) Modulation method FHSS (Freq Hopping Spread Spectrum)

Compatible Bluetooth profiles A2DP:1.31 AVRCP:1.6

Supported Codes SBC AAC

Transmission range (A2DP) 20 Hz - 20 kHz (Sampling frequency 44.1/48 kHz) Maximum communication range Line of sight approx. 10m^*

• The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna's performance, operating system, software application, etc.

General

Power Supply AC 100 - 240 V, 50 / 60 Hz
Power Consumption 26 W

VC-GX30 complies with European Commission Regulation (EC) No 1275/2008 as a networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality).

Power consumption In Standby: N/A In Network Standby: N/A Operation Standby*: 2.7 W

• Operation Standby : VC-GX30 is connected to a wireless network but does not provide active audio functions.

Speaker Type Closed box type

Speaker Configuration Tweeter: 20mm× 1 Soft Dome Woofer: 80mm× 1 Cone

Dimensions (W× H× D) 120mm× 168mm× 128mm 4 - 5 / 7''× 6 - 3 / 5''× 5''

Weight 1.8 kg (4.0 lbs.)

Accessory

AC Power cord (1)
Quick Start Guide (1)
Meet your Google Assistant (European models) (3)
Meet your Google Assistant (North American models) (2)

• This document is an online instruction manual. It is not included as an accessory.

Specifications and appearance are subject to change without notice. We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.

License and Trademark

Google, Google Home and Google Play and other related marks and logos are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Bluetooth

The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

All other trademarks are the property of their respective owners. / Toutes les autres marques commerciales sont la propriété de leurs détenteurs respectifs. / El resto de commas commerciales son propiedad sus des respectivos propietarios. / Tutti gli和其他 marchi di fabbrica sono di propietarie dei rispetti propriatori. / Alle anderen Warenzeichen sind das Eigentum ihrer jeweiligen Eigentümer. / Alle andere handelsmerken zijn eigendom van de desbetrefrende rechtebbenden. / Alla andra varumärken tilhör deras respective ägare. / Kaikk muut tutemerkit ovar omistajiensa omaisuutta. /所有其他商標為各自所有者所有。

1-10-5 Yokoami, Sumida-ku, Tokyo 130-0015 Japan
http://www.onkyo.com/

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
For Dealer, Service, Order and all other Business Inquiries:
Tel: [phone] Fax: [phone]
http://www.us.onkyo.com/

For Product Support Team Only: 1-800-229-1687 http://www.us.onkyo.com/

Gutenbergstrasse 3, 82178 Puchheim, Germany
Tel: [phone] Fax: [phone]
http://www.eu.onkyo.com/

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom Tel: [phone] Fax: [phone] For Product Support only: [phone] http://www.uk.onkyo.com/en/

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE
For Product Support only: [phone]
http://www.fr.onkyo.com/fr/

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
http://www.hk.onkyo.com/

302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032, Tel: [phone] Fax: [phone]
http://www.cn.onkyo.com/

Please contact an Onkyo distributor referring to Onkyo SUPPORT site.
http://www.intl.onkyo.com/support/

The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.
