USER MANUAL Grandprix Detomaso

Foreword Congratulations for purchasing your new DETOMASO-WALTZ special edition watch. You are now the new owner of a high precision time keeper characte- rised by its innovative design. We keep a long term stock of the most important spare parts for all our wat- ches, guaranteeing repair over a period of many years. In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.13

Waterproof properties The water resistance of your DETOMASO watch has been tested to be 5 ATM. This means that it is splashproof and that you may wash your hands or take a bath with it. However, the watch is not to be worn in the shower or when swim- ming or diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually with daily use. The seals are an impor- tant factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing. Your DETOMASO watch has been tested and has a water resistance of 5 ATM. The specication „5 ATM” is not to be confused with the diving depth; it is simply the denition of the inspection pressure. An inspection pressure of 5 ATM is reached at a depth of 50 m. You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water. Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage.14

Instructions for care Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time. Please keep your watch away from magnetic elds, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed. If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment. Batteries should be replaced by a specialist at regular intervals of approx. 1 – 1 ½ years. The seals can then be checked and, if necessary, replaced at the same time. In the event of condensation forming underneath the glass (misting), the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage. The crown should always be rmly pressed in or screwed tight during use.15

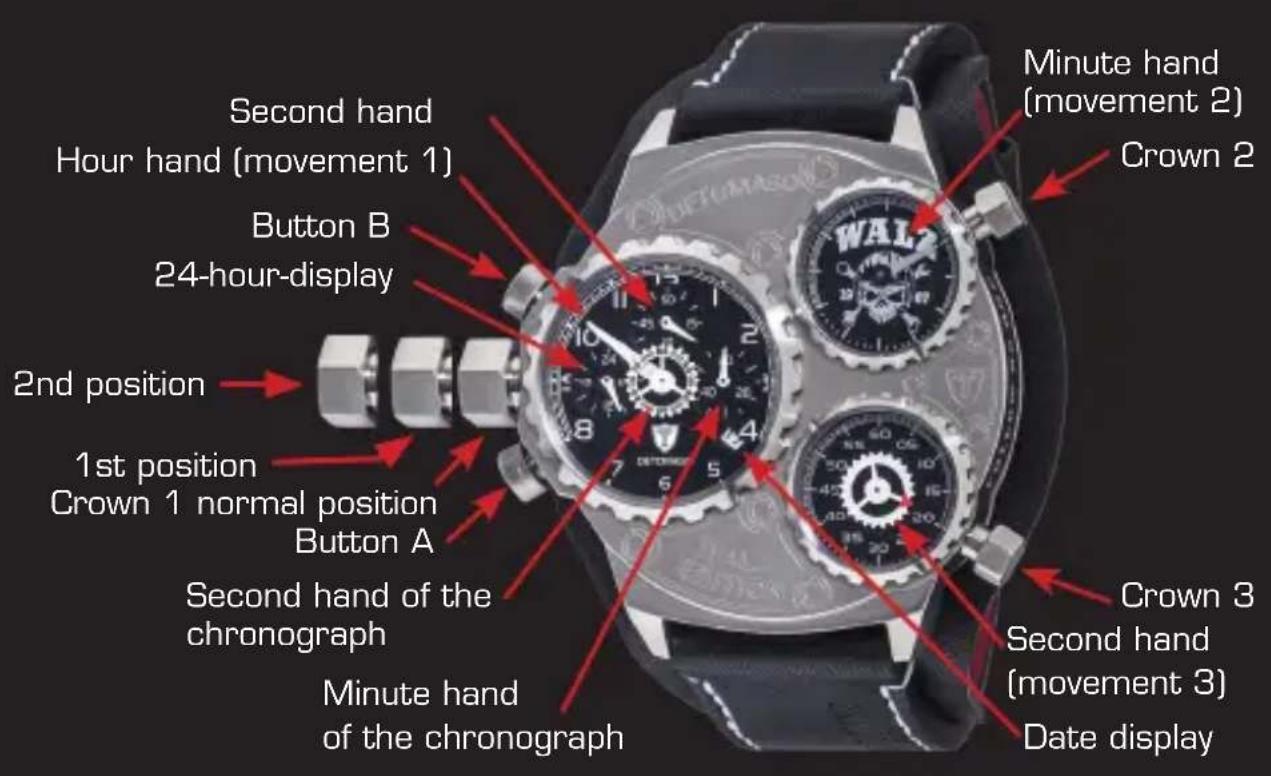

Operating instructions Crown 1 normal position Crown 2 Second hand (movement 3) Crown 3 Date display Button A Minute hand (movement 2) Button B 24-hour-display Second hand of the chronograph Second hand Minute hand of the chronograph 1st position 2nd position Hour hand (movement 1)16

Operating instructions Setting the date

1. Pull out the crown 1 in position 1.

2. Turn the crown 1 counterclockwise until the date is set.

3. Push back the crown into normal position when the weekday is set.

Setting the hour display (Movement 1)

1. Pull out crown 1 into the 2. position.

2. Set the time by turning the crown.

3. Push back the crown into the normal position after the time is set.

Setting the minute display (Movement 2)

1. Pull out crown 2 into the 1. position

2. Set the time by turning the crown.

3. Push back the crown into the normal position after the time is set.

Setting the seconds display (Movement 3)

1. Pull out the crown 3 into the 1. position.

2. The second hand will stop.

3. Push back the crown in to the normal position in order to restart the second

1. Push button A to start the Chrono (stop watch).

2. Repush button A to stop the function.

3. Push button B to reset to zero.

Calibration (reset) of the Chronograph (only after battery change or faulty handling)

1. Pull out the crown to position 2.

2. Press button “A” to set the second hand of the chronograph to the zero

position. A short push will give you a step by step advance whereas the hand can be advanced rapidly by continuously pushing this button.

3. Push the crown back into its normal position. The chronograph has now

been successfully calibrated.18

24 month warranty We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer. Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period. We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer’s warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the awless work- manship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown). We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model. To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the ser- vice centre listed on the back of this booklet.19
