USER MANUAL Adrenaline DTW1003 Detomaso
WALZ
Adrenaline
DT-W1003
bar
| Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) |DE
Inhaltsverzeichnis
Vorwort 4
Wasserdichtigkeit 5
Pflegehinweise 6
Instructions for care 14
Operating instructions 15
Calibration (reset) of the Chronograph 17
24 month warranty 18
EN
Foreword
Congratulations for purchasing your new DETOMASO-WALTZ special edition watch. You are now the new owner of a high precision time keeper characterised by its innovative design.
We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.
In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.
Waterproof properties
The water resistance of your DETOMASO watch has been tested to be 10 ATM.
This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it but it is not suitable for diving. water resistance is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use.
The seals are the important factor in guaranteeing the water resistance of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of water resistance is given in ATM and noted on the base of the casing.
Your DETOMASO watch has been tested and has a water resistance of 10 ATM. The specification 10 ATM is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 10 ATM is reached at a depth of 100 m. You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.
Watches are at particular risk when the wearer dives into water after sun-bathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.
EN
Instructions for care
Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.
Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.
If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.
Batteries should be replaced by a specialist at regular intervals of approx. 1 – 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.
In the event of condensation forming underneath the glass (misting), the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.
The crown should always be firmly pressed in or screwed tight during use.
Operating instructions
EN

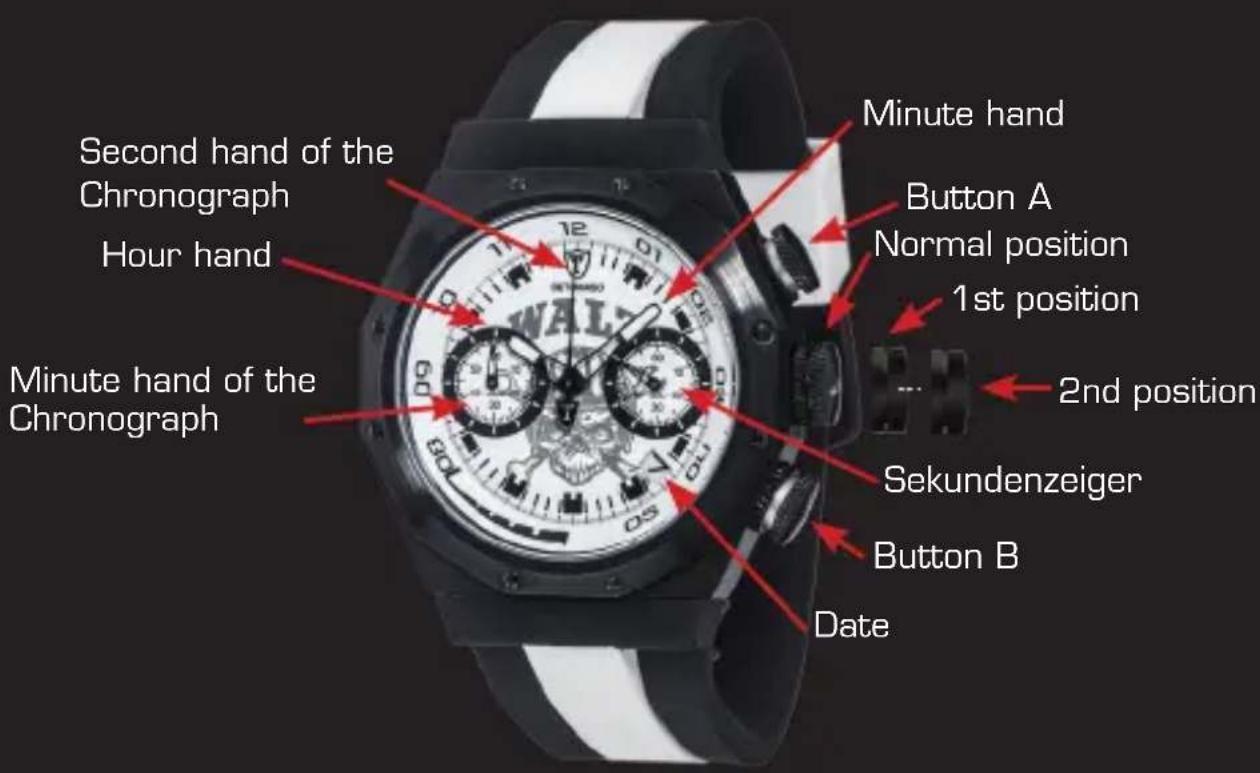

Operating instructions
Setting the time
- Pull out the crown into the 2nd position
- Move the hour and minute hand by turning the crown clockwise
- Push back the crown into the normal position.
Setting the date
- Pull out the crown into the 1st position
- Set the date by turning the crown clockwise.
- Push back the crown into the normal position after the date has been adjusted.
Do not set the date between 9 pm and 1 am.
Chronograph – simple use of the stop watch
- Push button A to start the Chrono (stop watch)
- Repush button A to stop the function
- Push button B to reset to zero
Calibration (reset) of the Chronograph
EN
(only after battery change or faulty handling)
- Pull out the crown to position 2.
- Press button "A" to set the second hand of the chronograph to the zero position. A short push will give you a step by step advance whereas the hand can be advanced rapidly by continuously pushing this button.
- Push the crown back into its normal position. The chronograph has now been successfully calibrated.
EN
24 month warranty
We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.
Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.
We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights.
The warranty covers the functioning of the clockwork and the flawless workmanship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).
We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.
To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.
FR
Table des matières
Préambule 20
Etanchéité 21
Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)
The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.
This product shall be handed over to your local community waste collection point for the recycling of the product. For more information, please contact your Government Waste-Disposal department in your country. Incorrect waste handling could possibly have a bad effect on the environment and human health due to potential dangerous substances. With your cooperation in the correct disposal of this product, you contribute to reuse, recycle and recover the product and our environment will be protected. Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only). For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.
