USER MANUAL Aurino DT1061 Detomaso

Instructions for care 14

Operating instructions 15

Calibration (reset) of the Chronograph 17

24 months warranty 18

EN

Foreword

Congratulations on the purchase of your new DETOMASO watch. You are now the new owner of a high precision time keeper characterised by its innovative design.

We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.

In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.

Waterproof properties

The water resistance of your DETOMASO watch has been tested to be 10 ATM.

This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it but it is not suitable for diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use. The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing.

Your DETOMASO watch has been tested and has a water resistance of 10 ATM. The specification "10 ATM" is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 10 ATM is reached at a depth of 100m . You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.

Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.

EN

Instructions for care

Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.

Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.

If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.

Batteries should be replaced by a specialist at regular intervals of approx. 1 - 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.

In the event of condensation forming underneath the glass [misting], the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.

The crown should always be firmly pressed in or screwed tight during use.

Operating instructions for the chronograph

Setting the date

Caution: Do not set the date between 9 pm and 1 am.

1. Pull out the crown into the 1st position.
2. Set the date by turning the crown clockwise.
3. Push back the crown into the normal position after the date has been adjusted.

Setting the time

1. Pull out the crown into the 2nd position.
2. Set the time by turning the crown. Please ensure the correct setting of the 24 h hand.
3. Push back the crown into the normal position after the time has been adjusted.

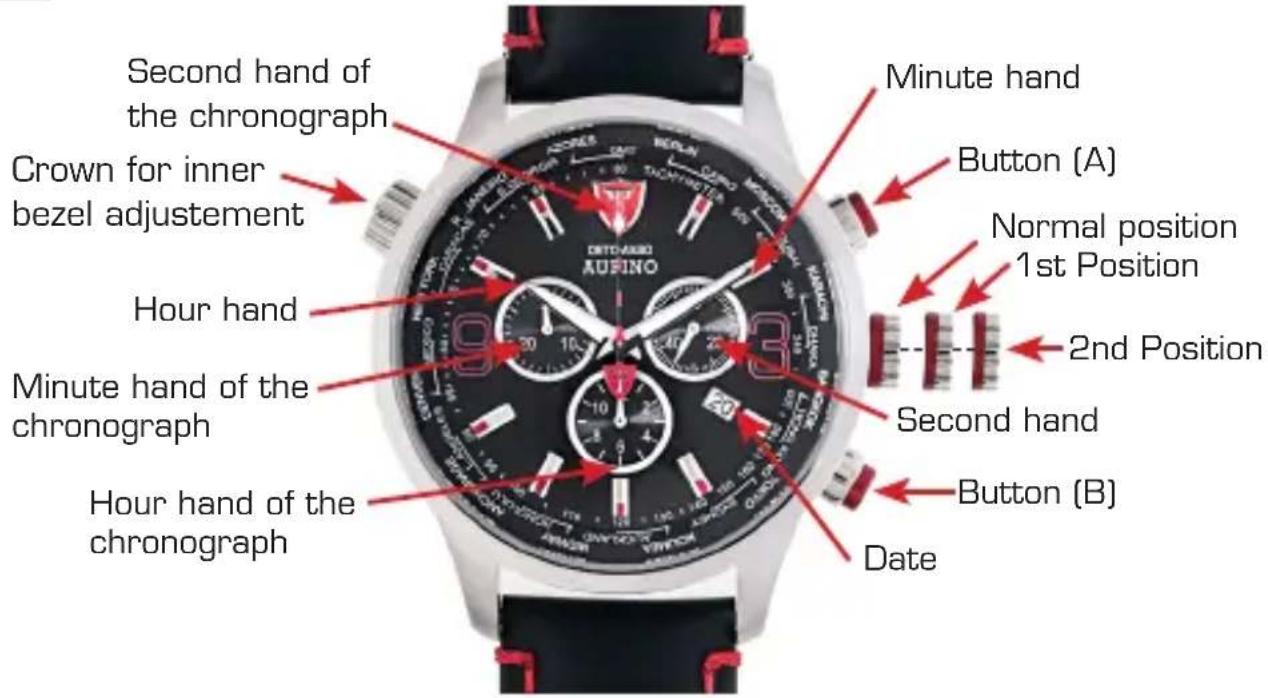

Chronograph - simple use of the stop watch

1. Push button A to start the Chrono (stop watch)
2. Repush button A to stop the function. Another push of button A will let the Chronograph run.
3. Push button B to reset to zero. (the Chronograph is not supposed to run)

EN

Taking split time and total time

1. Push button A to start the Chrono (stop watch)
2. Push button B to measure the split time
3. Repush button B for split release. Now the second hand advances rapidly to catch up on the elapsed time since the split time.
4. Repush button A to stop the Chrono
5. Push button B to reset to zero.

Calibrating the chronograph

This operation should be performed if the hands on the chronograph have not returned to the zero position after the chronograph has been reset or after the battery has been replaced.

1. Pull the crown out into the 2nd position.
2. Push buttons A and B at the same time for 2 seconds in order to activate the correction mode. The second hand on the stopwatch will rotate once by 360^
3. Push button A step by step in order to move the second hand on the stopwatch forward (holding down the button causes the second hand to move forward quickly). Do this until the second hand on the stopwatch has reached its zero position.
4. Push button B to select the setting mode for the hour hand on the stopwatch.
5. Push button A step by step in order to move the hour hand on the stopwatch forward (holding down the button causes the hour hand to move forward quickly). Do this until the hour hand on the stopwatch has reached its zero position.
6. Push button B to select the setting mode for the minute hand on the stopwatch.
7. Push button A step by step in order to move the minute hand on the stopwatch forward (holding down the button causes the minute hand to move forward quickly). Do this until the minute on the stopwatch has reached its zero position.
8. Push the crown back into the normal position.

EN

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.

We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch.

Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.

To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.

Table des matières

Preambule 20

Etanchéité 21

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use. This product shall be handed over to your local community waste collection point for the recycling of theproduct. For more information, please contact your Government Waste-Disposal department in yourcountry. Incorrect waste handling could possibly have a bad effect on the environment and human healthdue to potential dangerous substances. With your cooperation in the correct disposal of this product,you contribute to reuse, recycle and recover the product and our environment will be protected.

Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only)

For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

DETOMASO

Service Center

MAX Trader GmbH
